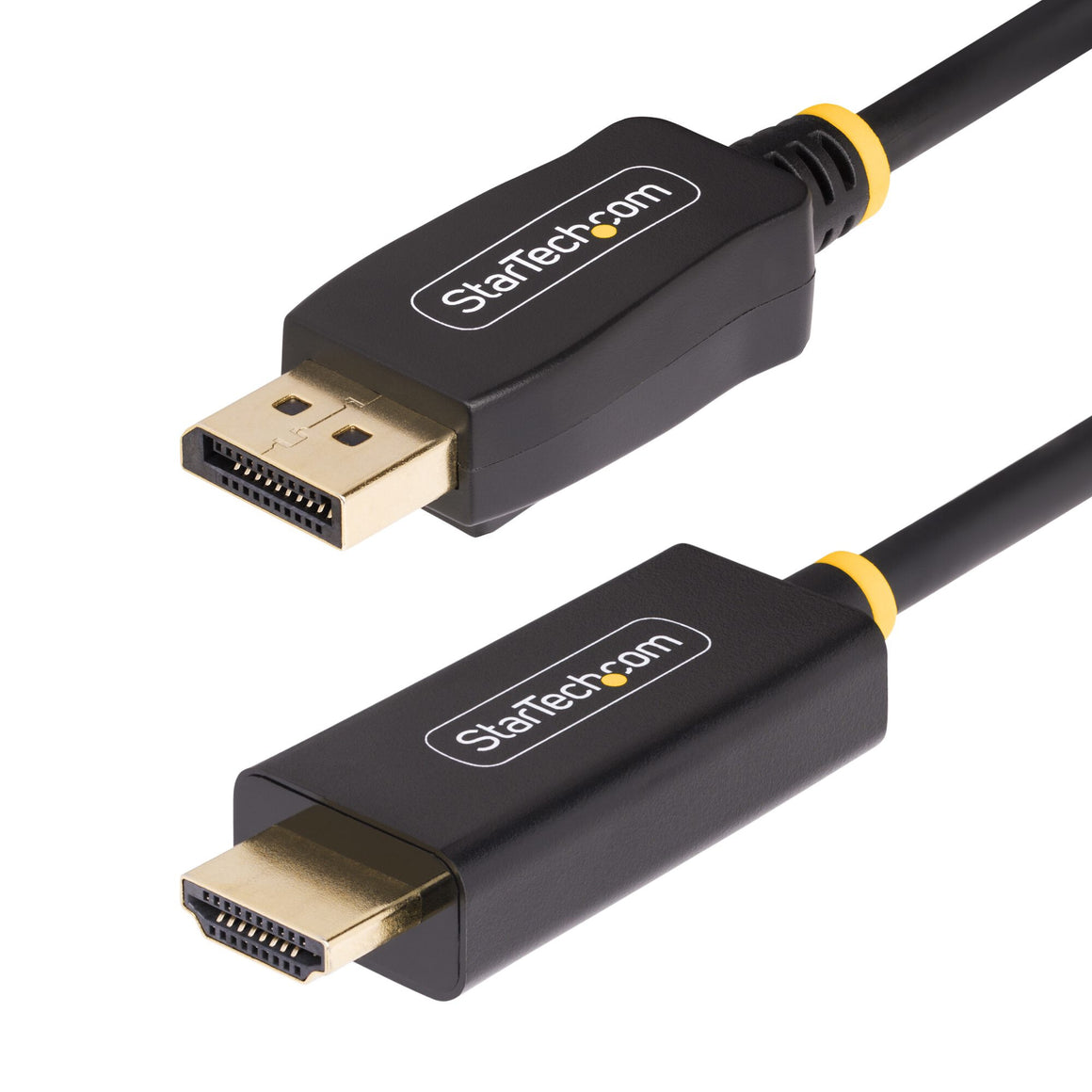

Connect a DisplayPort source to an HDMI display up to 3.3ft (1m) away, with support for up to 4K 60Hz HDR video

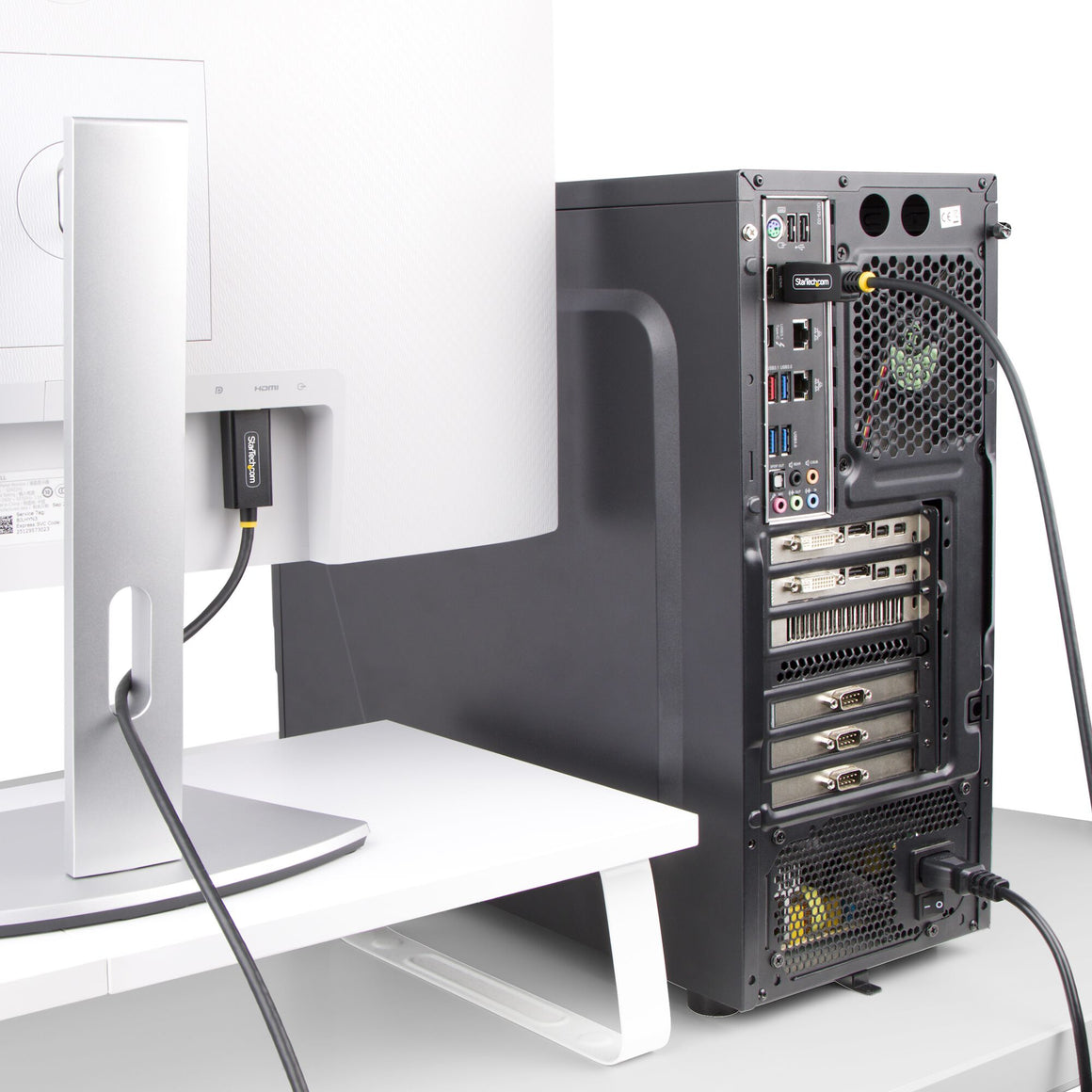

Connect a DisplayPort-enabled desktop to 4K 60Hz High Dynamic Range (HDR)-capable HDMI monitor, using this 3.3-foot (1-meter) Active DisplayPort to HDMI Adapter Cable.
4K 60Hz HDR Capabilities
HDR improves visual quality by providing a wide assortment of colors across a dynamic range of brightnesses, resulting in a more vibrant viewing experience. The DP 1.4 to HDMI 2.0b adapter supports 18Gbps bandwidth, allowing for 4:4:4/RGB color space, 8-bit with dithering, and 7.1ch audio. It also supports HBR3 and HDCP 1.4/2.3.
Compatibility
The Universal Adapter Cable is compatible with all hardware platforms and any operating system. Utilize integrated or dedicated GPU (Intel/AMD/Nvidia) capabilities, enabling high-performance graphics with minimal CPU usage.
Designed and Built for IT Professionals
Integrated video adapter cable reduces points of failure, signal loss and clutter, and requires no additional power. Built with adaptive receiver equalization to optimize the input signal and amplify the output signal, to ensure display compatibility. Cage shielding prevents Electromagnetic Interference (EMI) and helps maintain signal integrity. This Active Adapter Cable works with computers from Dell, HP, Lenovo, and other desktop manufacturers. It is backward compatible with 4K 30Hz, 1080p, and other lower resolutions.
The StarTech.com Advantage
| Features |
|---|
| Converter type |
Active video converter |
| Supported audio channels |
7.1 |
| Colour sampling |
4:4:4 |
| Colour depth |
10 bit |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable type |
Round cable |
| Chipset |
Synaptics - VMR7100 |
| Product colour |
Black |
| Refresh rate at maximum resolution |
60 Hz |
| Maximum refresh rate |
120 Hz |
| Bandwidth |
18000 MB/s |
| Supported graphics resolutions |
1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3072 x 1728, 3200 x 1800, 3840 x 2160, 4096 x 2160 |
| Maximum resolution |
4096 x 2160 pixels |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort version |
1.4 |
| HDCP version |
1.4/2.3 |
| HDCP |
Yes |
| HDMI version |
2.0b |
| Connector contacts plating |
Gold |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 |
DisplayPort |
| Cable length |
1 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
55 g |
| Cable diameter |
5 mm |
| Packaging data |
|---|
| Package weight |
55 g |
| Package height |
10 mm |
| Package depth |
200 mm |
| Package width |
170 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case height |
300 mm |
| Master (outer) case length |
400 mm |
| Master (outer) case width |
300 mm |
