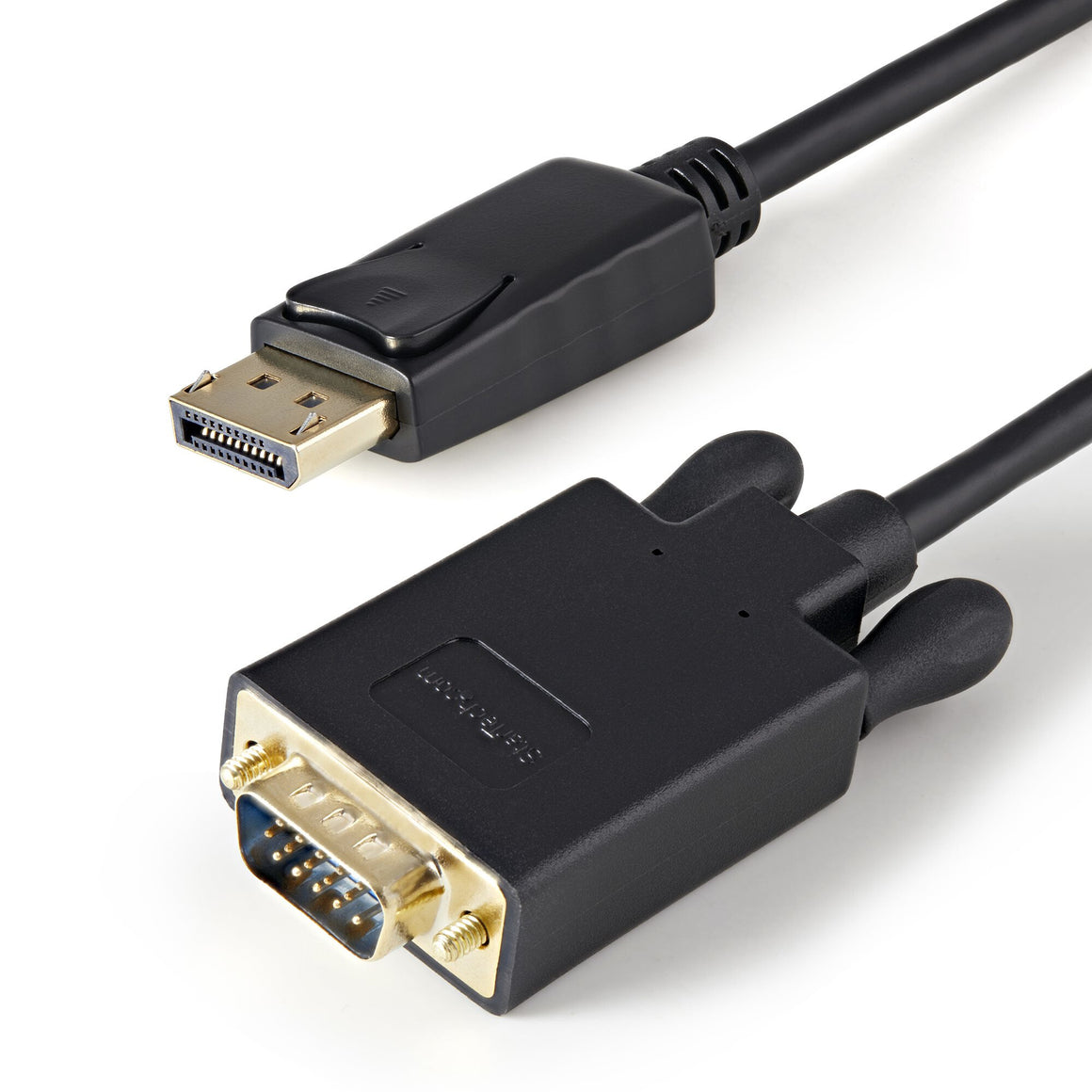

Connect a DisplayPort-equipped PC to a nearby VGA monitor/Projector, with a short 3 foot cable
The DP2VGAMM3B active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby VGA monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.
The DP2VGAMM3B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Converter type |
Active video converter |
| Plug and Play |
Yes |
| Chipset |
Analogix - 9832 |
| Product colour |
Black |
| HBR2 support |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280 |
| Maximum resolution |
2048 x 1280 pixels |
| DisplayPort version |
1.2 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
DisplayPort |
| Cable length |
0.91 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
40 - 85% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 60 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Height |
15 mm |
| Depth |
915 mm |
| Width |
40 mm |
| Weight |
79 g |
| Packaging data |
|---|
| Package weight |
90 g |
| Package height |
20 mm |
| Package depth |
240 mm |
| Package width |
160 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
220 pc(s) |
| Master (outer) case height |
435 mm |
| Master (outer) case length |
415 mm |
| Master (outer) case width |
420 mm |
| Harmonized System (HS) code |
84733080 |
