StarTech.com 3ft (1m) Panel Mount DisplayPort Cable - 4K x 2K - DisplayPort 1.2 Extension Cable Male to Female - DP Video Extender Cord with Panel Mount DP Connector - DP Monitor Cable

SKU: DPPNLFM3
£19.73 inc. VAT
  • PANEL MOUNT DISPLAYPORT CABLE: 3ft (91 cm) DisplayPort v1.2 male to female extender cable; 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth , HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
  • RELIABLE DESIGN: Durable molded female connector with two 4-40 screws to secure on to a machine faceplate/port; Flexible PVC strain relief & jacket prevent fraying/damage due to bending/rough usage; Latching connector prevents accidental disconnection
  • QUALITY CONSTRUCTION: 28AWG wire with gold-plated pins for improved signal integrity and reliability; DisplayPort panel mount cable / video cord has superior EMI shielding with double sided copper foil to provide higher quality video and audio
  • APPLICATIONS: Add extra 6ft to your DP cables; DisplayPort extension cable for home/offices/boardrooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use w/ 1080p/UHD/4K monitors/projector/display
  • SPECS: 3' (0.91m) / Black / DisplayPort 1.2 / DP Latching Male to DP Female (panel mountable w/ 2x 4-40 UNC screws) / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Double sided copper foil / Backward compatible w/ DP1.1 / Lifetime Warranty

Allows a DisplayPort connection to be mounted on a secure easily accessible panel.

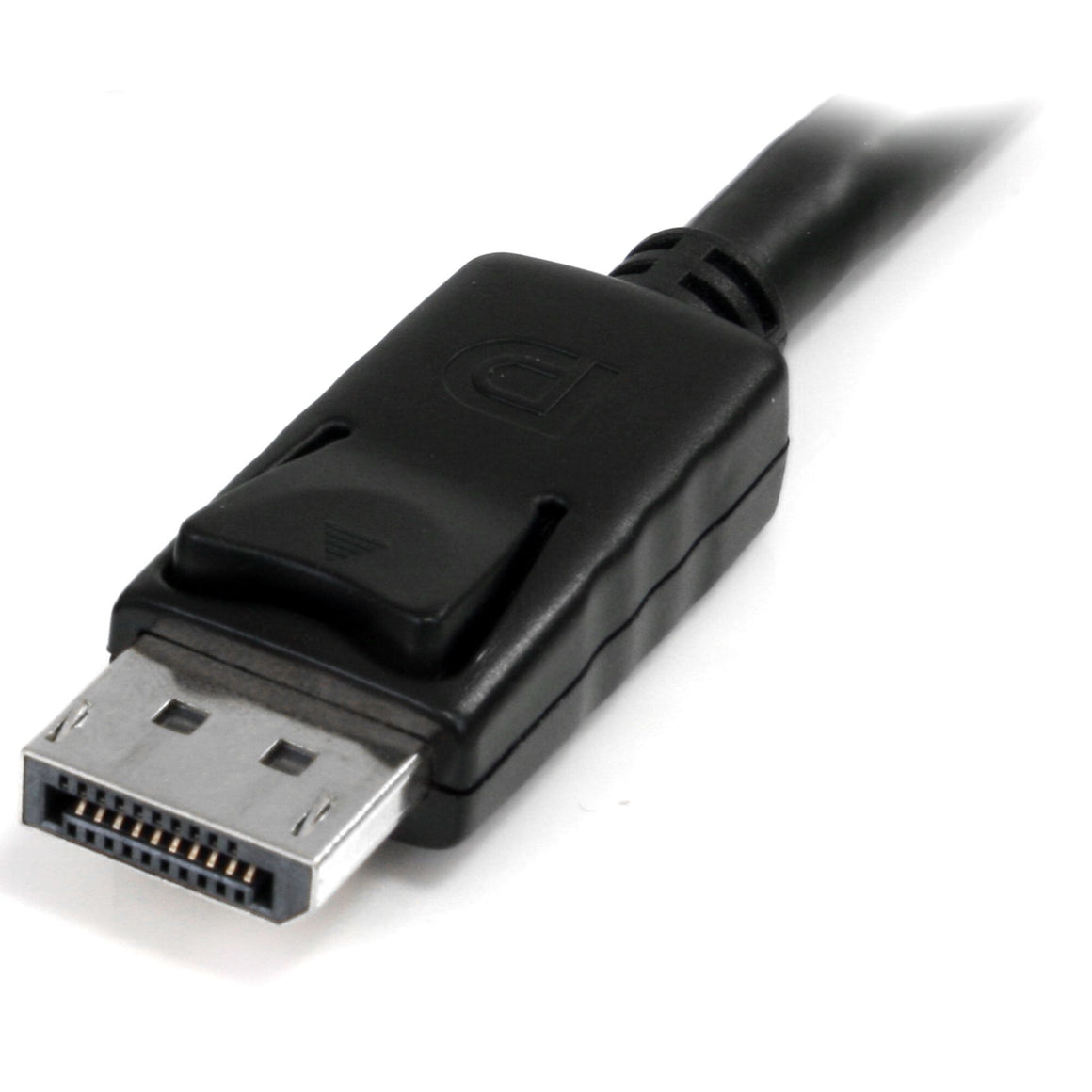

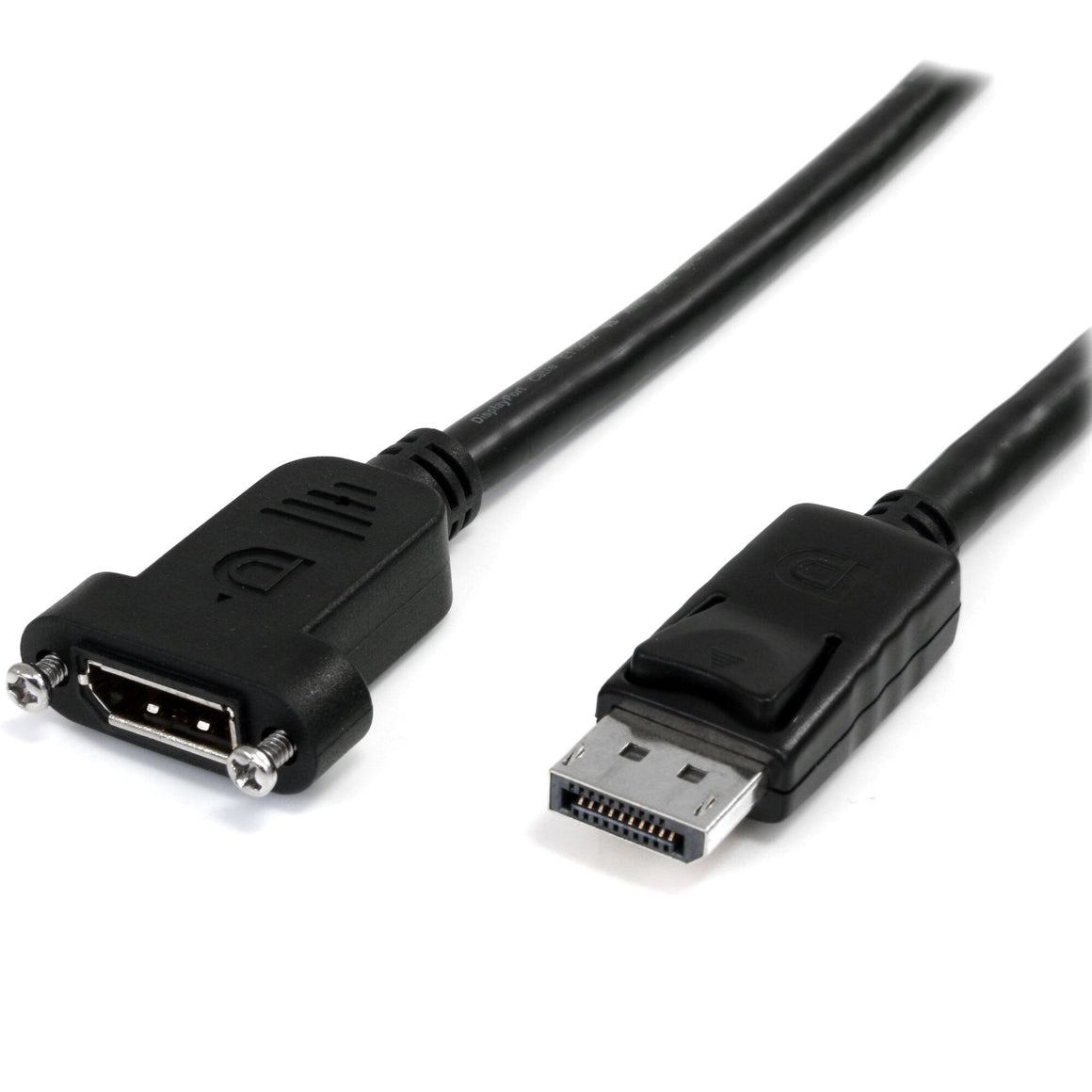

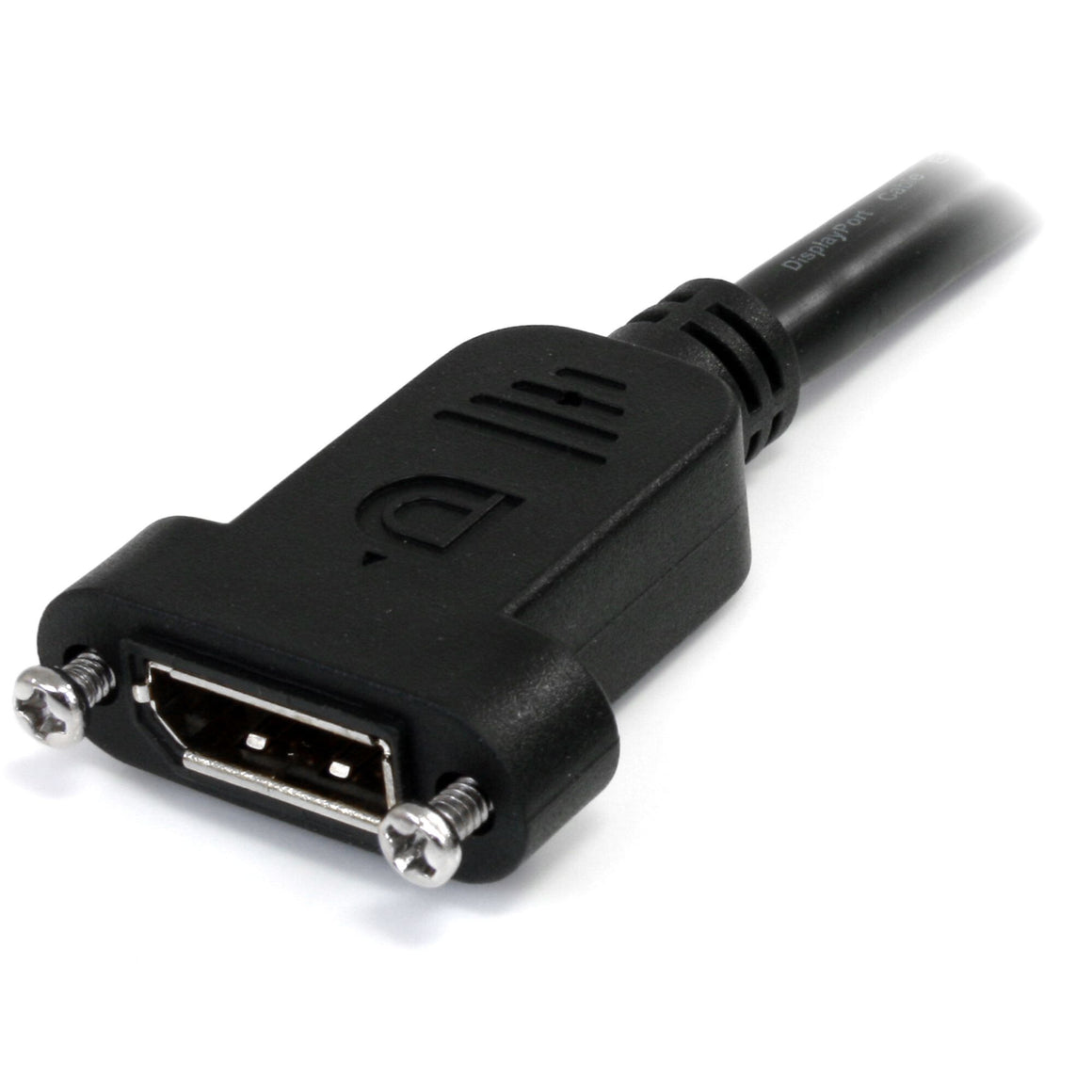

This 3ft panel mount DisplayPort cable features a DisplayPort male connector on one end, and a DisplayPort panel mount (female) molded connector on the other, providing a well-secured, easy to access DisplayPort connection on any machine port or faceplate.

Backed by StarTech.com's Lifetime Warranty

The StarTech.com Advantage

Features
Number of conductors 19
Multi-Stream Transport (MST) Yes
Bandwidth 21600 MB/s
AWG wire size 28
Jacket material Polyvinyl chloride (PVC)
Cable rating CMG (CM)
Product colour Black
Latching connectors Yes
Maximum refresh rate 120 Hz
Maximum resolution 3840 x 2400 pixels
DisplayPort version 1.2
Connector contacts plating Gold
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 DisplayPort
Cable length 0.91 m
Certificates
Compliance certificates RoHS
Weight & dimensions
Weight 78 g
Cable diameter 7.3 mm
Packaging data
Package weight 94 g
Package height 210 mm
Package depth 200 mm
Logistics data
Products per master (outer) case 120 pc(s)
Master (outer) case height 255 mm
Master (outer) case length 400 mm
Master (outer) case width 360 mm
Harmonized System (HS) code 84733080
