StarTech.com 3U 19” Wall Mount Vertical Rack Bracket, Wall Mount Patch Panel Bracket for Data/AV/IT/Computer Equipment, 3U Rack for Cabinet or Server Room, Supports 150lb (68kg) Capacity

SKU: RK319WALLV
£61.85 inc. VAT
  • 3U VERTICAL WALL MOUNT RACK BRACKET: This patch panel wall mount rack bracket supports 19"" rack-mountable IT/AV/Network equipment of any depth; 150lb (68kg) capacity; EIA-310 and REACH Compliant; Compact design for minimal footprint in server room/closet
  • READY TO USE: The wall mount vertical rack bracket ships fully assembled, and includes 6x Wood Screws, and 12x M5 Cage Nuts and Screws for mounting the rack and equipment; Two mounting holes support 16in wood stud spacing
  • BUILT TO LAST: The vertical rack bracket is constructed with a 14-gauge steel frame; Provides a solid and stable anchor to mount equipment; The powder coated paint and interior corner welding ensures long-lasting use and sturdiness
  • CERTIFIED PACKAGING: This assembled and ready-to-use patch panel rack bracket ships with ISTA-6 certified packaging that ensures damage-free delivery; This vertical wall mount rack bracket is TAA compliant
  • THE IT PRO'S CHOICE: Designed and built for IT Professionals, this vertical wall mount patch panel bracket is backed for life, including free lifetime 24/5 multi-lingual technical assistance

Hardware Included | TAA Compliant | Lifetime Warranty

This 3U 19 in server room rack enables vertical mounting of rack-mounted equipment of any depth. Mount the bracket to a wood stud wall and position equipment vertically, maximizing space utilization and optimizing layout design. The open-frame design allows for unrestricted airflow to the mounted equipment, improving cooling.

Versatile Design

Mount the bracket into a wall featuring wood stud construction, where studs are spaced 16in (40.6cm) apart. The patch panel wall mount rack is perfect for SoHo (small office, home office) and other small footprint applications allowing you to vertically mount up to 150lb (68kg) of standard rack equipment into this 14-gauge steel bracket. The mounting holes are positioned 16in (40.6cm) apart, matching the standard for construction framework.

Included Hardware

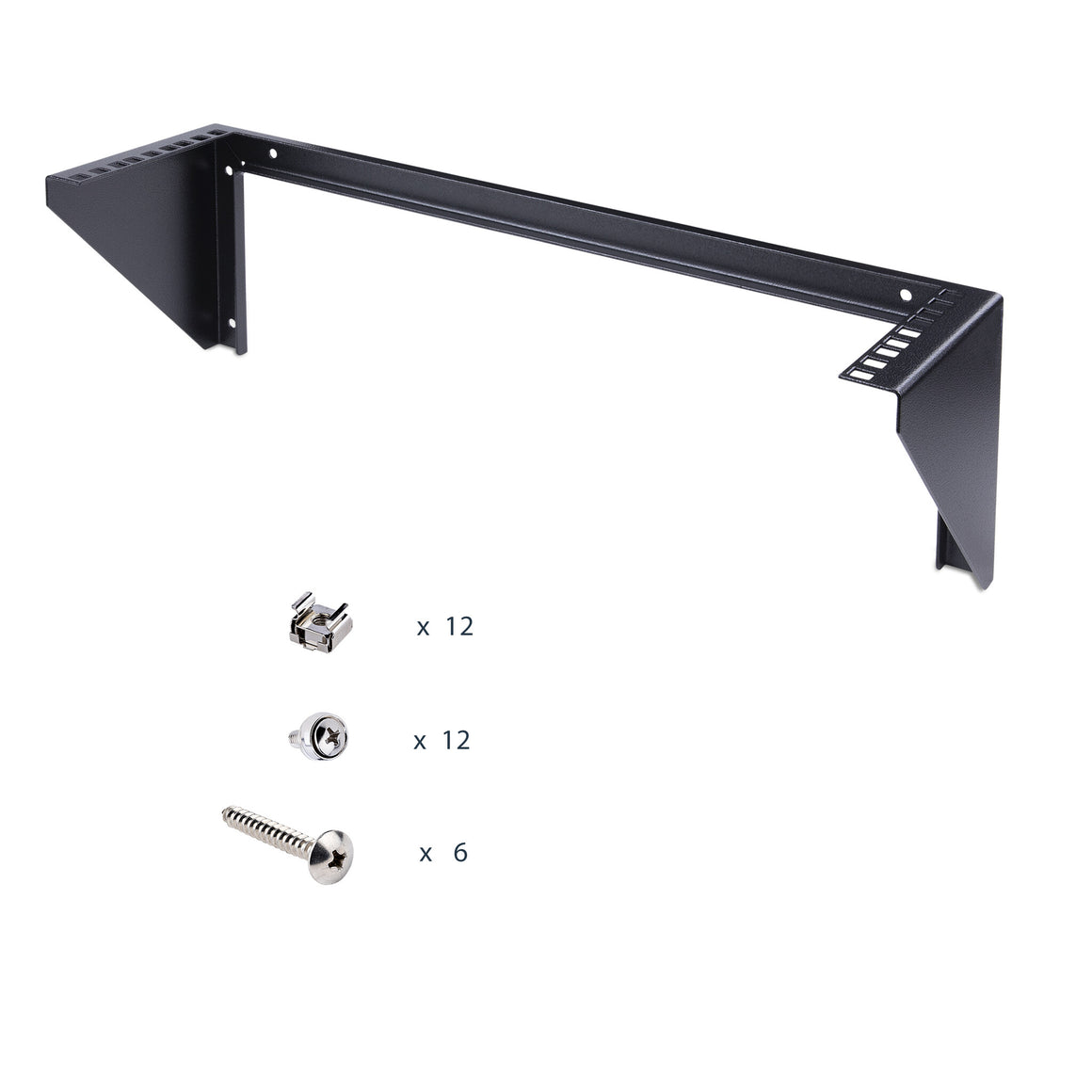

The vertical wall mount network rack conveniently includes 6x wood screws, 12x M5 square cage nuts, and 12x M5 screws to attach the rack to a wall and mount your equipment.

The wall mount vertical rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

The StarTech.com Advantage

Features
Certification REACH, CE, UL, TAA
Mounting hole shape Square
Number of fans 0 fan(s)
Product design 2-post
Frame type Open
Material Steel
Product colour Black
Maximum weight capacity 56.7 kg
Type Wall mounted rack
Rack capacity 3U

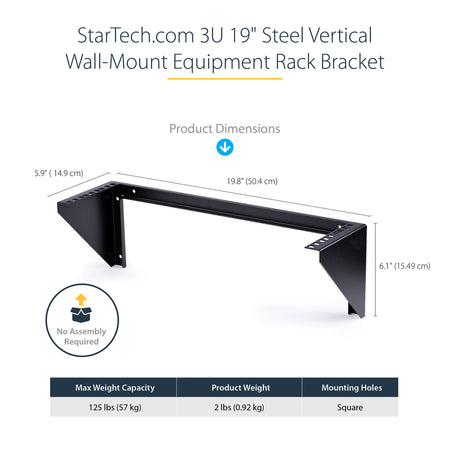

Weight & dimensions
Weight 921 g
Inner width 46.5 cm
Height 149 mm
Depth 151 mm
Width 503 mm
Packaging data
Package weight 1.4 kg
Package height 160 mm
Package depth 518 mm
Package width 165 mm
Manual Yes
Mounting kit Yes
Wall mounting kit Yes
Screws included Yes
Number of screws 18
Number of nuts 12
Nuts included Yes
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85381000
Other features
Compliance industry standards EIA/ECA-310-E
