Split an HDMI® audio and video signal to four displays simultaneously

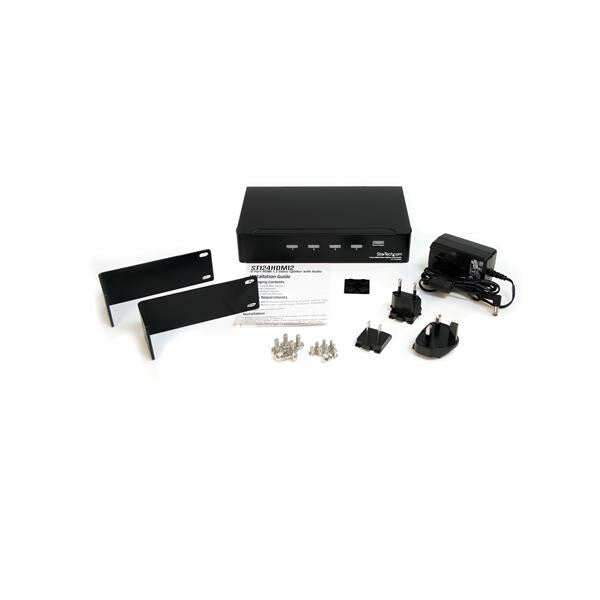

The ST124HDMI2 4 Port High Speed HDMI® Video Splitter with Audio lets you share a single HDMI source with up to 4 HDMI or DVI-D enabled displays/receivers, without sacrificing image or sound quality. Mounting brackets are included for a tidy, professional installation.

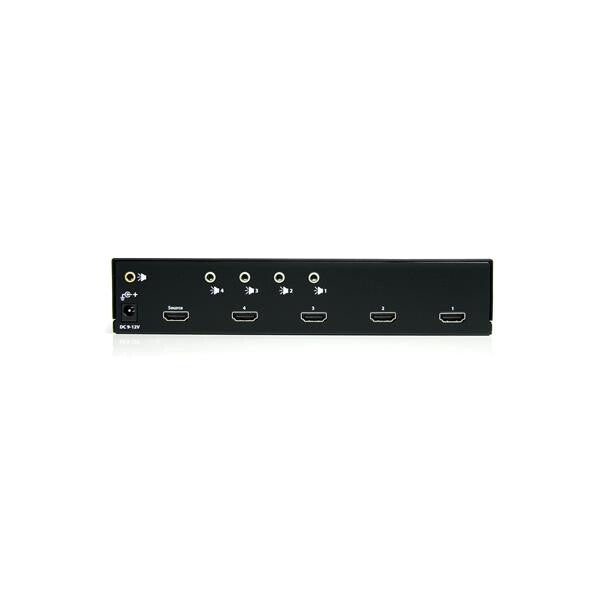

Supporting true HD video resolutions up to 1080p, this HDMI splitter allows you to situate your HDMI-capable displays up to 50 ft (15.2 m) away from the splitter. This versatile HDMI splitter features 3.5mm audio input and output connections giving you the option of sending your accompanying audio signal through the HDMI cable or through a separate 3.5mm stereo audio channel.
A perfect addition to virtually any application requiring the high quality video delivered by HDMI devices, the ST124HDMI2 video splitter is easy to install and provides flawless, distortion-free digital video.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Audio ports quantity |
5 |
| Video out |
4x HDMI |
| Video port type |
HDMI |
| Video ports quantity |
4 |
| Features |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Supported video modes |
720p, 1080p |
| Supported graphics resolutions |
1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 640 x 480 (VGA) |
| HDCP |
Yes |
| Maximum resolution |
1920 x 1200 pixels |
| Housing material |
Steel |
| Product colour |
Black |
| Power |
|---|
| Power consumption (typical) |
18 W |
| Output current |
1.5 A |
| Output voltage |
12 V |
| Input current |
0.8 A |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Weight |
966 g |
| Height |
44 mm |
| Depth |
220 mm |
| Width |
135 mm |
| Packaging data |
|---|
| Package weight |
2 kg |
| Package height |
90 mm |
| Package depth |
214 mm |
| Package width |
411 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Included power plug types |
AU, EU, NA, UK |
| Manual |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Audio support |
Yes |
| Cascadable |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
