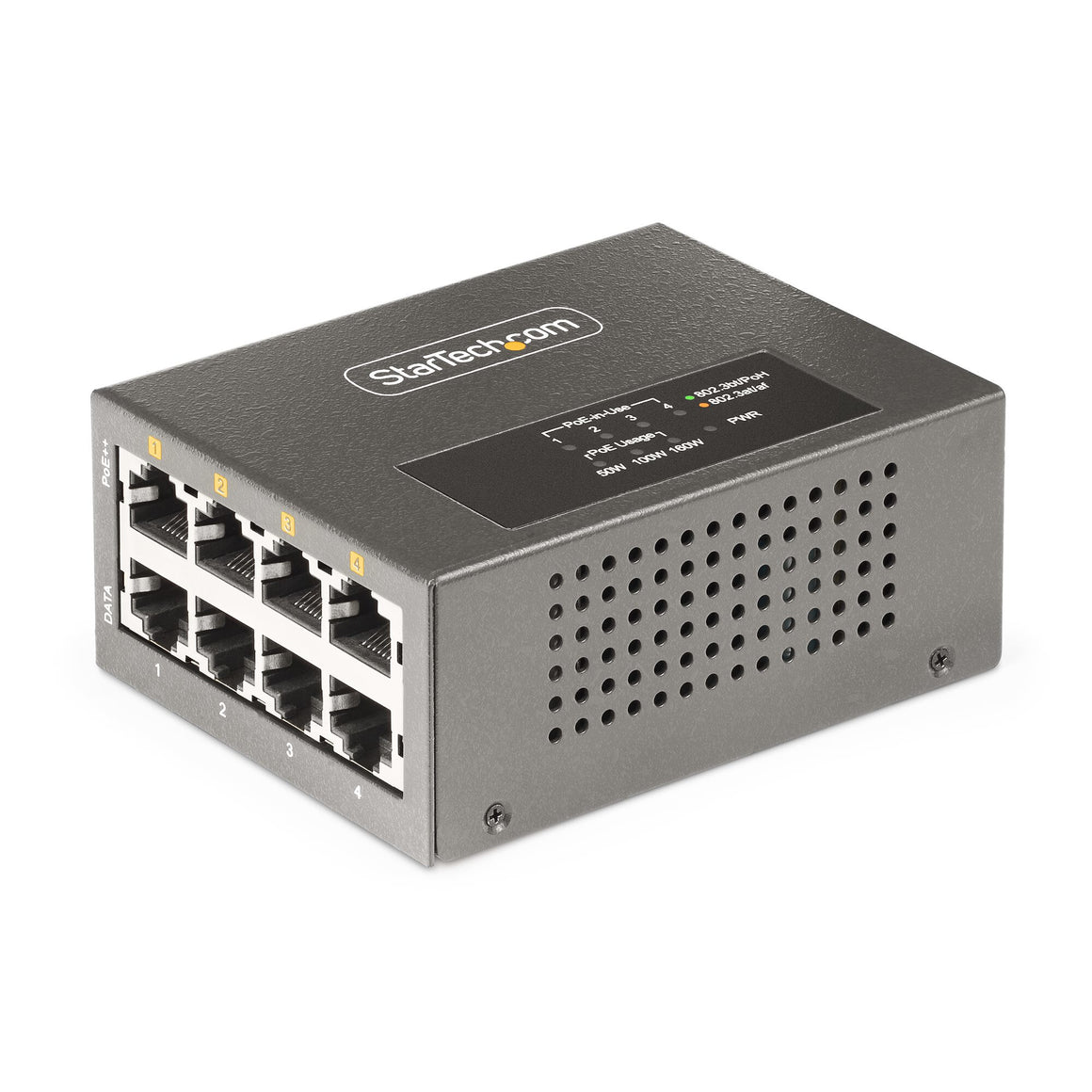

Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector
This 4-Port Multi-Gigabit PoE++ Injector Hub serves as Power Sourcing Equipment (PSE) and enables multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps across four Ethernet ports. This mid/end-span injector is capable of transmitting network data and power up to 328ft (100m) for remote installations. The PoE, PoE+, PoE++ compatibility and selectable power output ensure seamless compatibility with Powered Devices (PD). The TAA-compliant injector includes a Universal Power Adapter for different regions (NA/JP, EU, UK, and ANZ).
Versatile PoE Injector
Multiport PoE Injector supports the IEEE 802.3af, 802.3at, and 802.3bt (Type 3 and Type 4) standards for Power Sourcing Equipment (PSE), delivering up to 52V DC and 95Watts. This flexibility eliminates the need for a separate power source for remote networked devices such as IP cameras, access control devices, remote kiosks (POSs), wireless access points, PoE lighting, and digital signage.

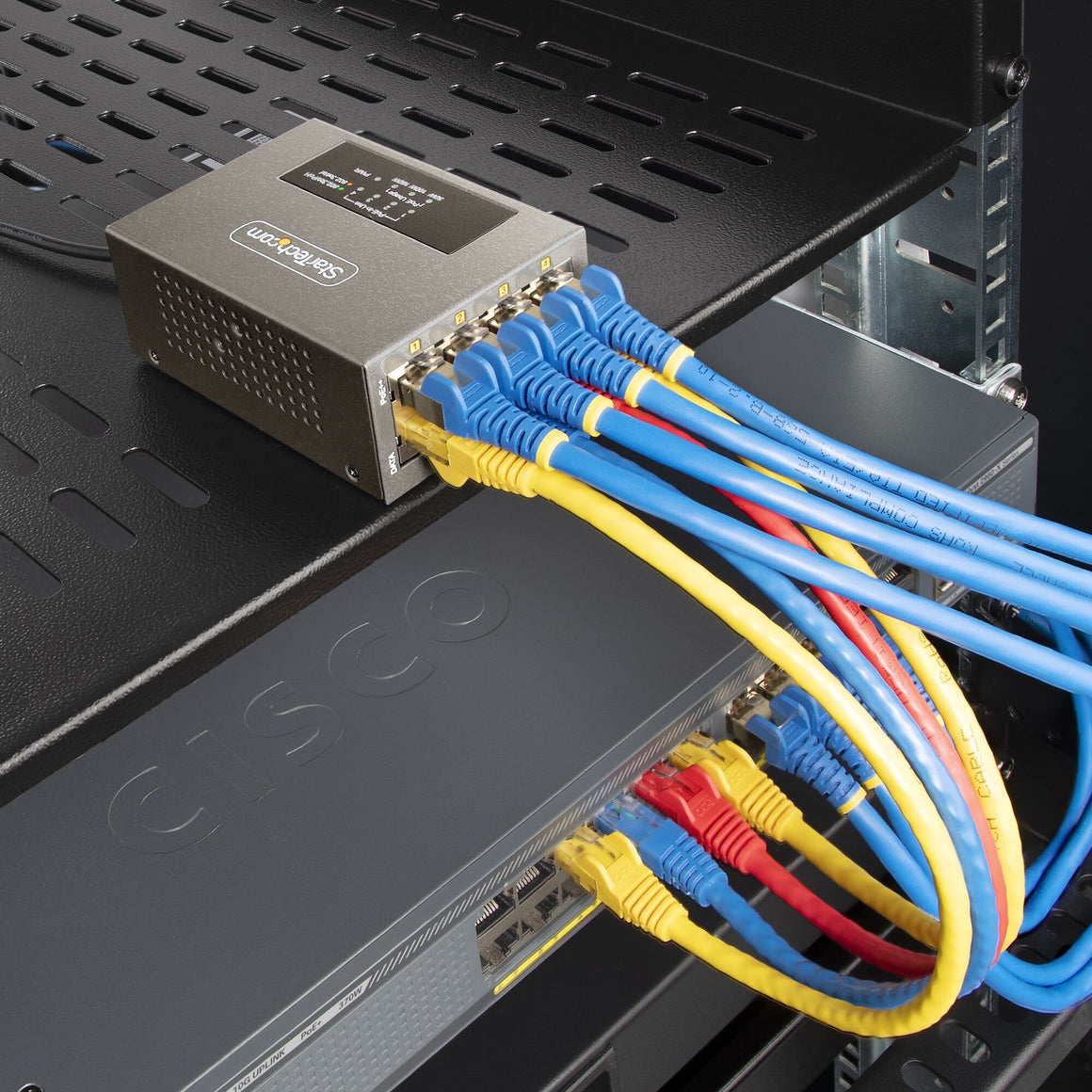

Experience streamlined cable management with all network cables routed from one side of the unit for a clean and organized setup.
Flexible Power Options

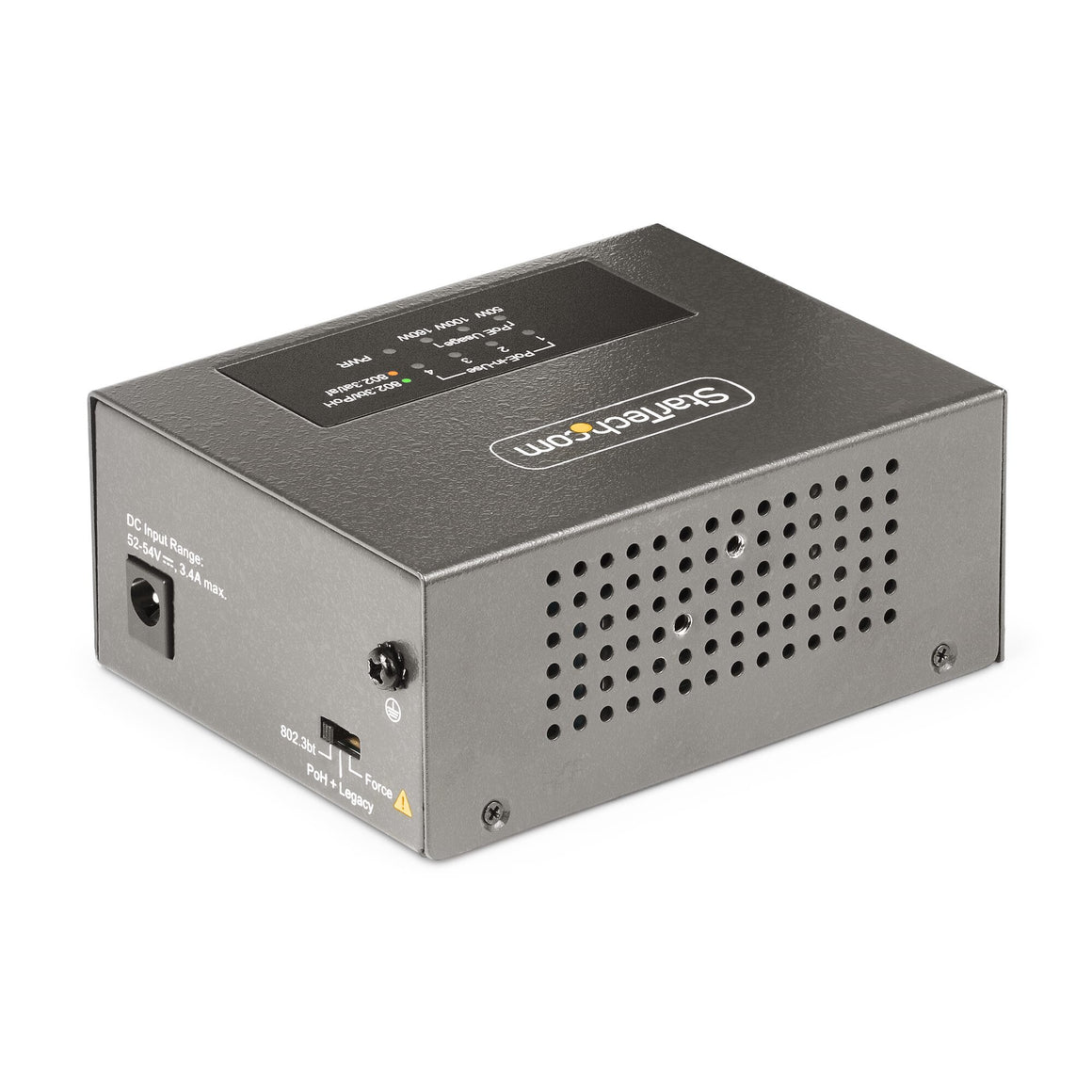

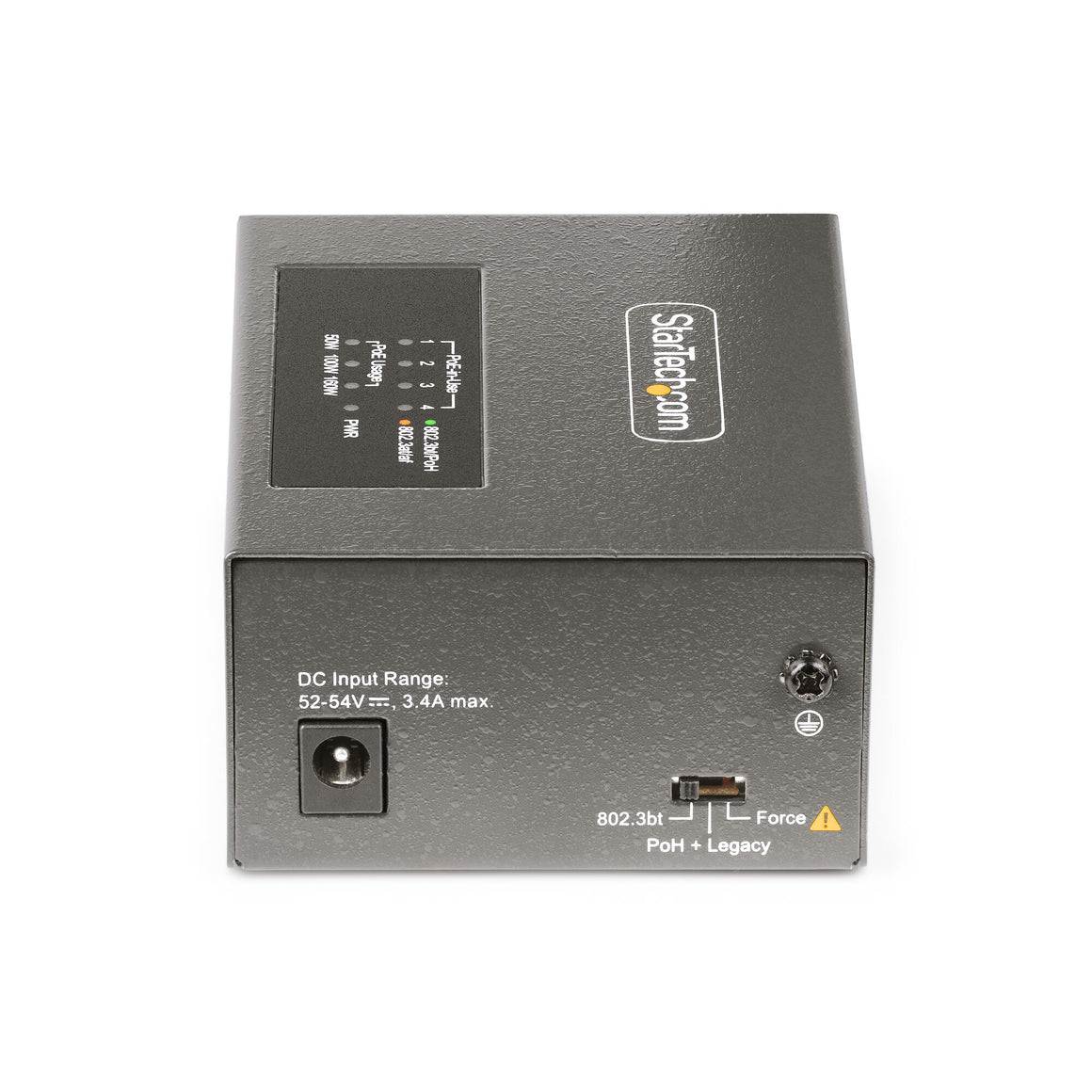

Tailor the power output to the specific needs of the device using the Power Output Switch. The options include 90W, 95W PoH, or legacy 60W (for UPoE/UPoE+) for all the ports on the PoE Injector Adapter.
The Level-4 ESD protection (15kV air and 8kV contact) enhances device safety and reduces EMI for stable operation, minimizing the risk of downtime and hardware failures.
Increased Network Speeds
The unmanaged PoE Injector with NBASE-T technology provides access to an increased bandwidth up to 5Gbps, significantly reducing network slowdowns during data-intensive applications such as streaming high-definition video feeds, high-speed Internet, access local network resources, online or local network backups, and FTP access.
The StarTech.com Advantage
| Network |
|---|
| Cable types supported |
Cat5e, Cat6, Cat6a |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u |
| Auto MDI/MDI-X |
Yes |
| Chipset |
Microsemi - PD69208T4, Microsemi - PD69200R |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,5000 Mbit/s |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features |
|---|
| Jumbo frames support |
Yes |
| Jumbo frames |
9000 |

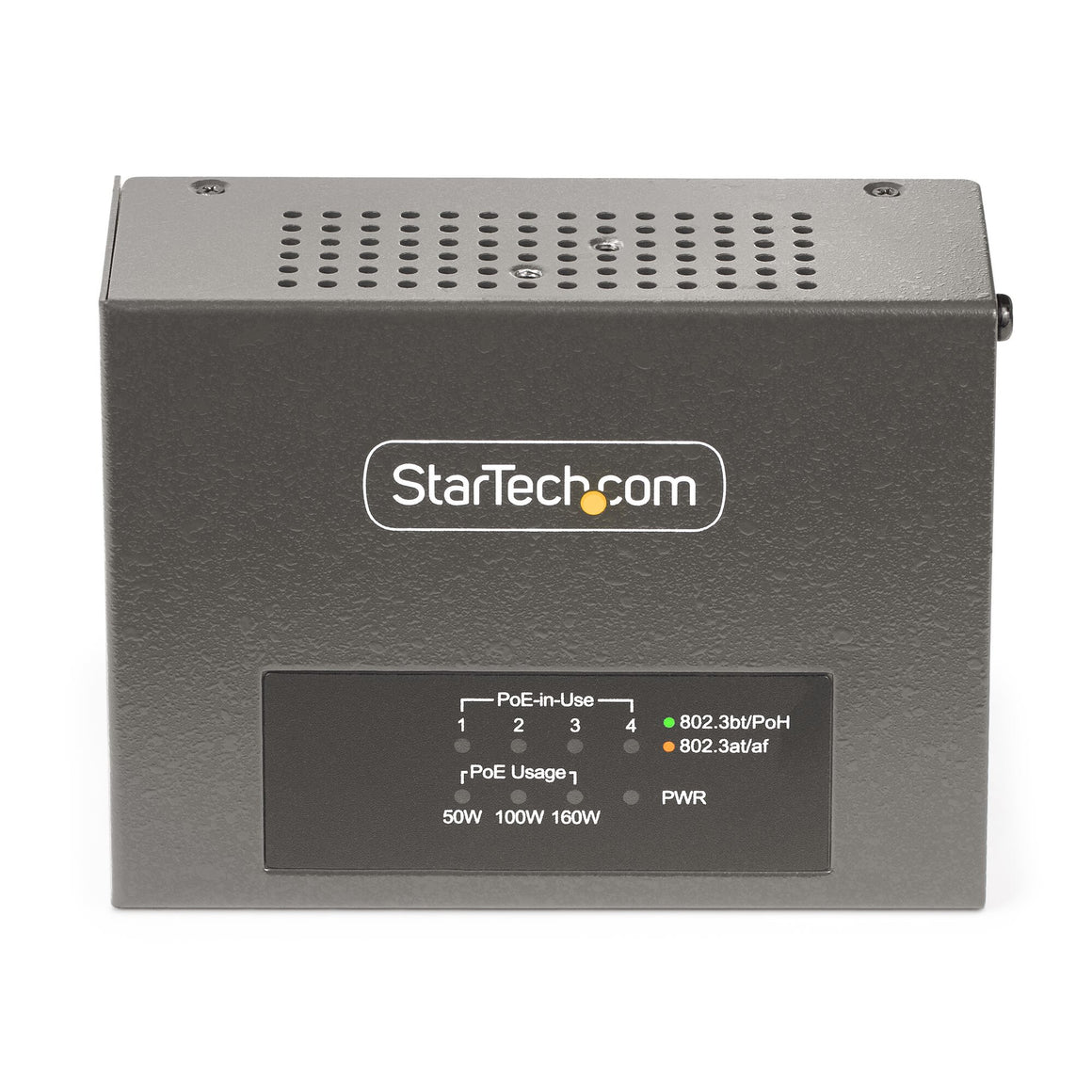

| LED indicators |
Status |
| Maximum operating distance |
100 m |

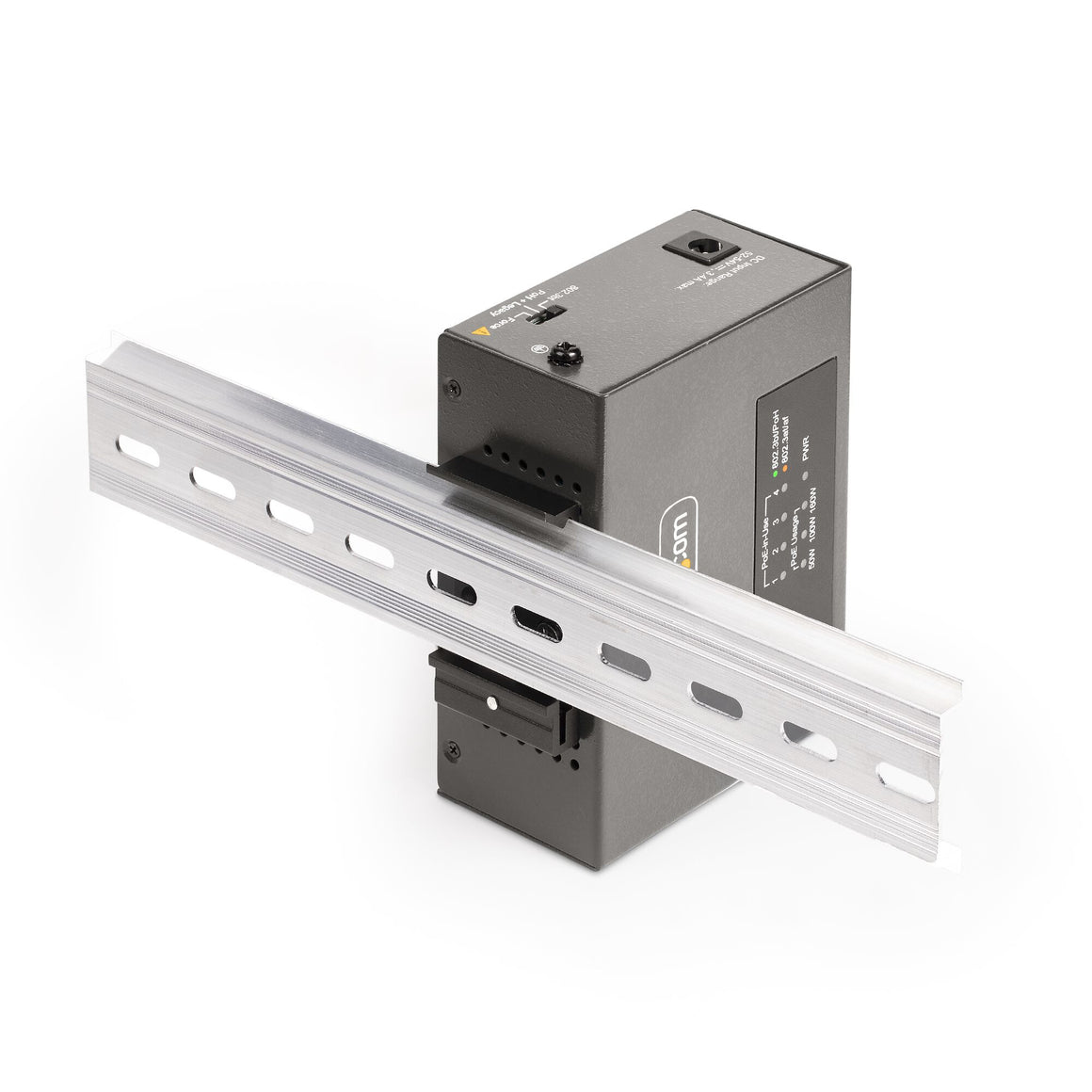

| Wall mountable |
Yes |
| Housing material |
Metal |
| Product colour |
Grey |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |

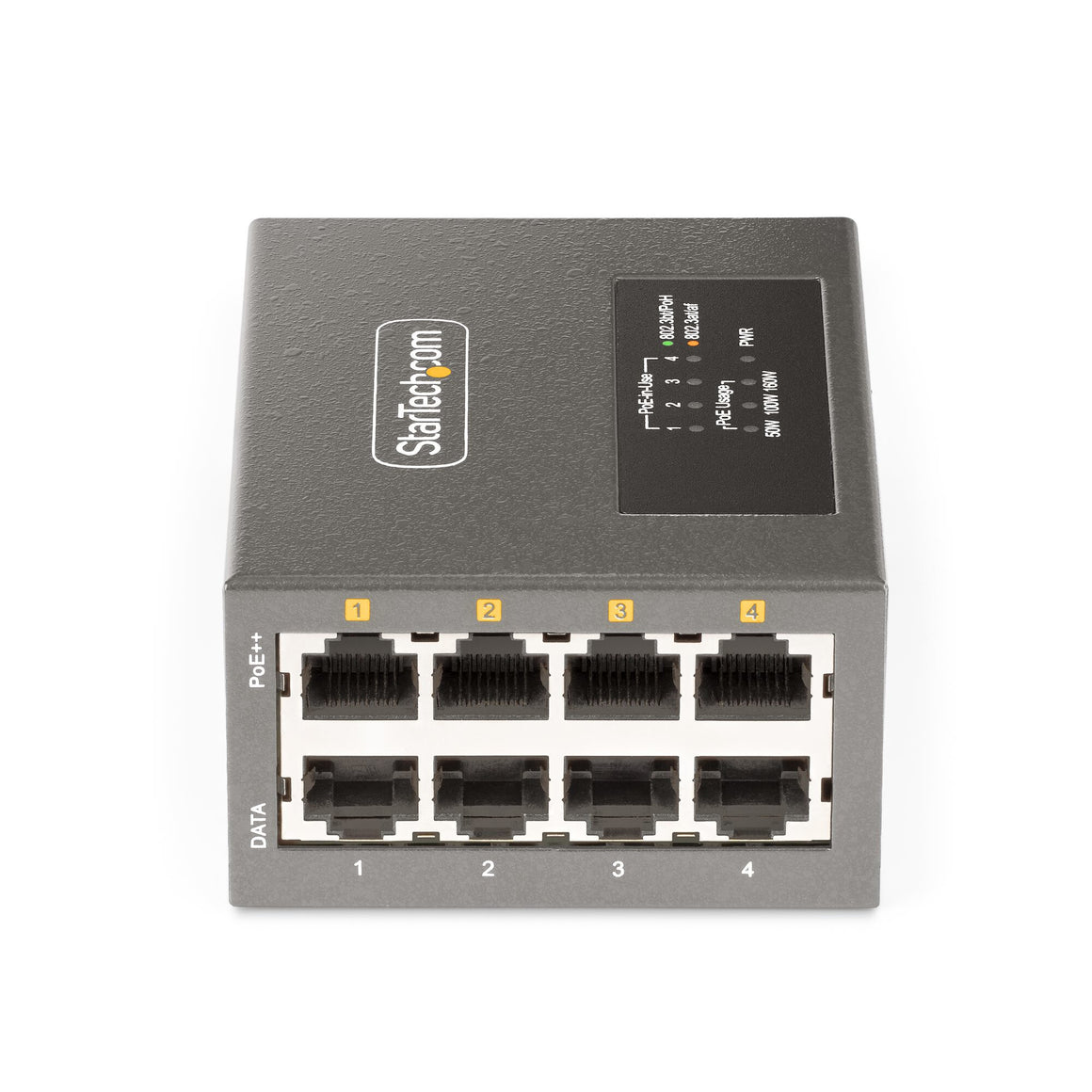

| RJ-45 output ports |
4 |
| RJ-45 input ports |
4 |
| Ethernet LAN (RJ-45) ports |
8 |
| Power |
|---|
| Total Power over Ethernet (PoE) budget |
160 W |
| Output current |
3.3 A |
| AC adapter output voltage |
54 V |
| Input current |
2.5 A |
| AC adapter input voltage |
100 - 240 V |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), UKCA |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
|---|
| Weight |
278 g |
| Height |
39 mm |
| Depth |
94 mm |
| Width |
70 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Number of products included |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
1.7 kg |
| Package height |
90 mm |
| Package depth |
300 mm |
| Package width |
170 mm |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case height |
325 mm |
| Master (outer) case length |
370 mm |
| Master (outer) case width |
475 mm |
