Add 4 USB 3.2 Gen 1 hub ports, plus 3 dedicated USB charging ports (7 total) through a single USB 3.2 Gen 1 host connection
The ST4300U3C3 USB 3.2 Gen 1 Hub enables simultaneous data hub and USB charging functionality by adding three dedicated USB charge ports, as well as four USB 3.2 Gen 1 data ports, for a total of seven ports, all through a single USB 3.2 Gen 1 host connection.
The USB hub ports are compliant with the SuperSpeed USB 3.2 Gen 1 specification, offering data transfer rates up to 5 Gbps, and are backward compatible with USB 2.0 and 1.x specifications.
This externally powered USB hub also integrates 3 dedicated USB charging ports, providing 2 x 1A and 1 x 2A ports, enabling both data hub and USB charging station functionality. Support for USB Battery Charging Specification 1.2 lets you charge most mobile devices, including the Apple® iPhone®, iPad®, Microsoft® Surface™, Samsung Galaxy Tab™ and more.

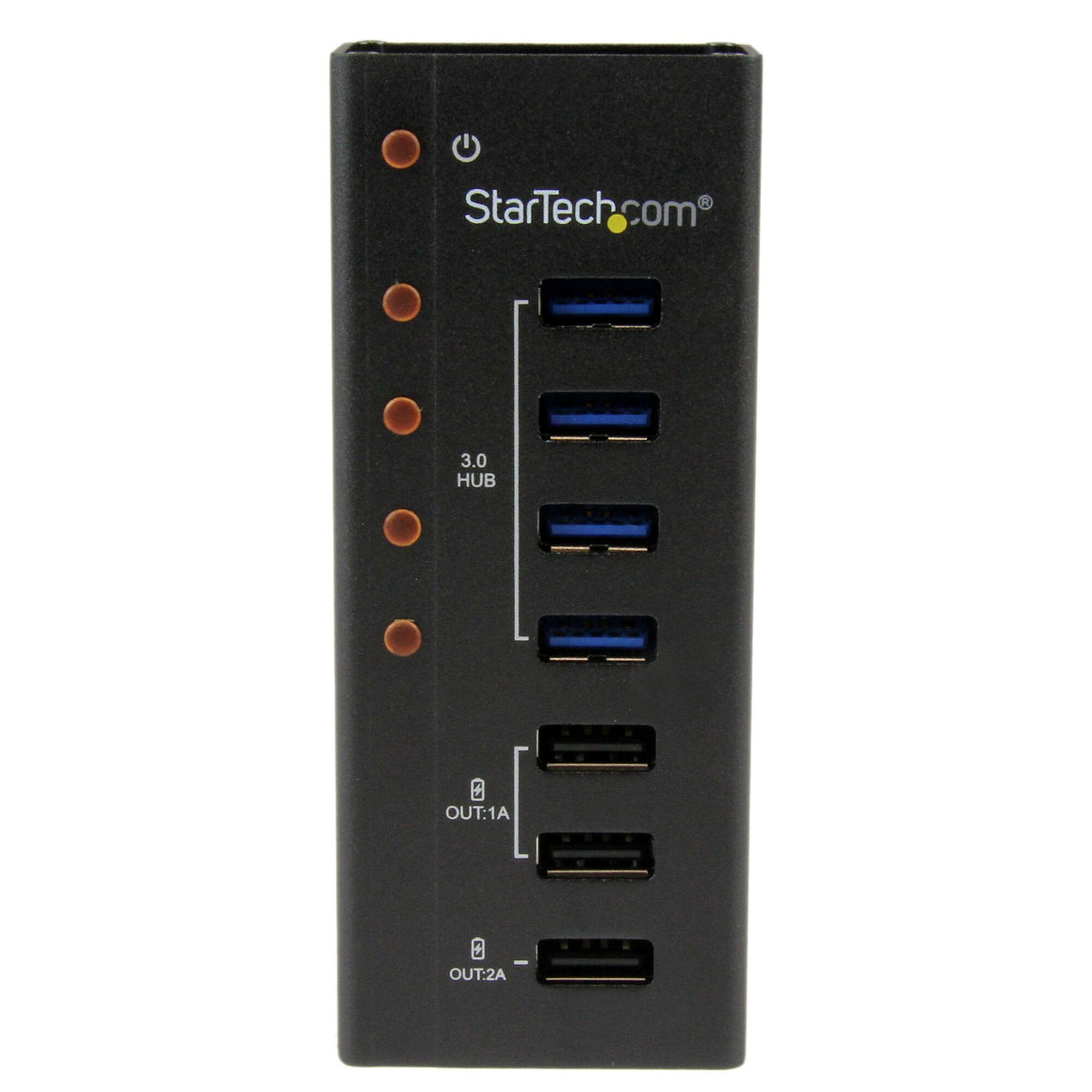

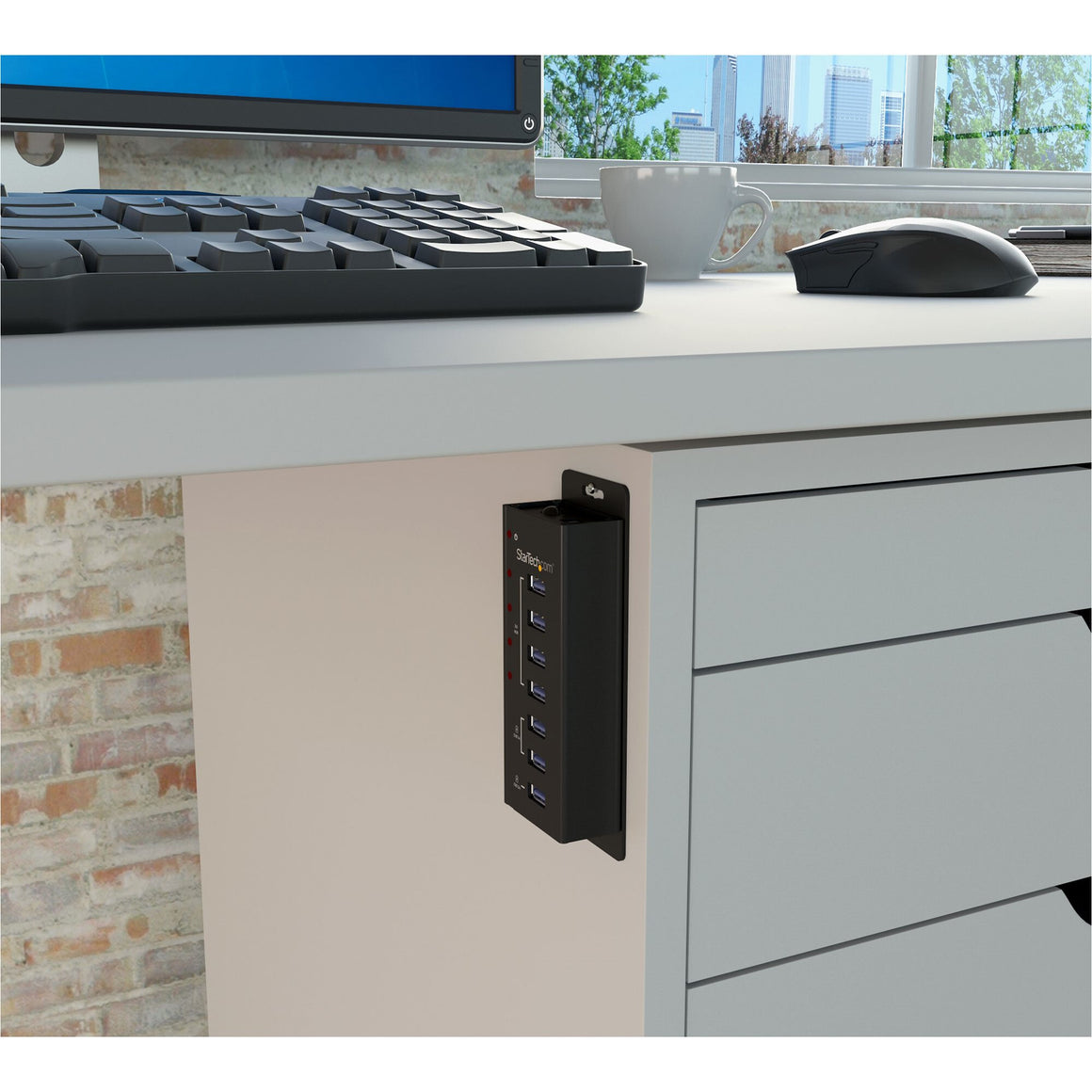

Designed for easy access to the ports when connecting or disconnecting devices, the hub features an upright port orientation, in a compact and durable metal enclosure. For added flexibility, the hub includes a bracket for wall-mounted installations.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
3 |
| Hub interfaces |
USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Ports quantity |
7 |
| Features |
|---|
| LED indicators |
Yes |
| Product colour |
Black |
| Housing material |
Aluminium |
| Data transfer rate |
5000 Mbit/s |
| Power |
|---|
| Power plug type |
Type M |
| Output current |
3 A |
| Output voltage |
12 V |
| Input voltage |
100 - 240 V |
| Input current |
1.3 A |
| Power supply type |
DC |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Weight |
131 g |
| Height |
24 mm |
| Depth |
110 mm |
| Width |
45 mm |
| Packaging data |
|---|
| Package weight |
606 g |
| Package height |
90 mm |
| Package depth |
104 mm |
| Package width |
166 mm |

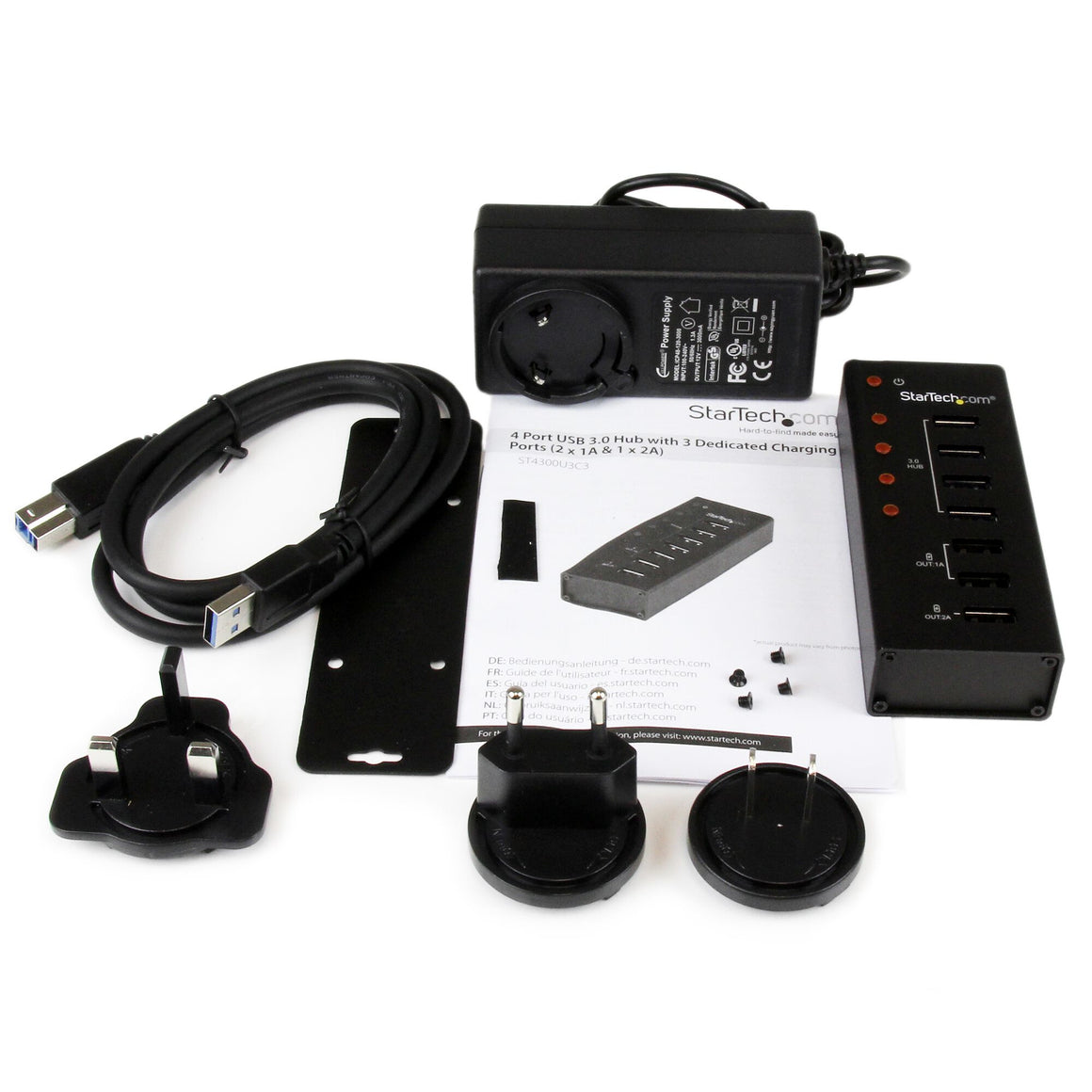

| Packaging content |
|---|
| Cables included |
USB |
| Manual |
Yes |
| Wall mounting kit |
Yes |
| Included power plug types |
AU, EU, NA, UK |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84719000 |
| Products per master (outer) case |
30 pc(s) |
| Master (outer) case height |
359 mm |
| Master (outer) case length |
455 mm |
| Master (outer) case width |
363 mm |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Other features |
|---|
| Chipset |
VLI - VL812 |
