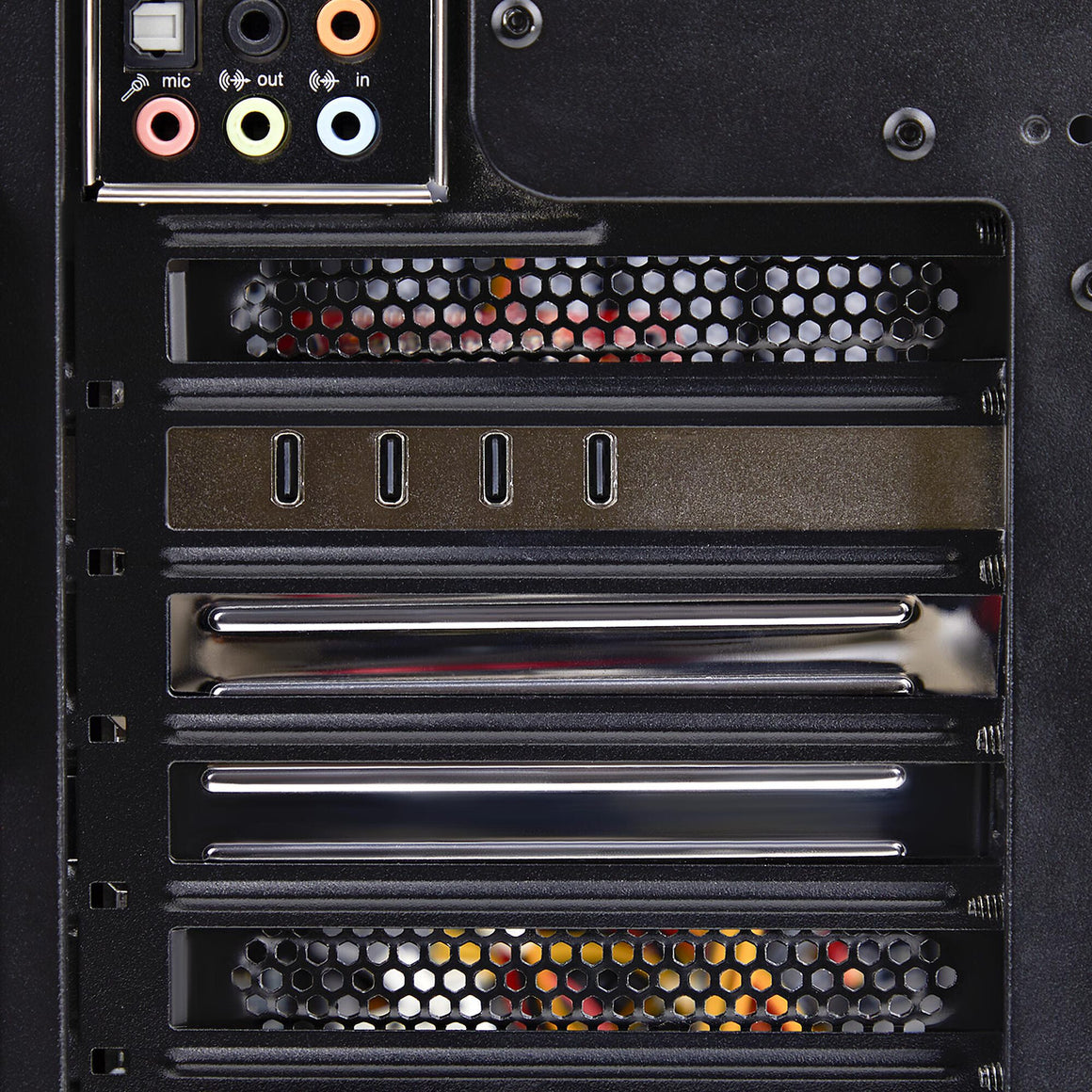

Add four 10Gbps USB Type-C ports to a server or desktop computer through PCI Express

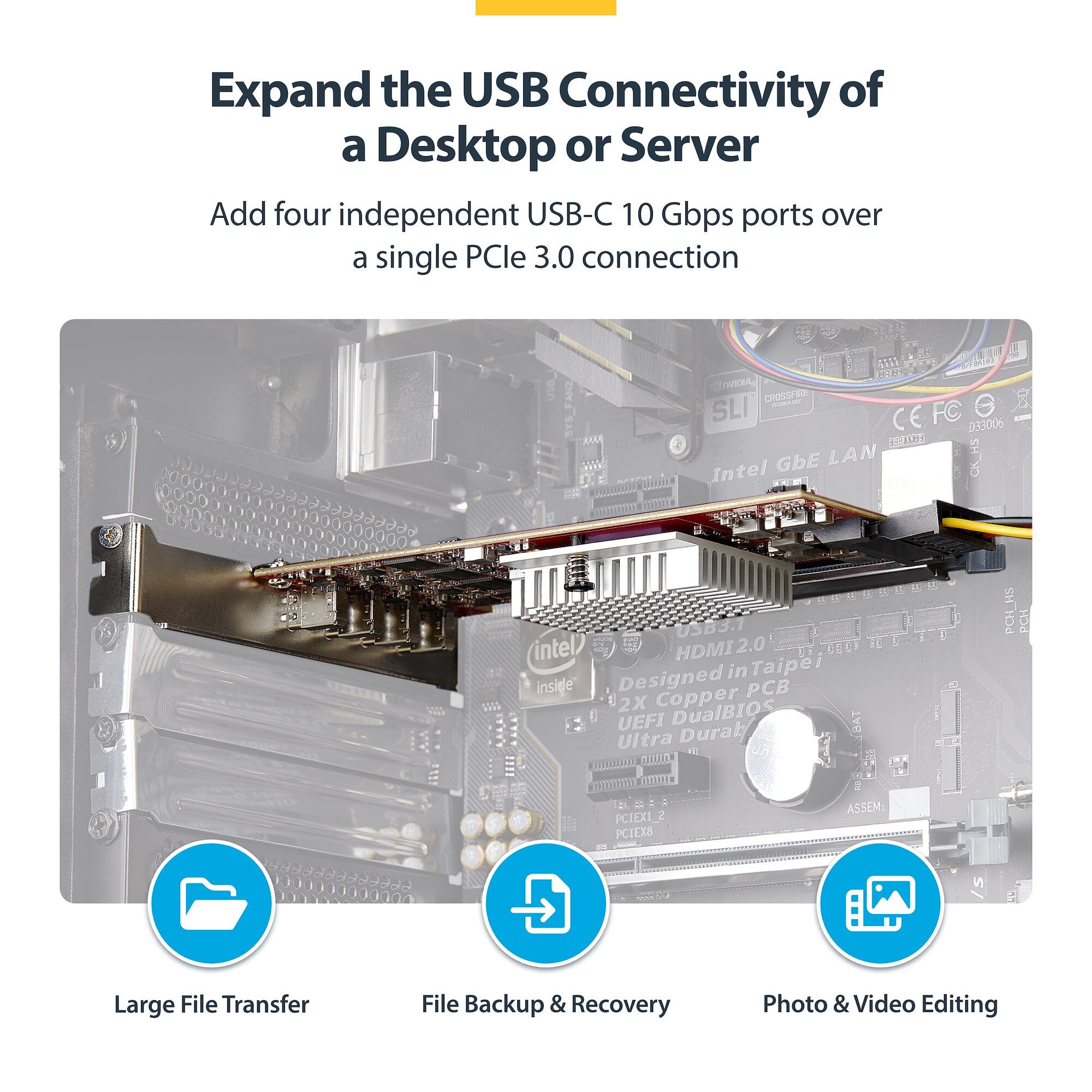

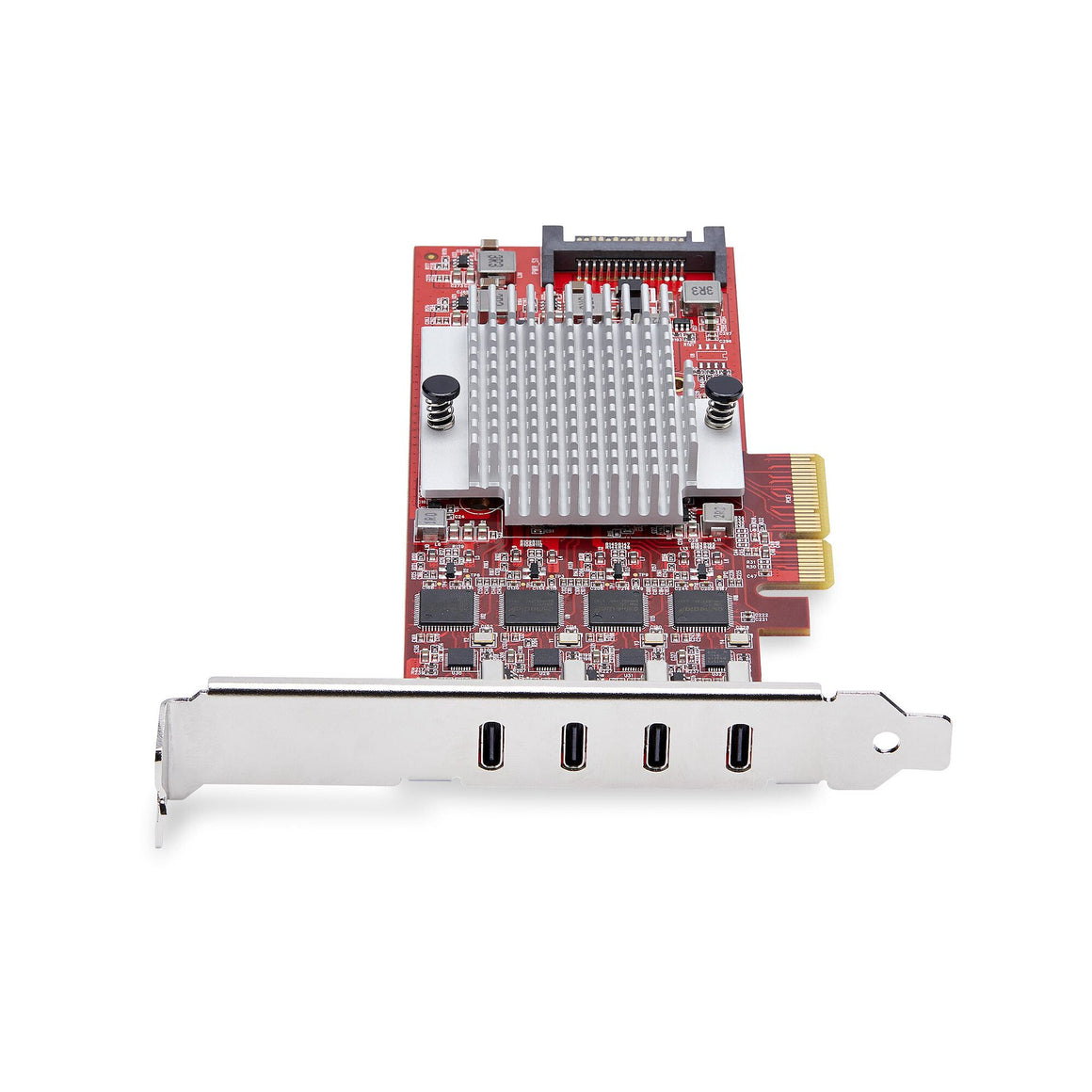

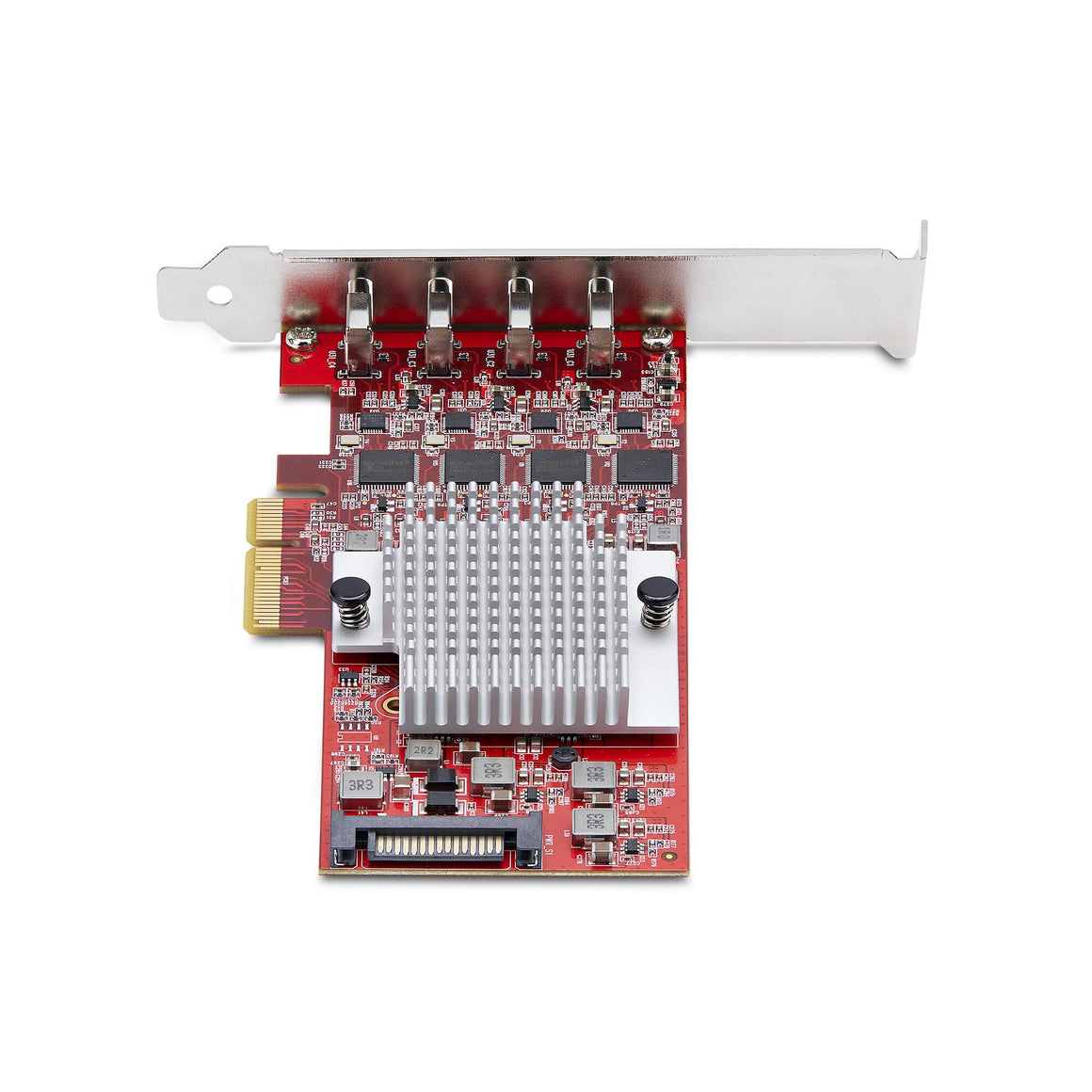

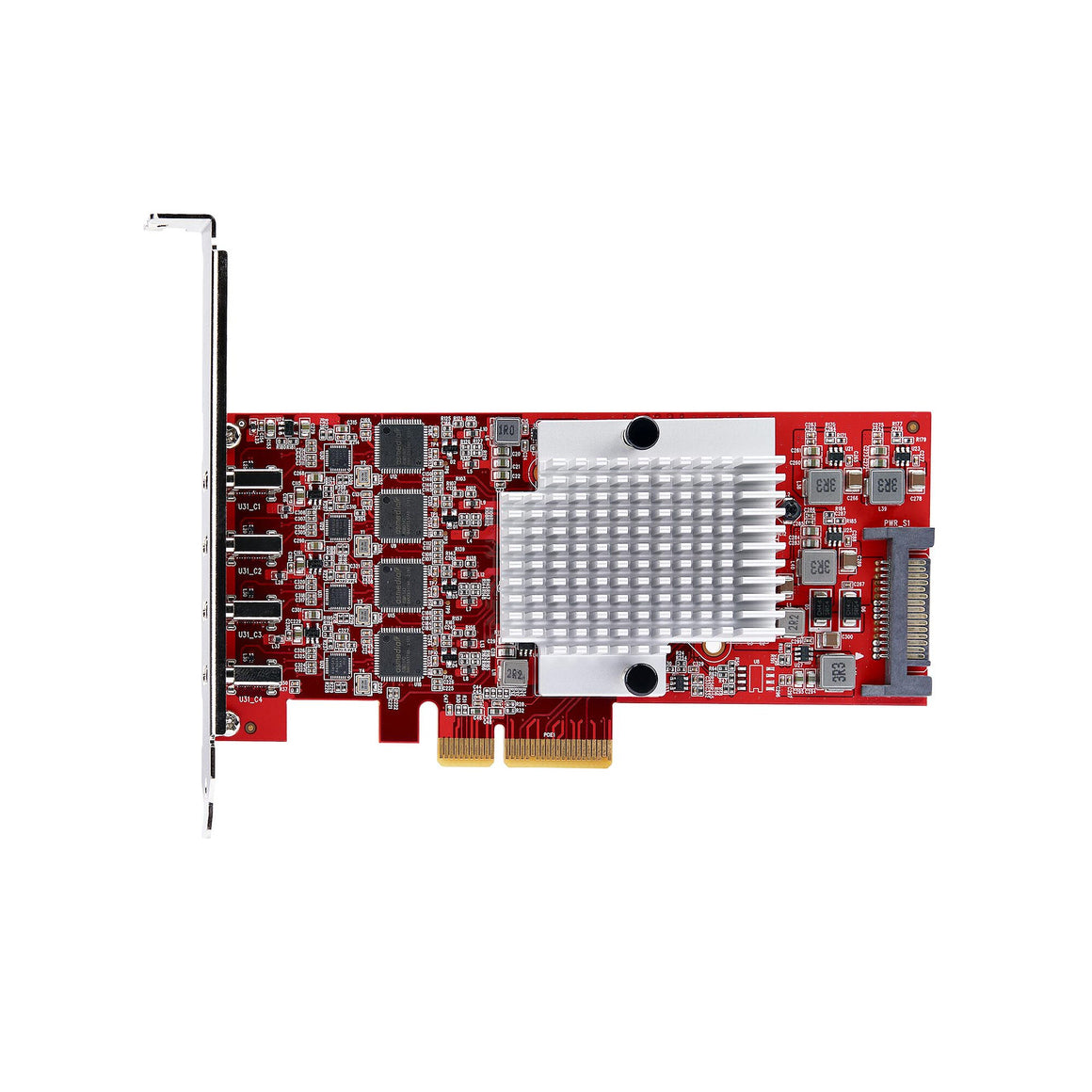

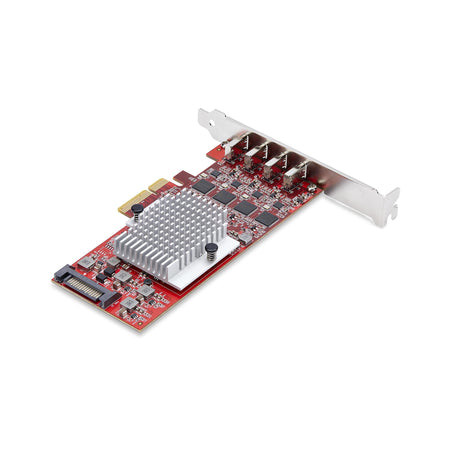

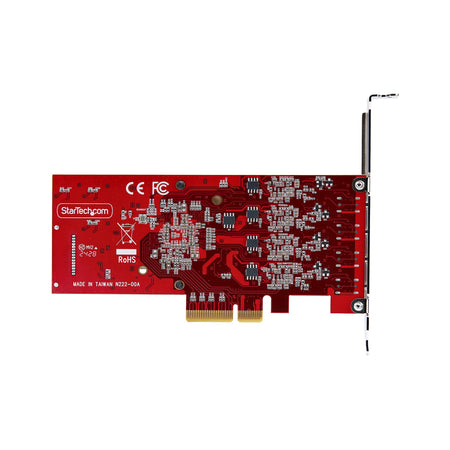

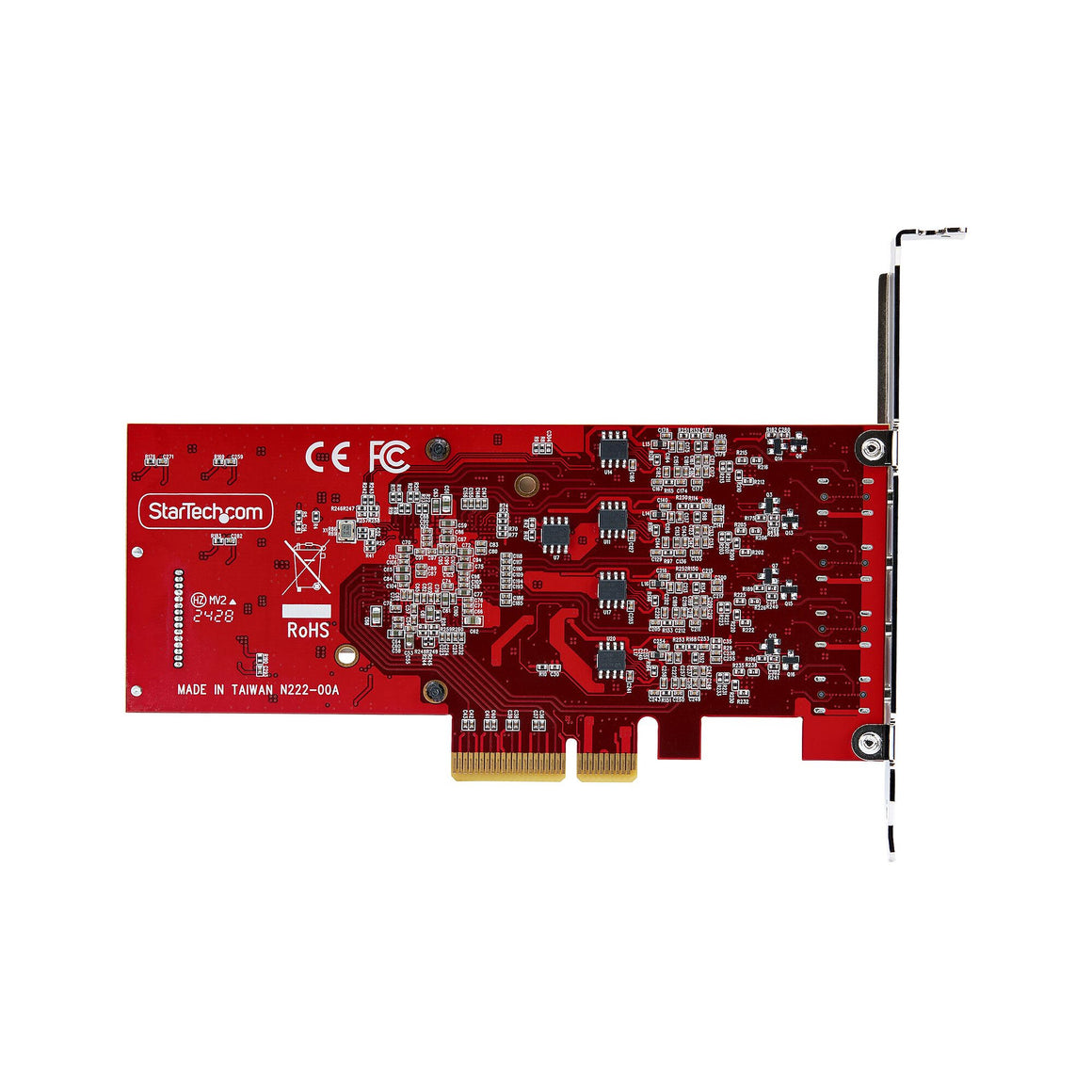

Expand the USB connectivity of a desktop computer or server by adding four external USB Type-C 10Gbps ports with this internal PCI Express 3.0 expansion card.

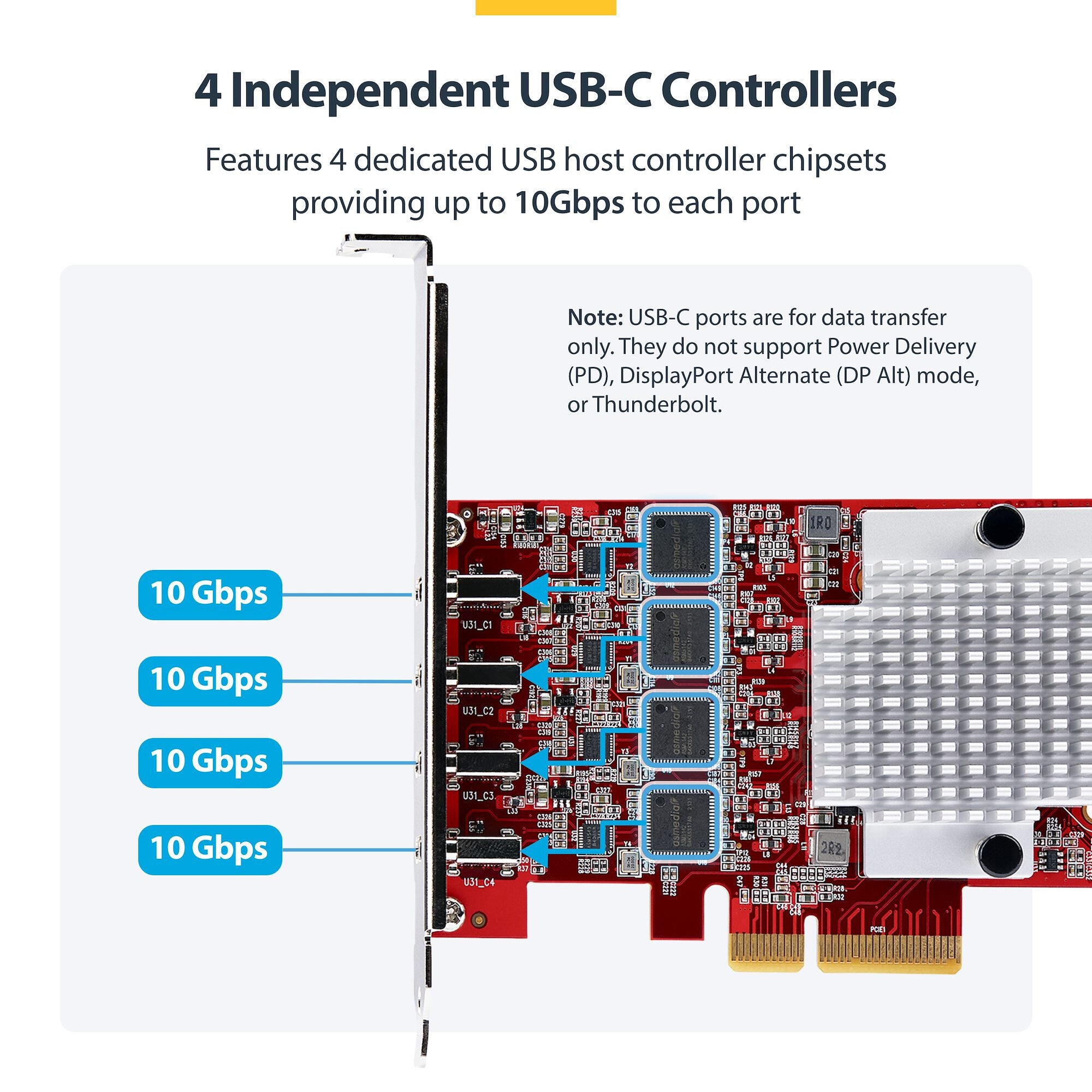

Dedicated USB Controllers
Traditional single-controller USB cards share bandwidth across all ports. With its four independent USB controllers, this USB-C expansion card enables each port to achieve up to 10Gbps, reducing bottlenecks and increasing data throughput.
USB 3.2 Gen 2 (10Gbps) Performance

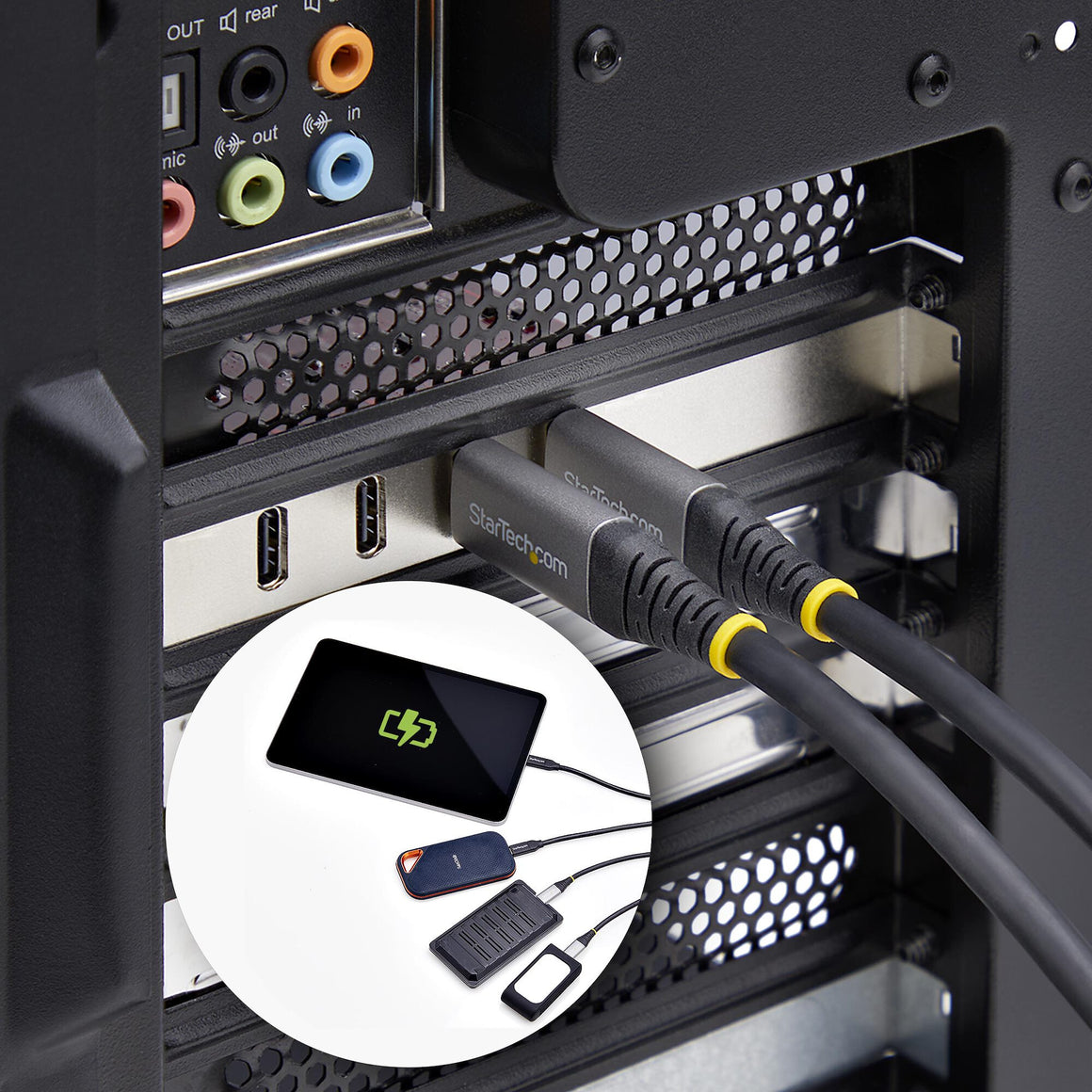

The high bandwidth makes the card ideal for transferring large files, real-time editing of high-resolution photos and videos on external storage, off-loading media from mobile devices, using high-resolution video capture devices, tethered photography equipment, or high-speed USB network adapters like 10G Ethernet copper or fiber adapter.

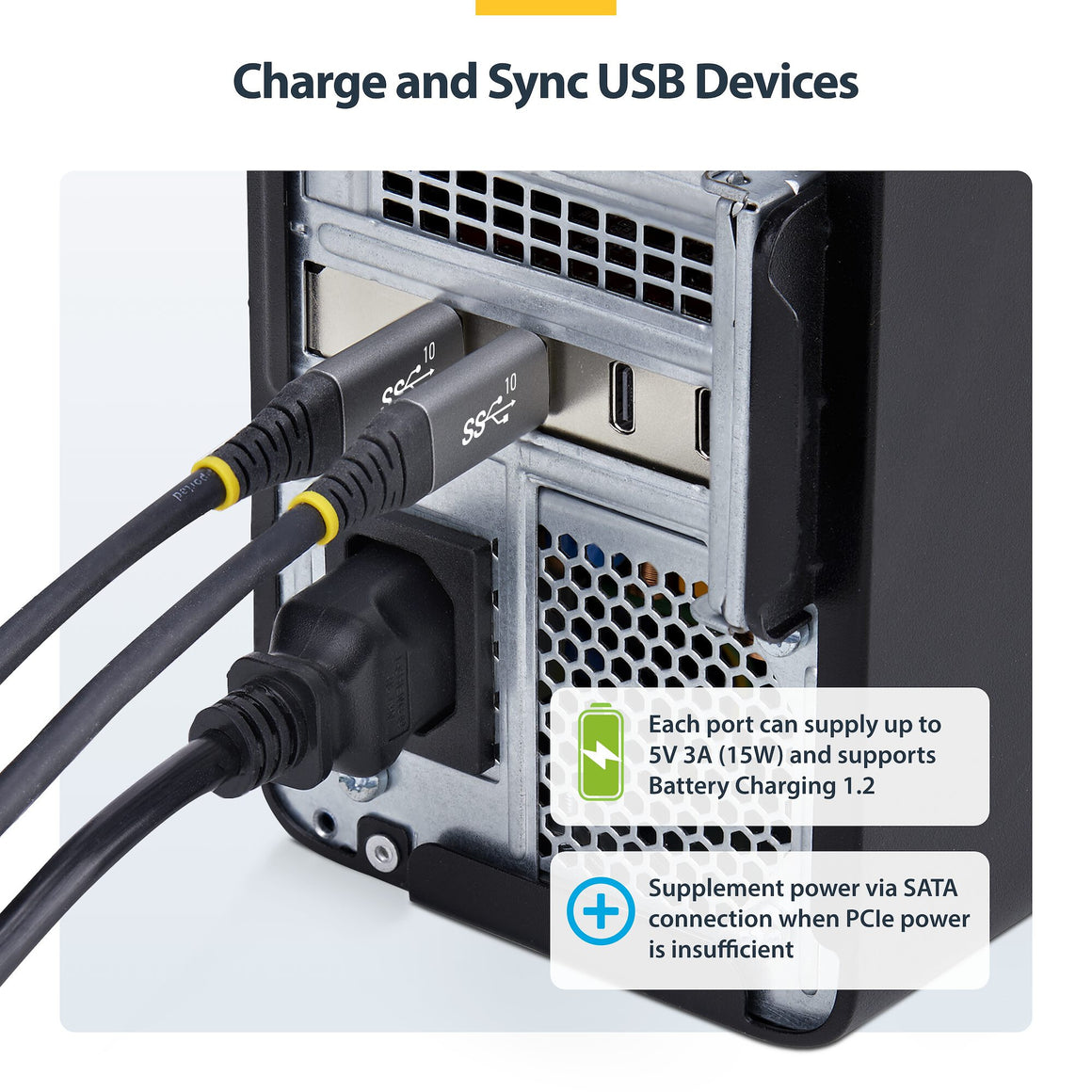

Charge and Sync USB Devices

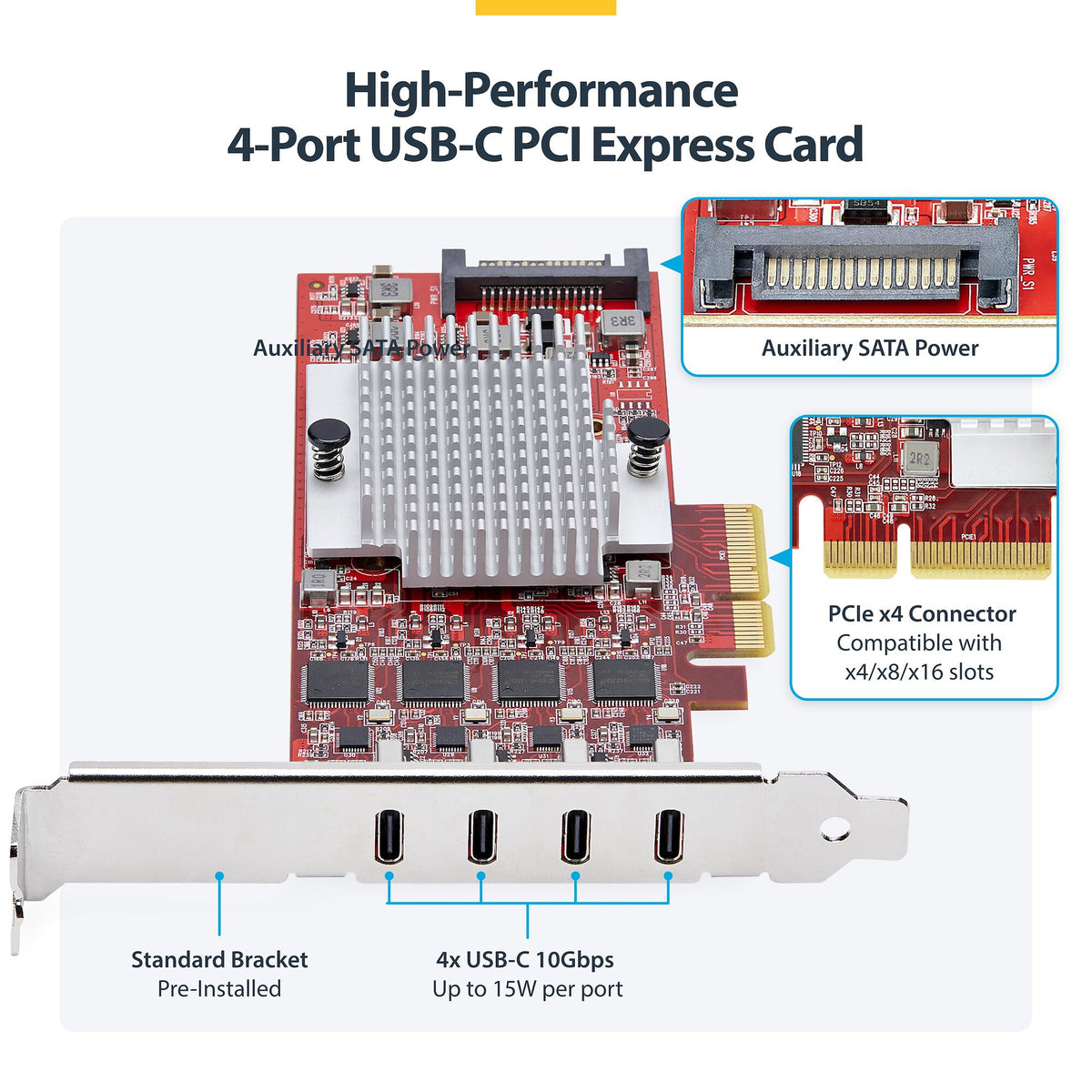

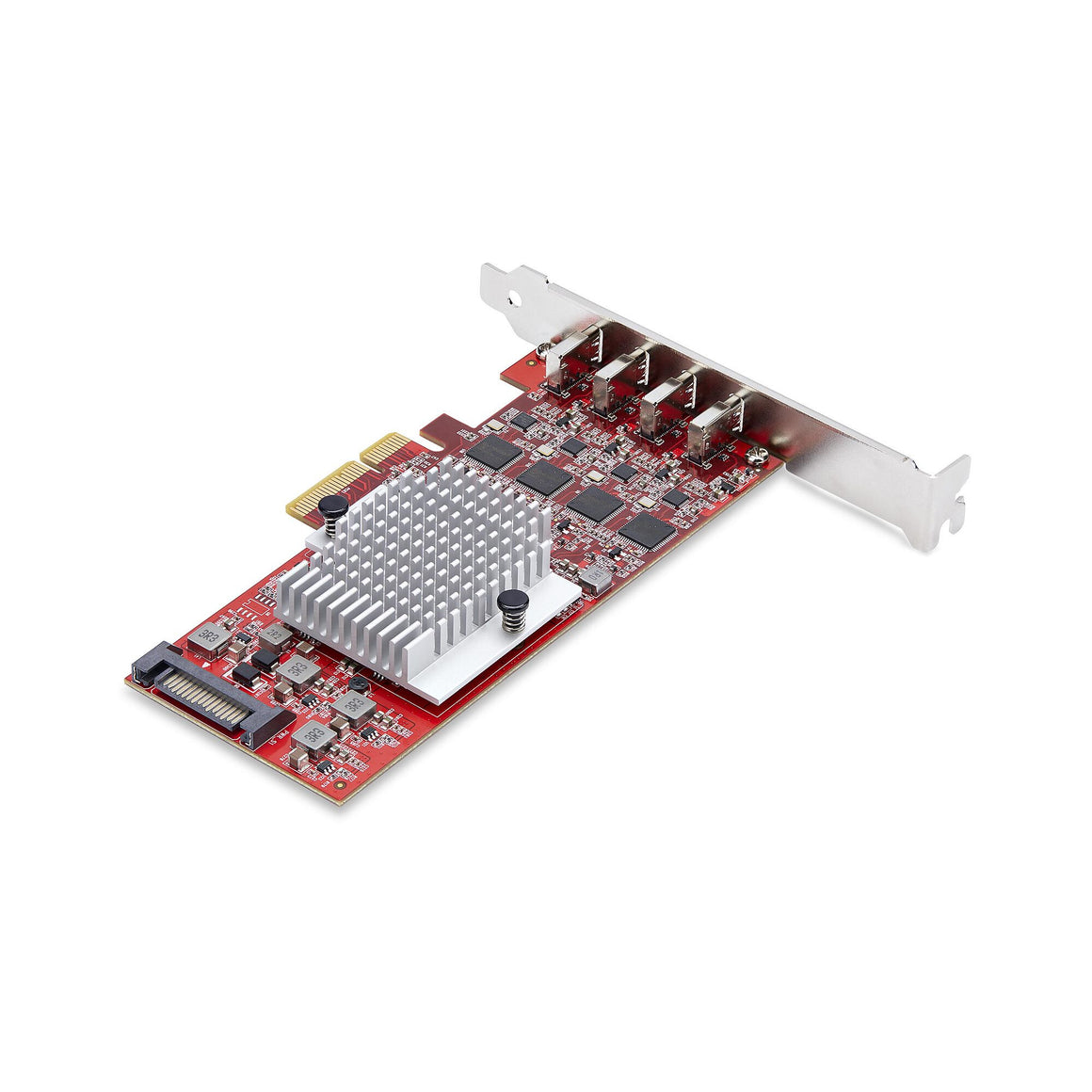

This USB PCI Express card can provide up to 5V 3A (15W) per USB-C port, enabling sync and charge of portable devices. If the motherboard can't supply enough power, a built-in SATA power connector can supply additional power to the card.
Compatibility

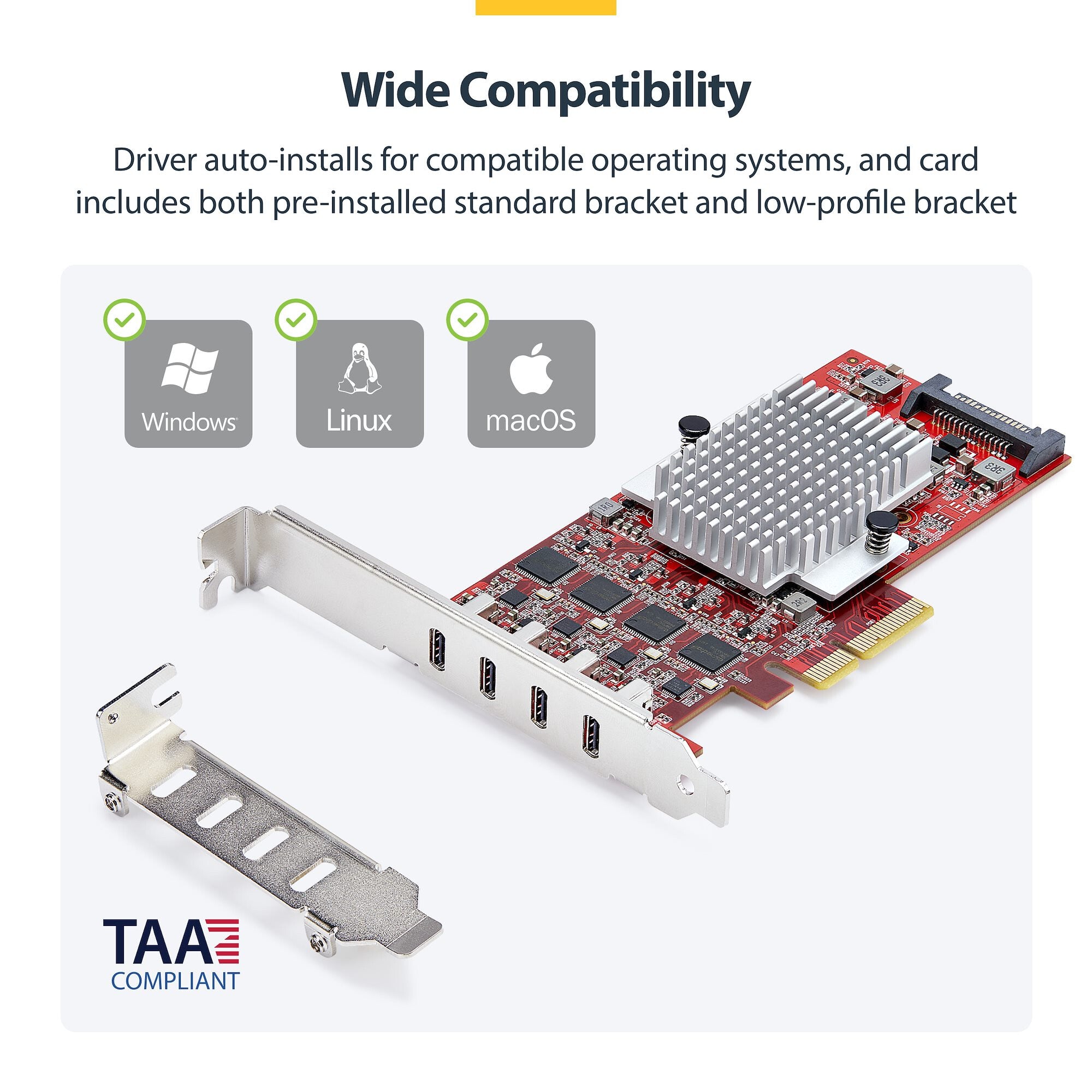

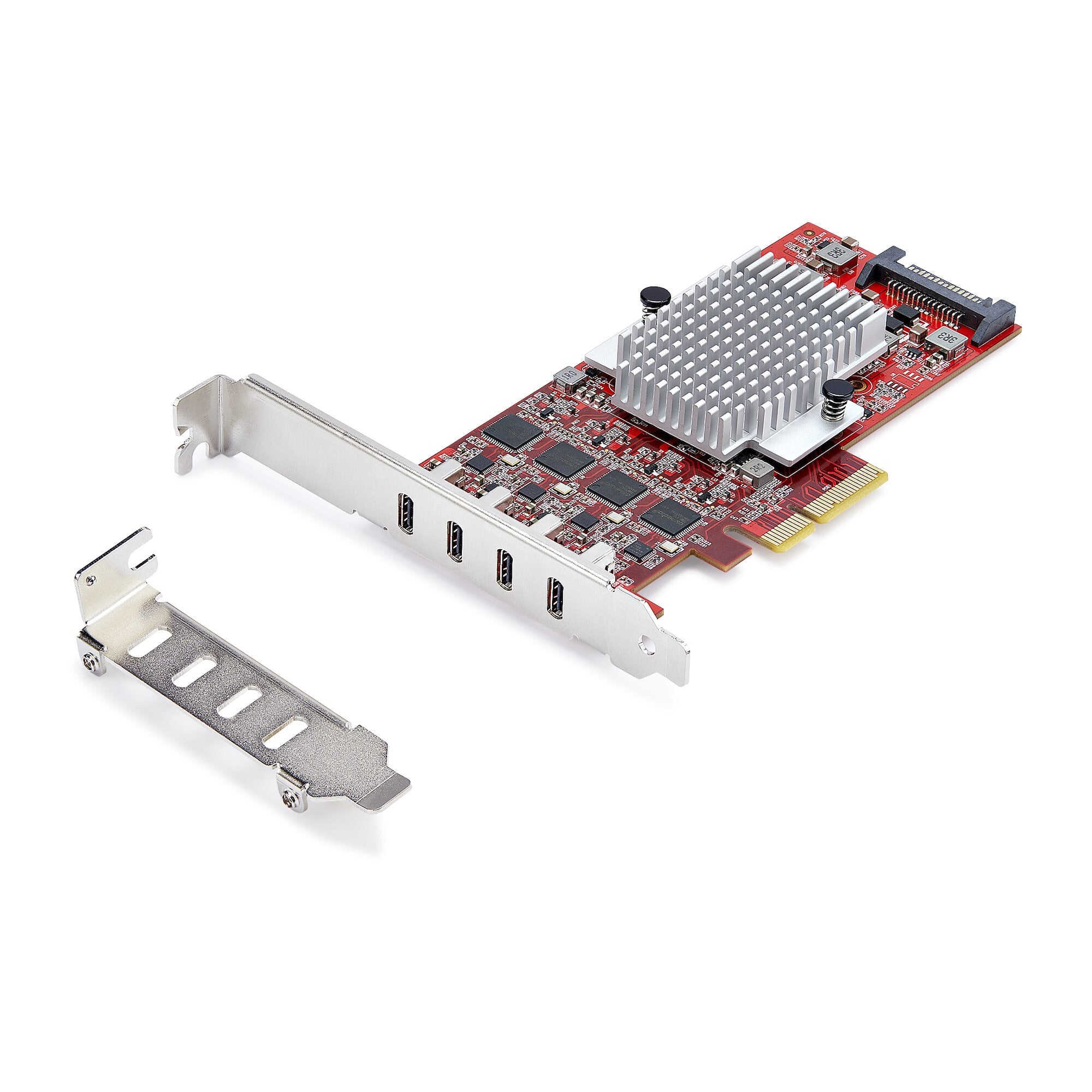

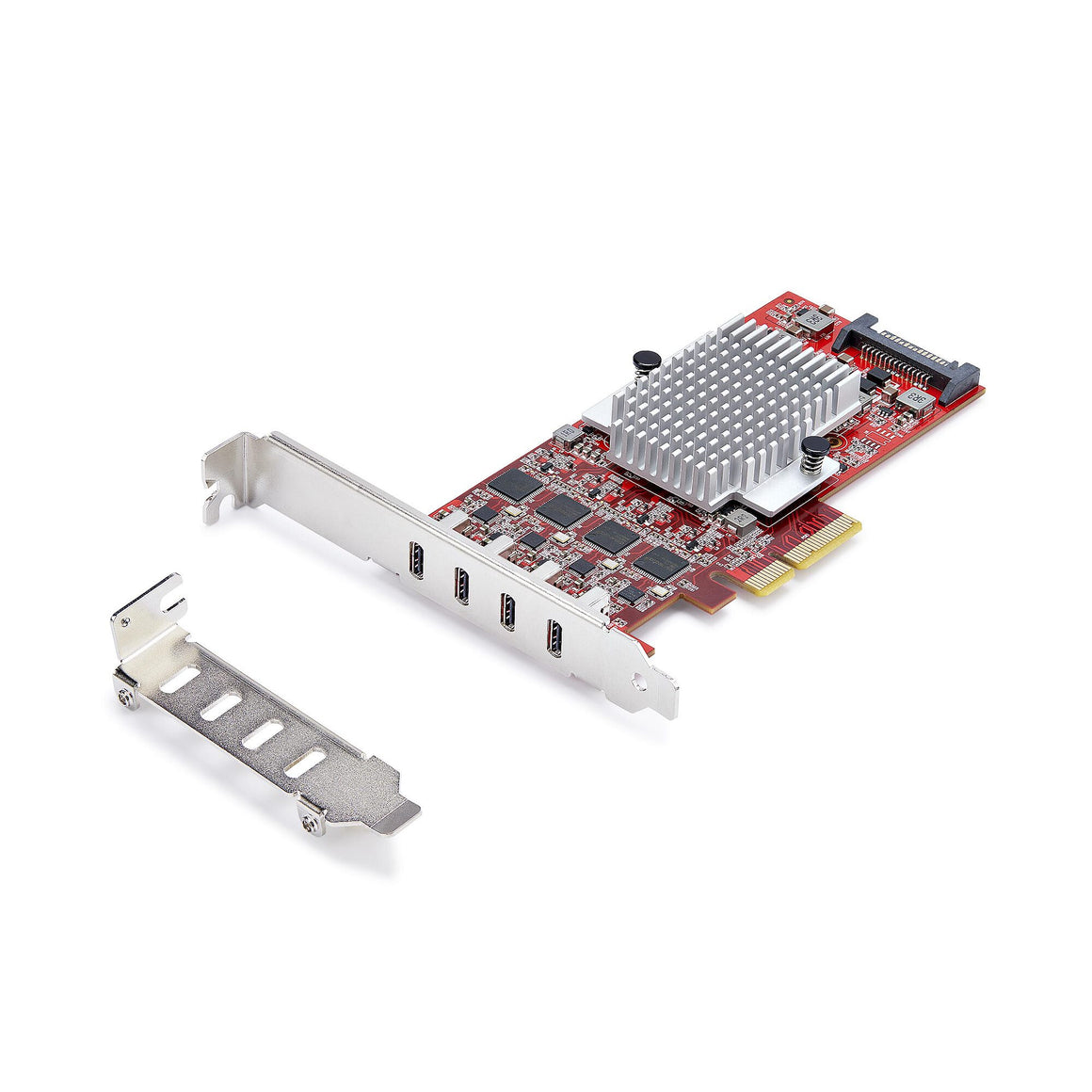

The PCI Express USB card is plug-and-play in most major operating systems, including Windows, macOS, and Linux. The card is compatible with PCI Express 3.0 and x4, x8, and x16 slots. The USB expansion card also ships with a pre-installed standard profile bracket and includes a low-profile bracket for maximum compatibility.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Internal SATA ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
4 |
| Expansion card standard |
PCI 3.0 |
| Output interface |
USB Type-C |
| Host interface |
PCIe |
| Design |
|---|
| Product colour |
Red |
| Internal |
Yes |
| Features |
|---|
| Data transfer rate (max) |
10 Gbit/s |
| Chipset |
ASMedia - ASM3142 x4, ASMedia - ASM1543 x4, ASMedia - ASM2812X |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-25 - 85 °C |
| Operating temperature (T-T) |
0 - 85 °C |
| System requirements |
|---|
| Server operating systems supported |
Windows Server 2019, Windows Server 2022 |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |

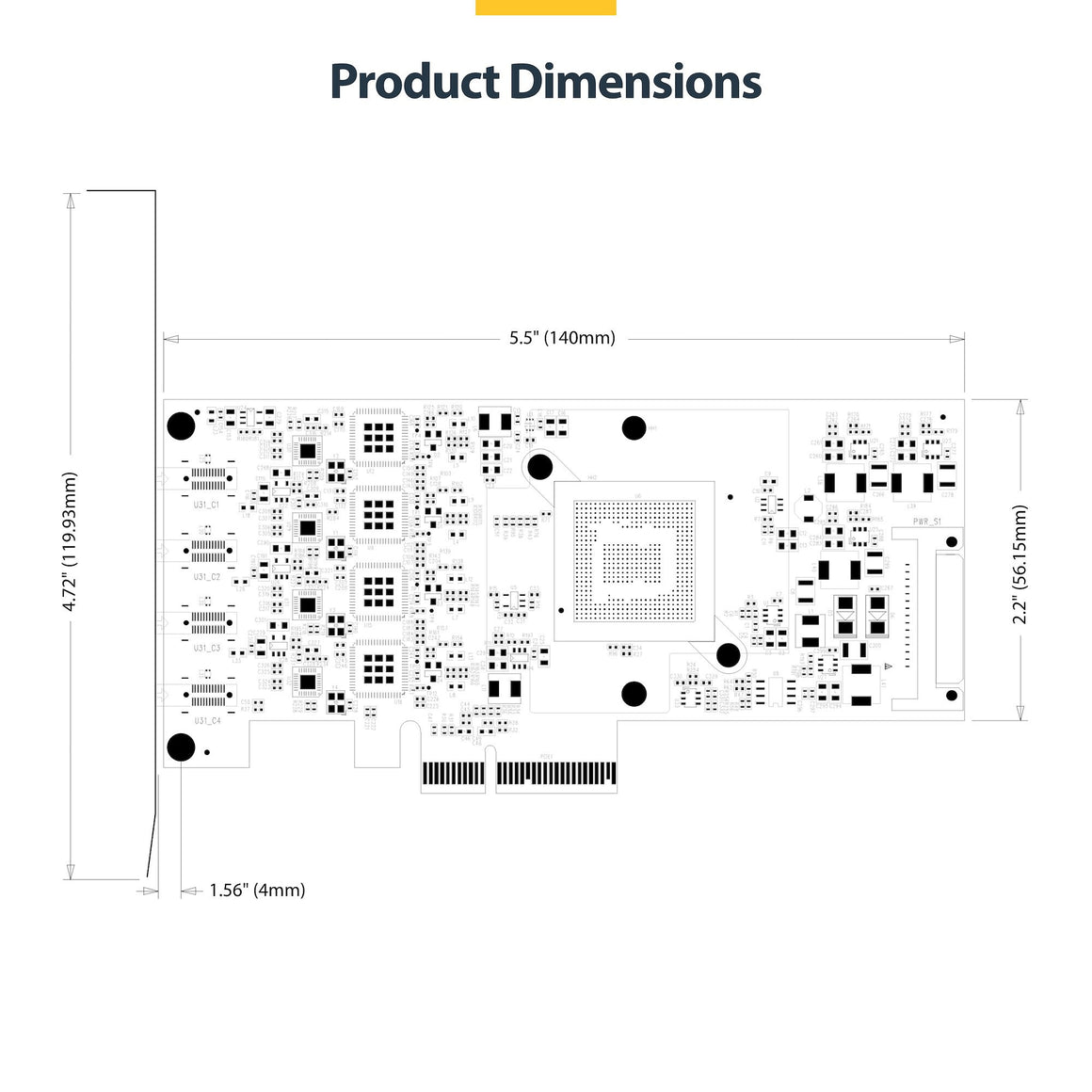

| Weight & dimensions |
|---|
| Weight |
120 g |
| Height |
119.9 mm |
| Depth |
140 mm |
| Width |
56.2 mm |
| Packaging data |
|---|
| Package weight |
160 g |
| Package height |
30 mm |
| Package depth |
170 mm |
| Package width |
142 mm |
| Quick installation guide |
Yes |
| Mounting brackets included |
Yes |
| Logistics data |
|---|
| Master (outer) case height |
500 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case width |
380 mm |
| Products per master (outer) case |
60 pc(s) |
