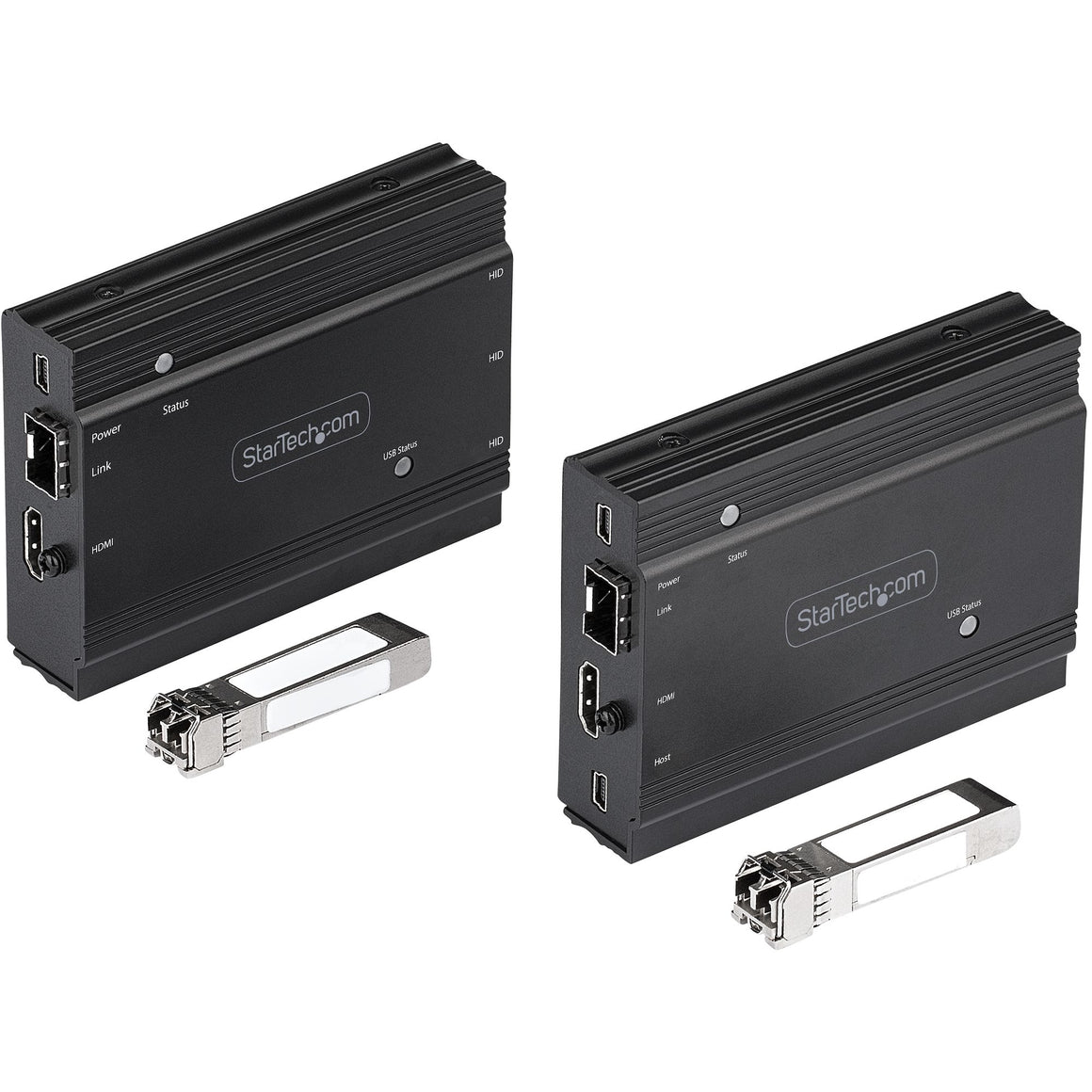

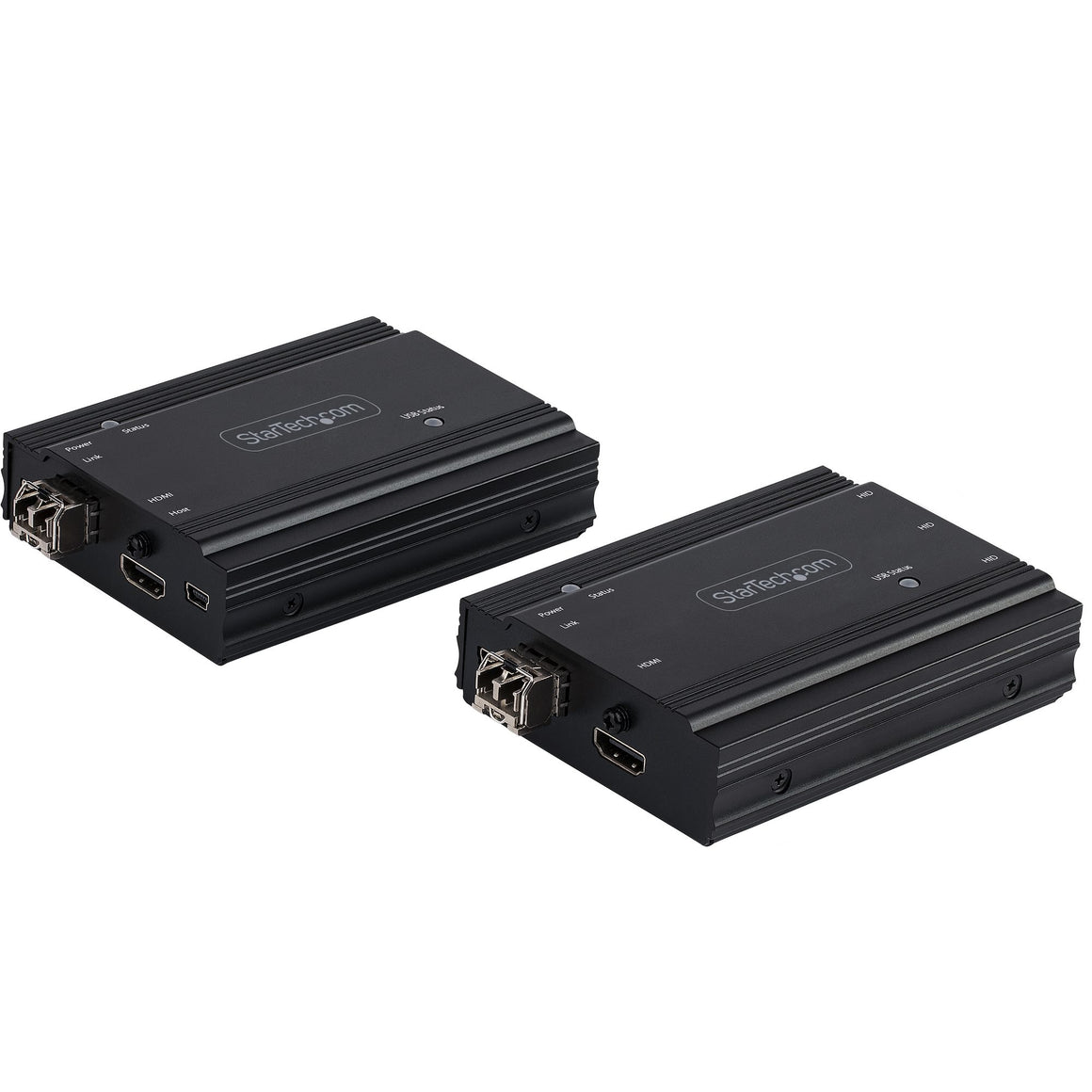

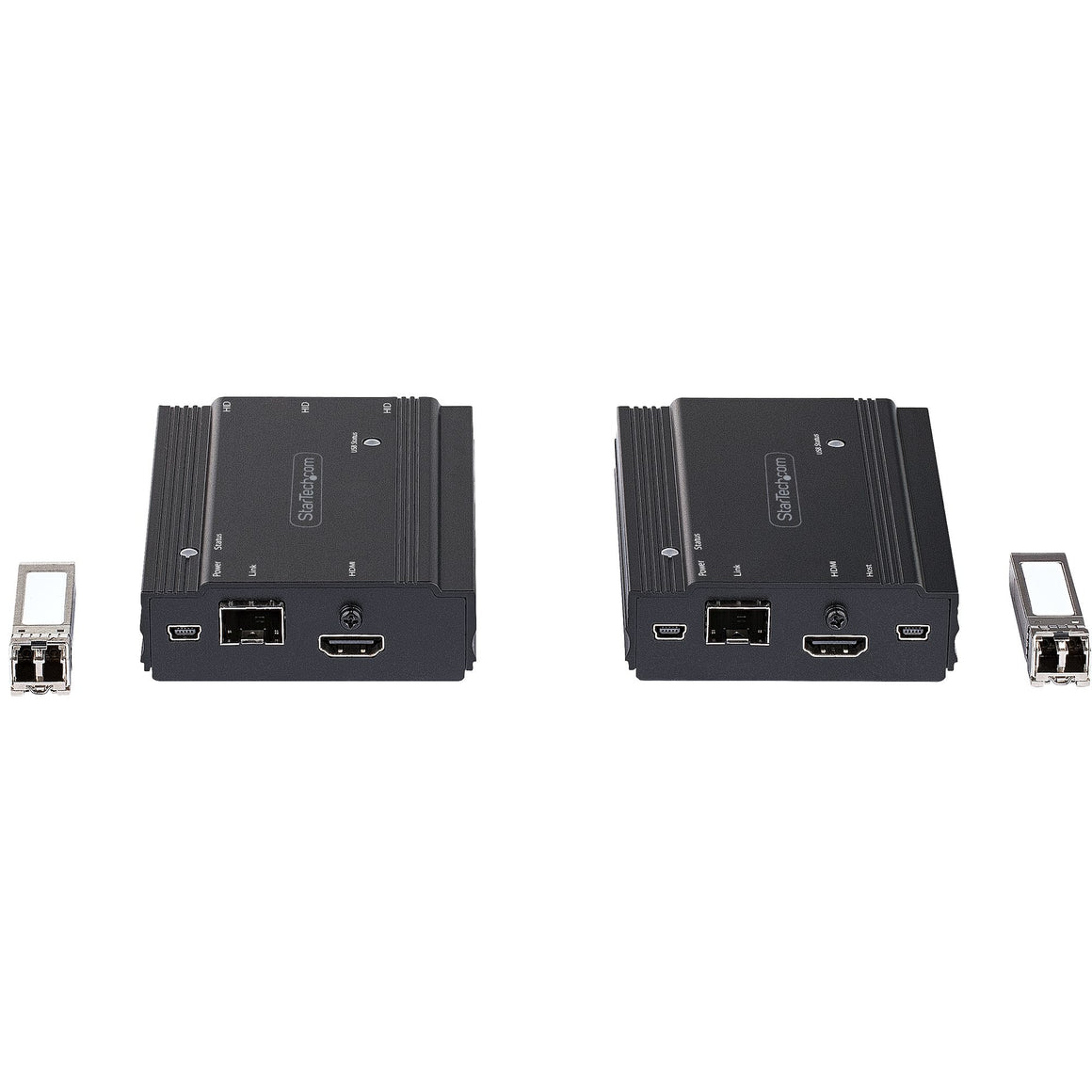

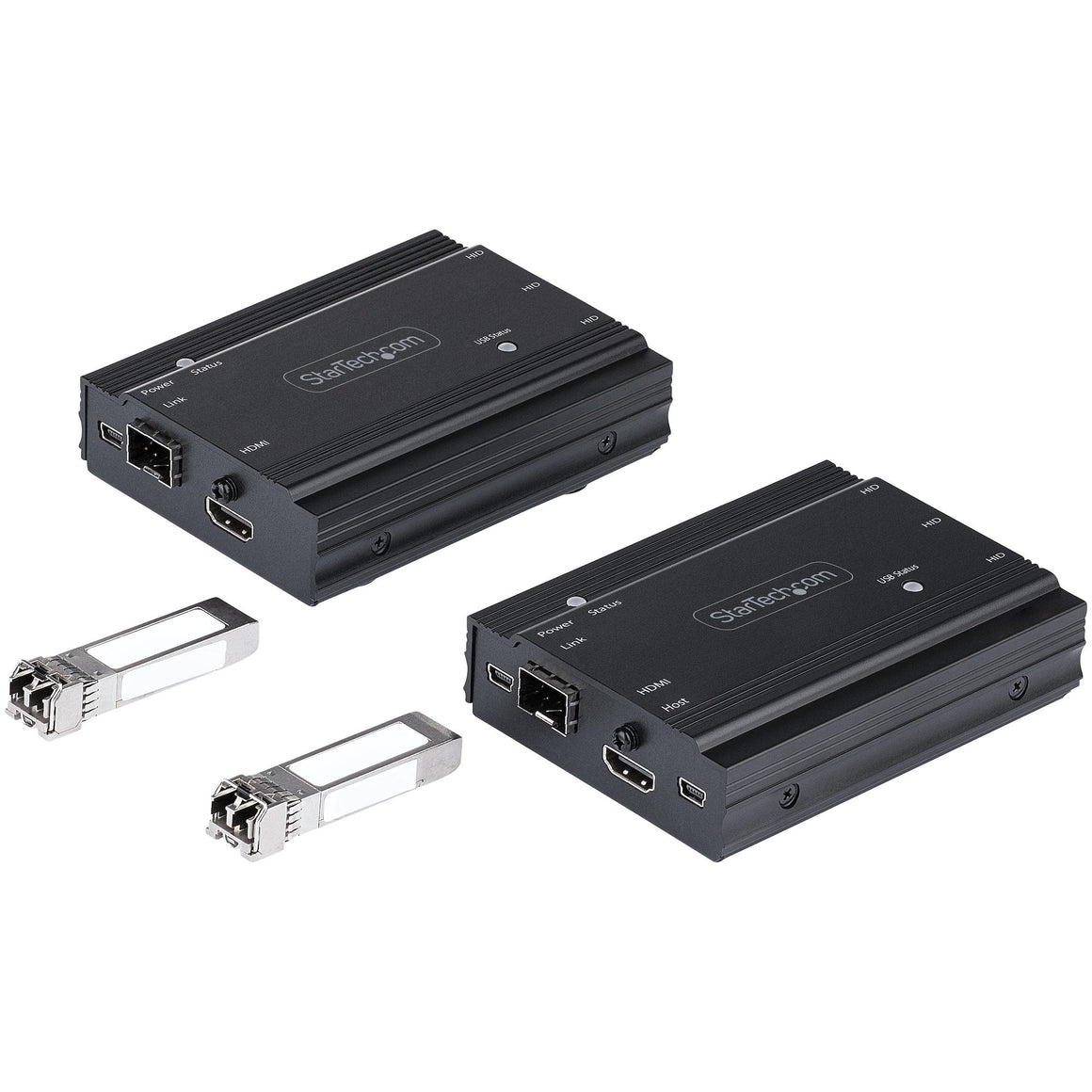

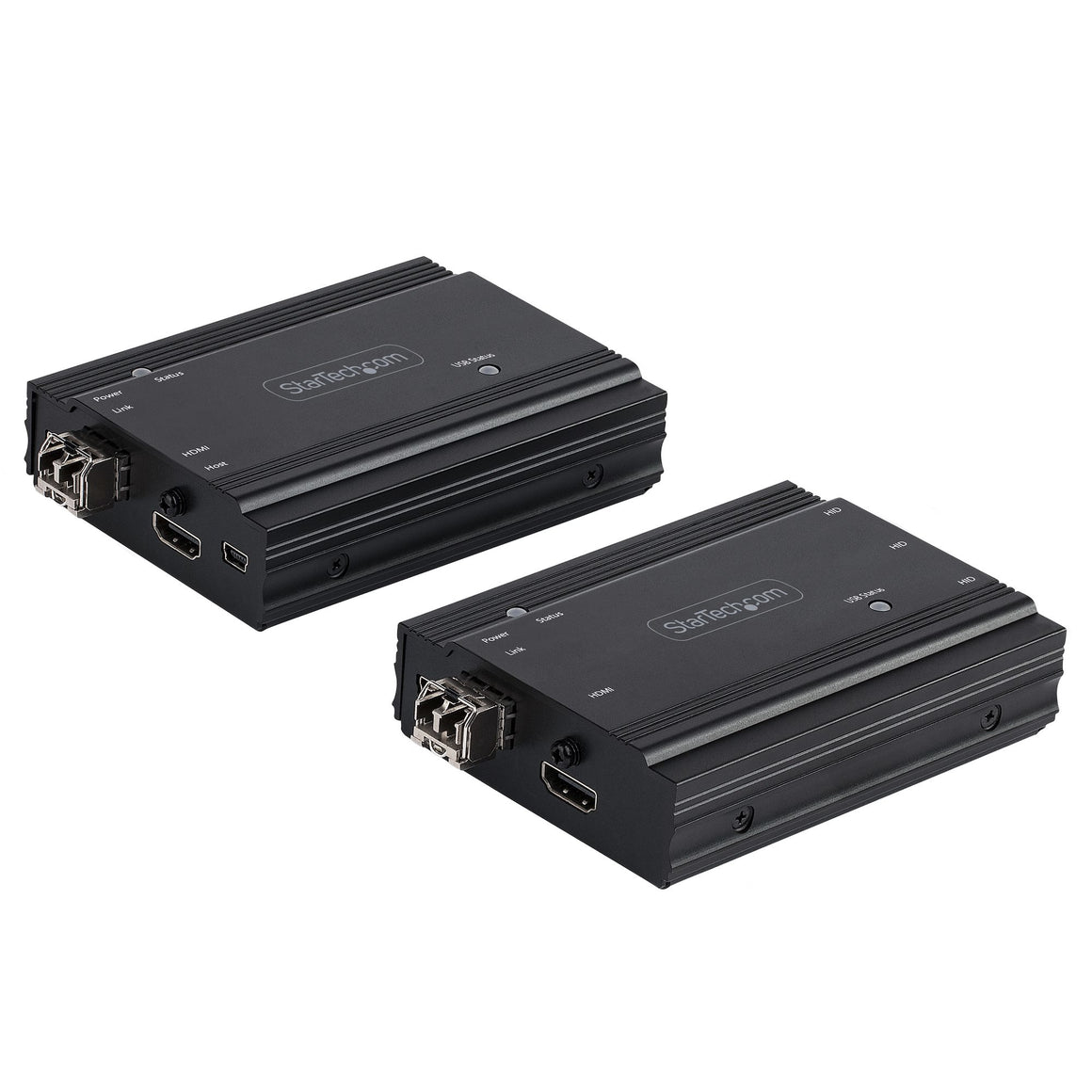

HDMI KVM Extender Kit | 4K 60Hz | 4:4:4 Chroma Sampling | 2x LC SFP+ (MM) Included

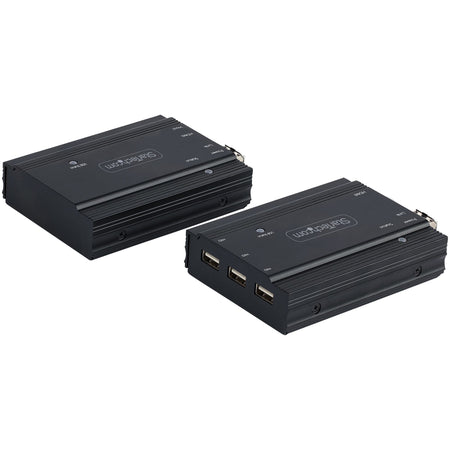

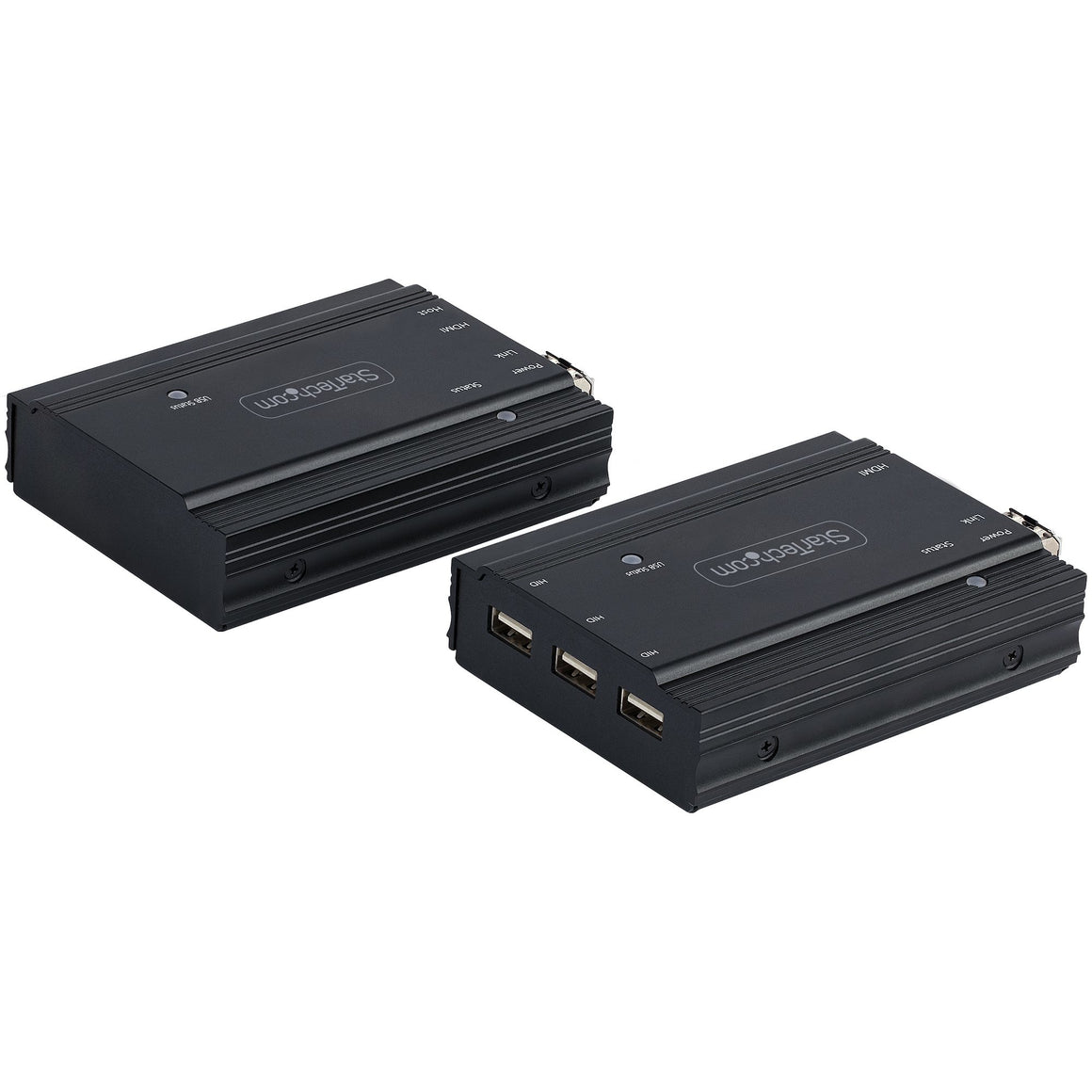

This HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over a point-to-point fiber connection. When combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features three USB HID ports that enable you to connect HID devices, like your keyboard and mouse.
Supports UHD 4K 60Hz
The HDMI KVM extender delivers up to 4K 60Hz UHD picture quality to your remote display with support for 4:4:4 chroma sampling.
Hassle-Free Installation
The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display using 10G LC multi mode fiber cabling
SV565FXHD4KU is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| LED indicators |
Power, Status |
| Material |
Metal |
| Product colour |
Black |
| On Screen Display (OSD) |
No |
| Maximum refresh rate |
60 Hz |
| Maximum digital resolution |
3840 x 2160 pixels |
| Rack mounting |
No |
| Maximum transfer distance |
500 m |
| Connectivity technology |
Wired |
| Type |
Transmitter & receiver |
| Transmitter |
|---|
| Number of displays supported |
1 |
| Transmitter video port type |
HDMI |
| Receiver |
|---|
| Receiver local video port type |
HDMI |

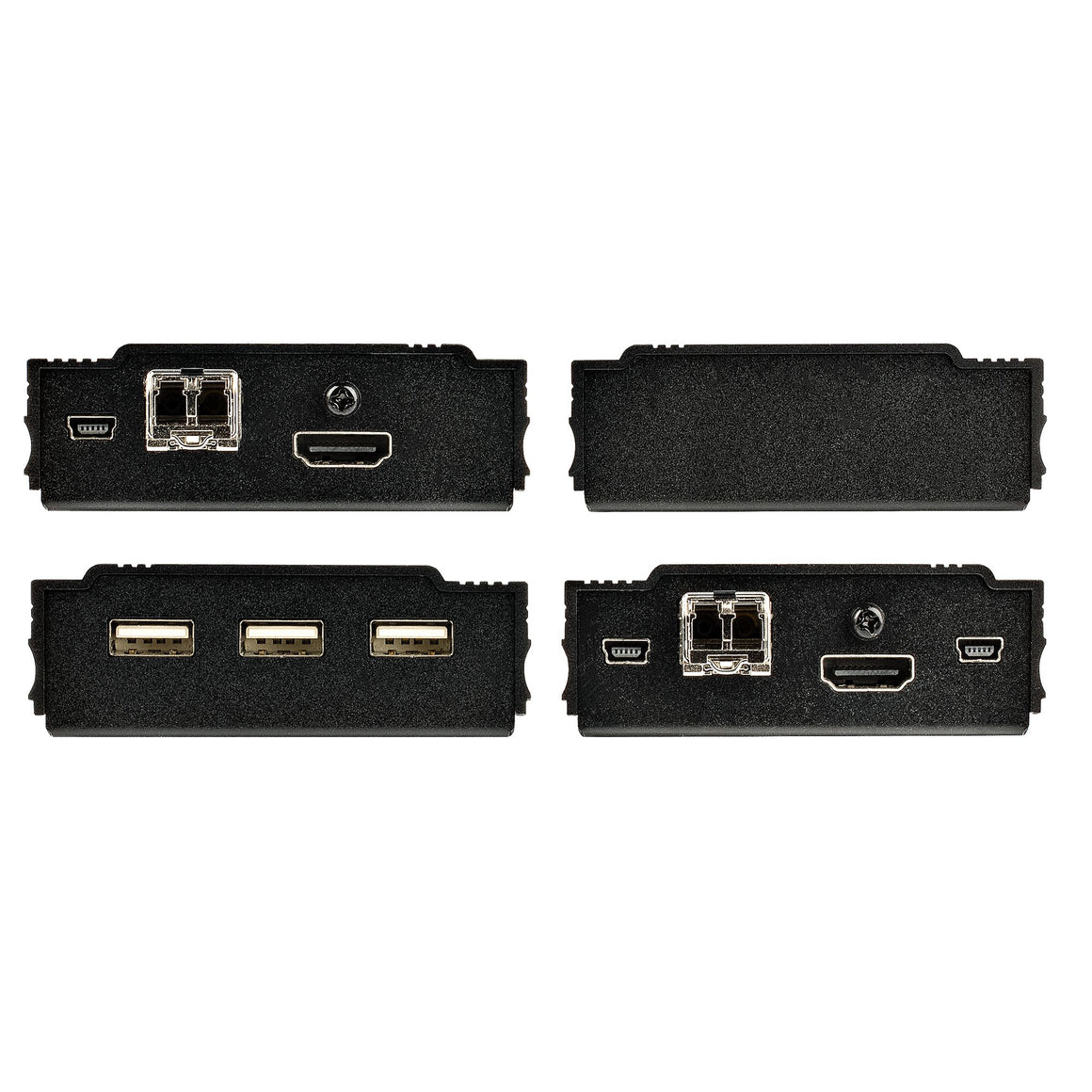

| Ports & interfaces |
|---|
| USB 1.1 ports quantity |
3 |
| Power |
|---|
| Power consumption (receiver) (max) |
10 W |
| Power consumption (transmitter) (max) |
10 W |
| AC adapter output current |
2 A |
| AC adapter output voltage |
5 V |
| Input current |
0.3 A |
| AC input voltage |
100 - 240 V |
| Weight & dimensions |
|---|
| Receiver weight |
450 g |
| Receiver height |
2.8 cm |
| Receiver depth |
10 cm |
| Receiver width |
7.5 cm |
| Transmitter weight |
450 g |
| Transmitter height |
2.8 cm |
| Transmitter depth |
10 cm |
| Transmitter width |
7.5 cm |
| Packaging data |
|---|
| Package weight |
140 g |
| Package height |
75 mm |
| Package depth |
310 mm |
| Package width |
180 mm |

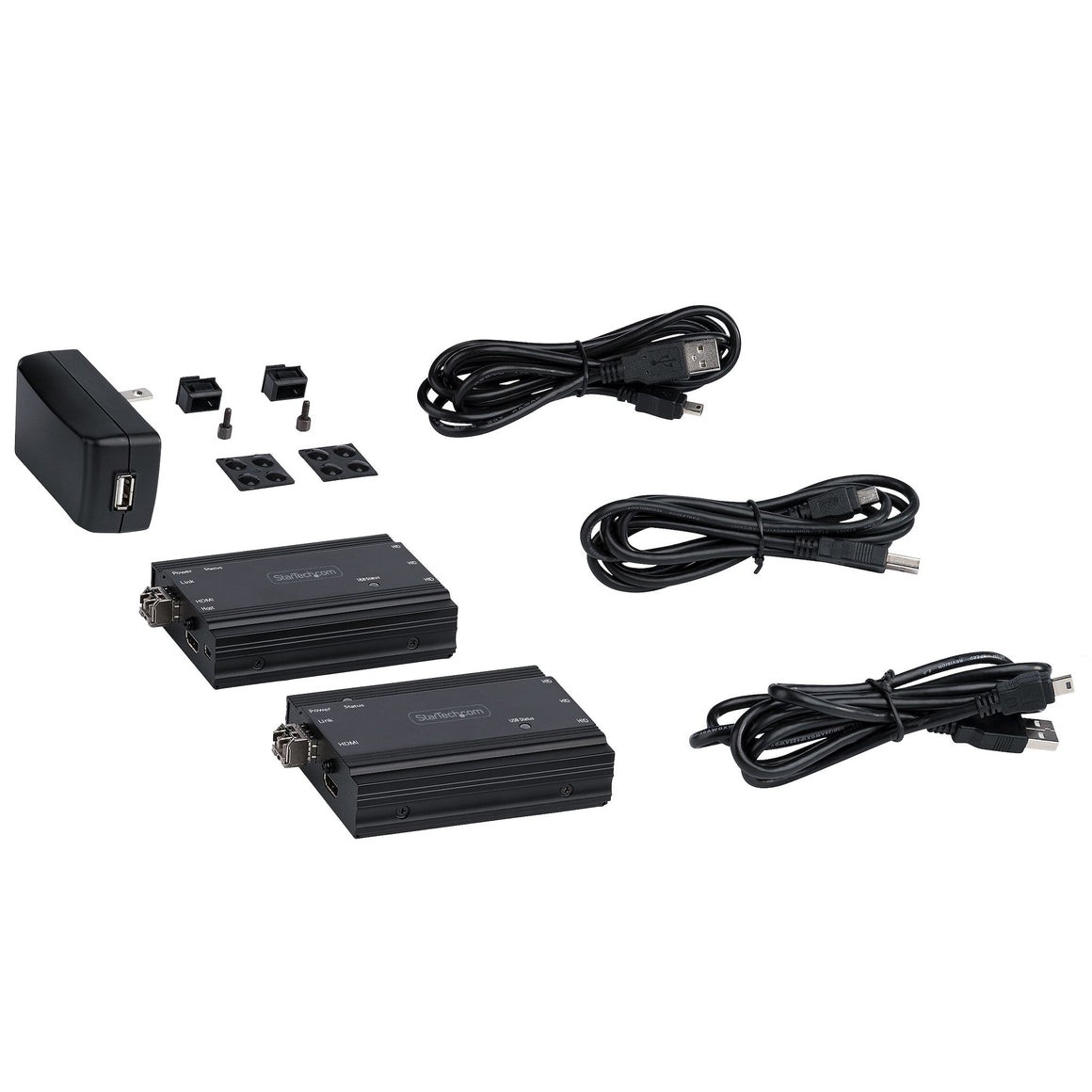

| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
Mini-USB |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Other features |
|---|
| Compliance certificates |
CE, RoHS |
| Technical details |
|---|
| Weight |
500 g |
| Logistics data |
|---|
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case height |
265 mm |
| Master (outer) case length |
330 mm |
| Master (outer) case width |
405 mm |
| Harmonized System (HS) code |
84733080 |
