Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz

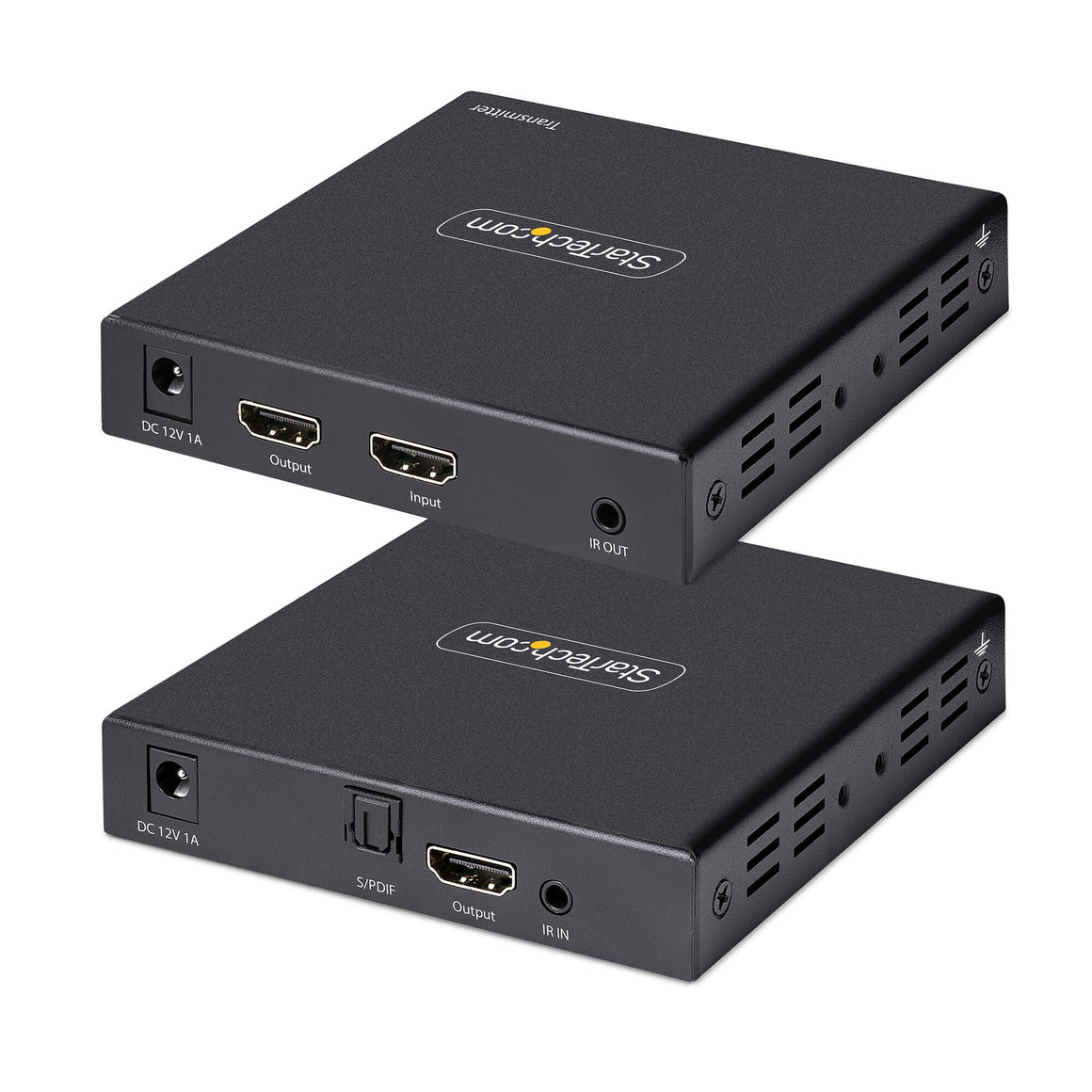

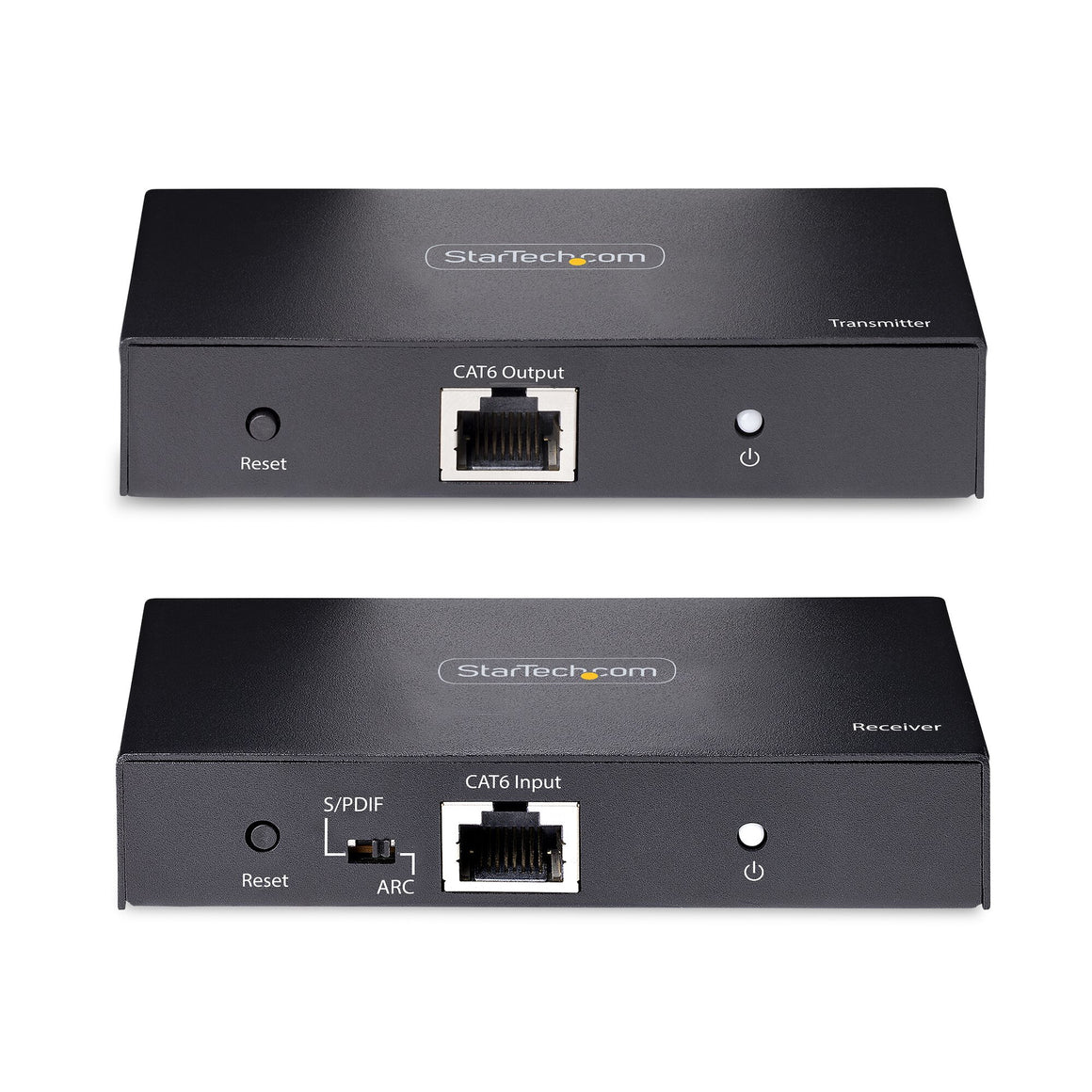

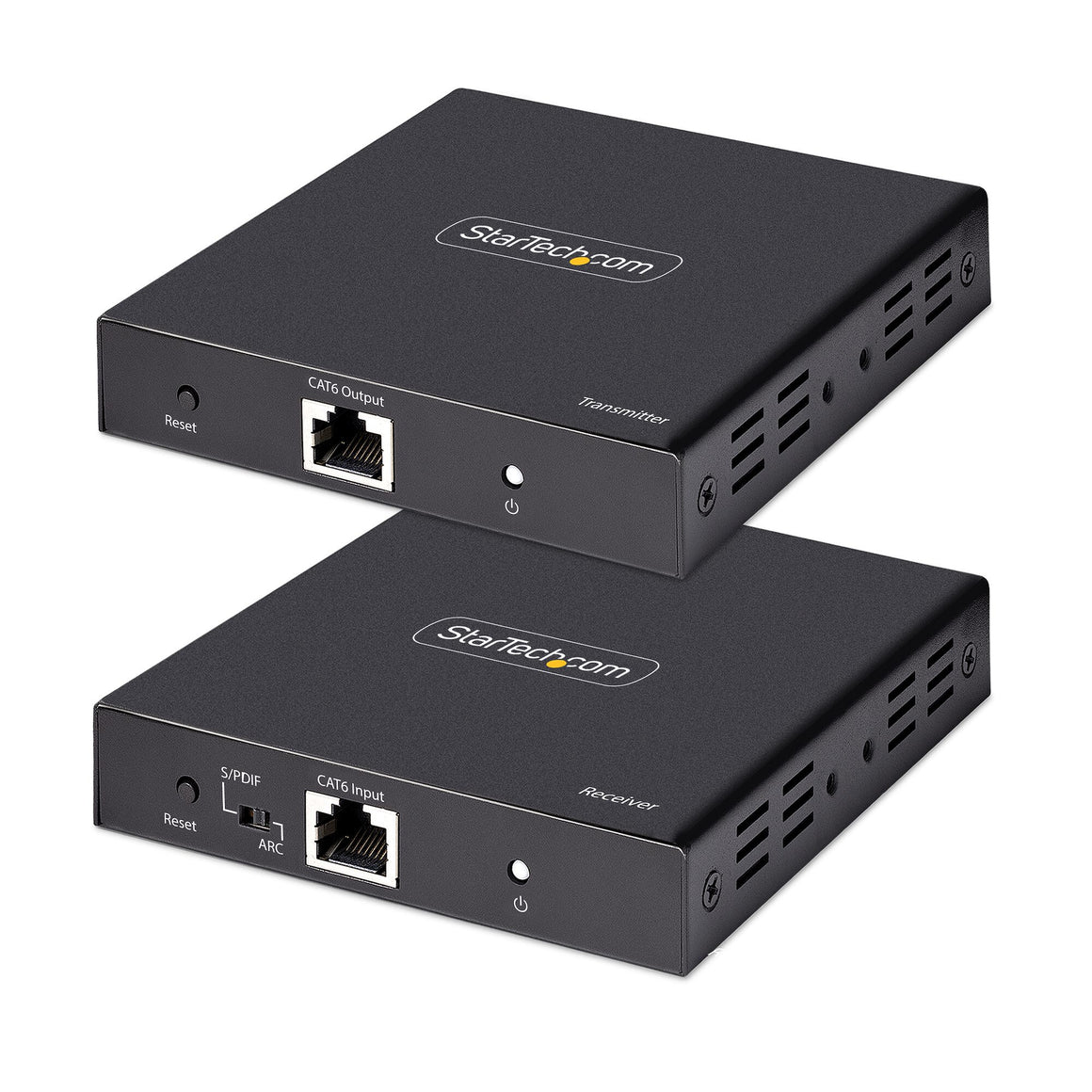

This HDMI® Extender transmits a 4K 60Hz HDMI audio video signal up to 230ft (70m) over Category 5e/6 Ethernet Cabling. The converter kit includes the transmitter and receiver units for a complete point-to-point solution.
4K 60Hz Resolution
This HDMI extender supports resolutions of up to 4K 60Hz with zero latency over a single Ethernet cable. The UHD HDMI Extender supports HDMI 2.0 and 4:4:4 chroma subsampling, which ensures clear and stable video output.

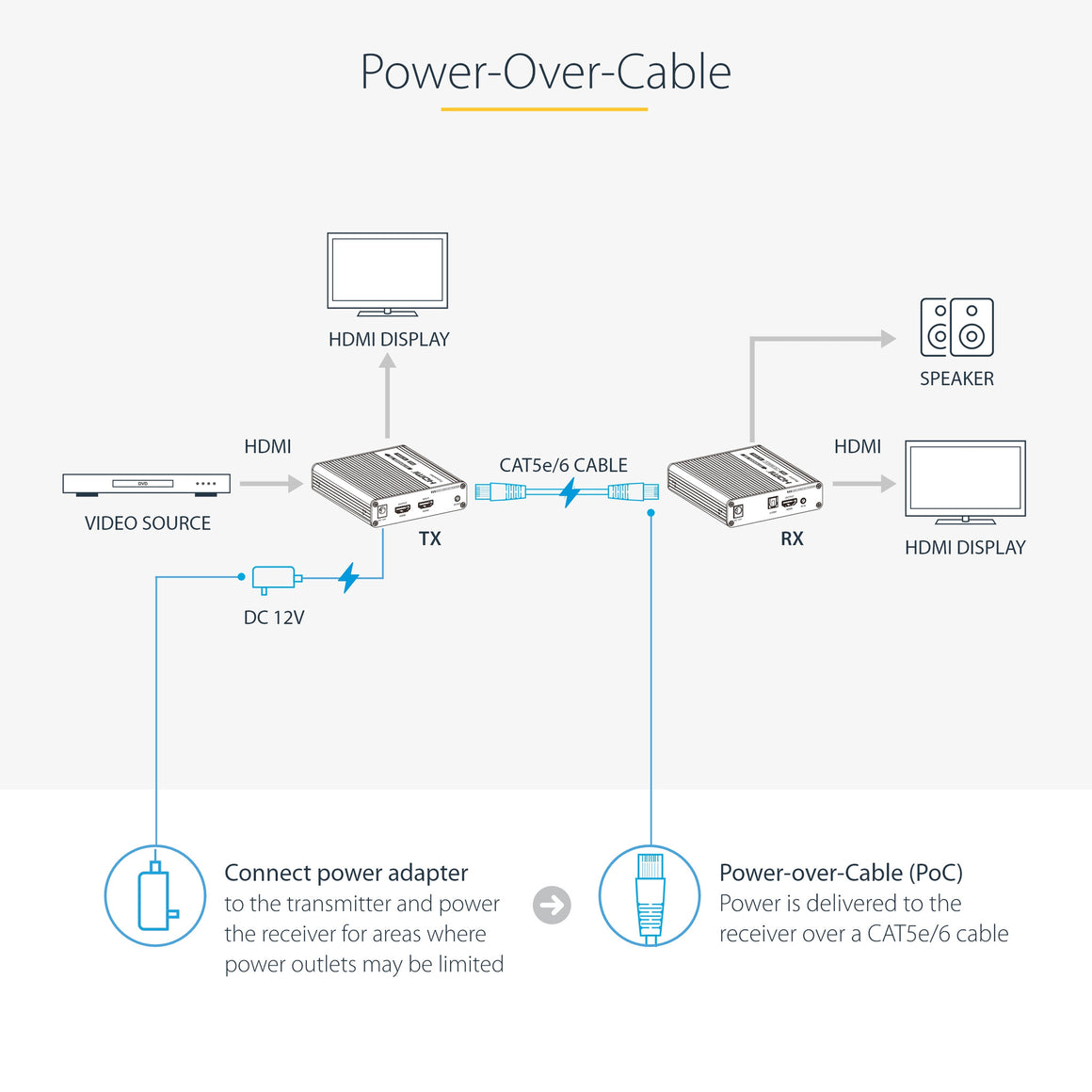

Power-Over-Cable

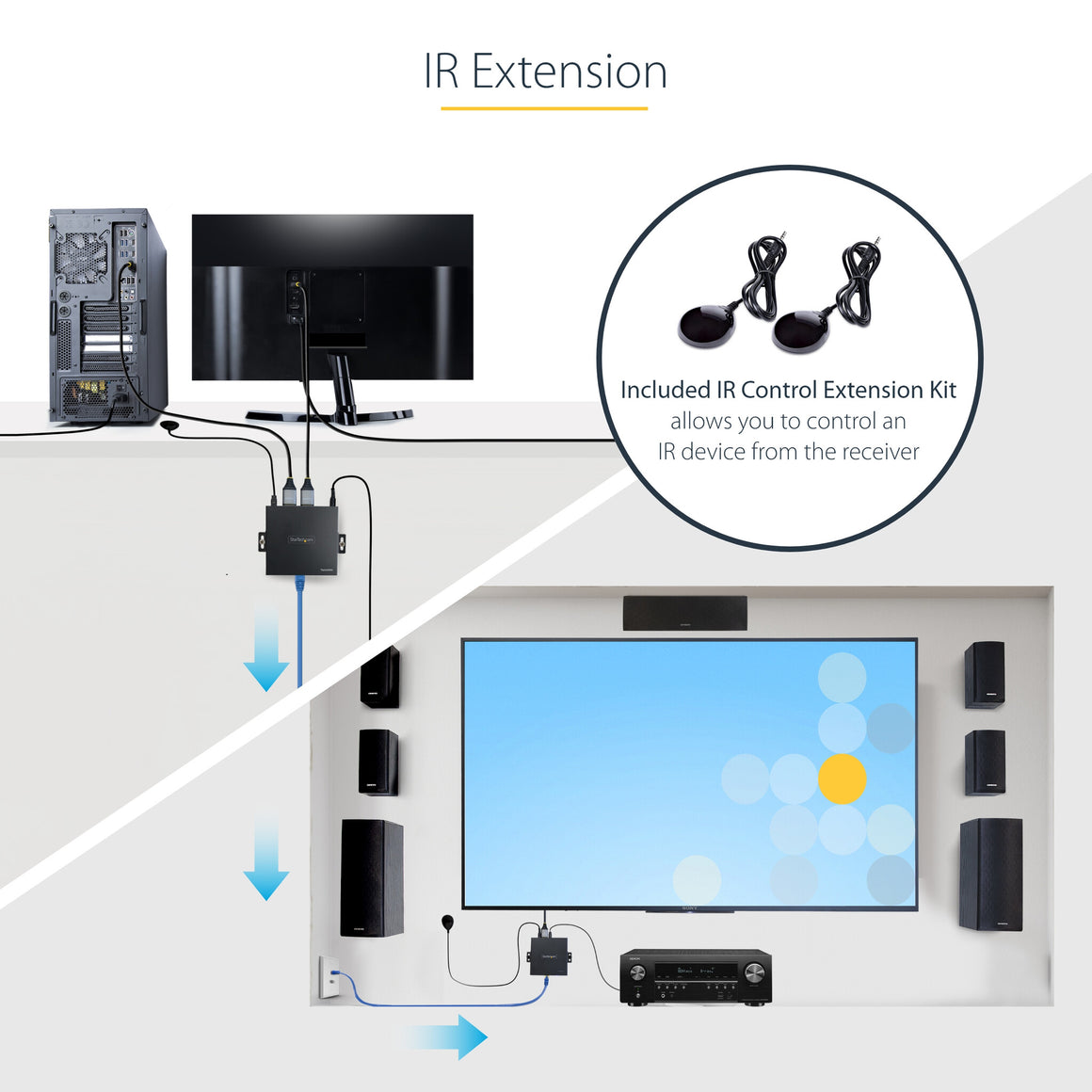

Connect the power adapter to the transmitter or receiver to power both units, using Power-over-Cable (PoC). Use an IR remote control to communicate with the source device, from the location of the receiver unit, using the IR extension kit.

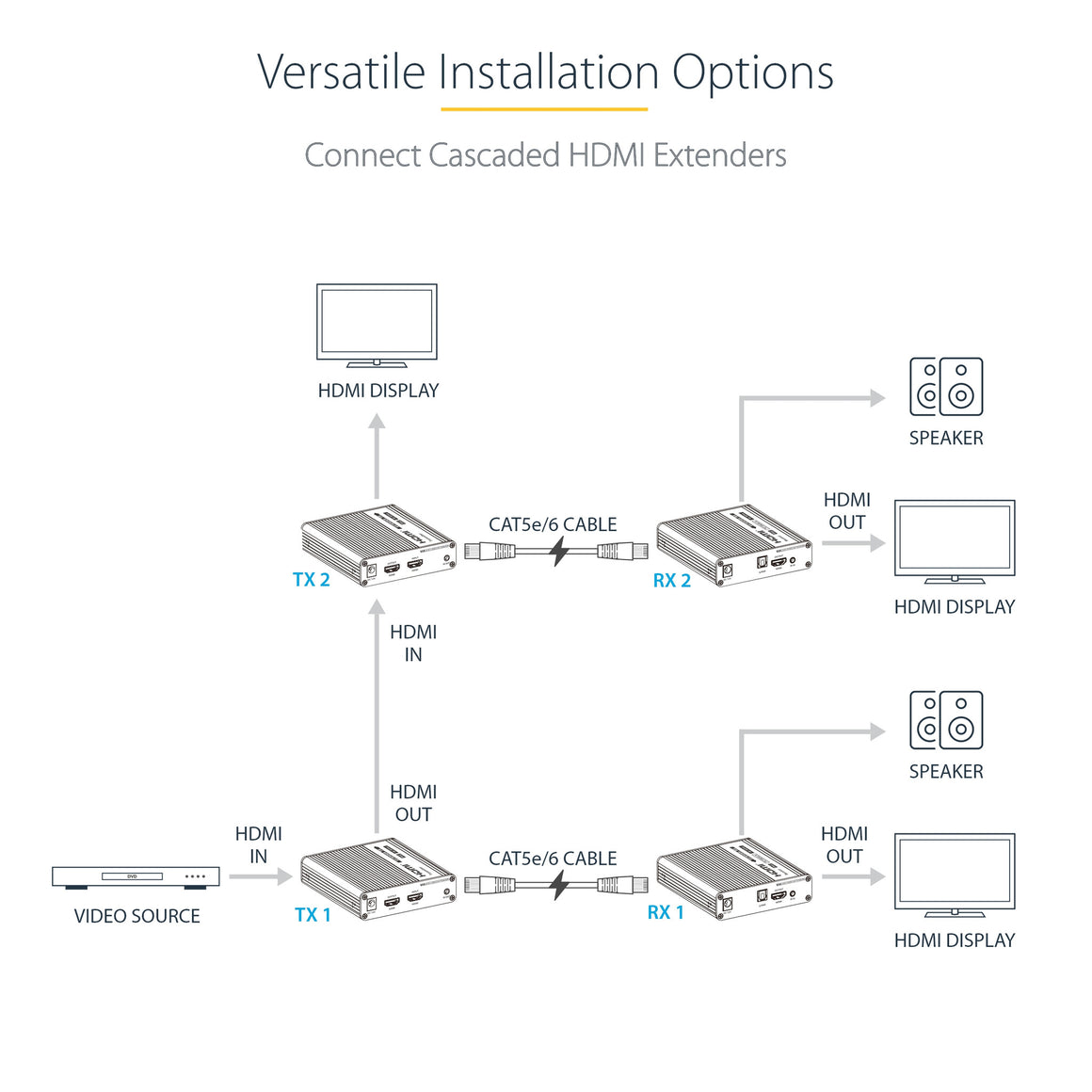

Versatile Installation Options

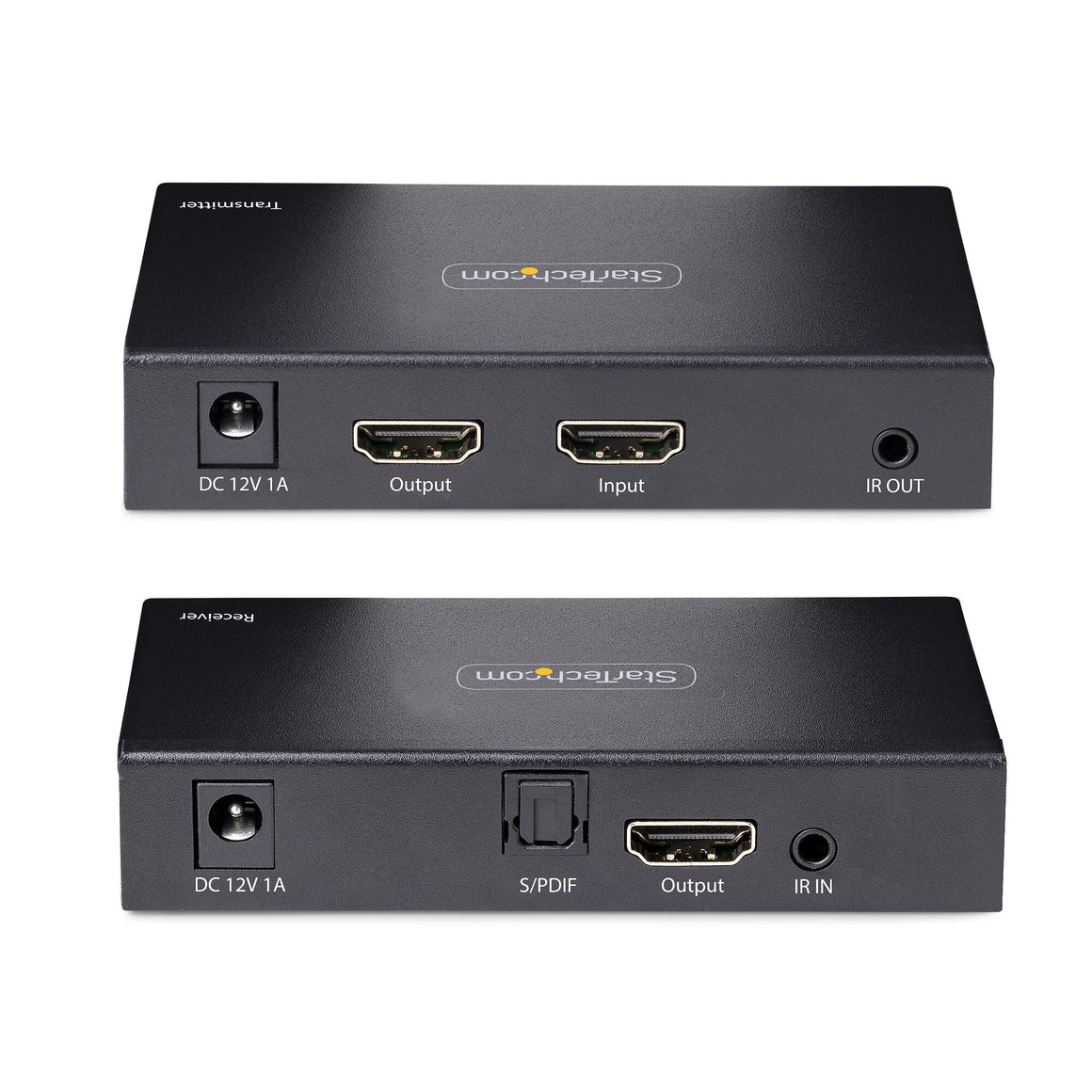

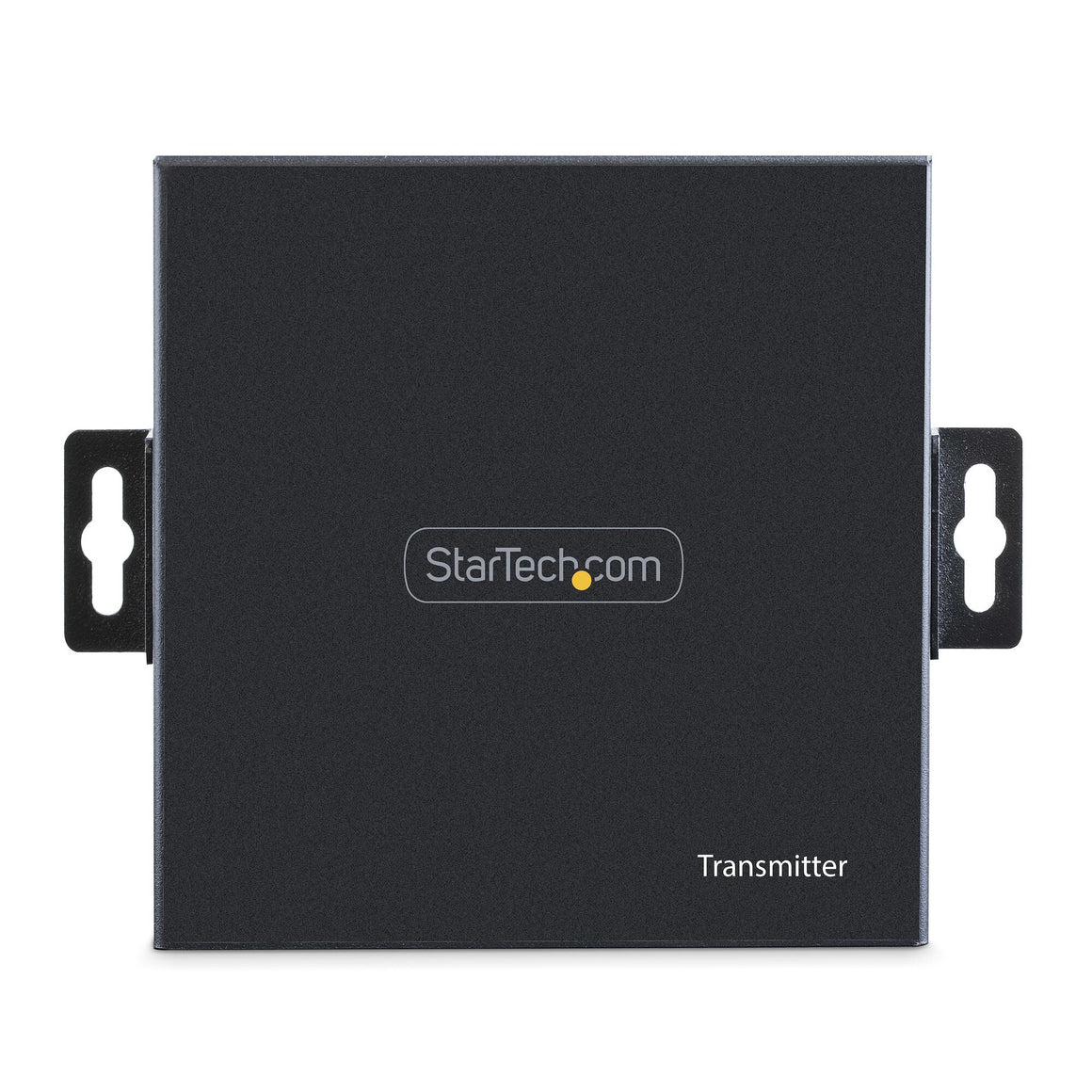

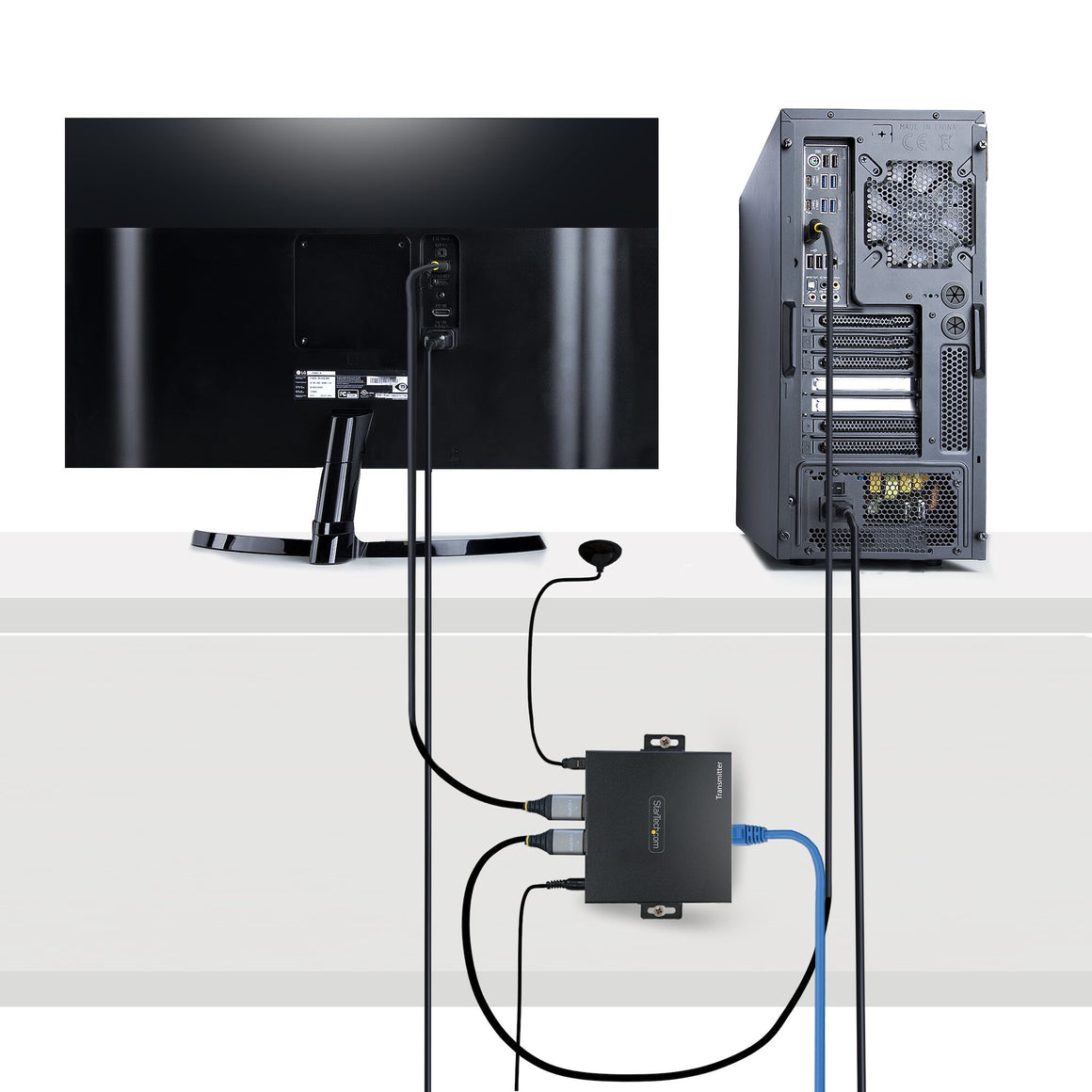

The 4K HDMI Extender features an HDMI output on the transmitter unit, enabling the connection of an HDMI display or to connect additional video extenders - to establish a cascade connection. Plug-and-play installation with no additional software or drivers required. Attach the mounting brackets to the metal housing and to a wall, ceiling, or to the underside of a table, facilitating a multitude of professional installation options. The rubber feet protect the mounting surface and isolate the units from vibration.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Features |
|---|
| Product colour |
Black |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Material |
Metal |
| Plug and Play |
Yes |
| Daisy chain |
Yes |
| Rack mounting |
No |
| HDCP |
Yes |

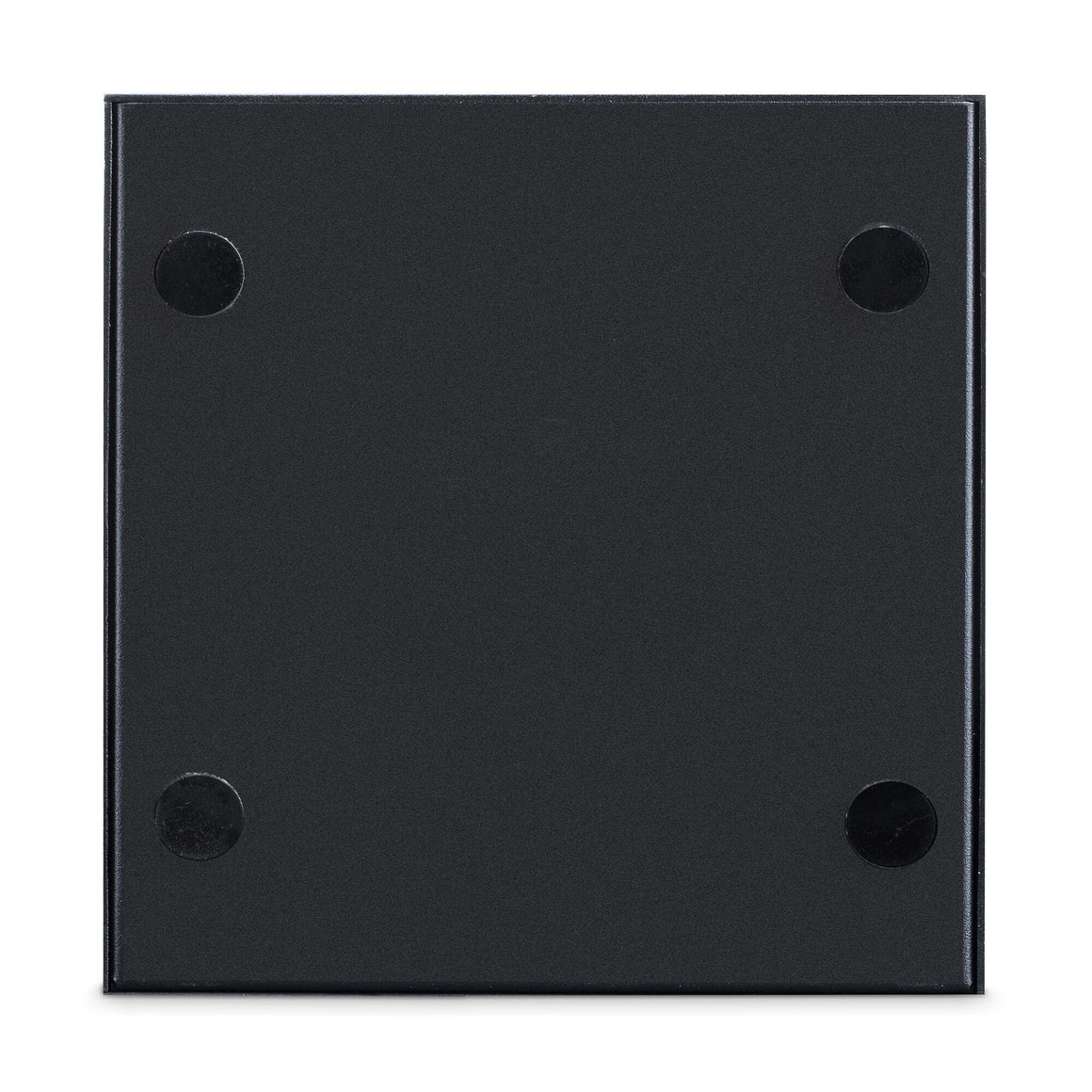

| Rubber feet |
Yes |
| HDCP version |
2.2 |
| LED indicators |
Yes |
| Electrostatic Discharge (ESD) protection |
8 kV |
| Audio output channels |
7.1 channels |
| Maximum refresh rate |
60 Hz |
| High Dynamic Range (HDR) supported |
Yes |
| Maximum transfer distance |
70 m |
| Cable types supported |
Cat5e, Cat6 |
| Maximum resolution |
3840 x 2160 pixels |
| Type |
AV transmitter & receiver |

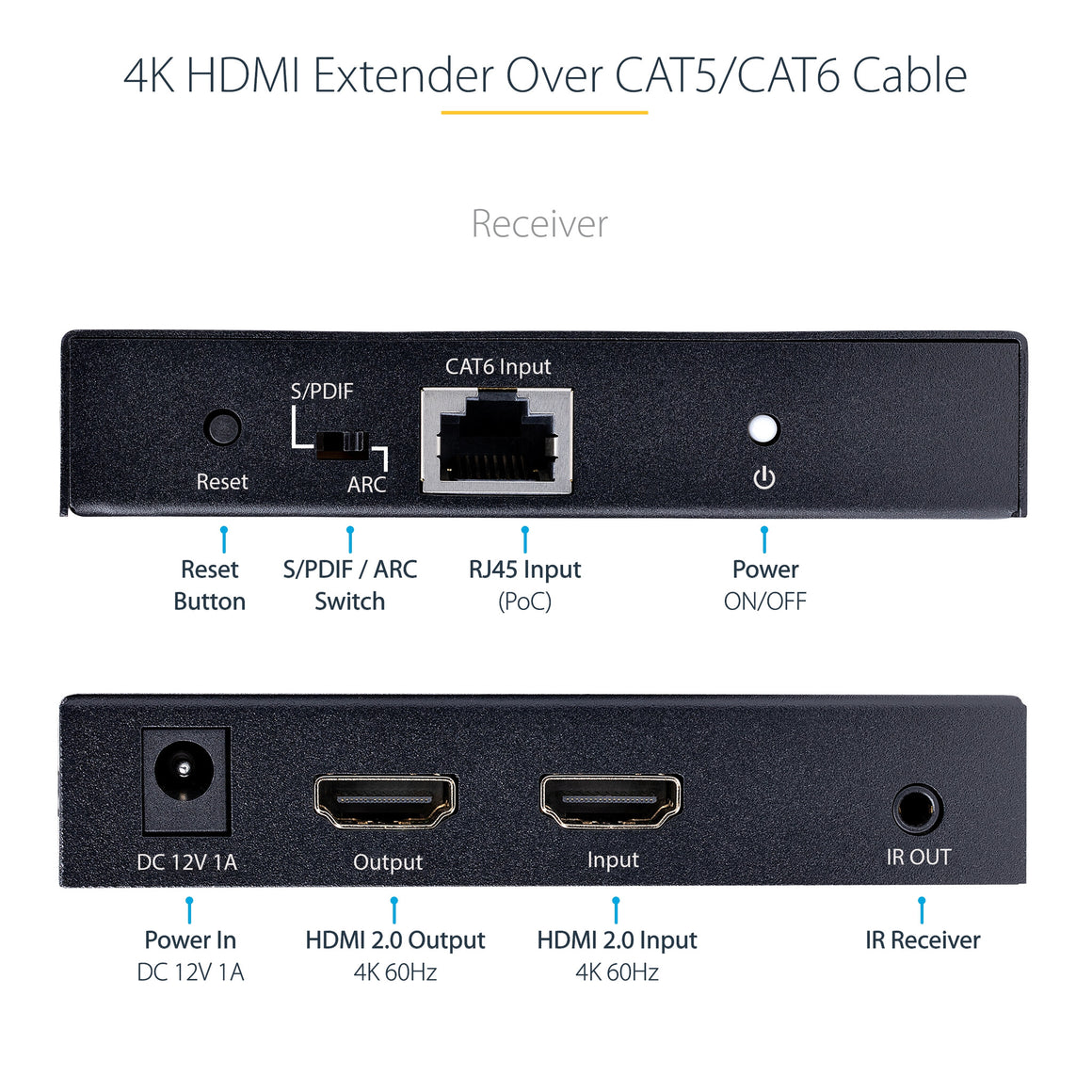

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |
| Digital audio optical out |
1 |
| HDMI version |
2.0 |
| HDMI in |
1 |
| Number of HDMI outputs |
2 |
| RJ-45 output ports |
1 |
| RJ-45 input ports |
1 |
| Connectivity technology |
Wired |
| Power |
|---|
| Power plug type |
Type M |
| External power adapter |
Yes |
| Power consumption (typical) |
0.1 W |
| Output current |
1 A |
| Operating voltage (transmitter) |
12 V |
| Input current |
0.3 A |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |

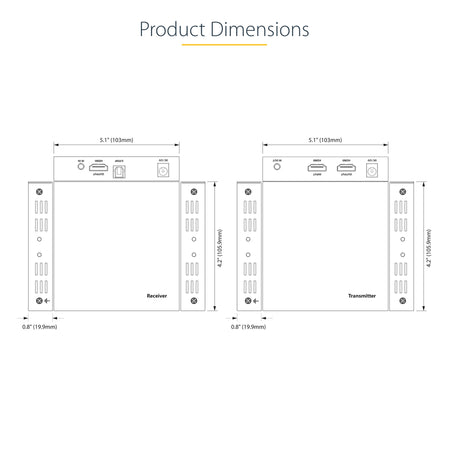

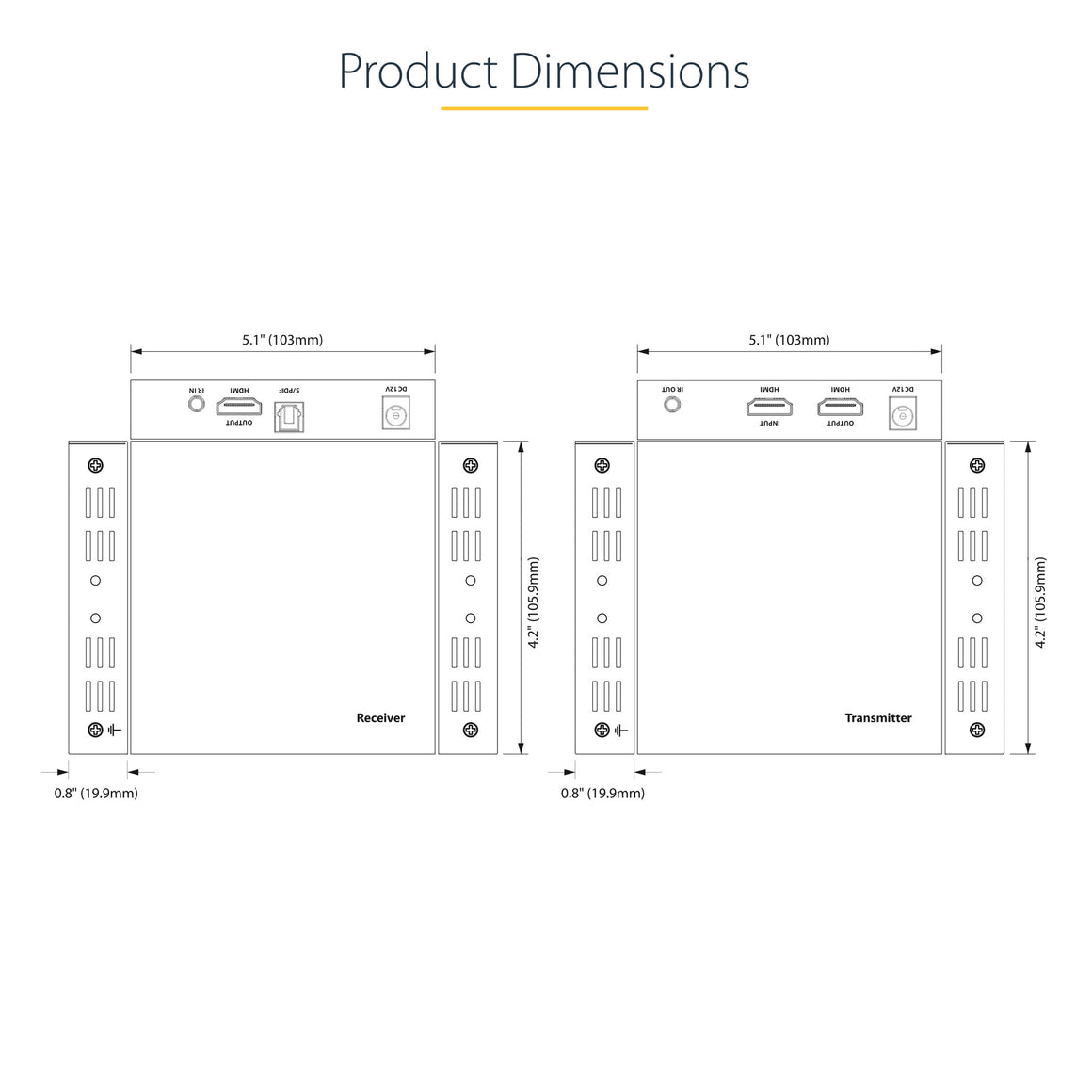

| Weight & dimensions |
|---|
| Weight |
210 g |
| Height |
26 mm |
| Depth |
106 mm |
| Width |
99 mm |
| Packaging data |
|---|
| Package weight |
900 g |
| Package height |
80 mm |
| Package depth |
176 mm |
| Package width |
240 mm |

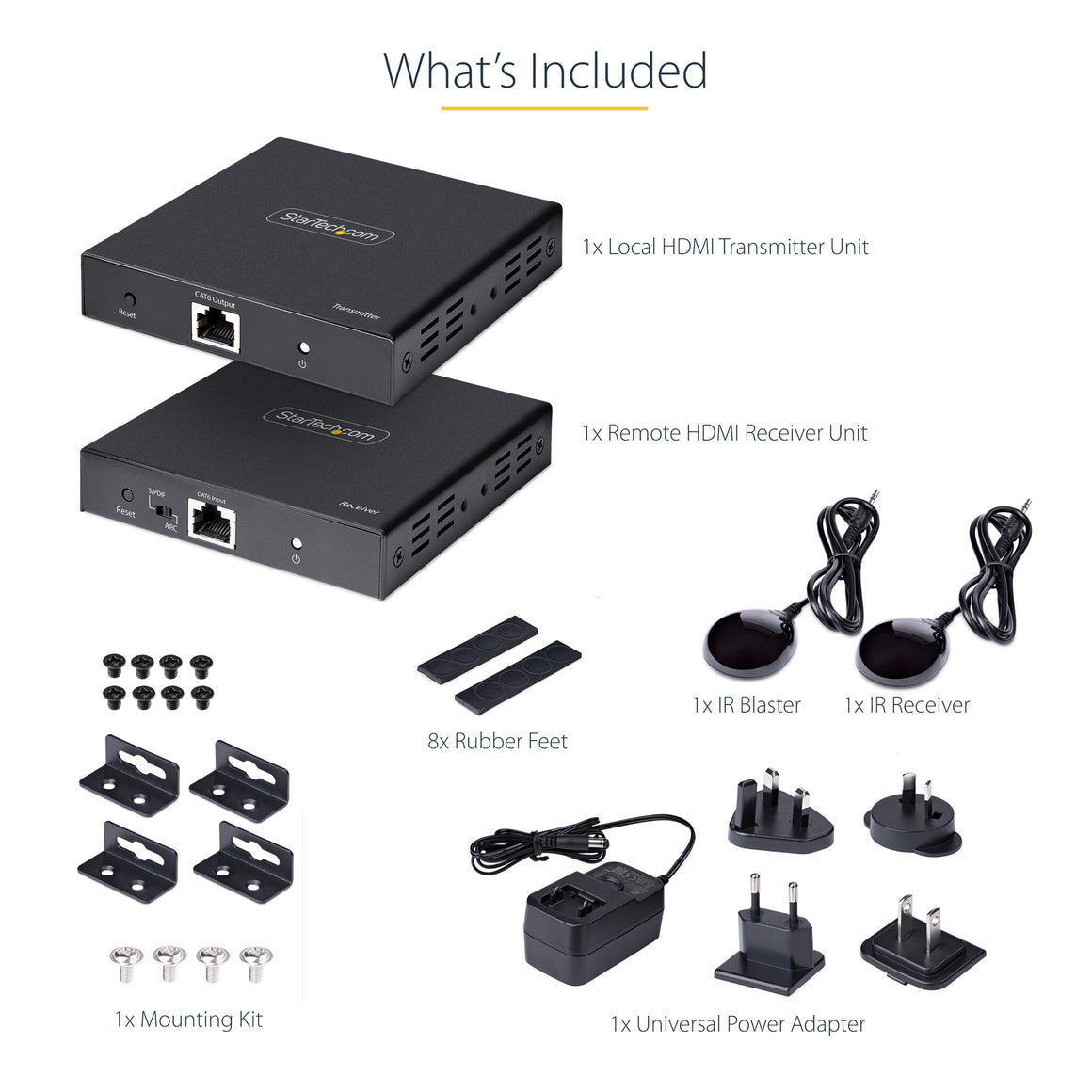

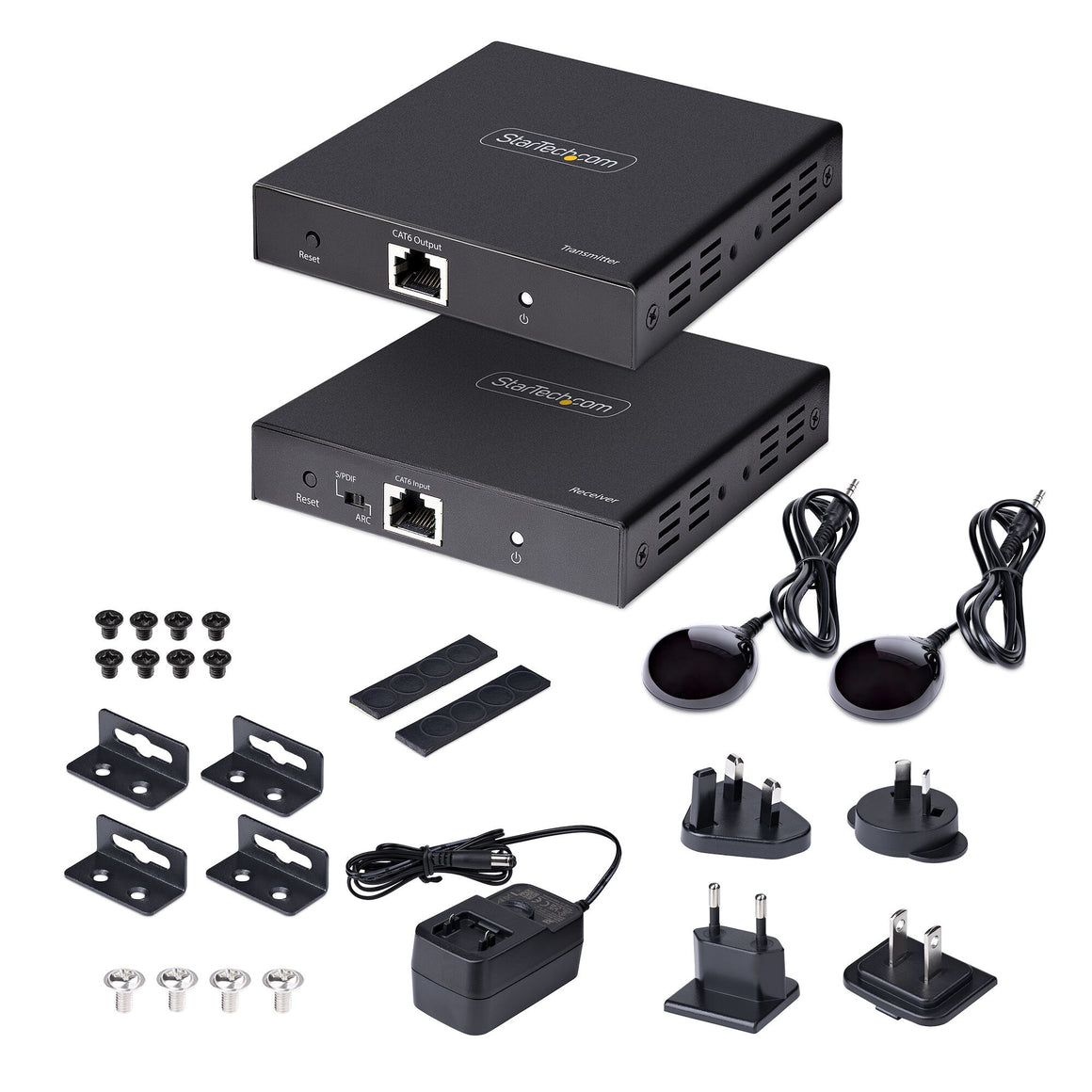

| Packaging content |
|---|
| IR blaster included |
Yes |
| IR receiver included |
Yes |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| AC adapter included |
Yes |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case height |
420 mm |
| Master (outer) case length |
270 mm |
| Master (outer) case width |
380 mm |
