Connect your HDMI devices, up to 20m away with no signal loss

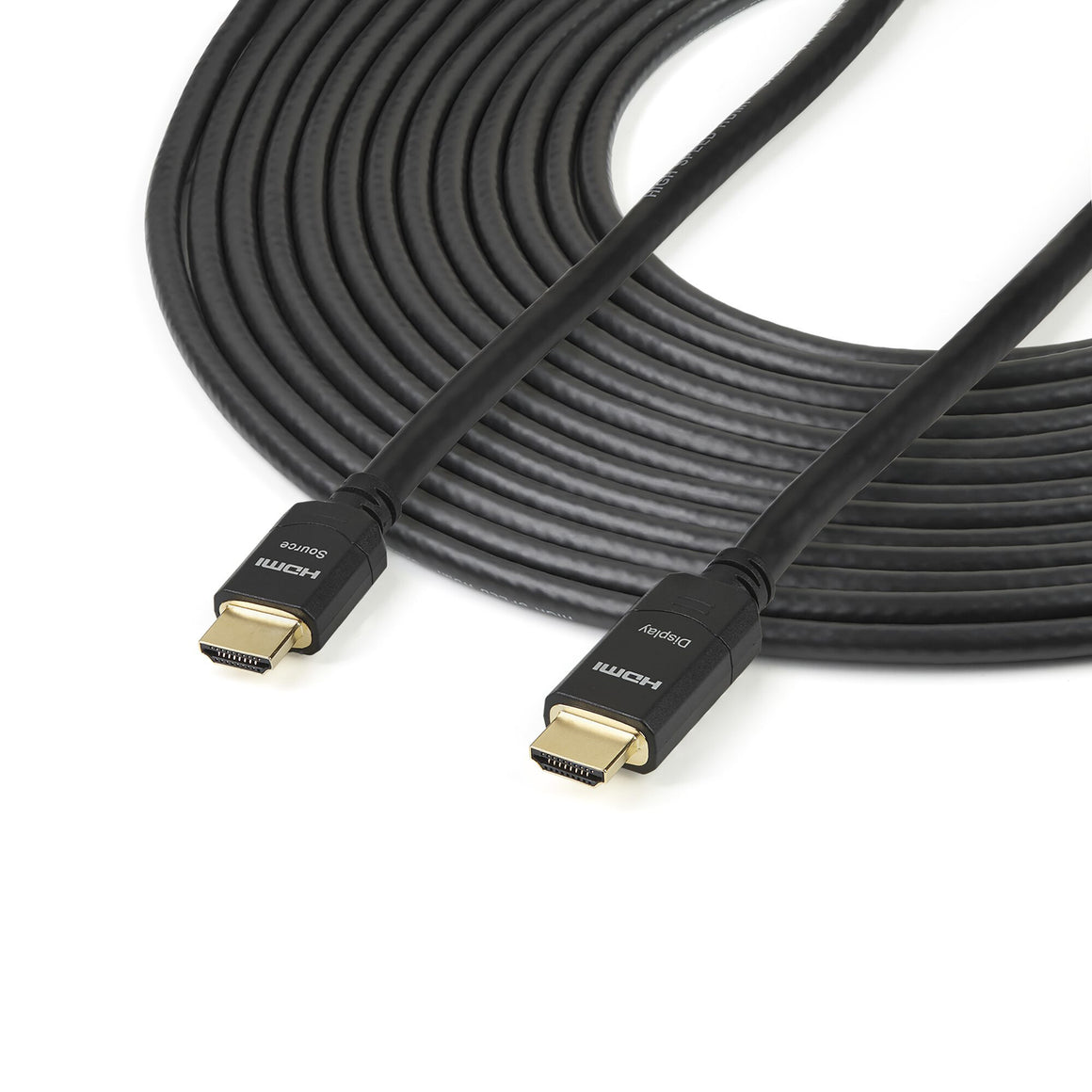

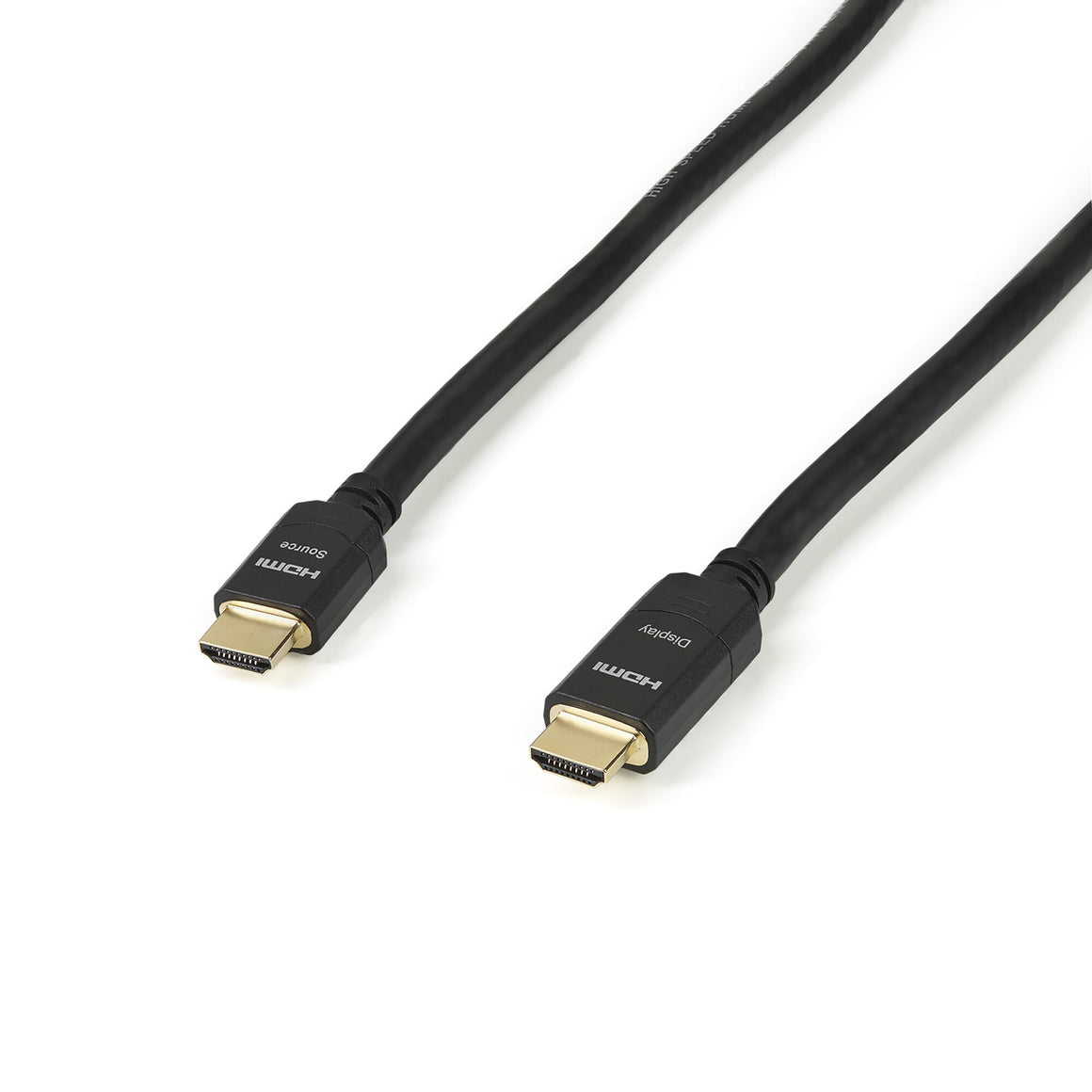

This active HDMI® cable offers a connection distance of up to 65 feet (20 meters) between your HDMI enabled devices. It meets CL2 rating safety requirements, so it’s ideal for in-wall cable runs in your home and office installations.
Dependable connections over longer distances
The cable features built-in amplifier circuitry which actively boosts your HDMI signal, with no external power required. It's the perfect solution for longer transmissions without any signal loss.
Run in-wall cable installations
The HDMI cable is CL2 rated for in-wall installations, which makes them perfect for A/V installations in residential or office settings. You can set up your home theatre, gaming or audio-video equipment with the cables hidden away safely inside the walls and place your devices as needed throughout your work or living space.
Deliver astonishing 4k video
This high-quality HDMI cable fully supports 1080p+ resolutions at up to 120Hz refresh rate, with life-like color. To accommodate the demands of future high-definition devices, such as increased resolutions and higher frame rates, this Ultra HD cable supports resolutions up to 4k x 2k.
Note : This cable features unidirectional architecture which requires that the cable is installed in the correct direction. Please refer to the HDMI connector labelled "TV"; in order to ensure that the device and the HDMI source are connected properly.
The StarTech.com Advantage
Features |
Plug and Play |
Yes |
Cable shielding |
Aluminum mylar foil |
Fire-resistance rating |
CL2 |
Cable jacket material |
Polyvinyl chloride (PVC) |
Connector contacts plating |
Gold |
AWG wire size |
28 |
Supported digital audio channels (uncompressed) |
5.1, 8, 7.1 |
HDCP version |
1.4 |
HDCP |
Yes |
HDMI Ethernet channel |
Yes |
Audio Return Channel (ARC) |
Yes |
Dolby technologies |
Dolby TrueHD, Dolby Digital Plus |
Supported graphics resolutions |
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160 |
3D |
Yes |
HDMI version |
1.4b |
Product colour |
Black |
Connector 2 form factor |
Straight |
Connector 1 form factor |
Straight |
Connector 2 gender |
Male |
Connector 1 gender |
Male |
Connector 2 |
HDMI Type A (Standard) |
Connector 1 |
HDMI Type A (Standard) |
Cable length |
20 m |
Certificates |
Compliance certificates |
RoHS, CE |
Weight & dimensions |
Weight |
1.4 kg |
Cable diameter |
7.5 mm |

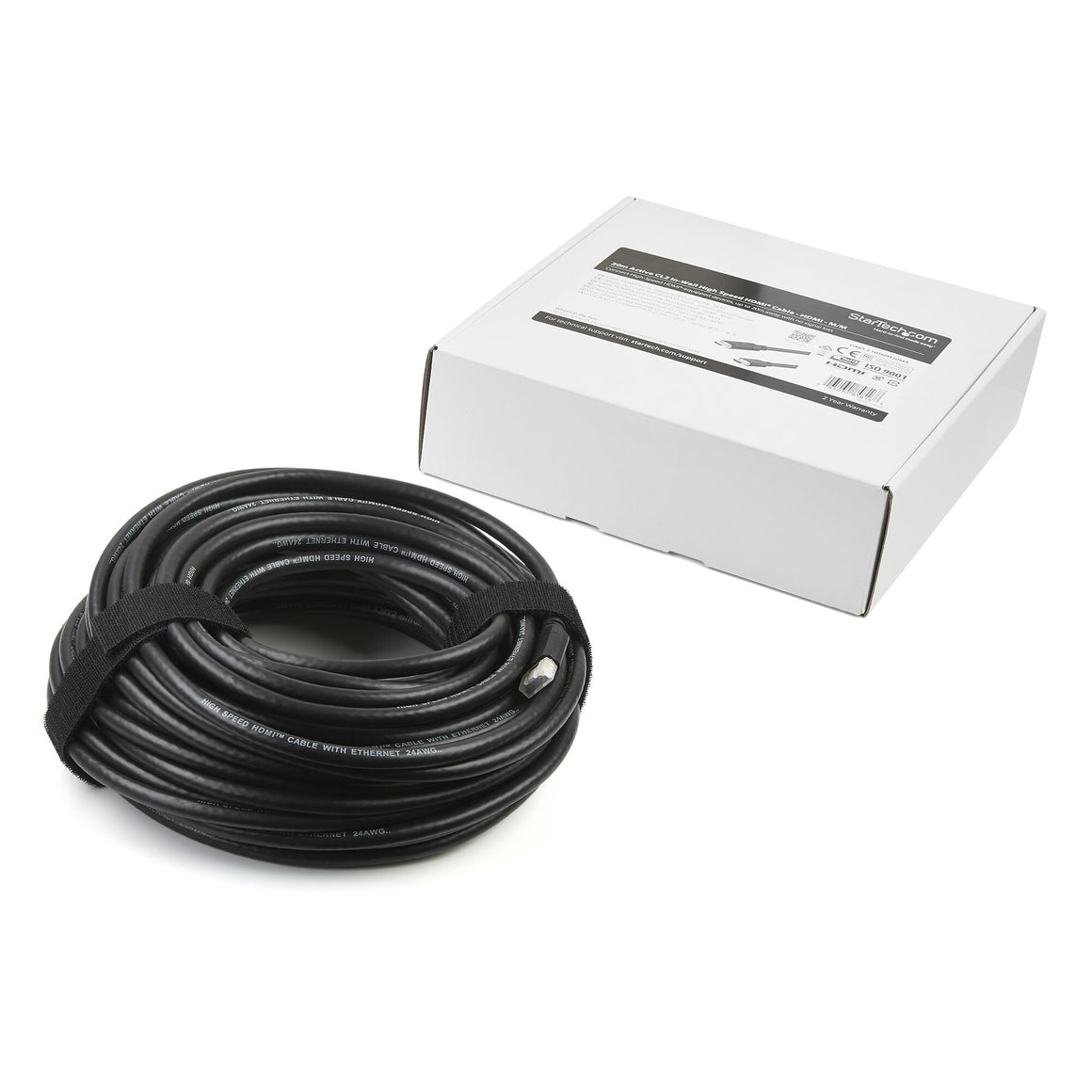

Packaging data |
Quantity per pack |
1 pc(s) |
Package weight |
1.7 kg |
Package height |
82 mm |
Package depth |
338 mm |
Package width |
326 mm |
Logistics data |
Products per master (outer) case |
3 pc(s) |
Master (outer) case height |
279 mm |
Master (outer) case length |
343 mm |
Master (outer) case width |
348 mm |
Harmonized System (HS) code |
84733080 |
