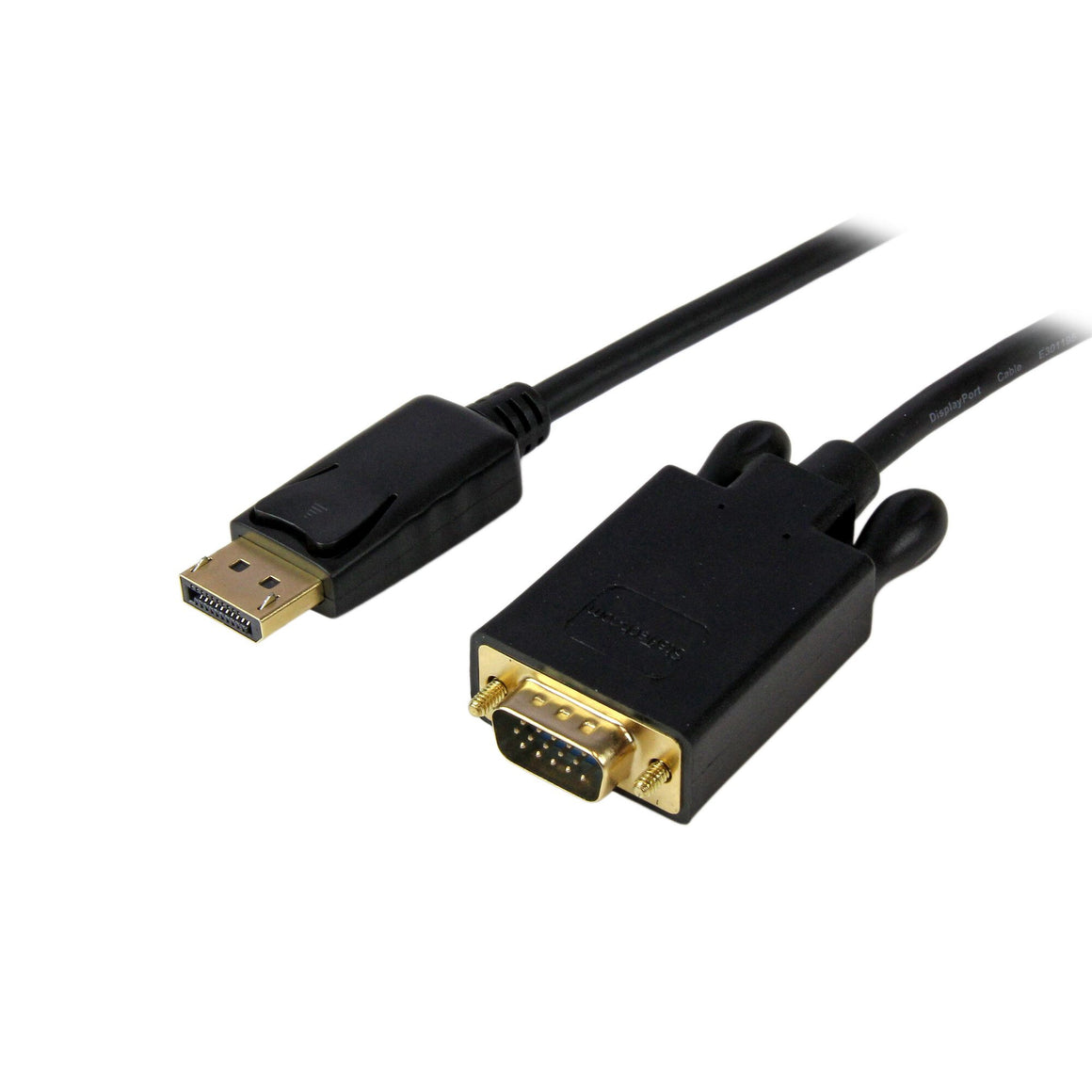

StarTech.com 6ft (1.8m) DisplayPort to VGA Cable - Active DisplayPort to VGA Adapter Cable - 1080p Video - DP to VGA Monitor Cable - DP 1.2 to VGA Converter - Latching DP Connector

SKU: DP2VGAMM6B
£31.80 inc. VAT
  • DISPLAYPORT TO VGA CABLE: 6ft (1.8m) DisplayPort 1.2 (HBR2) adapter cable lets you connect a single VGA display supporting 2048x1280, 1920x1200 & 1920x1080 (1080p) at 60Hz; EDID & DDC pass-through ensure compatibility between source & display
  • COMPATIBILITY: Active digital to analog converter supports DP or DP++ source w/ standard DP connector incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
  • INTEGRATED DISPLAY CABLE: Adapter cable has a slim & flexible design w/ adapter chip built into VGA connector reducing clutter & providing a tidy install at your desk workstation in the office or home office

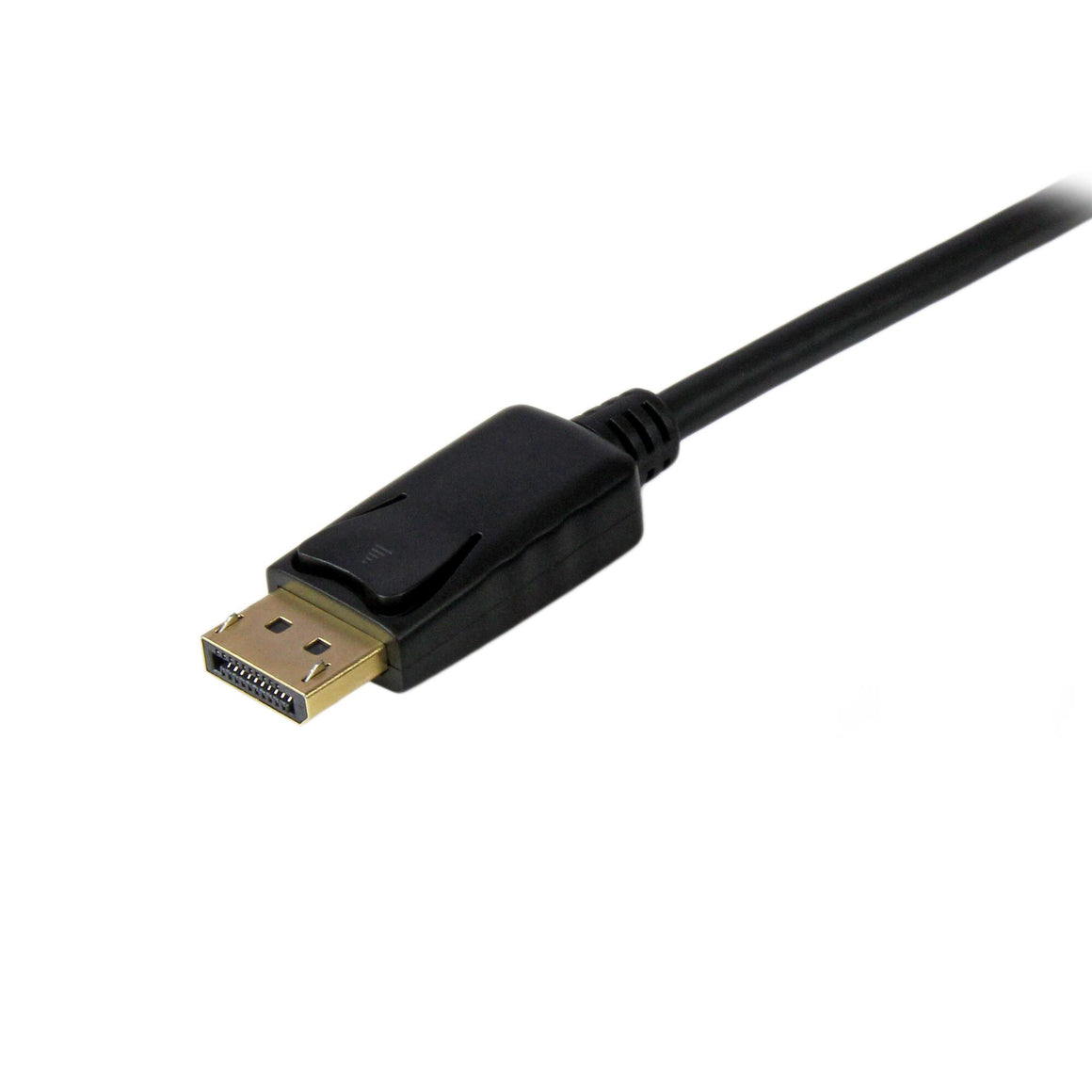

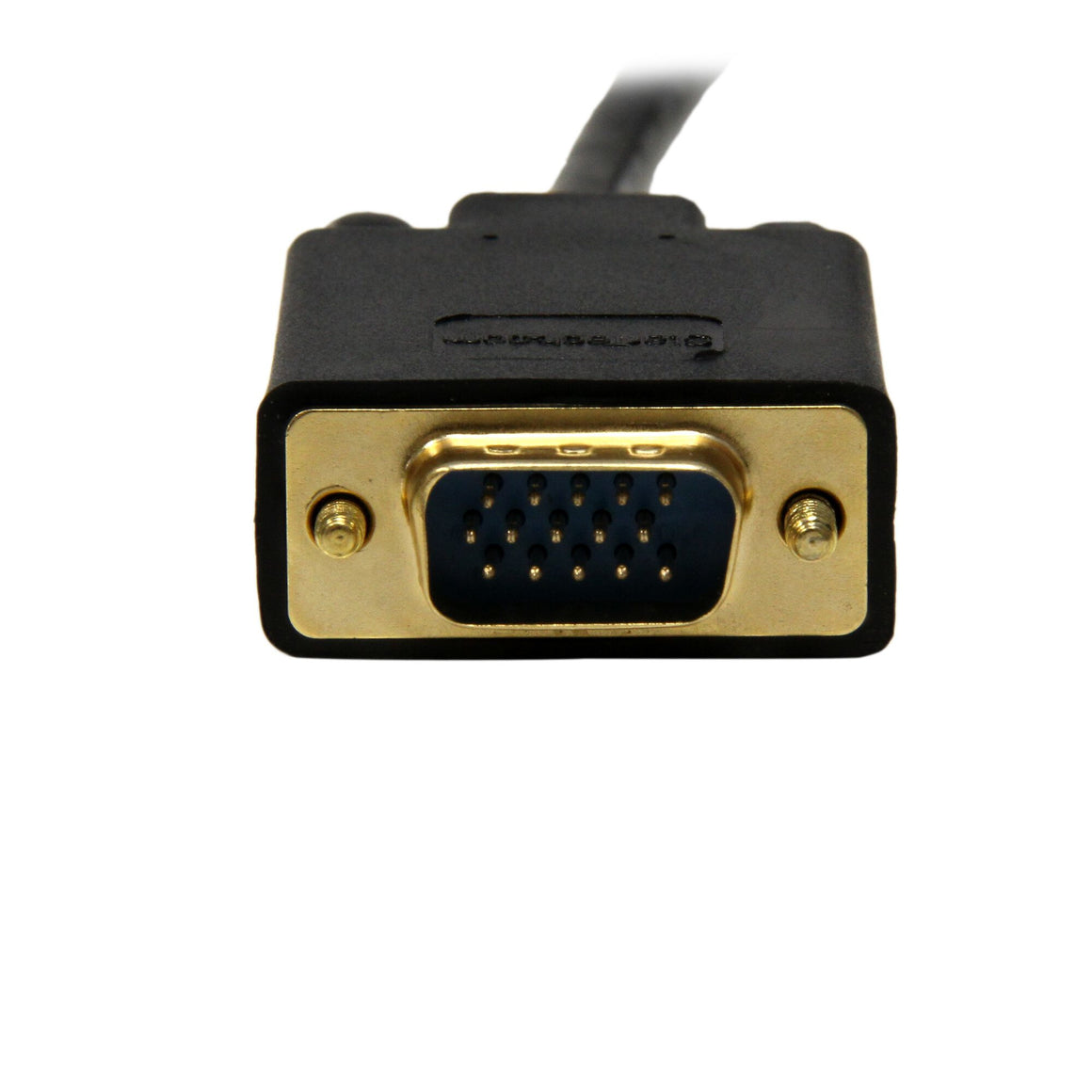

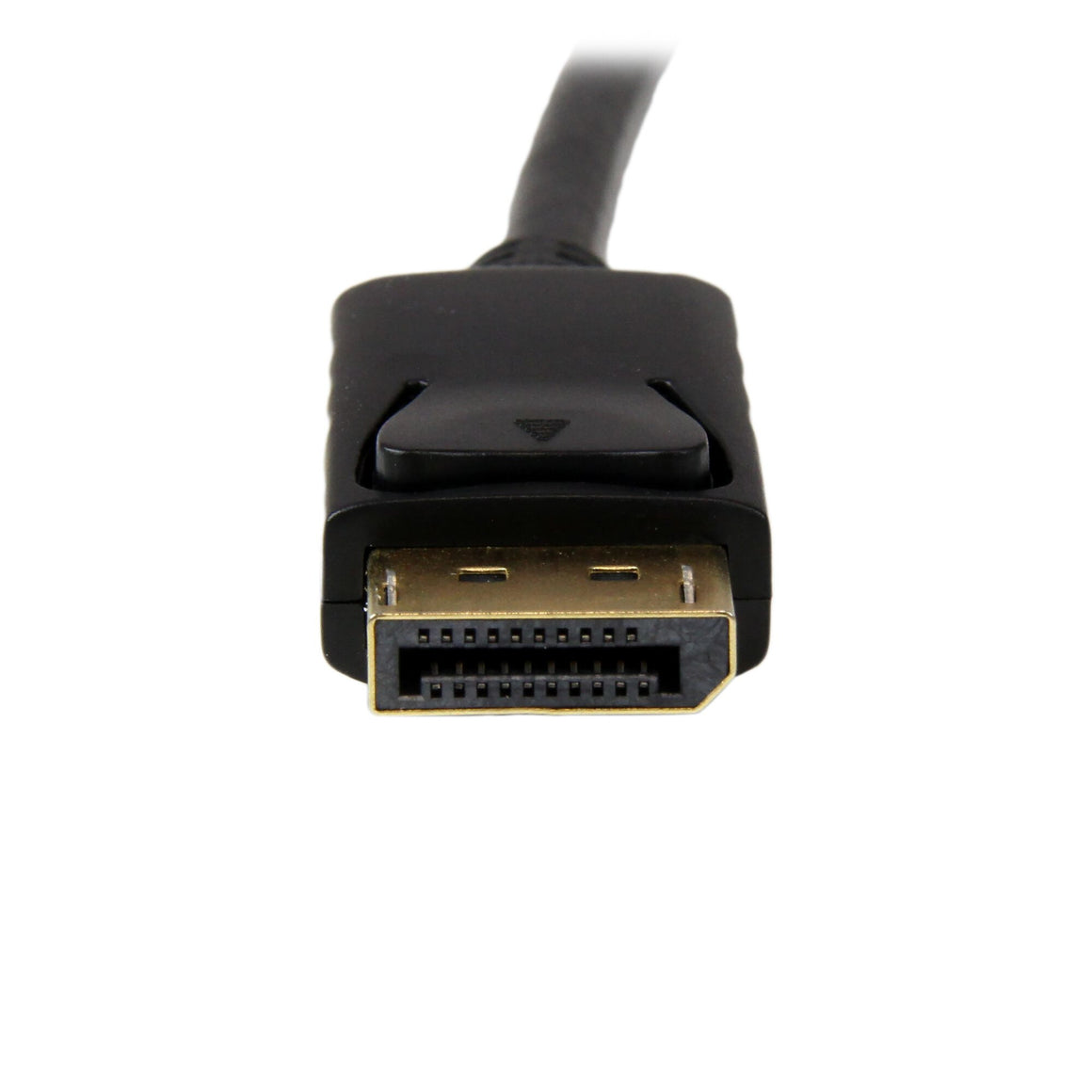

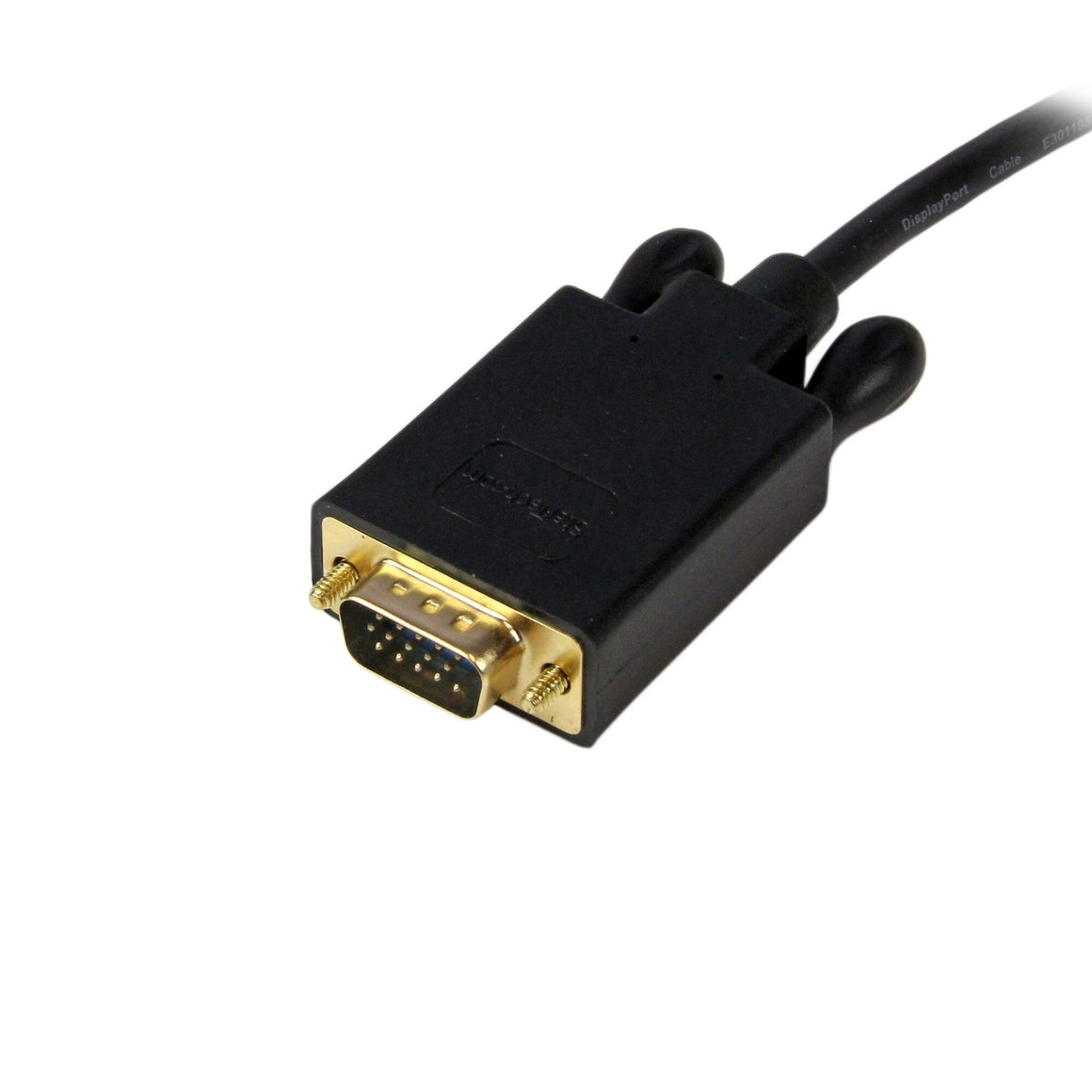

  • LATCHING DISPLAYPORT & SCREW LOCKING VGA: Latching DP connector ensures a solid host connection, and chip built into VGA connector minimizes signal loss / Supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection
  • EASY TO USE: With no software or drivers required, the DP to VGA video converter cable/cord works with any OS including macOS, Windows & Ubuntu / DP Source to VGA Monitor/Display/Projector/ DisplayPort Male to VGA Male Cable

Connect a DisplayPort-equipped PC to a VGA monitor/projector, with a 6ft cable

The DP2VGAMM6B 6ft active DisplayPort to VGA converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your new DisplayPort computer to work with an older VGA monitor or projector.

Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The DP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Active video converter
Plug and Play Yes
Chipset Analogix - 9832
Product colour Black
HBR2 support Yes
Maximum refresh rate 60 Hz
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1280
Supported video modes 1080p
Maximum resolution 2048 x 1280 pixels
DisplayPort version 1.2
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 DisplayPort
Cable length 1.8 m
Operational conditions
Operating relative humidity (H-H) 40 - 85%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 60 °C
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Height 15 mm
Depth 1840 mm
Width 35 mm
Weight 103.67 g
Packaging data
Package weight 128 g
Package height 20 mm
Package depth 220 mm
Package width 195 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 120 pc(s)
Master (outer) case height 435 mm
Master (outer) case length 415 mm
Master (outer) case width 420 mm
Harmonized System (HS) code 84733080
