SKU: DISPLPORT6L

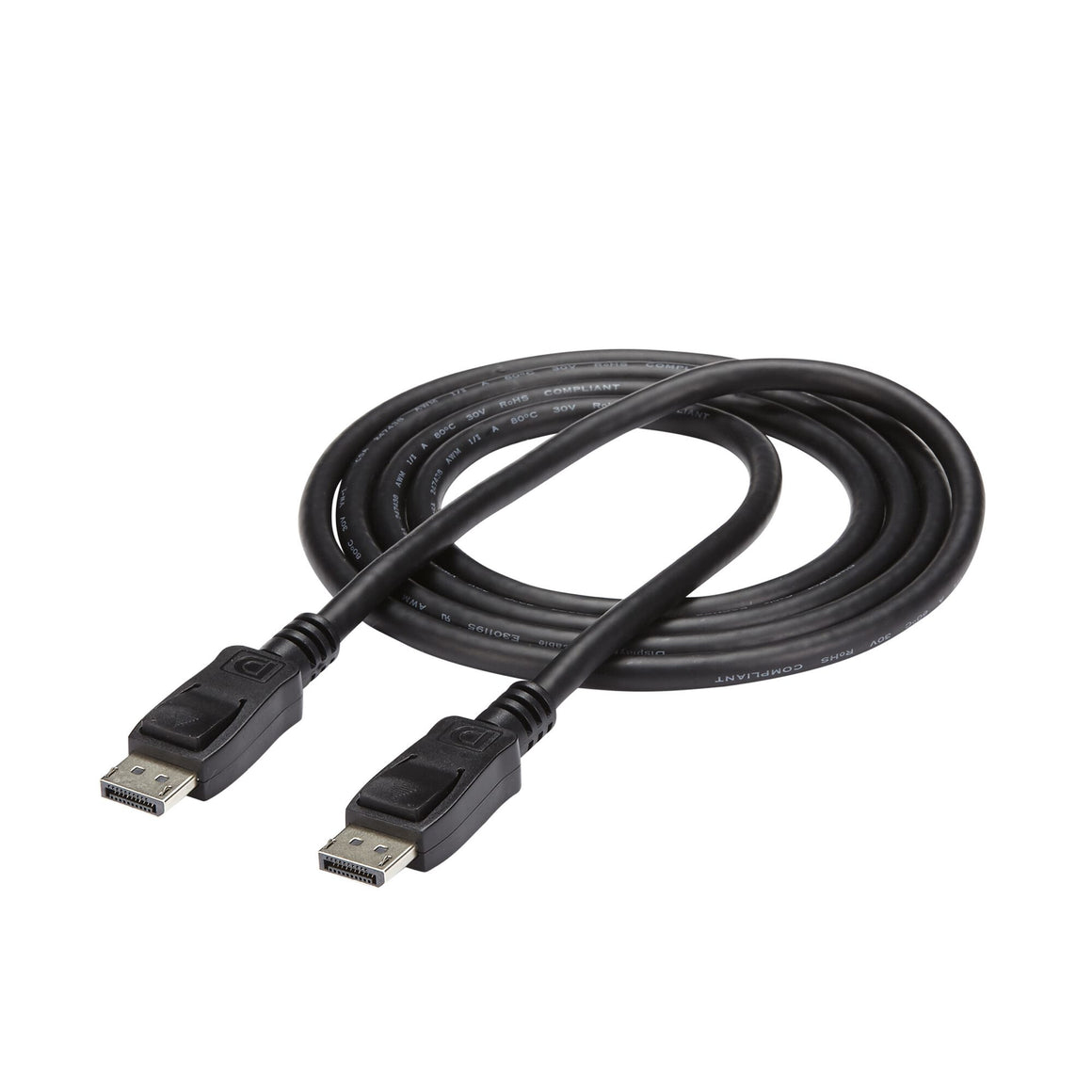

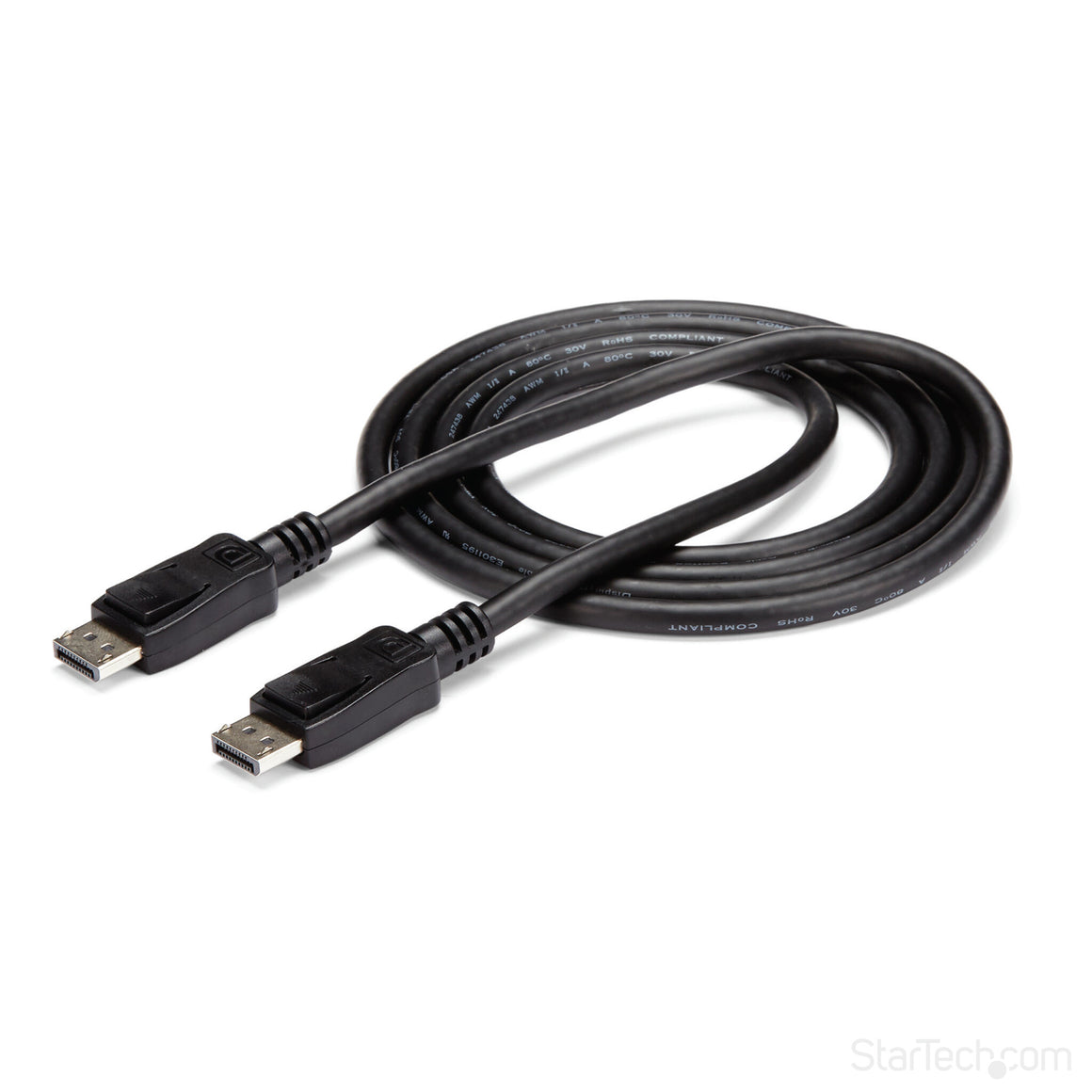

StarTech.com 6ft (2m) DisplayPort 1.2 Cable - 4K x 2K Ultra HD VESA Certified DisplayPort Cable - DP to DP Cable for Monitor - DP Video/Display Cord - Latching DP Connectors

StarTech.com
£18.47
  • HIGH PERFORMANCE CABLE: This 6ft (2m) VESA Certified DisplayPort v1.2 cable supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)

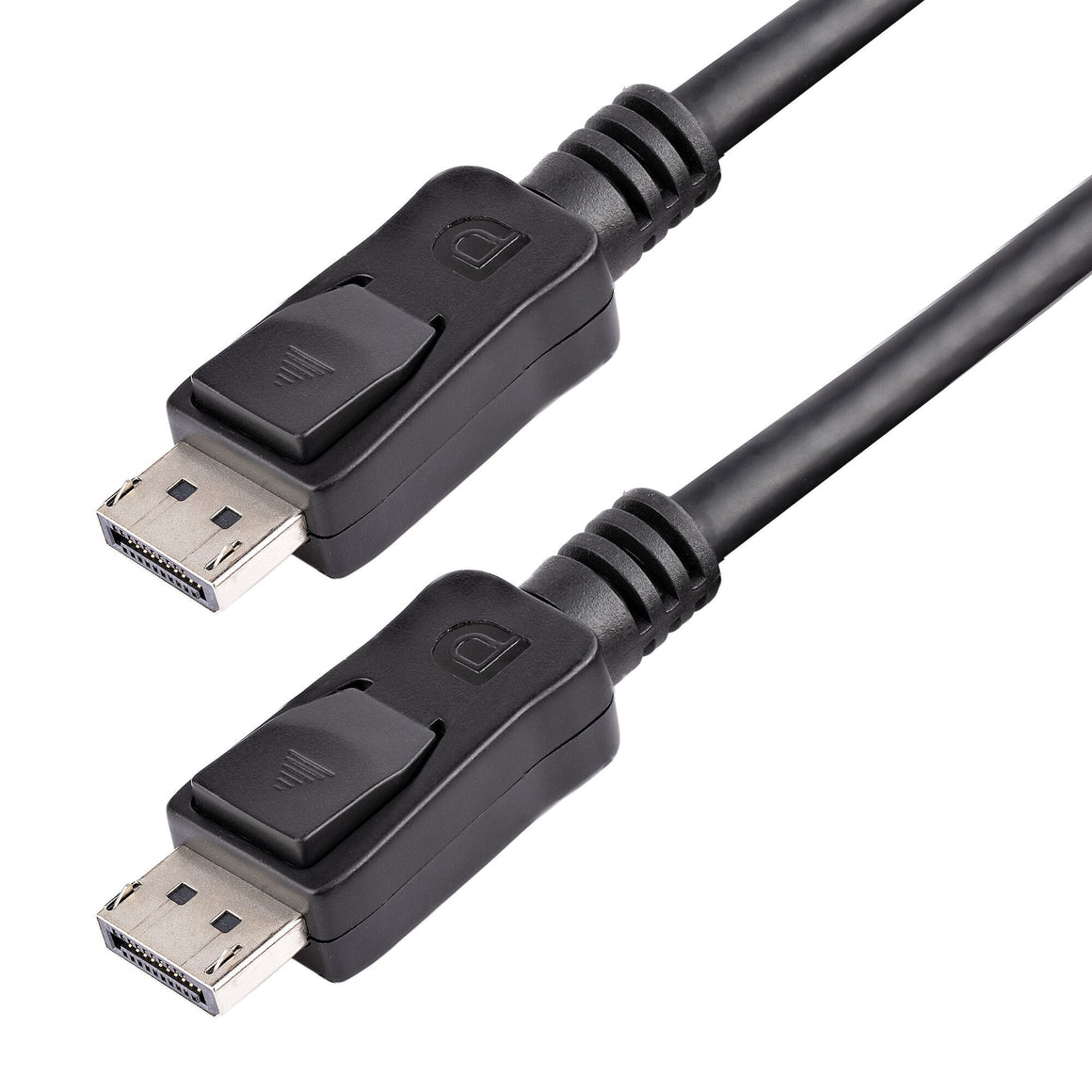

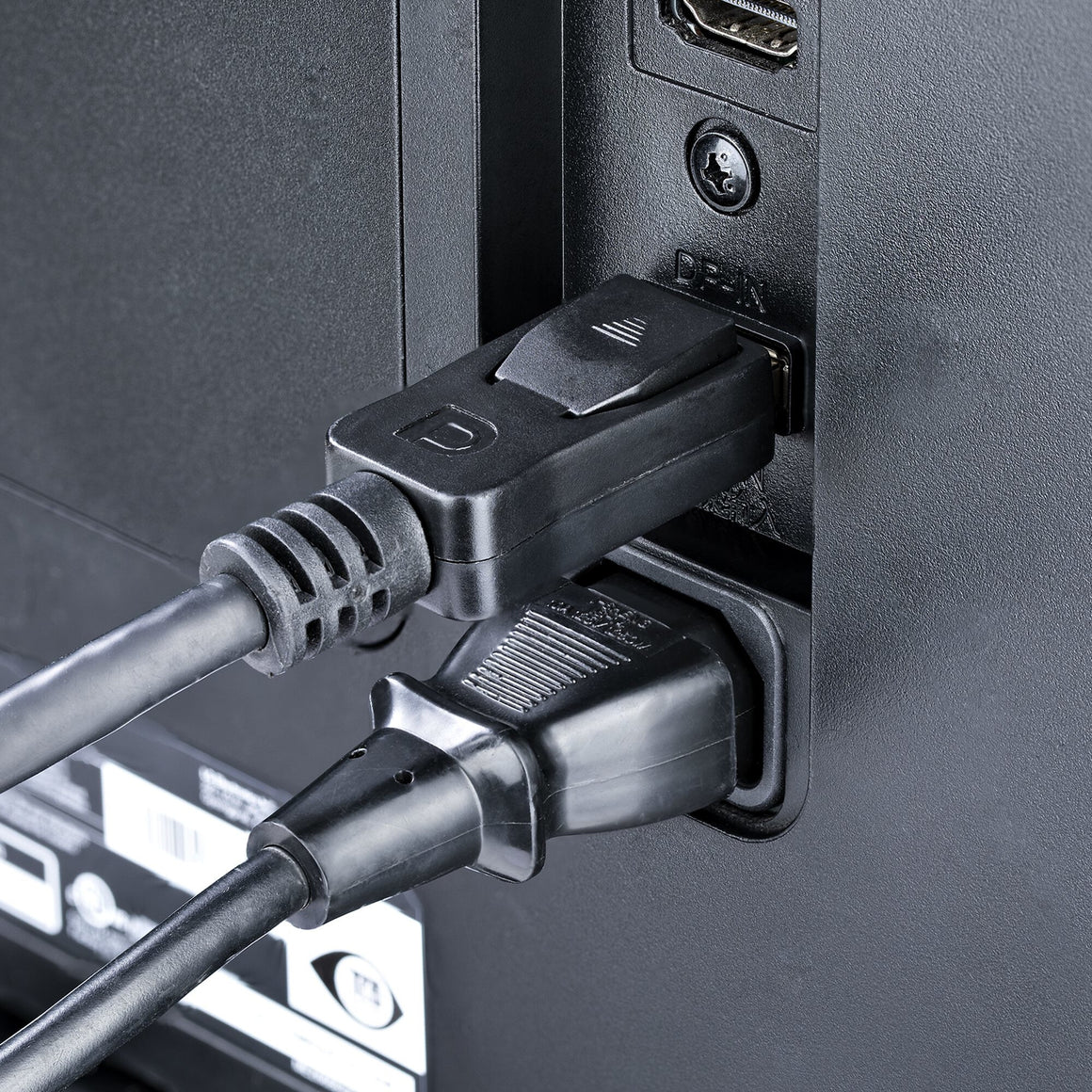

  • RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief & jacket prevents fraying/damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding; Latching DP connectors prevent accidental disconnection
  • QUALITY CONSTRUCTION: 28AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video and audio; Backwards compatible with DP 1.1

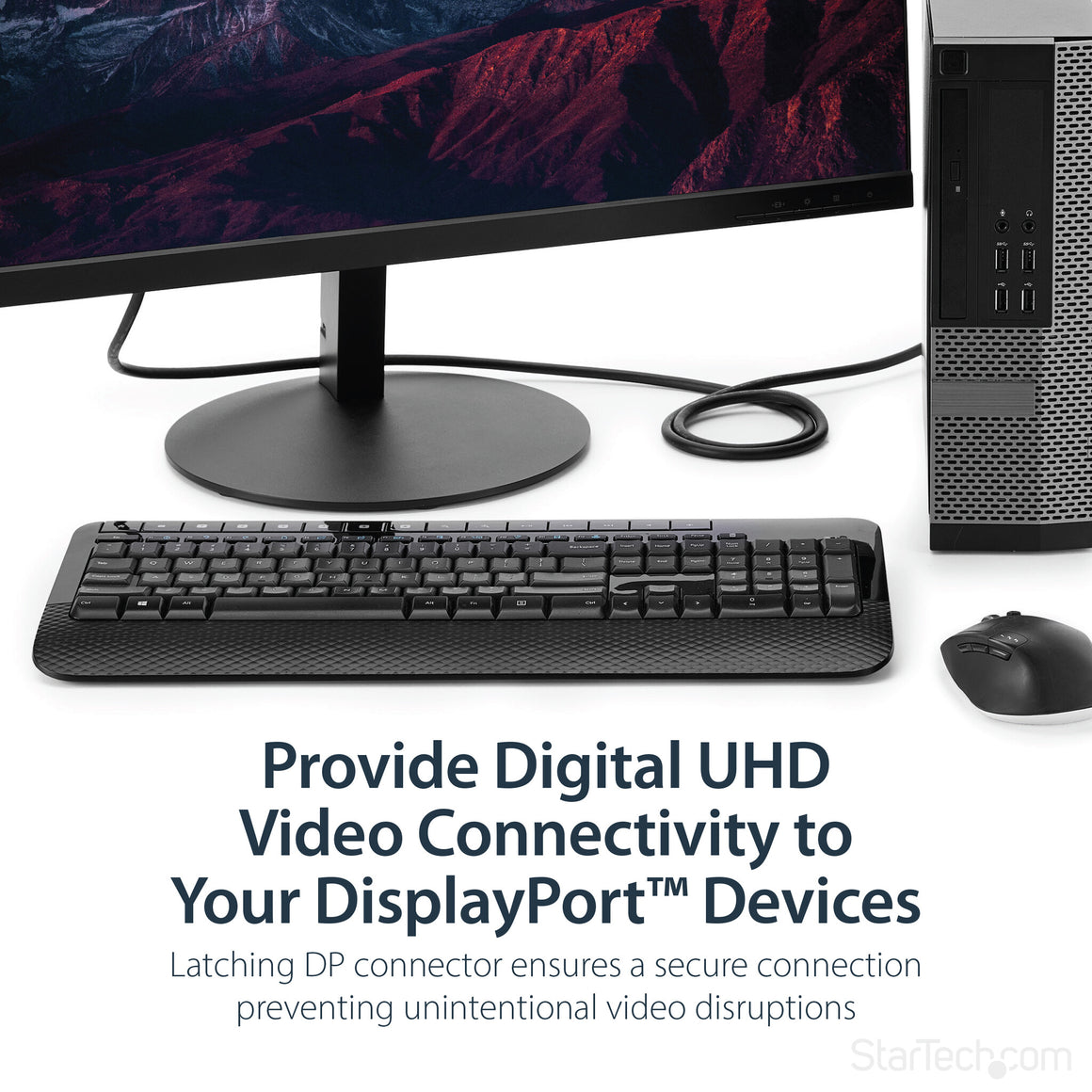

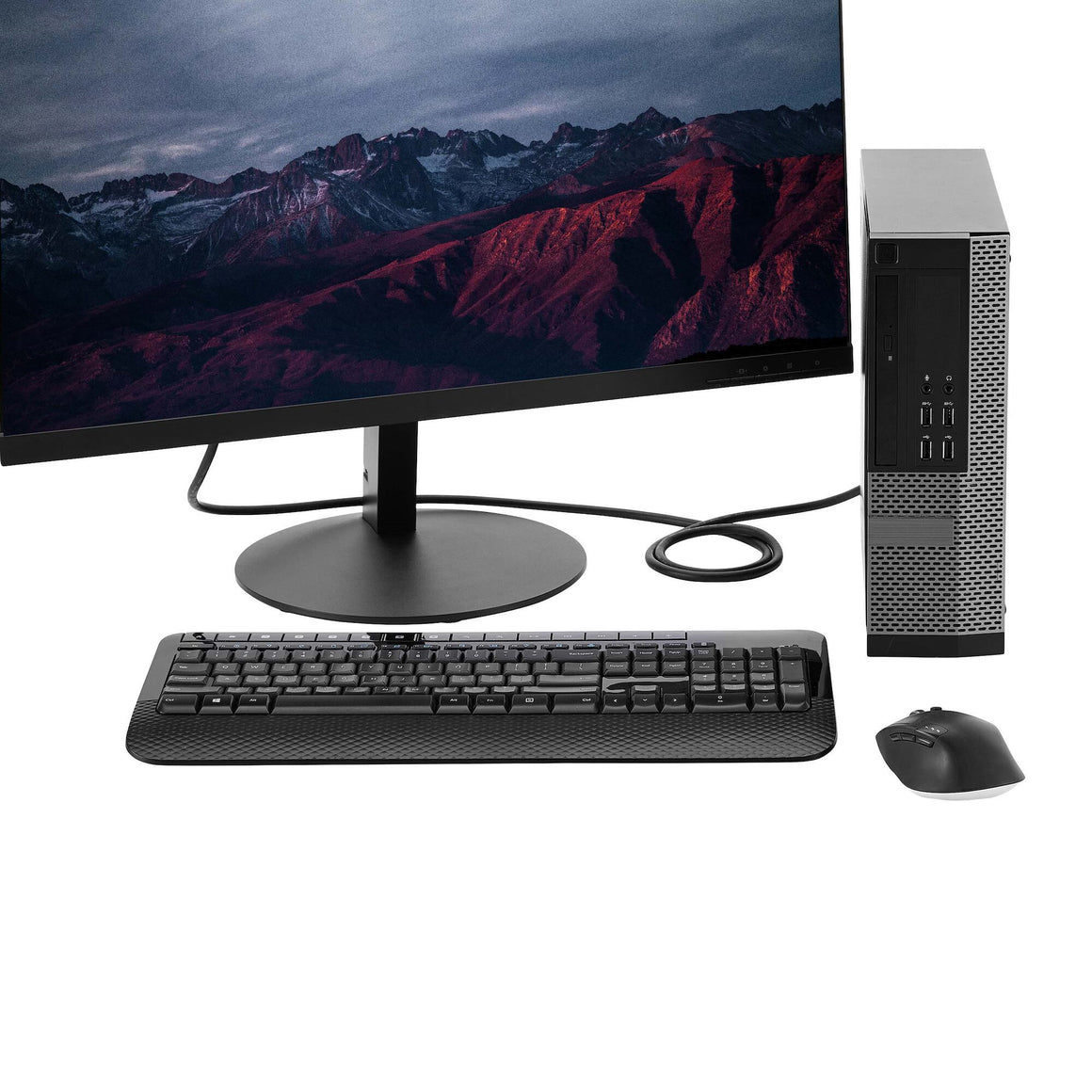

  • APPLICATIONS: Ideal for home/offices/boardrooms/conference rooms/classrooms; works with your professional workstations with FirePro™ S9000/7000, W8100/7100/5100 or R5000 graphic cards; Use with 1080p/UHD/4K monitors, projector or large display
  • SPECS: 6 ft (2 m) / Black / DisplayPort v1.2 / DP Latching Male to Male / 28 AWG / PVC cable jacket, ABS connector shell / Shield: Al-Mylar foil with Braid / Protocols: HBR 2, MST, GTC / Lifetime Warranty

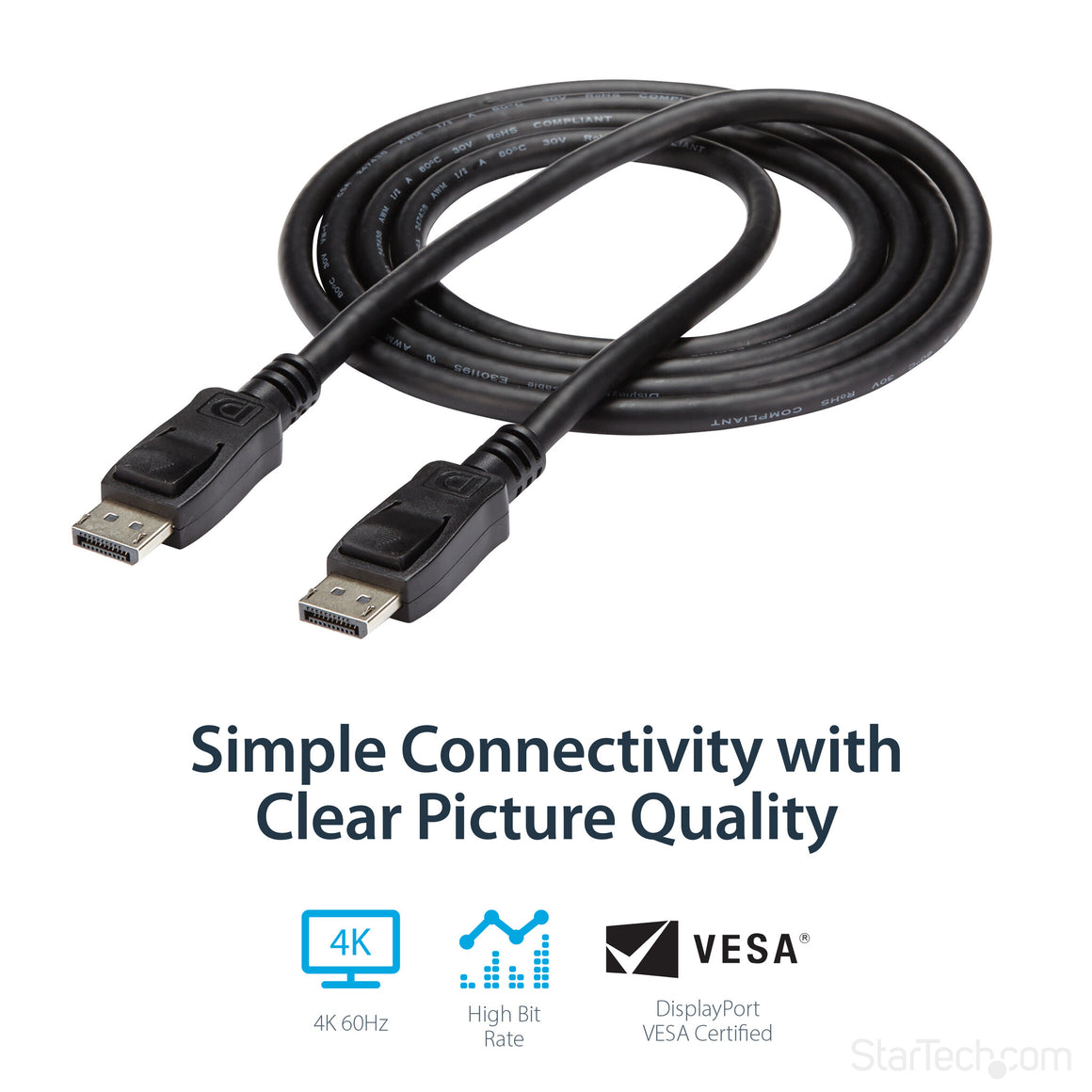

Create high-resolution 4K x 2K connections with HBR2 support between your DisplayPort equipped devices

This DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI® or dual-link DVI.

The DP cable supports high resolutions of up to 4K x 2K (4096 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.

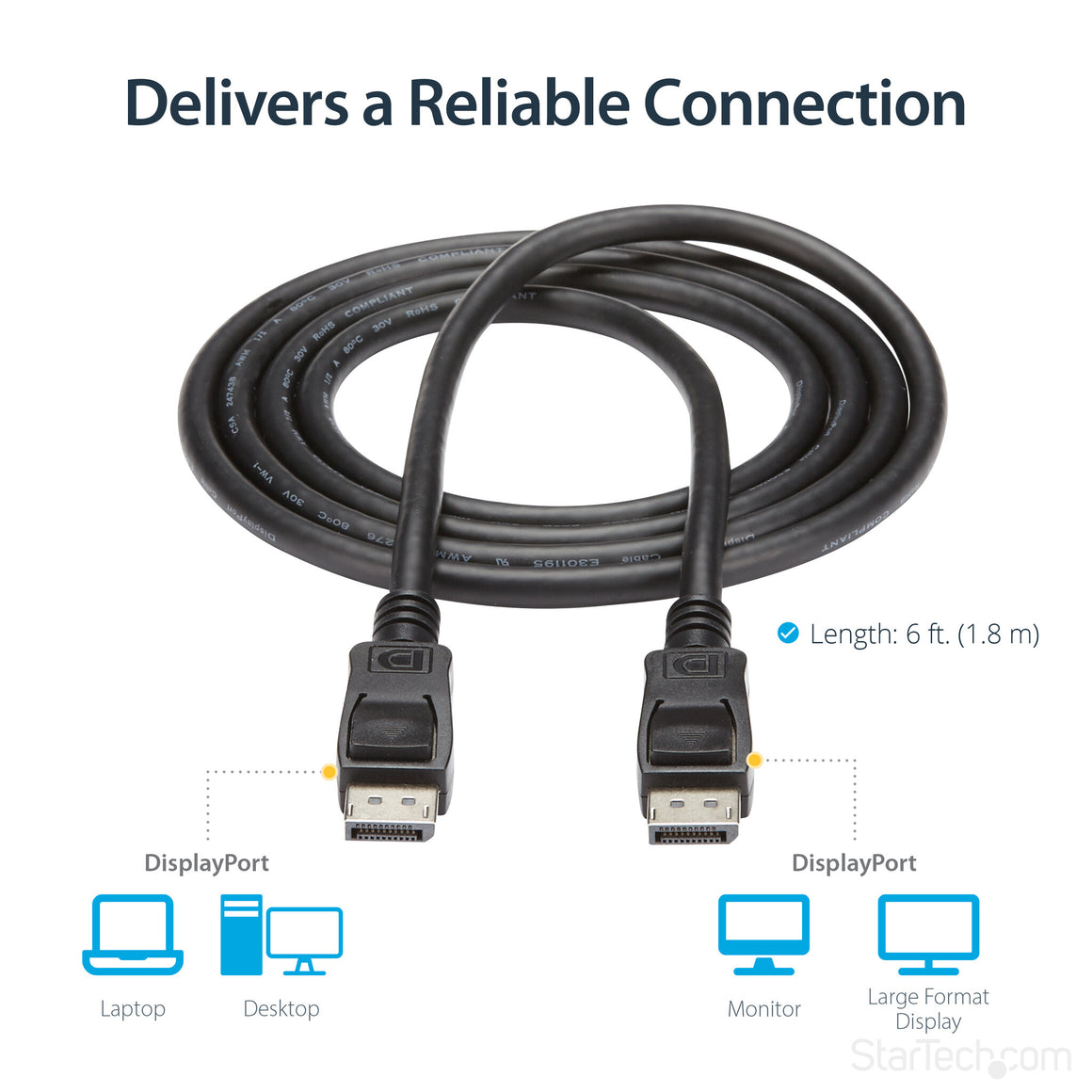

The 6-foot cable is DisplayPort (VESA) certified to support DP 1.2 specifications and ensure a high-quality, reliable connection for all of your DisplayPort devices.

The DISPLPORT6L is backed by a StarTech.com lifetime warranty for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.

The StarTech.com Advantage

Features
Number of conductors 19
Multi-Stream Transport (MST) Yes
Plug and Play Yes
Bandwidth 21600 MB/s
AWG wire size 28
Jacket material Polyvinyl chloride (PVC)
Cable shielding Aluminum mylar foil
Magnetically shielded Yes
Cable rating CMG (CM)
Product colour Black

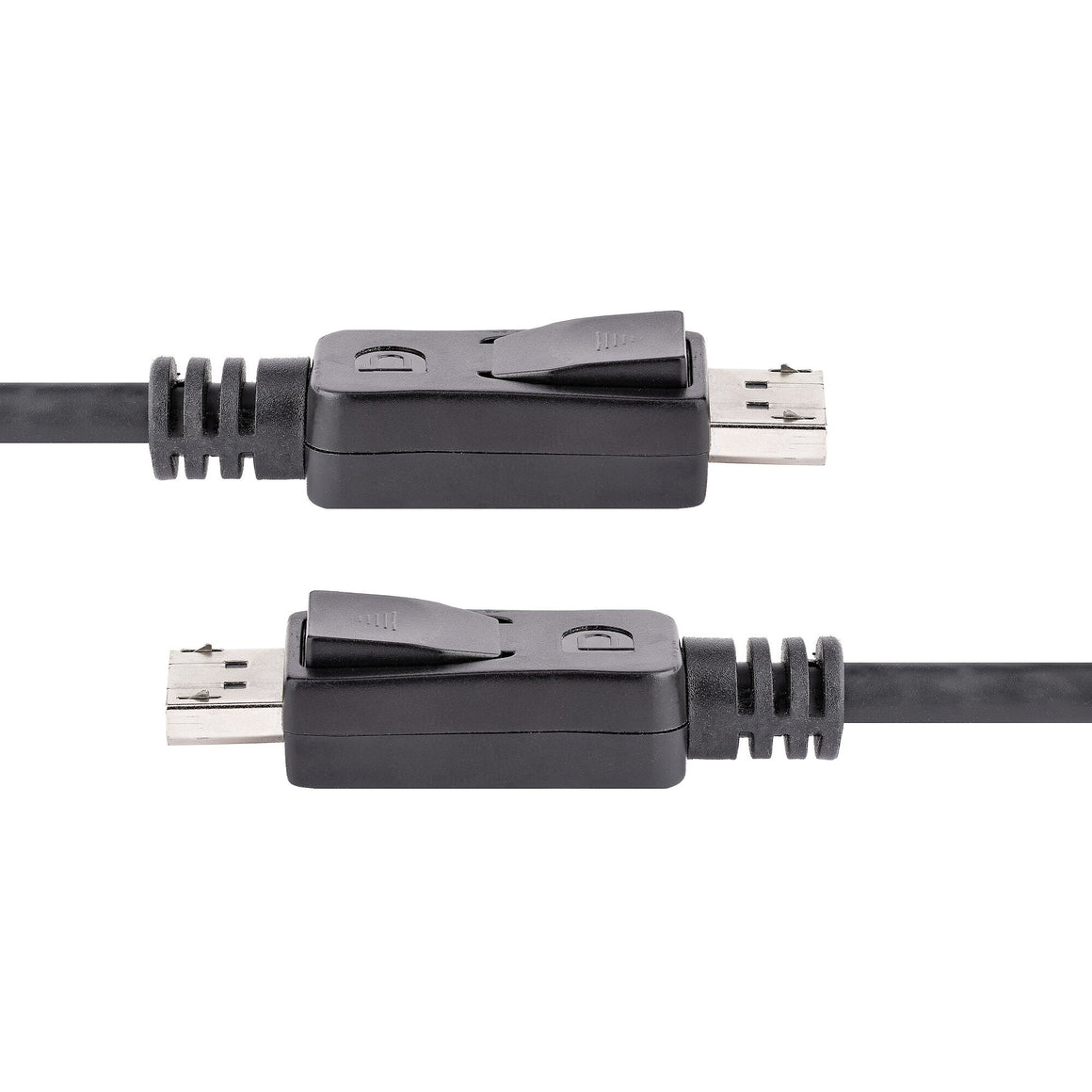

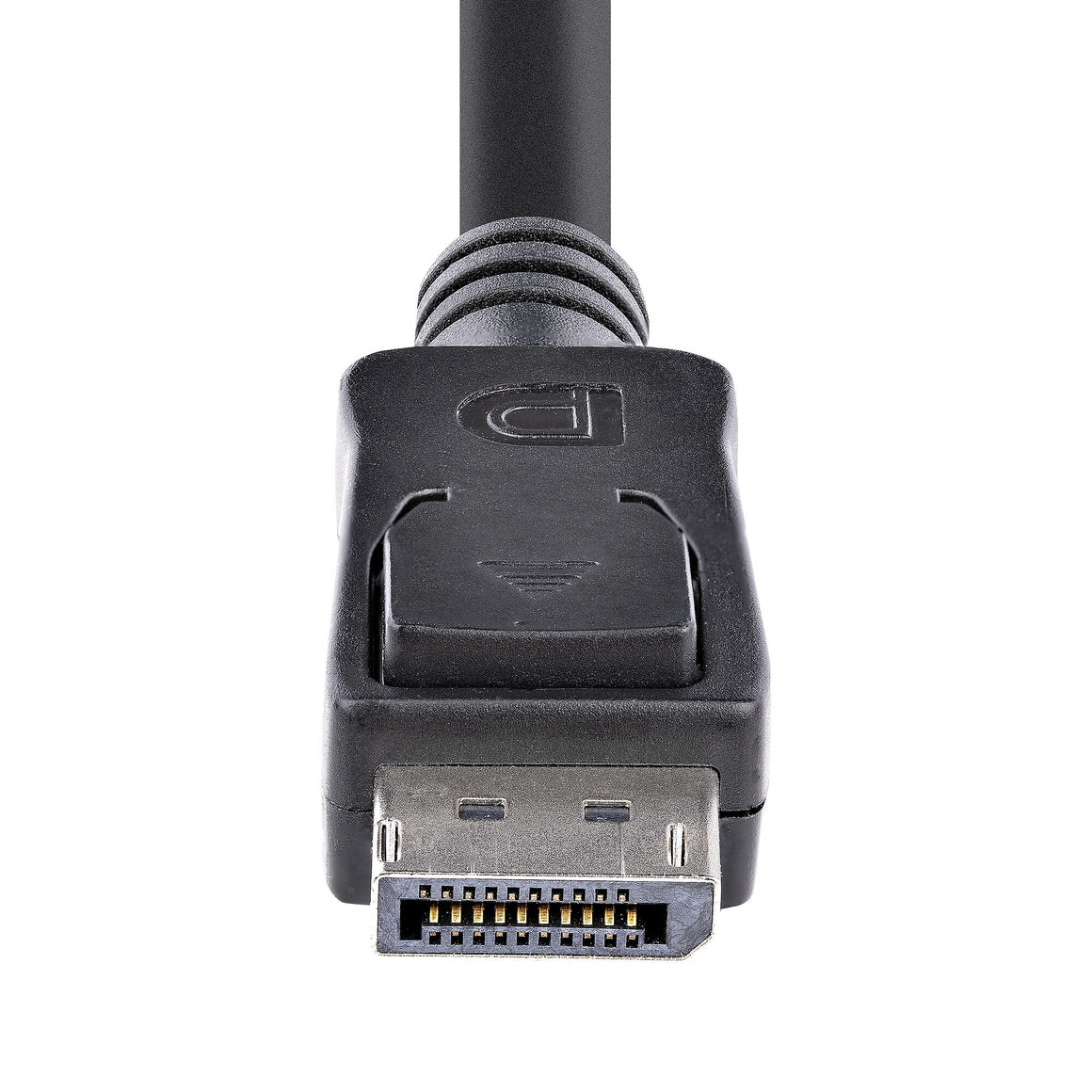

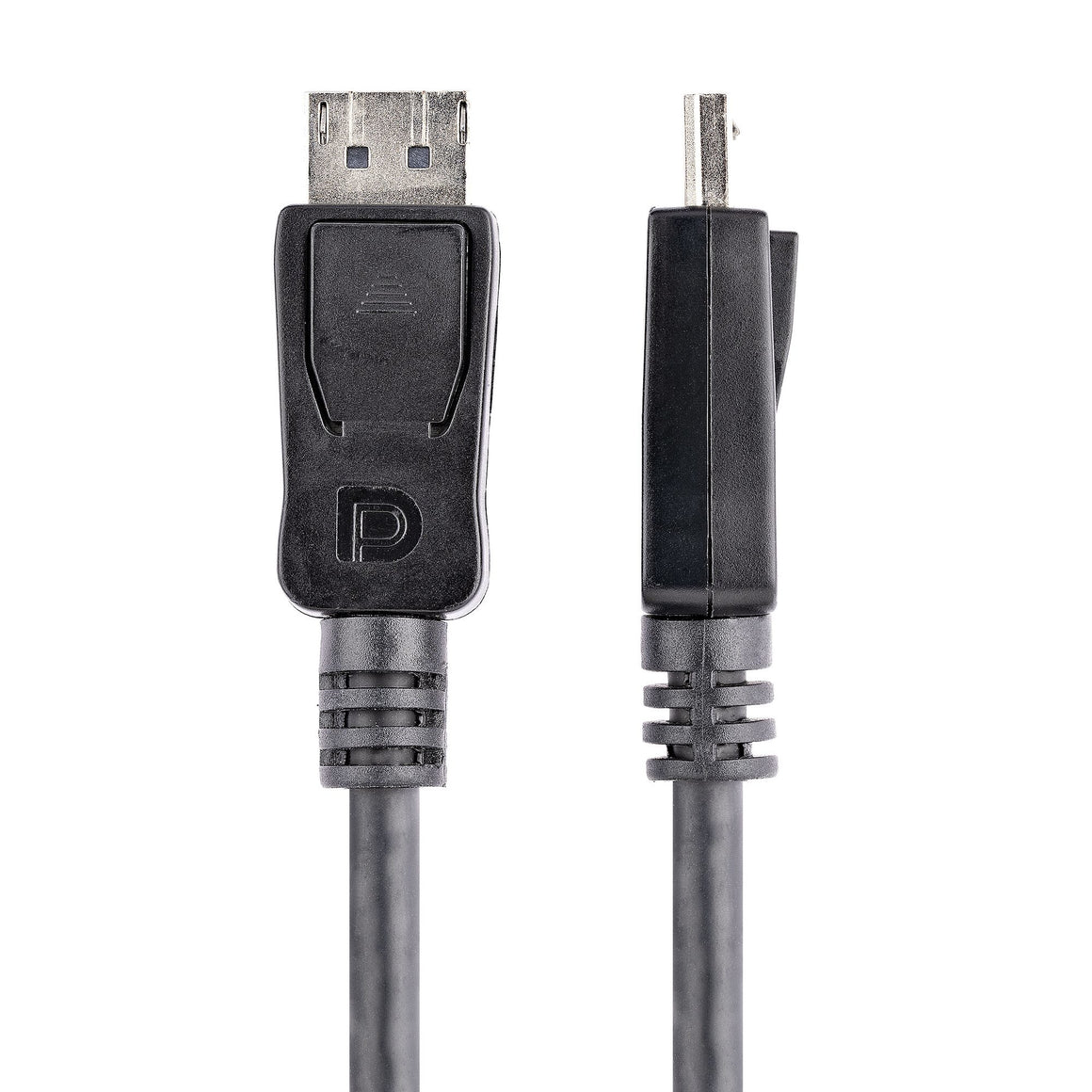

Latching connectors Yes
DisplayPort Content Protection (DPCP) Yes
HDCP Yes
Maximum refresh rate 120 Hz
Supported graphics resolutions 2560 x 1600 (WQXGA), 3840 x 2400
Maximum resolution 3840 x 2400 pixels
DisplayPort version 1.2
Connector contacts plating Nickel
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 DisplayPort
Connector 1 DisplayPort
Cable length 1.8 m
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Weight 300 g
Cable diameter 6.5 mm
Packaging data
Package weight 132 g
Package height 30 mm
Package depth 220 mm
Package width 200 mm

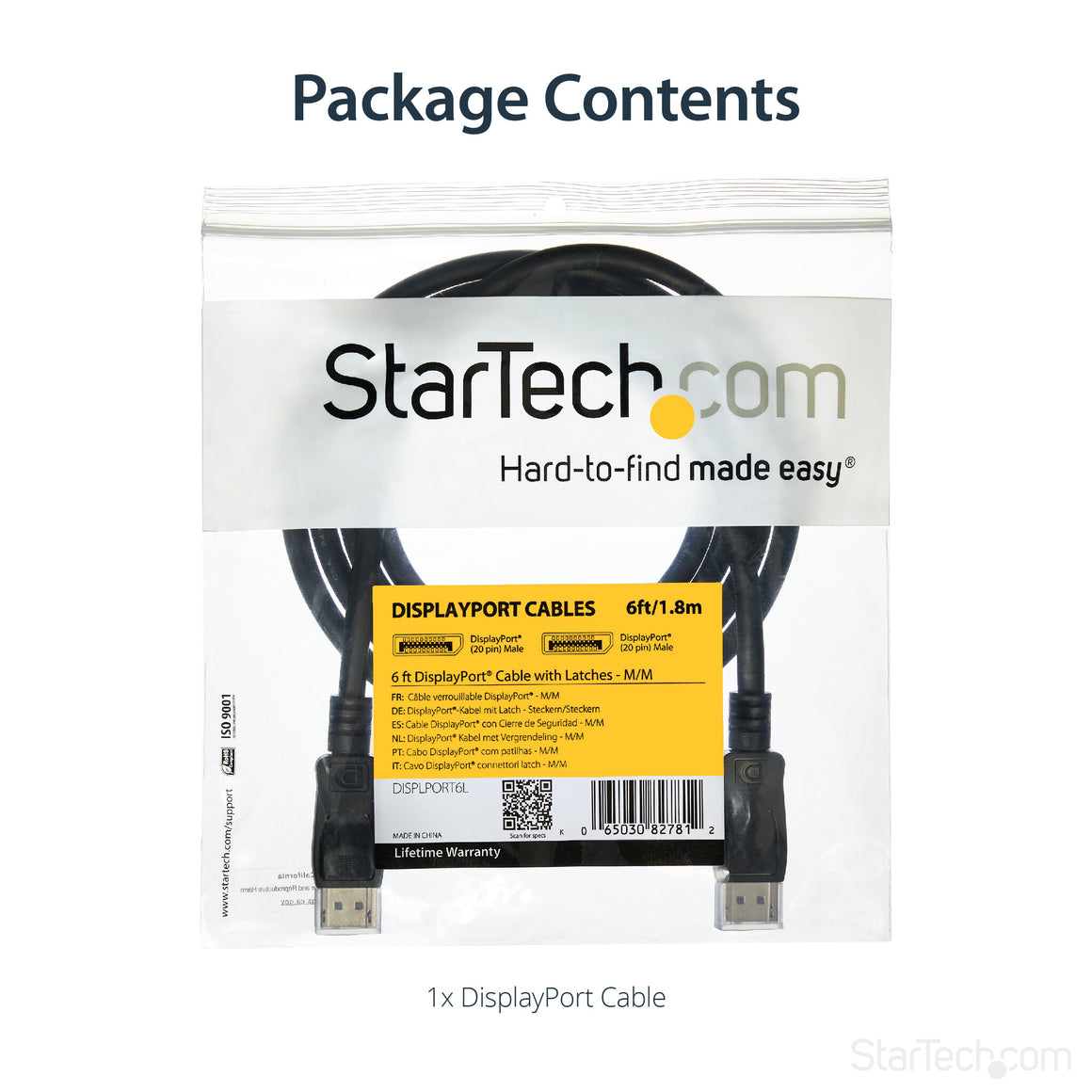

Packaging content
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 70 pc(s)
Master (outer) case height 280 mm
Master (outer) case length 500 mm
Master (outer) case width 330 mm
Harmonized System (HS) code 84733080
