SKU: MDP2VGAMM6B

StarTech.com 6ft (2m) Mini DisplayPort to VGA Cable - Active Mini DP to VGA Adapter Cable - 1080p Video - mDP 1.2 or Thunderbolt 1/2 Mac/PC to VGA Monitor/Display - Converter Cord

StarTech.com
£30.22
iFrame
  • MINI DISPLAYPORT TO VGA CABLE: 6ft (1.8m) Mini DisplayPort 1.2 (HBR2) to VGA cable connects a VGA display/monitor/projector supporting 1920x1200 & 1080p at 60Hz; DPCP & HDCP 1.4 / EDID & DDC pass-through ensure compatibility between source & display
  • HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
  • INTEGRATED DISPLAY CABLE: Mini DisplayPort to VGA adapter cable has slim & flexible design with video adapter chip built into VGA connector reducing clutter & providing a tidy install in the office, boardroom or home office
  • INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using this mDP to VGA display adapter cable / Supports VGA screw locking cable to prevent accidental disconnection / Gold-plated connectors
  • EASY TO USE: With no software or drivers required, the Mini DP to VGA converter cord works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks

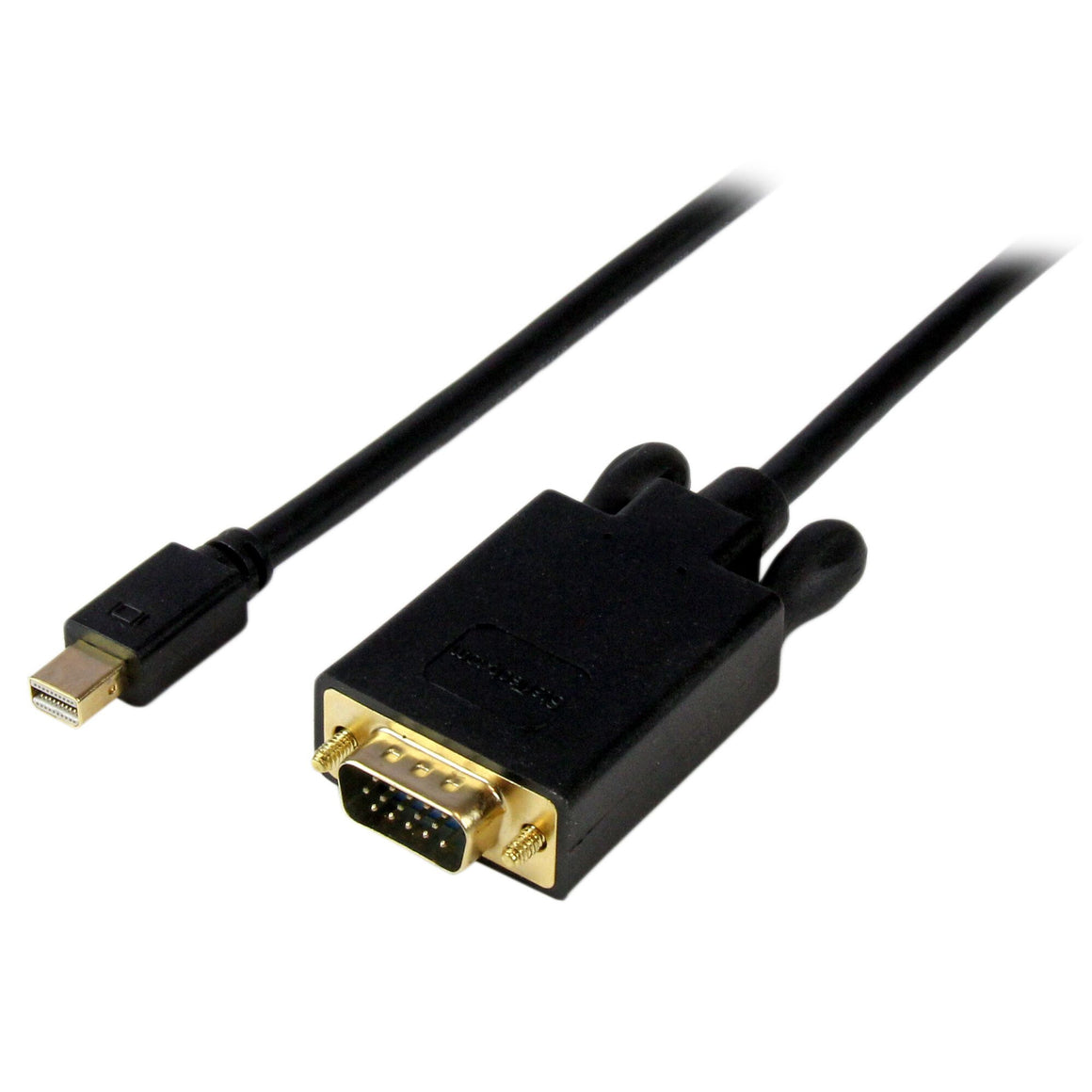

Connect a Mini DisplayPort-equipped PC or Mac® to a VGA monitor/projector, with a 6ft black cable

The MDP2VGAMM6B 6ft active Mini DisplayPort to VGA converter cable lets you connect your Mini DisplayPort-equipped device (such as a Macbook® or any Microsoft® Surface™ Pro devices with mDP) directly to a VGA monitor or projector with no additional adapters or cables required -- a cost-effective solution for enabling your Mini DisplayPort computer to work with a VGA monitor or projector.

The adapter cable is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port. Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to VGA without sacrificing video quality.

The MDP2VGAMM6B is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Active video converter
Plug and Play Yes
Chipset Analogix - 9832
Product colour Black
HBR2 support Yes
Supported video modes 1080p
Maximum resolution 1920 x 1200 pixels
DisplayPort version 1.2
DisplayPort Content Protection (DPCP) Yes
HDCP version 1.4
HDCP Yes
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 mini DisplayPort
Cable length 1.83 m
Operational conditions
Operating relative humidity (H-H) 40 - 85%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 60 °C
Certificates
Compliance certificates CE, RoHS
Weight & dimensions
Height 19 mm
Depth 1830 mm
Width 37 mm
Weight 101.3 g
Packaging data
Package weight 123 g
Package height 20 mm
Package depth 222 mm
Package width 197 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 150 pc(s)
Master (outer) case height 435 mm
Master (outer) case length 415 mm
Master (outer) case width 420 mm
Harmonized System (HS) code 84733080
