Slim High-Speed HDMI cable engineered for durability, performance, and tight-space installs
This High Speed HDMI® Slim Cable with Ethernet withstands the daily demands of connecting your HDMI devices. Tested to endure strenuous wear and tear, the rugged cable is a must-have for both business and consumer applications.
Built for Daily Use
The Premium Certified Slim HDMI® 2.0 cable has aramid fiber reinforcement that braces it from the stress of frequent bends. This also lets the cable flex without over-stretching or damaging the core of the cable.
Cable Key Features
Aramid fiber adds strength and durability to the cable
Insulated conductors reduce friction, provide more flexibility
EMI protection with aluminum-mylar foil with braided shielding
TPE cable jacket is more flexible than a standard PVC cable
34AWG Slim HDMI cable with compact 4.7mm OD

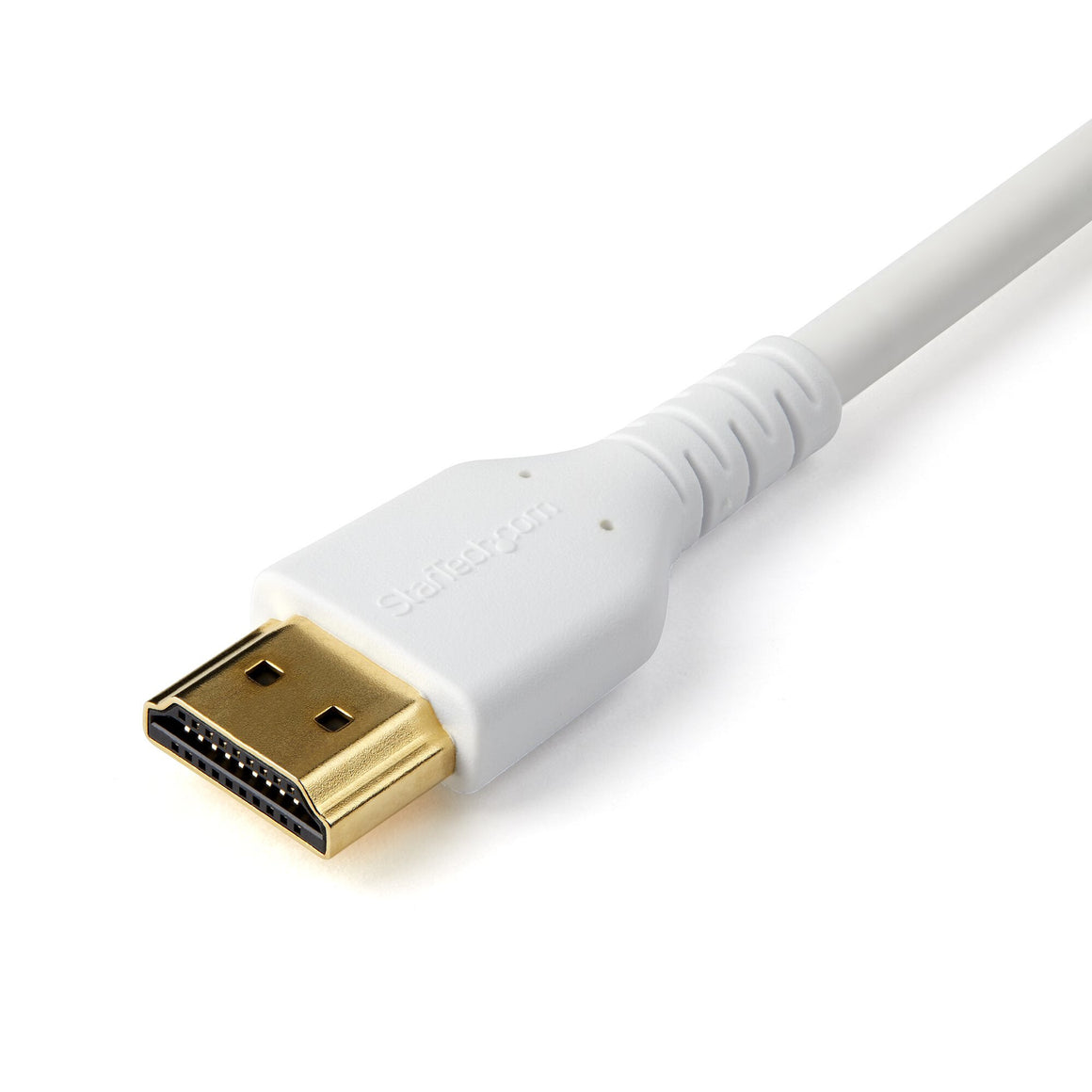

Flexible Strain Relief
The cable is constructed to prevent the connector from separating from the jacket. The extra-long strain relief molding is tested to withstand over 10,000+ bend cycles at a 180° angle.
Connector Key Features
HDMI gold plated connector with metal shield protects the circuit board from EMI and reinforces the connection point
Strain relief tested to tolerate over 10,000+ bend cycles at a 180° angle

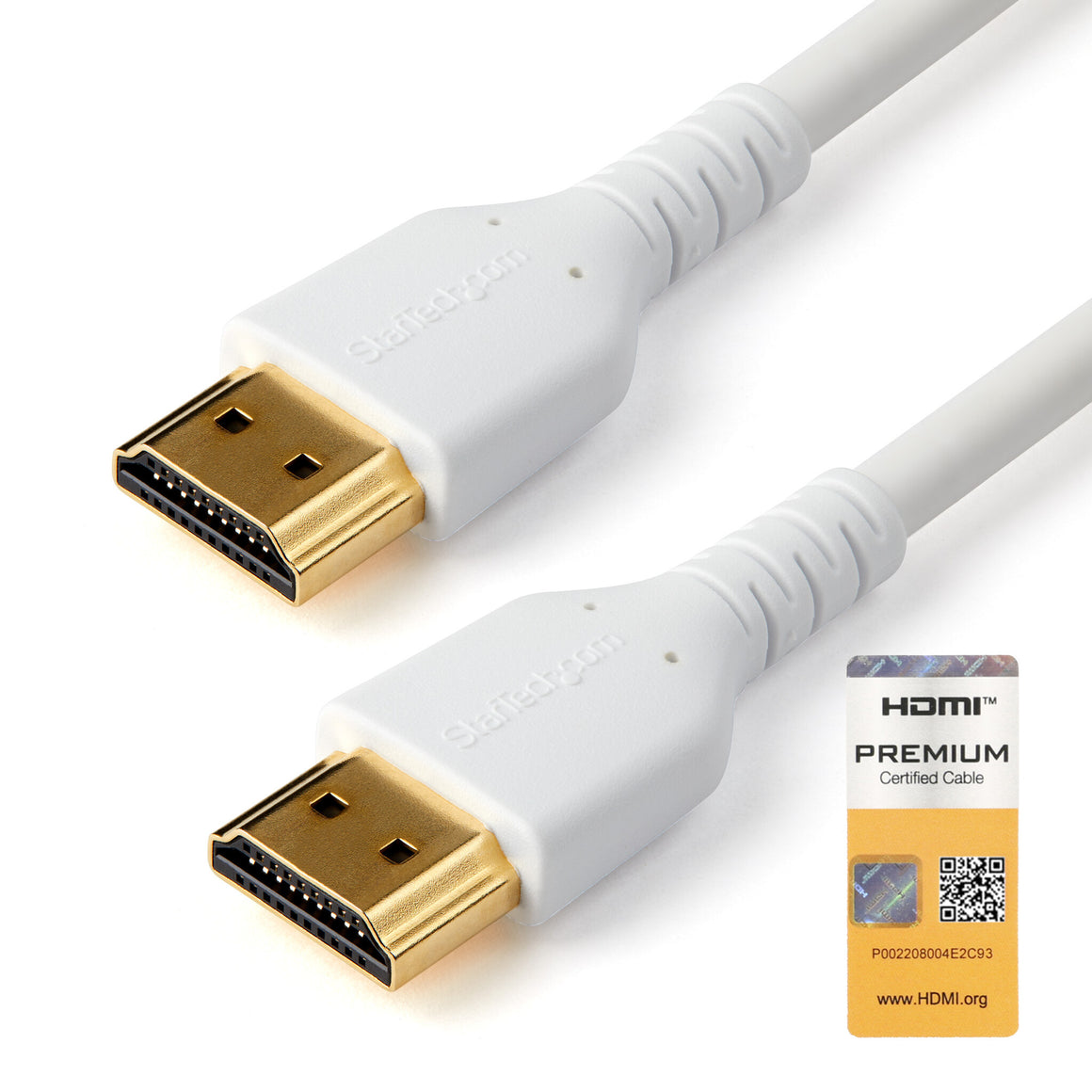

Supporting all HDMI 2.0 specifications, this HDMI® Premium Certified cable supports resolutions up to 4K 60Hz with a bandwidth of up to 18Gbps. The HDMI cable also supports HDR for higher contrast ratio and vivid colors providing an enriched and enjoyable viewing experience.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Features |
| Plug and Play |
Yes |
| Cable shielding |
Aluminum mylar foil |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Connector contacts plating |
Gold |
| AWG wire size |
30 |
| Maximum refresh rate |
60 Hz |
| Bandwidth |
18000 MB/s |
| Supported digital audio channels (uncompressed) |
5.1, 7.1, 32 |
| High Dynamic Range (HDR) technology |
High Dynamic Range 10 (HDR10) |
| High Dynamic Range (HDR) supported |
Yes |
| HDCP version |
2.2 |
| HDCP |
Yes |
| HDMI Ethernet channel |
Yes |
| Audio Return Channel (ARC) |
Yes |
| Dolby technologies |
Dolby TrueHD, Dolby Atmos, Dolby Digital Plus |
| Supported graphics resolutions |
4096 x 2160 |
| HDMI version |
2.0 |
| Product colour |
White |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 |
HDMI Type A (Standard) |
| Cable length |
2 m |
| Certificates |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
| Weight |
52 g |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
103 g |
| Package height |
20 mm |
| Package depth |
150 mm |
| Package width |
182 mm |
| Logistics data |
| Products per master (outer) case |
78 pc(s) |
| Master (outer) case height |
290 mm |
| Master (outer) case length |
430 mm |
| Master (outer) case width |
380 mm |
| Harmonized System (HS) code |
84733080 |
