Connect your Mini DisplayPort® monitor to a standard DisplayPort source.

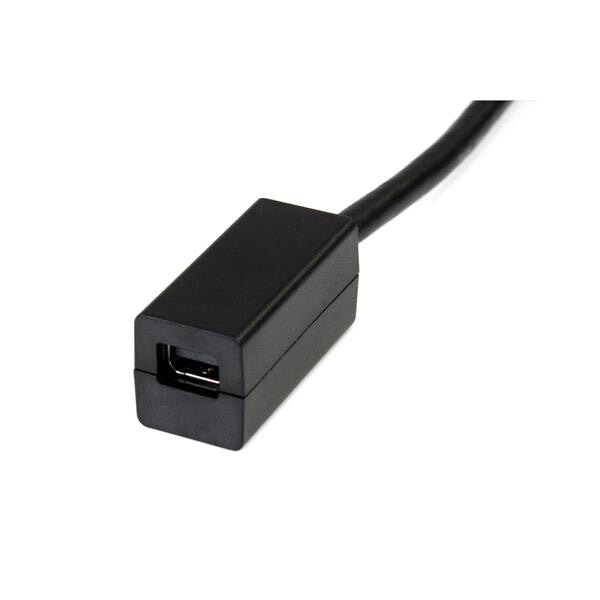

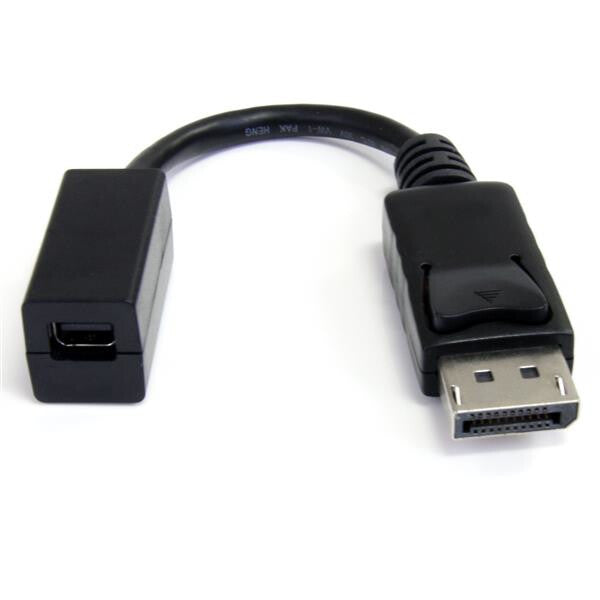

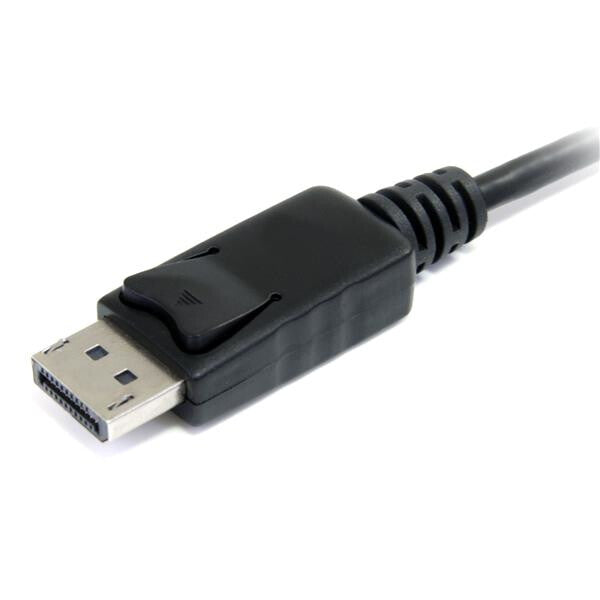

The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.).
This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).
The StarTech.com Advantage
| Features |
|---|
| Number of conductors |
19 |
| Multi-Stream Transport (MST) |
Yes |
| Bandwidth |
21600 MB/s |
| AWG wire size |
32 |
| Jacket material |
Polyvinyl chloride (PVC) |
| Cable rating |
CMG (CM) |
| Product colour |
Black |
| Latching connectors |
Yes |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
2560 x 1600 (WQXGA), 3840 x 2400 |
| Maximum resolution |
3840 x 2400 pixels |
| DisplayPort version |
1.2 |
| Connector contacts plating |
Nickel |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
DisplayPort |
| Connector 1 |
Mini DisplayPort |
| Cable length |
0.152 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 80% |
| Storage temperature (T-T) |
-10 - 80 °C |
| Operating temperature (T-T) |
0 - 35 °C |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
14 g |
| Cable diameter |
4.7 mm |
| Packaging data |
|---|
| Package weight |
22 g |
| Package depth |
220 mm |
| Package width |
200 mm |
| Logistics data |
|---|
| Products per master (outer) case |
240 pc(s) |
| Master (outer) case height |
210 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case width |
320 mm |
| Harmonized System (HS) code |
84733080 |
