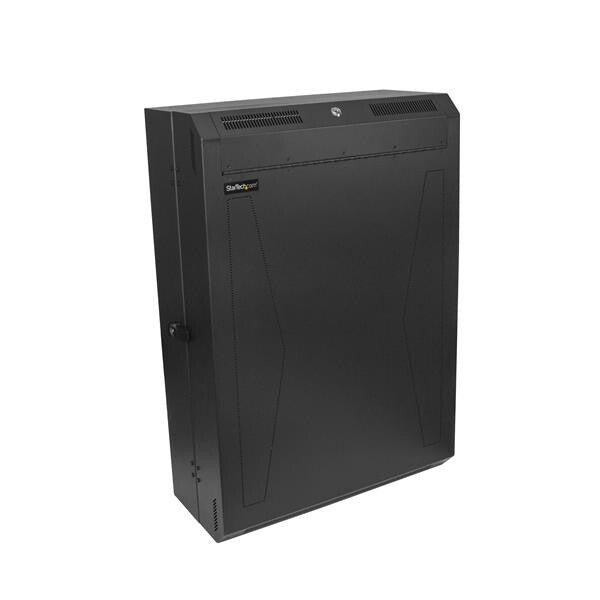

Vertically wall-mount your server or networking equipment in this 6U network cabinet

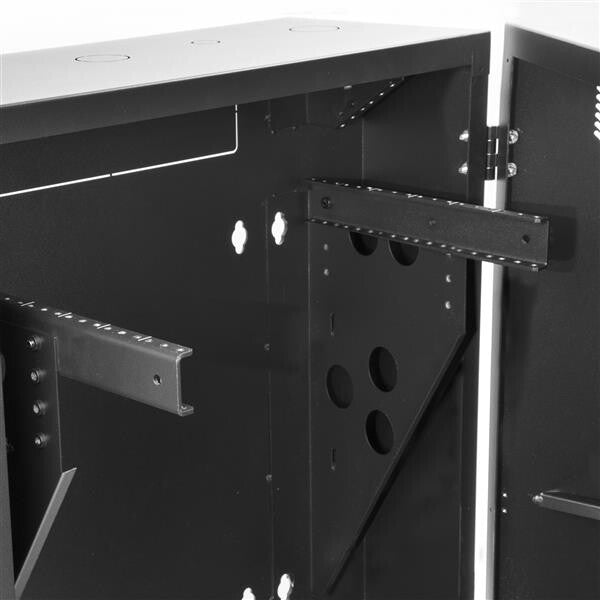

This 6U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.
Free up space
Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.
Keep your equipment cool and secure

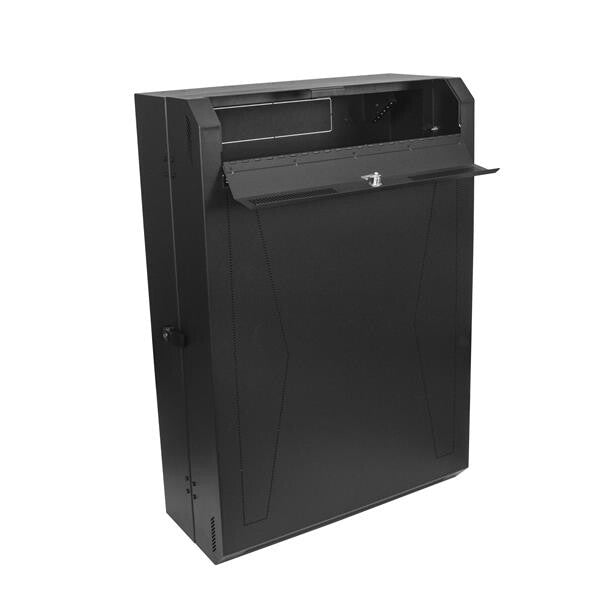

To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.
Easy, hassle-free installation

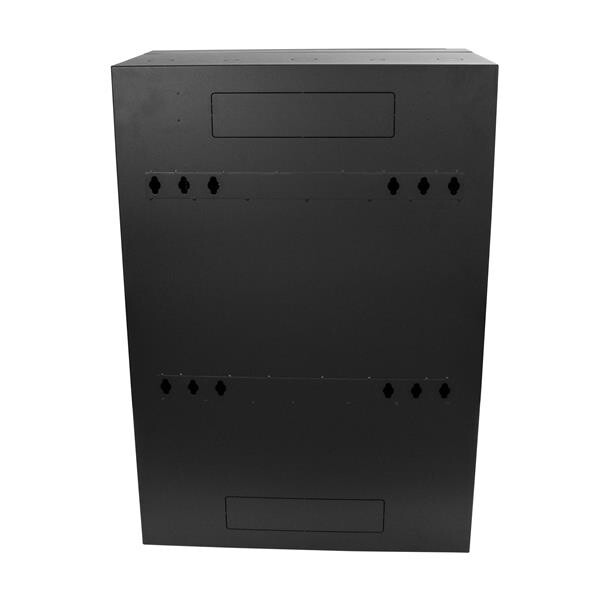

The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.
The RK630WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Total load capacity of 200 lb. (90.7 kg)
- Save space by mounting your server vertically to the wall
- Extra 2U of space for switches and patch cables
| Features |
|---|
| Certification |
CE, REACH |
| Castor wheels |
No |
| Cable management |
Yes |
| Number of fans |
0 fan(s) |
| Adjustable mounting rails |
Yes |
| Side panel key lock |
No |
| Front door key lock |
Yes |
| Back door key lock |
No |
| Removable side panels |
No |
| Removable front door |
No |
| Removable back door |
No |
| Side panel construction |
Steel |
| Front door construction |
Steel |
| Back door construction |
Steel |
| Product design |
2-post |
| Frame type |
Closed |
| Material |
Steel |
| Product colour |
Black |
| Maximum weight capacity |
90 kg |
| Type |
Wall mounted rack |
| Rack capacity |
6U |
| Weight & dimensions |
|---|
| Mounting depth (max) |
76 cm |
| Weight |
33 kg |
| Inner depth |
28.8 cm |
| Inner width |
64.1 cm |
| Height |
941 mm |
| Depth |
294 mm |
| Width |
645 mm |
| Packaging data |
|---|
| Package weight |
35 kg |
| Package height |
1000 mm |
| Package depth |
370 mm |
| Package width |
720 mm |
| Manual |
Yes |

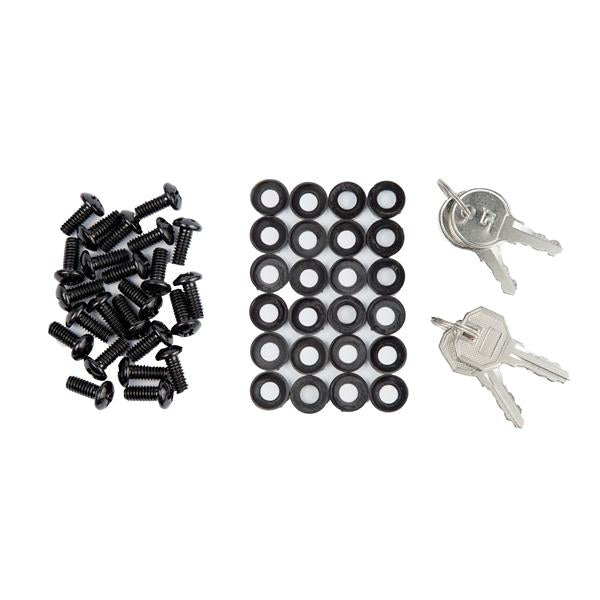

| Number of washers included |
24 |
| Screws included |
Yes |
| Number of screws |
24 |
| Number of nuts |
24 |
| Nuts included |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
