LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

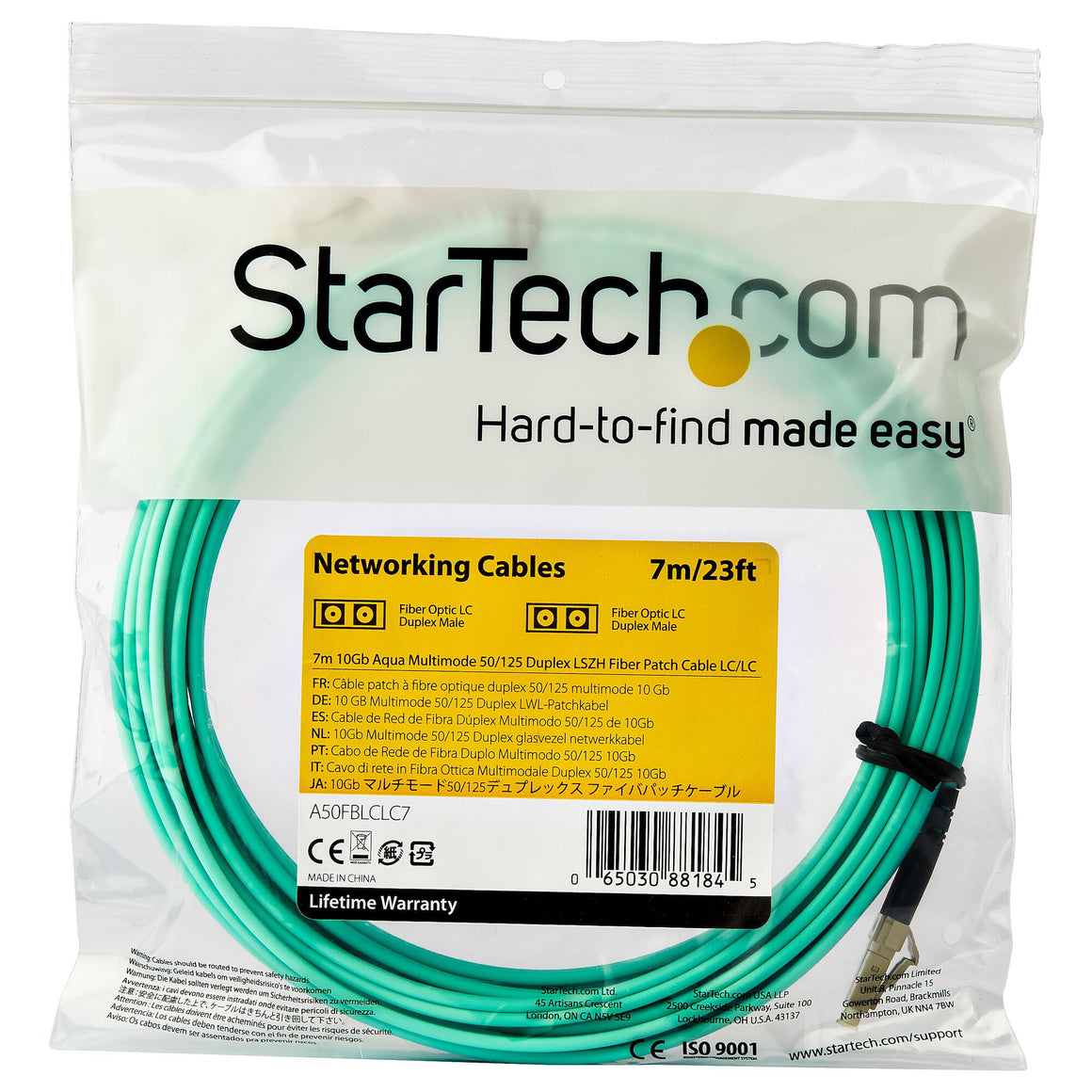

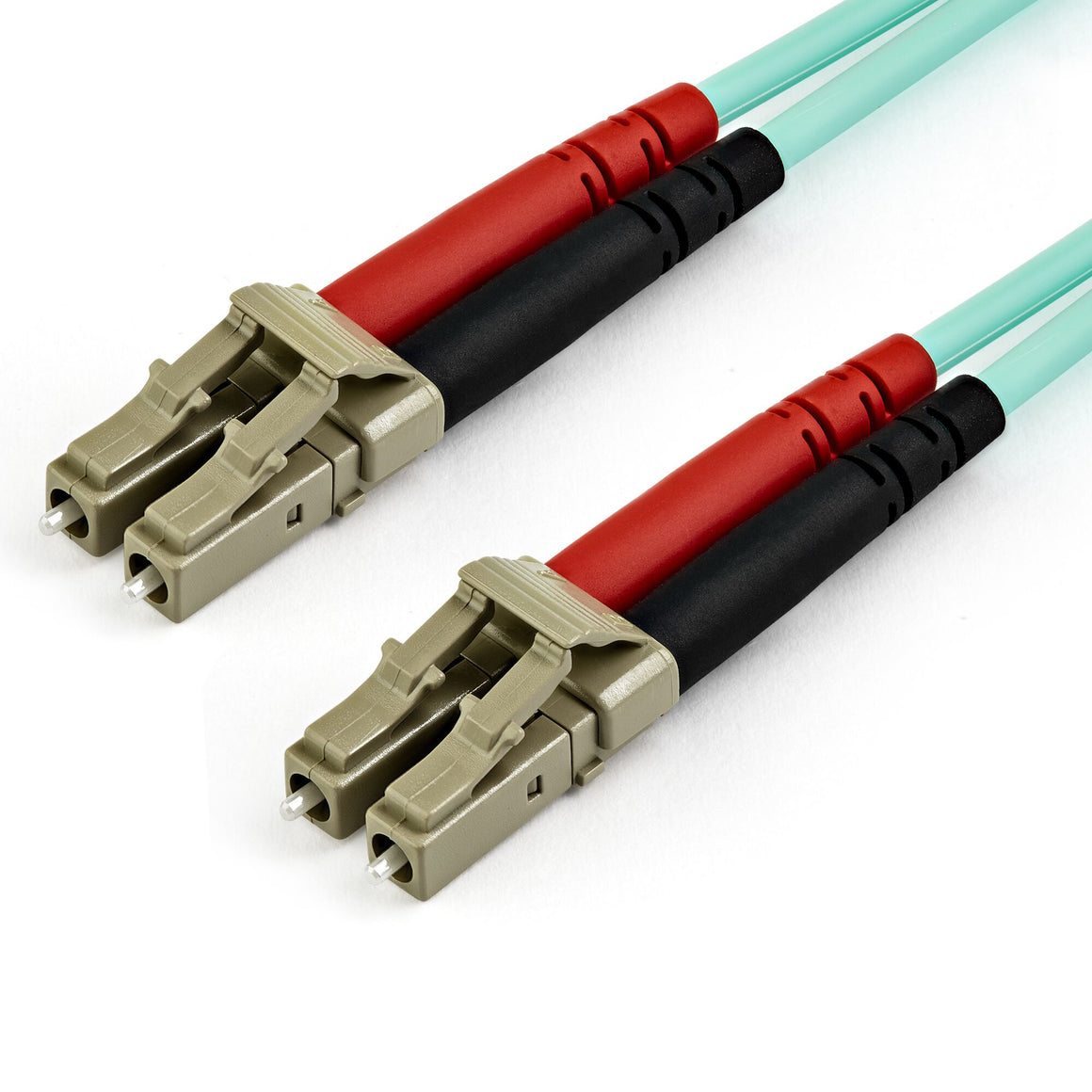

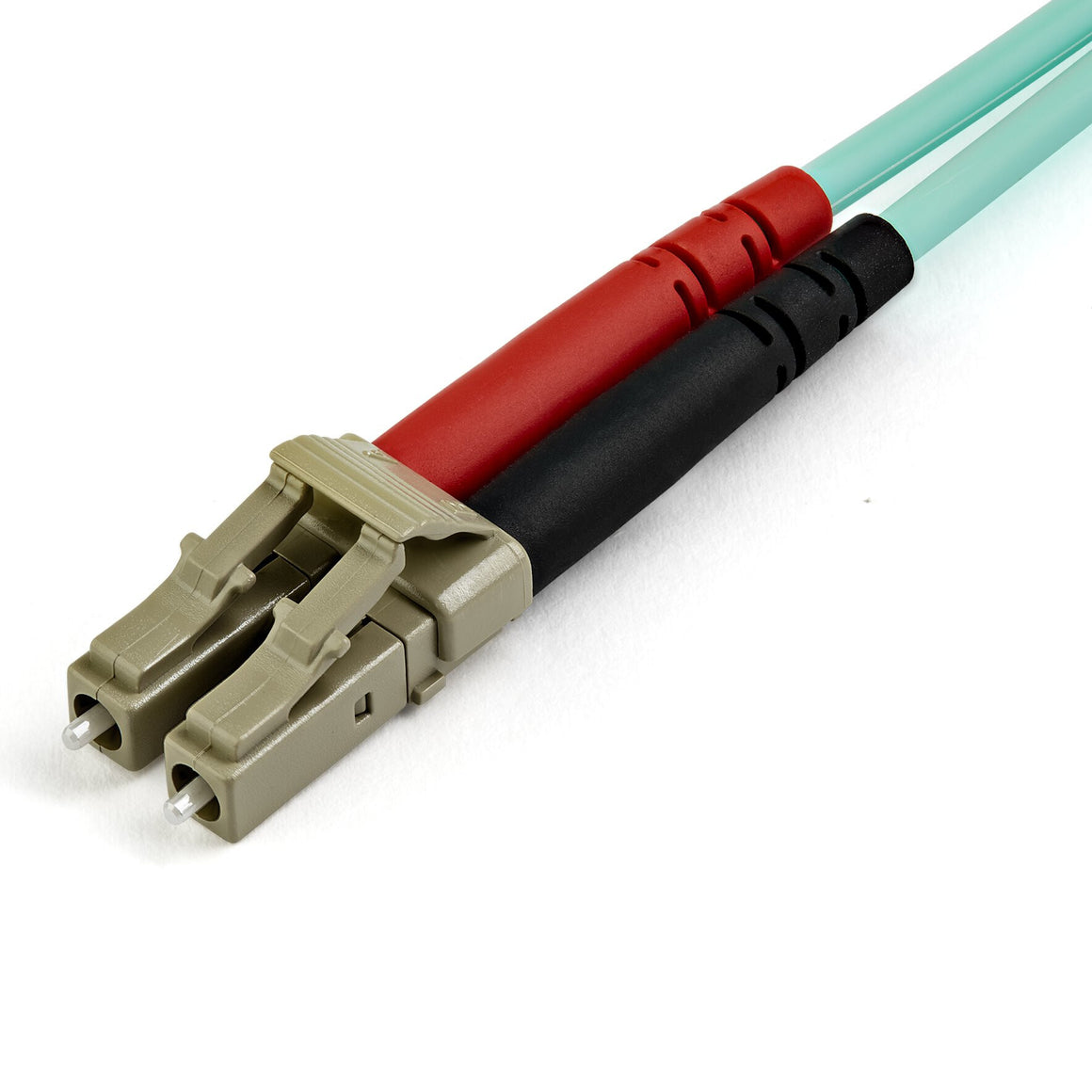

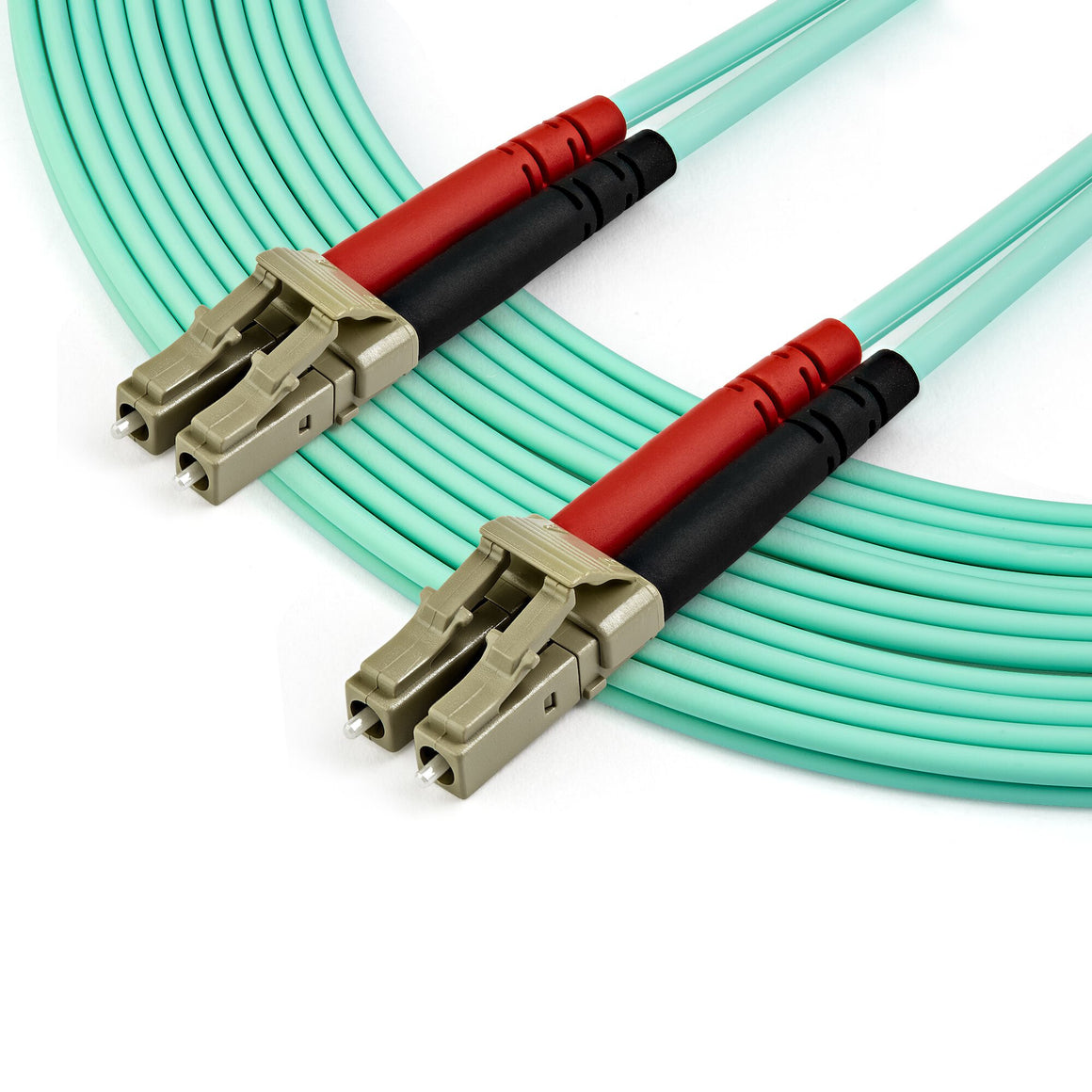

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.
Built for Performance
With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.
Reliable Connection
Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
High-Quality Construction
Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Data transfer rate |
100 Gbit/s |
| Wavelengths supported |
850 nm |
| Fiber mode structure |
Multi-mode |
| Cladding diameter |
125 µm |
| Core diameter |
50 µm |
| Full duplex |
Yes |
| Product colour |
Aqua colour |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 2 |
LC |
| Connector 1 |
LC |
| Fibre optic type |
OM3 |
| Cable length |
7 m |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Weight |
96 g |
| Packaging data |
|---|
| Package weight |
106 g |
| Package height |
20 mm |
| Package depth |
200 mm |
| Package width |
215 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
120 pc(s) |
| Master (outer) case height |
435 mm |
| Master (outer) case length |
410 mm |
| Harmonized System (HS) code |
85447000 |
| Master (outer) case width |
410 mm |
