Mount your network and telecommunications equipment with the convenience of adjustable depth

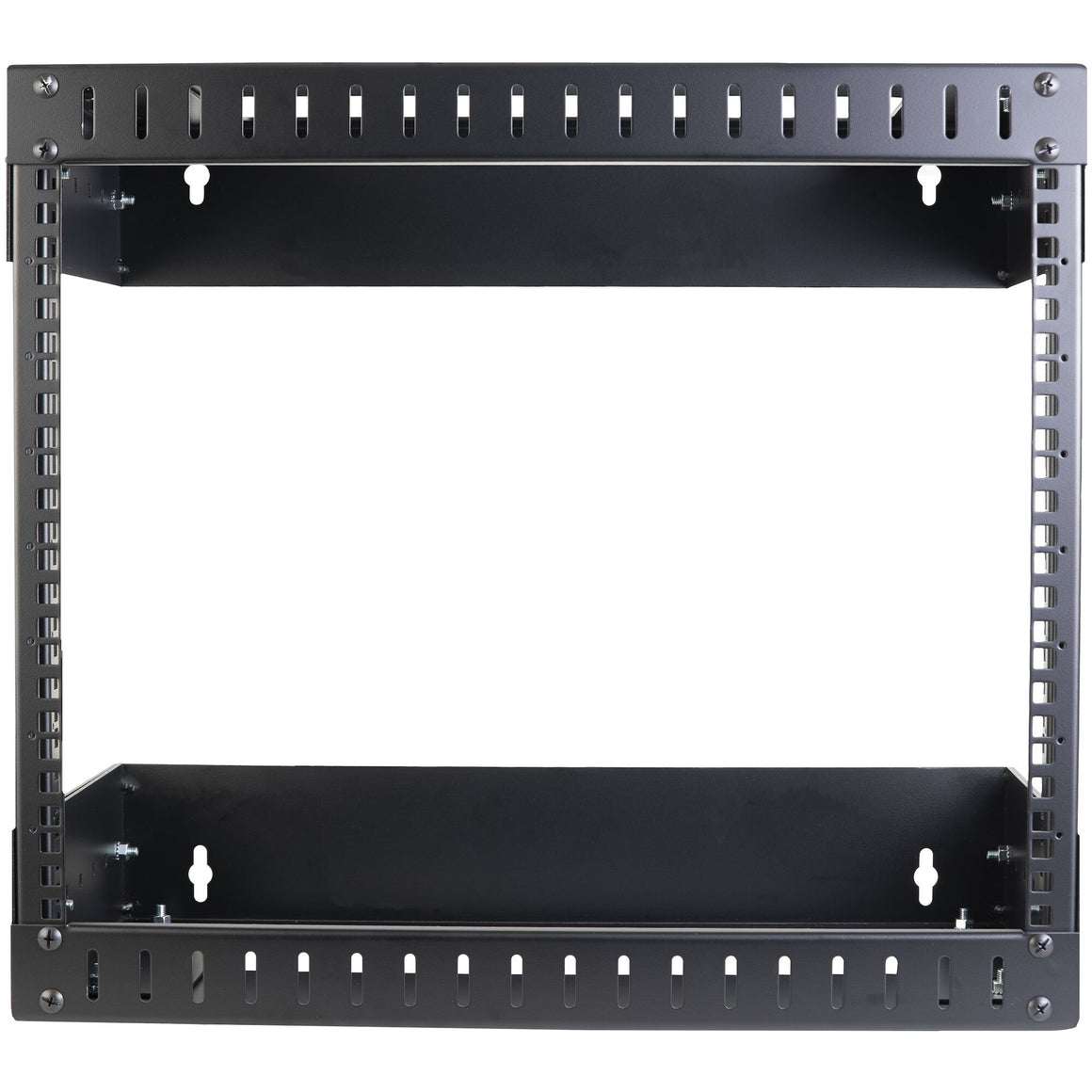

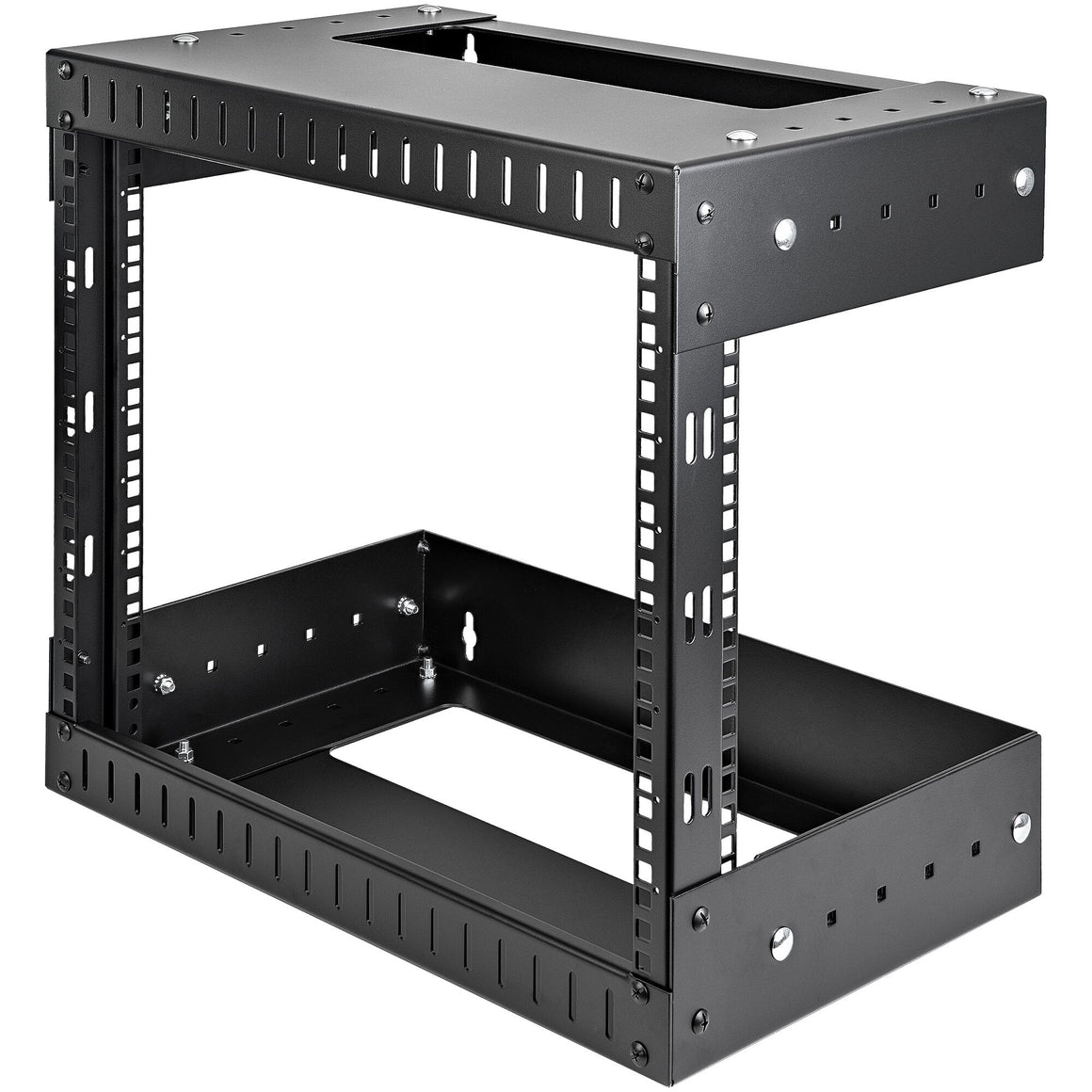

The RK812WALLOA 8U Open Frame Wall Mount Equipment Rack with Adjustable Depth is a high-quality, sturdy relay rack solution that is easy to assemble and install into any environment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

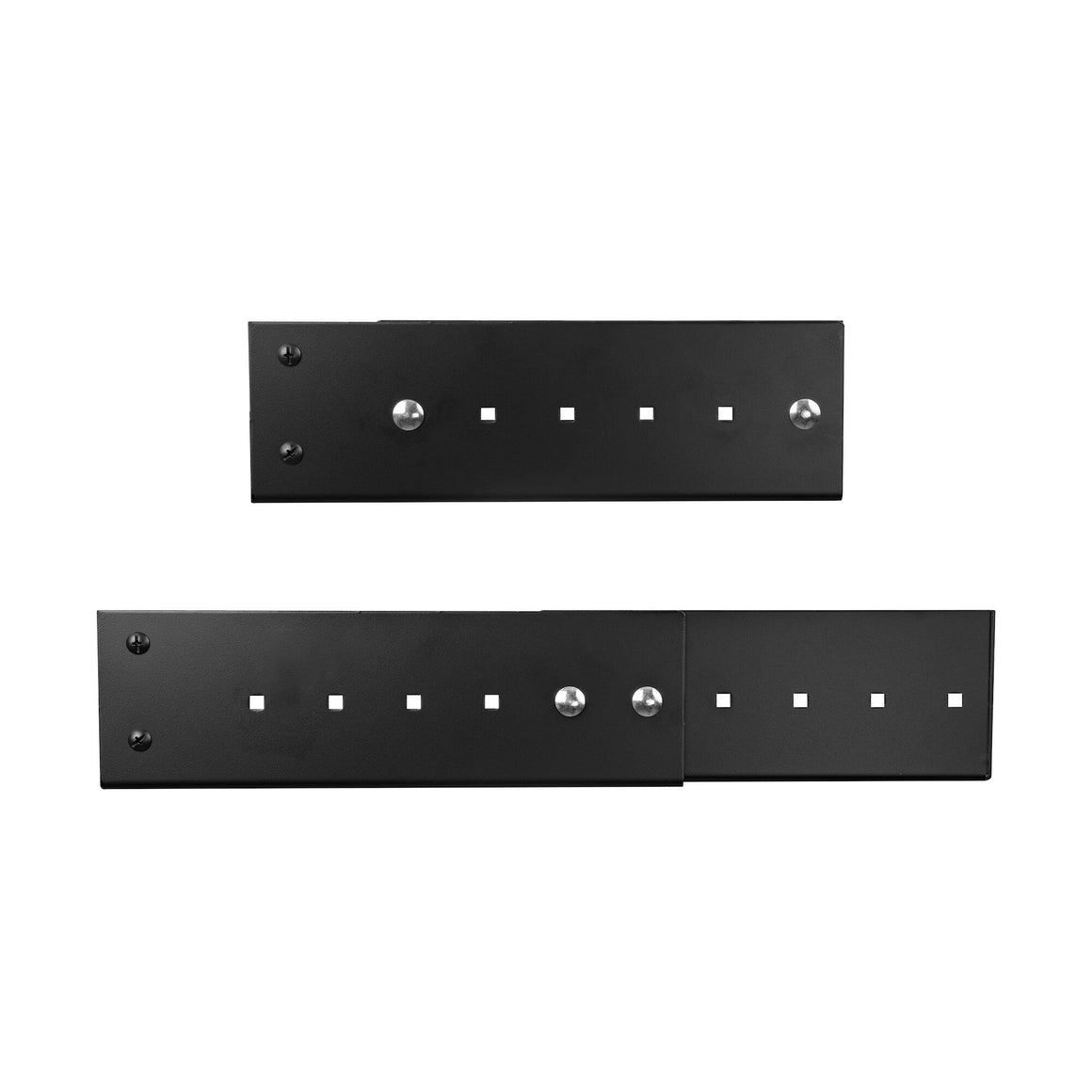

The open rack features an adjustable depth ranging from 12-20 inches, in order to accommodate larger data, network and telecommunications devices. The greater than average depth of the rack also allows for mounting of shelves and other accessories. The wall mounts are positioned 16in apart (center to center), making it suitable for mounting on virtually any wall surface, based on North American wall frame stud spacing standards.

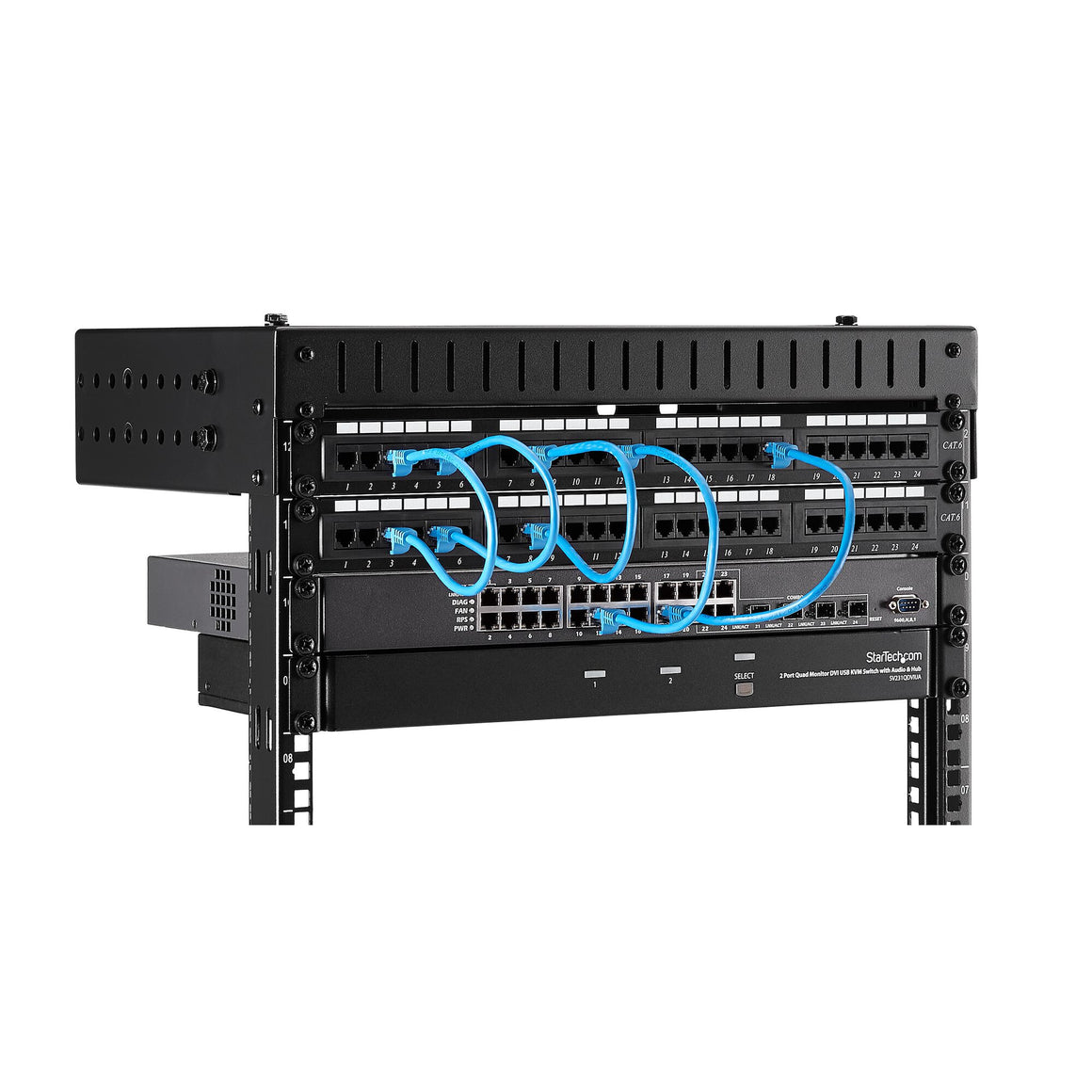

This 8U rack can be mounted to the wall in a server room, office, or above a doorway, expanding your workspace and keeping your equipment easily accessible.
Backed by a StarTech.com lifetime warranty.
The StarTech.com Advantage
| Features |
|---|
| Certification |
CE, UL, TAA |
| Castor wheels |
No |
| Mounting hole shape |
Square |
| Cable management |
No |
| Number of fans |
0 fan(s) |
| Adjustable mounting rails |
No |
| Product design |
2-post |
| Frame type |
Open |
| Material |
Steel |
| Product colour |
Black |
| Maximum weight capacity |
61.2 kg |
| Type |
Wall mounted rack |
| Rack capacity |
8U |
| Weight & dimensions |
|---|
| Mounting depth (max) |
50 cm |
| Weight |
11.1 kg |
| Inner depth |
29.7 cm |
| Inner width |
50 cm |
| Height |
455 mm |
| Depth |
305 mm |
| Width |
504 mm |
| Packaging data |
|---|
| Package weight |
13 kg |
| Package height |
490 mm |
| Package depth |
557 mm |
| Package width |
350 mm |
| Quick installation guide |
Yes |
| Screws included |
Yes |
| Number of screws |
40 |
| Number of nuts |
16 |
| Nuts included |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case height |
490 mm |
| Master (outer) case length |
557 mm |
| Master (outer) case width |
350 mm |
| Harmonized System (HS) code |
85381000 |
| Other features |
|---|
| Compliance industry standards |
EIA/ECA-310-E |
