1000 Mbps (1 Gbps) | Copper | RJ45 | 100 m (328 ft) | TAA | Lifetime Warranty

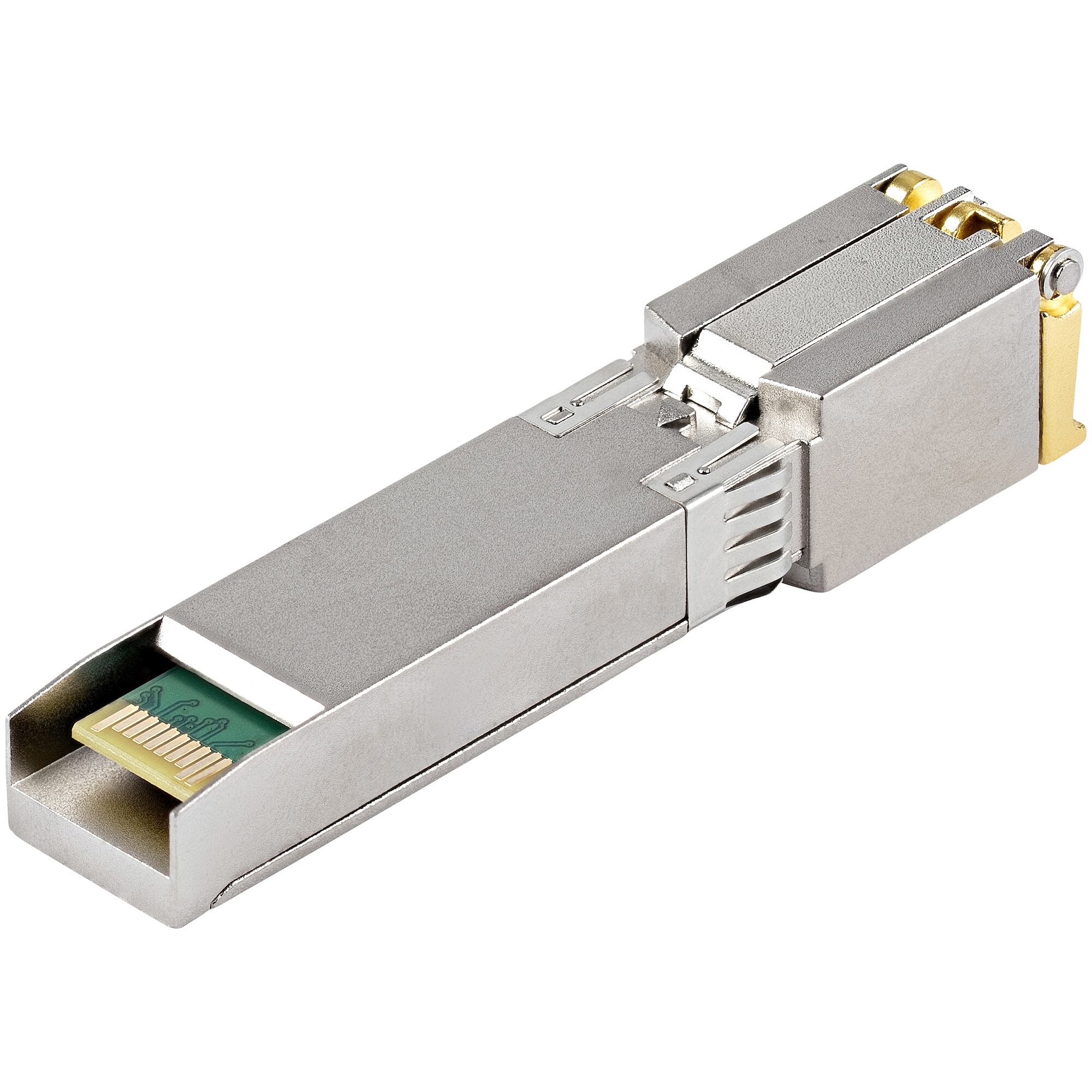

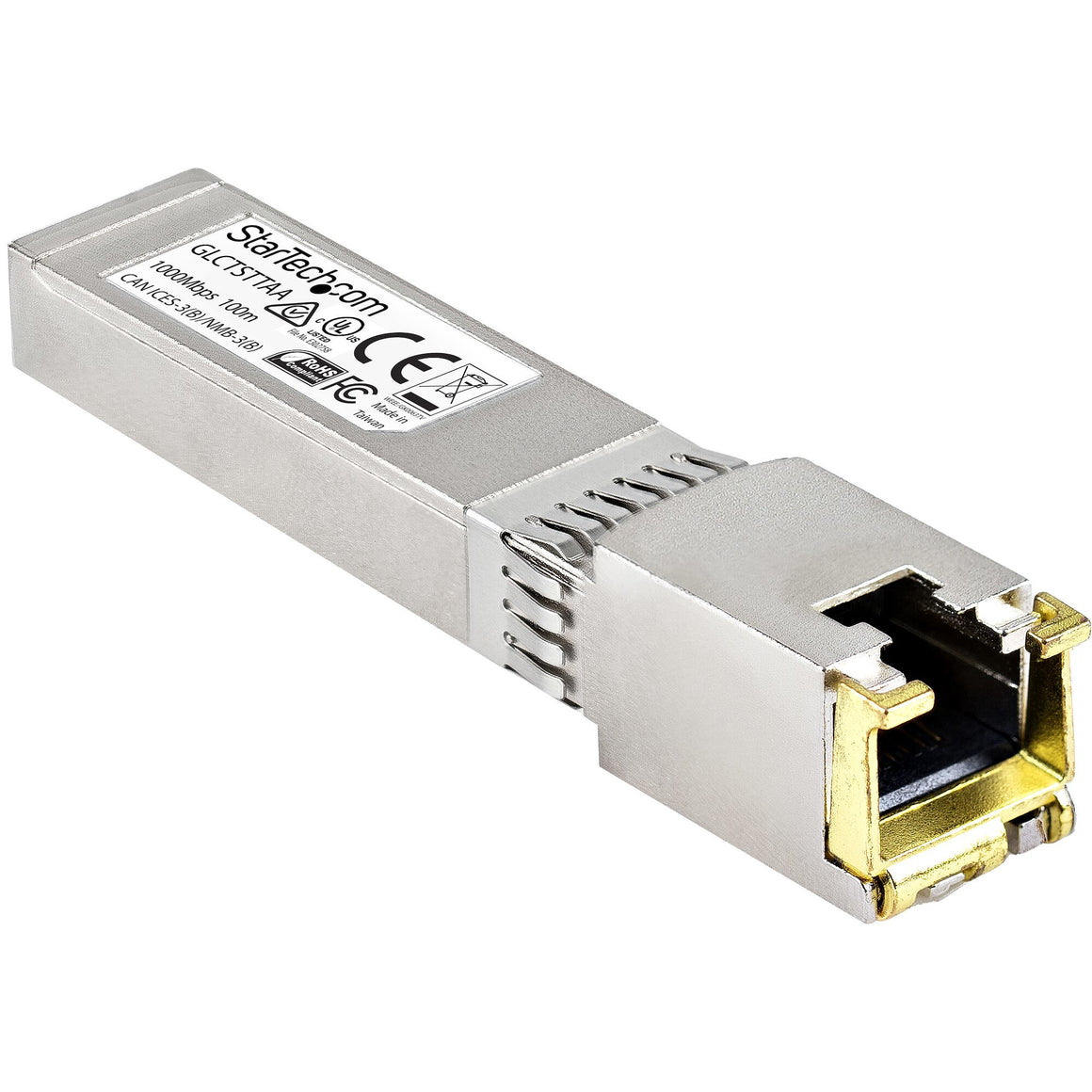

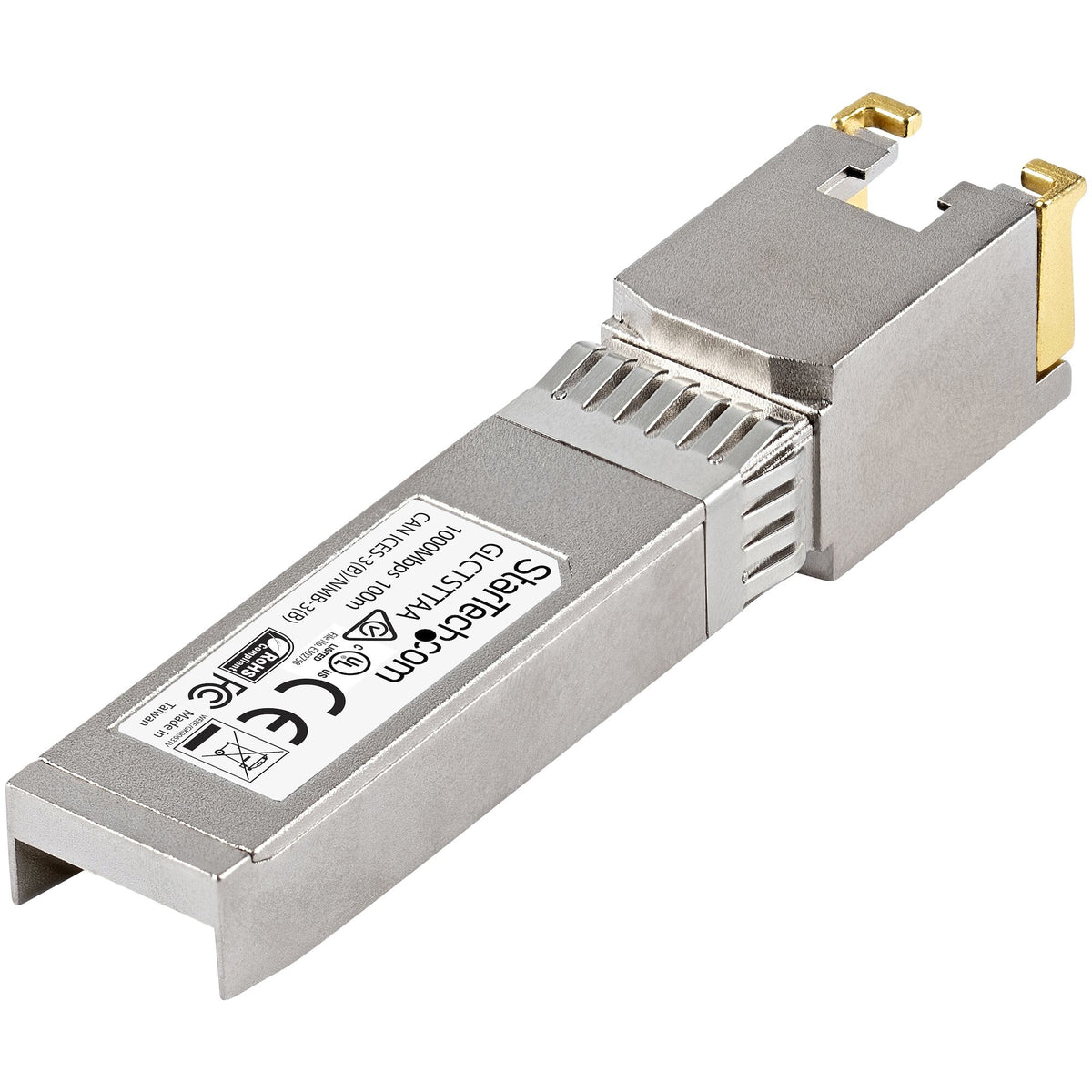

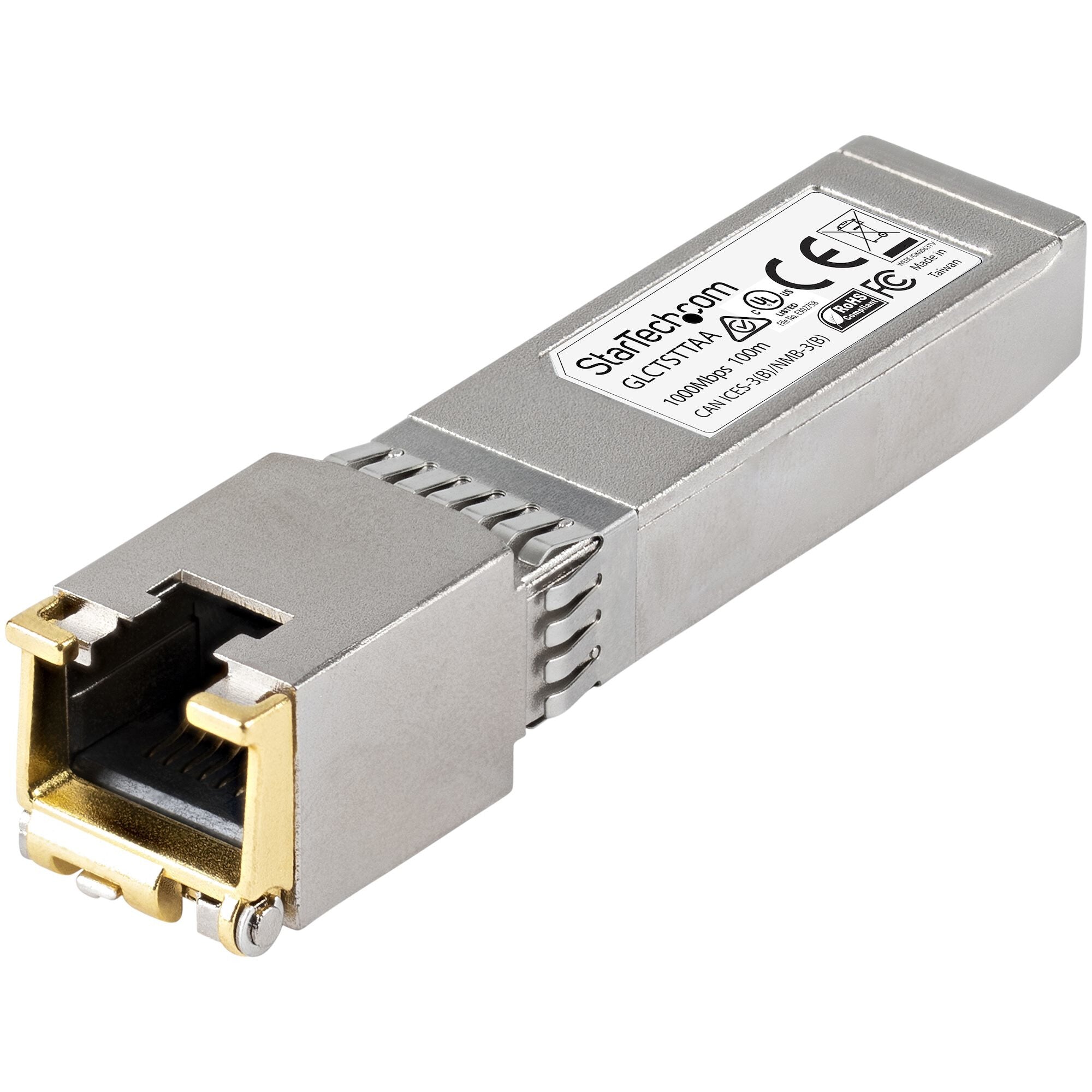

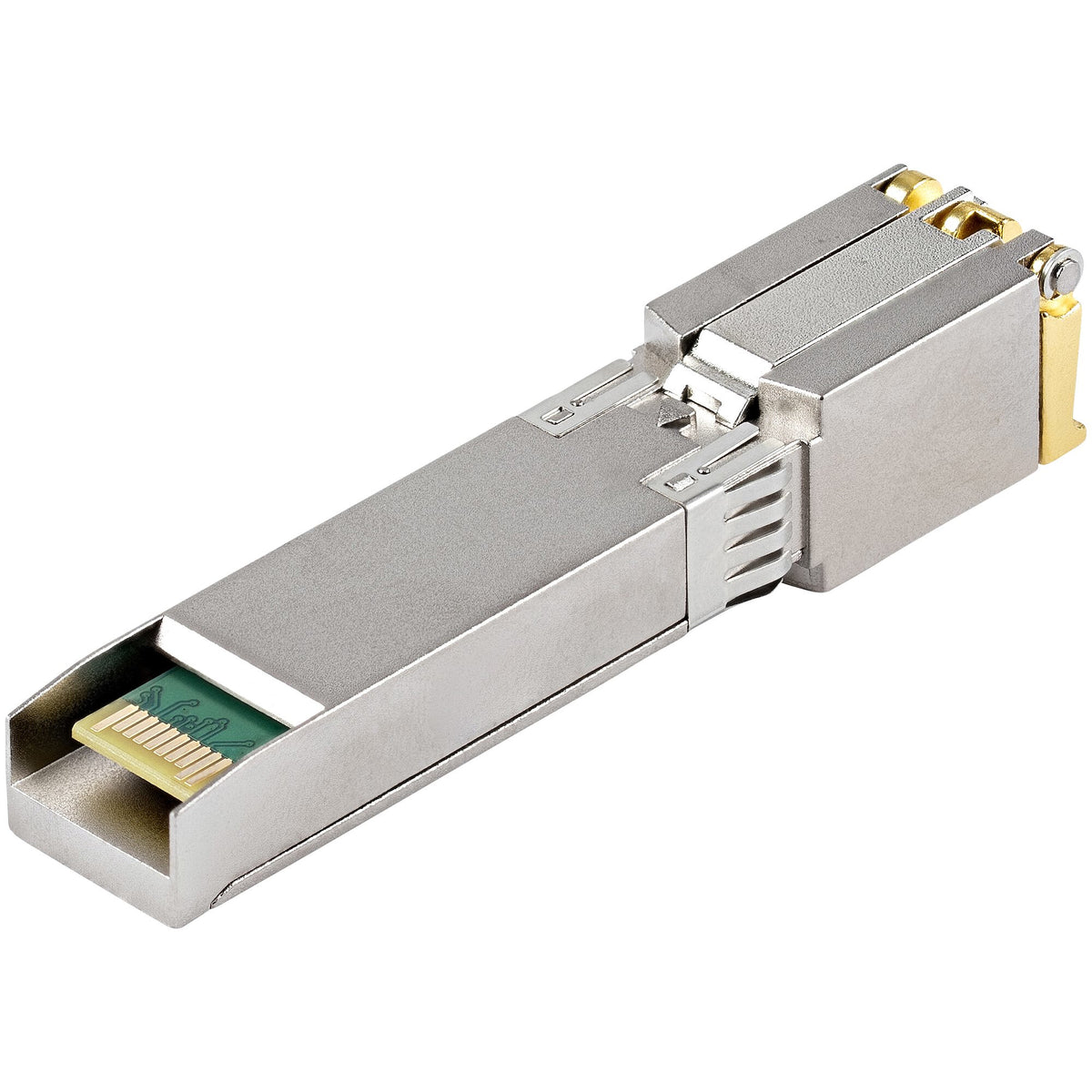

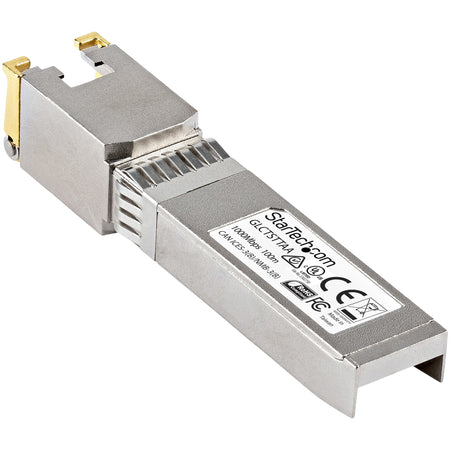

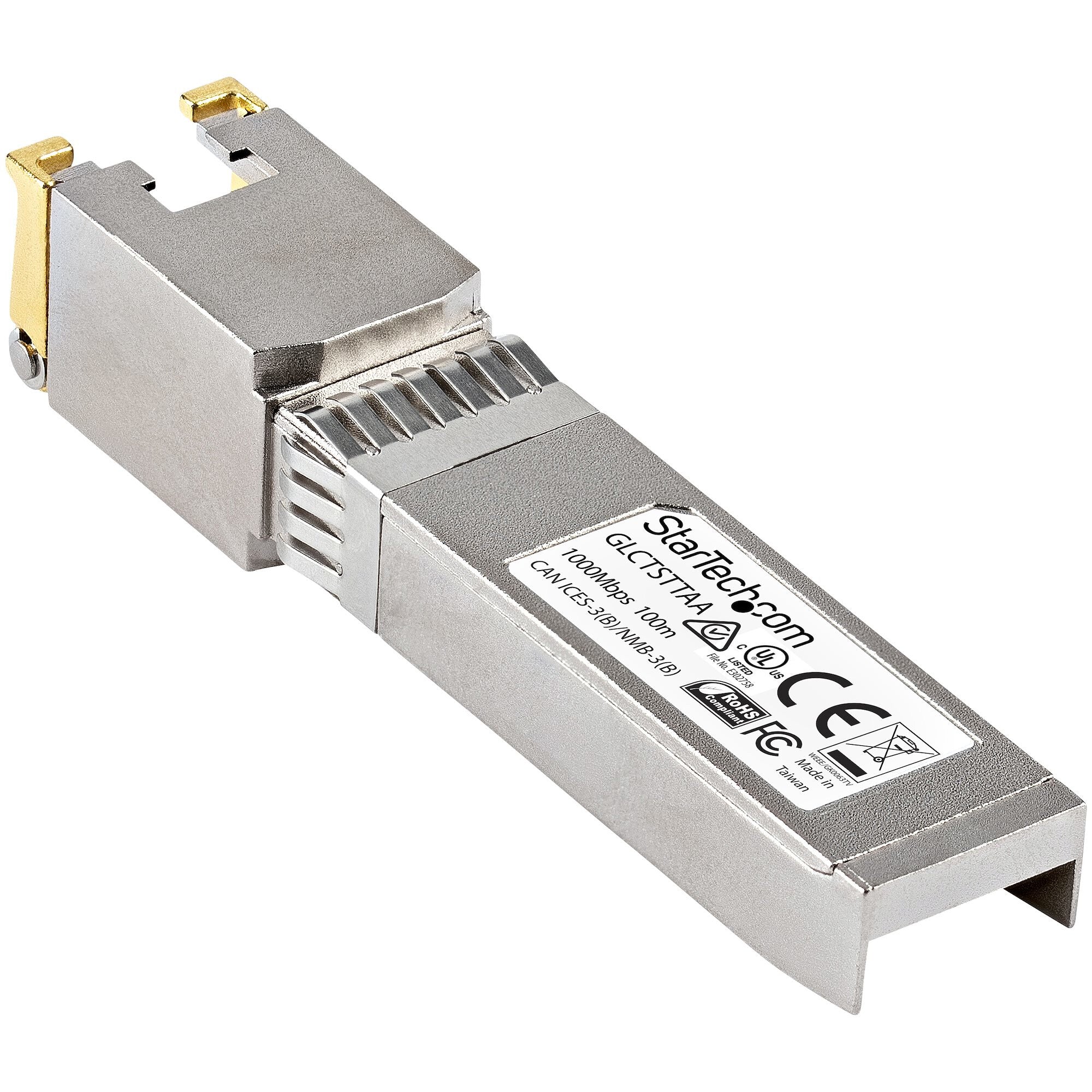

The GLCTSTTAA is a TAA compliant Cisco GLC-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 3,068,049 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance |
|---|
| Digital Diagnostics Monitoring (DDM) |
No |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Networking standards |
IEEE 802.3ab |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Maximum transfer distance |
100 m |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Copper |
| Features |
|---|
| Brand compatibility |
Cisco |
| Mean time between failures (MTBF) |
3068049 h |
| Hot-swap |
Yes |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL, TAA |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
30 - 75% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
22 g |
| Height |
13.5 mm |
| Depth |
70 mm |
| Width |
13 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
55 g |
| Package height |
33 mm |
| Package depth |
121 mm |
| Package width |
77 mm |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case height |
293 mm |
| Master (outer) case length |
636 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
338 mm |
