10/100/1000 Mbps | Copper | RJ45 | 100 m (328 ft) | Lifetime Warranty

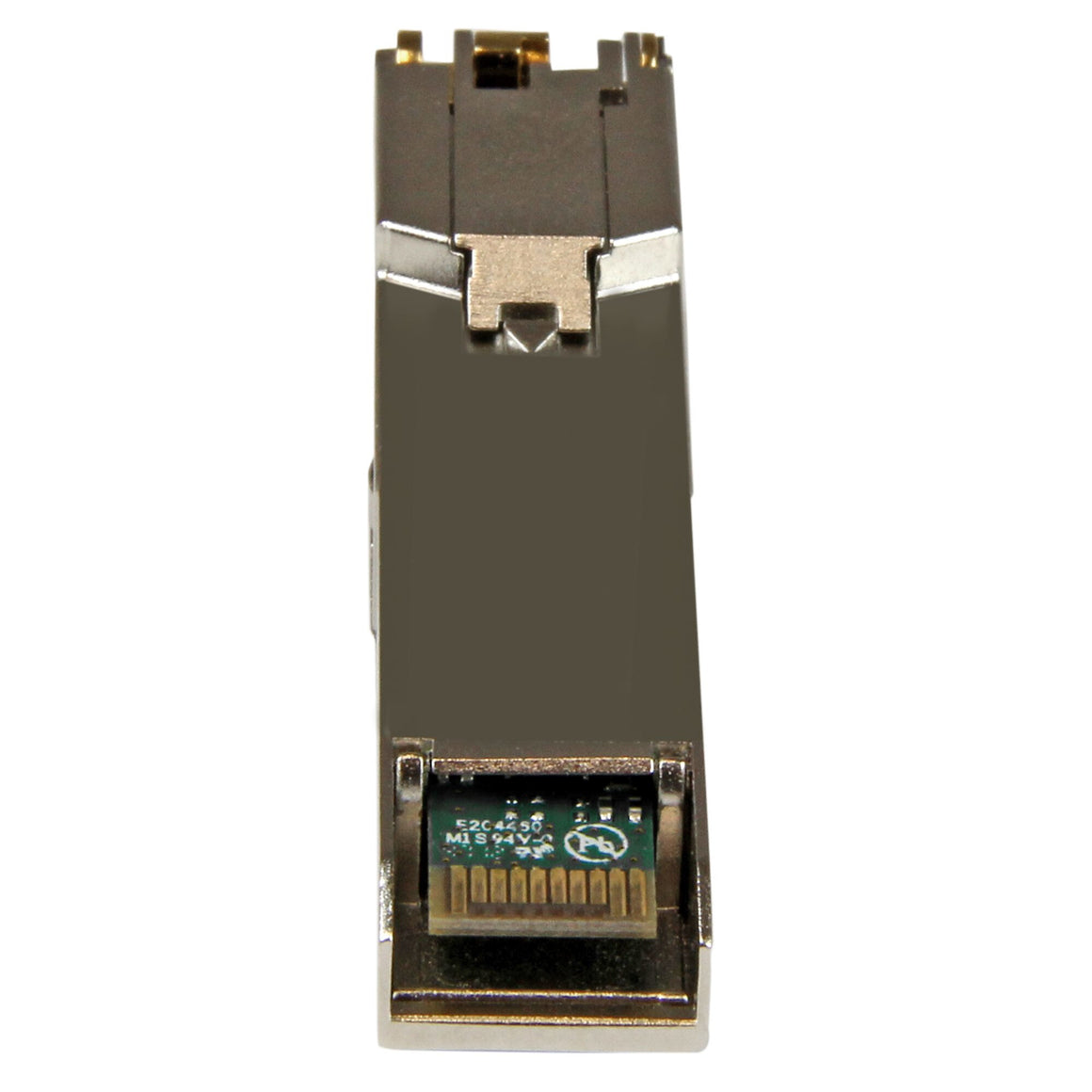

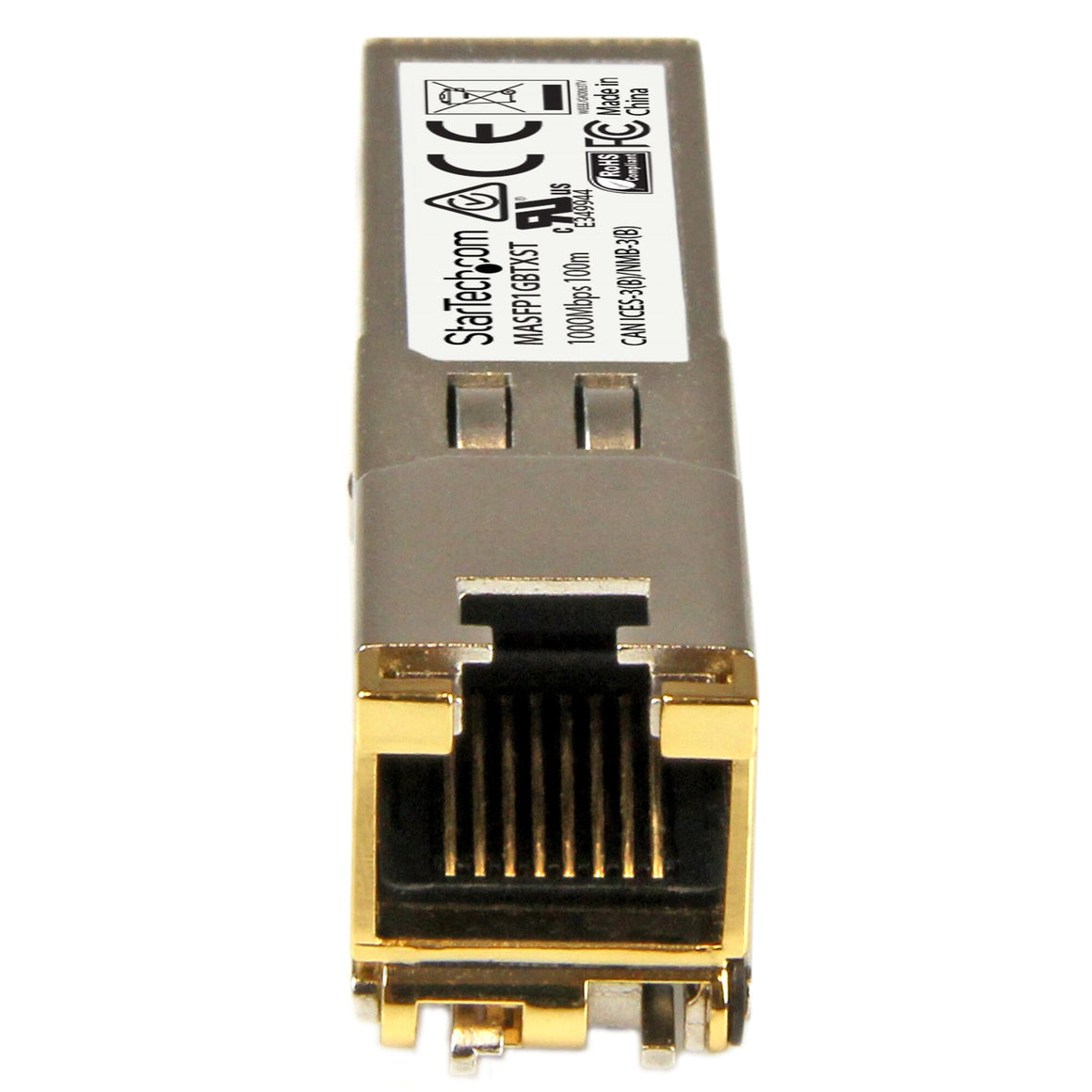

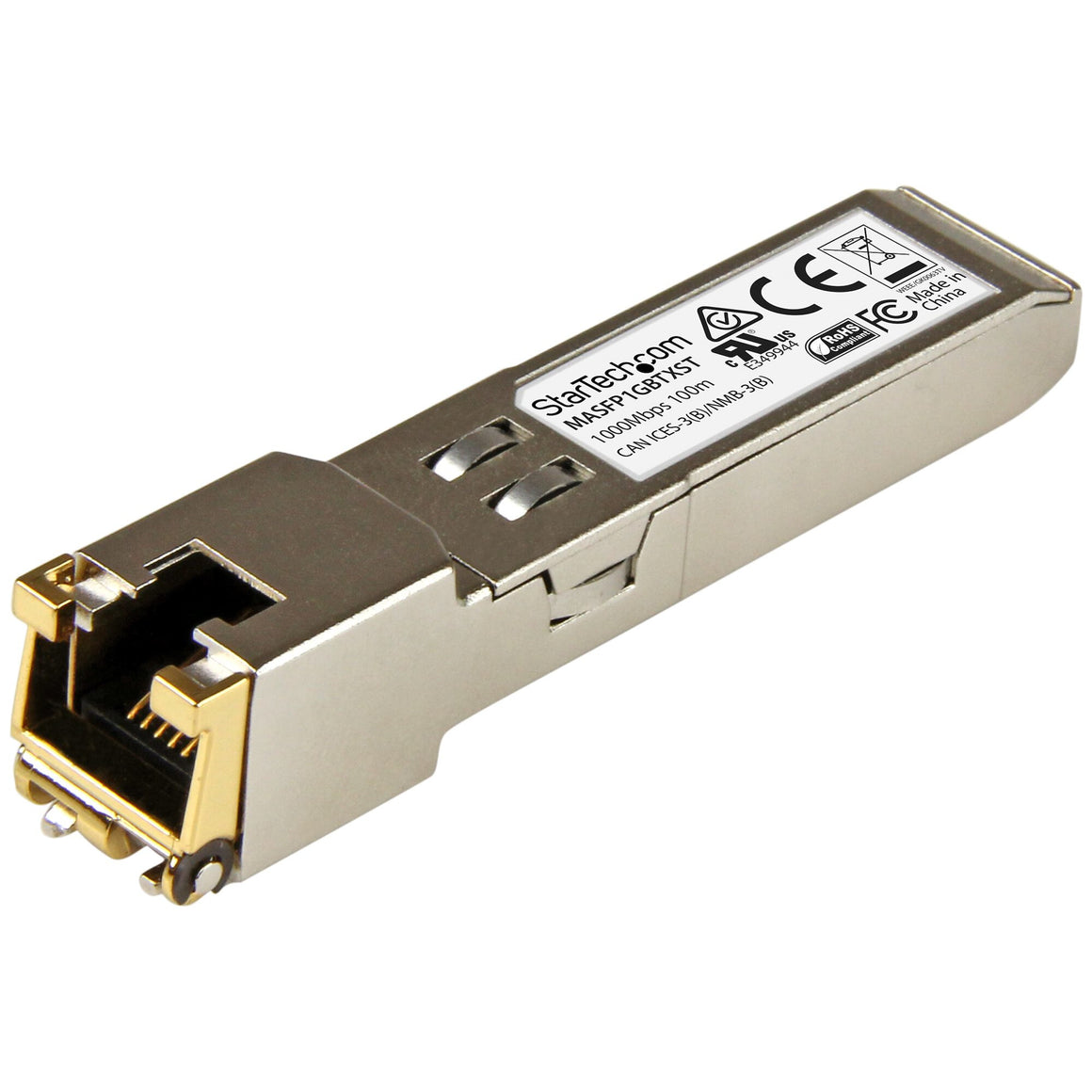

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 1000 Mbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance |
|---|
| Digital Diagnostics Monitoring (DDM) |
No |
| Auto-negotiation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Duplex system |
Full |
| Ethernet LAN (RJ-45) ports |
1 |
| Networking standards |
IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN |
Yes |
| Maximum transfer distance |
100 m |
| SFP transceiver standard |
TX |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| SFP transceiver type |
Copper |
| Features |
|---|
| Mean time between failures (MTBF) |
4655371 h |
| Hot-Plug support |
Yes |
| Housing material |
Aluminium |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
21 g |
| Height |
13.8 mm |
| Depth |
68 mm |
| Width |
18 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
51 g |
| Package height |
35 mm |
| Package depth |
93 mm |
| Package width |
118 mm |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
36 pc(s) |
| Master (outer) case height |
205 mm |
| Master (outer) case length |
305 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
260 mm |
