10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

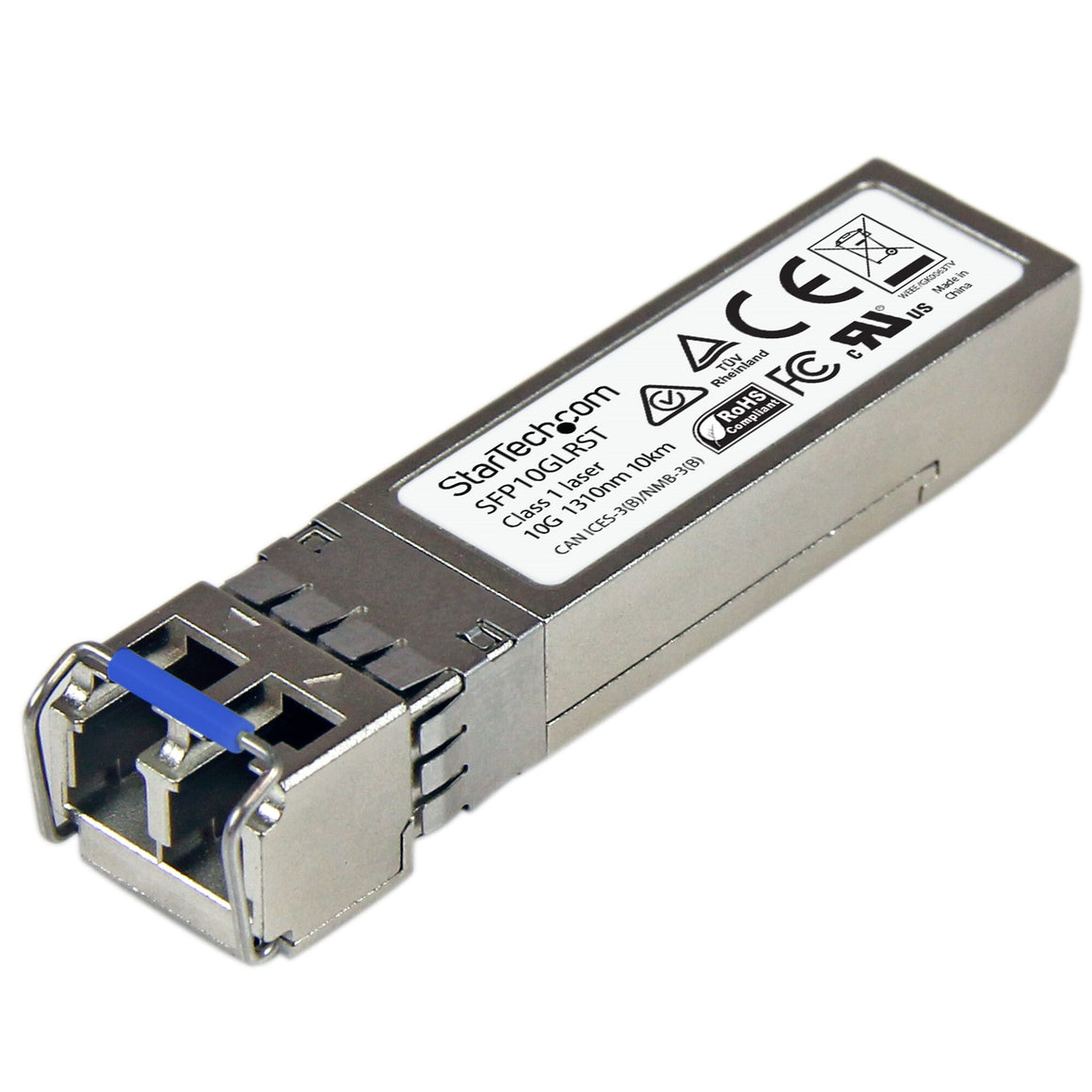

The SFP10GLRST is a Cisco SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance |
|---|
| Fiber ports quantity |
1 |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Duplex system |
Full |
| Networking standards |
IEEE 802.3ae |
| Wavelength |
1310 nm |
| Maximum transfer distance |
10000 m |
| Fiber optic connector |
LC |
| Single-mode fiber (SMF) supported |
Yes |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
|---|
| Mean time between failures (MTBF) |
2104865 h |
| Hot-swap |
Yes |
| Housing material |
Zinc steel |
| Product colour |
Silver |
| Power |
|---|
| Power consumption (typical) |
1.3 W |
| Certificates |
|---|
| Certification |
CE, FCC, UL |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating temperature (T-T) |
0 - 70 °C |
| Weight & dimensions |
|---|
| Weight |
22 g |
| Height |
12.5 mm |
| Depth |
56.6 mm |
| Width |
13.7 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
95 g |
| Package height |
33 mm |
| Package depth |
118 mm |
| Package width |
92 mm |
| Logistics data |
|---|
| Country of origin |
China |
| Products per master (outer) case |
36 pc(s) |
| Master (outer) case height |
254 mm |
| Master (outer) case length |
306 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
207 mm |
