Connect a DVI monitor to a single-mode DisplayPort output from your computer

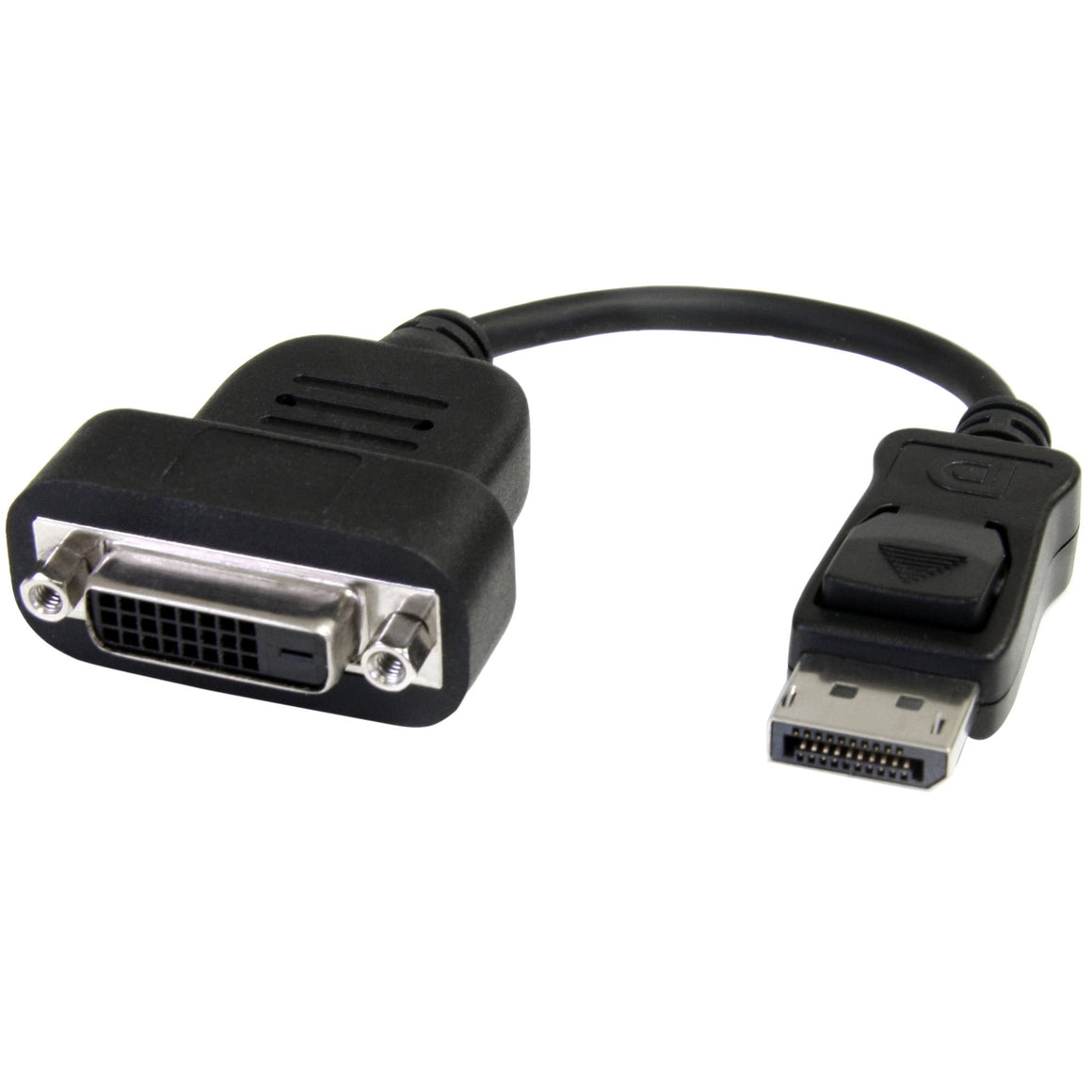

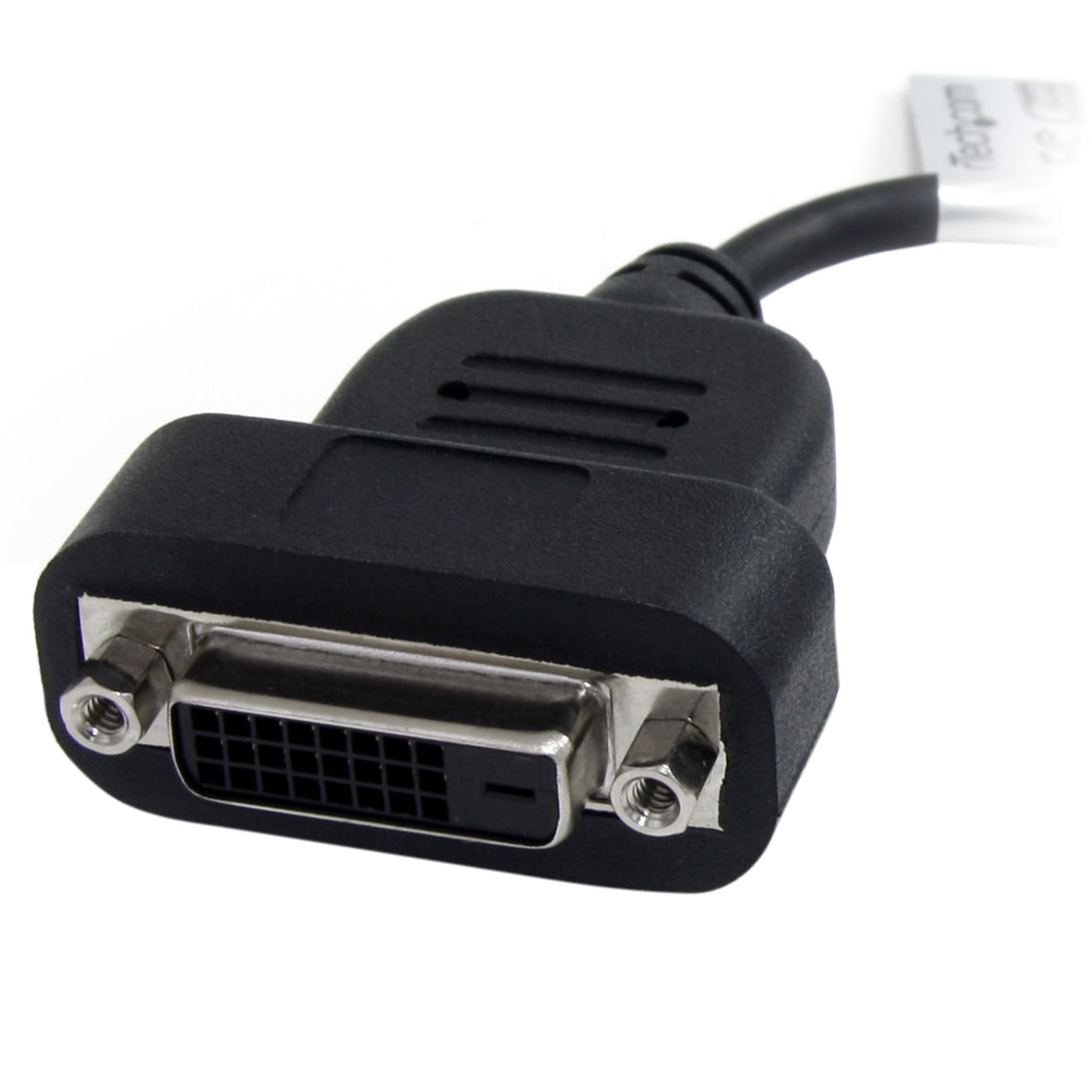

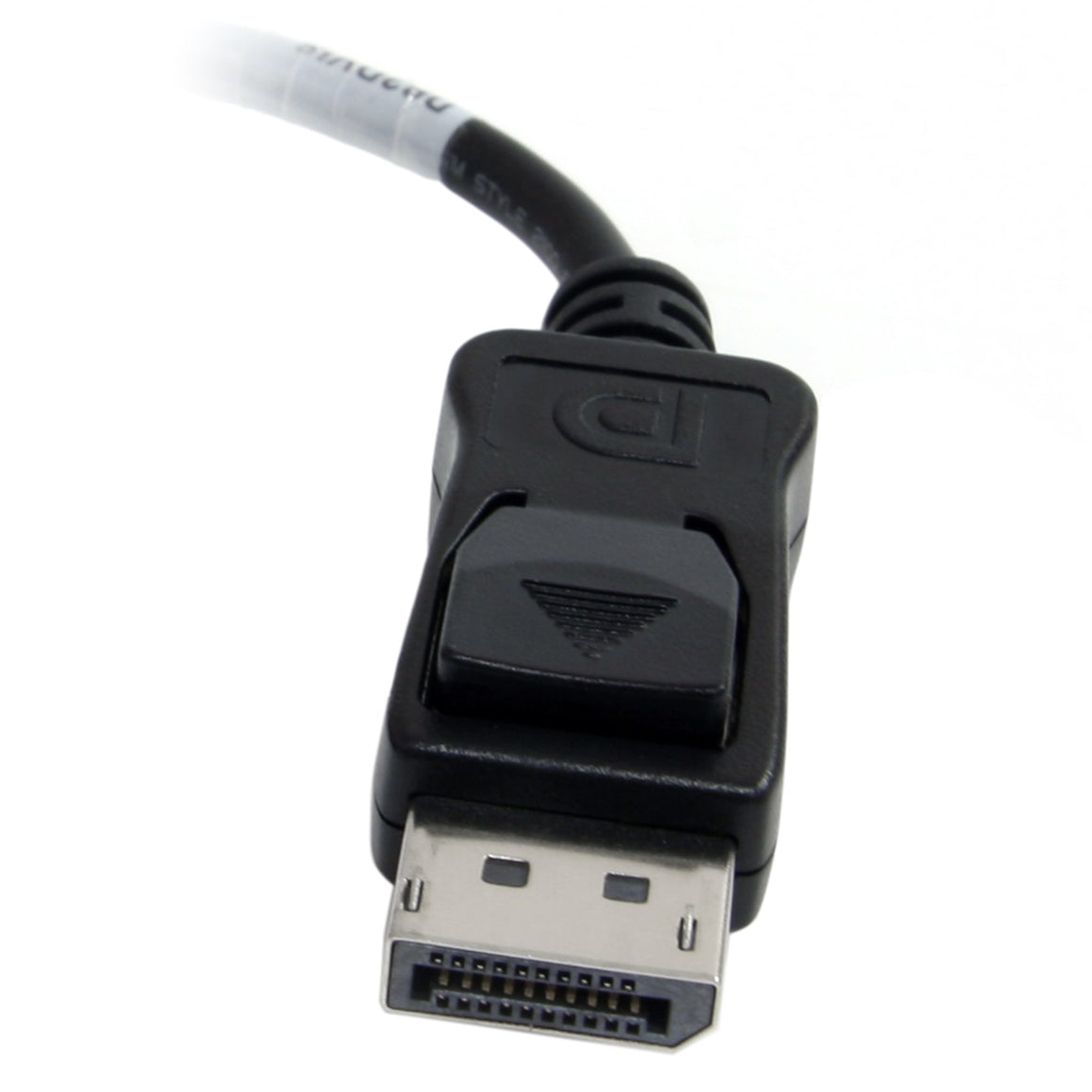

The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.
Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920x1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Converter type |
Active video converter |
| Chipset |
Parade PS 161 |
| Product colour |
Black |
| Dual Link DVI |
No |
| DisplayPort version |
1.2 |
| HDCP version |
1.3 |
| HDCP |
Yes |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
DVI-D |
| Connector 1 |
DisplayPort |
| Cable length |
0.2 m |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
80 - 90% |
| Operating relative humidity (H-H) |
80 - 90% |
| Storage temperature (T-T) |
0 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Height |
20 mm |
| Depth |
200 mm |
| Width |
44 mm |
| Weight |
48 g |
| Packaging data |
|---|
| Package weight |
57 g |
| Package height |
20 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Logistics data |
|---|
| Products per master (outer) case |
90 pc(s) |
| Master (outer) case height |
226 mm |
| Master (outer) case length |
496 mm |
| Master (outer) case width |
337 mm |
| Harmonized System (HS) code |
84733080 |
