SKU: DP2DVI2

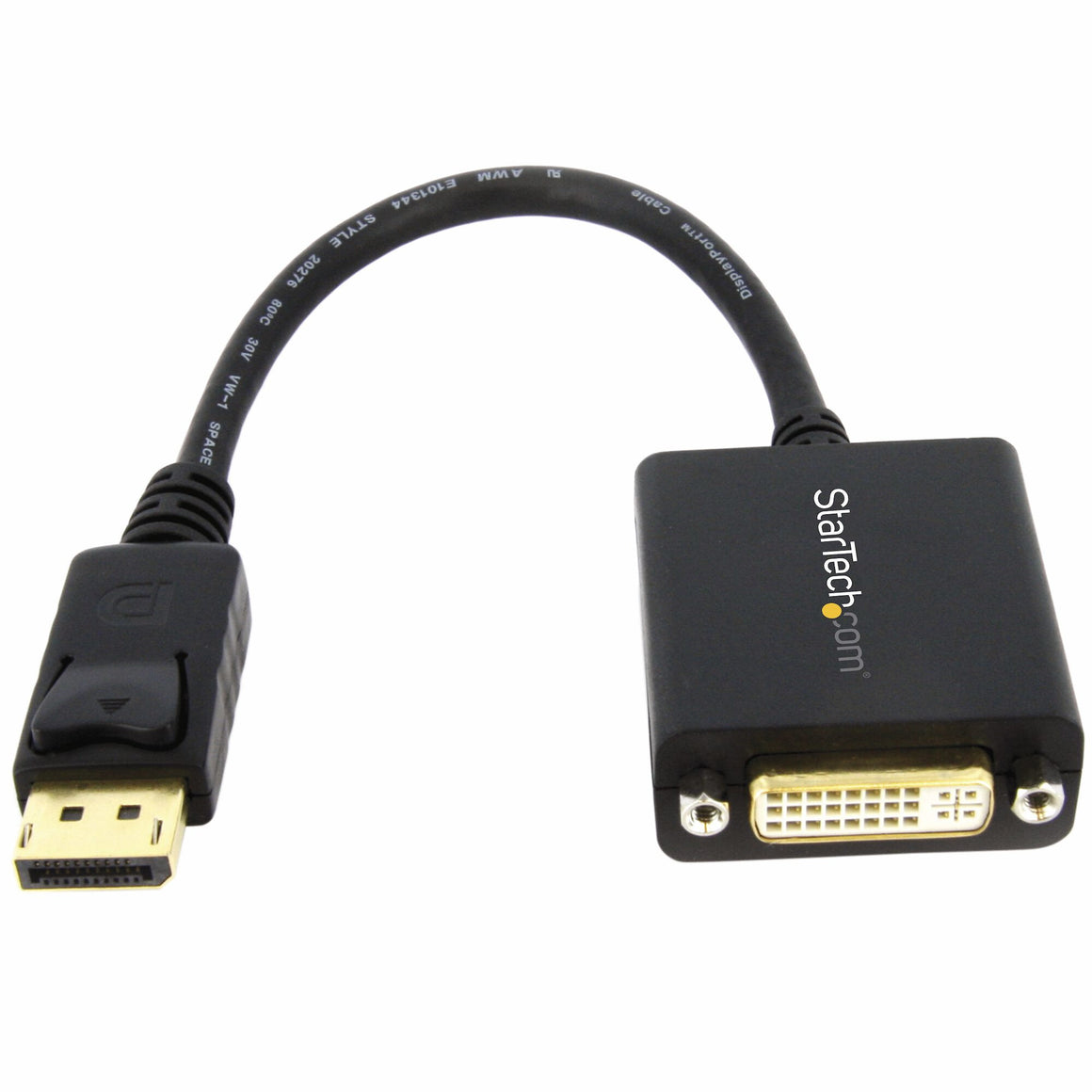

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector

StarTech.com
£16.43
iFrame
  • DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector / 1920x1200/1080p 60Hz; HDCP 1.4 / 6" (15cm) attached cable / DisplayPort Certified
  • COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
  • CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter / Tested w/ DVI cables up to 25ft / EDID & DDC pass-through ensure compatibility between source & display
  • LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / Compact design
  • EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS / DisplayPort male to DVI female adapter dongle / Connector is DVI-I, however only a digital signal (DVI-D) passes through

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Passive video converter
Plug and Play Yes
Product colour Black
HBR2 support Yes
Maximum refresh rate 60 Hz
Supported graphics resolutions 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes 480p, 720p, 1080p
Maximum resolution 1920 x 1200 pixels
Dual Link DVI No
DisplayPort version 1.2
HDCP version 1.4
HDCP Yes
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 DVI-I
Connector 1 DisplayPort
Cable length 0.152 m
Operational conditions
Operating relative humidity (H-H) 5 - 90%
Storage temperature (T-T) -10 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Certificates
Certification CE, FCC, REACH
Compliance certificates RoHS
Weight & dimensions
Height 17 mm
Depth 254 mm
Width 42 mm
Weight 43 g
Packaging data
Package weight 52 g
Package height 19 mm
Package depth 220 mm
Package width 200 mm
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Products per master (outer) case 140 pc(s)
Master (outer) case height 220 mm
Master (outer) case length 500 mm
Master (outer) case width 325 mm
Harmonized System (HS) code 84733080
