SKU: DP2DVID2

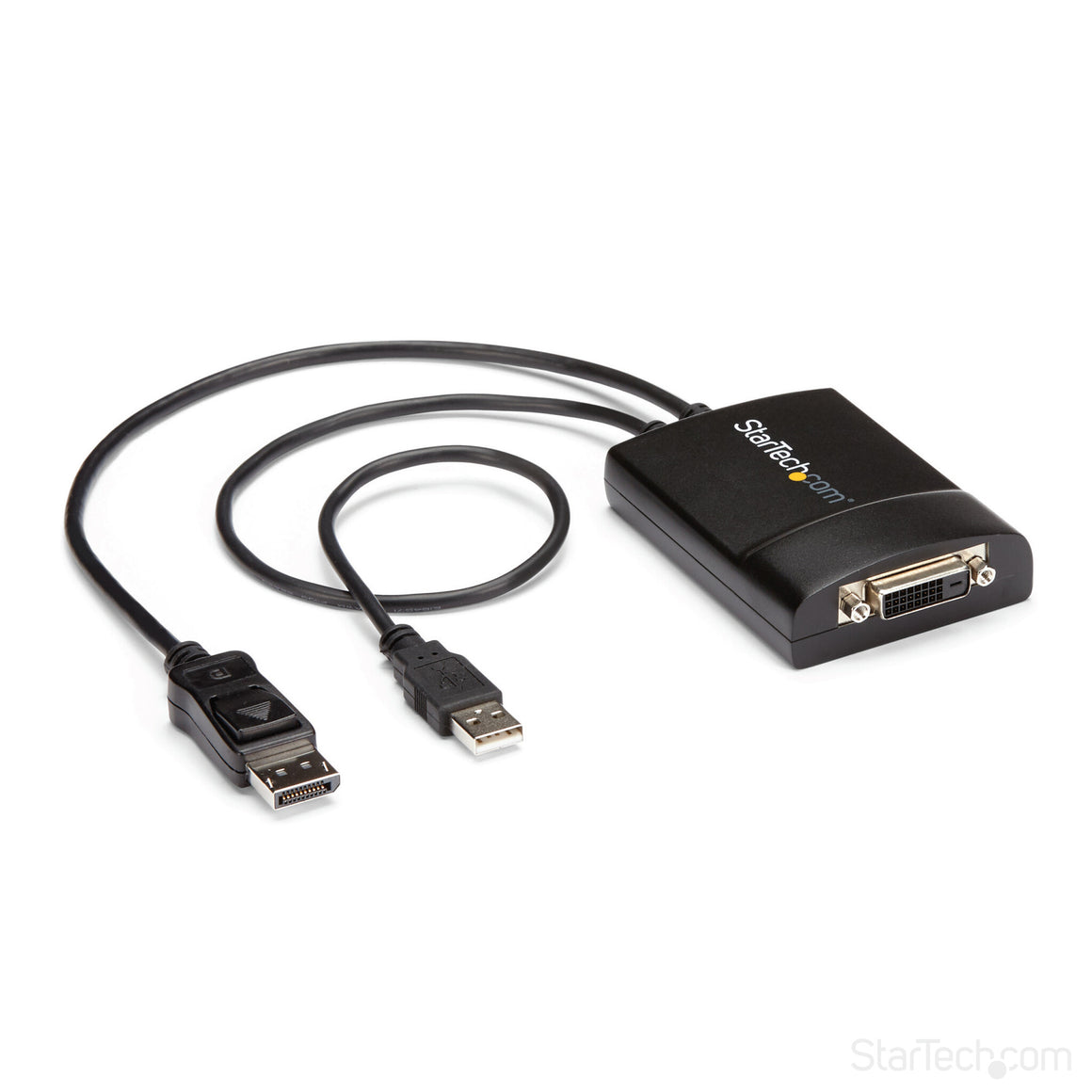

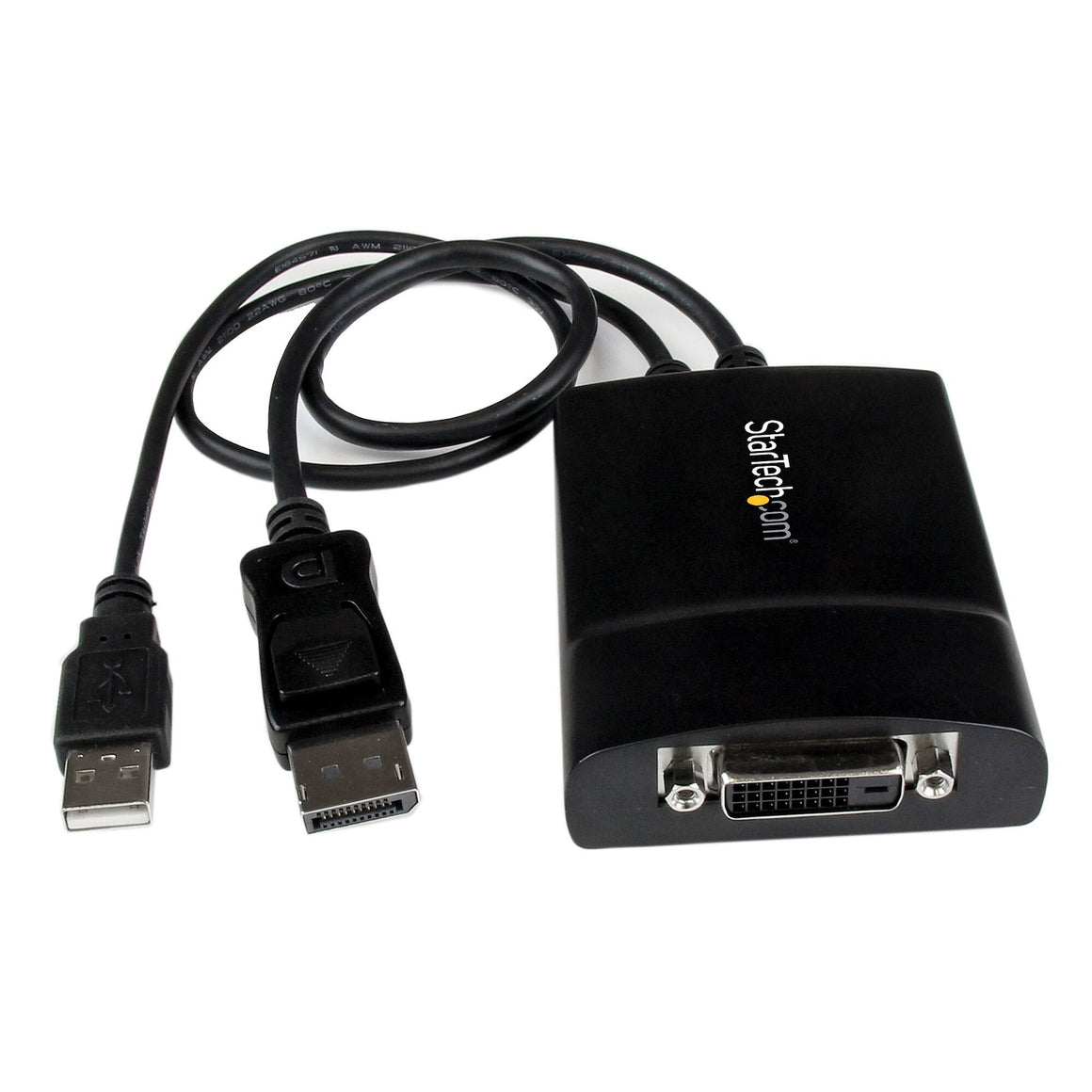

StarTech.com DisplayPort to DVI Dual Link Active Adapter - DisplayPort to DVI-D Adapter Video Converter 2560x1600 60Hz - DP 1.2 to DVI Monitor - USB Powered - Latching DP Connector

StarTech.com
£39.76
iFrame

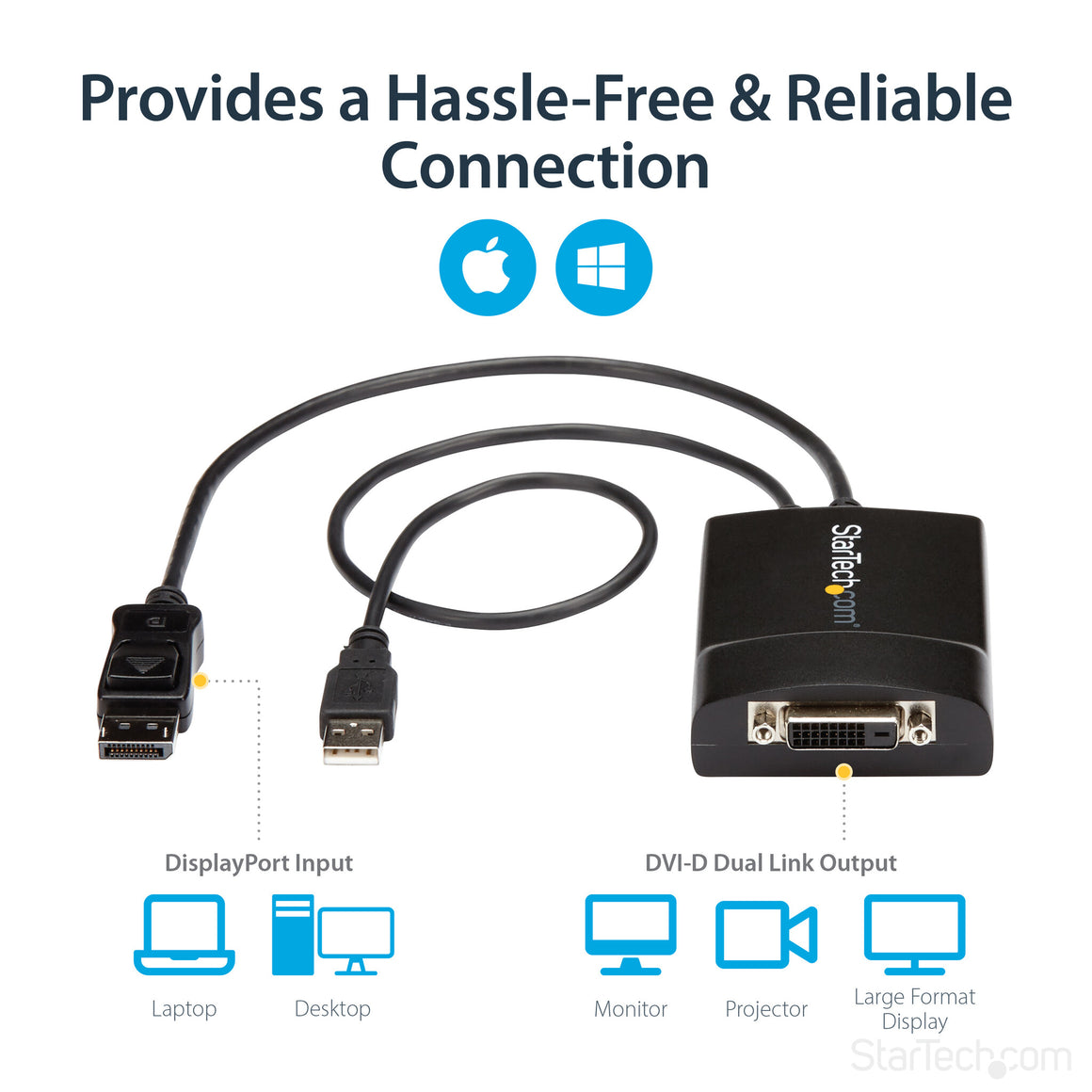

  • DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; / 15" (37cm) attached cable / USB-Powered / EDID pass-through
  • COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
  • CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation / Compact design /Tested w/ DVI cables up to 25ft / Supports widescreen/ultrawide & Apple Cinema Display HD / Ideal for digital signage

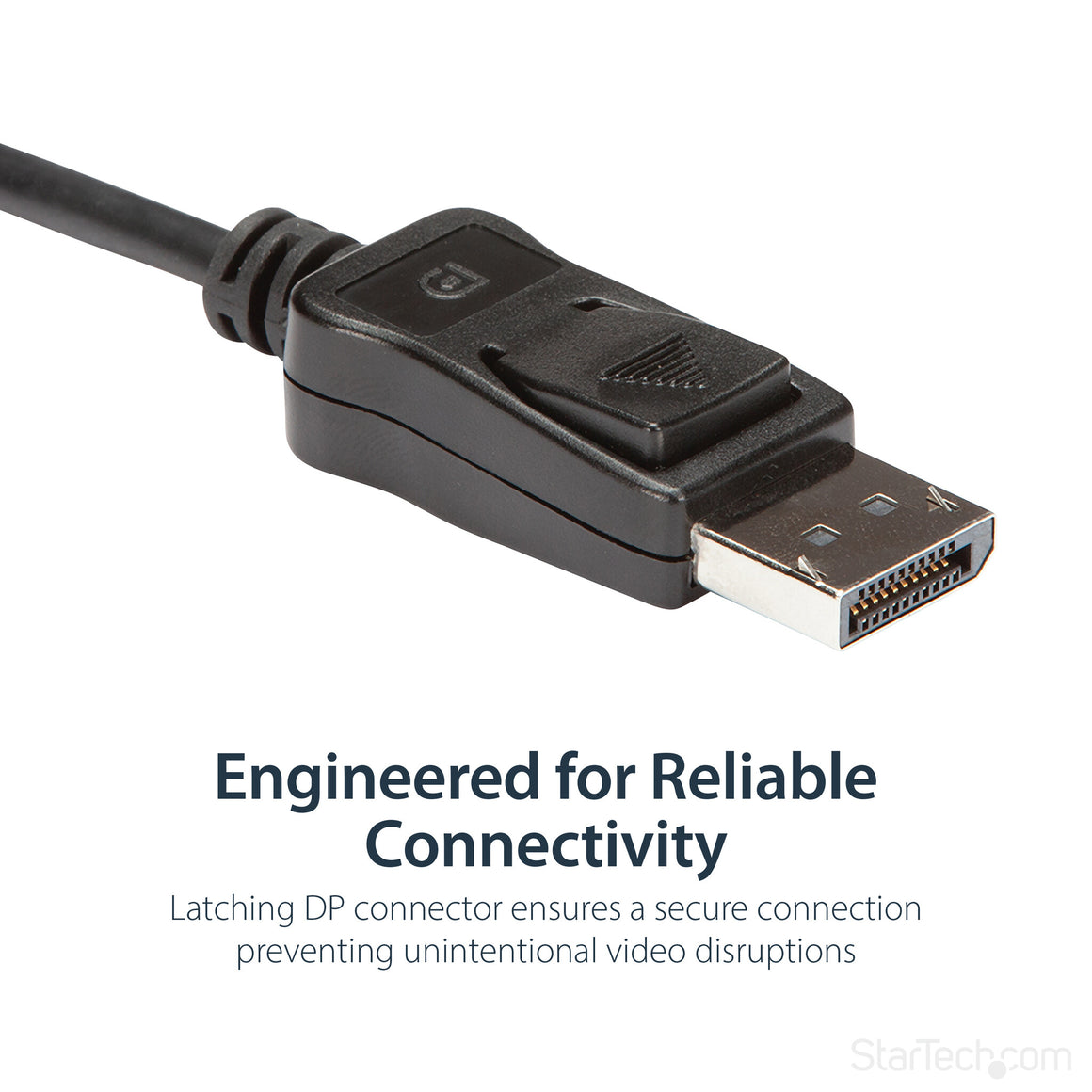

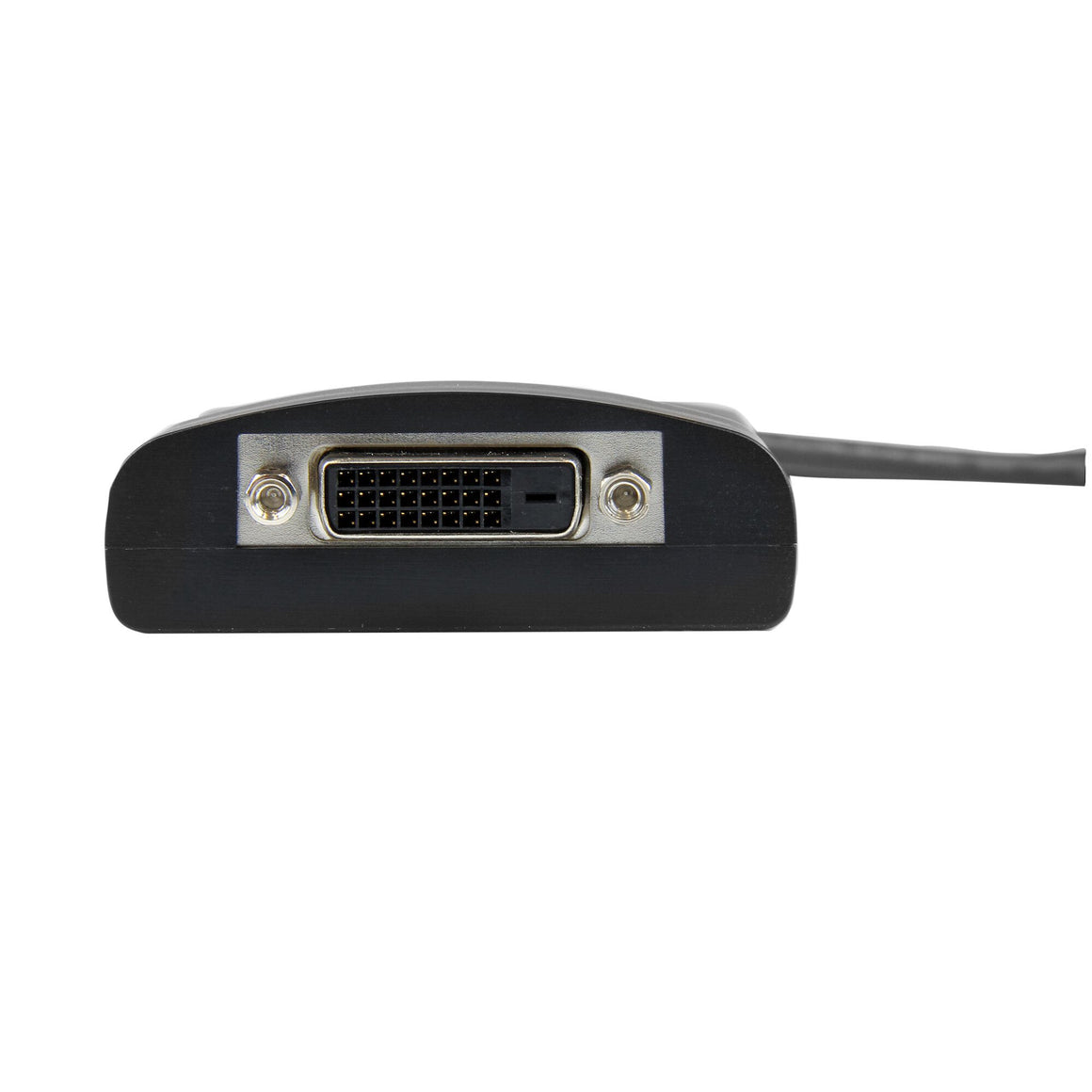

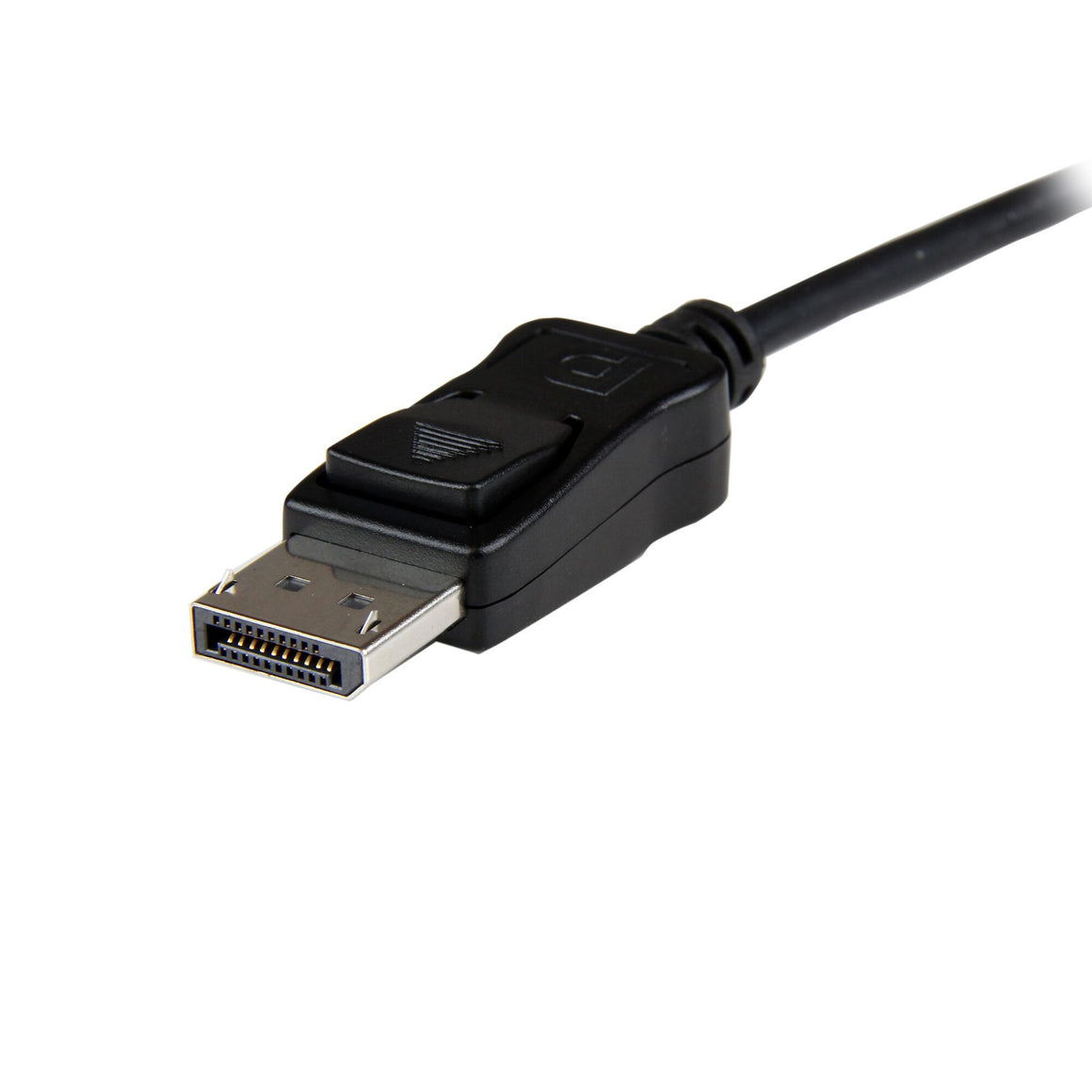

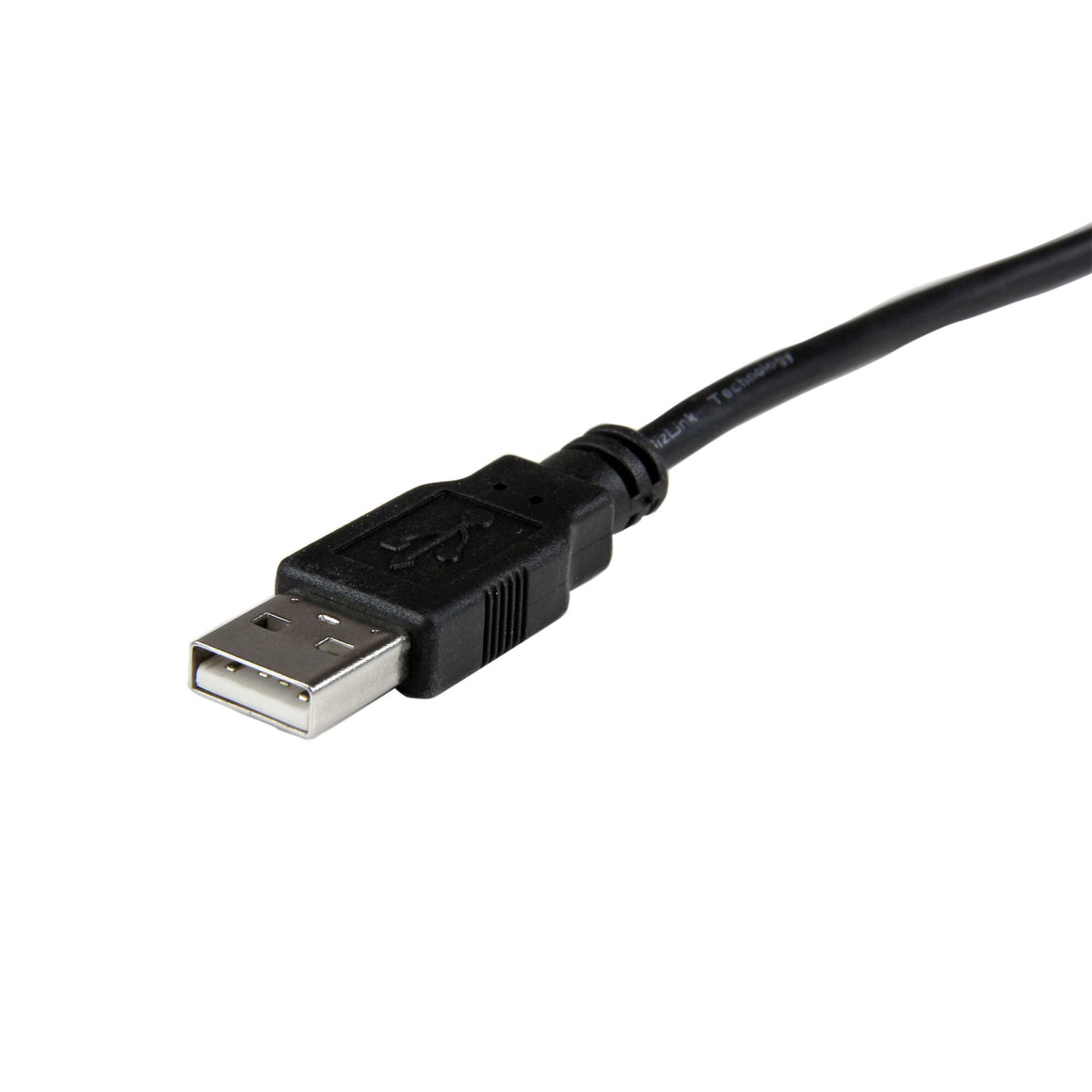

  • LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection / 18" (46cm) USB cable
  • EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle

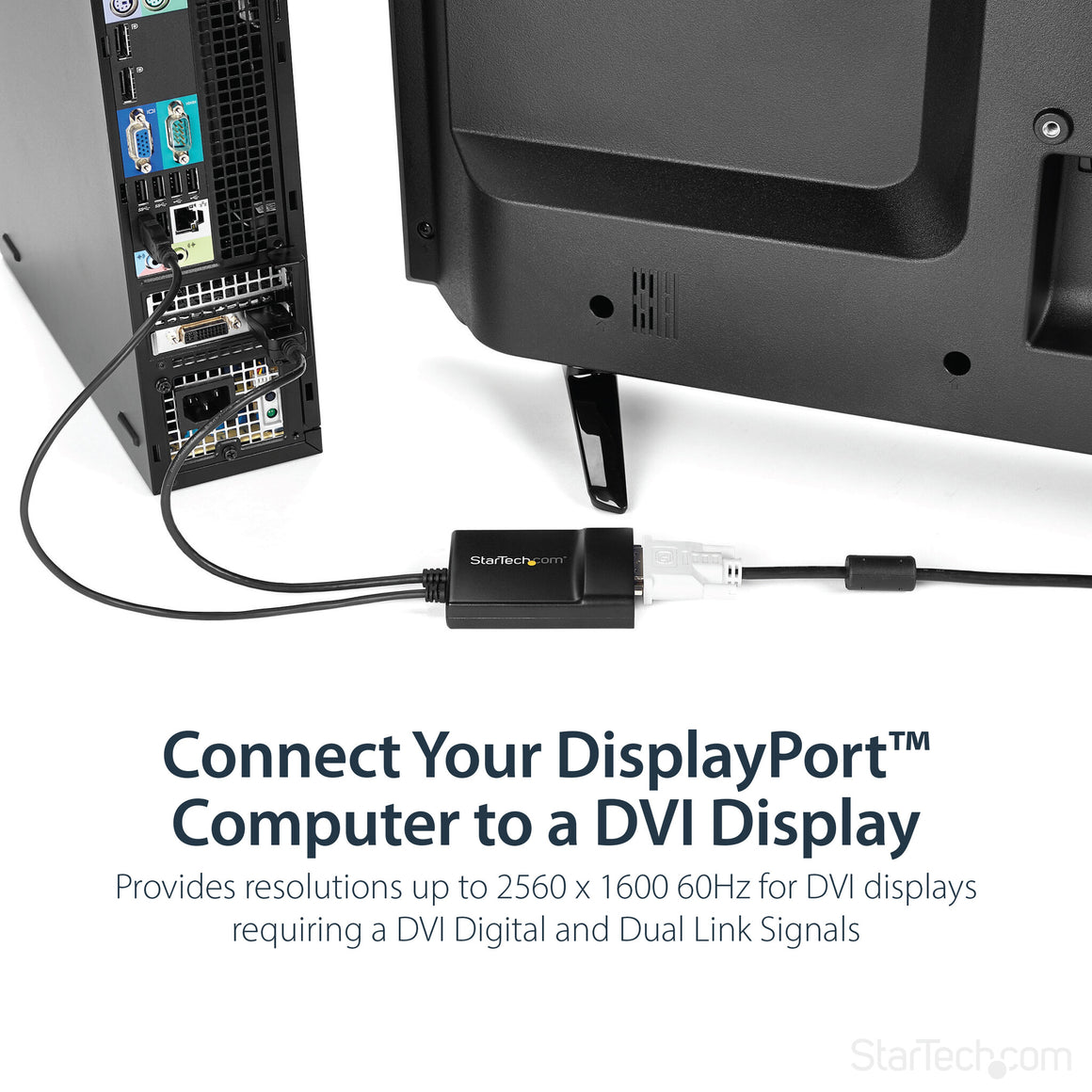

Connect your DVI Dual Link display to a DisplayPort® video source, for high resolution applications

The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility.

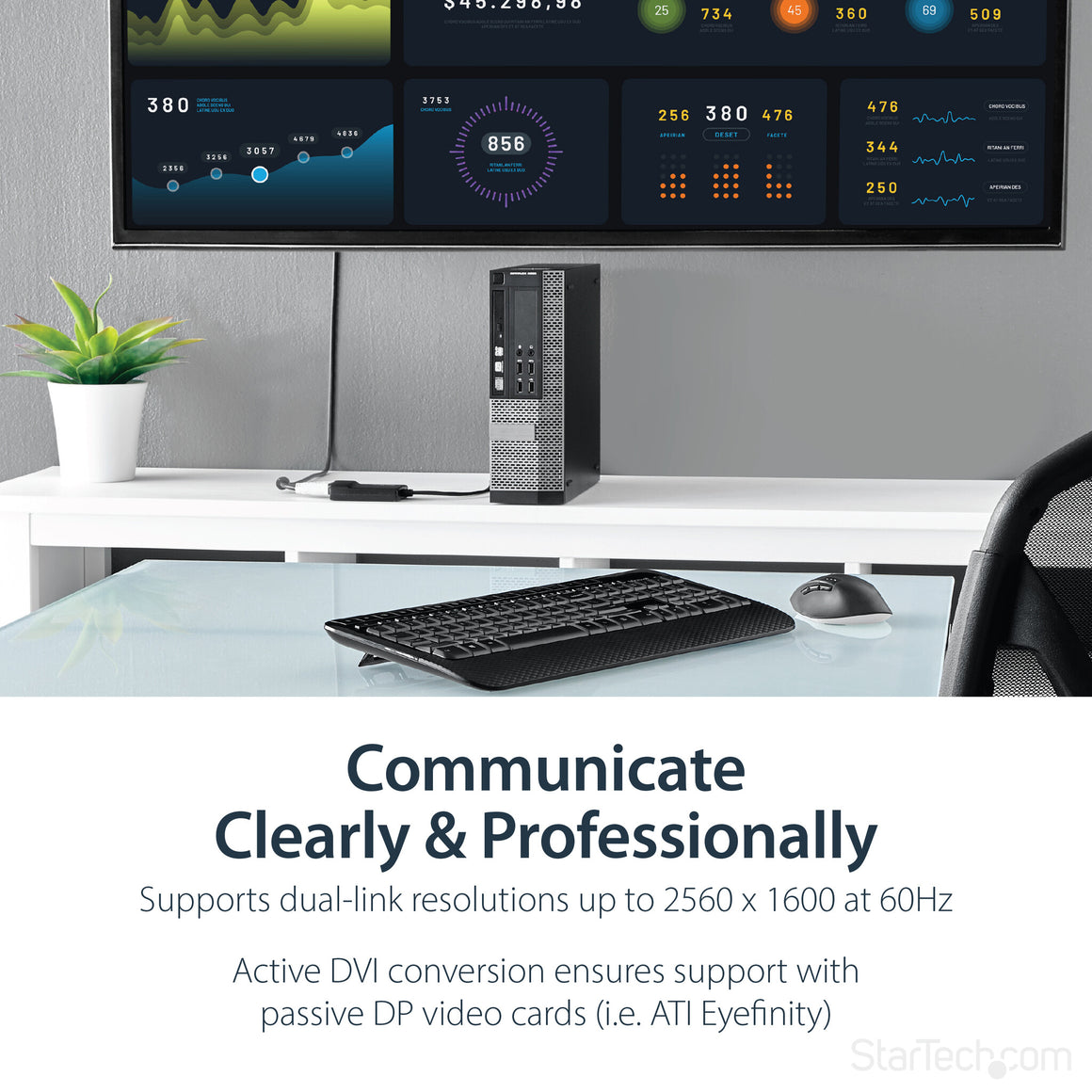

The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®.

DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.

Back by StarTech.com 3-year warranty, with free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Active video converter
Product colour Black
HBR2 support Yes
Maximum refresh rate 120 Hz
Supported graphics resolutions 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Maximum resolution 2560 x 1600 pixels
Dual Link DVI Yes
DisplayPort version 1.2
HDCP Yes
Power source USB
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 DVI-D
Connector 1 DisplayPort
Cable length 0.37 m
Operational conditions
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Certificates
Certification RoHS
Compliance certificates CE, RoHS
Weight & dimensions
Height 22 mm
Depth 549 mm
Width 64 mm
Weight 160 g
Packaging data
Package weight 232 g
Package height 35 mm
Package depth 143 mm
Package width 174 mm
Logistics data
Products per master (outer) case 28 pc(s)
Master (outer) case height 220 mm
Master (outer) case length 497 mm
Master (outer) case width 337 mm
Harmonized System (HS) code 84733080
