Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer

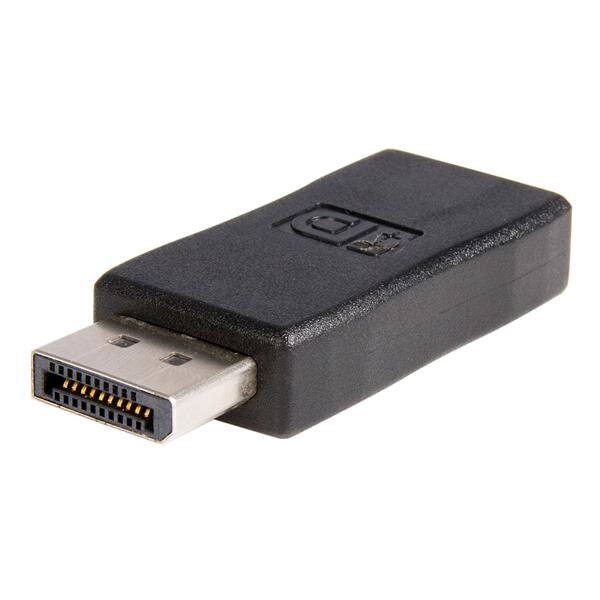

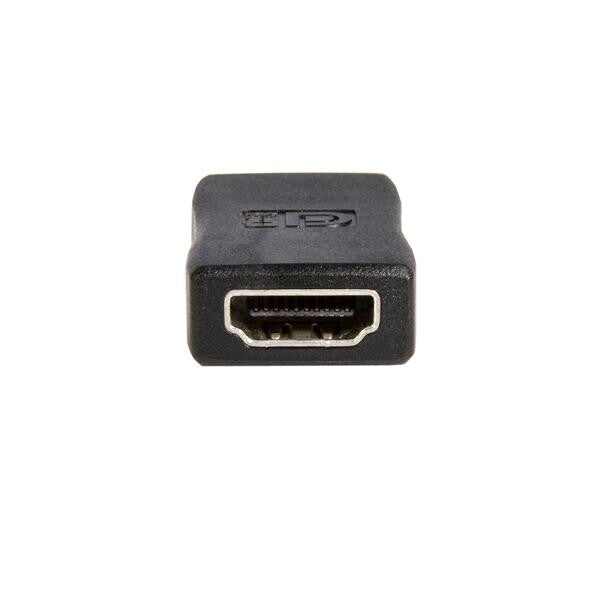

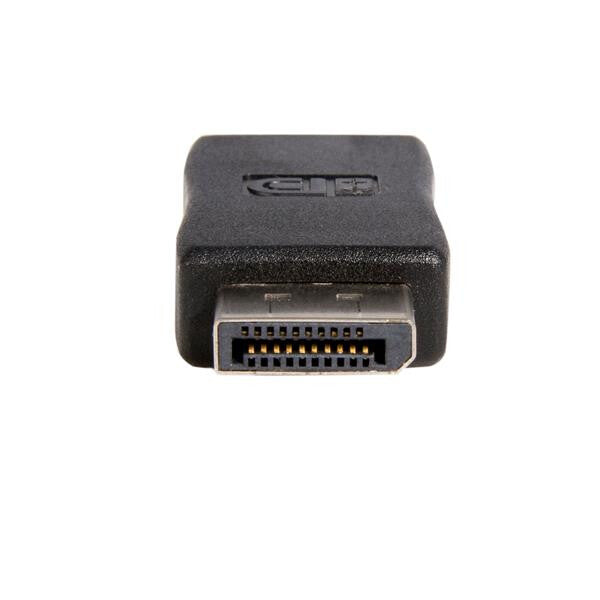

The DP2HDMIADAP DisplayPort® to HDMI® Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.
Supporting display resolutions of up to 1920x1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.
DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DisplayPort version |
1.2 |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 2 |
HDMI |
| Connector 1 |
DisplayPort |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Relative humidity |
0 - 65% |
| Certificates |
|---|
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Weight |
16 g |
| Height |
9 mm |
| Depth |
55 mm |
| Width |
18 mm |
| Packaging data |
|---|
| Package weight |
18 g |
| Package height |
11 mm |
| Package depth |
125 mm |
| Package width |
90 mm |
| Logistics data |
|---|
| Master (outer) case height |
236 mm |
| Master (outer) case length |
498 mm |
| Master (outer) case width |
332 mm |
| Products per master (outer) case |
600 pc(s) |
