Overview

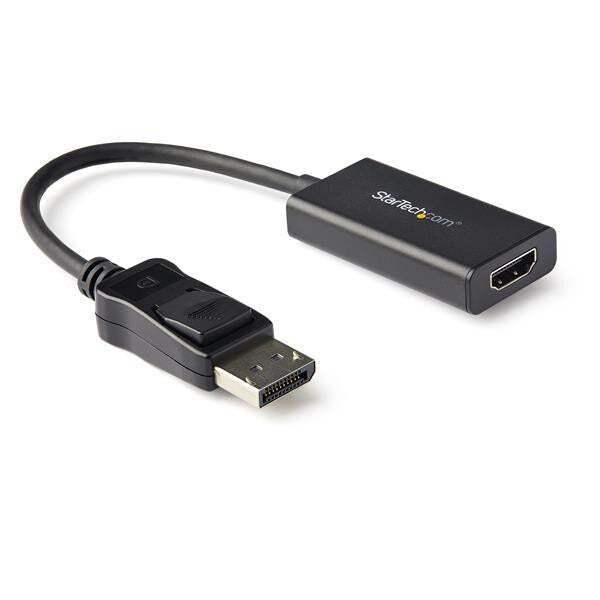

DisplayPort™ 1.4 Video Adapter | Ultra HD | Up to 18Gbps
This DisplayPort to HDMI Adapter lets you connect your DP equipped computer to an HDMI display. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
With brighter colors and greater contrast, the adapter is ideal for:
• Creating eye-catching visuals for photography, videography, cinematography
• Displaying crisp digital signage walls
• Delivering enriched presentations
True 4K at 60Hz and HDR
The DisplayPort to HDMI adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 x 2160) and bandwidths up to 18Gbps. The adapter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. It’s also backward compatible with earlier versions of HDMI and DisplayPort at their supported maximum resolutions.
With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
Ideal for Travel
This lightweight video adapter is highly portable, with a small footprint design. It's the perfect accessory for your DP supported devices, fitting easily into your carrying case.
Hassle-Free Setup
To ensure easy operation and installation, this unique DP to HDMI adapter allows for plug-and-play installation without any additional software or drivers.
DP2HD4K60H is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve HDR, your DisplayPort device must support version 1.4 and your display must support HDMI 2.0b.
• NVIDIA graphics adapters may not support 4:4:4 chroma subsampling and 5.1/7.1 audio output, when used with this adapter.
The StarTech.com Advantage
Key features
- PERFORMANCE: DisplayPort 1.4 to HDMI 2.0b adapter with HDR10 supports UHD 4K 60Hz (3840x2160), 18Gbps bandwidth supports YCbCr 4:4:4 8-bit chroma subsampling, 7.1ch Audio, HDCP 2.2, DPCP
- 4.8"" (12cm) attached cable
- Backwards compatible w/ 1080p
- CONTENT CREATION: HDR10 produces lifelike images with a higher contrast-ratio on HDMI 2.0b displays, making it ideal for creative professionals
- Use the adapter to connect an HDMI monitor, TV or projector, or add a secondary display to your workstation
- HOST COMPATIBILITY: Active DisplayPort to HDMI adapter supports DP/DP++ source including workstations, desktops (AMD Radeon Pro Workstation Graphics, Nvidia RTX/Quadro), small form factor computers & docking stations
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length | 0.122 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 2.0b |
| HDCP | Yes |
| HDCP version | 2.2 |
| DisplayPort version | 1.4 |
| DisplayPort Content Protection (DPCP) | Yes |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Data transfer rate | 18 Gbit/s |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | MegaChips - MCDP2900 |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 25 - 60% |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Weight | 25 g |
| Width | 253 mm |
| Depth | 29 mm |
| Height | 11 mm |
| Packaging data | |
|---|---|
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 12 mm |
| Package weight | 46 g |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| Material | Plastic |
