DisplayPort 1.2 | Multi-Monitor Solution | Plug & Play Connectivity

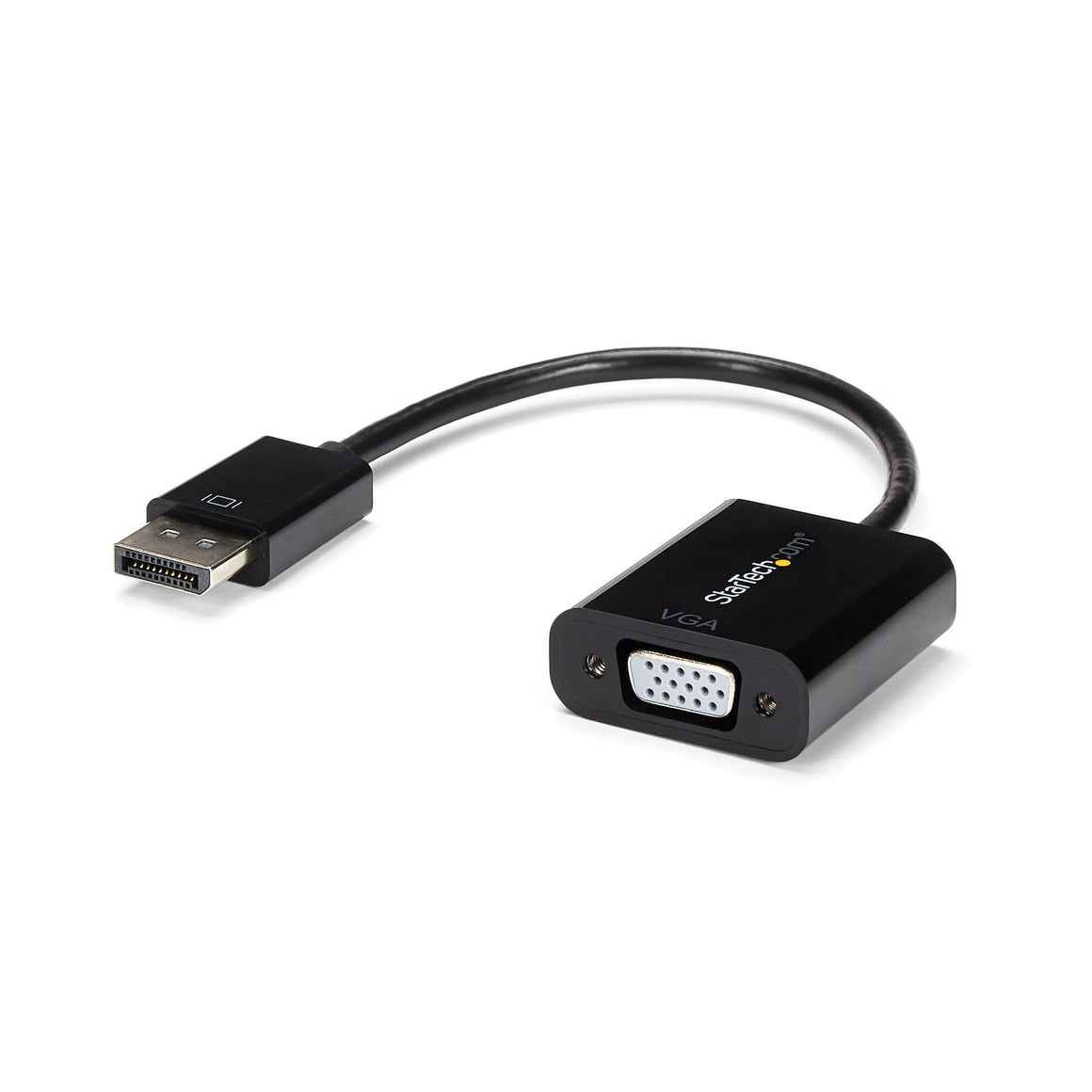

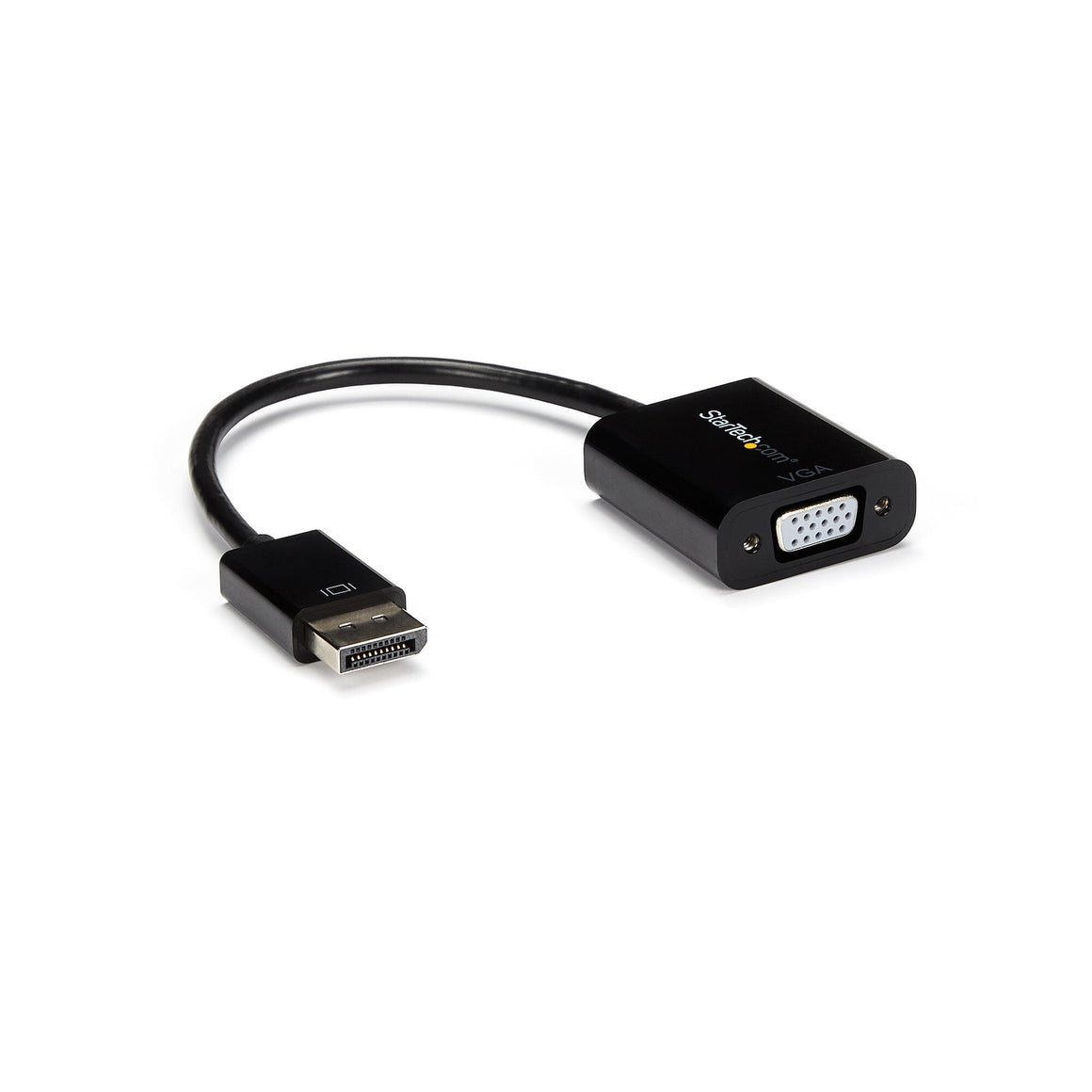

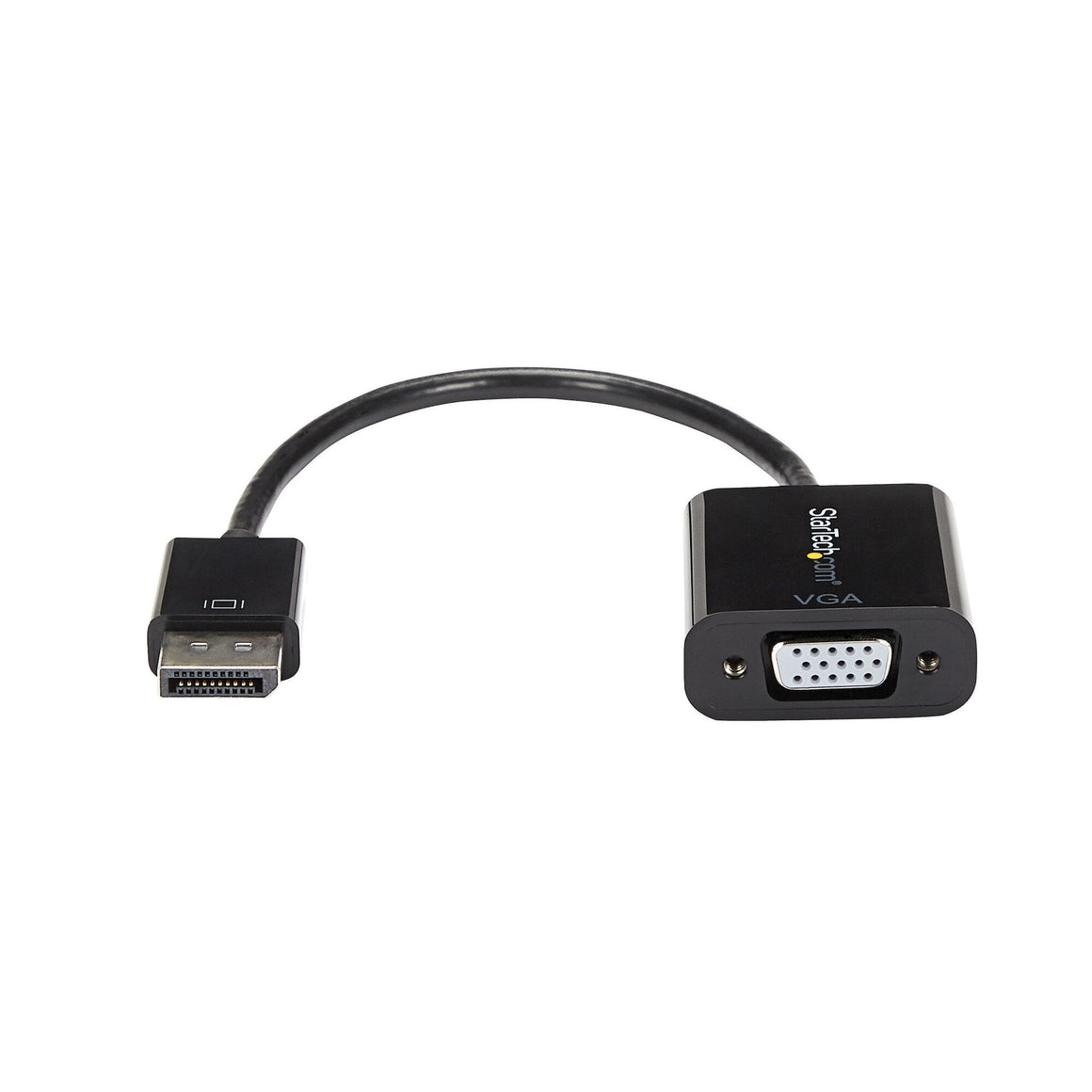

This DisplayPort to VGA adapter lets you connect your DisplayPort equipped laptop or desktop computer to a VGA monitor or projector, eliminating the expense of upgrading to a DP display.
Crystal-Clear Picture Quality
With support for video resolutions up to 1920x1200 or 1080p, you’ll be surprised at the picture quality the adapter provides, even when connected to an older VGA monitor, projector or television. The adapter harnesses the video capabilities built into your DisplayPort connection to deliver every detail in stunning high-definition.
Works with Your Legacy VGA Displays & Projectors

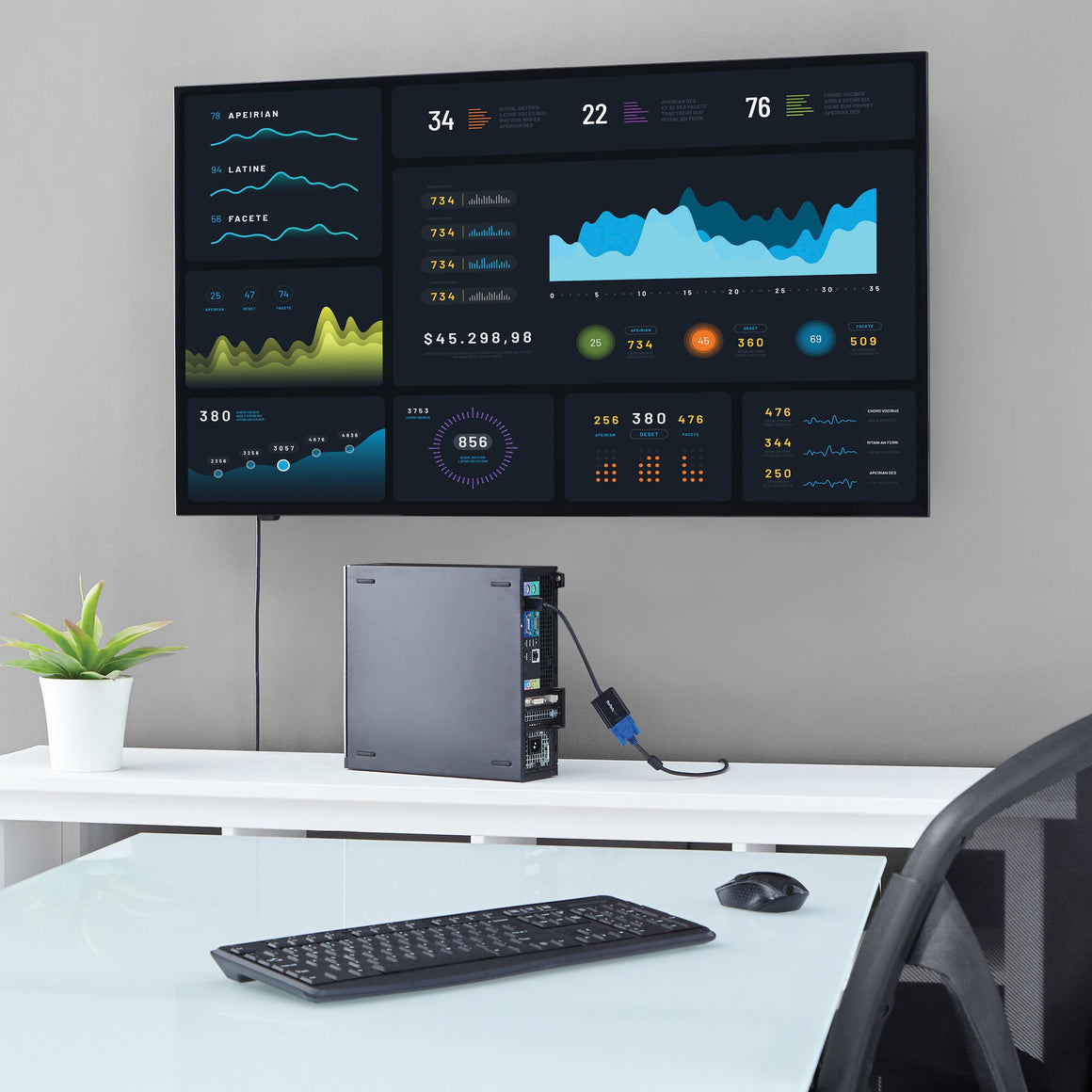

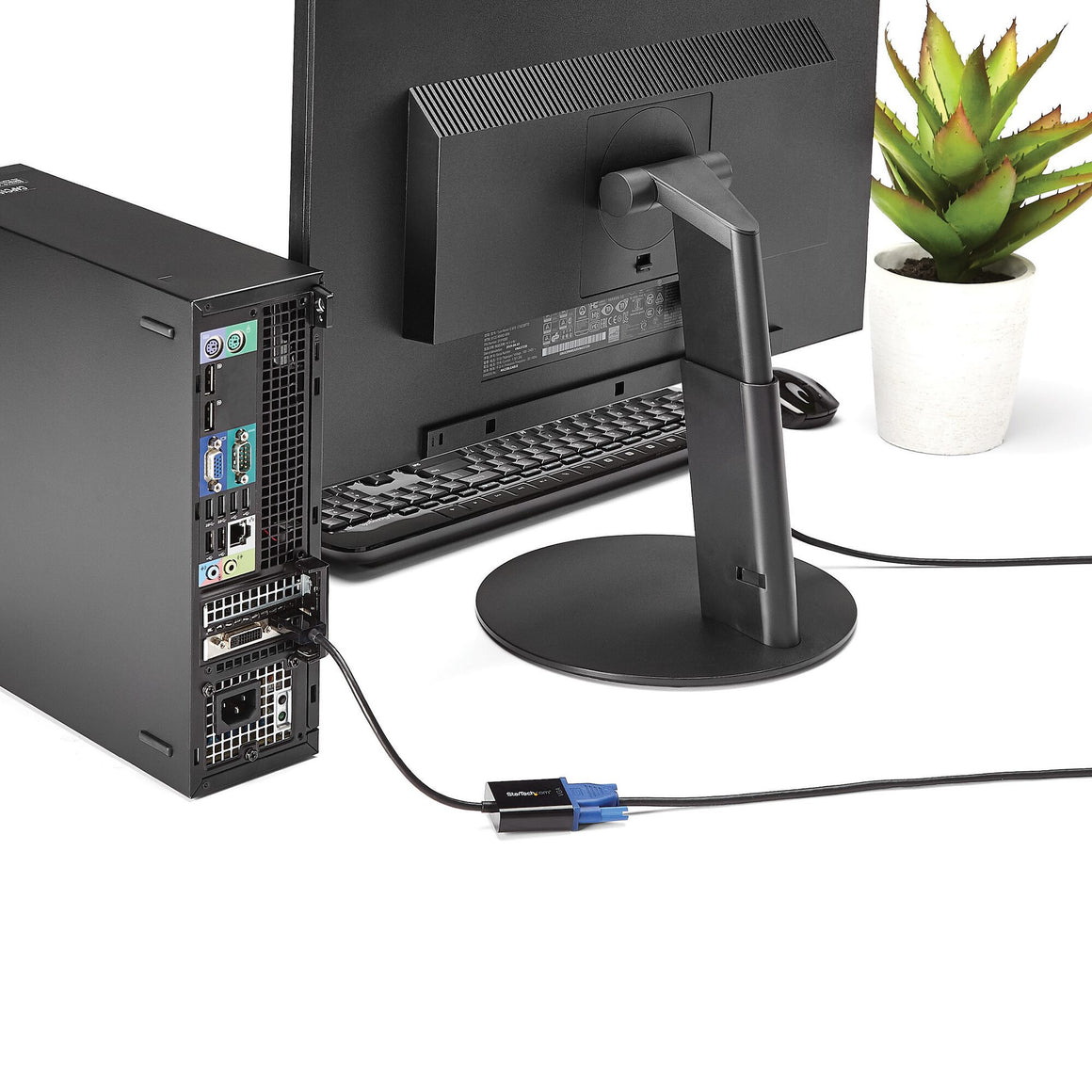

This DisplayPort video adapter makes your DP computer fully compatible with legacy VGA monitors or projectors in your home or around the office. You can use the converter to either connect to an existing VGA display or add a secondary monitor to your workstation, helping to boost your productivity.
Designed for Maximum Portability
This DisplayPort to VGA dongle maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your DisplayPort devices. The ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office, delivering HD video presentations on-the-go or even staying connected at home.
For added convenience, this DP to VGA converter supports plug-and-play connectivity and requires no additional software or drivers for a hassle-free setup.
DP2VGA3 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
| Features |
|---|
| Converter type |
Active video converter |
| Country of origin |
China |
| Plug and Play |
Yes |
| Chipset |
Analogic ANX9833 |
| Product colour |
Black |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2048 x 1152 |
| Supported video modes |
720p, 1080p |
| Maximum resolution |
2048 x 1152 pixels |
| DisplayPort version |
1.2 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 |
DisplayPort |
| Cable length |
0.1 m |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
10 - 85% |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Compliance certificates |
CE, RoHS |
| Weight & dimensions |
|---|
| Height |
14 mm |
| Depth |
230 mm |
| Width |
37 mm |
| Weight |
32 g |
| Packaging data |
|---|
| Package weight |
41 g |
| Package height |
18 mm |
| Package depth |
220 mm |
| Package width |
200 mm |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case height |
210 mm |
| Master (outer) case length |
502 mm |
| Master (outer) case width |
330 mm |
| Harmonized System (HS) code |
84733080 |
