1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty

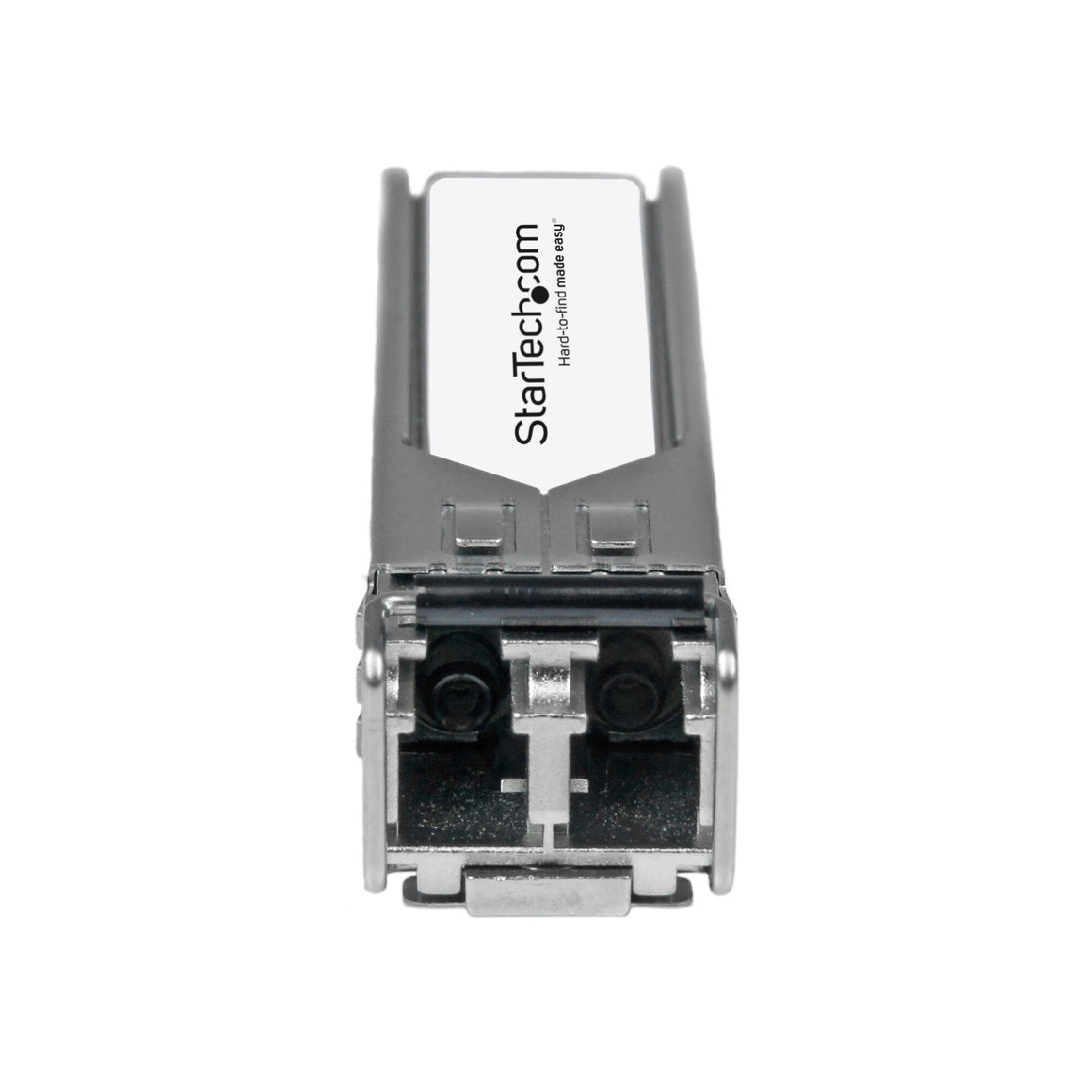

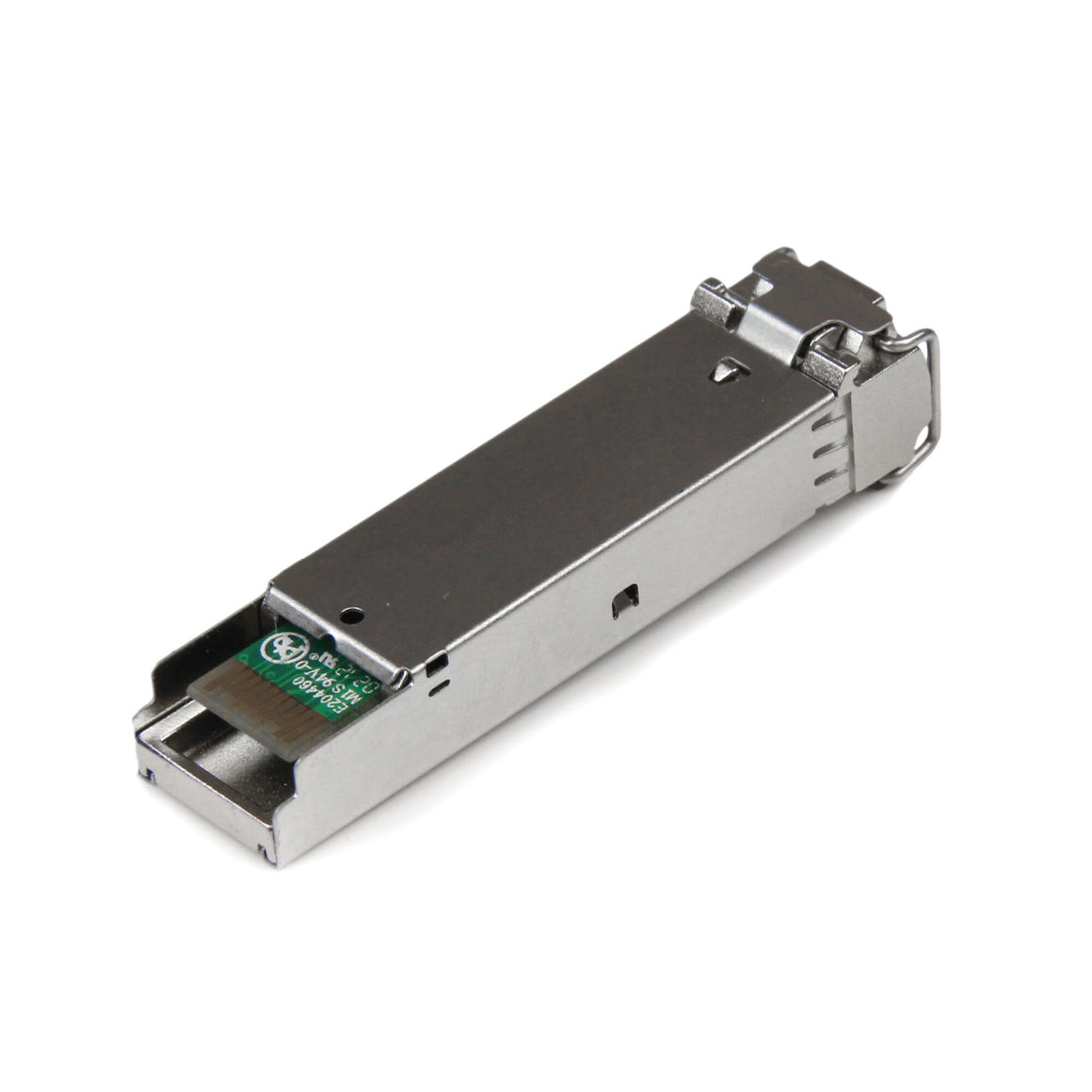

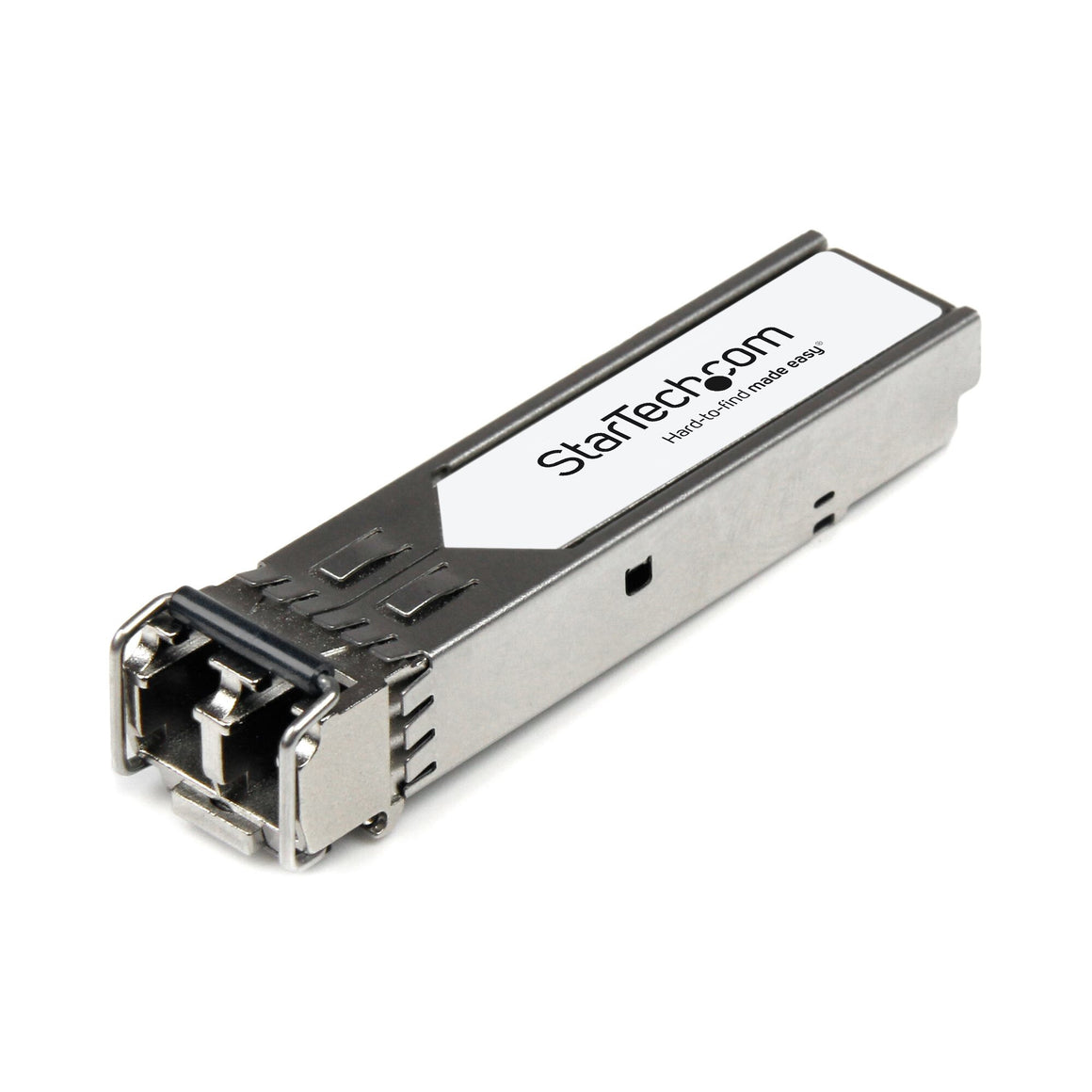

The 10051-ST is an Extreme Networks 10051 compatible fiber transceiver module that has been designed, programmed and tested to work with Extreme Networks brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
• Wavelength: 850nm
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 629,953,711 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance |
| Digital Diagnostics Monitoring (DDM) |
Yes |
| Fiber ethernet cabling technology |
1000BASE |
| Wavelength |
850 nm |
| Maximum transfer distance |
550 m |
| SFP transceiver standard |
SX |
| Fiber optic connector |
LC |
| Multi-mode fiber (MMF) supported |
Yes |
| Interface type |
SFP |
| Maximum data transfer rate |
1250 Mbit/s |
| SFP transceiver type |
Fiber optic |
| Features |
| Compatible products |
10051 |
| Brand compatibility |
Extreme Networks |
| Mean time between failures (MTBF) |
629953711 h |
| Hot-swap |
Yes |
| Product colour |
Silver |
| Certificates |
| Certification |
CE, FCC, UR |
| Weight & dimensions |
| Weight |
16 g |
| Height |
12.5 mm |
| Depth |
13.7 mm |
| Width |
56.6 mm |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Packaging data |
| Package weight |
50 g |
| Package height |
31 mm |
| Package depth |
115 mm |
| Package width |
90 mm |
| Logistics data |
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case height |
31 mm |
| Master (outer) case length |
115 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
90 mm |
