Display Wall Mount | Steel | For 32" to 75" TVs
Maximize space while creating an impressive display with this flat-screen TV wall mount for large TVs or monitors. The heavy-duty wall mount securely supports a VESA Mount compliant TV from 32" to 75"; with easy-to-use tilt adjustment for comfortable viewing.
Ideal for the Boardroom, or Digital Signage
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, while saving valuable space. The wall mount is ideal for boardrooms, lobbies or other venues providing an impressive and secure way to display a large flat-panel TV or create digital signage. The robust wall mount supports a large 32" to 75" flat-screen TV weighing up to 165 lb. (75 kg).

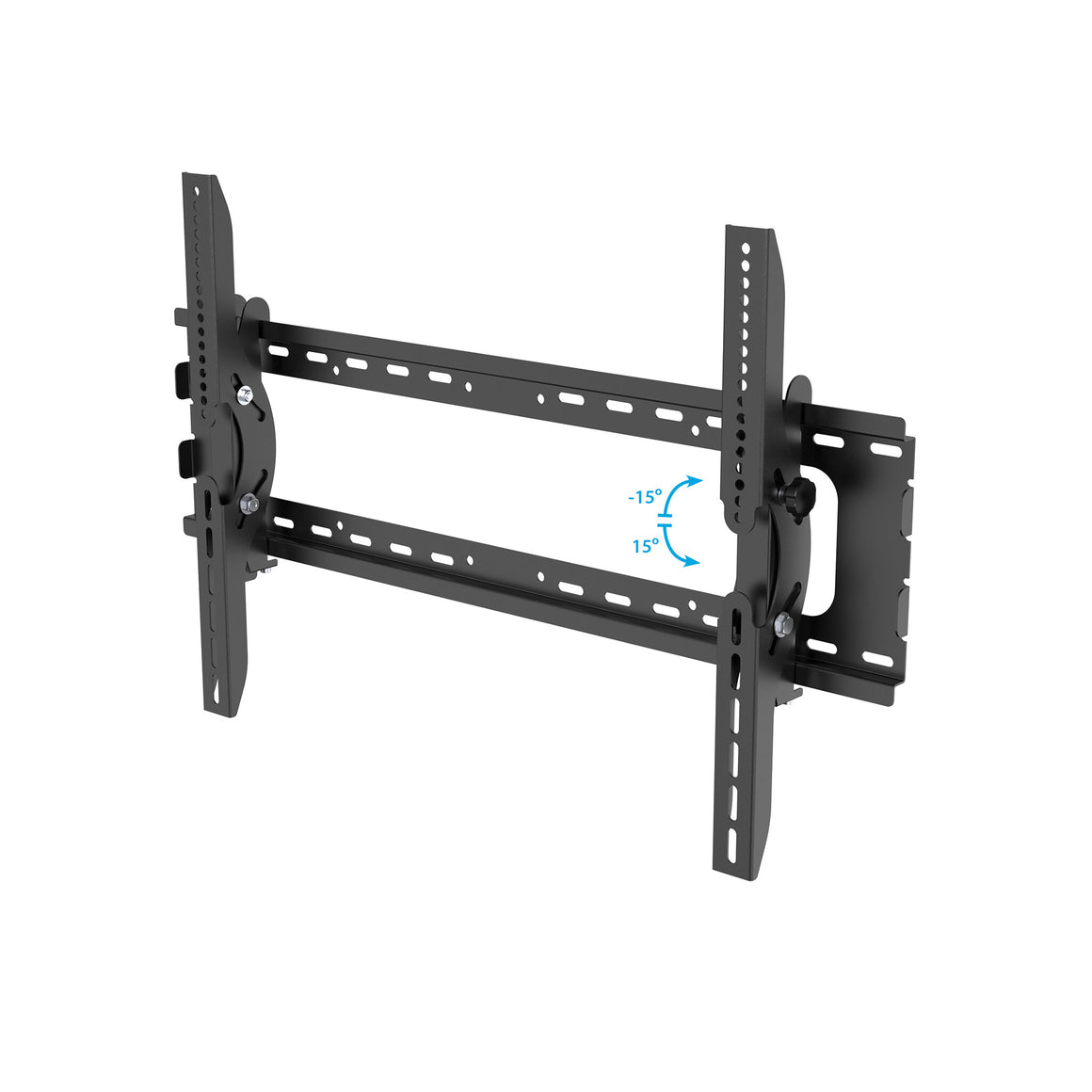

Tilt Your Display to the Ideal Viewing Angle
The TV wall mount lets you angle your TV display toward your audience. With the tilt feature, you can mount your TV lower or higher than eye level and still view it comfortably. The tilt-adjusting knobs make it easy to adjust your TV to the ideal viewing angle.
Easy and Secure Setup

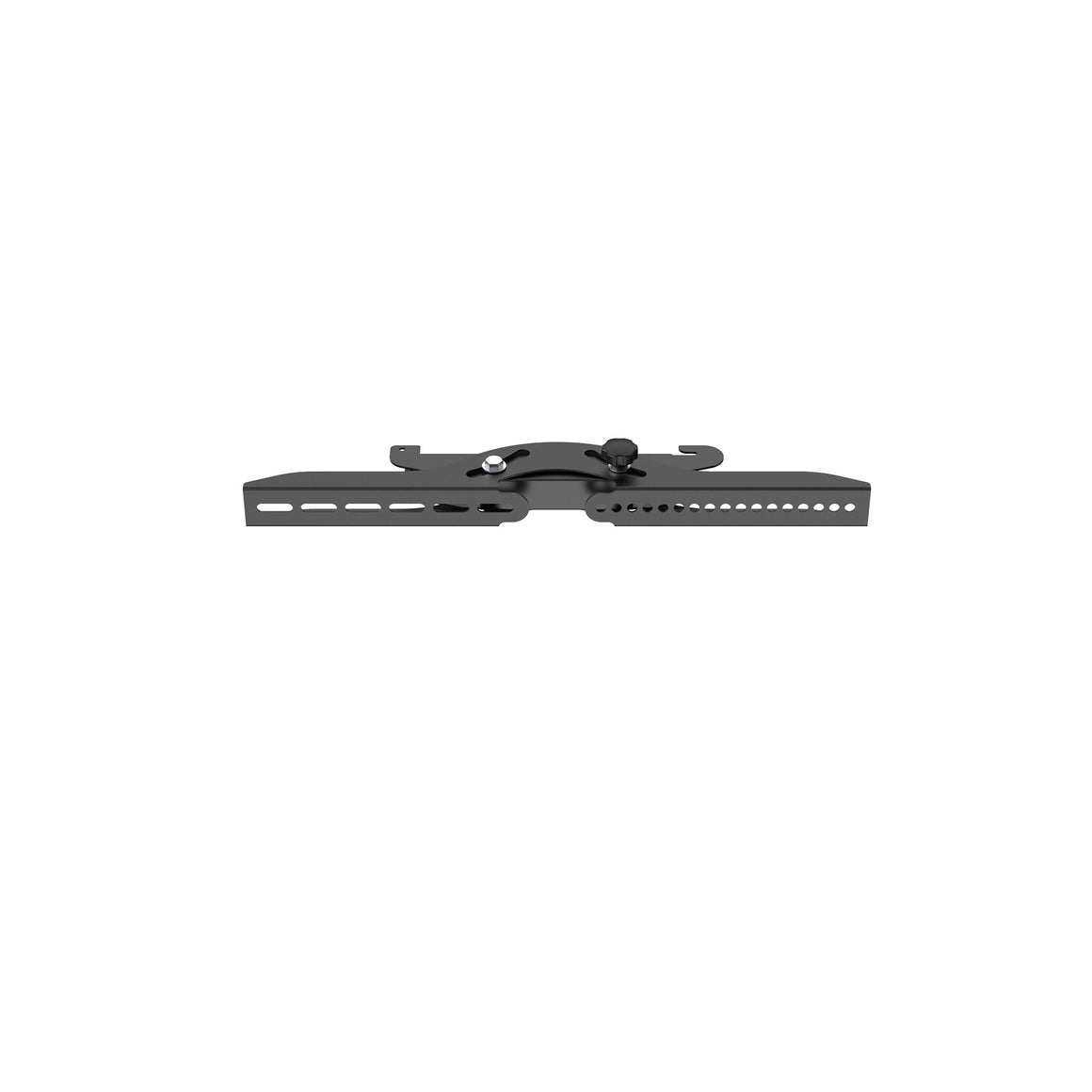

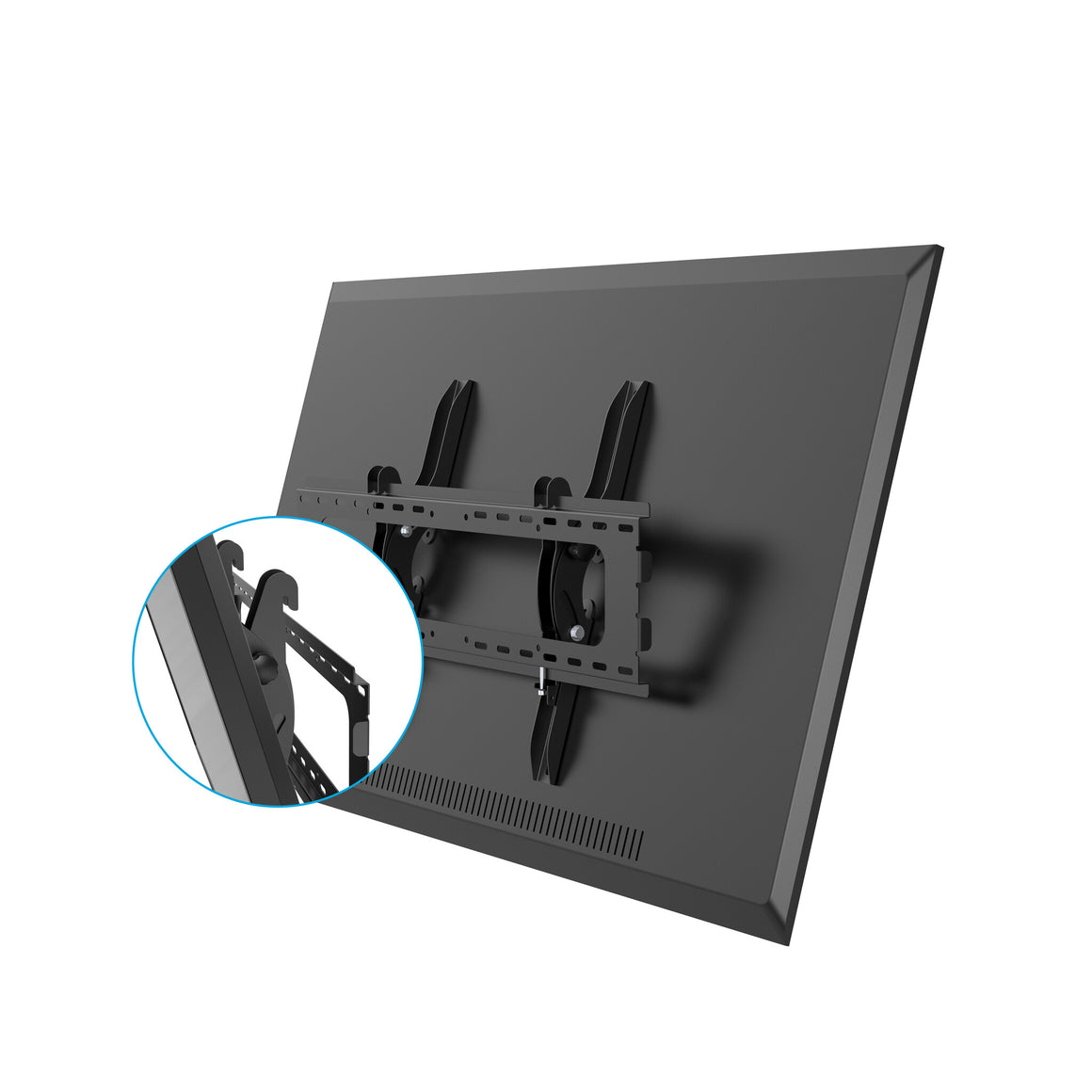

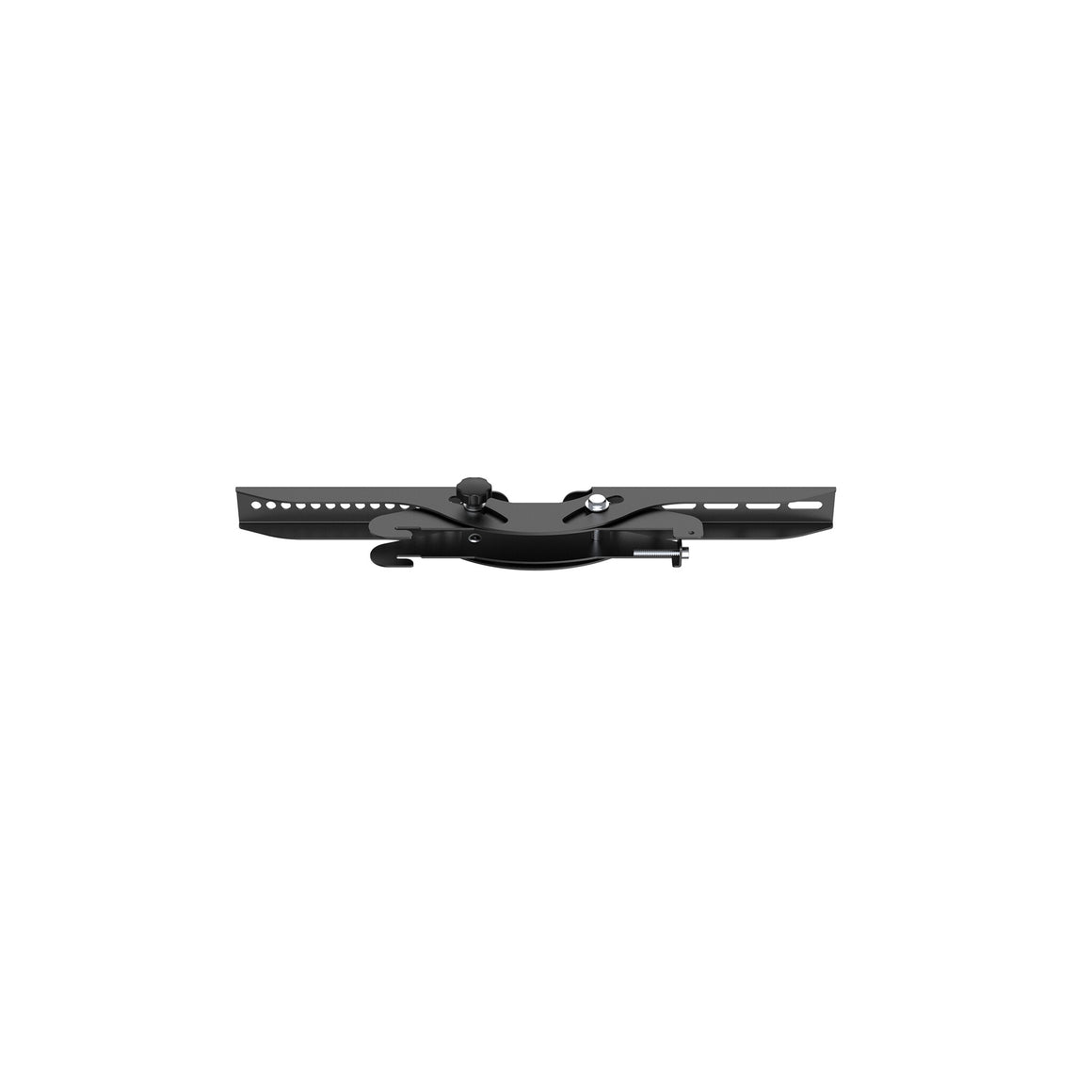

The hook-and-mount design of the TV wall mount makes setup fast and easy. You simply attach the vertical brackets, with built-in hooks, to the back of your TV. Once the brackets are attached, you then hang your TV securely onto the wall mount. Cable management helps to keep cables out of view.
| Mounting |
|---|
| Number of displays supported |
1 |
| Panel mounting interface |
75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400 |
| Maximum VESA mount |
600 x 400 mm |
| Minimum VESA mount |
75 x 75 mm |
| Mounting type |
Wall |
| Maximum screen size |
190.5 cm (75") |
| Minimum screen size |
81.3 cm (32") |
| Maximum weight capacity |
75 kg |
| Ergonomics |
|---|
| Distance to the wall (min) |
8.3 cm |
| Cable management |
Yes |
| Tilt angle range |
-15 - 15° |
| Design |
|---|
| Product colour |
Black |

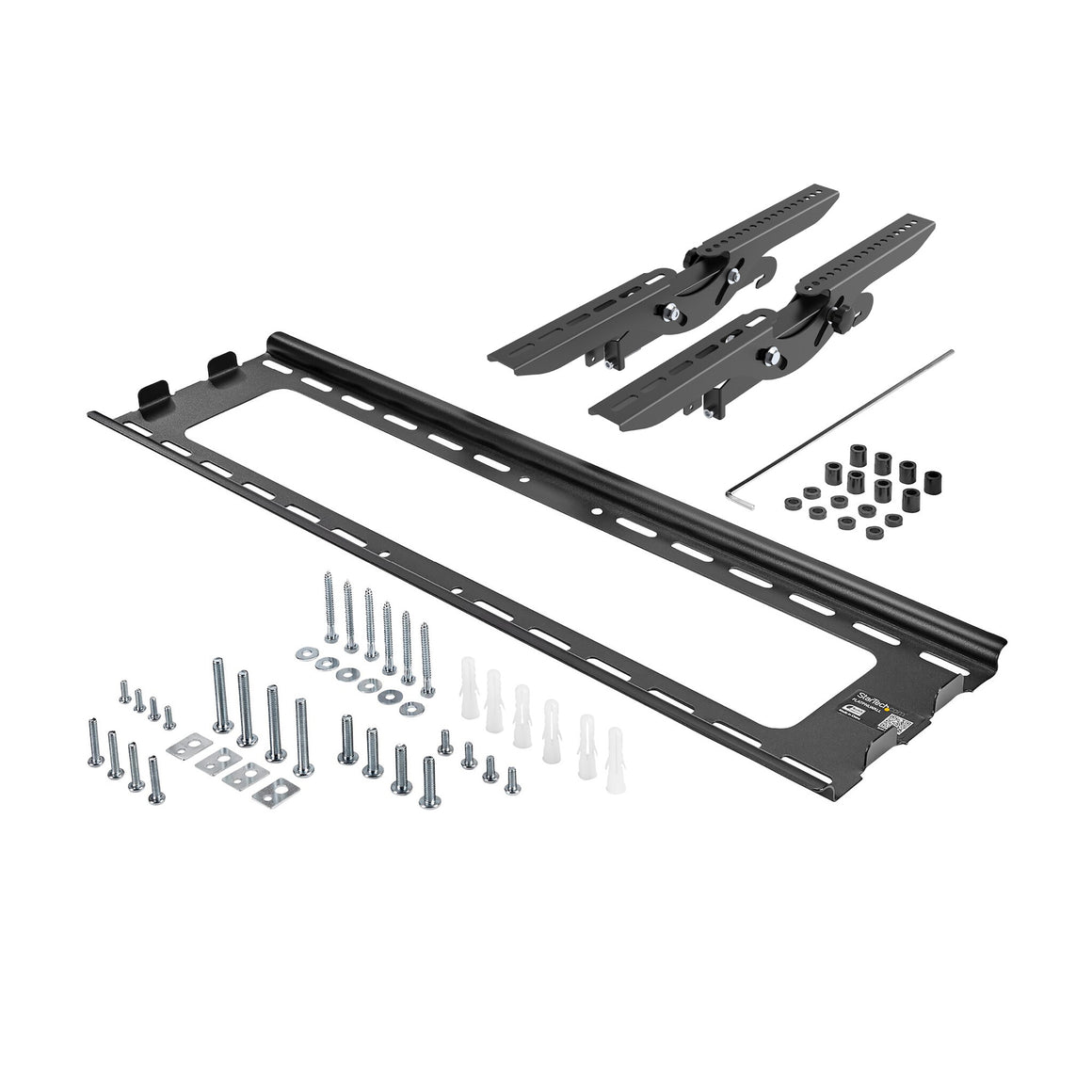

| Packaging content |
|---|
| Manual |
Yes |
| Mounting kit |
Yes |
| Number of screws |
26 |
| Screws included |
Yes |
| Number of spacers included |
16 |
| Spacer included |
Yes |
| Number of washers included |
10 |
| Washers included |
Yes |
| Wrench type |
Hexagonal wrench |
| Wrench included |
Yes |
| Number of anchors included |
6 |
| Anchors included |
Yes |
| Number of adapter brackets included |
2 |
| Adapter bracket included |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
3.8 kg |
| Height |
500 mm |
| Depth (max) |
81 cm |
| Depth |
810 mm |
| Width |
83 mm |
| Packaging data |
|---|
| Package weight |
4.9 kg |
| Package height |
89 mm |
| Package depth |
835 mm |
| Package width |
238 mm |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
| Products per master (outer) case |
3 pc(s) |
| Master (outer) case height |
254 mm |
| Master (outer) case length |
853 mm |
| Master (outer) case width |
280 mm |
