Use this receiver unit for the IH2006-KVM-EXTENDER to extend an HDMI-enabled computer over IP, with support for RS-232 pass-through and 3.5mm audio
The AVoIP KVM Receiver enables remote computer access over an existing TCP/IP network using a keyboard, mouse, and 4K 60Hz HDMI monitor when paired with a compatible transmitter, keeping systems secure from unauthorized access and physical damage.
Driver-Free Installation
The plug-and-play design requires no drivers or software and is compatible with all major operating systems, including Windows, macOS, and Linux, as well as hardware platforms like Intel, AMD, Snapdragon/ARM, and Apple Silicon.
Scalable, Flexible, and Future-Proof
Easily expand your setup by adding multiple receivers to create a one-to-many configuration, making it easy to scale with your business needs for flexible and future-proof IP Video or KVM distribution.
Professional-Grade Design

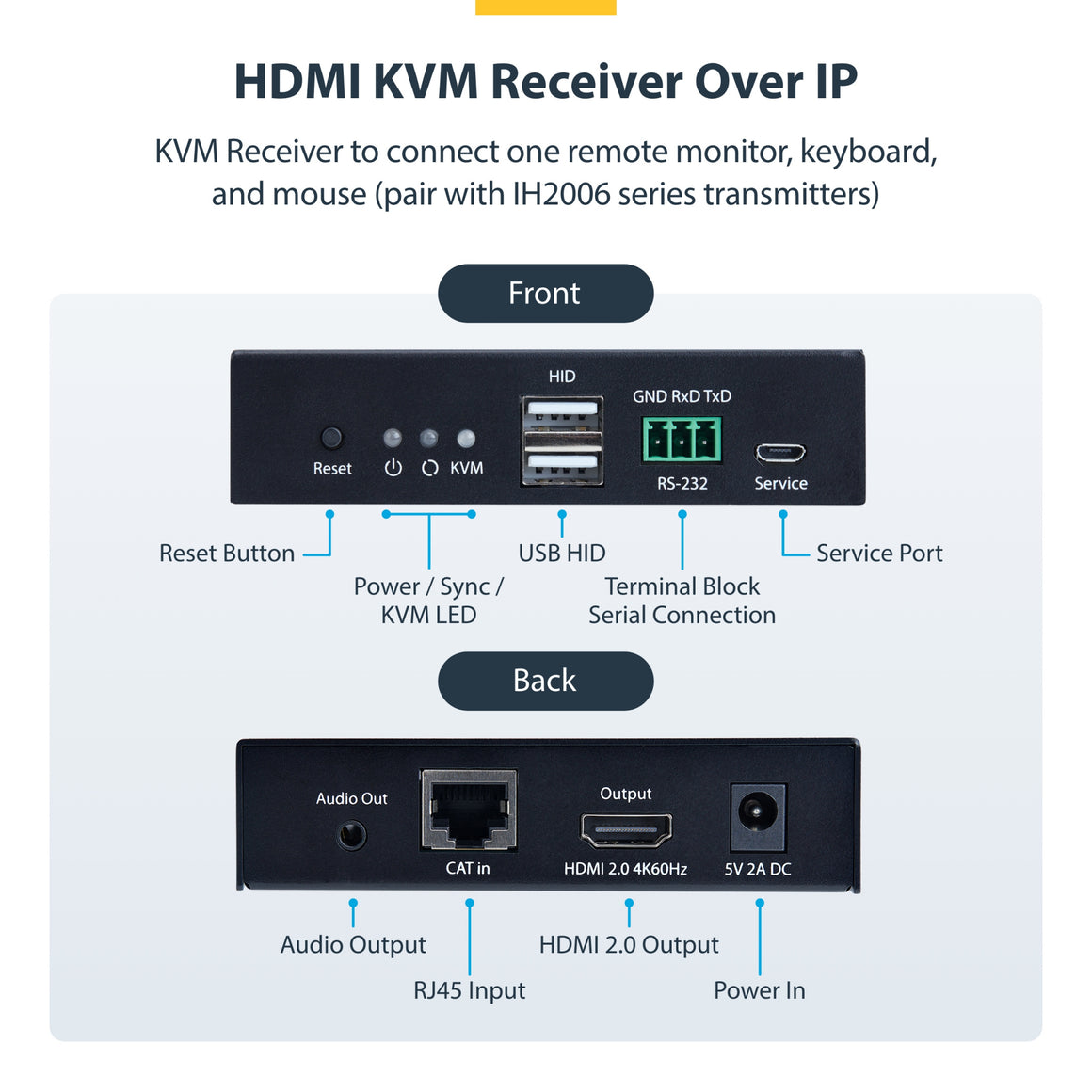

Receiver features a durable metal housing with mounting kits for wall or under-desk installation, plus rubber feet for desktop stability. RS232 and 3.5mm audio passthrough ports enable serial and audio extension.
The StarTech.com Advantage
| Features |
|---|
| LED indicators |
Yes |
| Material |
Metal |
| Product colour |
Black |
| On Screen Display (OSD) |
No |
| Maximum refresh rate |
60 Hz |
| Maximum digital resolution |
3840 x 2160 pixels |
| Rack mounting |
No |
| Connectivity technology |
Wired |
| Type |
Receiver |
| Receiver |
|---|
| RJ-45 ports quantity (receiver) |
1 |
| Receiver Micro-USB ports quantity |
1 |
| Receiver USB Type-A ports quantity |
2 |
| Receiver local video port type |
HDMI |
| Receiver local keyboard/mouse port type |
USB |
| Ports & interfaces |
|---|
| PC Audio out |
Yes |
| RS-232 ports |
1 |
| HDMI version |
2.0 |
| Power |
|---|
| DC-in jack |
Yes |
| Power consumption (receiver) (max) |
10 W |
| AC adapter output current |
2 A |
| AC adapter output voltage |
5 V |
| Input current |
0.3 A |
| AC input voltage |
100 - 240 V |
| Power plug type |
Type M |
| Packaging data |
|---|
| Package weight |
500 g |
| Package height |
80 mm |
| Package depth |
149 mm |
| Package width |
199 mm |
| Packaging content |
|---|
| Mounting bracket(s) included |
Yes |
| Included power plug types |
ANZ, EU, NA, UK |
| Cables included |
No |
| AC adapter included |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
-20 - 60 °C |
| Other features |
|---|
| Compliance certificates |
Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case height |
420 mm |
| Master (outer) case length |
315 mm |
| Master (outer) case width |
425 mm |
