10 Gbps | Copper | RJ-45 | 30 m (98.4 ft) | Lifetime Warranty

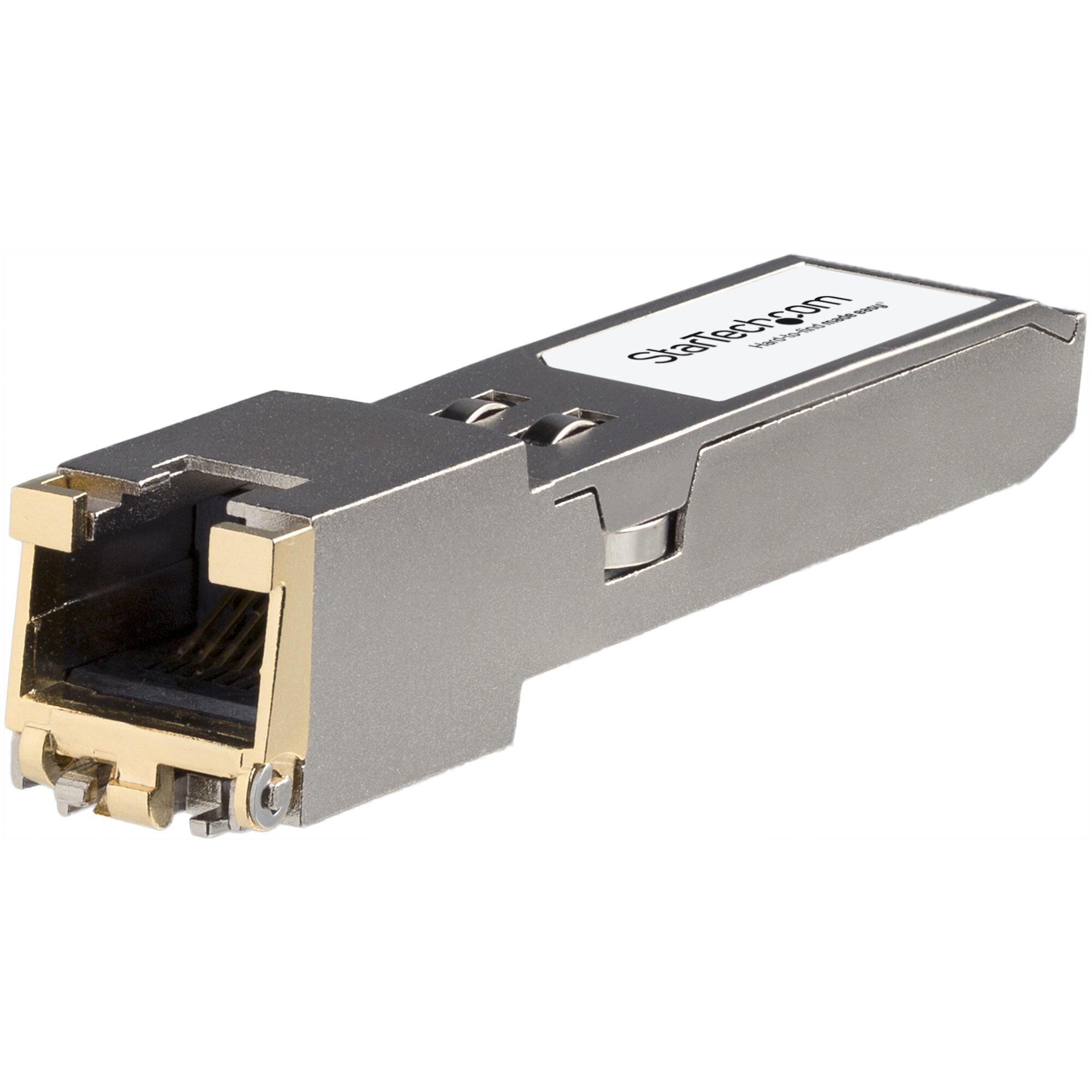

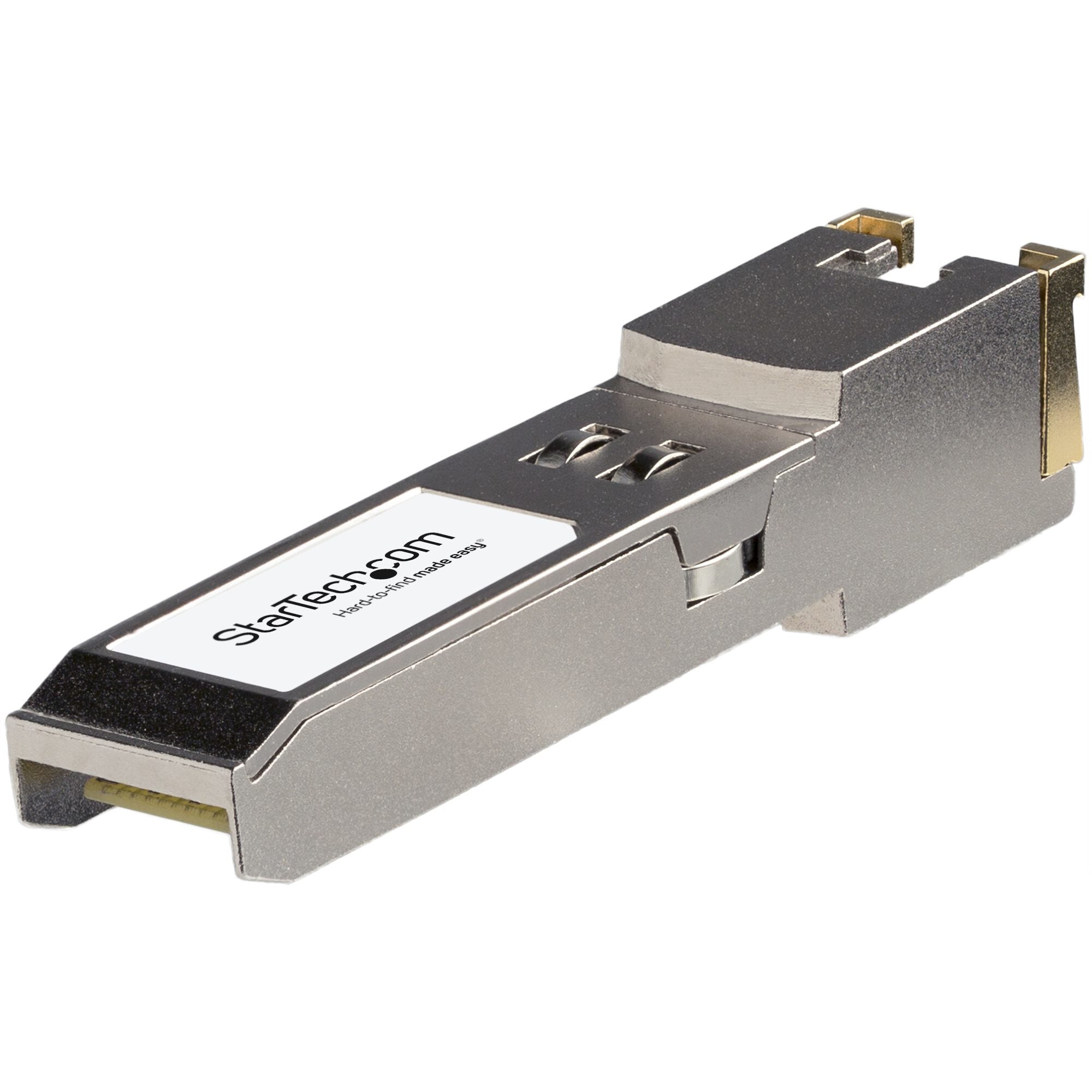

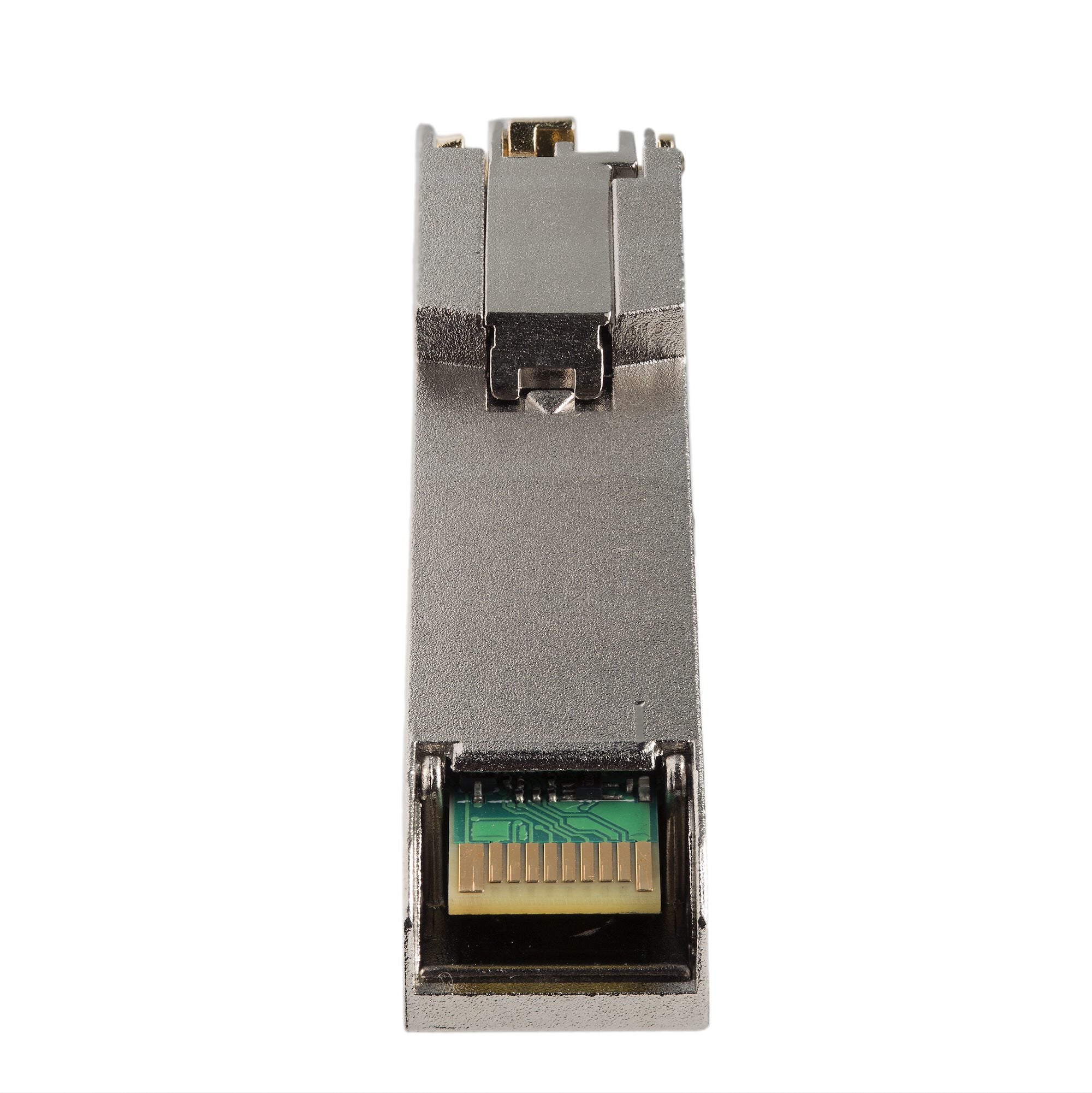

The JL563A-ST is a HPE JL563A compatible copper transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10/100/1000/10000 compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ-45
• Maximum Transfer Distance: 30 m (98.4 ft)
• MTBF: 510,469,759 hours
This copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Performance |
|---|
| Digital Diagnostics Monitoring (DDM) |
No |
| Networking standards |
IEEE 802.3ae |
| Ethernet interface type |
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Maximum transfer distance |
30 m |
| Interface type |
SFP+ |
| Maximum data transfer rate |
10000 Mbit/s |
| SFP transceiver type |
Copper |
| Features |
|---|
| Compatible products |
JL563A |
| Brand compatibility |
HP |
| Mean time between failures (MTBF) |
510469759 h |
| Hot-swap |
Yes |
| Product colour |
Silver |
| Certificates |
|---|
| Certification |
CE, FCC, UR, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
15 g |
| Height |
13.8 mm |
| Depth |
13.7 mm |
| Width |
68 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
50 g |
| Package height |
31 mm |
| Package depth |
115 mm |
| Package width |
90 mm |
| Logistics data |
|---|
| Products per master (outer) case |
1 pc(s) |
| Master (outer) case height |
31 mm |
| Master (outer) case length |
115 mm |
| Harmonized System (HS) code |
85369010 |
| Master (outer) case width |
90 mm |
