Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

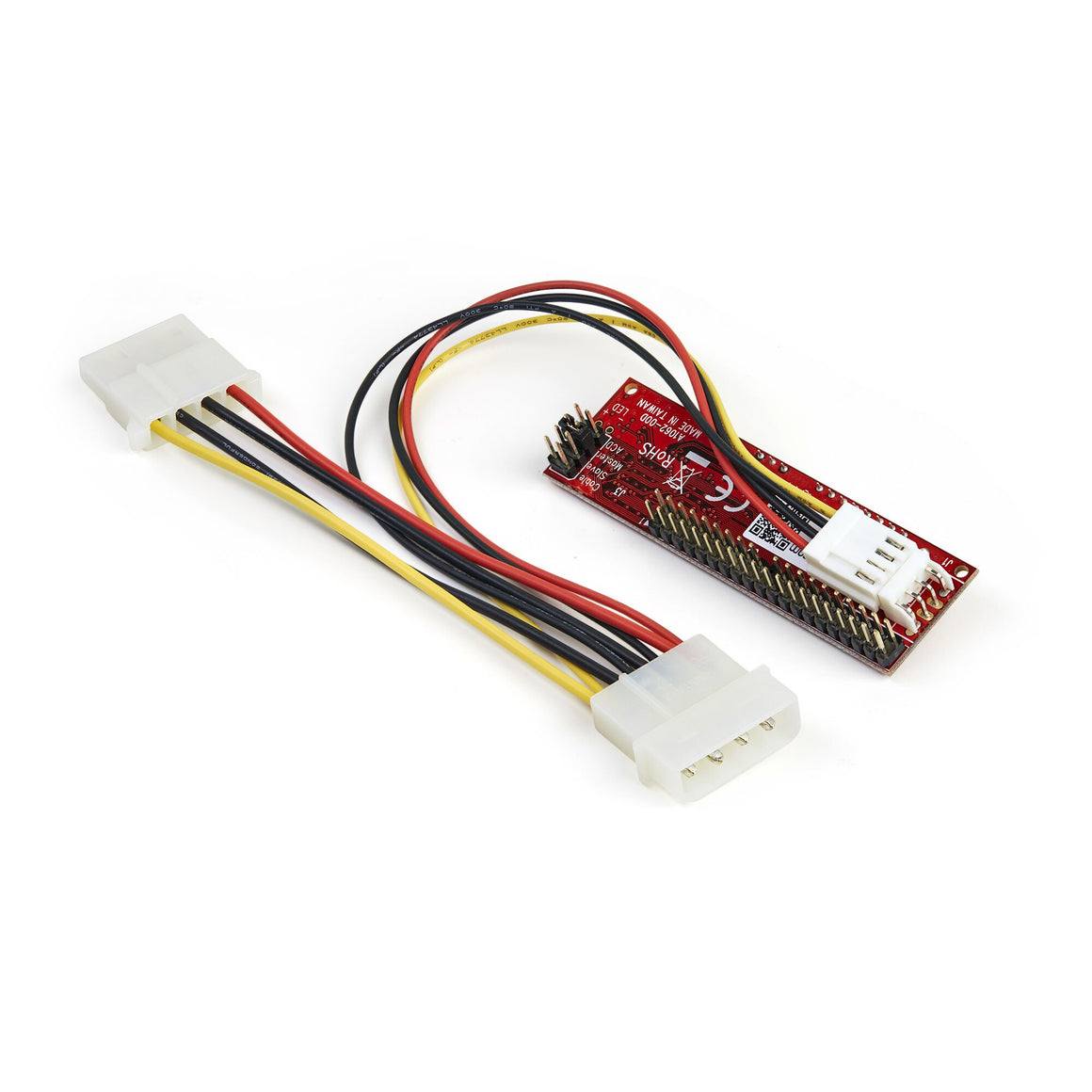

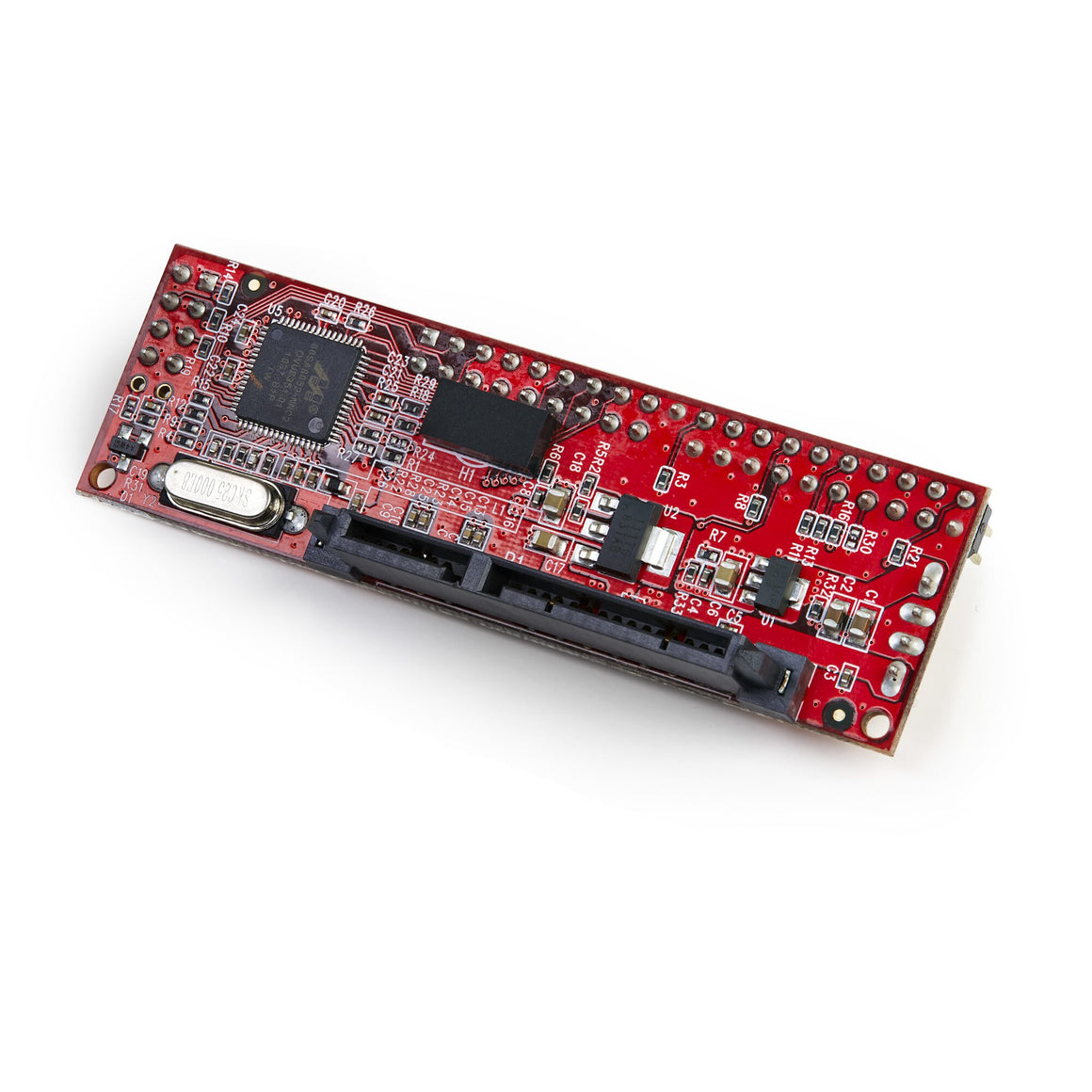

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Connector(s) |
1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
| Output interface |
SATA |
| Host interface |
IDE |
| Design |
|---|
| Certification |
FCC, CE, TAA, REACH |
| Product colour |
Red |
| Internal |
Yes |
| Features |
|---|
| Logical block addressing (LBA) support |
48 bit |
| Data transfer rate (max) |
0.133 Gbit/s |
| Chipset |

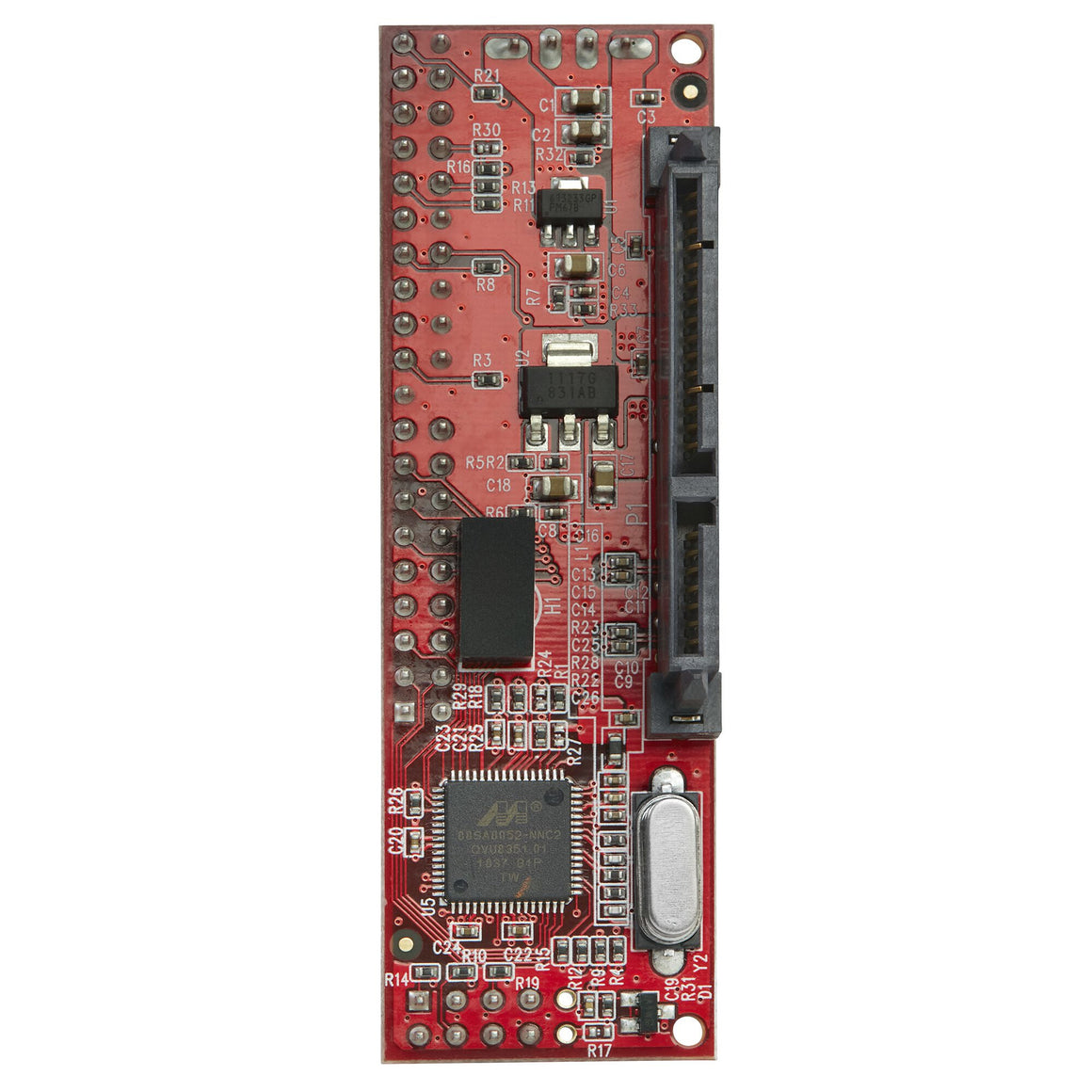

Marvell - 88SA8052 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
15 - 90% |
| Storage temperature (T-T) |
-25 - 80 °C |
| Operating temperature (T-T) |
5 - 50 °C |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Weight |
29 g |
| Height |
23 mm |
| Depth |
75.5 mm |
| Width |
20 mm |
| Packaging data |
|---|
| Package weight |
89 g |
| Package height |
33 mm |
| Package depth |
145 mm |
| Package width |
175 mm |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case height |
321 mm |
| Master (outer) case length |
496 mm |
| Master (outer) case width |
380 mm |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Material |
Plastic, Steel |
