SKU: MDP2DVI

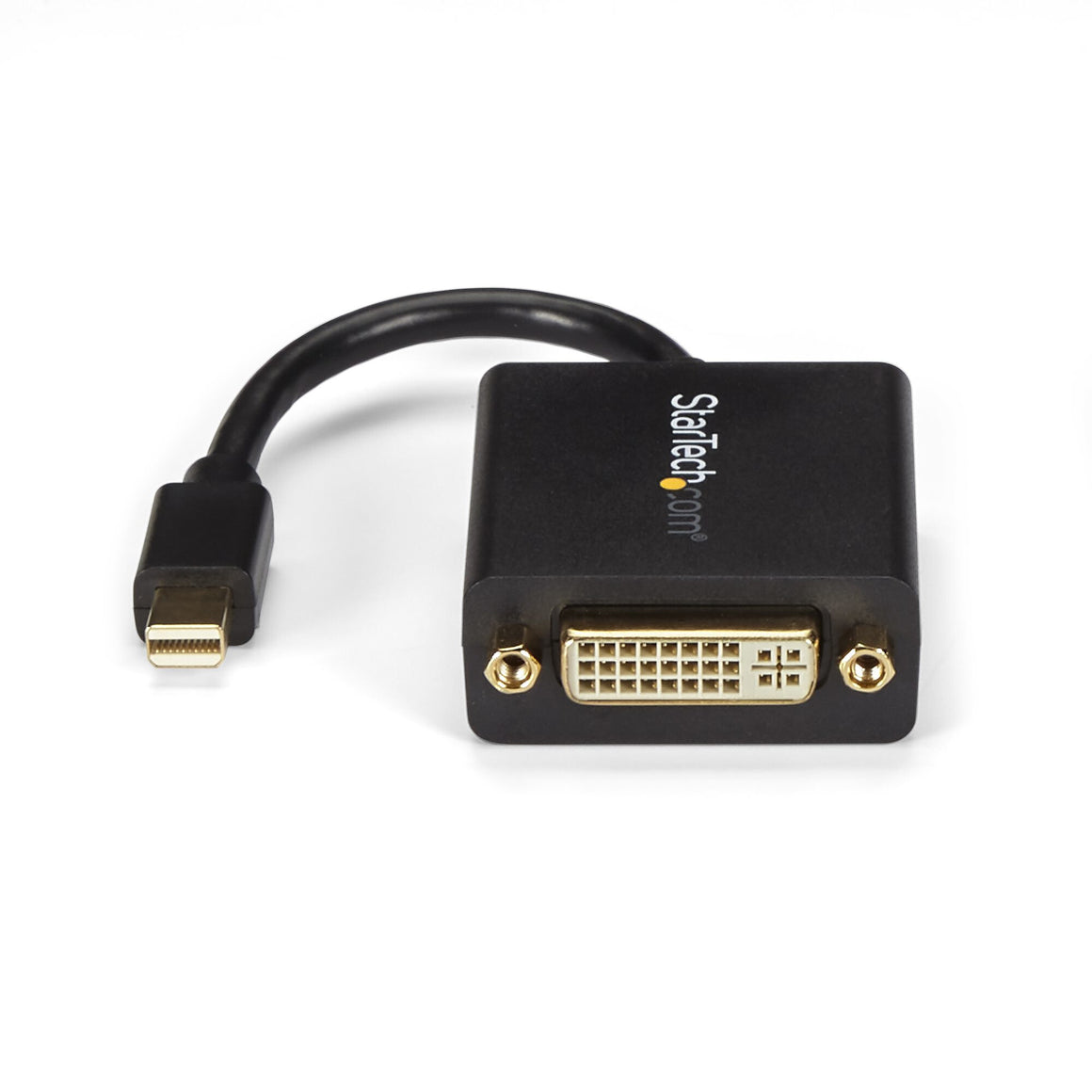

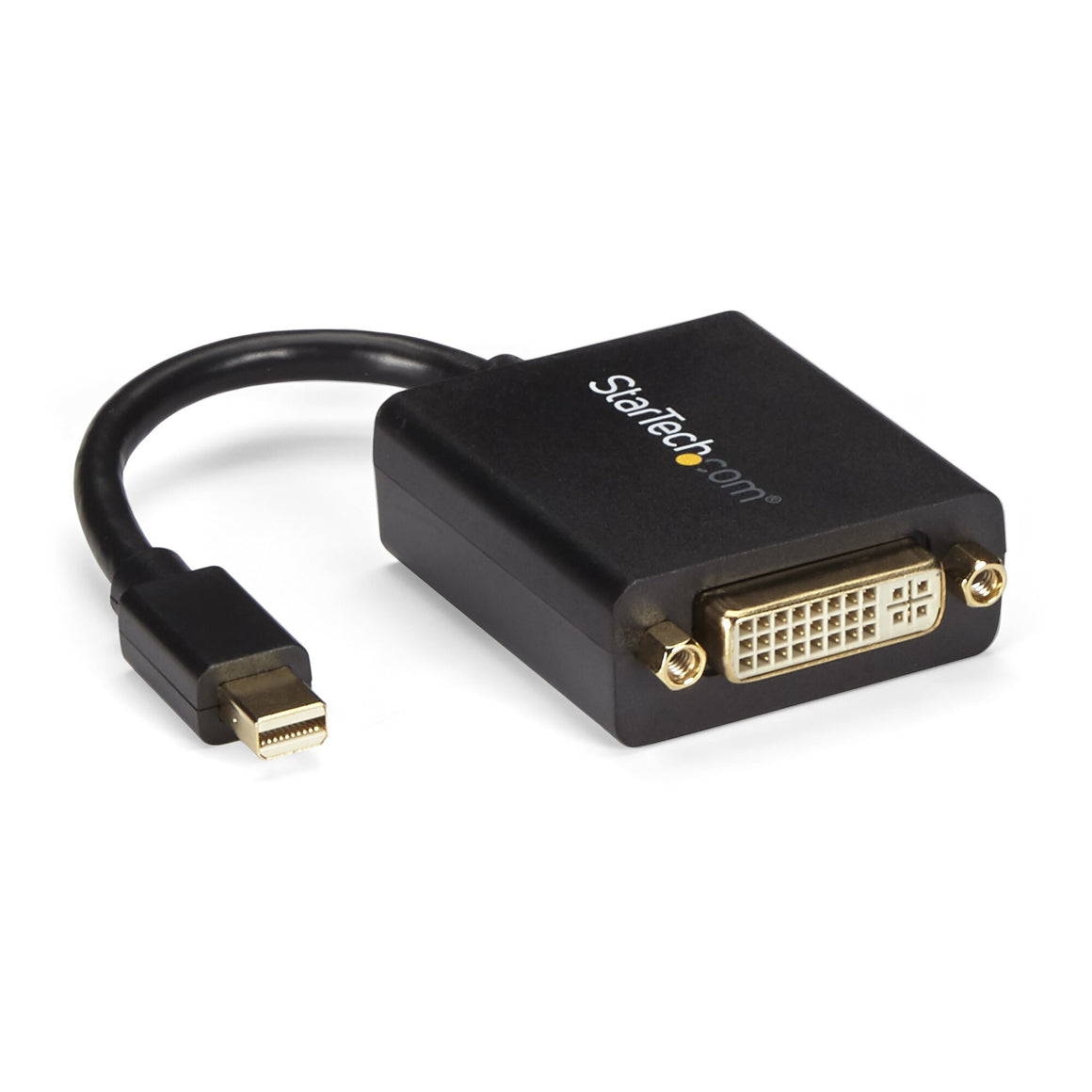

StarTech.com Mini DisplayPort to DVI Adapter - Mini DP to DVI-D Converter - 1080p Video - VESA Certified - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor - mDP 1.2 to DVI Single-Link Dongle

StarTech.com
£20.12
  • MINI DISPLAYPORT TO DVI ADAPTER: mDP 1.2 (HBR2) to DVI-I (digital only DVI-D) single-link adapter connects a DVI display/projector; 1920x1200/1080p 60Hz video; EDID/DDC pass-through ensure compatibility between source & display; VESA DisplayPort Certified
  • HOST COMPATIBILITY: Passive video converter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
  • INCREASE PRODUCTIVITY: Connect a DVI monitor or projector, or add a second display to your workstation using the mDP to DVI adapter dongle / Compact design makes it ideal for travel / 5"" (13cm) attached cable
  • SCREW LOCKING DVI: Mini DisplayPort to DVI display adapter supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection from DVI displays/projectors / Tested with DVI cables up to 25ft / mDP male to DVI female connector
  • EASY TO USE: With no software or drivers required, the Mini DP to DVI converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like TB1/TB2 MacBooks with Mini DisplayPort

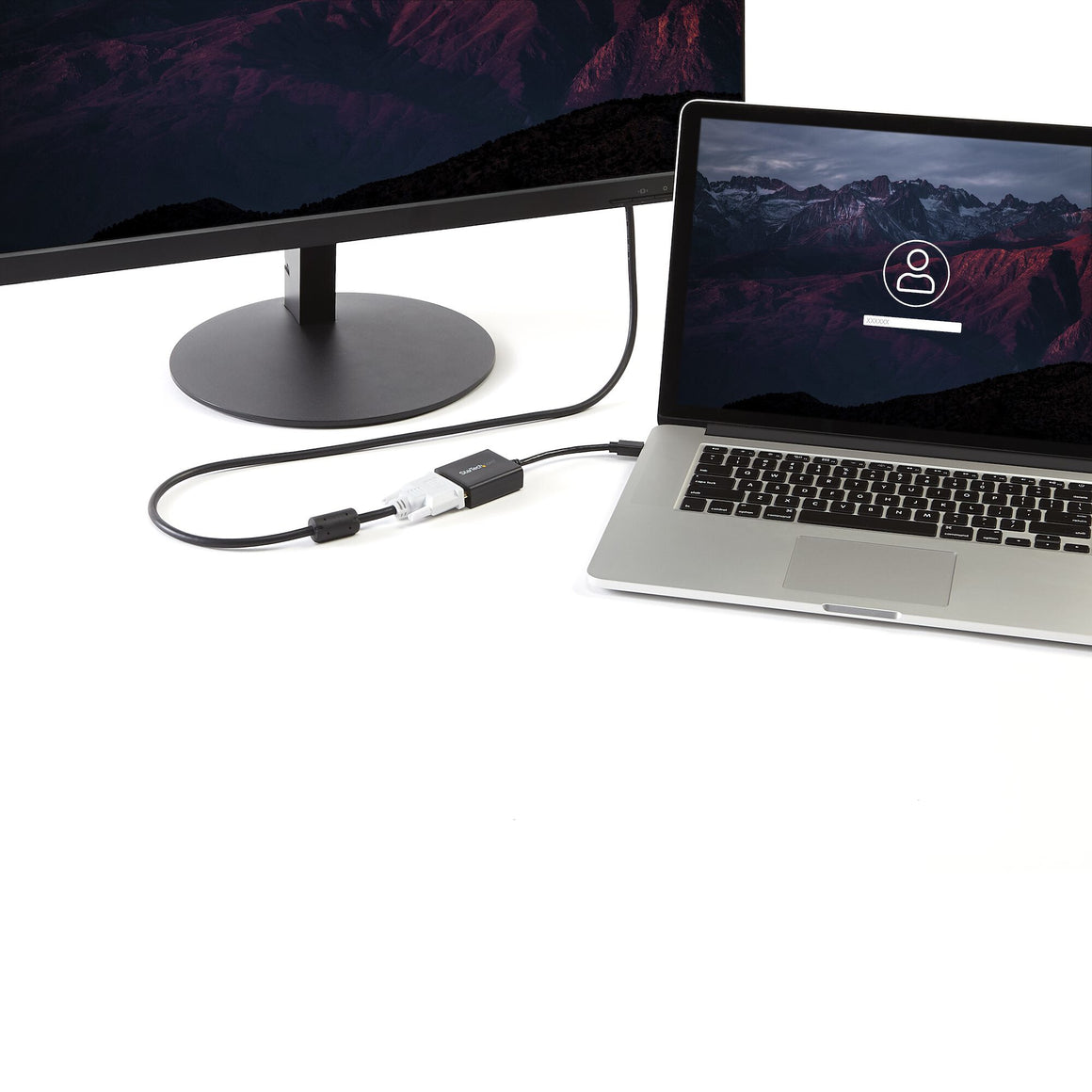

Connect a DVI display to a Mini DisplayPort® equipped PC or MAC®

The StarTech.com MDP2DVI Mini DisplayPort DVI Adapter Cable offers a cost-effective DVI/Mini DisplayPort link, letting you connect a DVI computer monitor to a device with a Mini DisplayPort output while saving the expense of upgrading the monitor for compatibility. This Mini DisplayPort adapter is the perfect accessory for any of your MacBook® or Microsoft® Surface™ Pro devices with mDP.

MDP2DVI is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Passive video converter
Product colour Black
Supported video modes 1080p
Maximum resolution 1920 x 1200 pixels
Dual Link DVI No
DisplayPort version 1.2
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 DVI-I
Connector 1 Mini DisplayPort
Cable length 0.13 m
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -10 - 70 °C
Operating temperature (T-T) 0 - 45 °C
Certificates
Certification RoHS, CE, FCC
Compliance certificates RoHS, CE
Sustainability
Sustainability certificates RoHS, CE
Weight & dimensions
Height 11 mm
Depth 185 mm
Width 35 mm
Weight 31 g
Packaging data
Package weight 40 g
Package height 18 mm
Package depth 220 mm
Package width 200 mm
Logistics data
Products per master (outer) case 150 pc(s)
Master (outer) case height 215 mm
Master (outer) case length 500 mm
Master (outer) case width 330 mm
Harmonized System (HS) code 84733080
