SKU: MDP2VGA2

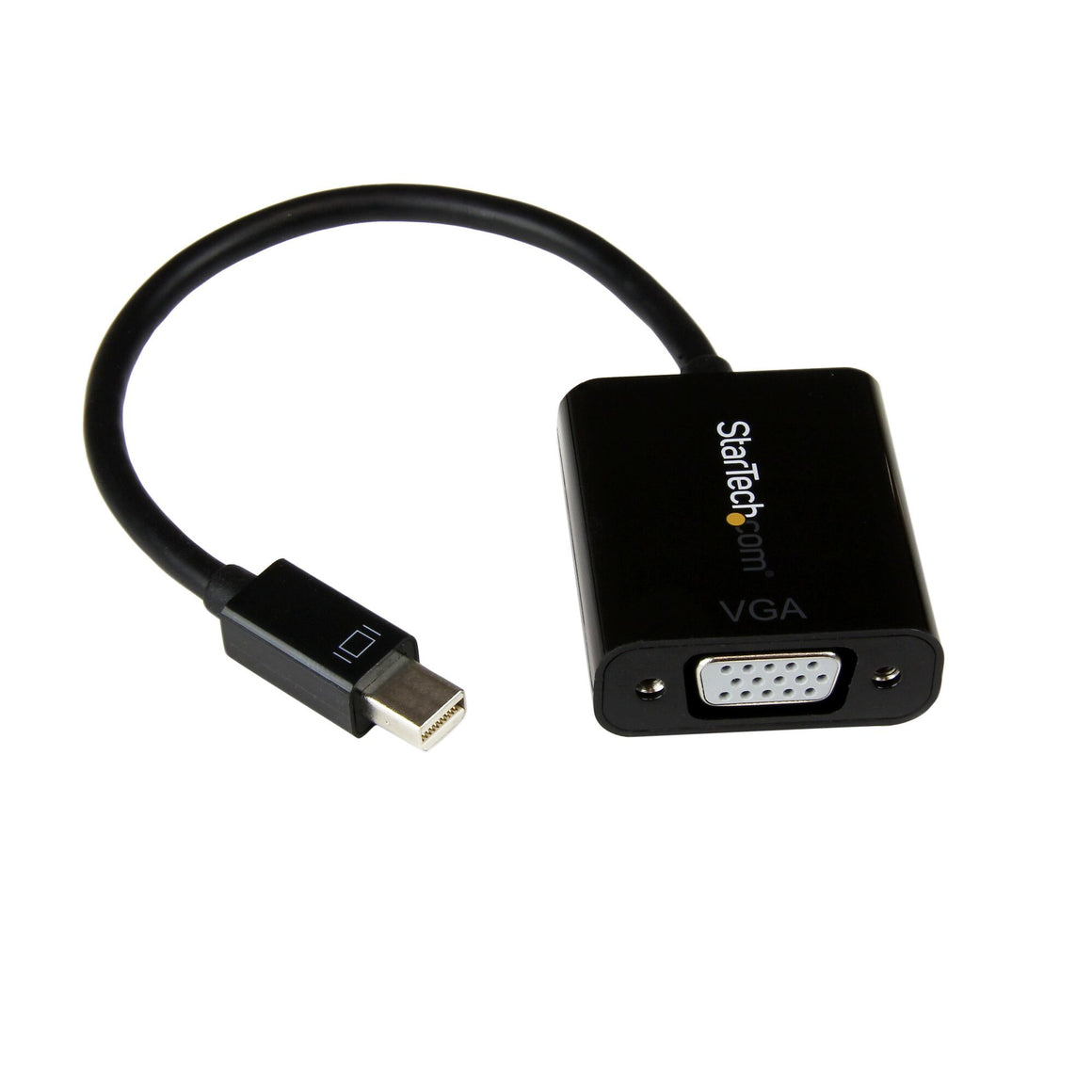

StarTech.com Mini DisplayPort to VGA Adapter - Active Mini DP to VGA Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to VGA Monitor/Projector/Display - mDP 1.2 to VGA Dongle - Black

StarTech.com
£27.11
  • MINI DISPLAYPORT TO VGA ADAPTER: Mini DisplayPort 1.2 (HBR2) video adapter connects a VGA display or projector supporting 1920x1200 & 1080p at 60Hz; EDID & DDC pass-through ensures compatibility between source & display
  • HOST COMPATIBILITY: Active digital to analog converter supports mDP/mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
  • INCREASE PRODUCTIVITY: Connect a VGA monitor or projector, or add a second display to your workstation using the mDP to VGA adapter dongle; Compact design makes it ideal for travel to & from office/home / 7" (18cm) cable
  • SCREW LOCKING VGA: Mini DisplayPort to VGA display adapter supports VGA screw locking cable to prevent cable from coming loose or accidental disconnection from VGA displays and projectors / Tested with VGA cables up to 25'
  • EASY TO USE: With no software or drivers required, the Mini DP to VGA converter works with any OS including Windows, Ubuntu and macOS; Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks

Connect a Mini DisplayPort 1.2-equipped PC or Mac® to a VGA Monitor or Projector

The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook® or any mDP-equipped Microsoft® Surface™ Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.

With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Features
Converter type Active video converter
Plug and Play Yes
Chipset Analogix - ANX9833
Product colour Black
HBR2 support Yes
Maximum refresh rate 60 Hz
Supported video modes 720p, 1080p
Maximum resolution 1920 x 1200 pixels
DisplayPort version 1.2
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 Mini DisplayPort
Cable length 0.18 m
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -10 - 80 °C
Operating temperature (T-T) 0 - 70 °C
Certificates
Certification RoHS, CE, FCC
Compliance certificates CE, RoHS
Weight & dimensions
Height 8 mm
Depth 220 mm
Width 35 mm
Weight 27 g
Packaging data
Package weight 36 g
Package height 18 mm
Package depth 220 mm
Package width 200 mm
Logistics data
Products per master (outer) case 150 pc(s)
Master (outer) case height 213 mm
Master (outer) case length 500 mm
Master (outer) case width 330 mm
Harmonized System (HS) code 84733080
