Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options

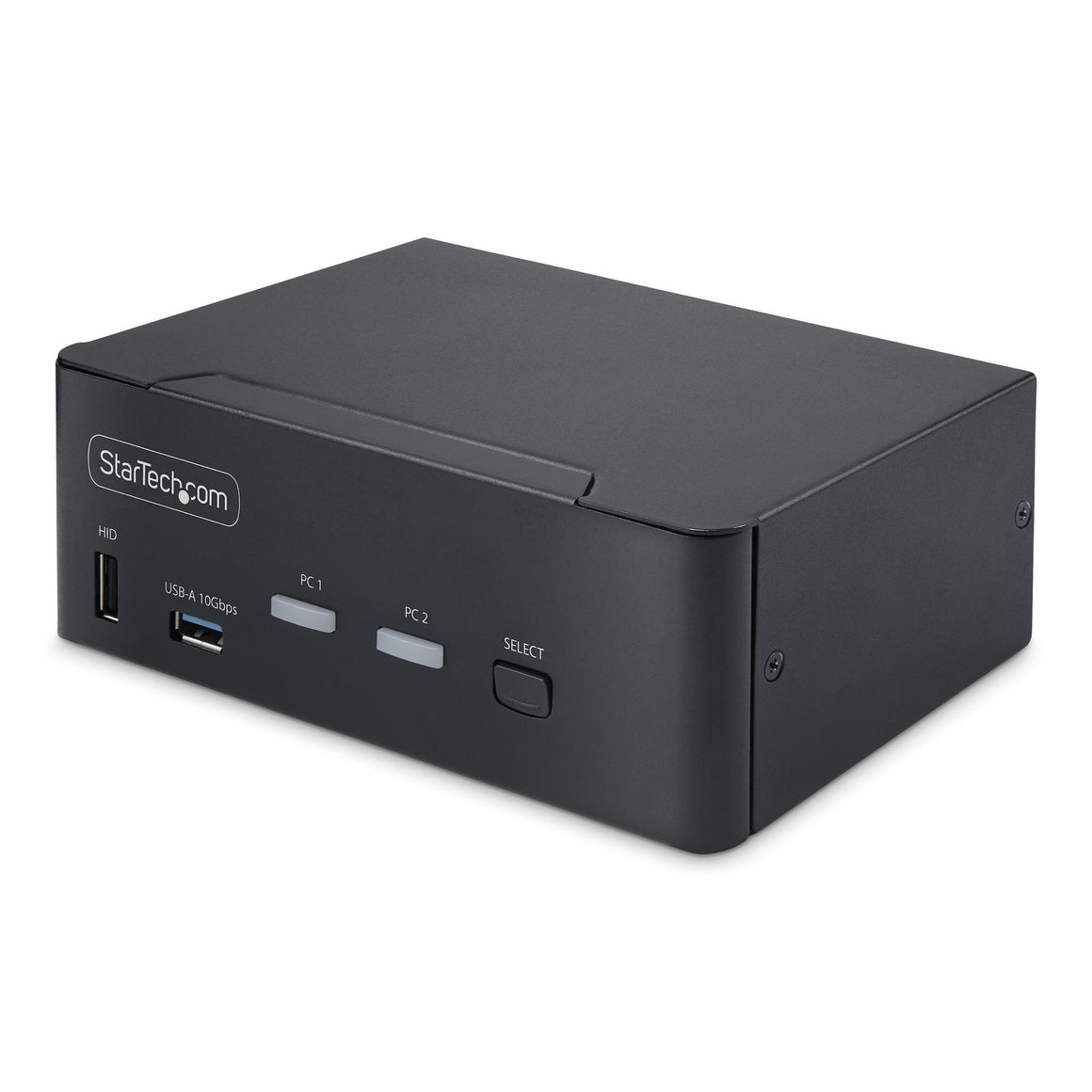

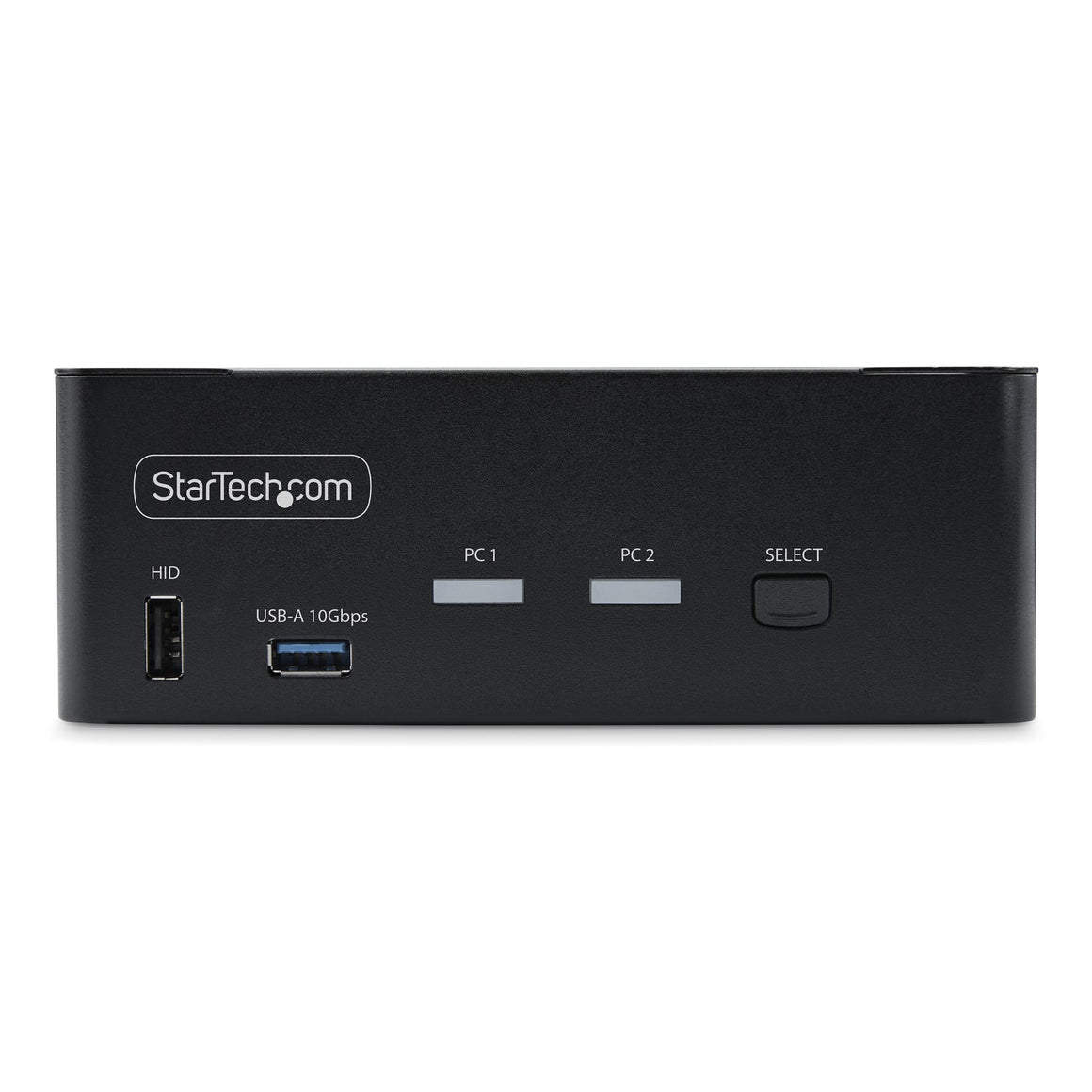

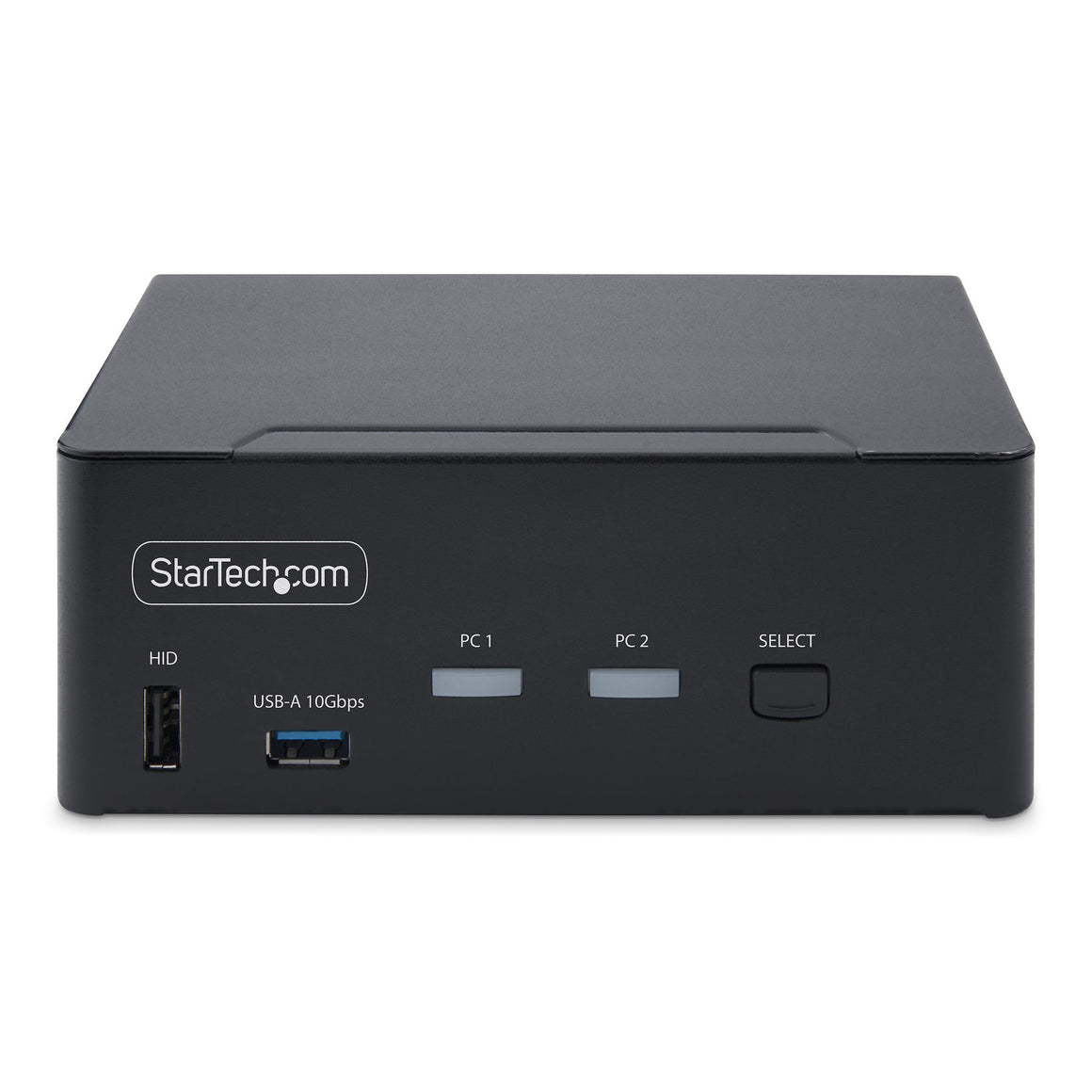

This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
The StarTech.com Advantage

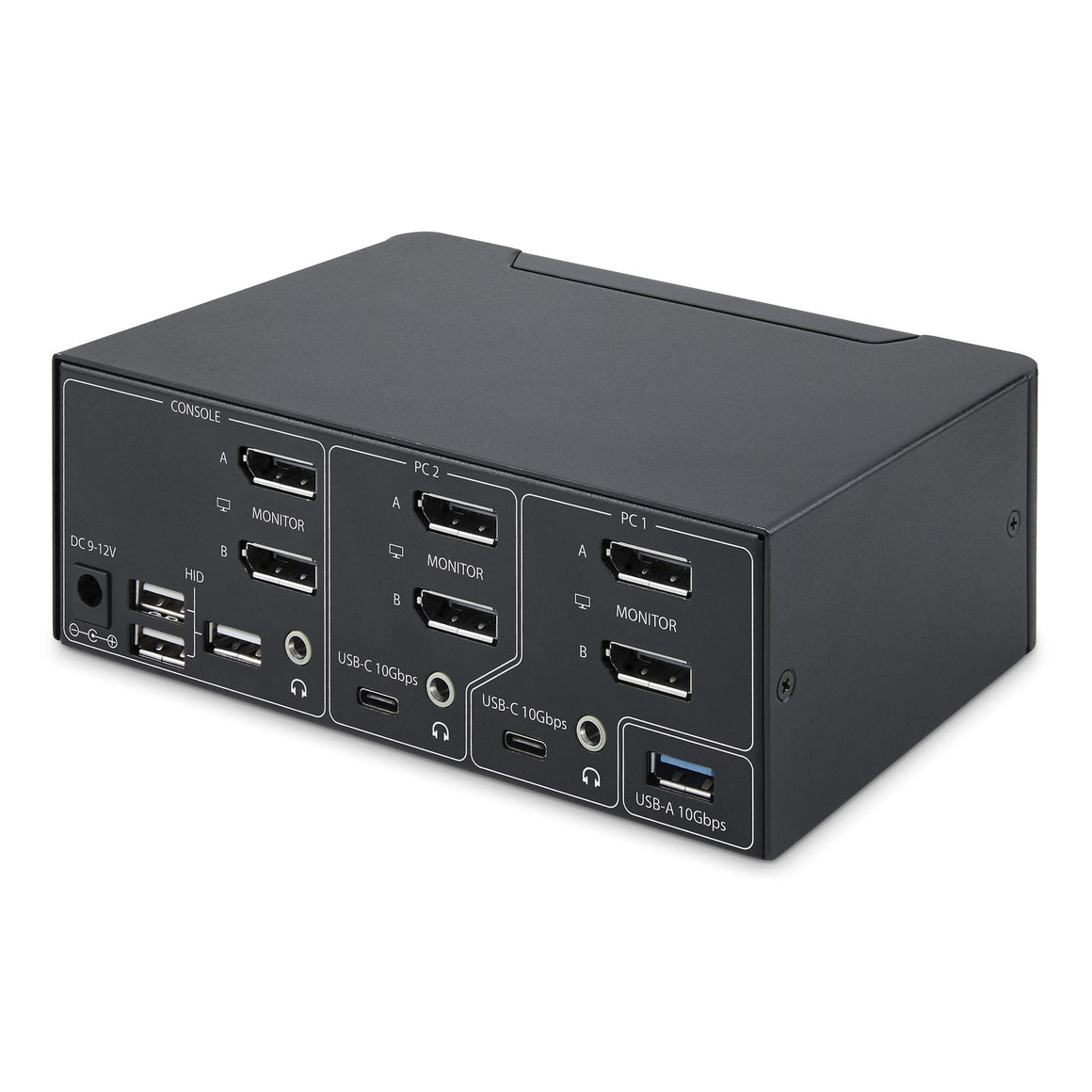

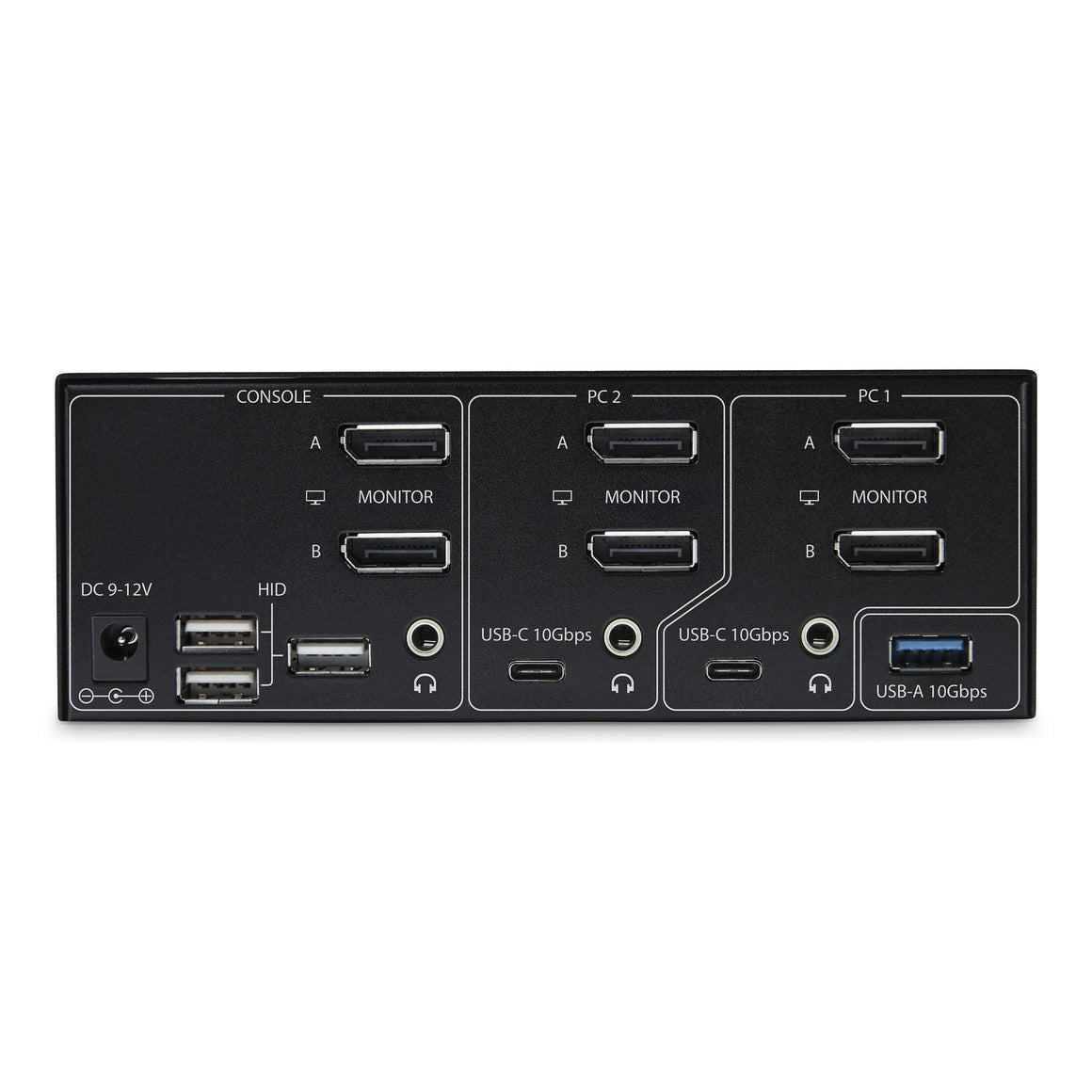

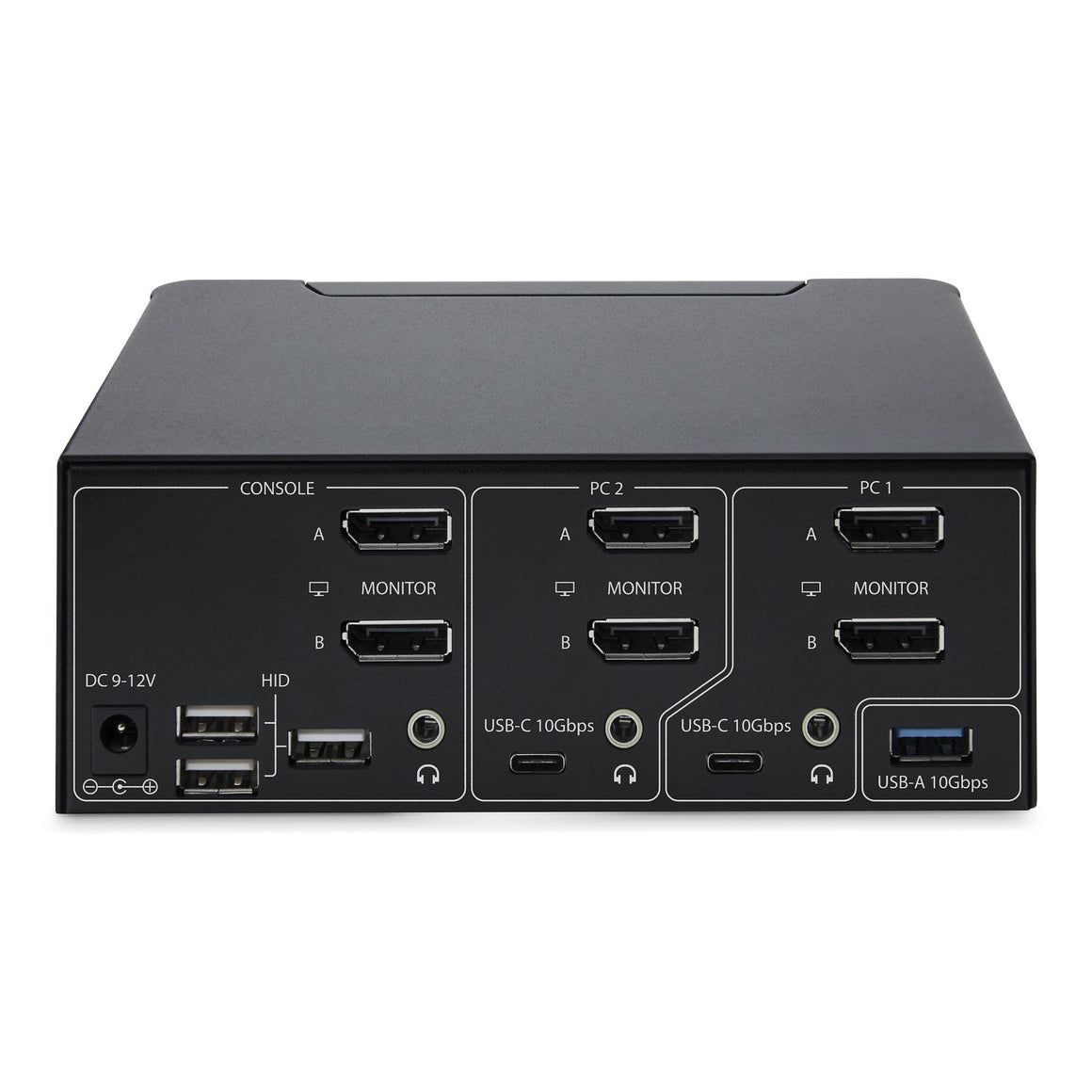

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Headphone outputs |
3 |
| Audio connections |
Yes |
| USB 2.0 ports quantity |
1 |
| USB hub |
Yes |
| Console DisplayPorts ports quantity |
2 |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
4 |
| Video port type |
DisplayPort |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Number of computers controlled |
2 |
| Performance |
|---|
| Chipset |
Genesys Logic - GL3590 |
| Number of displays supported |
2 |
| Maximum refresh rate |
144 Hz |
| Number of users |
1 user(s) |
| High Dynamic Range (HDR) supported |
Yes |
| Scan interval |
3,8,15,30 s |
| Data transfer rate (max) |
10 Gbit/s |
| Maximum resolution |
7680 x 4320 pixels |
| HD type |
8K Ultra HD |
| Design |
|---|
| Mean time between failures (MTBF) |
168000 h |
| Hot keys |
Yes |
| Push button |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
No |
| Display |
|---|
| On Screen Display (OSD) |
No |
| Built-in display |
No |
| Power |
|---|
| Power consumption (typical) |
36 W |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, UK, US |
| Output current |
3 A |
| Output voltage |
12 V |
| Input current |
1 A |
| Input voltage |
100 - 240 V |
| Sustainability |
|---|
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
800 g |
| Height |
60 mm |
| Depth |
160 mm |
| Width |
100 mm |
| Packaging data |
|---|
| Package weight |
1.4 kg |
| Package height |
89 mm |
| Package depth |
184 mm |
| Package width |
238 mm |

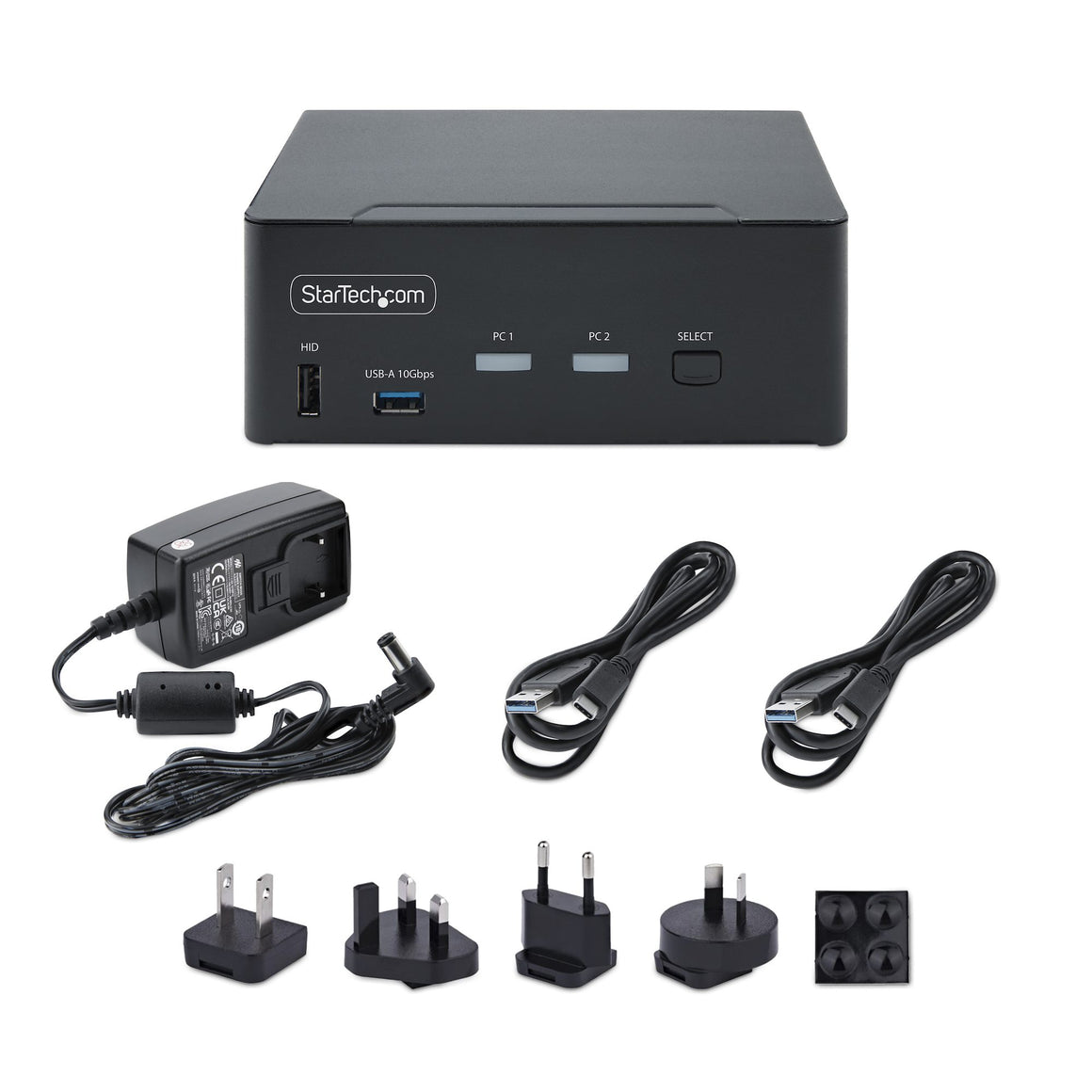

| Packaging content |
|---|
| Rubber feet |
Yes |
| Quick installation guide |
Yes |
| Cables included |
USB Type-A to USB Type-C |
| Other features |
|---|
| IP control |
No |
