Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking

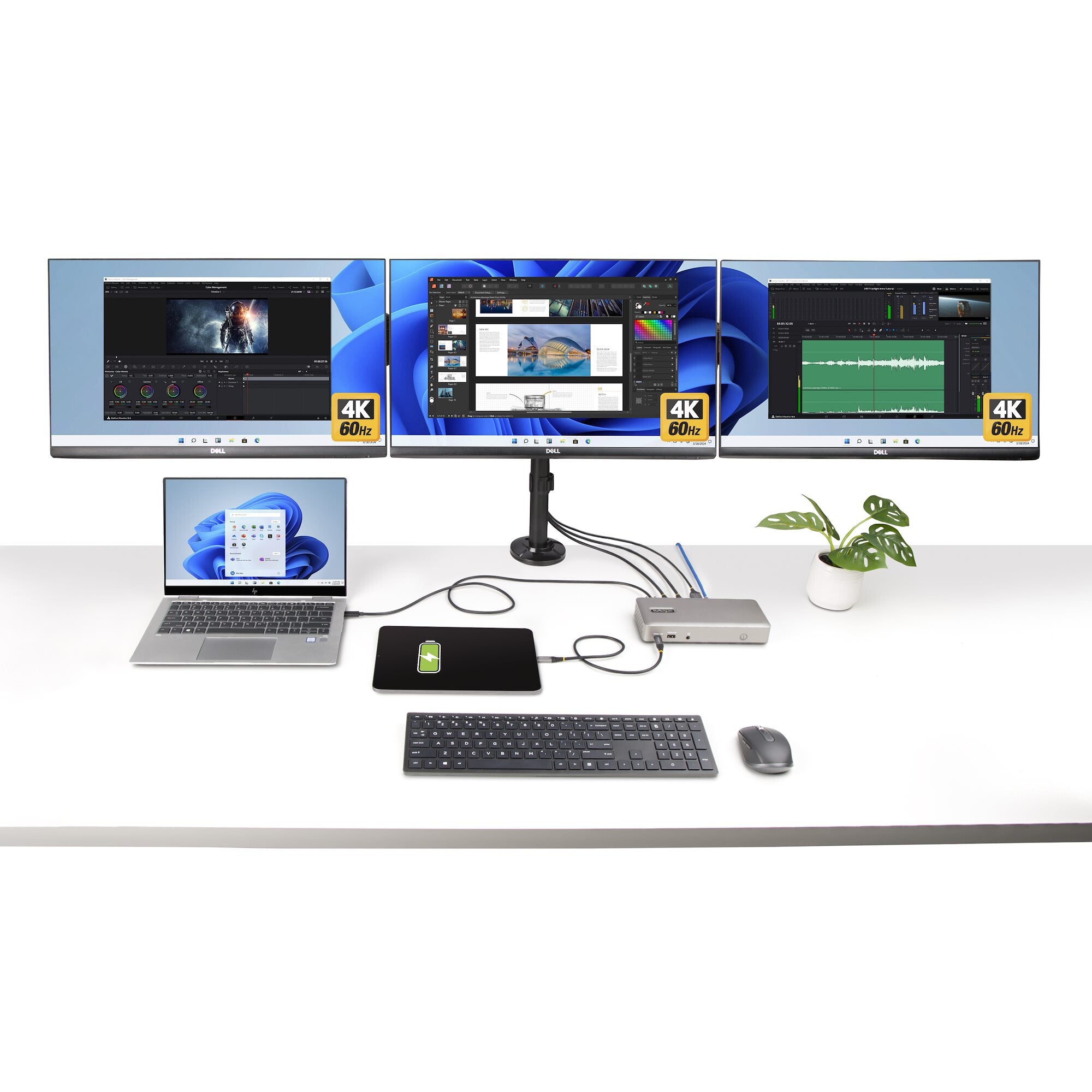

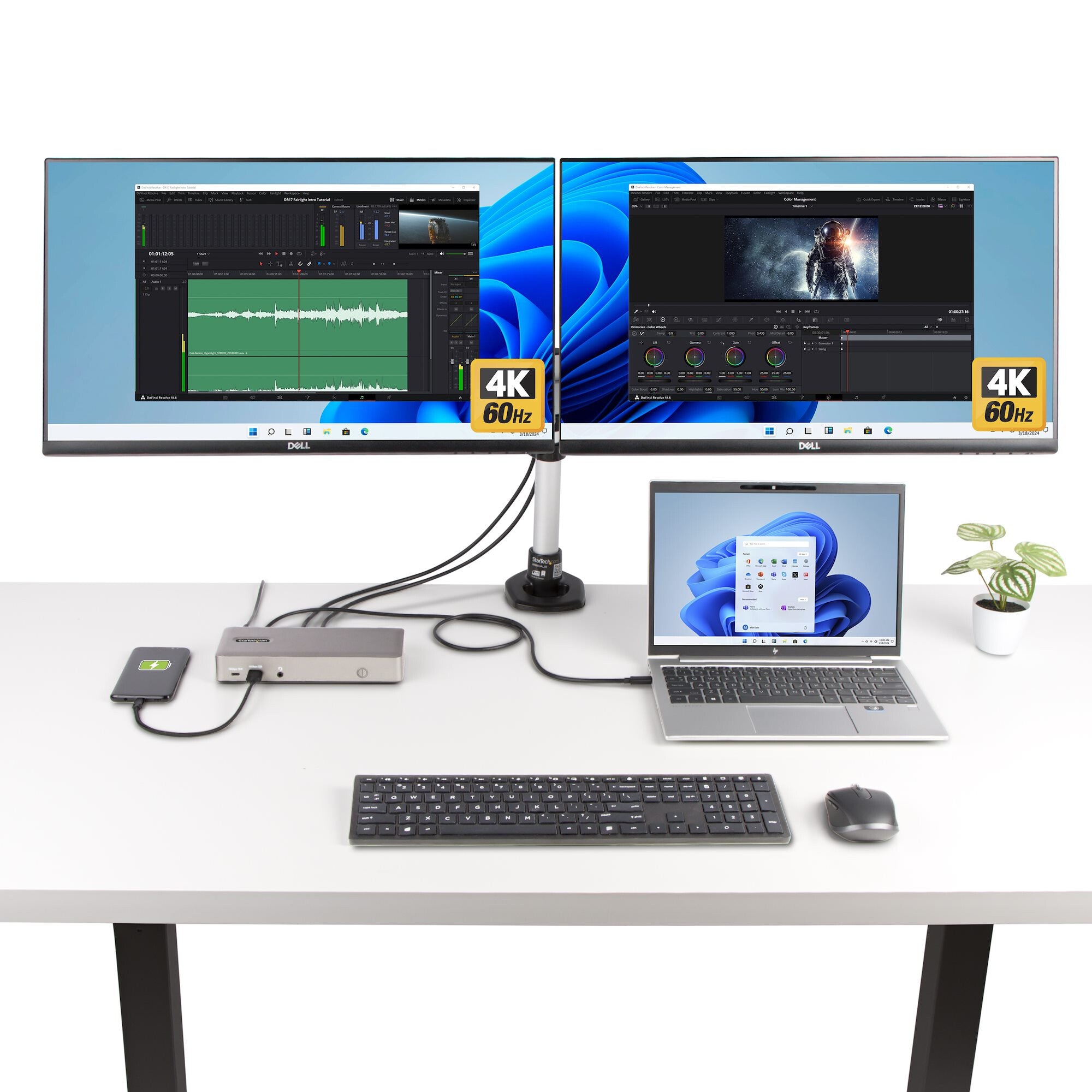

Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power

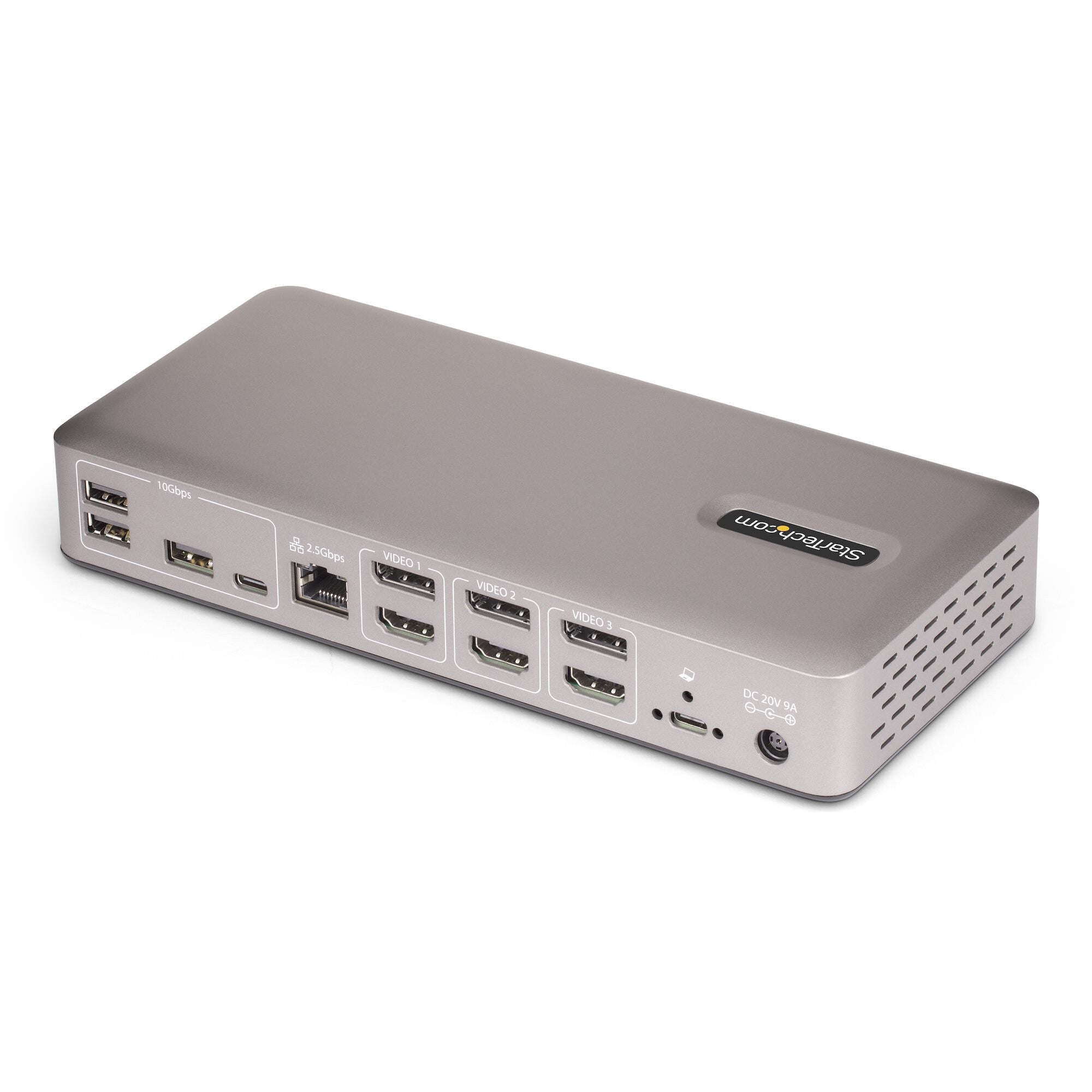

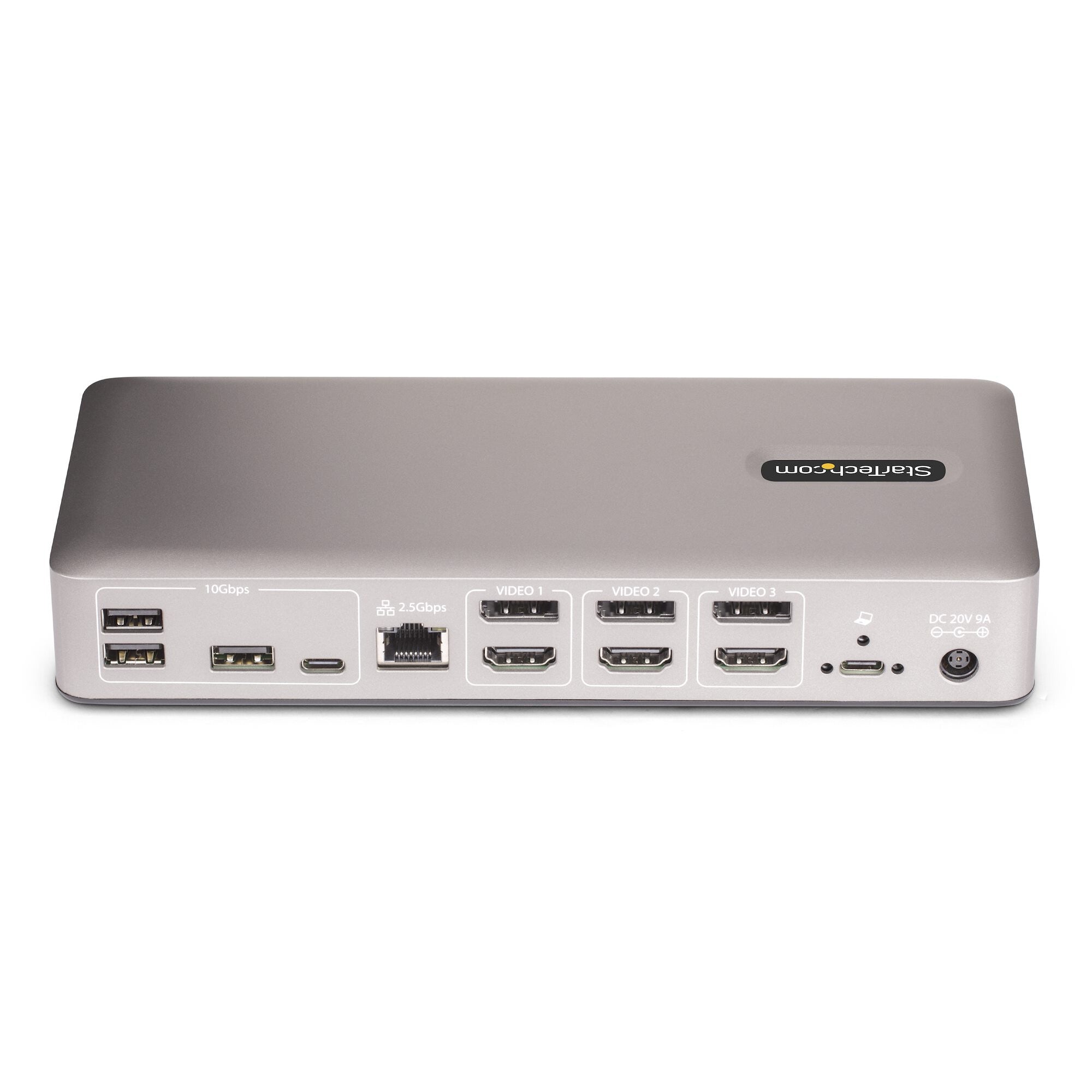

The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options

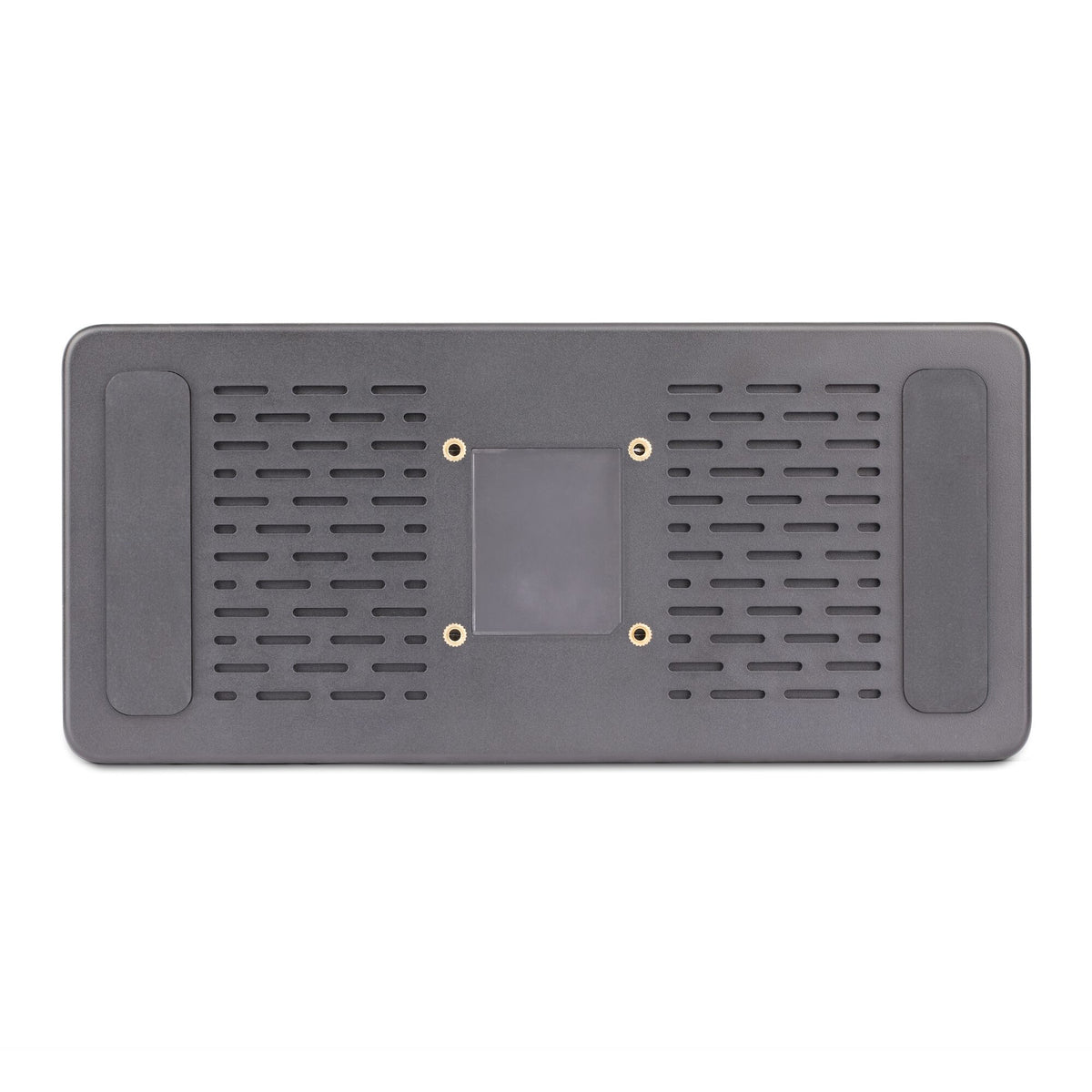

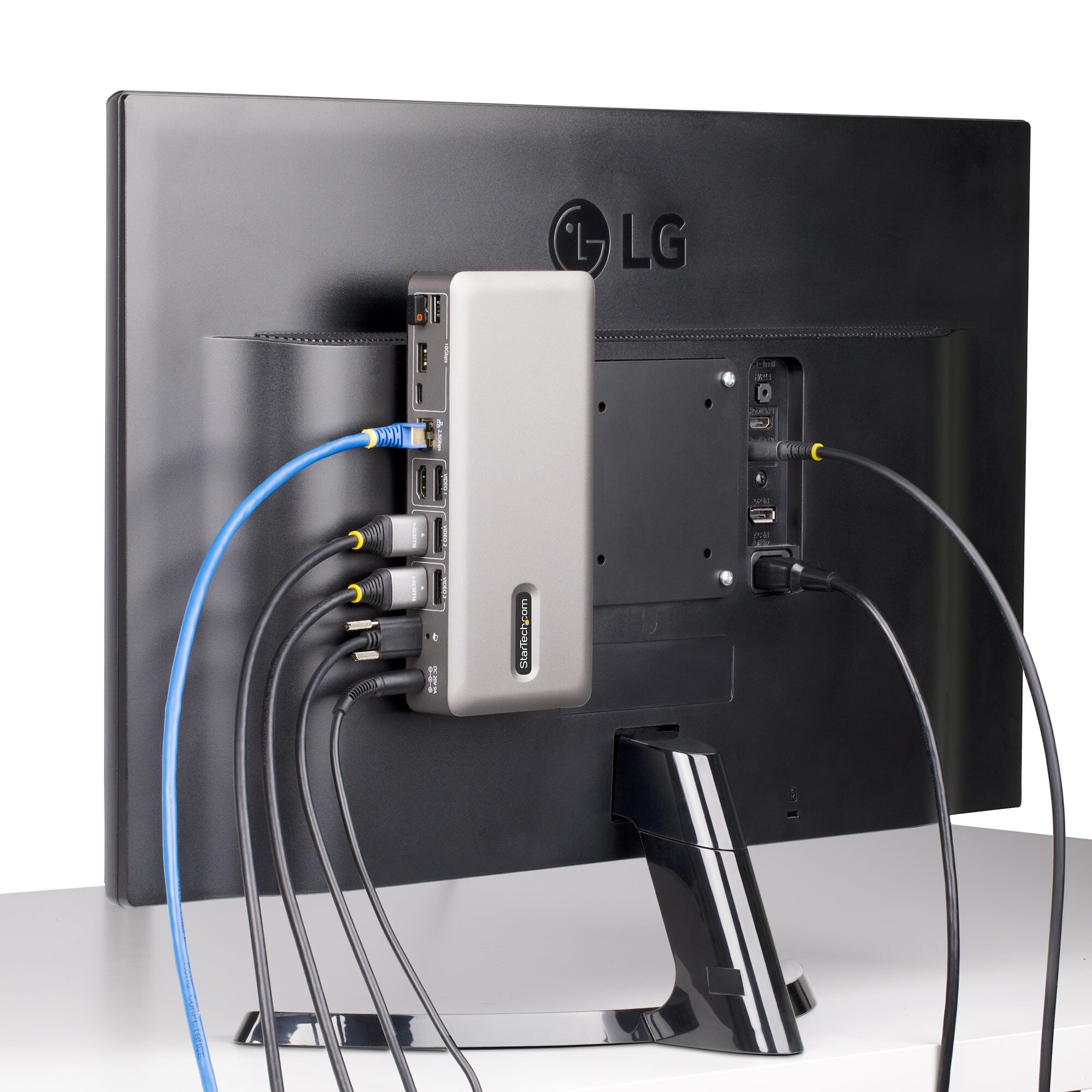

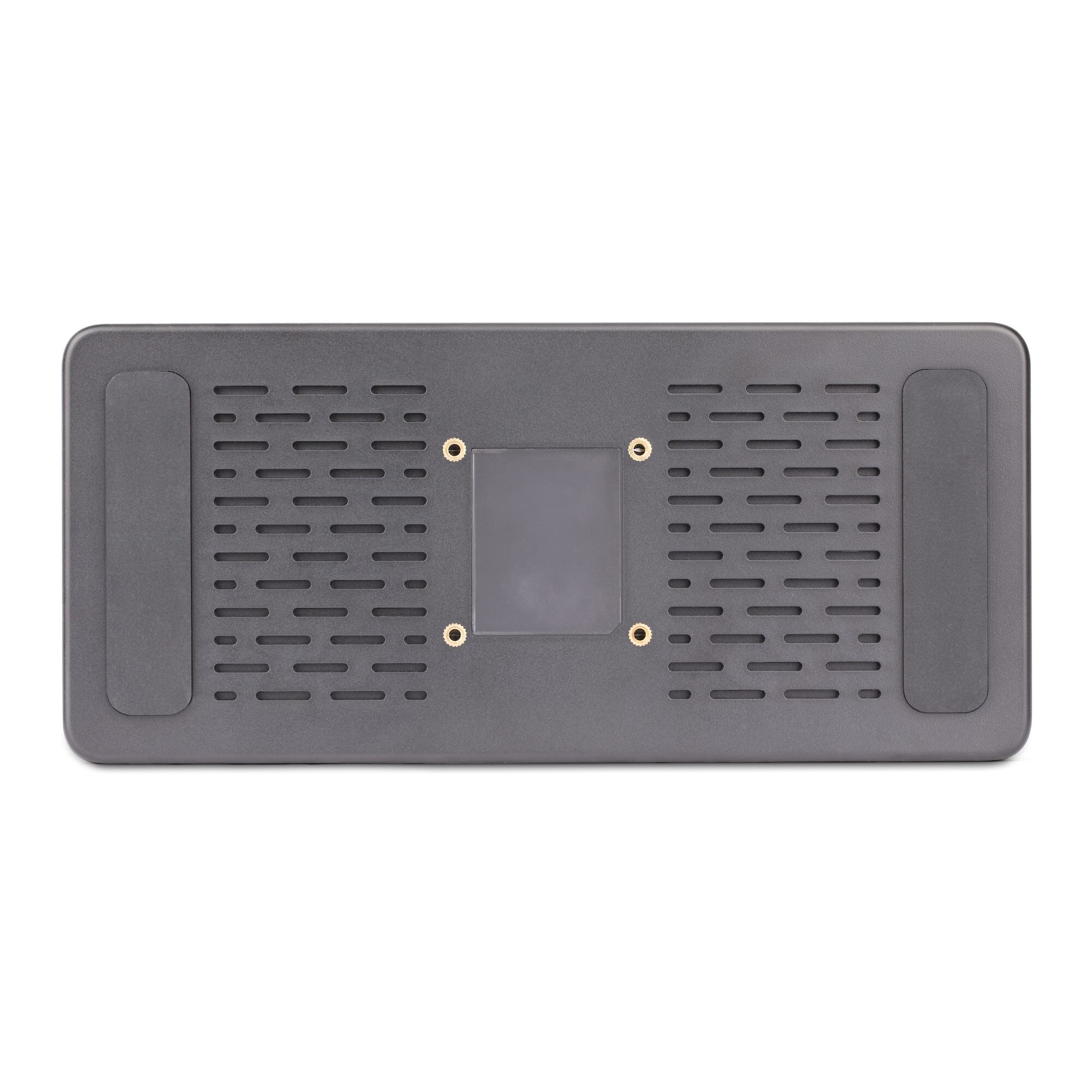

Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Headphone connectivity |
3.5 mm |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
3 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| Host interface |
USB4 |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| UASP support |
Yes |

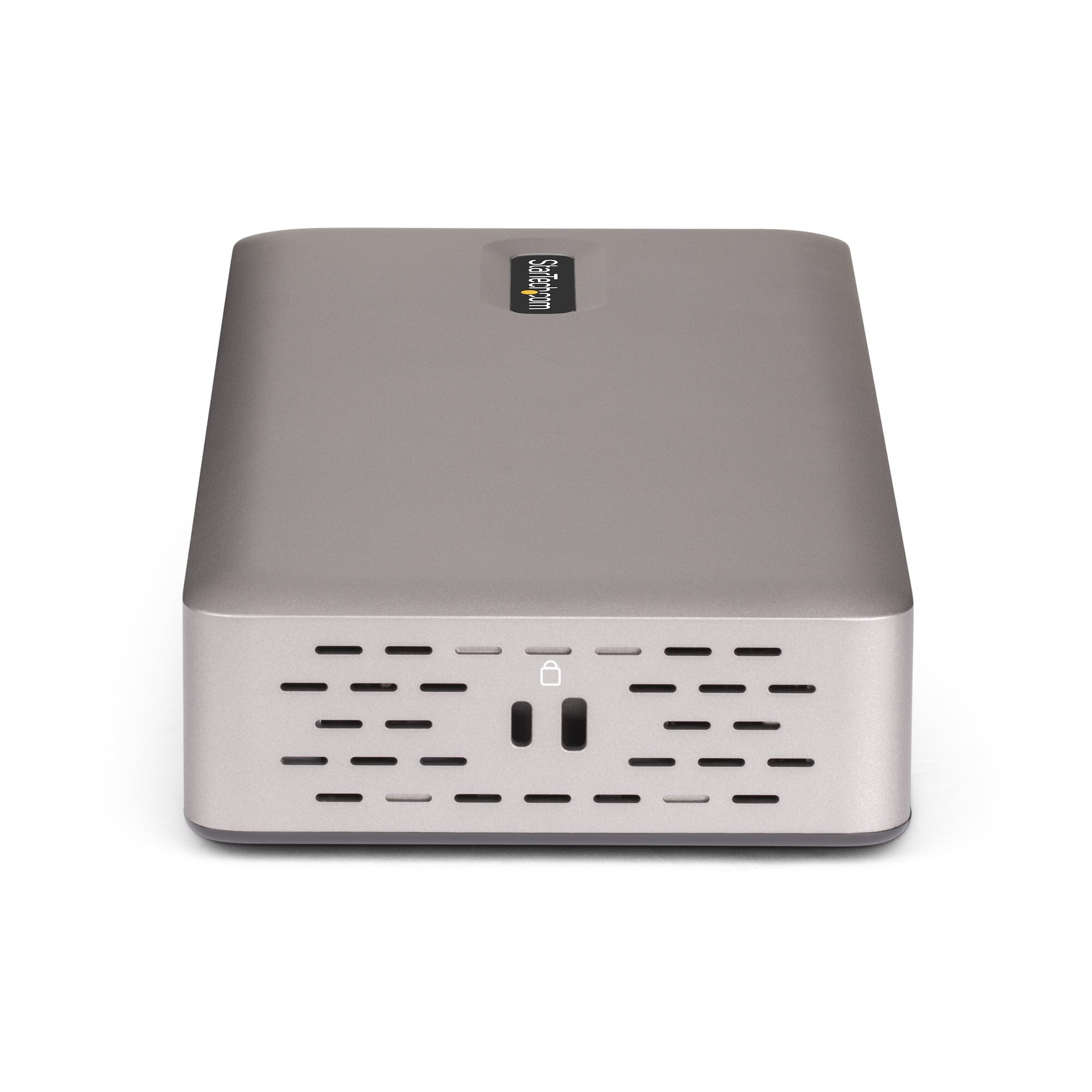

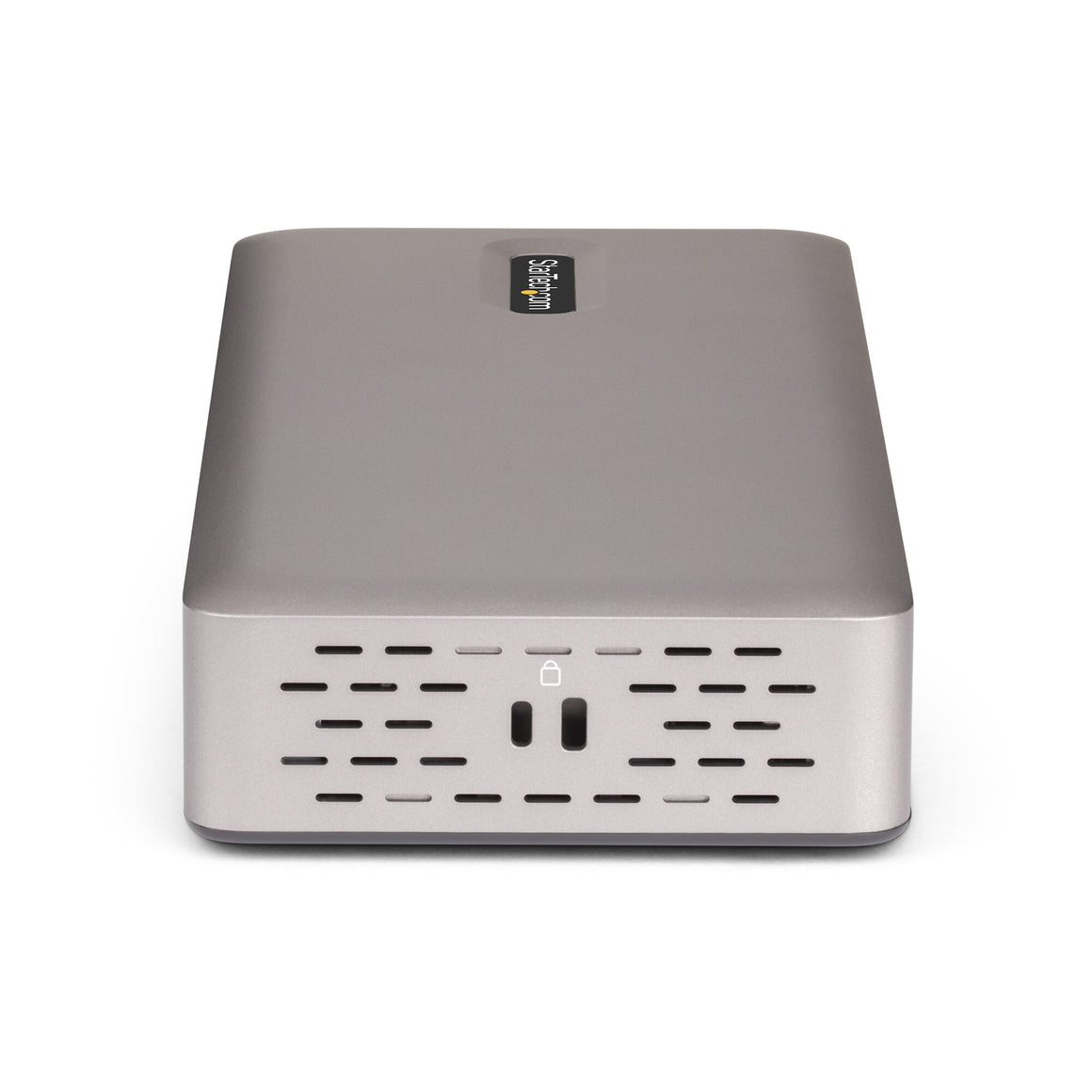

| Cable lock slot type |
Kensington, Nano |
| Cable lock slot |
Yes |
| Maximum refresh rate |
144 Hz |
| Number of displays supported |
3 |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
40 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Grey |
| Power |
|---|
| Compatible power plug types |
US |
| Power consumption (max) |
180 W |
| Output voltage |
20 V |
| Output current |
9 A |
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
1.06 kg |
| Height |
34 mm |
| Depth |
210 mm |
| Width |
95 mm |
| Packaging data |
|---|
| Package weight |
1.4 kg |
| Package height |
99 mm |
| Package depth |
235 mm |
| Package width |
145 mm |

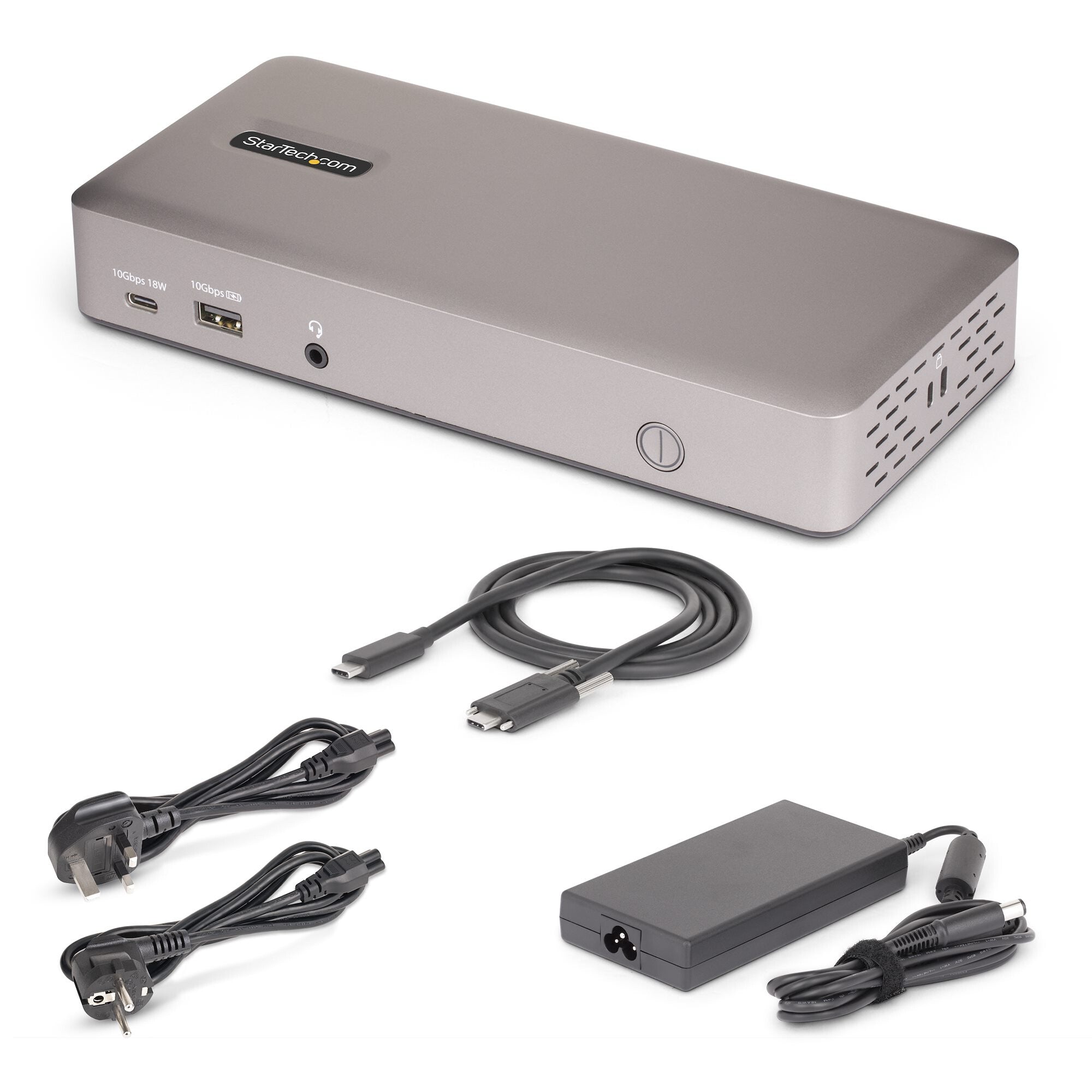

| Packaging content |
|---|
| Cables included |
USB Type-C |
| AC adapter included |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE |
| Other features |
|---|
| Chipset |
VIA - VL830, VIA - VL163, VIA - VL162, VIA - VL105, Realtek - RTL8156BS, Realtek - ALC4030U, Parade - PS8469 |
