Universal Projector Ceiling Mount | Up to 22.7” Extension from Ceiling | Steel / Aluminum
This projector ceiling mount kit lets you easily install a projector from 5” to 22.7” (127.7 to 577.7 mm) away from the ceiling. It’s ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.
Wide Compatibility with Projectors
Supporting a wide range of projector brands, the universal projector ceiling mount features a universal mounting pattern of 12.8" (325 mm) diameter.
Fine-Tune for Optimum Viewing
After the projector ceiling mount is installed, you can fine-tune the angle for optimum viewing. The locking ball join on the projector mount provides 360-degree swivel, +/- 25 degree horizontal/vertical tilt.
Heavy-duty Steel and Aluminum Construction

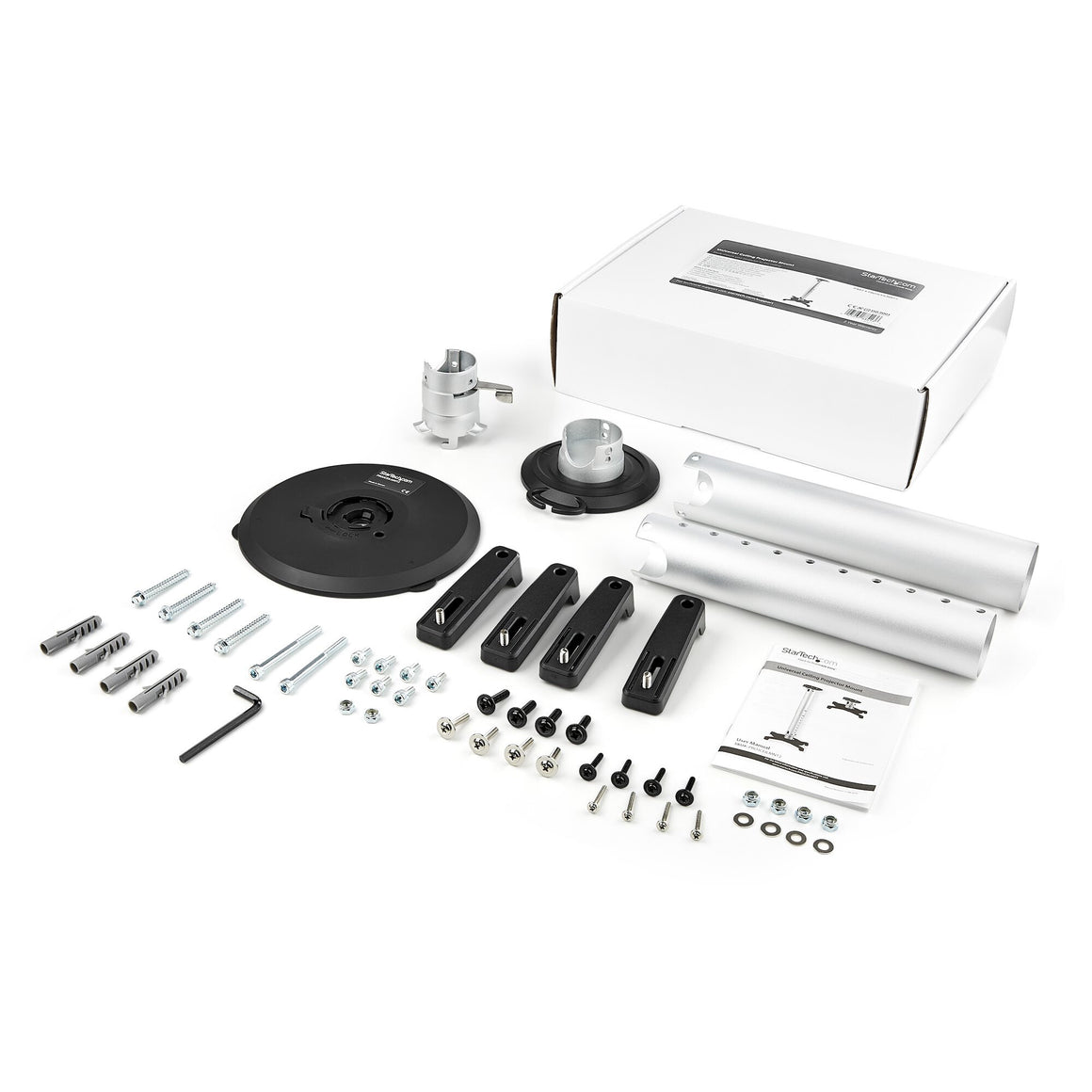

With its robust steel and aluminum construction and solid wall plate, the ceiling mount projector stand supports a weight capacity of 33.3 lb. (15 kg). All hardware required for installation is included.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support.
The StarTech.com Advantage

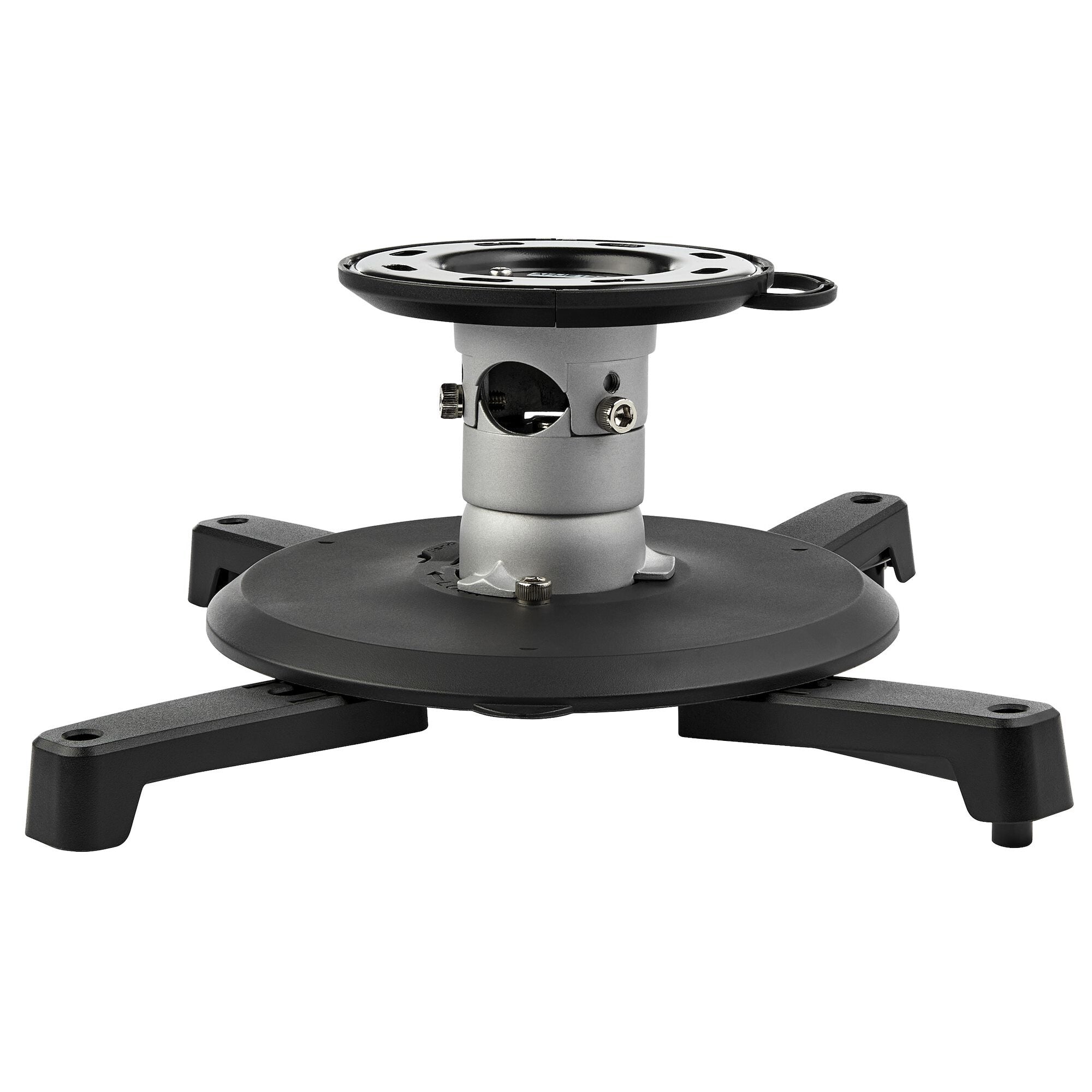

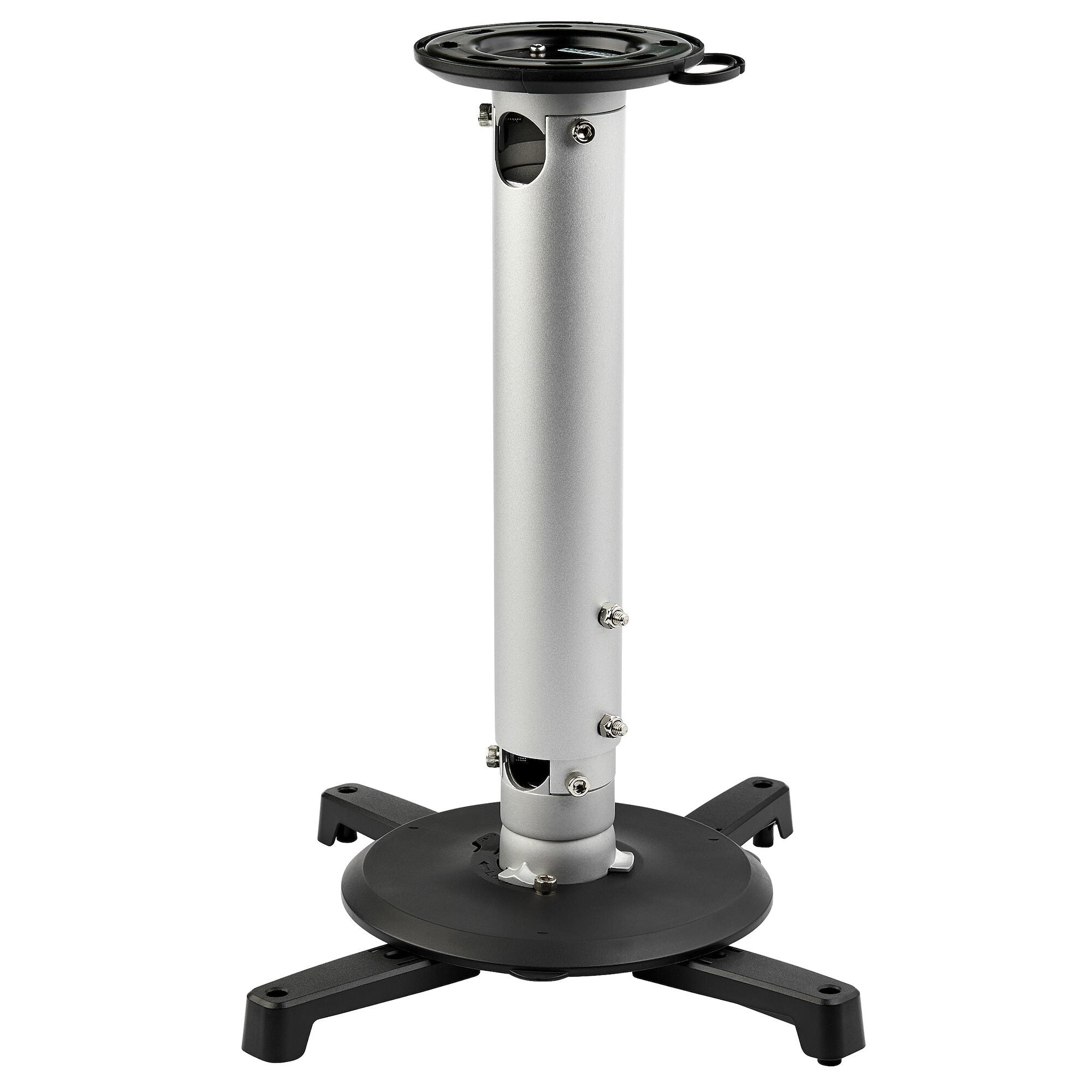

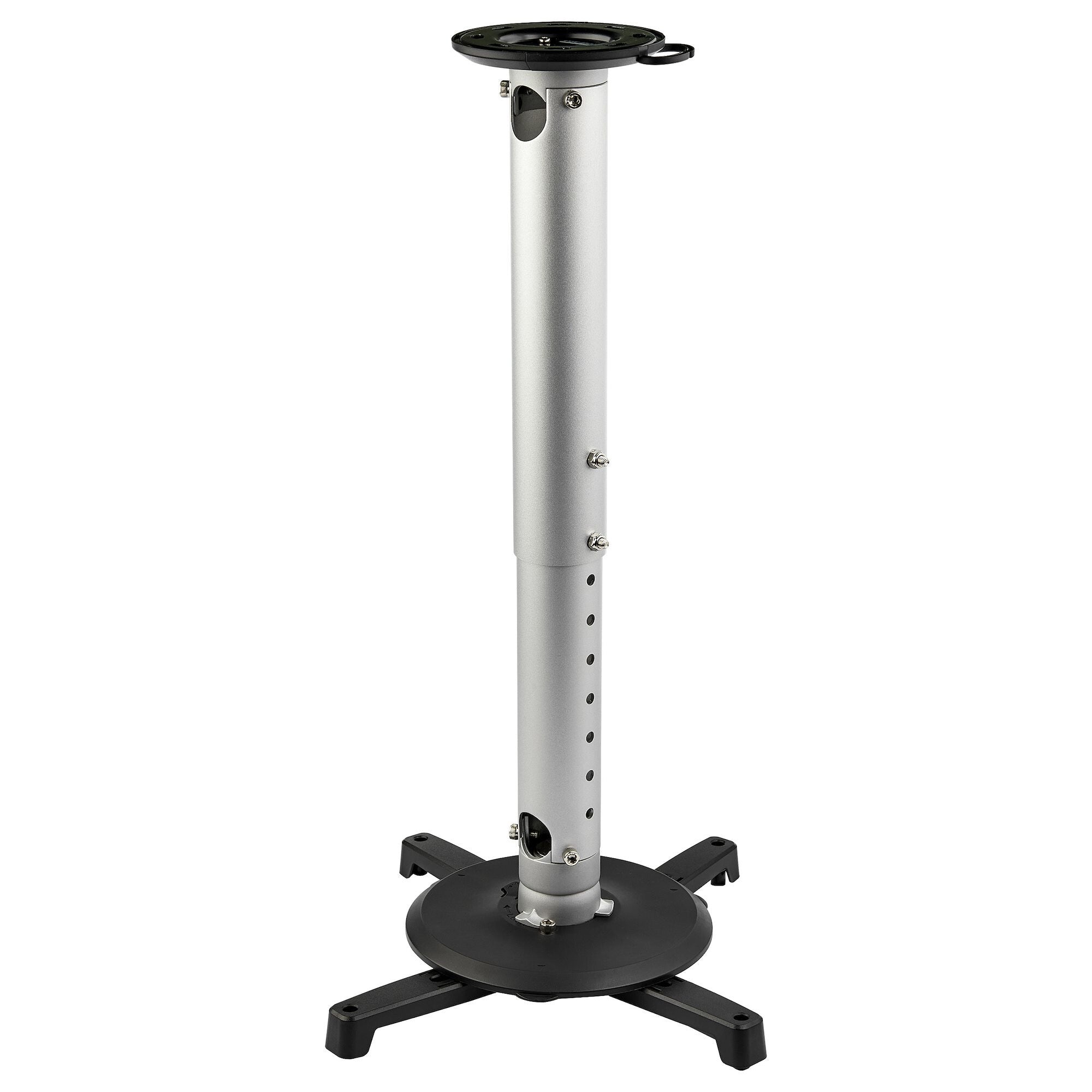

- HEIGHT ADJUSTABLE: Ceiling projector mount can be positioned at 5" from ceiling (low profile) or between 15.8" & 22.7" from ceiling (using extendable telescopic pole); Supports up to 33.3lb (15kg)
- OPTIMUM VIEWING ANGLE: Projector ceiling mount with ball joint design offers 360° rotation & +/- 25° tilt in any direction; Accessible lock switch allows the user to single-handedly secure projector
- THOUGHTFUL DESIGN: Projector plate/bracket has 4 arms with a universal mounting pattern of up to 12.8" (325mm) in dia. for projectors w/ 3 or 4 mounting holes; Heavy duty steel & aluminum construction
| Performance |
|---|
| Certification |
CE, TAA, REACH, RoHS |
| Tilt angle range |
-25 - 25° |
| Swivel angle |
360° |
| Height adjustment range |
127.7 - 705 mm |
| Product colour |
Black, Silver |
| Maximum weight capacity |
15 kg |
| Mounting type |
Ceiling |
| Weight & dimensions |
|---|
| Package weight |
2.3 kg |
| Package height |
97 mm |
| Package depth |
345 mm |
| Package width |
267 mm |
| Weight |
2.2 kg |
| Depth |
352 mm |
| Height |
352 mm |
| Width |
577.7 mm |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Screws included |
Yes |
| Manual |
Yes |
| Logistics data |
|---|
| Master (outer) case height |
415 mm |
| Master (outer) case length |
550 mm |
| Master (outer) case width |
370 mm |
| Products per master (outer) case |
8 pc(s) |
| Harmonized System (HS) code |
83024190 |
| Quantity per pack |
1 pc(s) |
