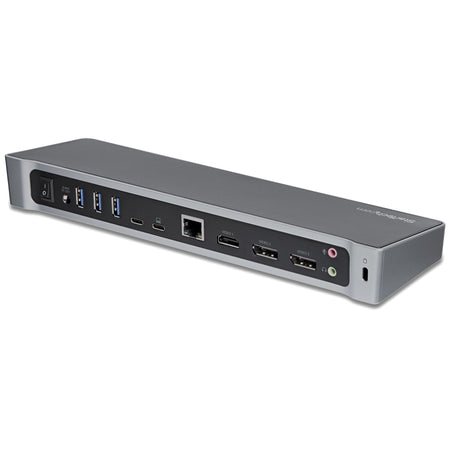

StarTech.com 4K USB-C Dock, Triple UHD 4K Monitor Docking Station, Mac & Windows, USB C to HDMI & DisplayPort, 100W Power Delivery, 5x USB 5Gbps Hub - TAA

SKU: DK30CH2DEPUE
£271.51 inc. VAT
  • FULL-FEATURED DOCK: USB-C Dock with 3 video outputs (2x DP & 1x HDMI), 100W Power Delivery, 4x USB-A & 1x USB-C 5Gbps Hub, Gigabit Ethernet, headset + separate speaker/mic audio ports, K-Slot & 1m/3.3ft USB-C cable; Includes DisplayLink Update Utility
  • TRIPLE DISPLAY ON MACBOOK AIR: Enable three external displays on Apple MacBook Air/Pro (base M-Series) laptops that natively only support one; Dual or Triple video connectivity w/ DisplayPort or HDMI ports; Driver installation required on Windows/macOS
  • WORKS WITH ANY LAPTOP: Simplify your deployment with a USB-IF, VESA & DisplayLink certified docking station that offers optimal performance and universal compatibility with any laptop (Windows, macOS and Ubuntu) or Chromebook (ChromeOS)
  • UNIVERSAL USB-C & USB-A FUNCTIONALITY: Also connects to USB-A laptops with a USB-C to A cable adapter (USB315AC1M, sold separately); Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported
  • IT-PRO ADVANTAGES: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 2x 4K 60Hz DP + HDMI

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

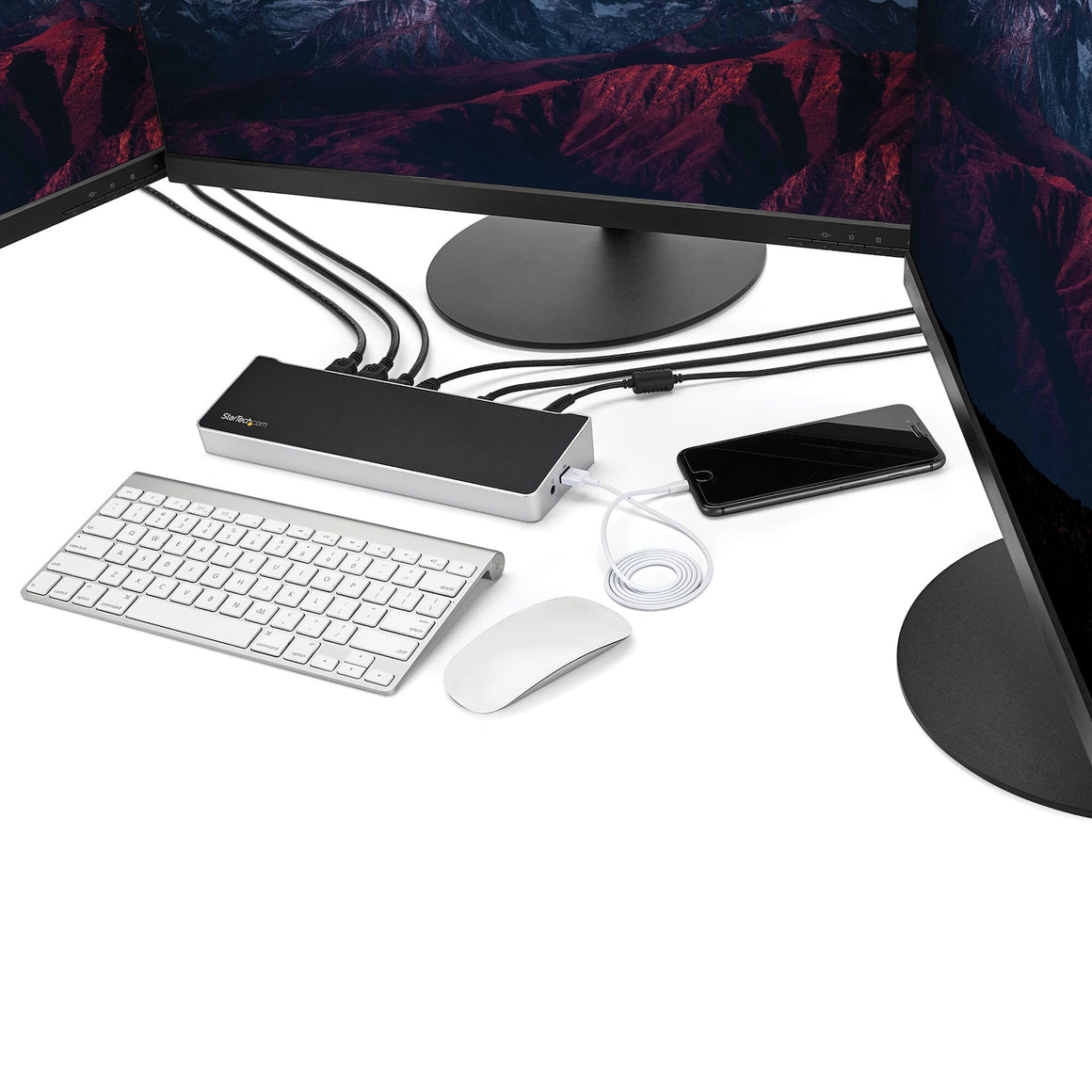

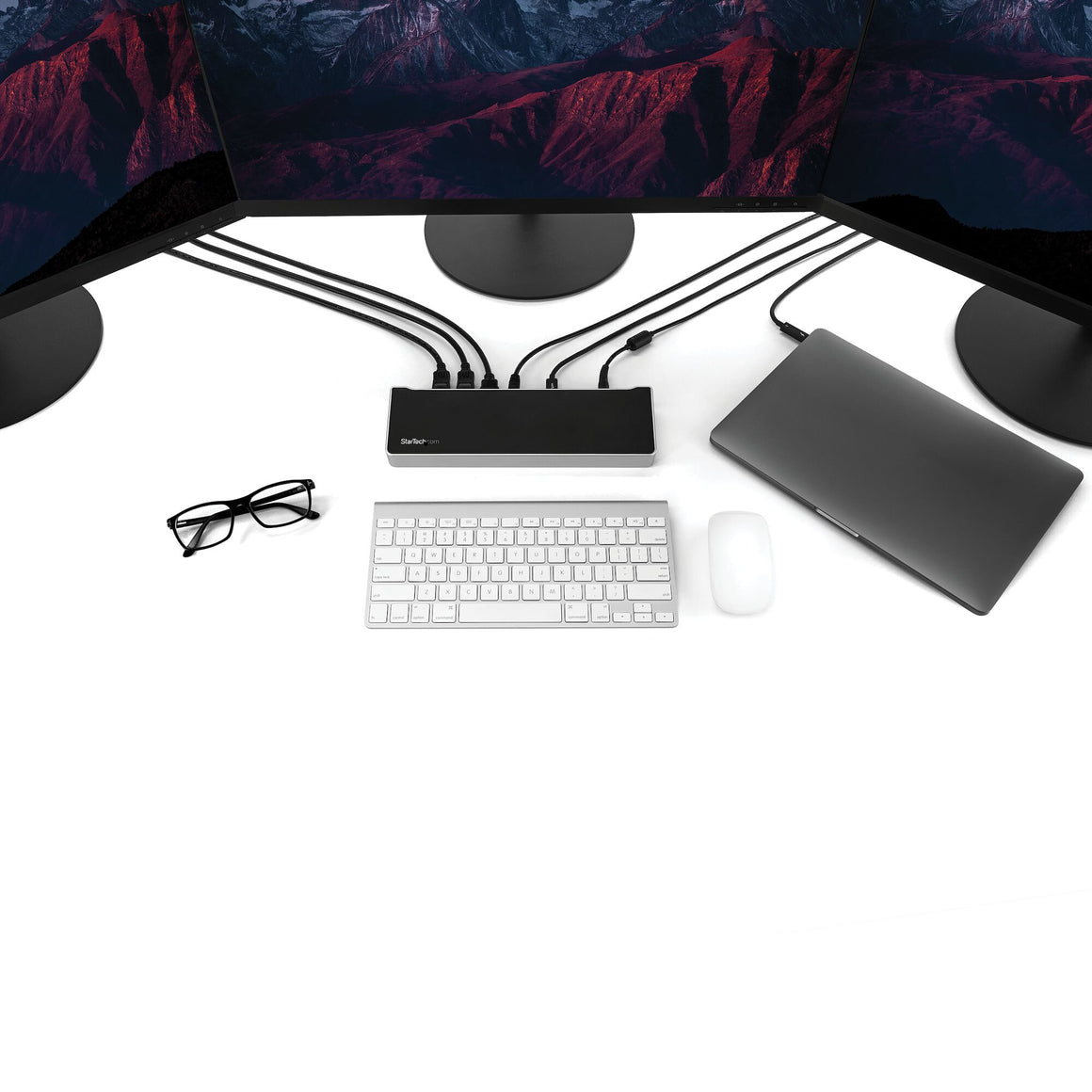

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

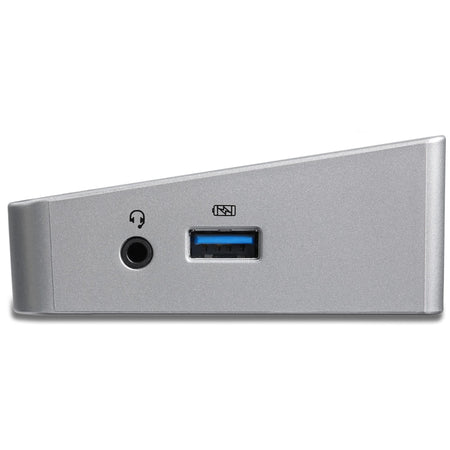

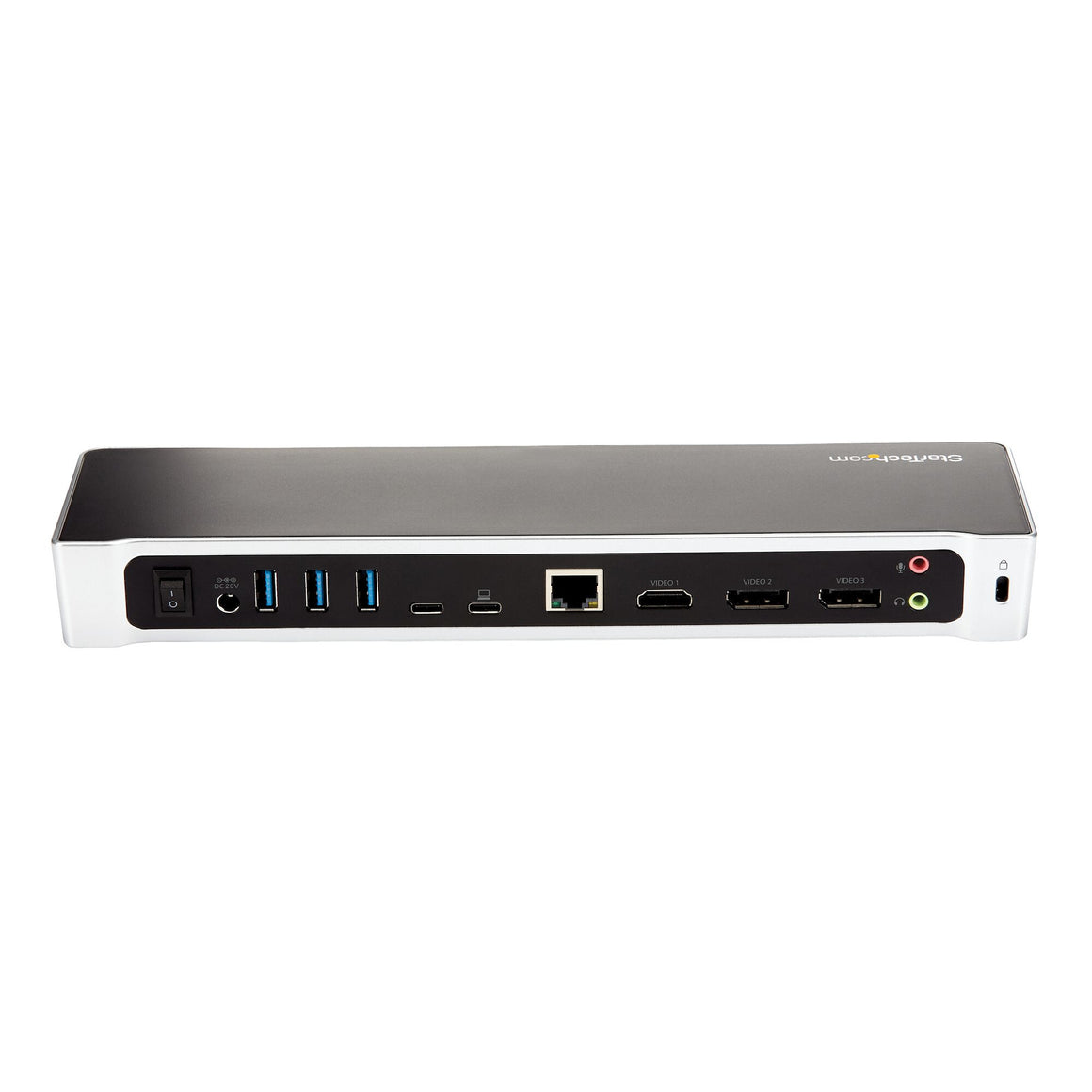

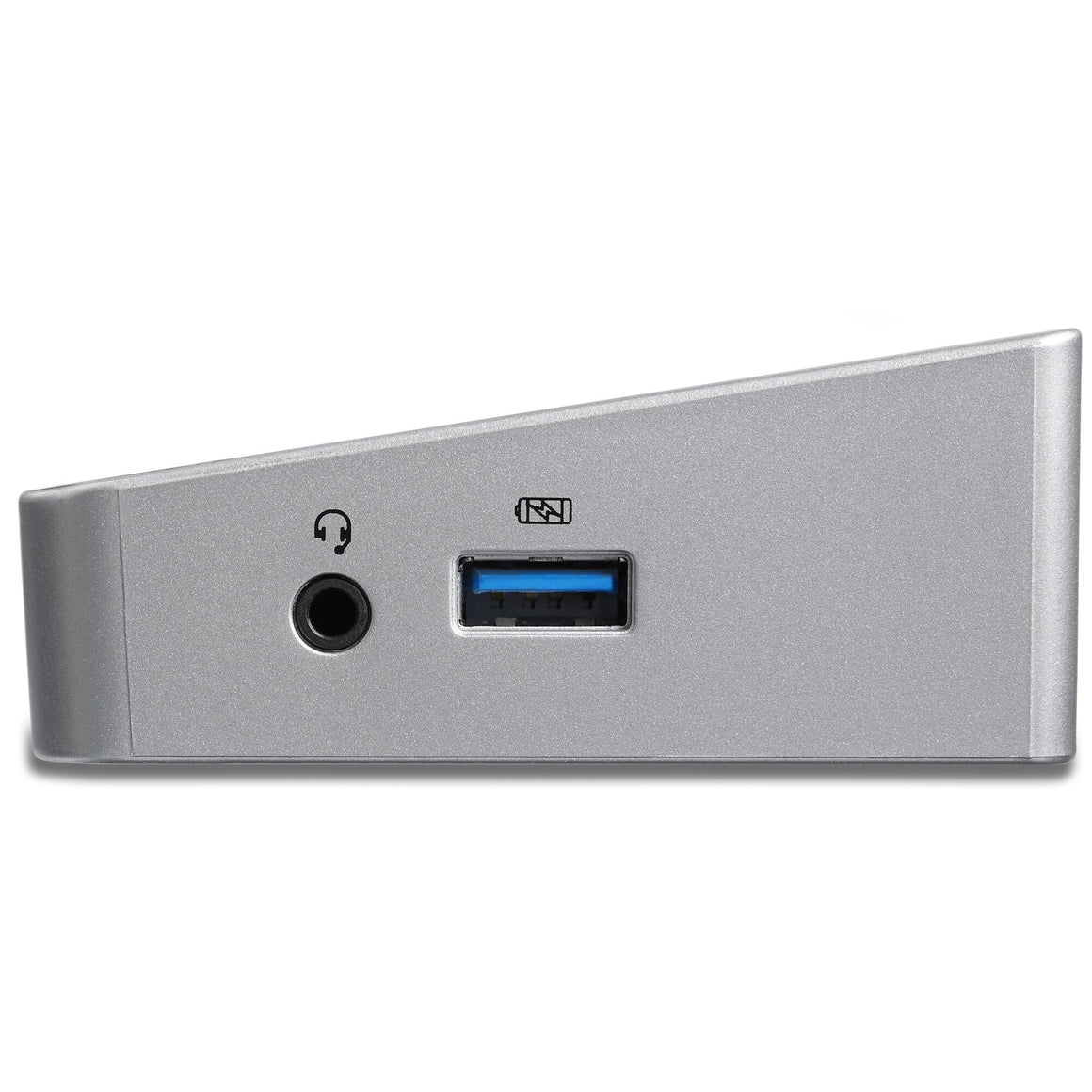

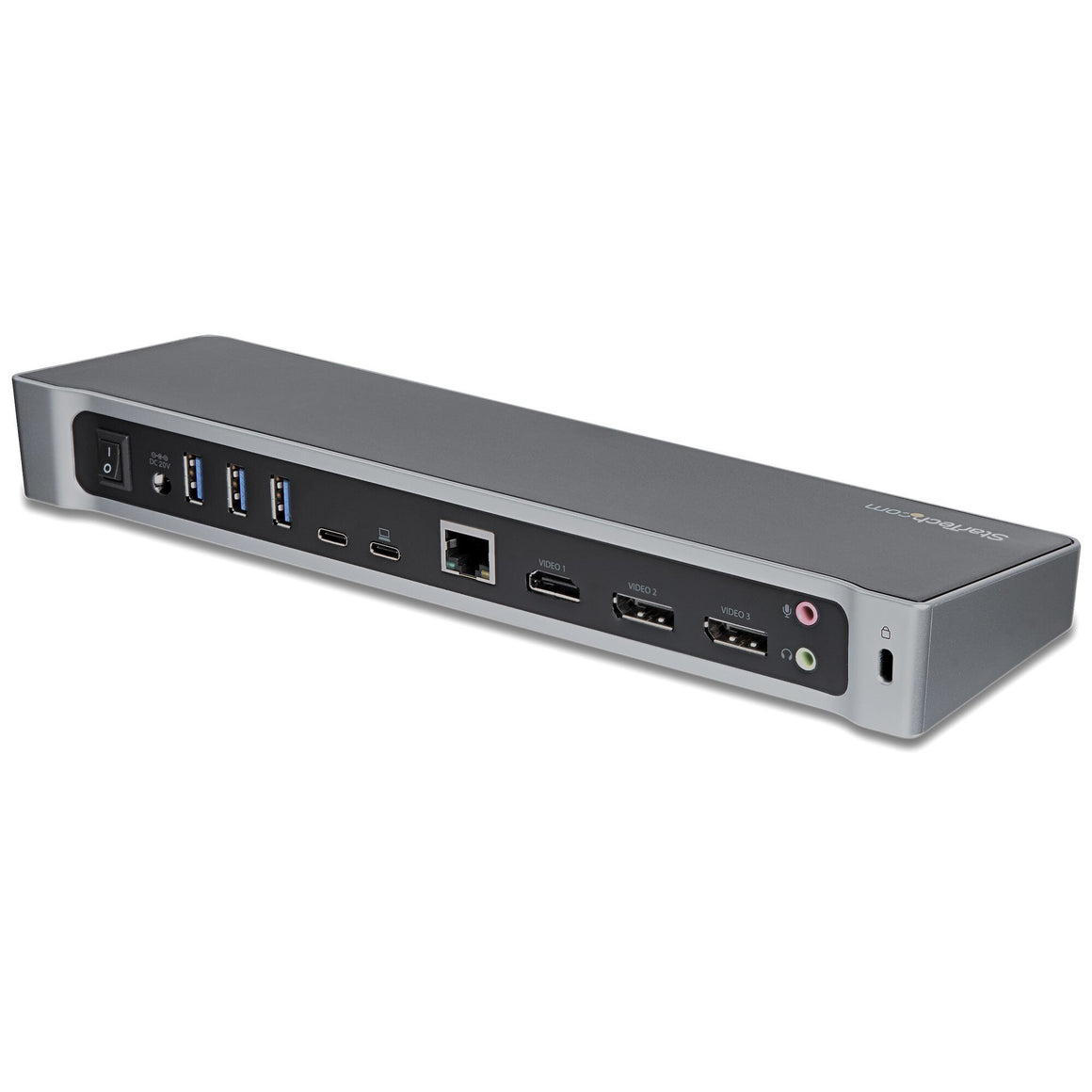

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

•

Advanced Windows Layout Utility : To setup and save custom windows layouts.

•

Mac Address Pass-Through Utility : To improve network security.

•

USB Event Monitoring Utility : To track and log connected USB devices

•

Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
DC-in jack Yes
Headphone connectivity 3.5 mm
Headphone outputs 2
Combo headphone/mic port Yes
Microphone in Yes
DisplayPorts quantity 2
HDMI ports quantity 1
USB Power Delivery up to 100 W
USB Power Delivery (USB PD) Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
Host interface USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Connectivity technology Wired
Network
Auto MDI/MDI-X Yes
Full duplex Yes
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports 1
Ethernet LAN Yes
Performance
Certification CE, FCC, TAA, REACH
Rubber feet Yes
UASP support Yes
Housing material Plastic
On/off switch Yes
Cable lock slot Yes
Maximum digital resolution 5120 x 2880 pixels
Data transfer rate 5 Gbit/s
Card reader integrated No
Product colour Black, Silver
Power
Compatible power plug types EU, UK
Power plug type Type N
Output voltage 20 V
Output current 7.5 A
Input current 2.5 A
Power supply 100 W
AC input voltage 100 - 240 V
Software
Other operating systems supported ChromeOS
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
Mac compatibility Yes
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Operational conditions
Operating relative humidity (H-H) 0 - 70%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 382 g
Height 34 mm
Depth 270 mm
Width 82 mm
Packaging data
Package weight 1.7 kg
Package height 80 mm
Package depth 320 mm
Package width 160 mm

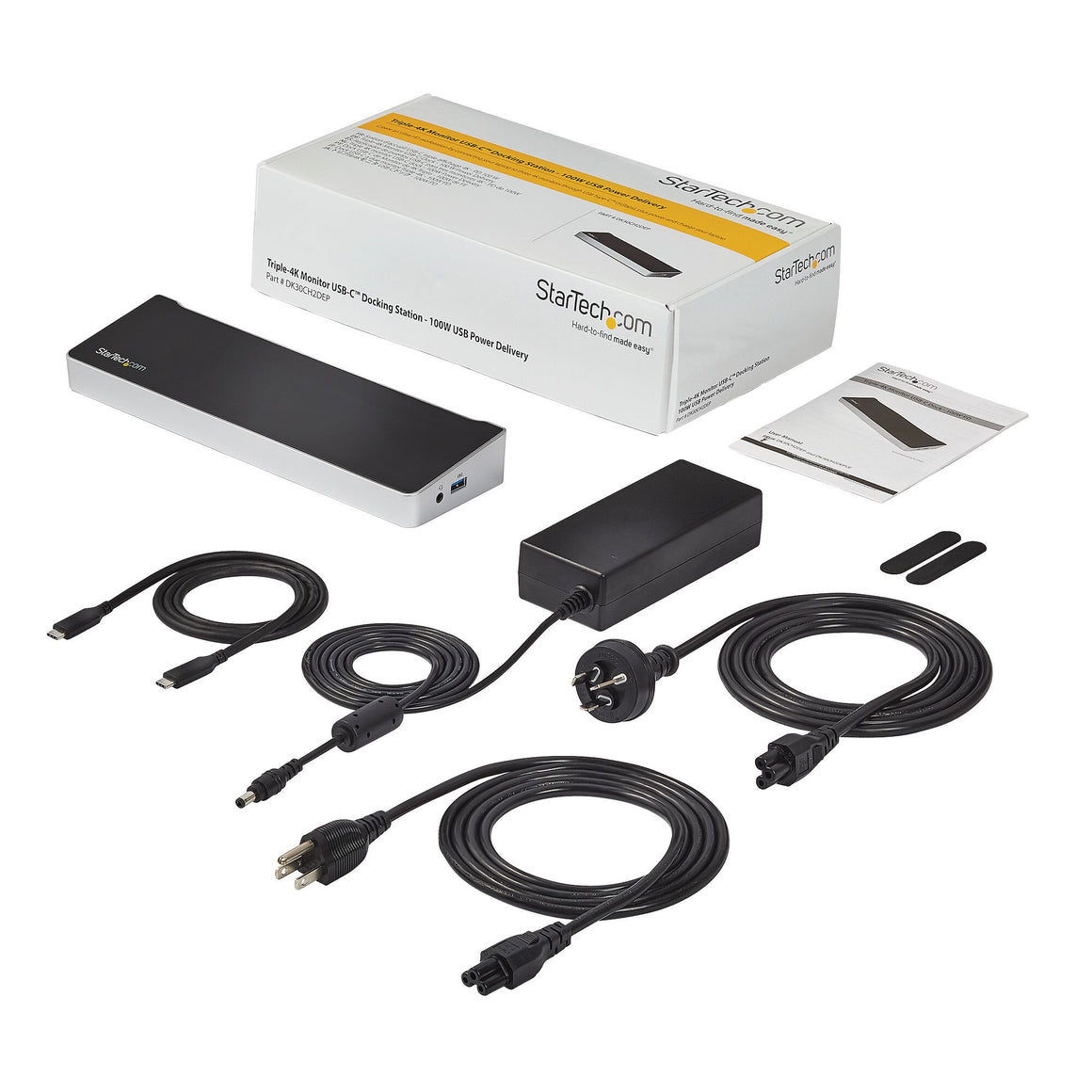

Packaging content
Cables included USB Type-C
AC adapter included Yes
Manual Yes
Technical details
Compliance certificates RoHS
Logistics data
Products per master (outer) case 8 pc(s)
Master (outer) case width 365 mm
Master (outer) case length 370 mm
Master (outer) case height 370 mm
Harmonized System (HS) code 84733020
Other features
Chipset DisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176
