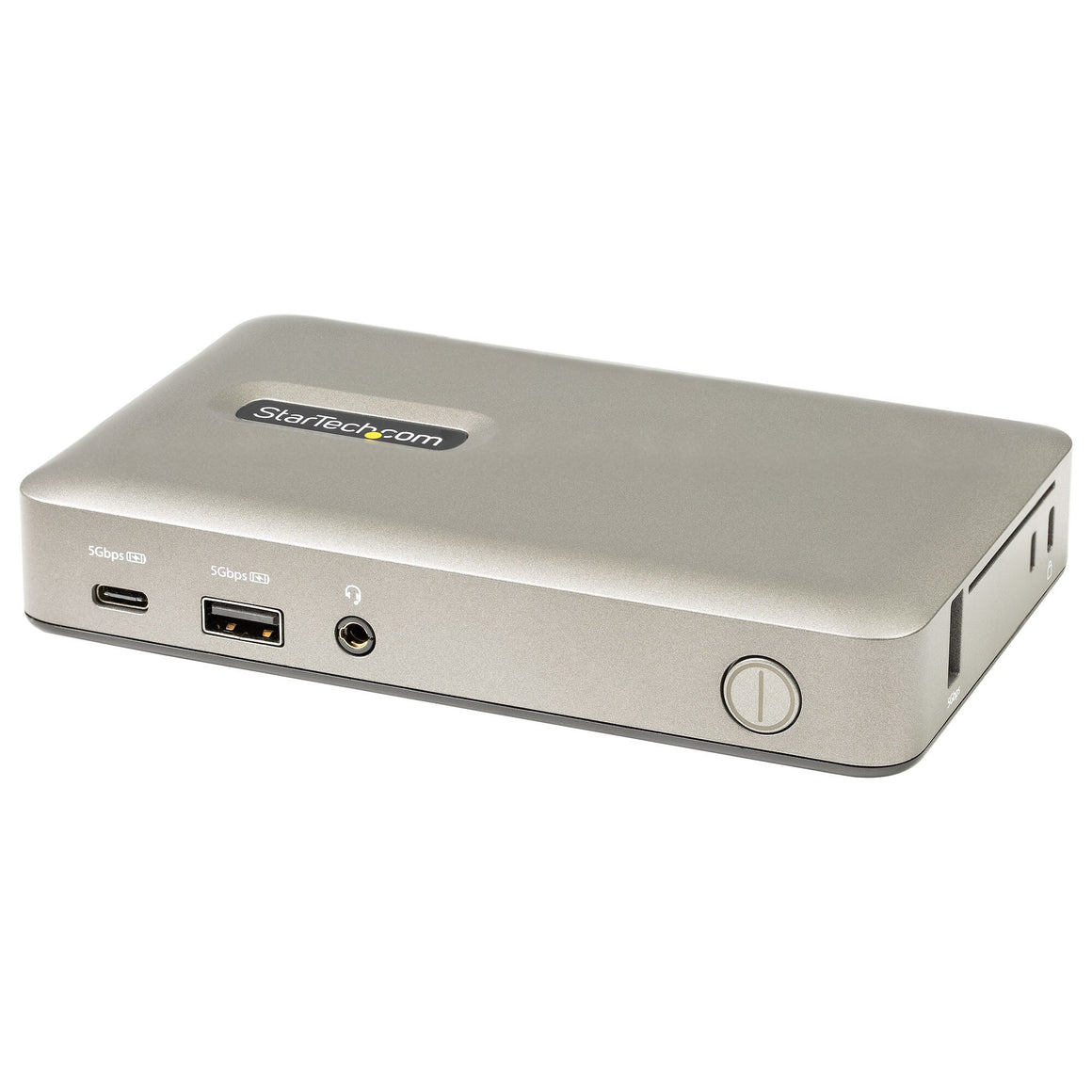

Laptop Docking Station | Mac, Windows® & Chrome OS™ | 65W Power Delivery | DisplayPort (4K 30Hz) or VGA (1080p 60Hz)
This USB-C docking station lets you use a single USB Type-C port on your laptop or tablet to add essential connectivity while charging your device via 65W USB Power Delivery 3.0. The dock enables you to connect your device to a single monitor of your choice between DisplayPort (4K 30Hz) or VGA (1080p 60Hz) video output. For peripheral connectivity the dock features three USB 3.1 Gen 1 (5Gbps) Type-A ports including a BC 1.2 port to power and charge your USB devices, a USB 3.1 Gen (5Gbps) Type-C port, a 3.5mm headset audio port, and Gigabit Ethernet.
Versatile Display Connectivity

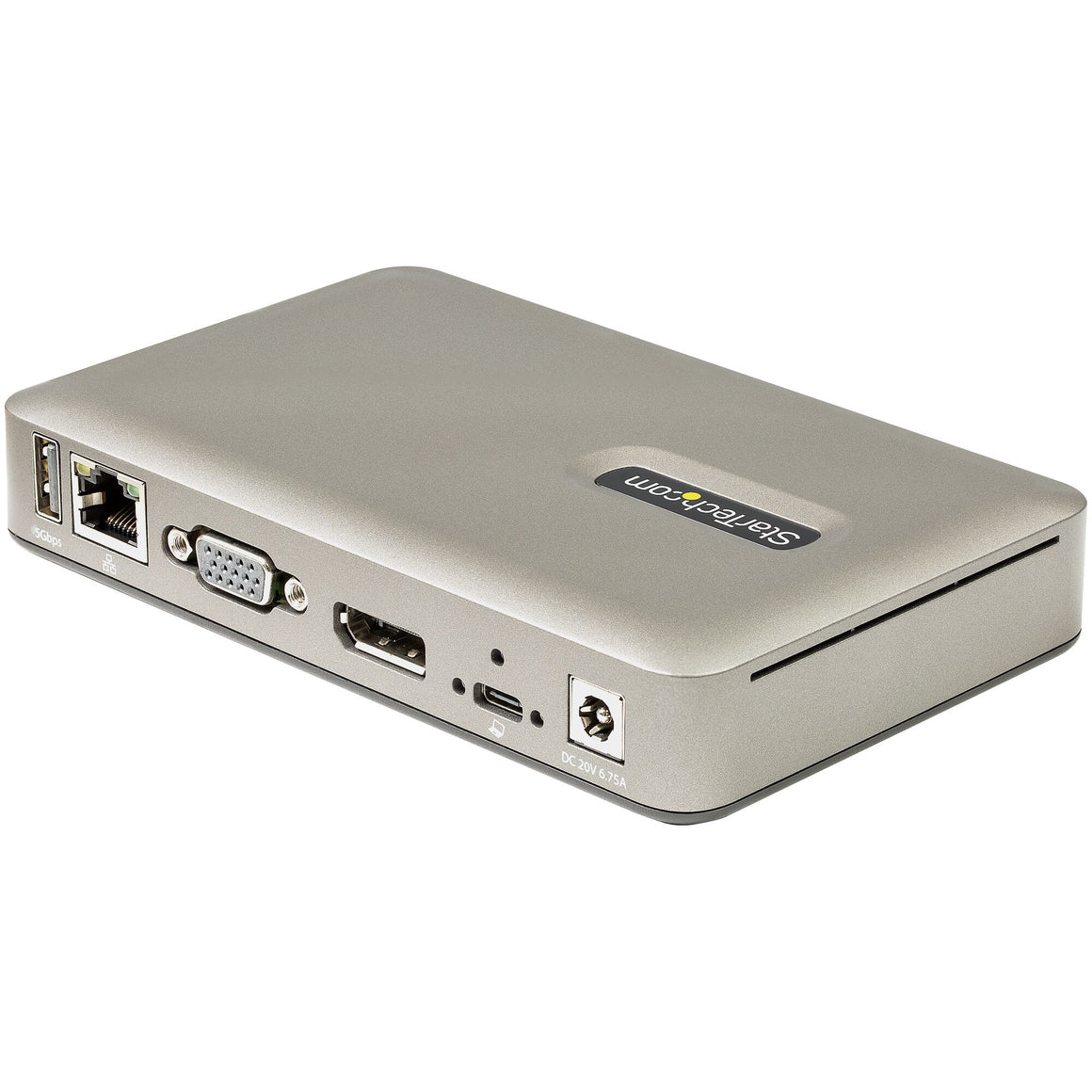

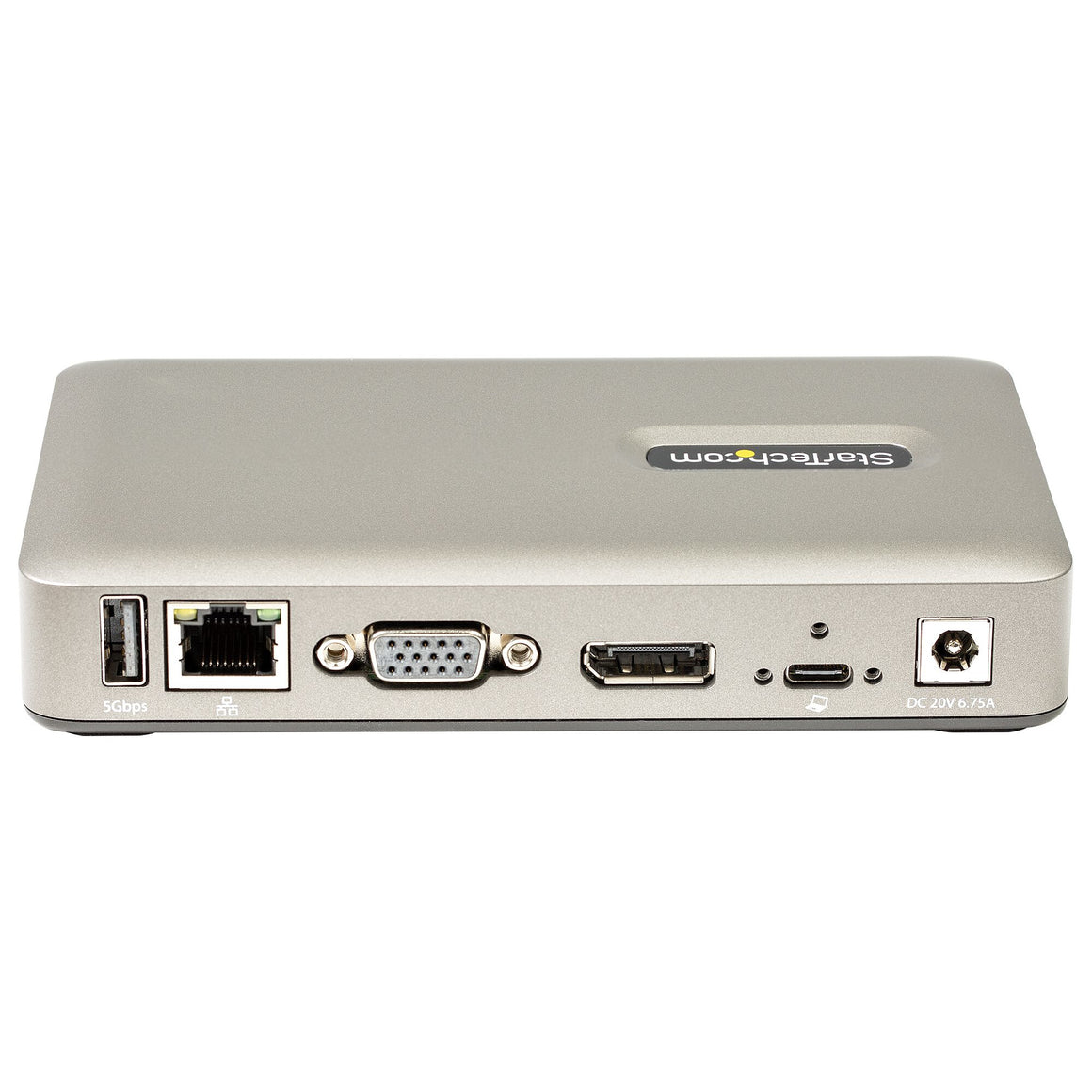

The docking station features single video output with DisplayPort or VGA connectivity so you connect to different monitor depending upon your workstation -- ideal for home office IT deployment, where different monitors may be used by different users. The DisplayPort connection offers resolutions up to 4096x2160 (4K) 30Hz, while the VGA connection offers resolutions up to 1920x1200/1080p 60Hz.
Essential Port Connectivity
The docking station utilizes the versatile USB-C port on your computer port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:

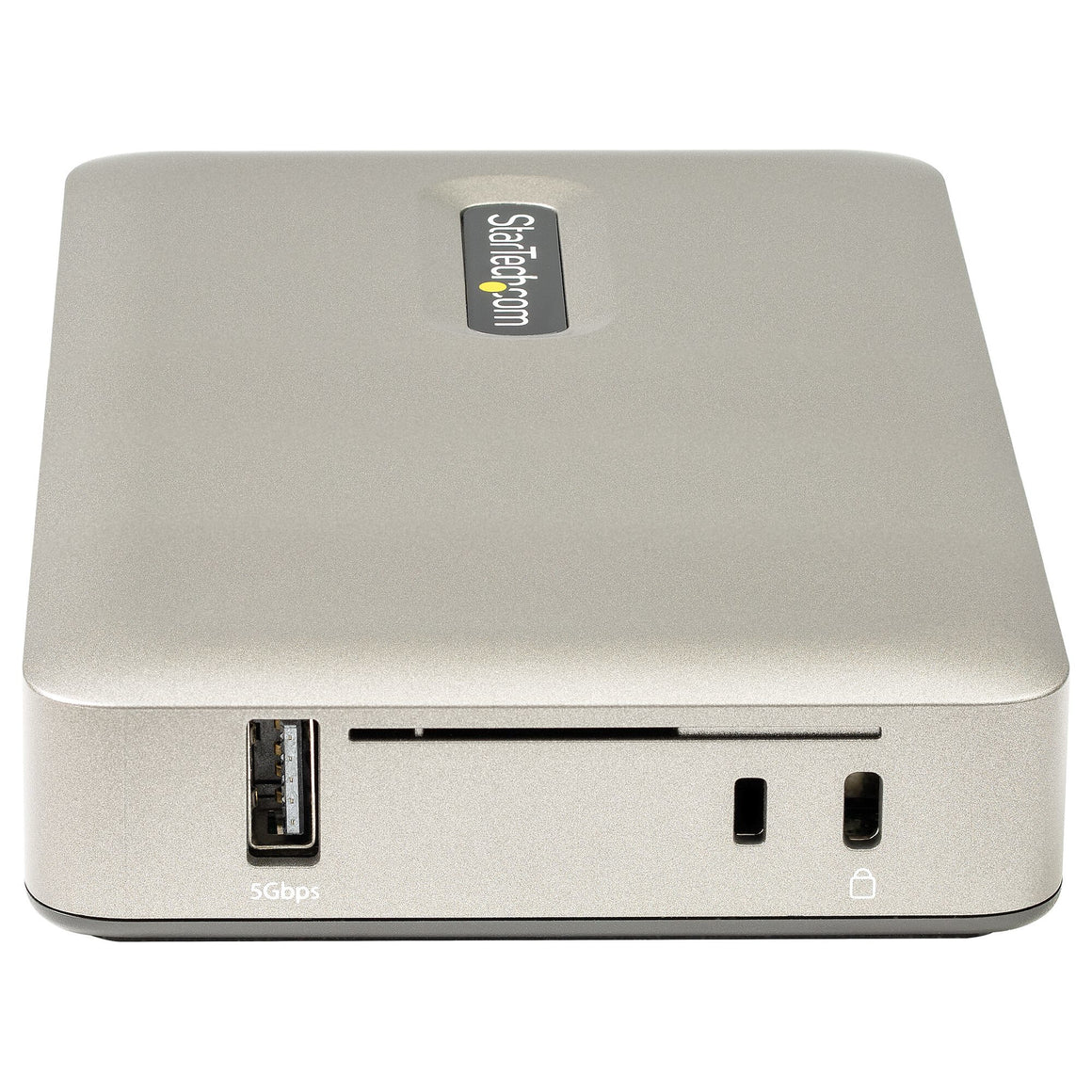

• 3x USB 3.1 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices, including a single port that supports BC 1.2 with 7.5W (1.5A) for charging tablets & smartphones, and a physically isolated HID USB port (side) that prevents electromagnetic interference (EMI) on your wireless keyboard/mouse adapters.

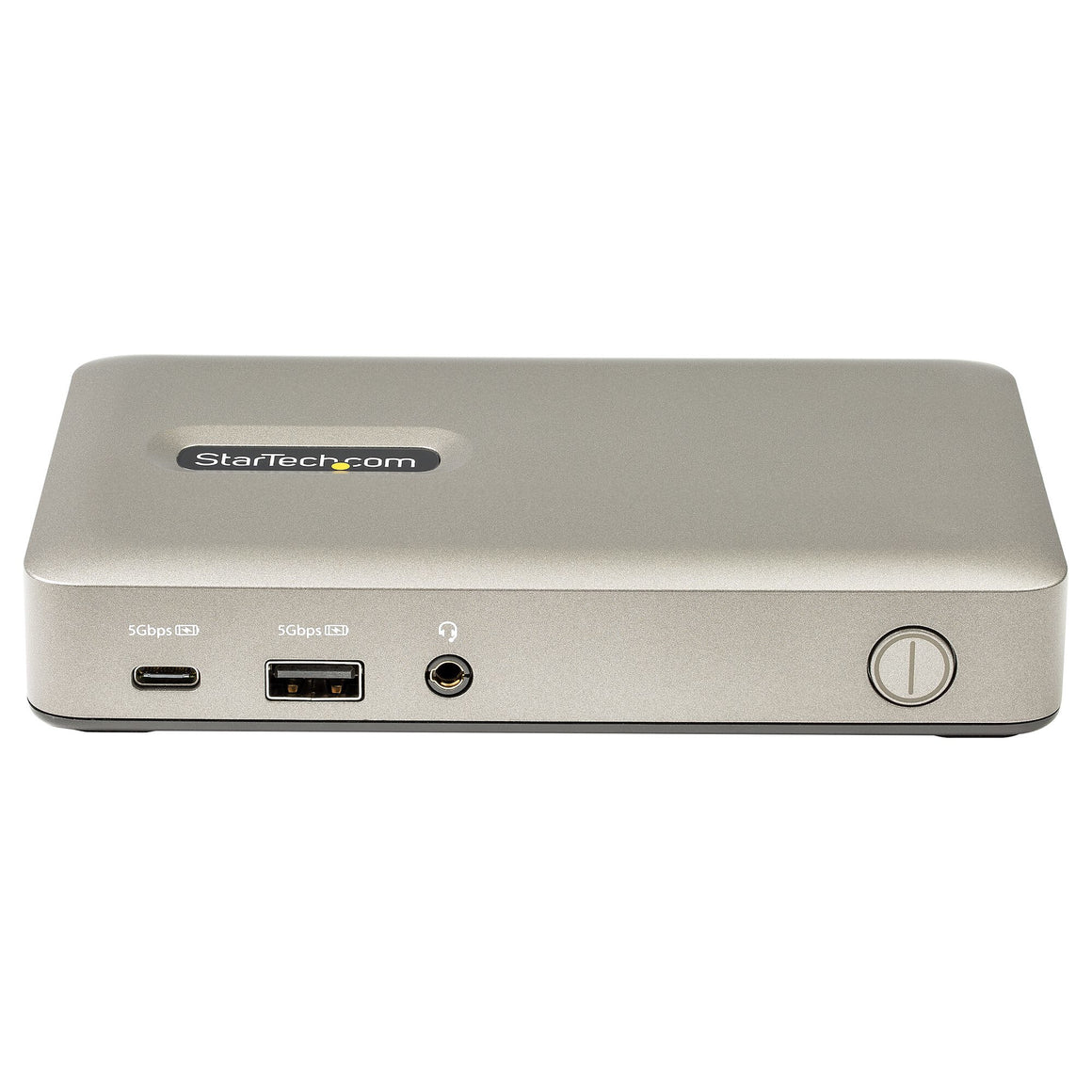

• 1x USB 3.1 Gen 1 (5Gbps) Type-C port to connect USB peripheral devices.
• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).
• 1x 3.5mm 4-position CTIA/OMTP TRRS Audio Jack to connect a 3.5mm headset.
65W USB Power Delivery
The docking station includes a 119.9W power adapter and supports 65W USB power delivery. This enables the dock to charge your connected laptop or tablet. Plus, the added power enables one of the USB-A ports to support BC 1.2, for charging tablets and smartphones.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
DKM30CHDPDUE is backed by a 3-year StarTech.com warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| DisplayPorts quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| UASP support |
Yes |
| LED indicators |
Power |
| Housing material |
Plastic |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Maximum refresh rate |
60 Hz |
| Maximum analog resolution |
1920 x 1200 pixels |
| Maximum digital resolution |
4096 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
5 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Grey |
| Power |
|---|
| Compatible power plug types |
EU, UK |
| Power plug type |
Type M |
| Power consumption (typical) |
119.925 W |
| Output voltage |
19.5 V |
| Output current |
6.15 A |
| Input current |
2.9 A |
| AC input voltage |
100 - 240 V |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android 10.0, Android 11.0, Android 9.0, iPadOS |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 85% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Weight |
313 g |
| Height |
27 mm |
| Depth |
91 mm |
| Width |
145 mm |
| Packaging data |
|---|
| Package weight |
1.3 kg |
| Package height |
93 mm |
| Package depth |
168 mm |
| Package width |
247 mm |

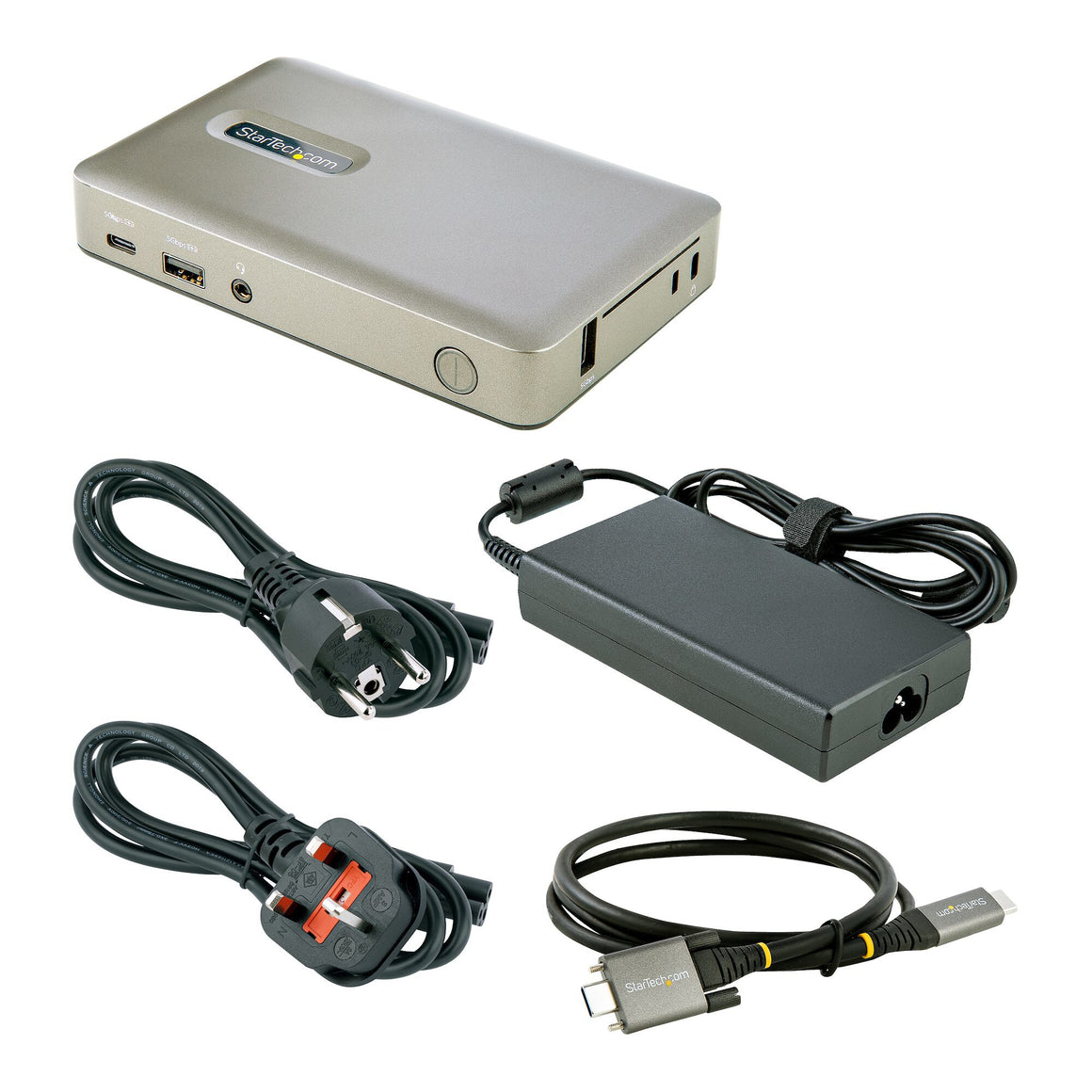

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB |
| AC adapter included |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
370 mm |
| Master (outer) case length |
272 mm |
| Master (outer) case height |
500 mm |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
Genesys Logic - GL3523-S, Cmedia - CM6533, Realtek - RTL8153B, Etron - EJ279S, Parade - PS8338B, ITE - IT6516BFN |
