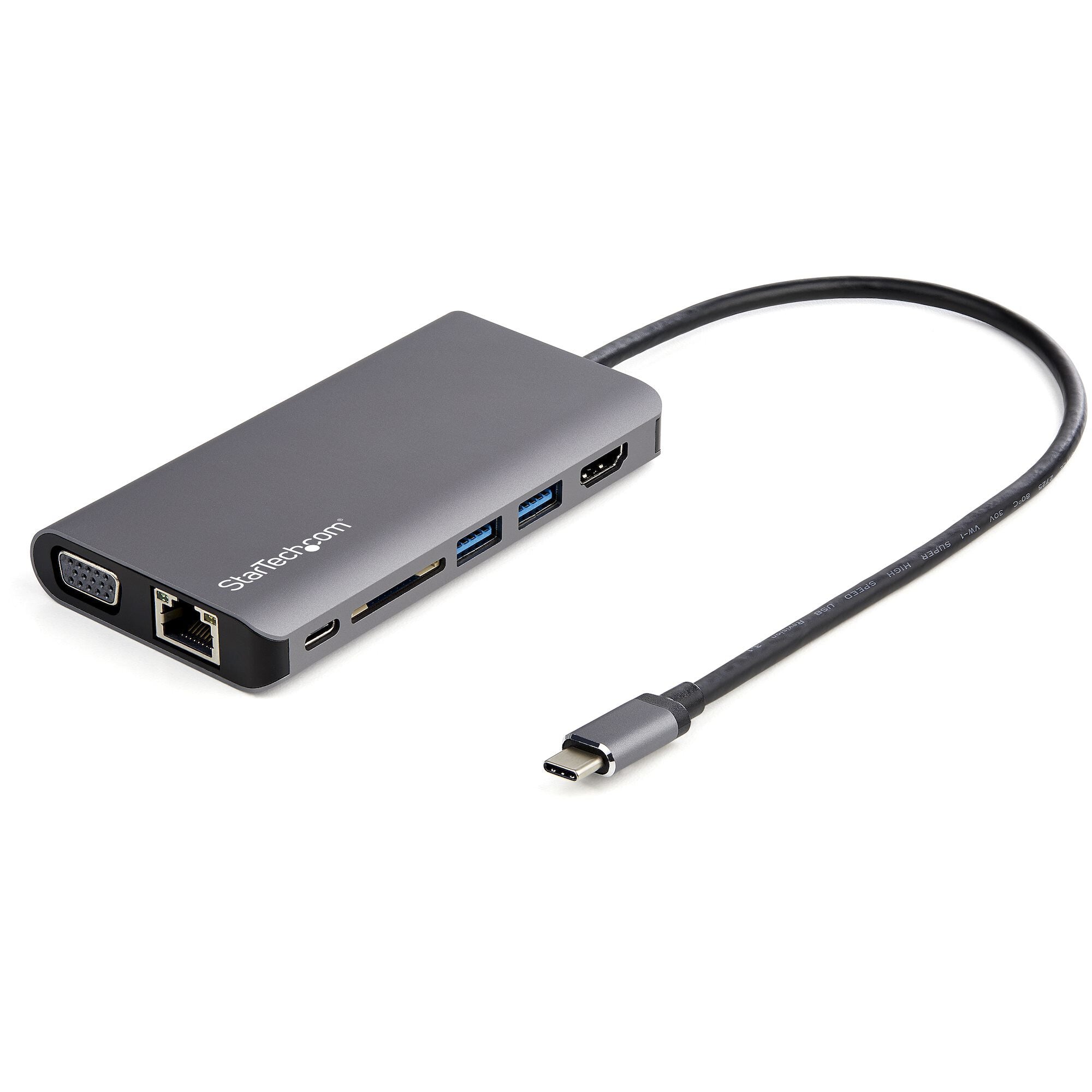

USB-C Mini Dock | 100W PD Passthrough | USB-C & A Ports | SD Card Reader | Mac, Windows® & ChromeOS | Android OS | GbE

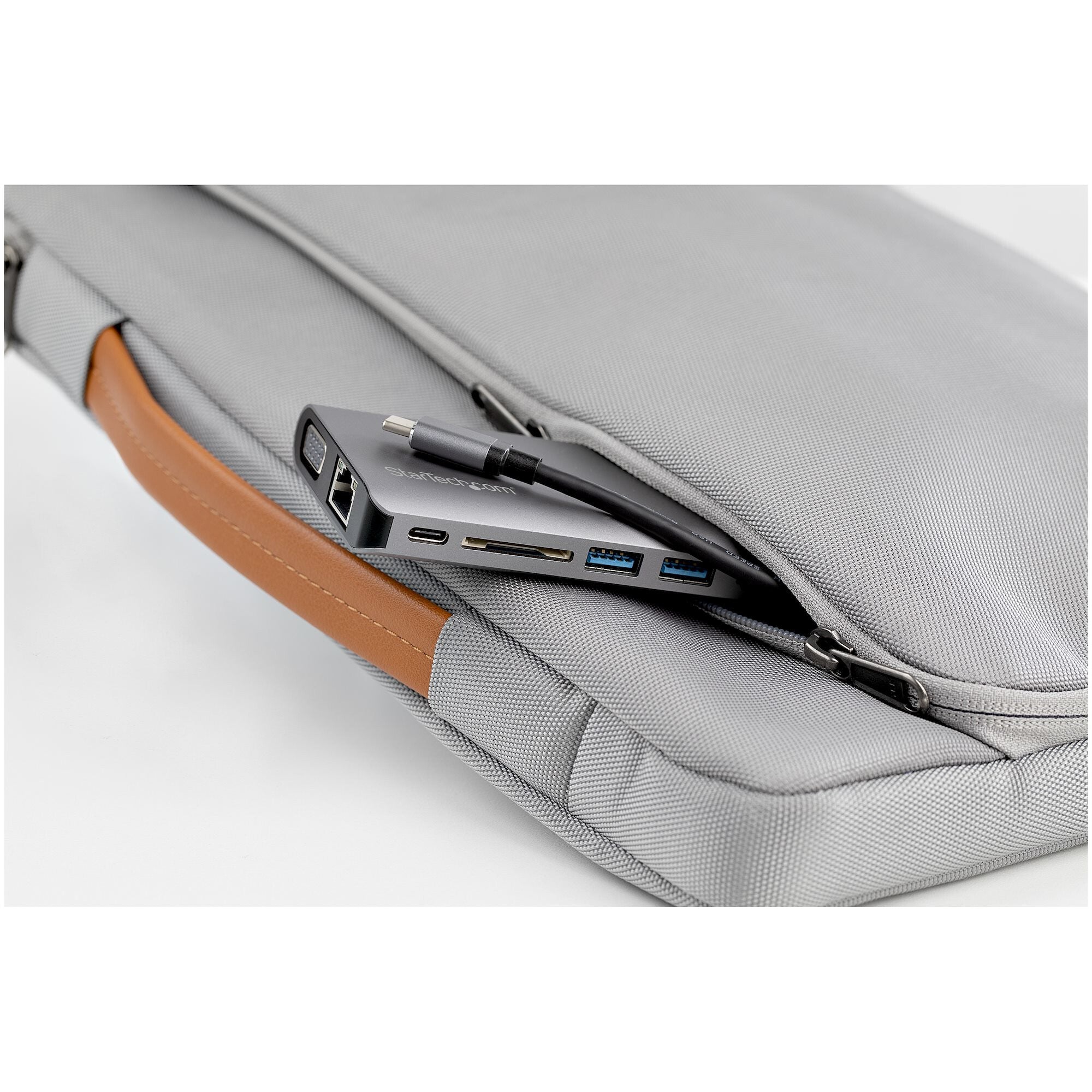

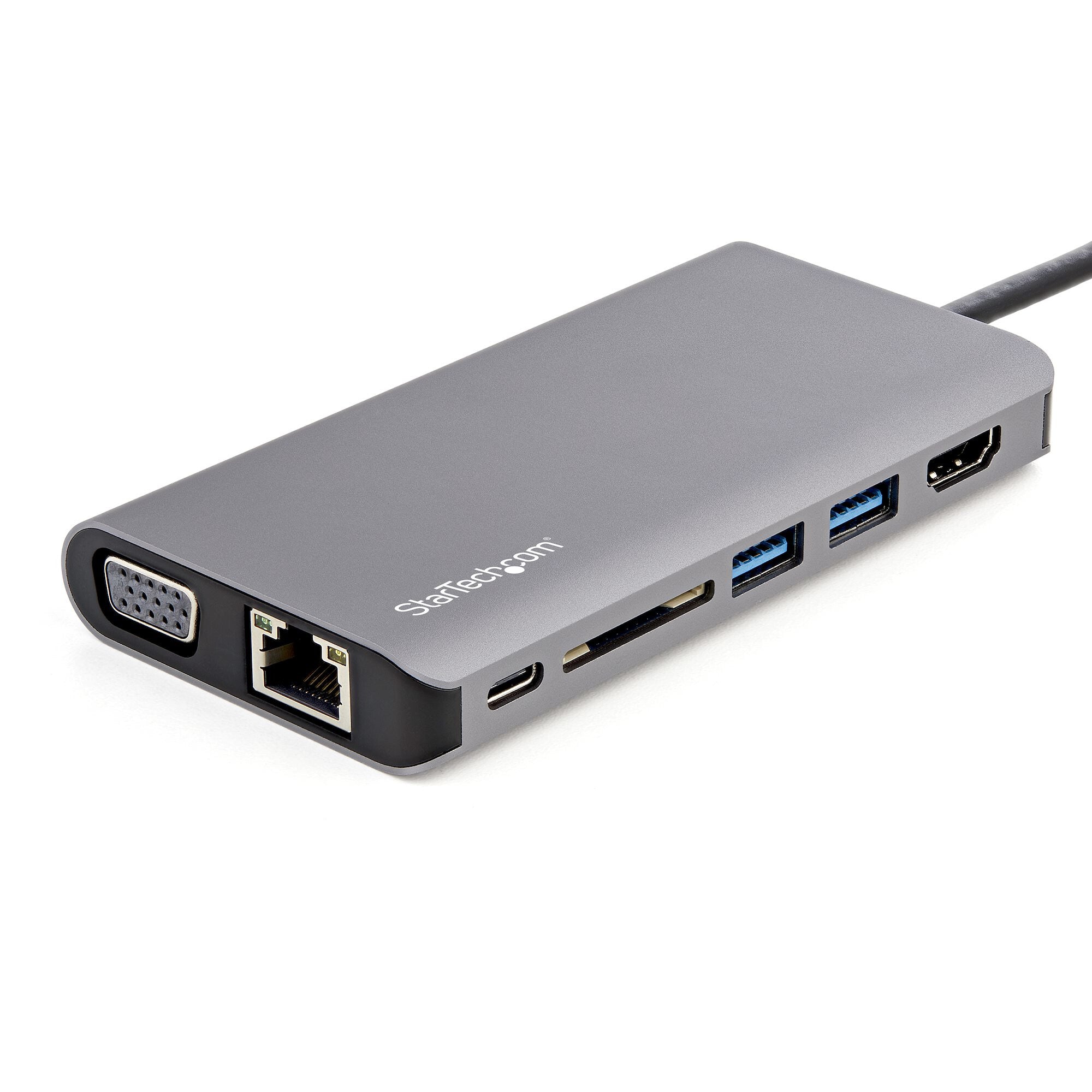

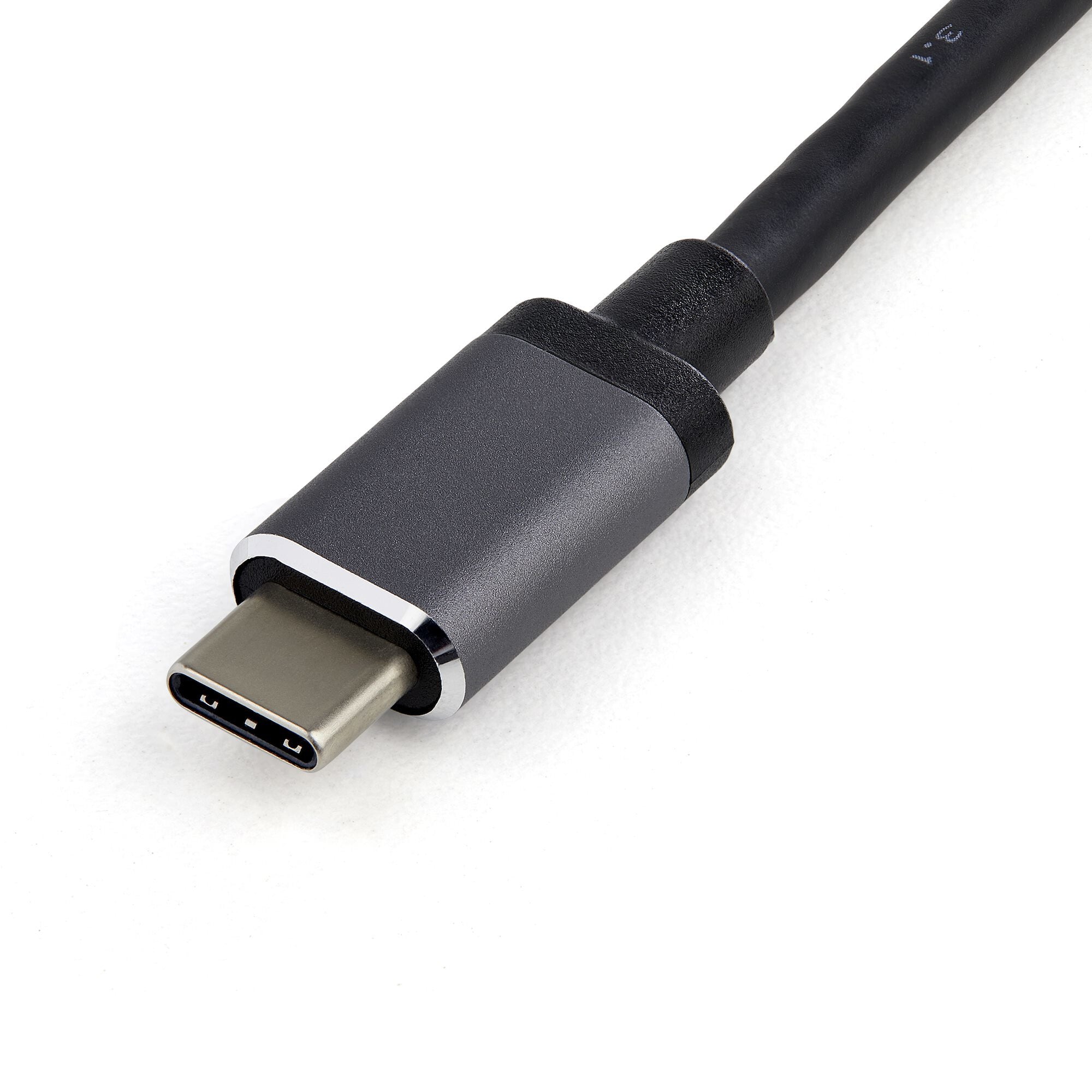

This USB-C multiport adapter turns your MacBook Pro, USB-C™ laptop, Chromebook, or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm, Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.
To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.

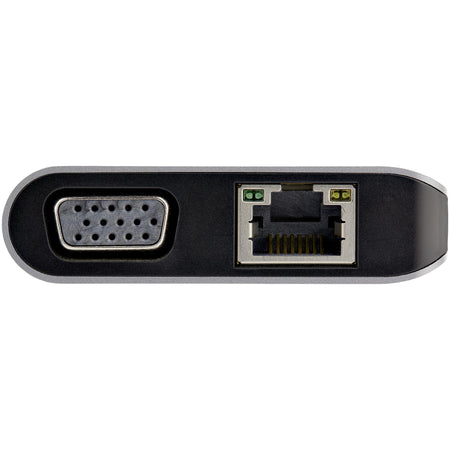

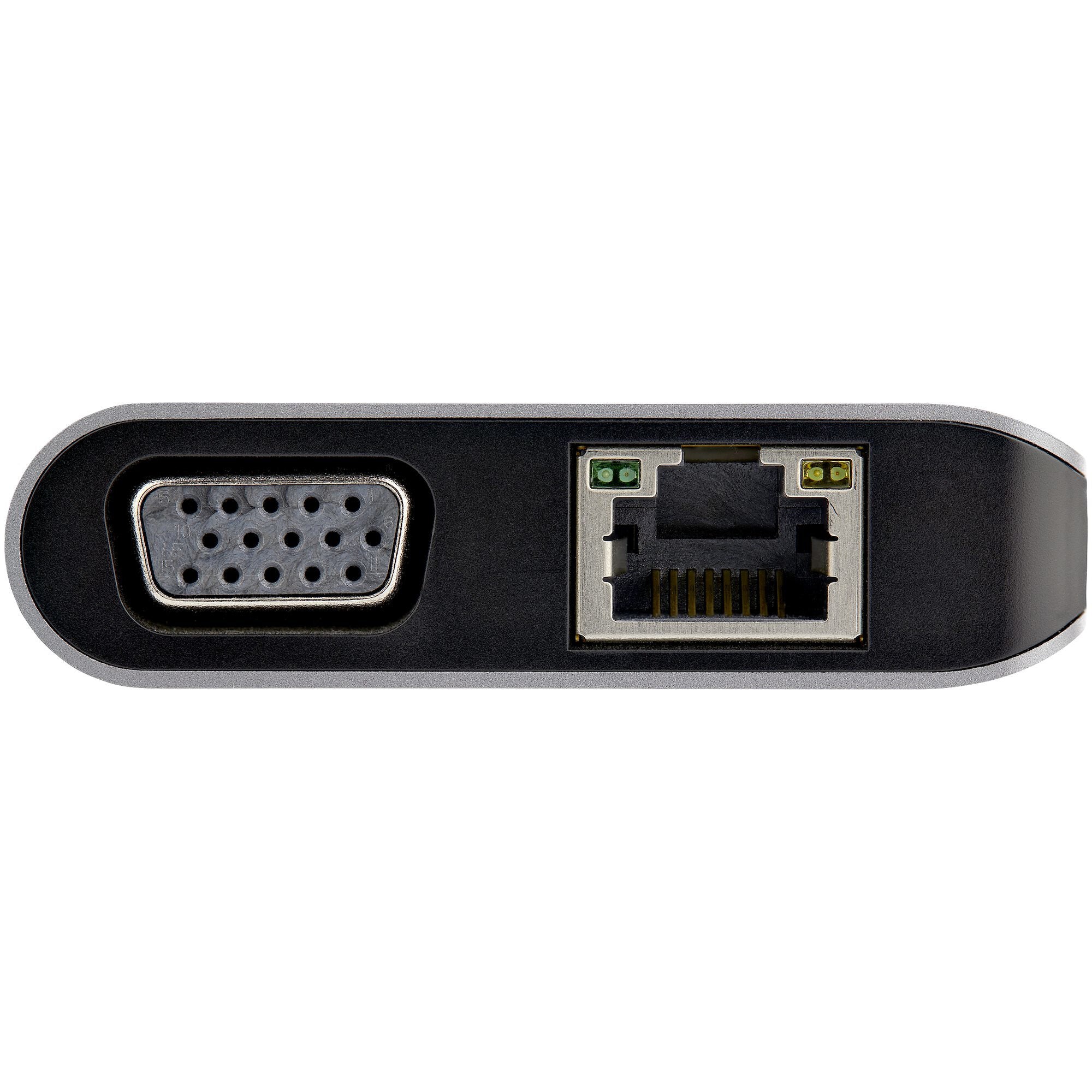

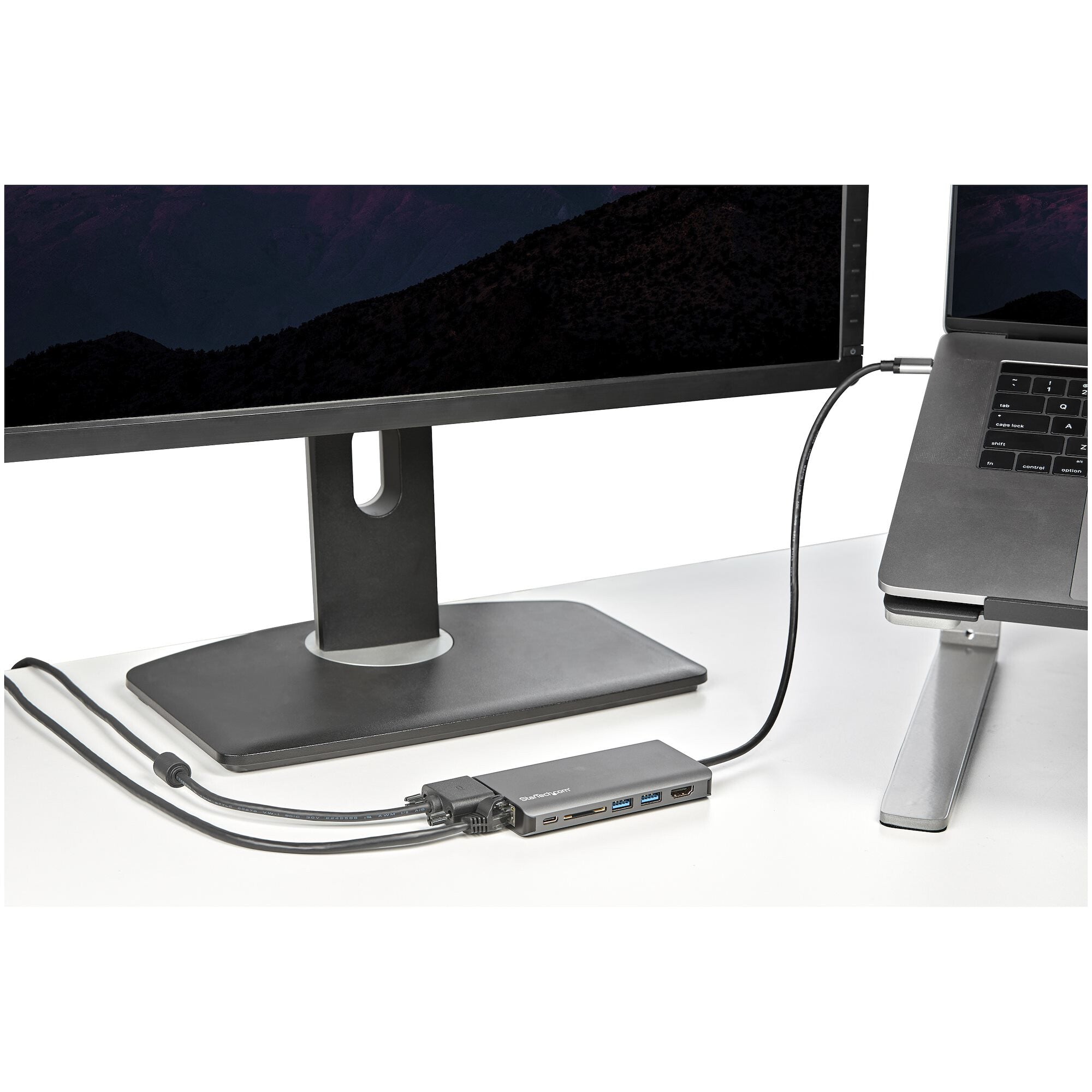

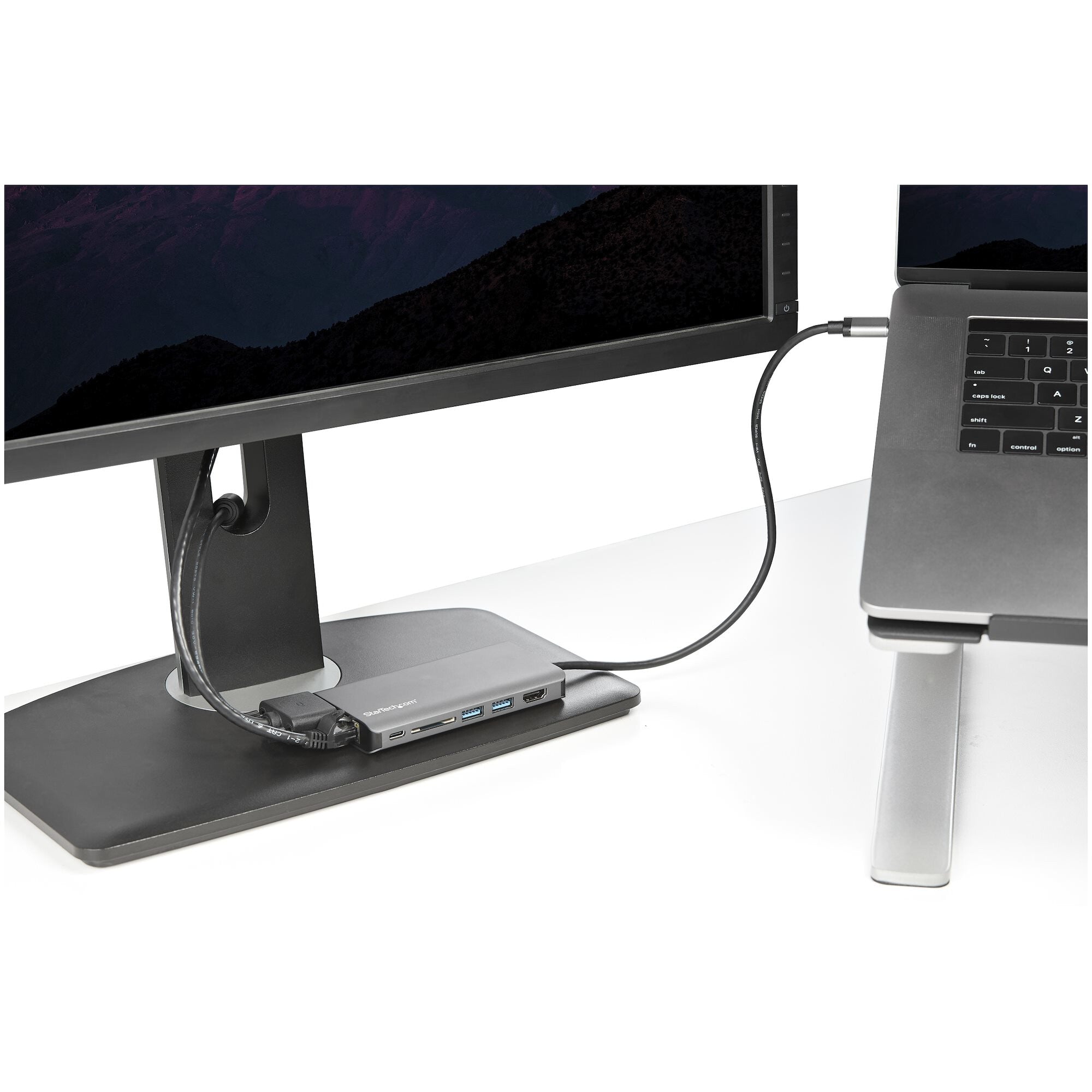

Two Video Output Options with HDMI or VGA

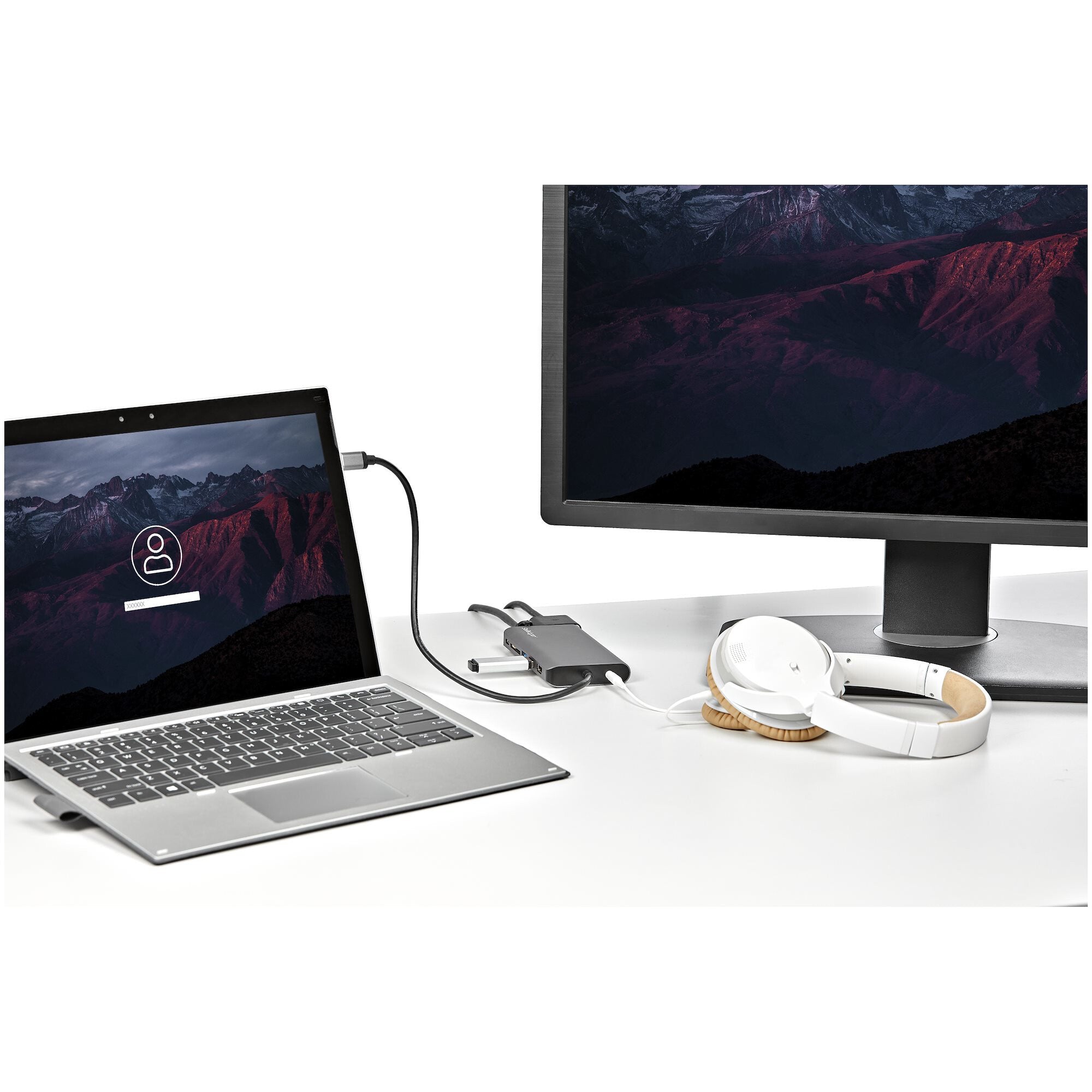

This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Power & Charge with 100W Power Delivery 3.0
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop's own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.
All the Essential Ports with USB

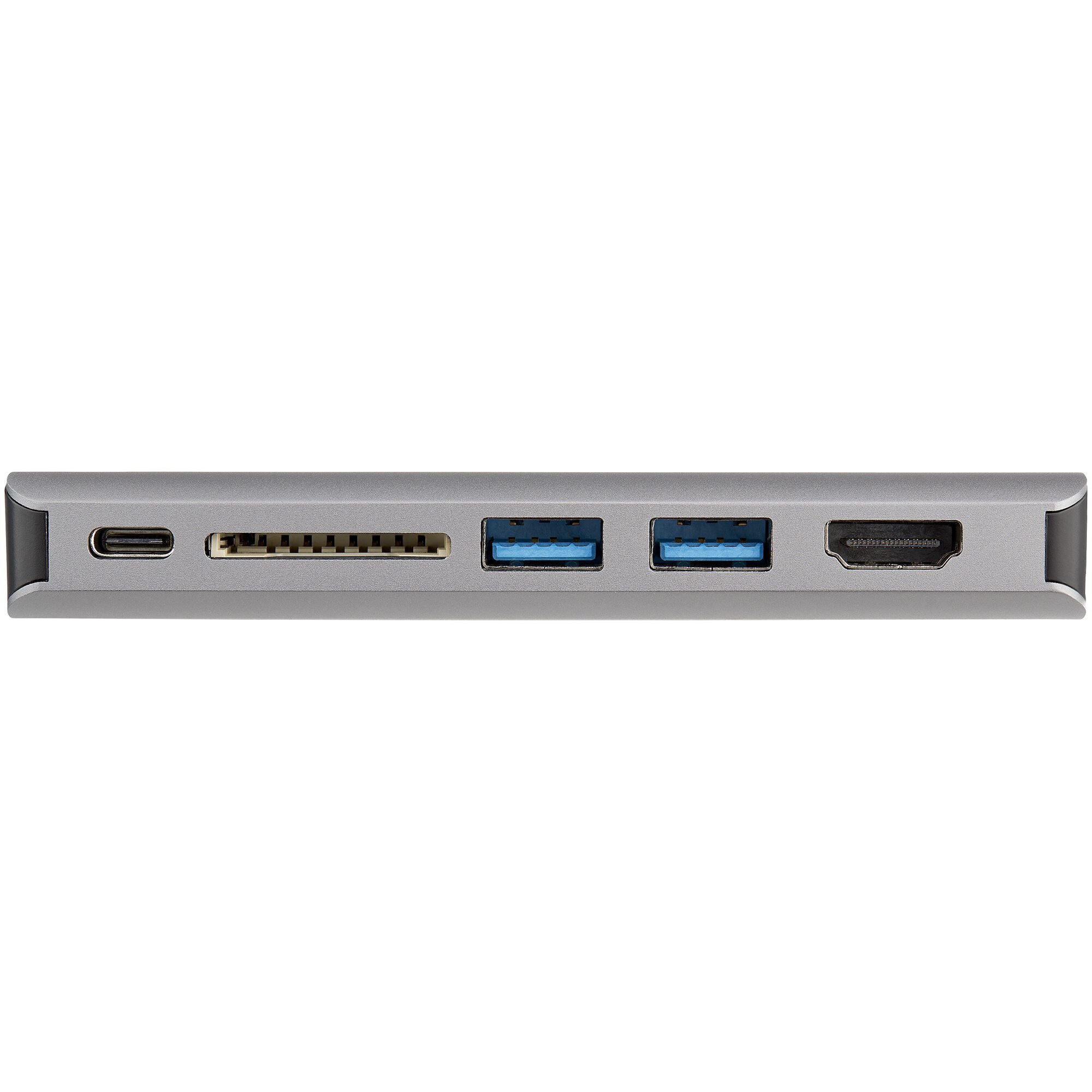

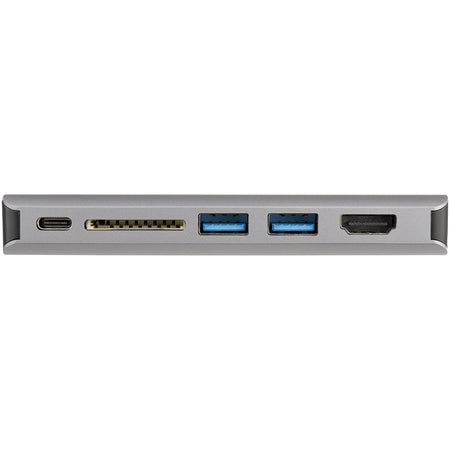

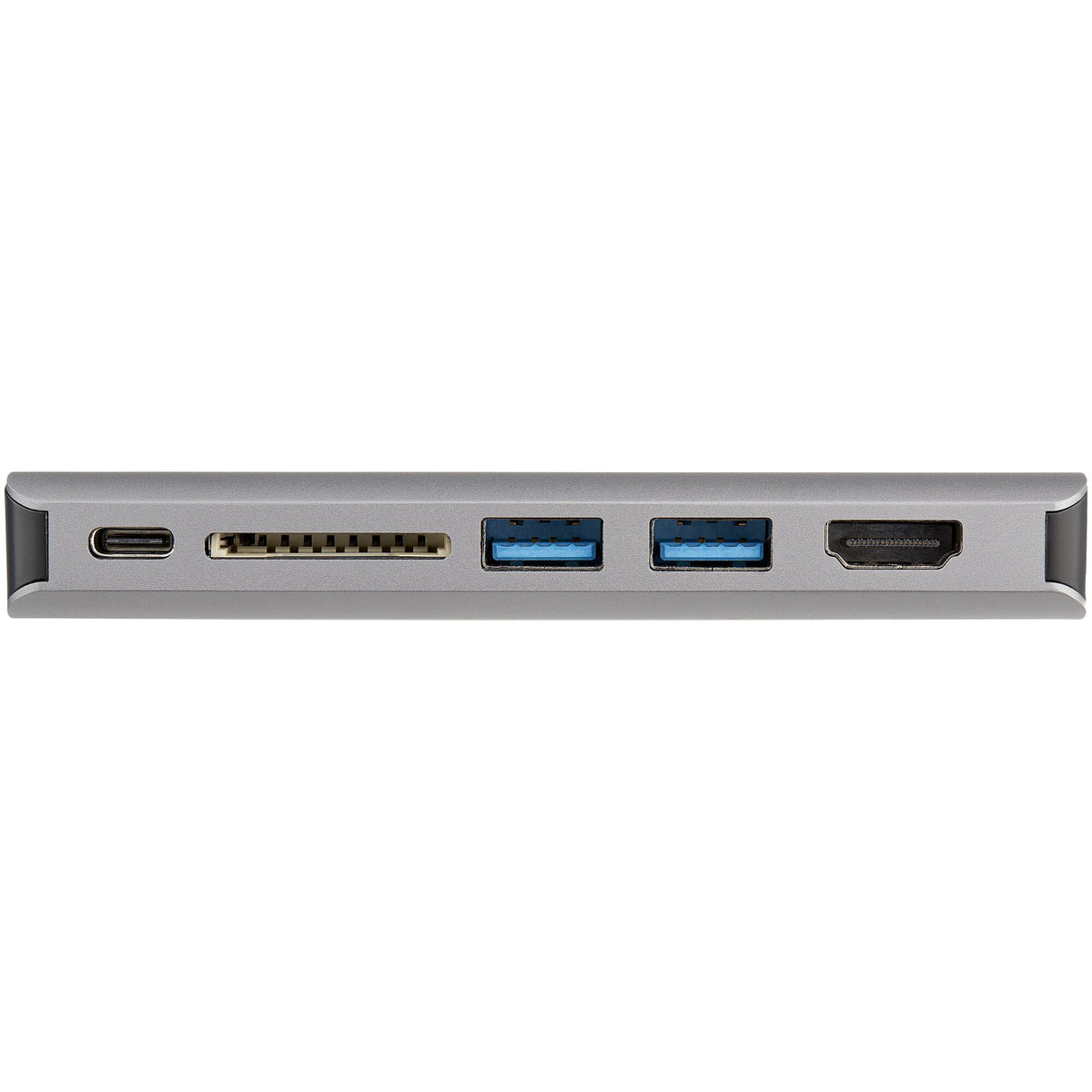

The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.
Includes Ports to Do More with SD, Audio & Gigabit Ethernet
Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:
• SD, SDHC™ and SDXC™ memory cards or microSD cards via the SD card slot

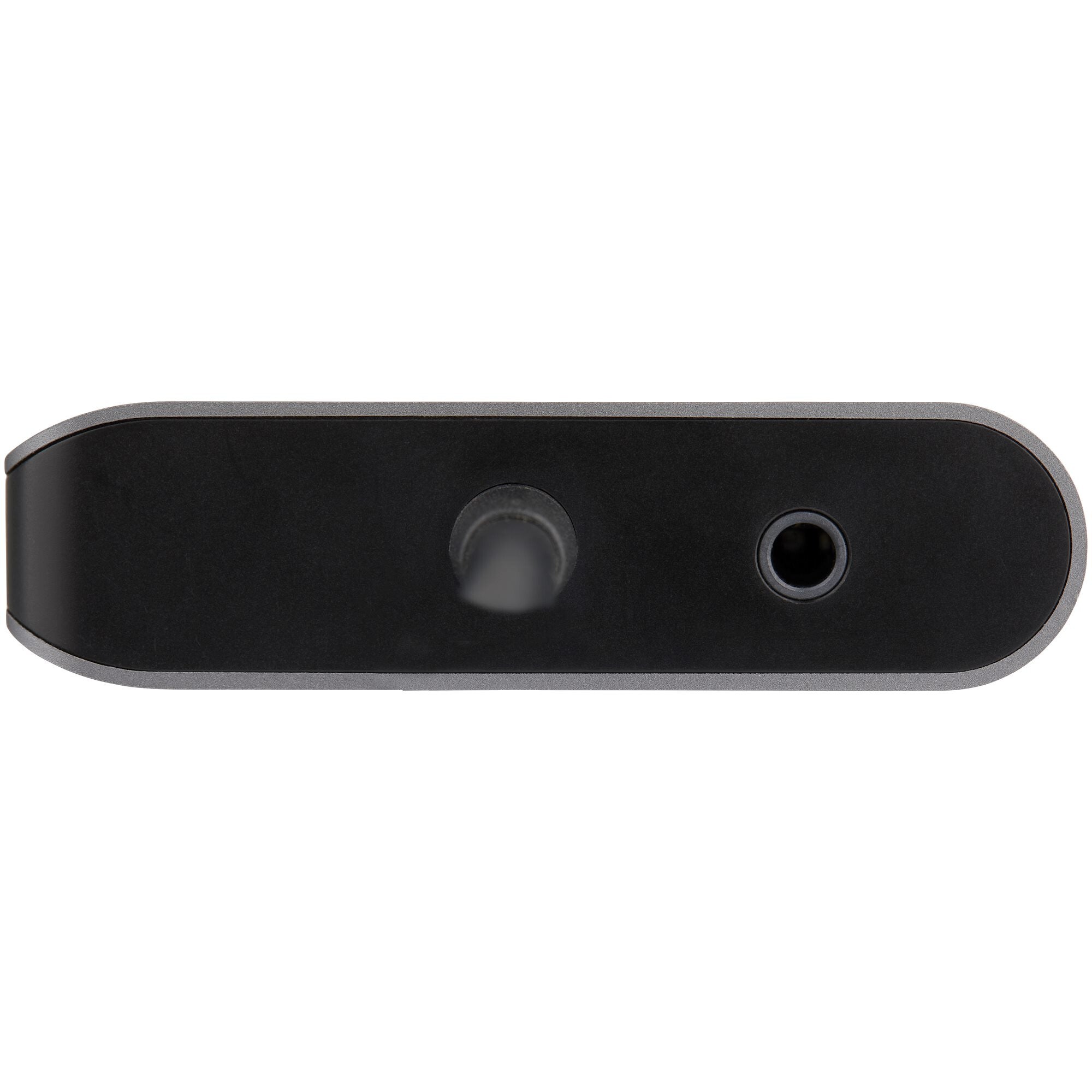

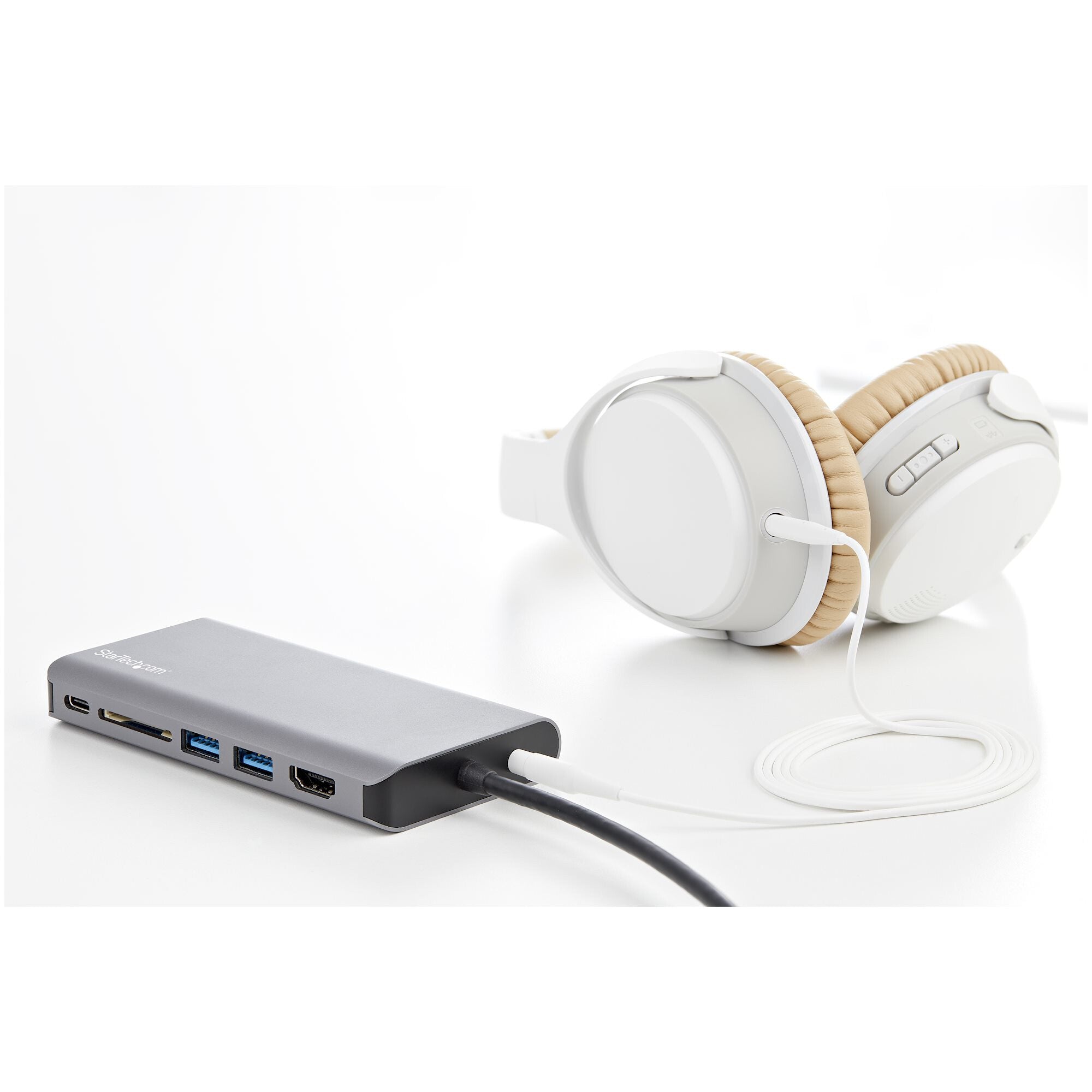

• Audio content via headphones or microphone through the 3.5mm 4- position audio port
• Ethernet network via the GbE port using a hard-wired connection
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
DKT30CHVAUSP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces |
|---|
| Headphone outputs |
1 |
| Combo headphone/mic port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI ports quantity |
1 |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| Certification |
CE, FCC, REACH |
| Housing material |
Aluminium, Plastic |
| Maximum analog resolution |
1920 x 1200 pixels |
| Maximum digital resolution |
4096 x 2160 pixels |
| Data transfer rate |
5 Gbit/s |
| Compatible memory cards |
SD, SDHC, SDXC |
| Card reader integrated |
Yes |
| Product colour |
Black, Grey |
| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Mobile operating systems supported |
Android, iOS |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 82 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
125 g |
| Height |
15 mm |
| Depth |
460 mm |
| Width |
61 mm |
| Packaging data |
|---|
| Package weight |
190 g |
| Package height |
30 mm |
| Package depth |
117 mm |
| Package width |
145 mm |

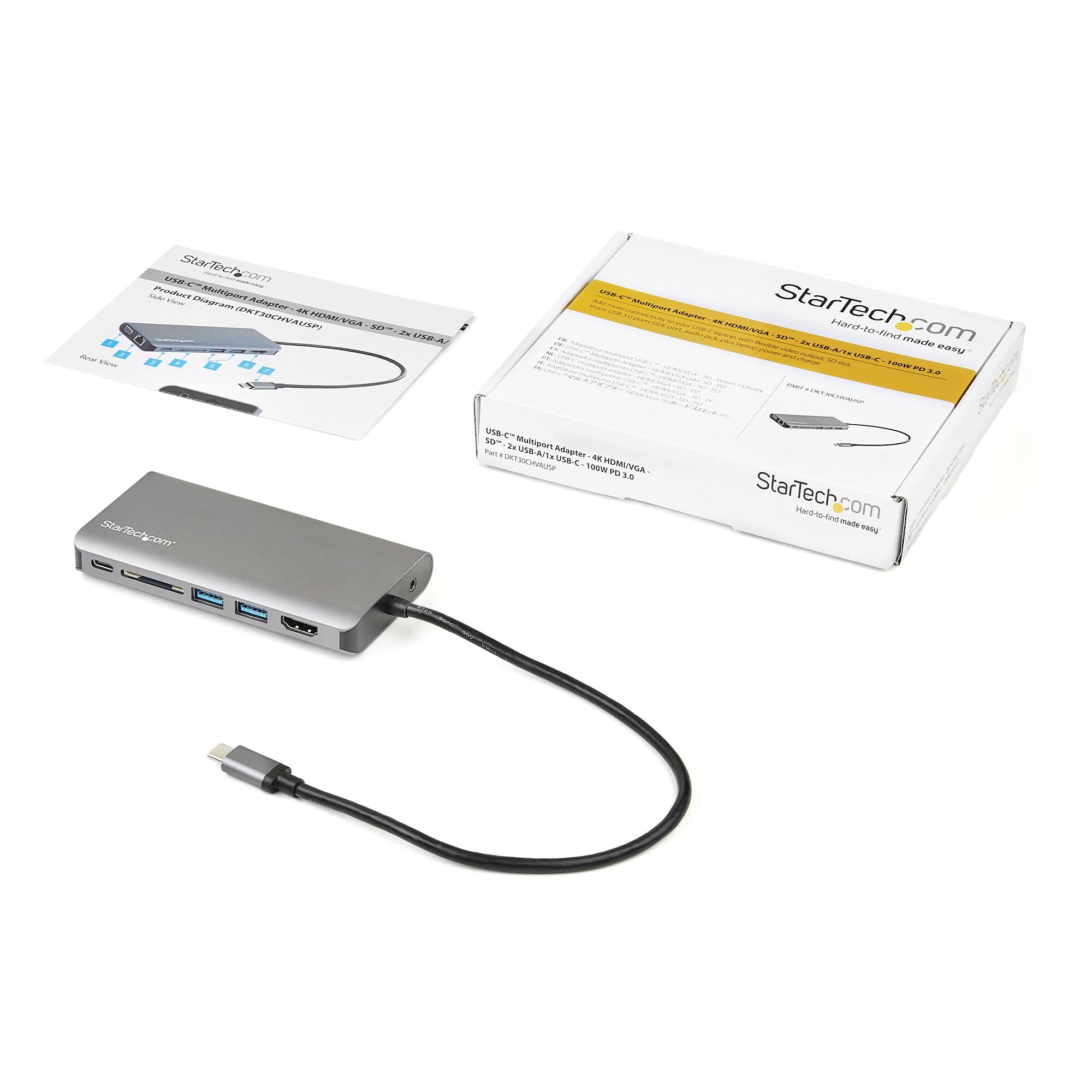

| Packaging content |
|---|

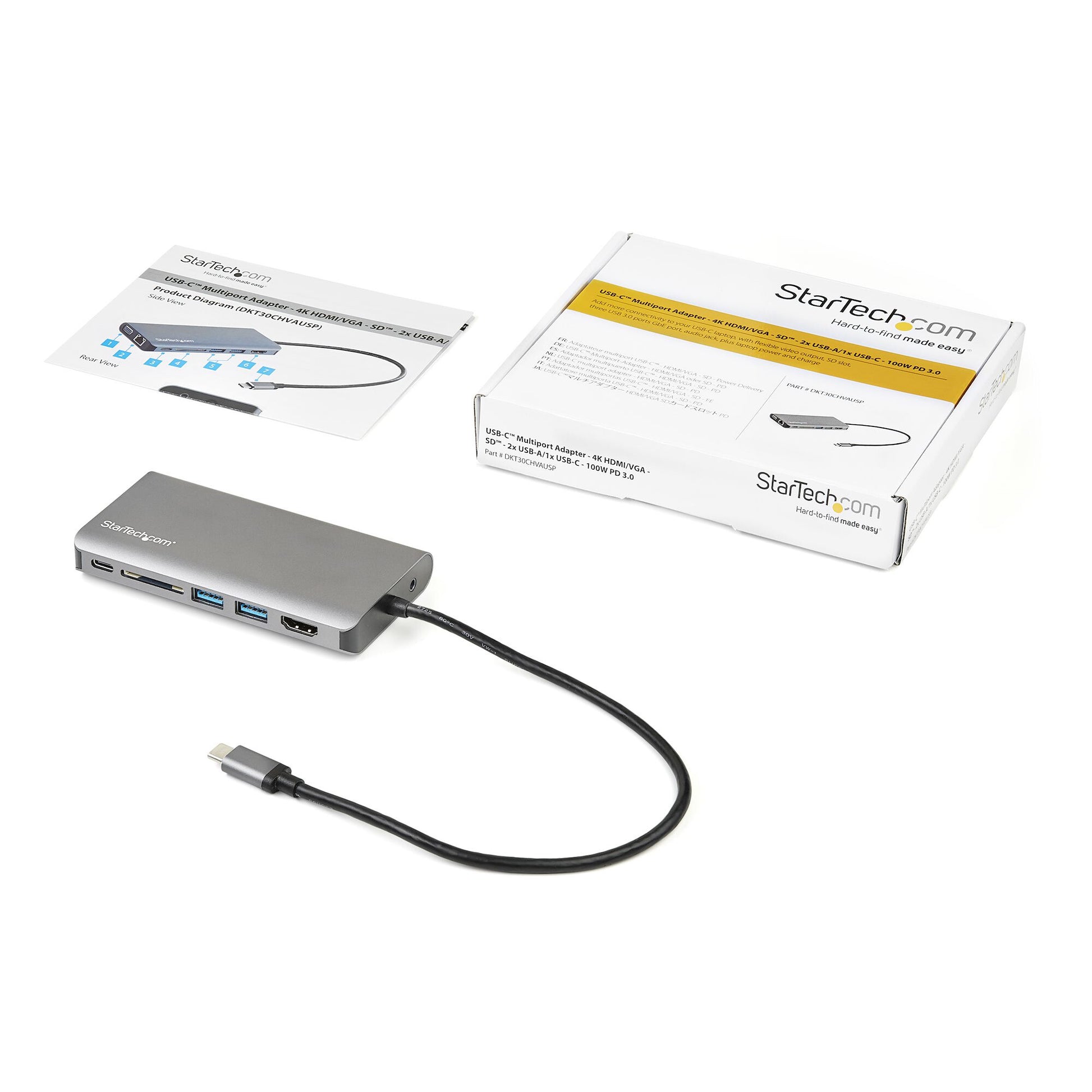

| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
70 pc(s) |
| Master (outer) case width |
335 mm |
| Master (outer) case length |
470 mm |
| Master (outer) case height |
440 mm |
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Cable length |
0.3 m |
| Chipset |
VIA Labs - VL102, VIA Labs - VL161, VIA Labs - VL817, Genesys Logic - GL823K, ITE Tech - IT6564, Realtek - RTL8153B, Cmedia - HS100-B |
