Test and verify USB-C power connections with this compact bi-directional USB-C Power Tester
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.

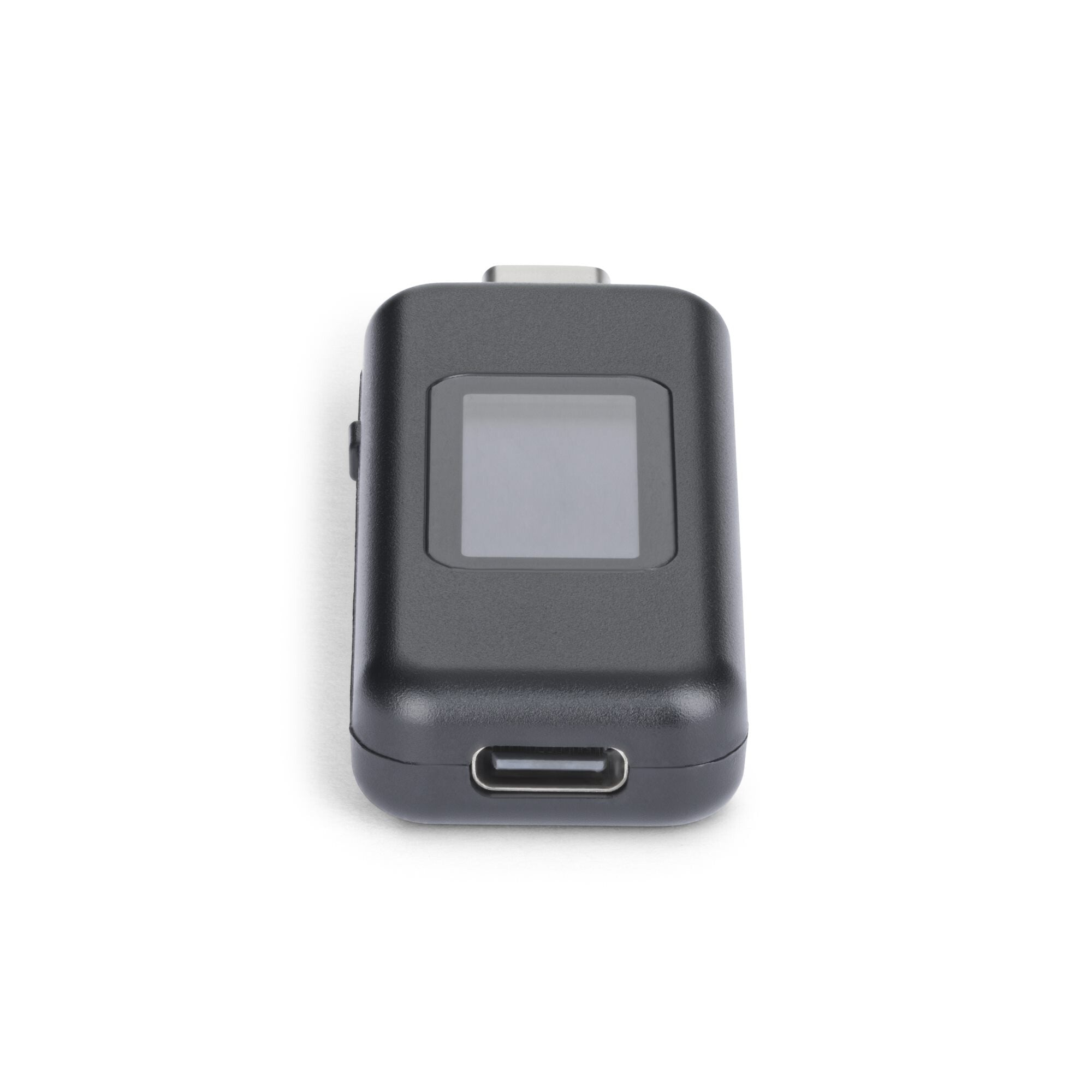

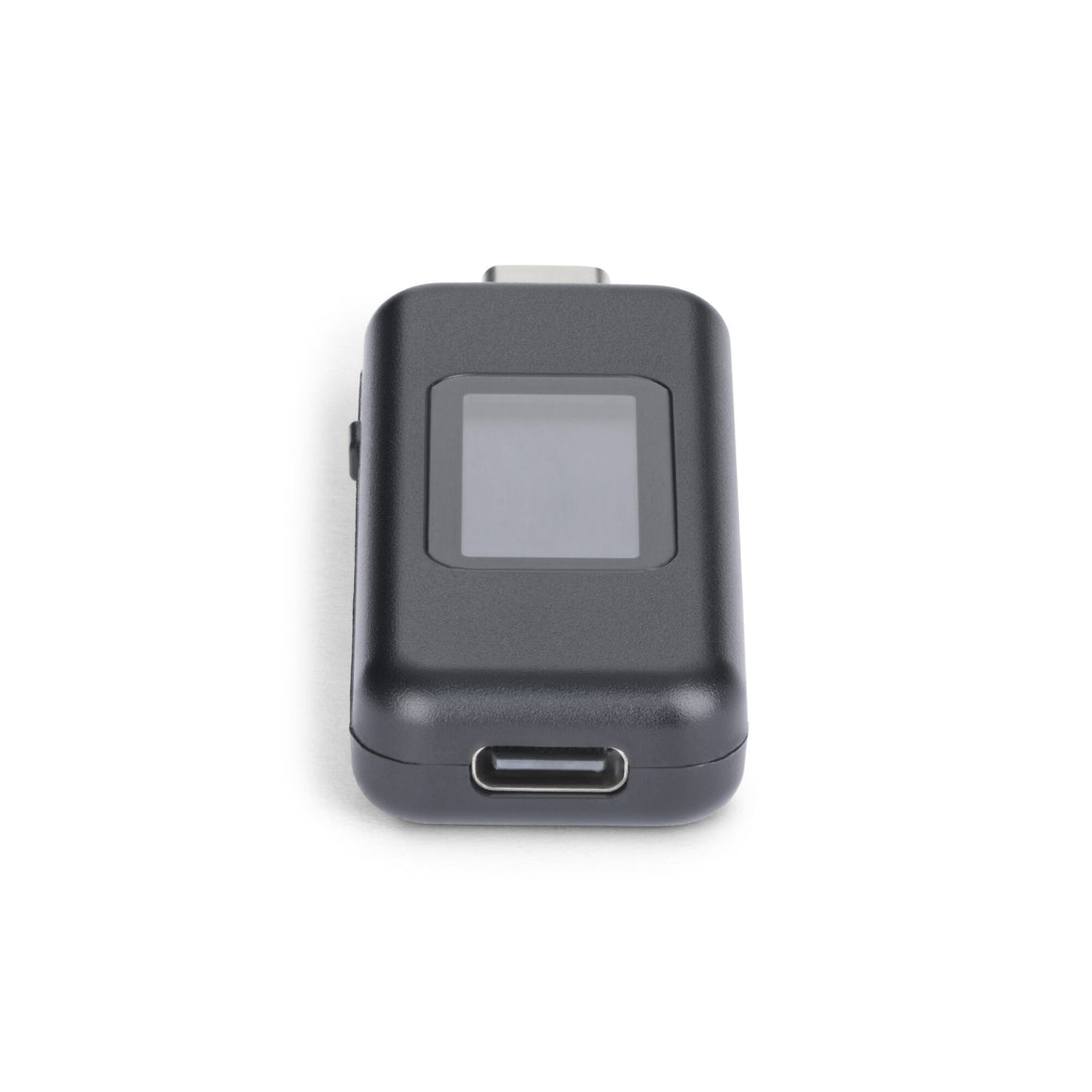

Compact Form Factor

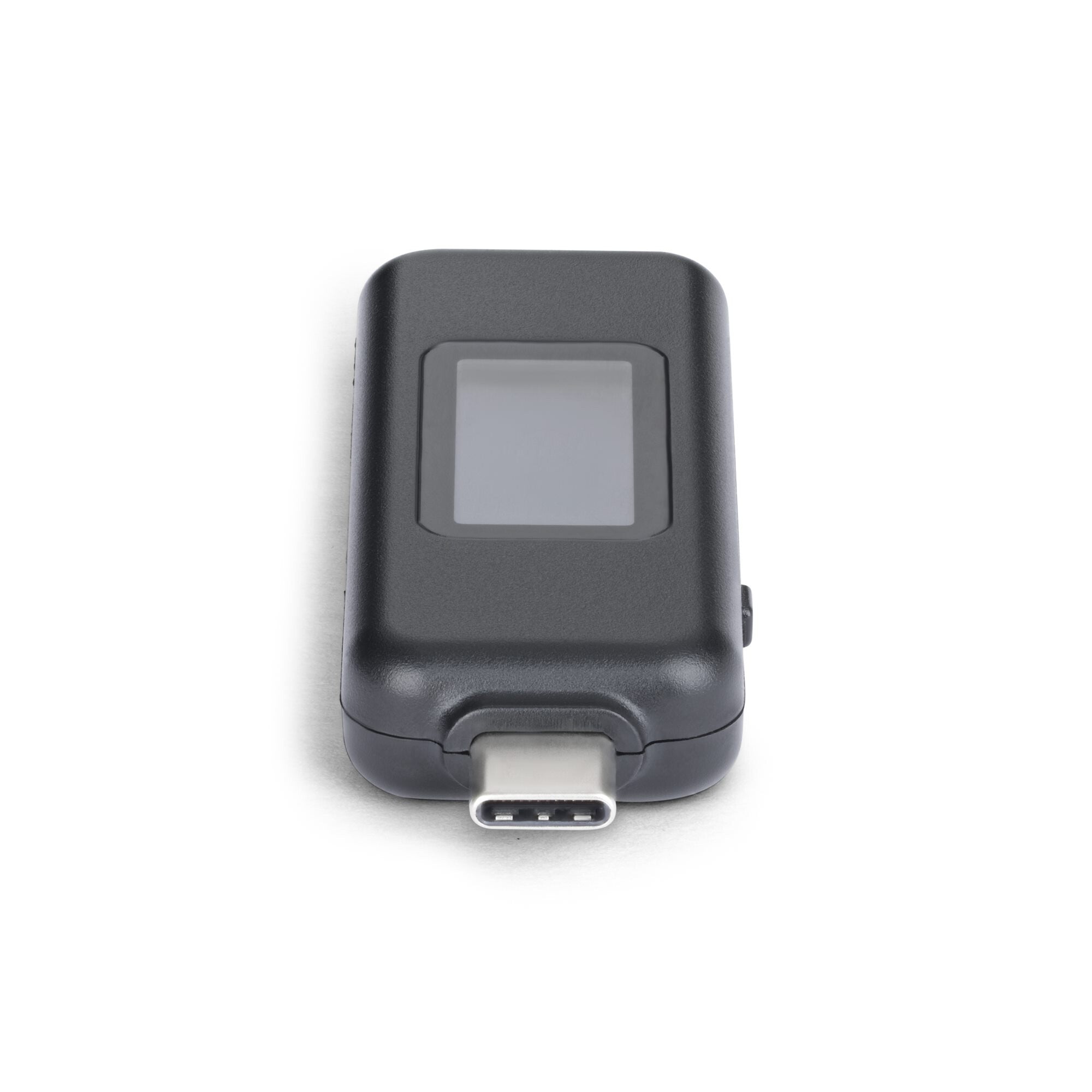

The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.
Streamline Power Diagnostics

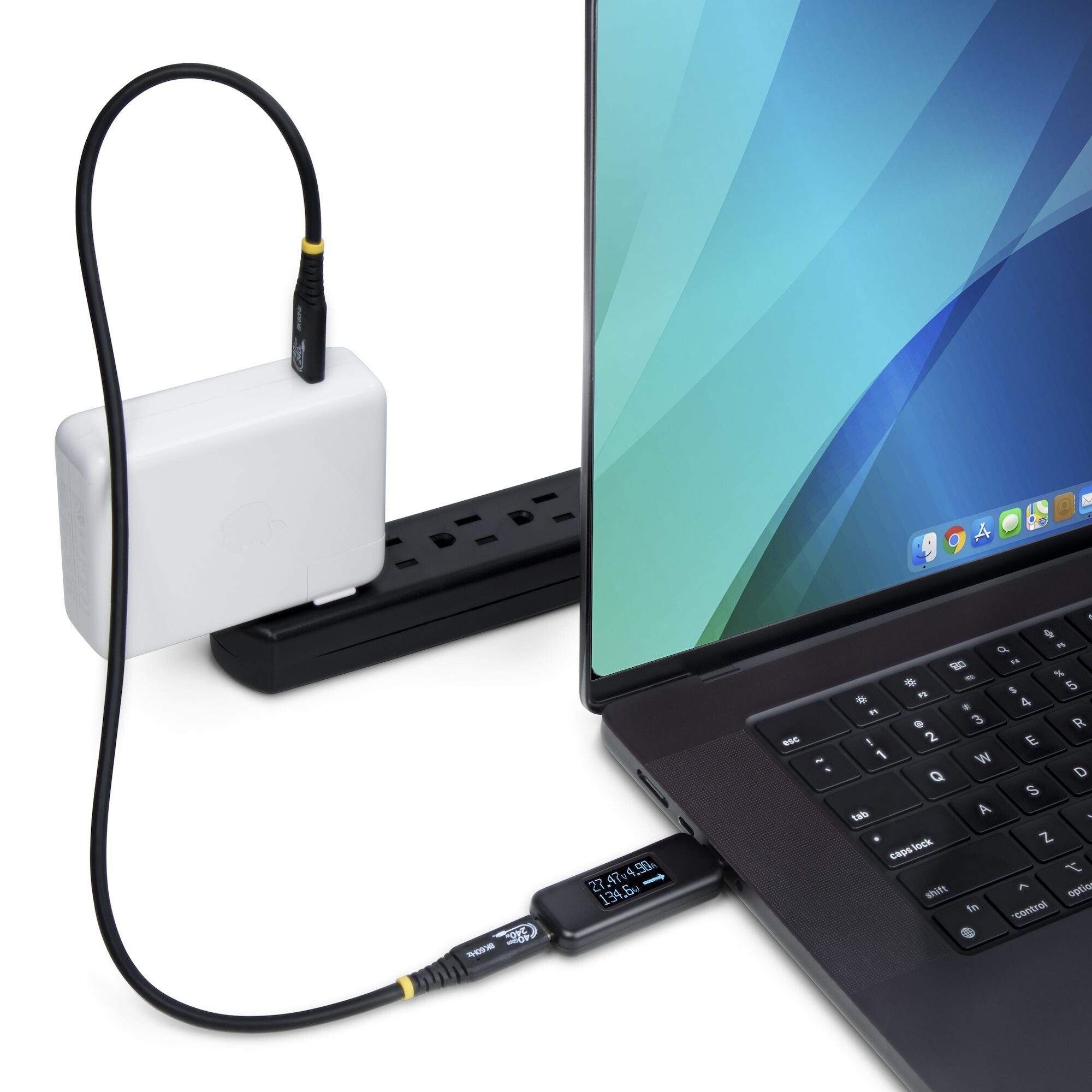

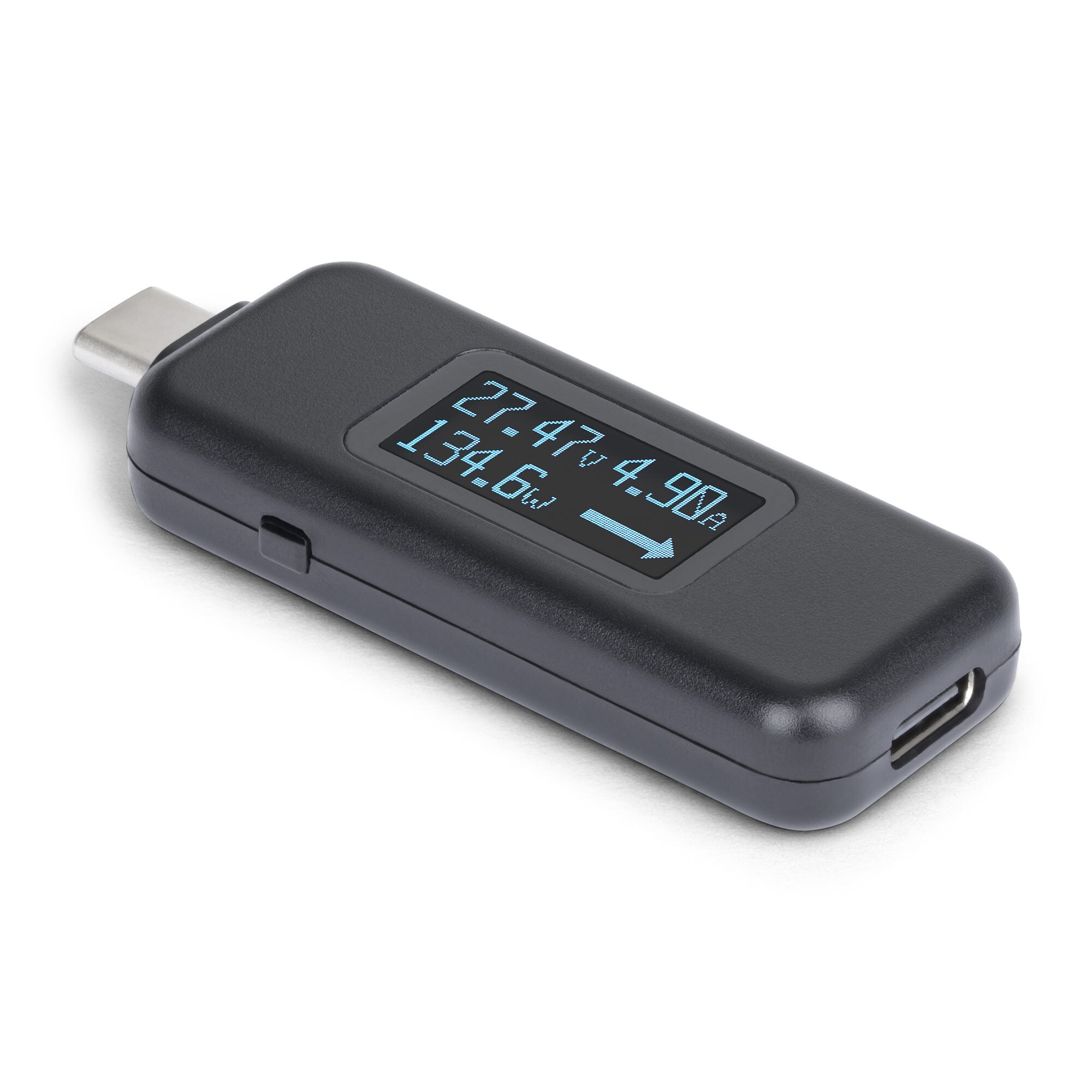

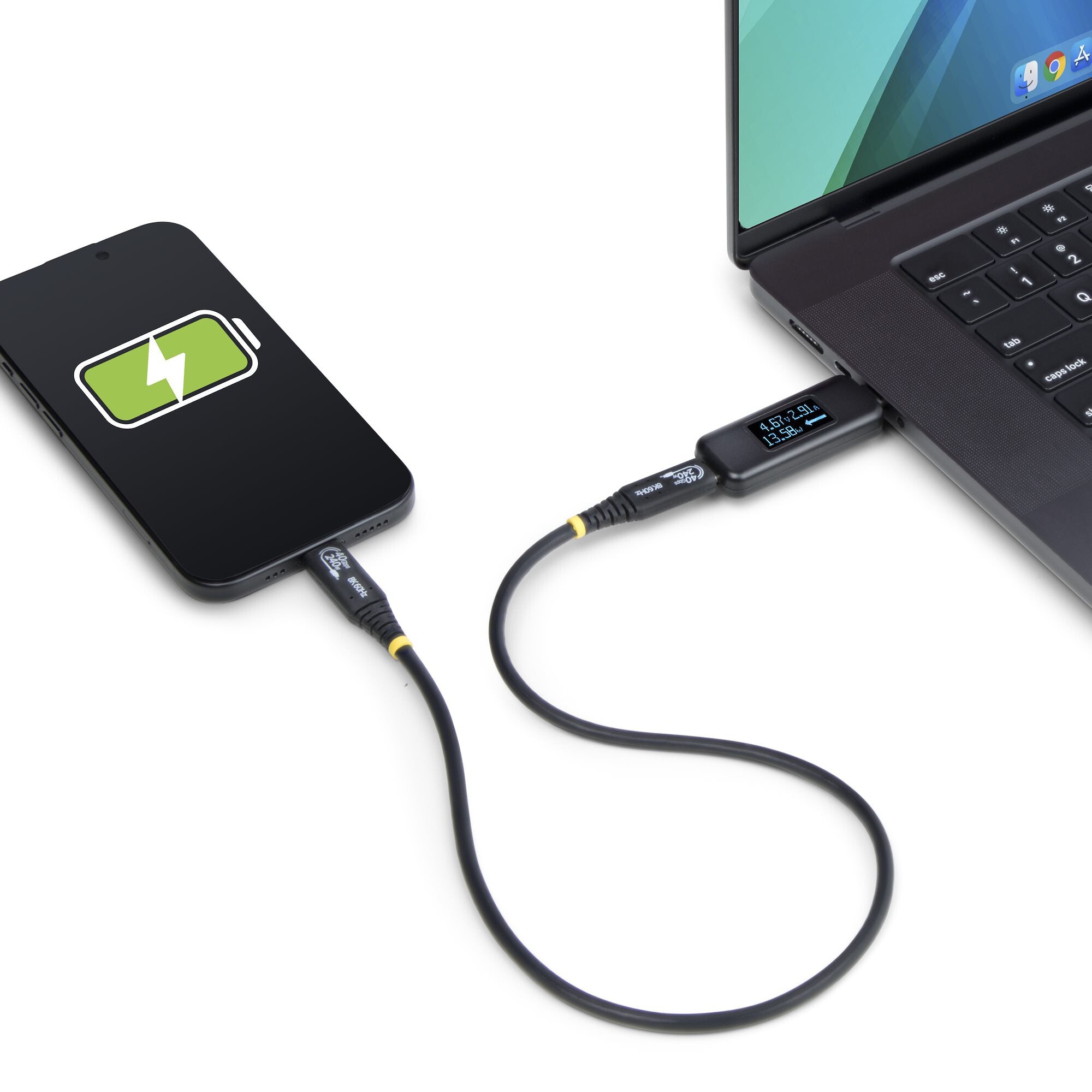

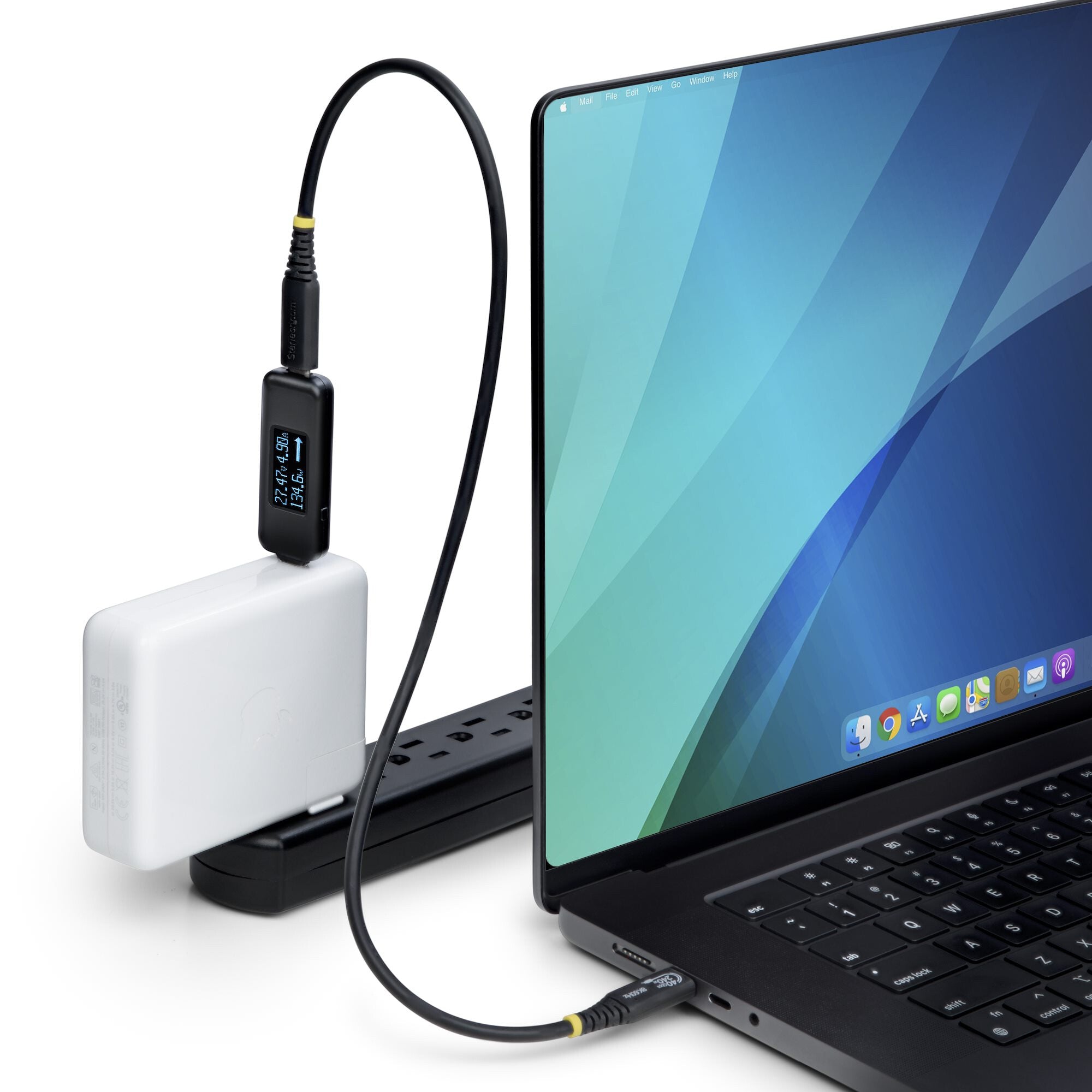

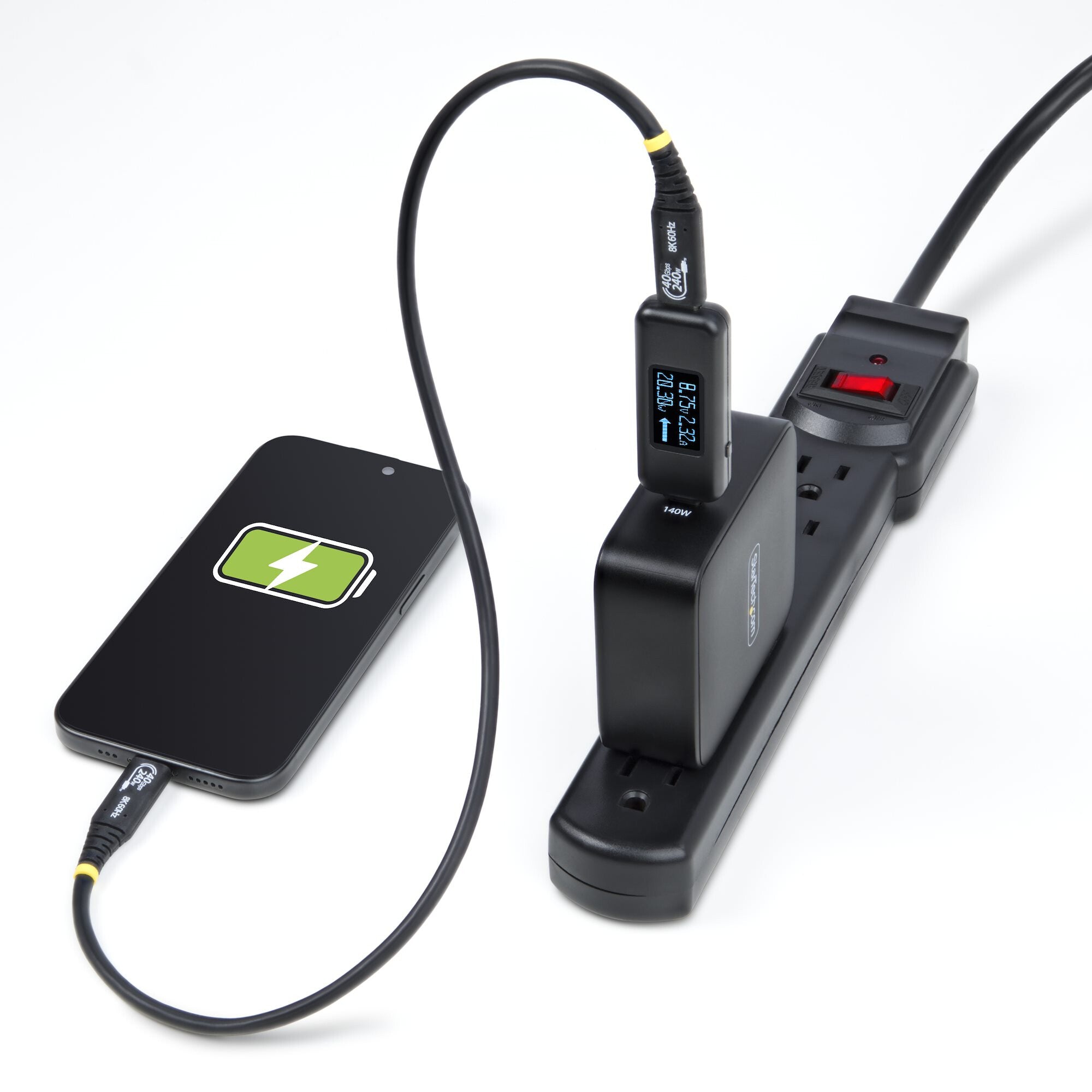

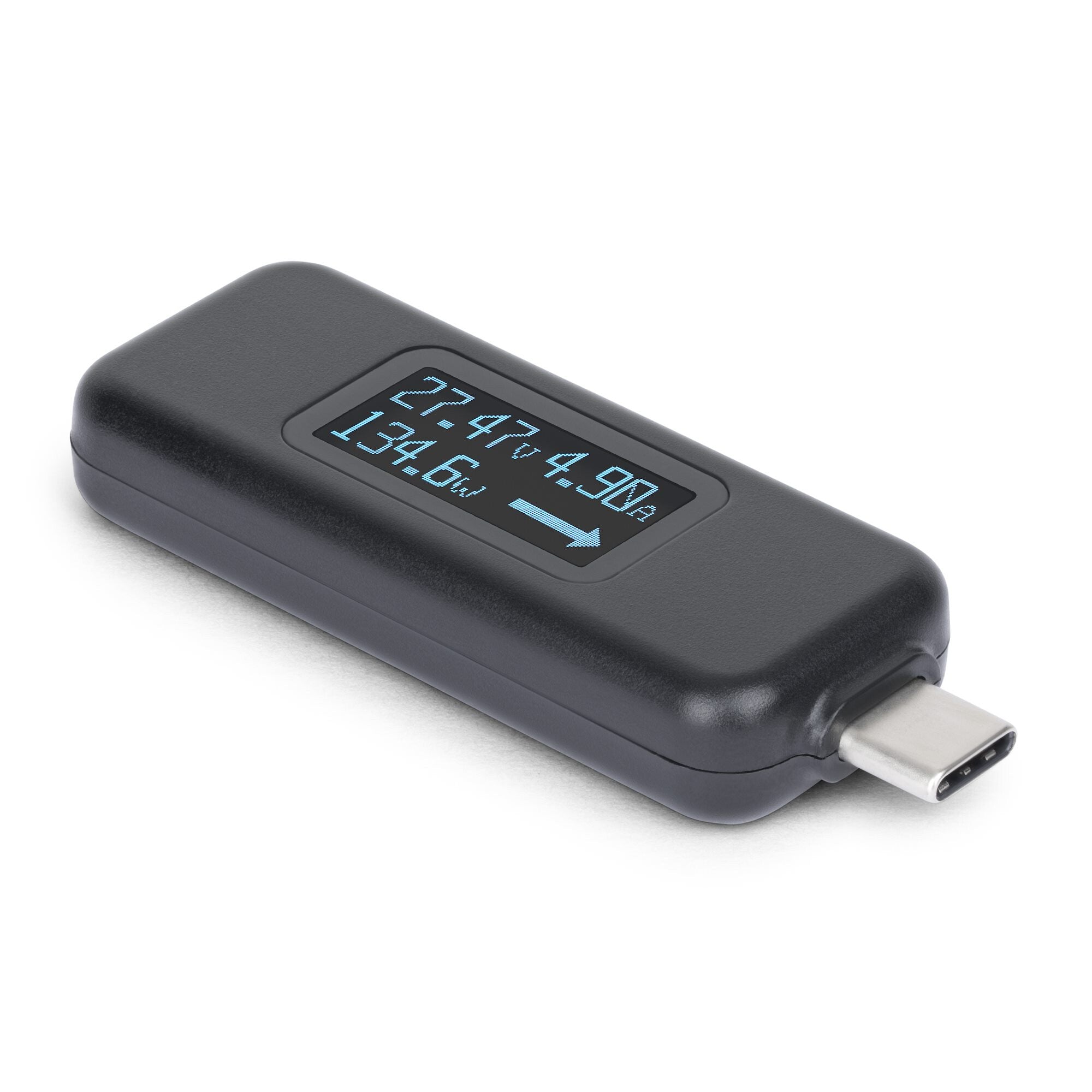

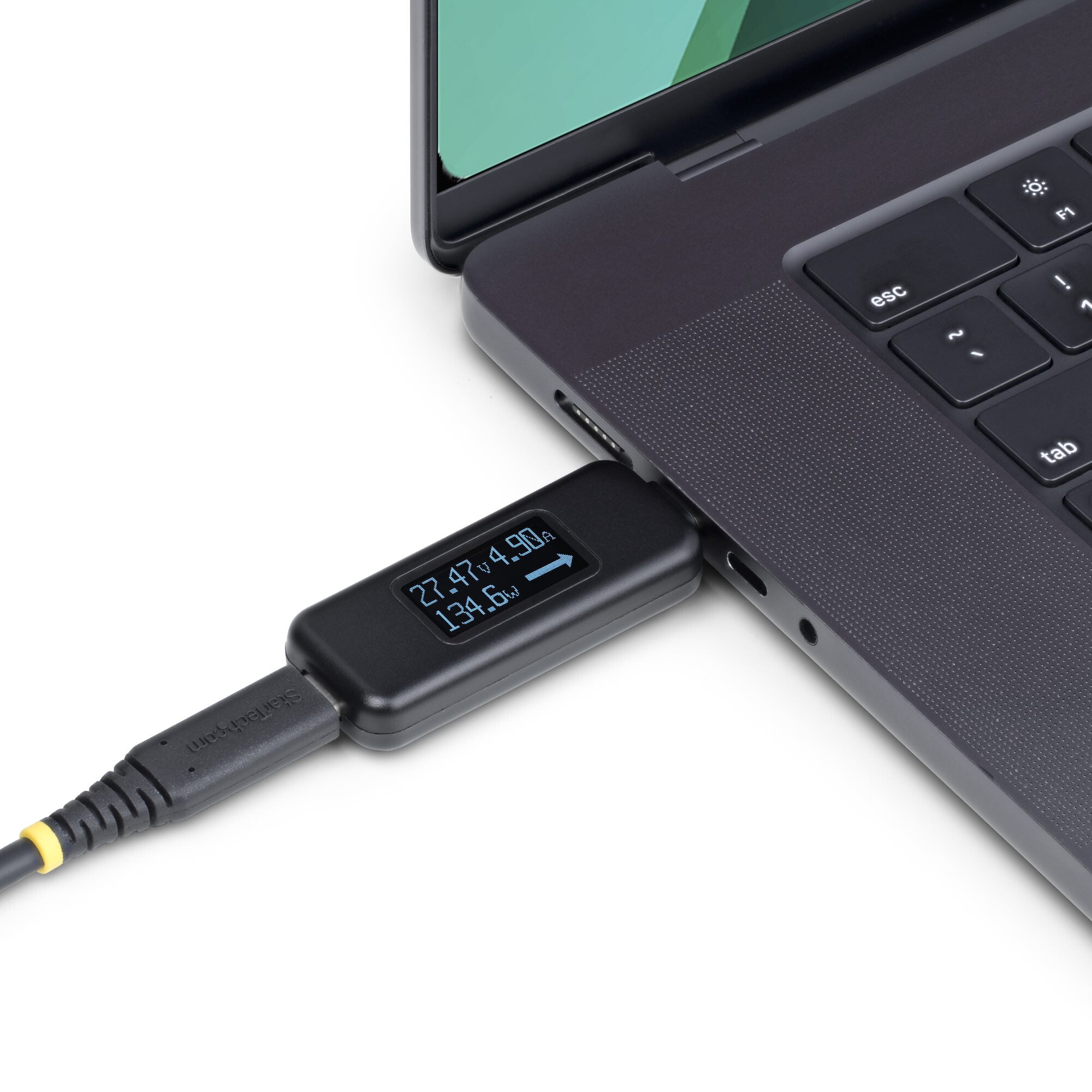

This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility

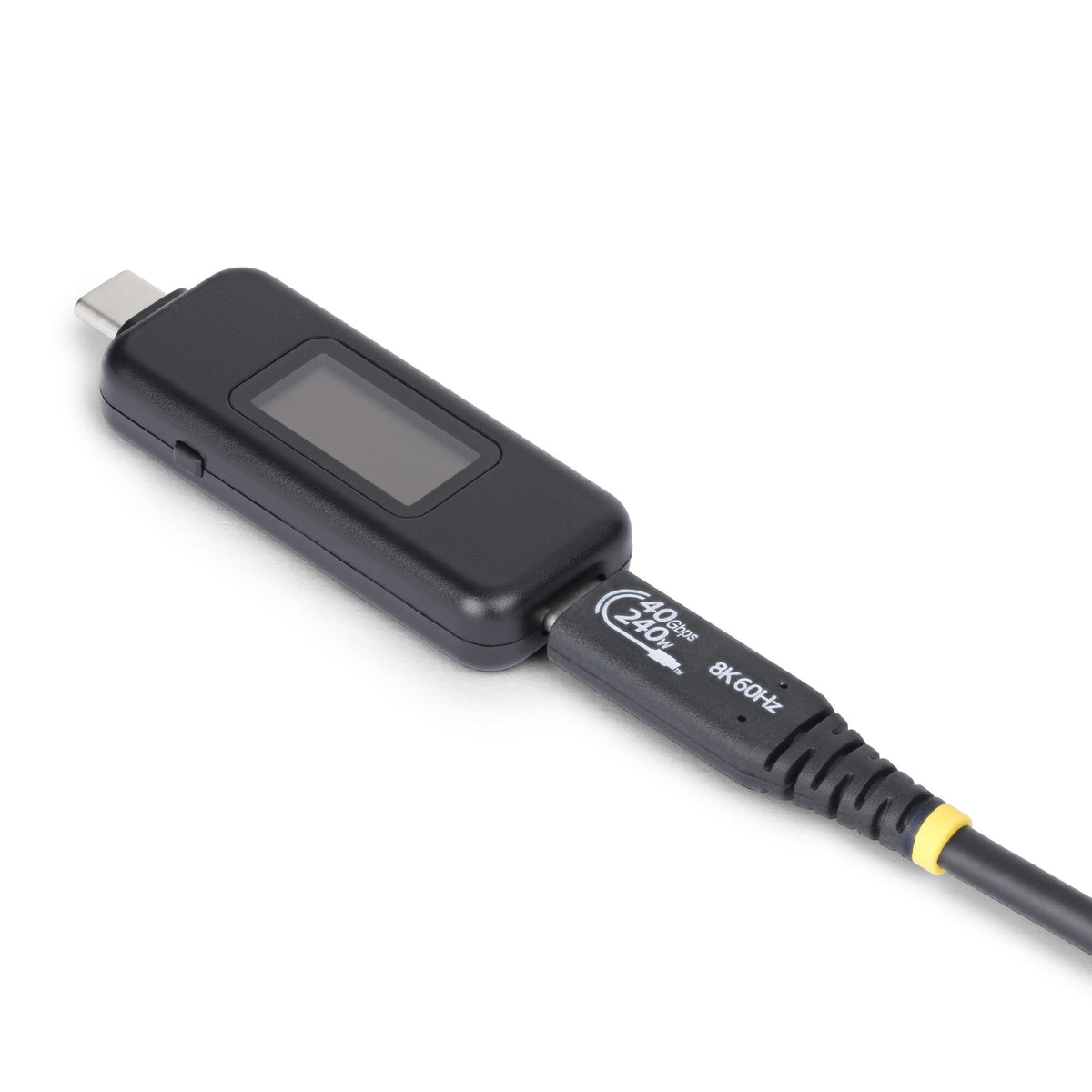

Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
The StarTech.com Advantage
| Technical details |
|---|
| Housing material |
Polycarbonate (PC) |
| Product colour |
Black |
| Maximum charging test |
240 W |
| Compliance certificates |
RoHS |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Output interface |
USB 3.2 USB Type C |
| Host interface |
USB 3.2 USB Type C |
| Backlight colour |
Blue |
| Backlight display |
Yes |
| Built-in display |
Yes |
| Power connectors supported |
USB Type-C |
| Input current |
0.05 - 6.5 A |
| DC input voltage test |
4.5V-50V |
| Output current |
6.5 A |
| DC output voltage test |
4.5V-50V |
| Testing type |
Amperage, Voltage, Wattage |
| Weight & dimensions |
|---|
| Package weight |
28 g |
| Package height |
15 mm |
| Package depth |
84 mm |
| Package width |
80 mm |
| Weight |
12 g |
| Height |
10 mm |
| Depth |
23 mm |
| Width |
57 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Logistics data |
|---|
| Products per master (outer) case |
150 pc(s) |
| Master (outer) case height |
270 mm |
| Master (outer) case length |
180 mm |
| Master (outer) case width |
430 mm |
