4K 60Hz & 8K 30Hz | DP 1.4 | HBR2 | Thunderbolt 3 Compatible

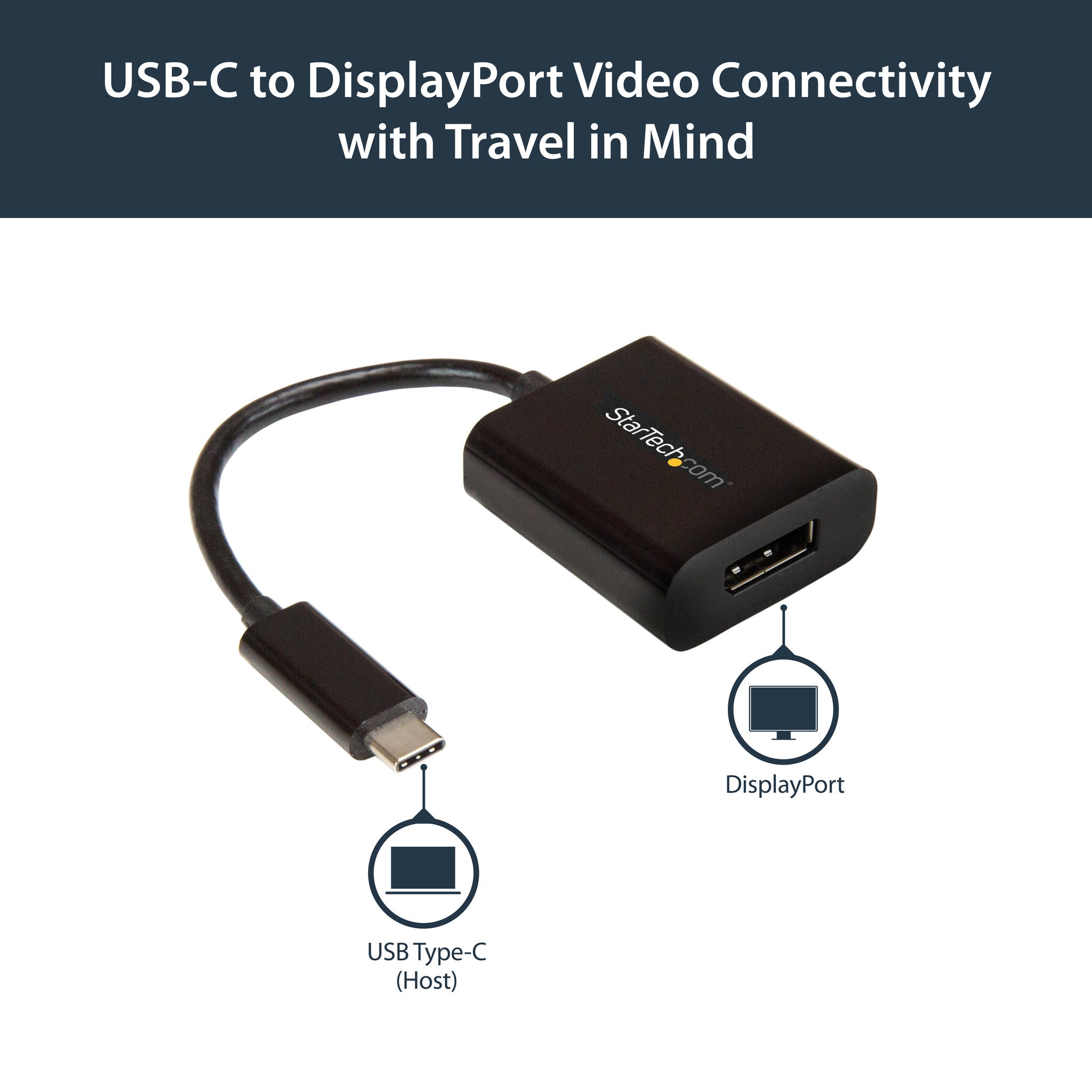

This USB-C™ to DisplayPort adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop or other device. The DP 1.4 adapter works with USB-C devices that pass a DisplayPort (DP) video signal, such as your MacBook Pro, Chromebook™ or 2018 iPad Pro. This enables you to connect your DisplayPort display to your USB-C computer using a DisplayPort cable.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680x4320 at 30Hz, which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.
Ultimate Portability

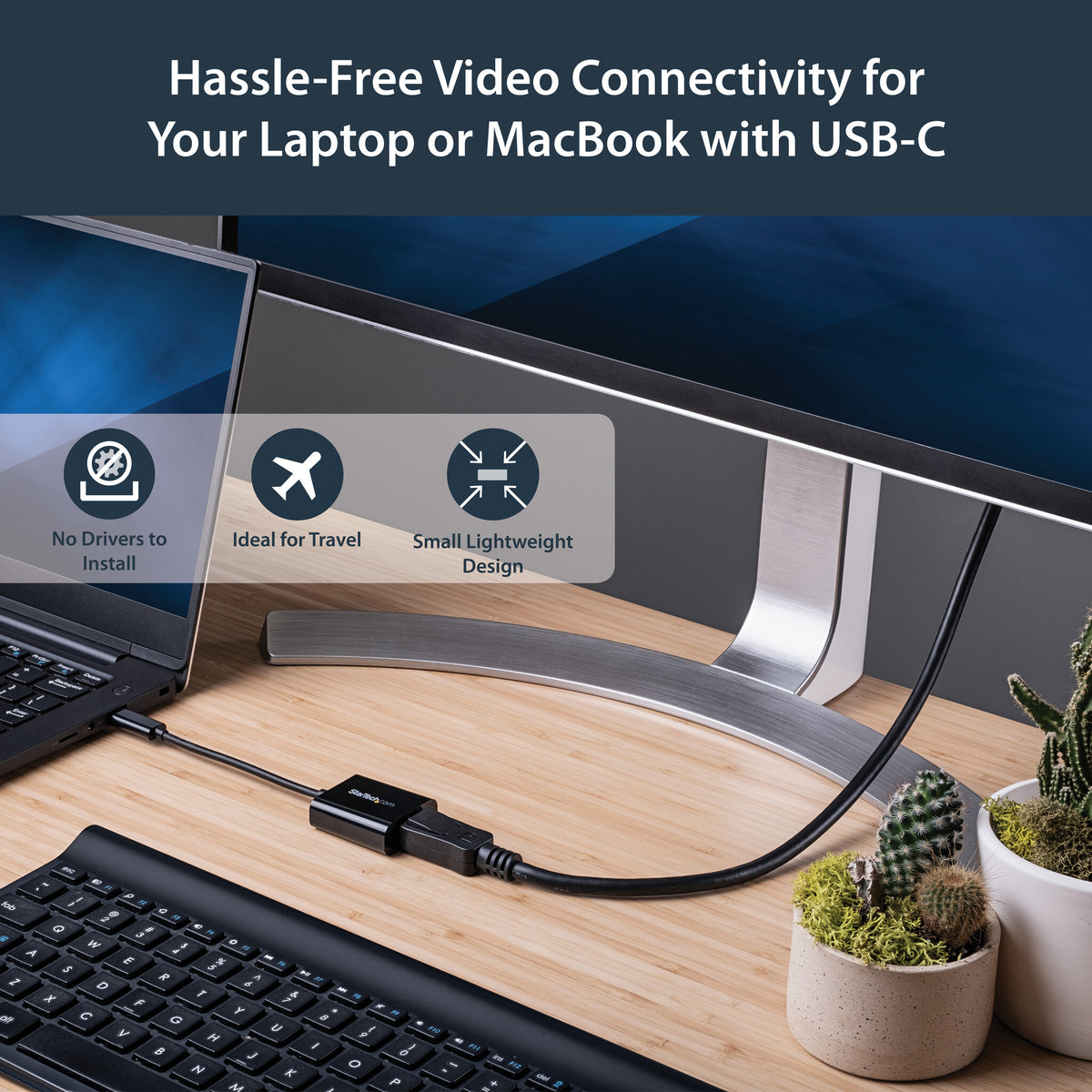

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag. The adapter is the perfect accessory for connecting your MacBook Pro or Dell XPS™ to a DisplayPort monitor or display in BYOD (Bring Your Own Device) applications at the office.
Hassle-Free Connection with USB Type-C
This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always work, saving you the hassle and embarrassment of adjusting your device when you're trying to deliver a presentation.
The CDP2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
• This adapter outputs a single-mode DisplayPort signal and will not work with additional video adapters such as DisplayPort to HDMI, DisplayPort to VGA or DisplayPort to DVI adapters
The StarTech.com Advantage
| Performance |
|---|
| Certification |
CE, FCC, REACH |
| Chipset |
PERICOM - PI3DPX1203, NXP - PTN5100 |
| Audio output channels |
7.1 channels |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 3840 x 2160 |
| Refresh rate at maximum resolution |
60 Hz |
| Maximum resolution |
3840 x 2160 pixels |
| Number of displays supported |
1 |
| DisplayPort output |
Yes |
| HDMI output |
No |
| DVI output |
No |
| USB connector form factor |
Straight |
| USB connector gender |
Male |
| USB connector type |
USB Type-C |
| Design |
|---|
| Integrated USB cable |
Yes |
| Product colour |
Black |
| Weight & dimensions |
|---|
| USB cable length |
0.14 m |
| Weight |
17 g |
| Height |
14 mm |
| Depth |
180 mm |
| Width |
37 mm |
| Packaging data |
|---|
| Package weight |
26 g |
| Package height |
16 mm |
| Package depth |
225 mm |
| Package width |
125 mm |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
222 mm |
| Master (outer) case length |
504 mm |
| Master (outer) case width |
327 mm |
| Products per master (outer) case |
200 pc(s) |
