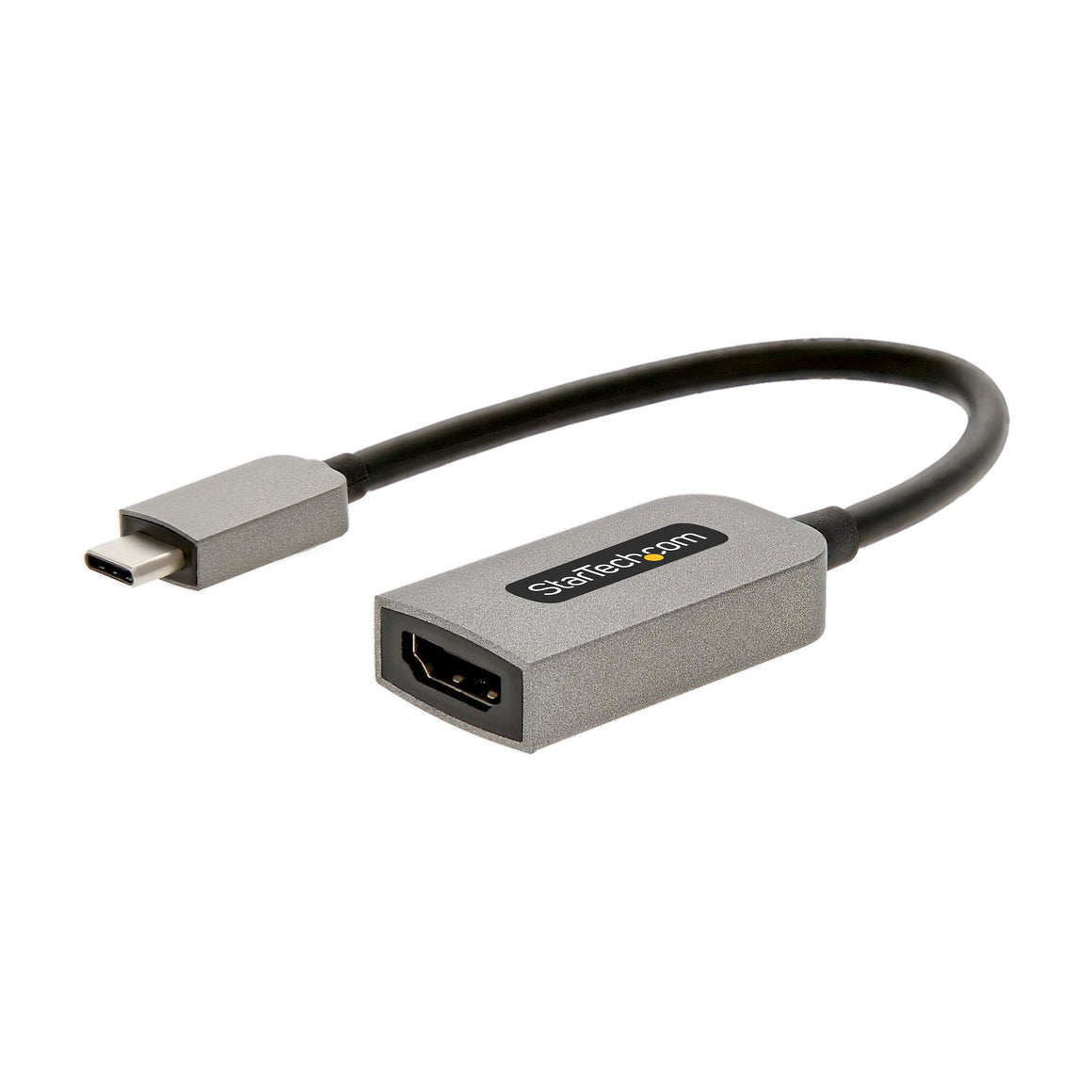

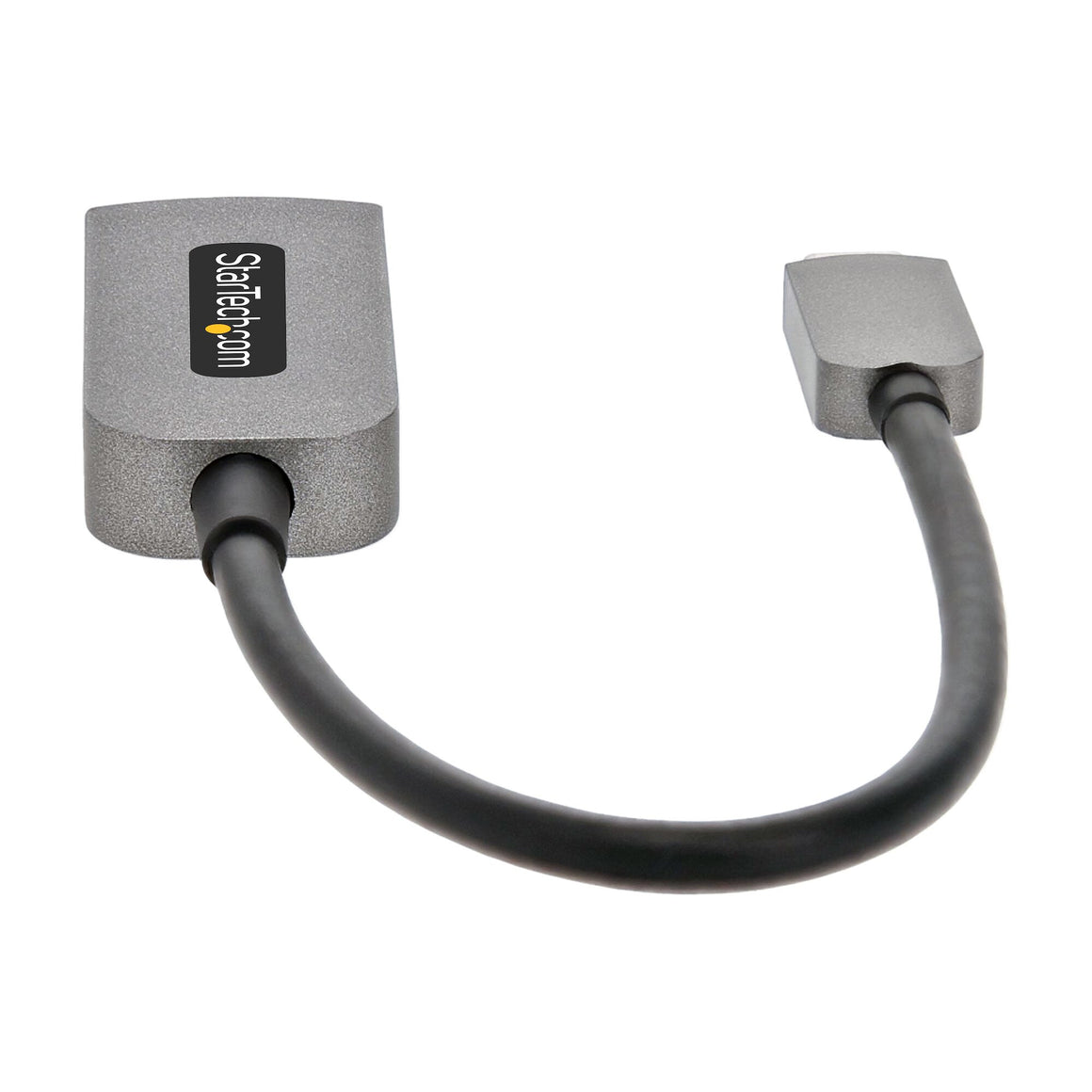

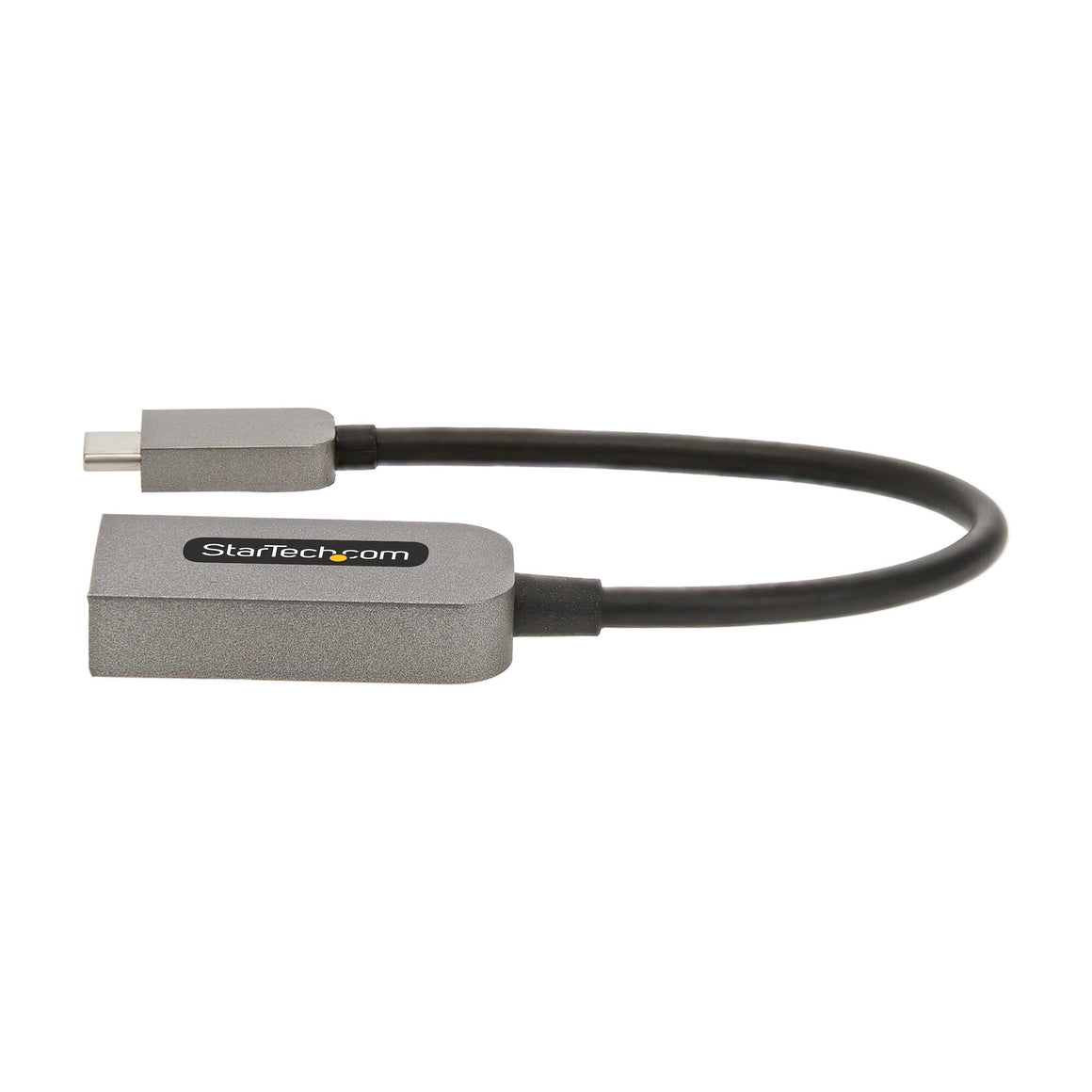

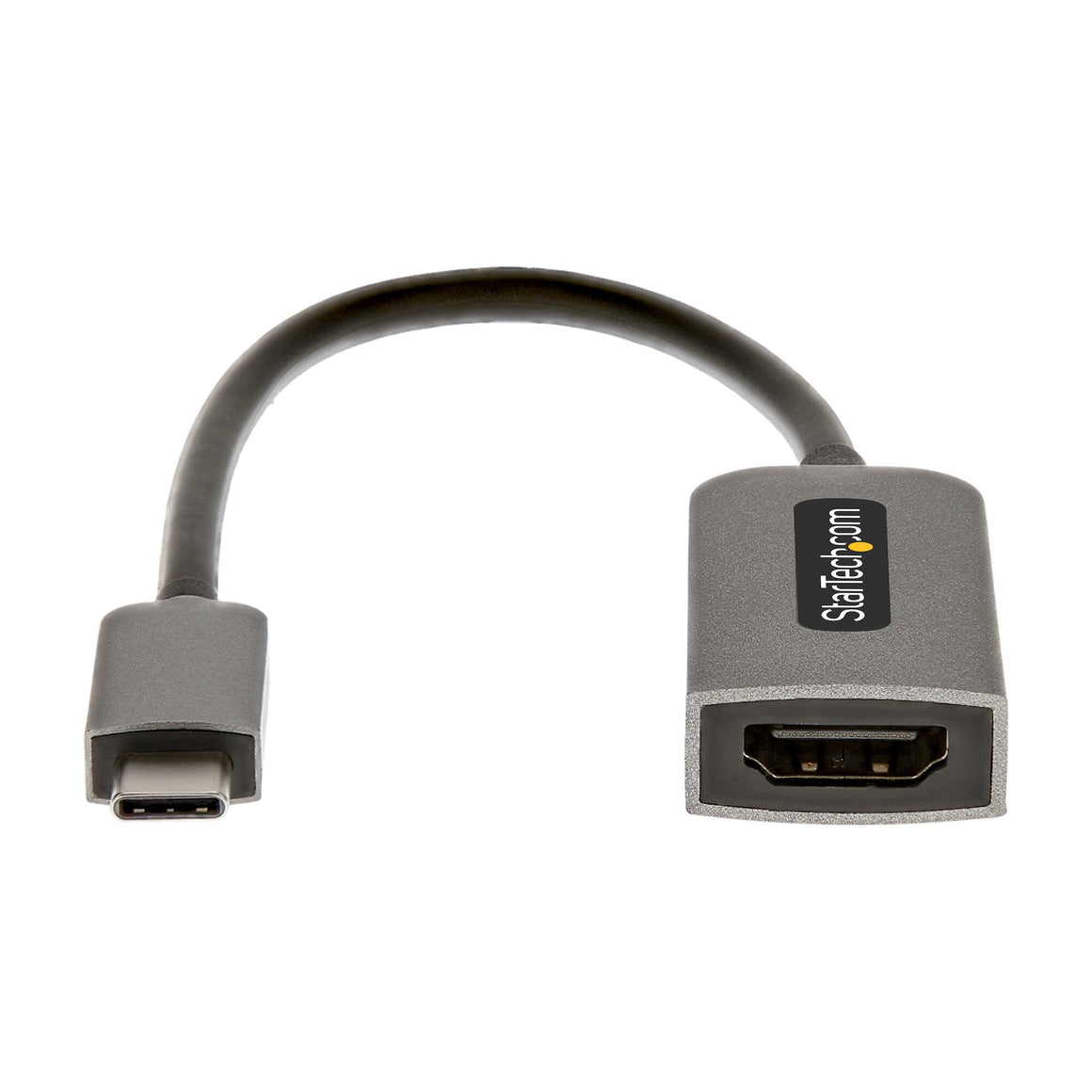

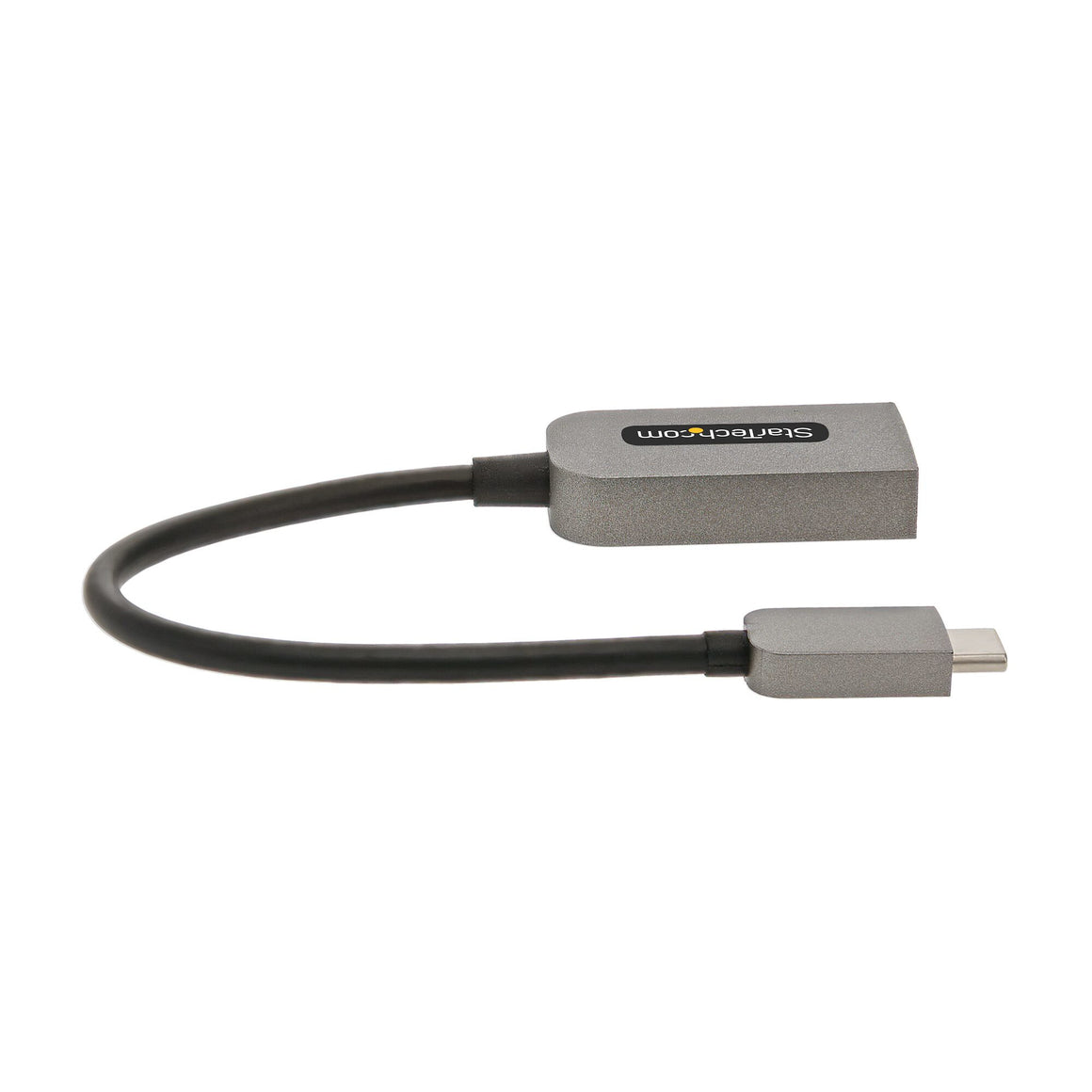

Compact USB-C to 4K 60Hz HDMI dongle with HDR10 support

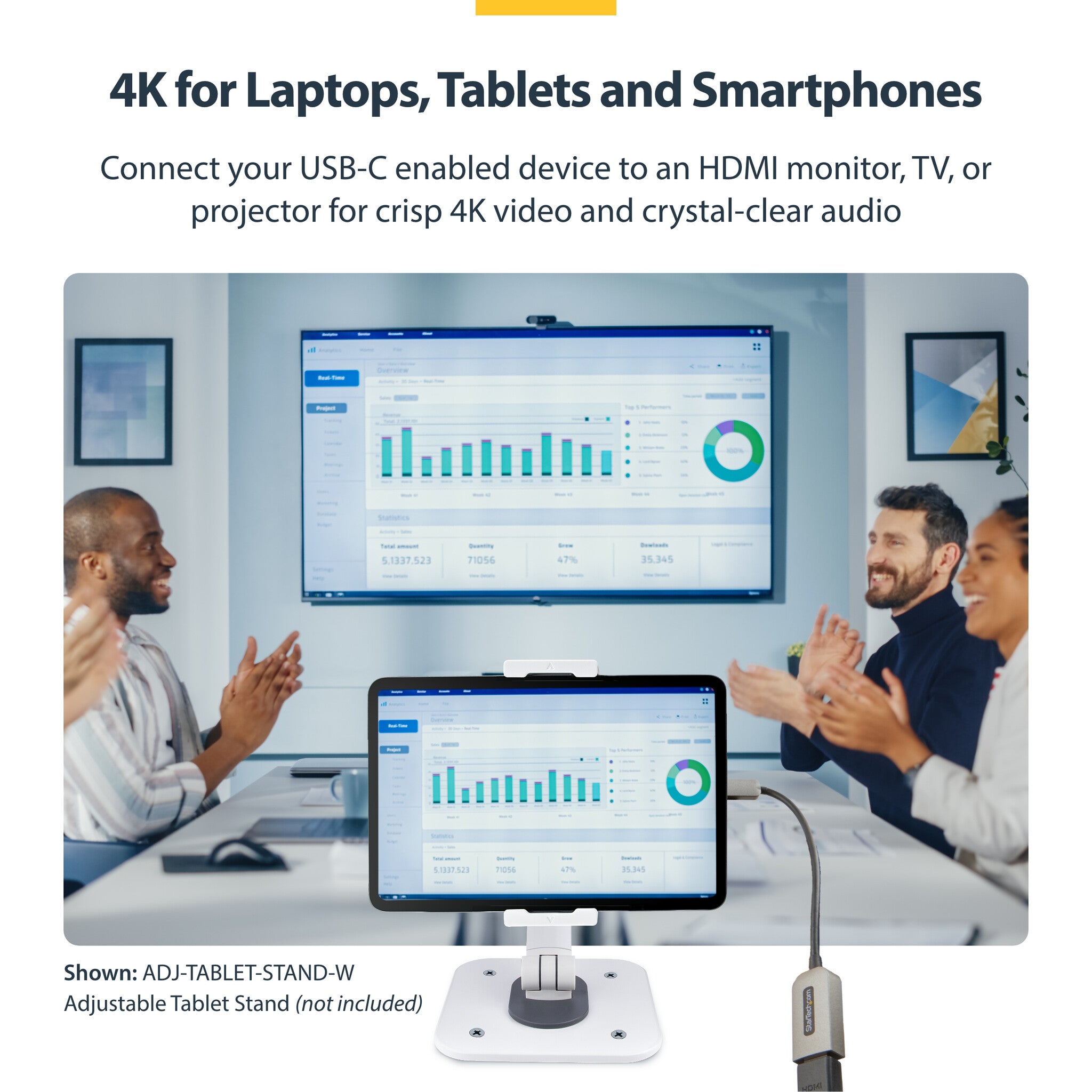

This adapter is a practical solution for ultra-slim USB Type-C laptops and tablets that don't include HDMI ports, an increasingly common challenge in today's mobile work environments.

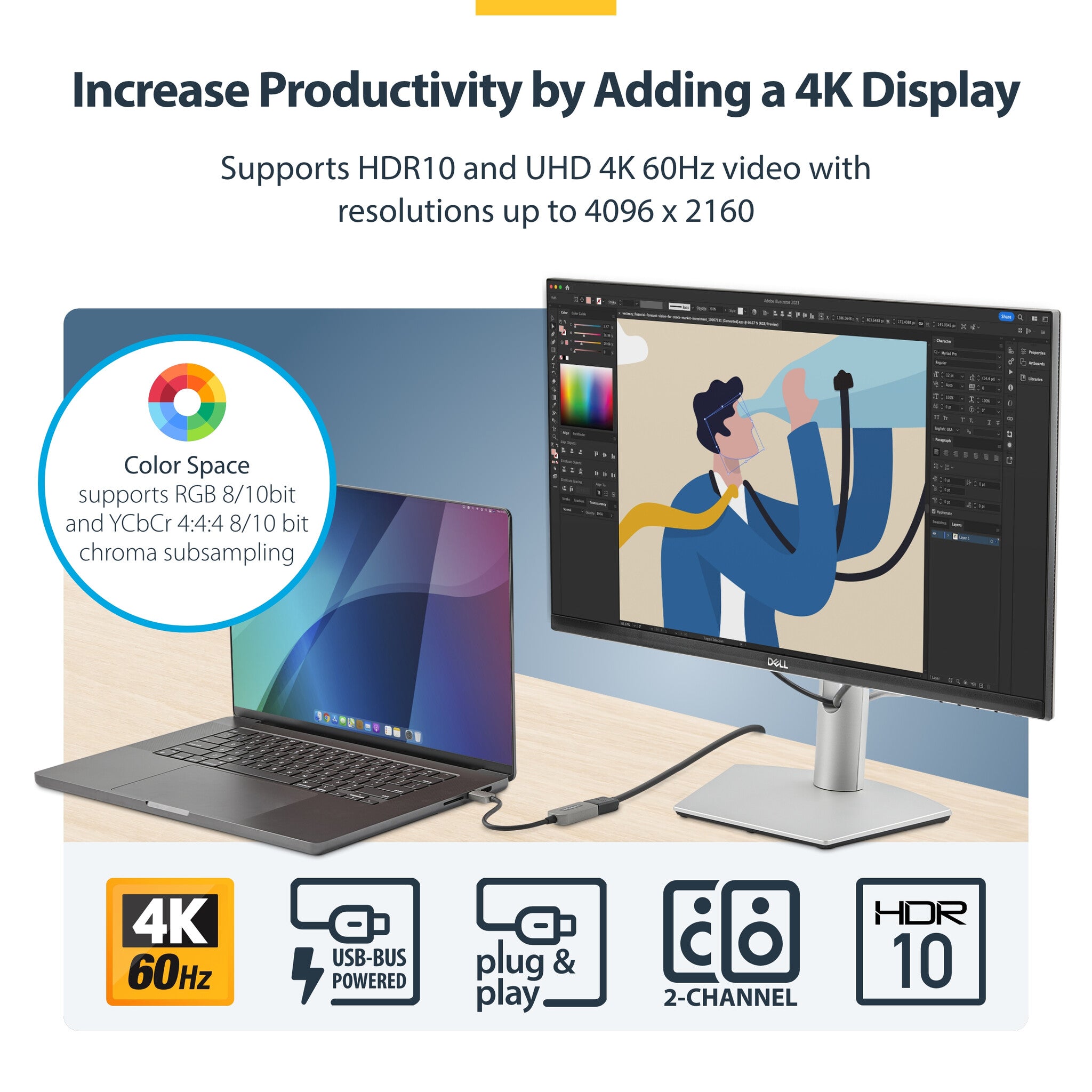

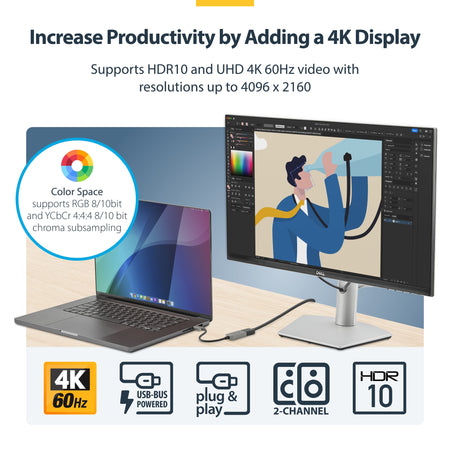

4K 60Hz with HDR

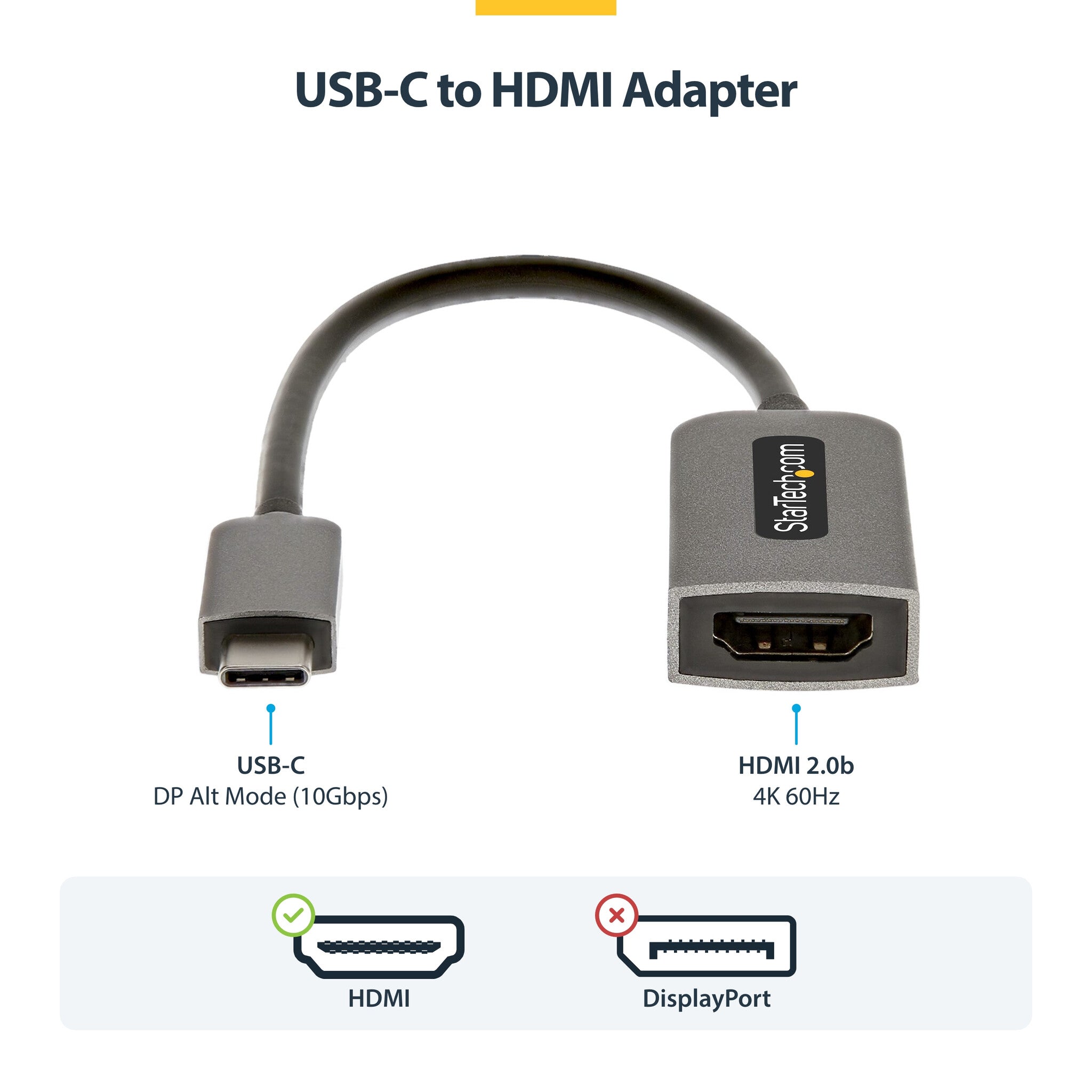

The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. It delivers 4:4:4 chroma subsampling for accurate color reproduction and sharp image fidelity. Backward compatibility ensures smooth integration with earlier HDMI versions.
Enjoy enhanced contrast, brightness, and color accuracy thanks to High Dynamic Range (HDR) support, enabling more vivid and true-to-life visuals in digital signage, video conferencing, or high-resolution presentations.

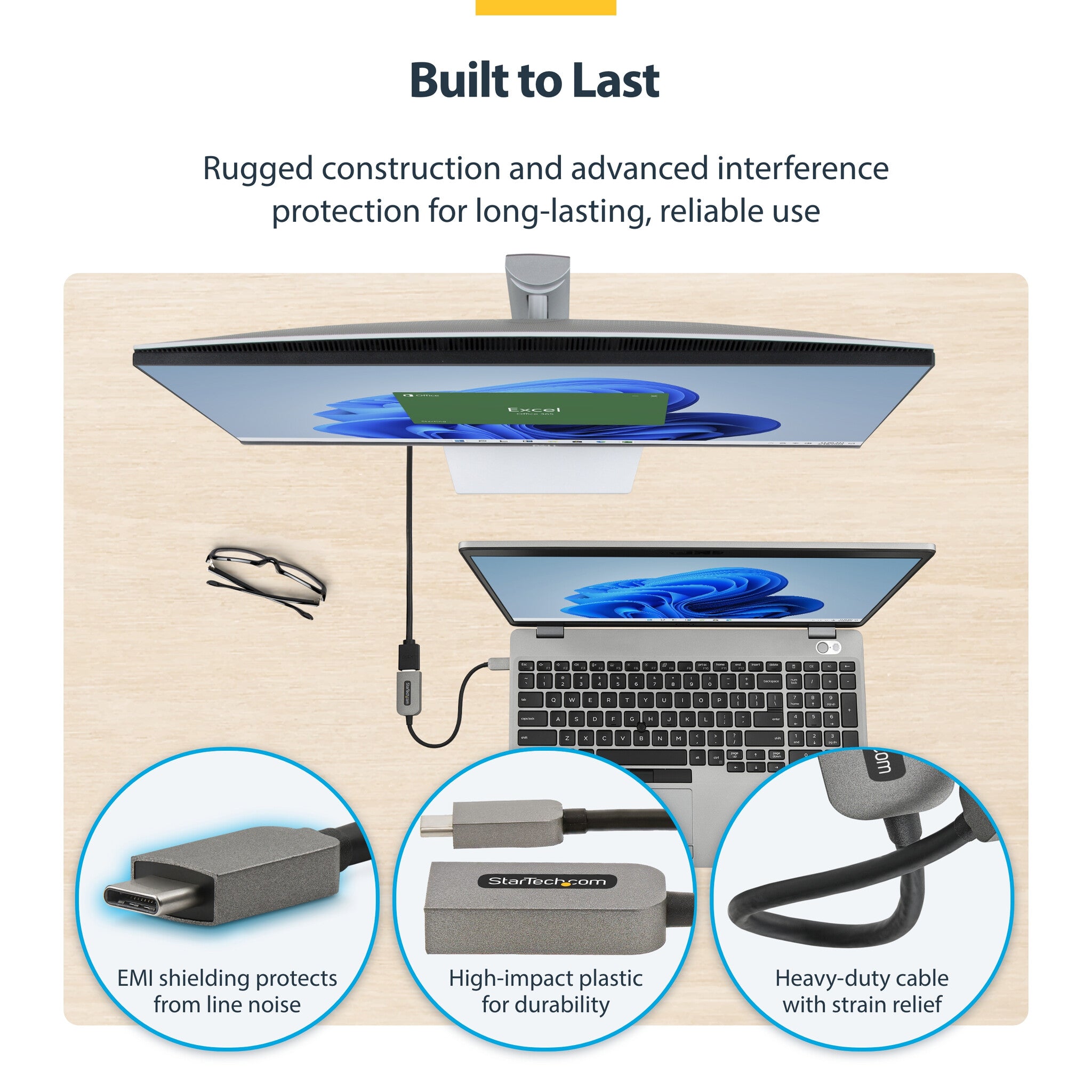

Built for Business Durability
Designed for daily use, this compact lightweight adapter features a metal inner housing for EMI shielding on the USB-C connector, a high-impact plastic shell for durability, and a heavy-duty cable with molded strain relief for long-term reliability.
Notes:
• To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
• NVIDIA graphics adapters may not support 4:4:4 chroma subsampling.
| Performance |
|---|
| Chipset |
ANX7517 |
| Audio output channels |
2.0 channels |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Refresh rate at maximum resolution |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| HDMI version |
2.0b |
| Number of displays supported |
1 |
| DisplayPort output |
No |
| HDMI output |
Yes |
| DVI output |
No |
| USB connector form factor |
Straight |
| USB connector gender |
Male |
| USB connector type |
USB Type-C |
| Design |
|---|
| Product colour |
Grey |
| Weight & dimensions |
|---|
| USB cable length |
0.13 m |
| Weight |
16 g |
| Height |
10.5 mm |
| Depth |
44 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
25 - 60% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Packaging data |
|---|
| Package weight |
22 g |
| Package height |
15 mm |
| Package depth |
225 mm |
| Package width |
125 mm |
| Technical details |
|---|
| Compliance certificates |
CE, RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Master (outer) case height |
210 mm |
| Master (outer) case length |
500 mm |
| Master (outer) case width |
320 mm |
| Products per master (outer) case |
300 pc(s) |
