Eliminate clutter by connecting your USB Type-C computer directly to an HDMI display without additional adapters

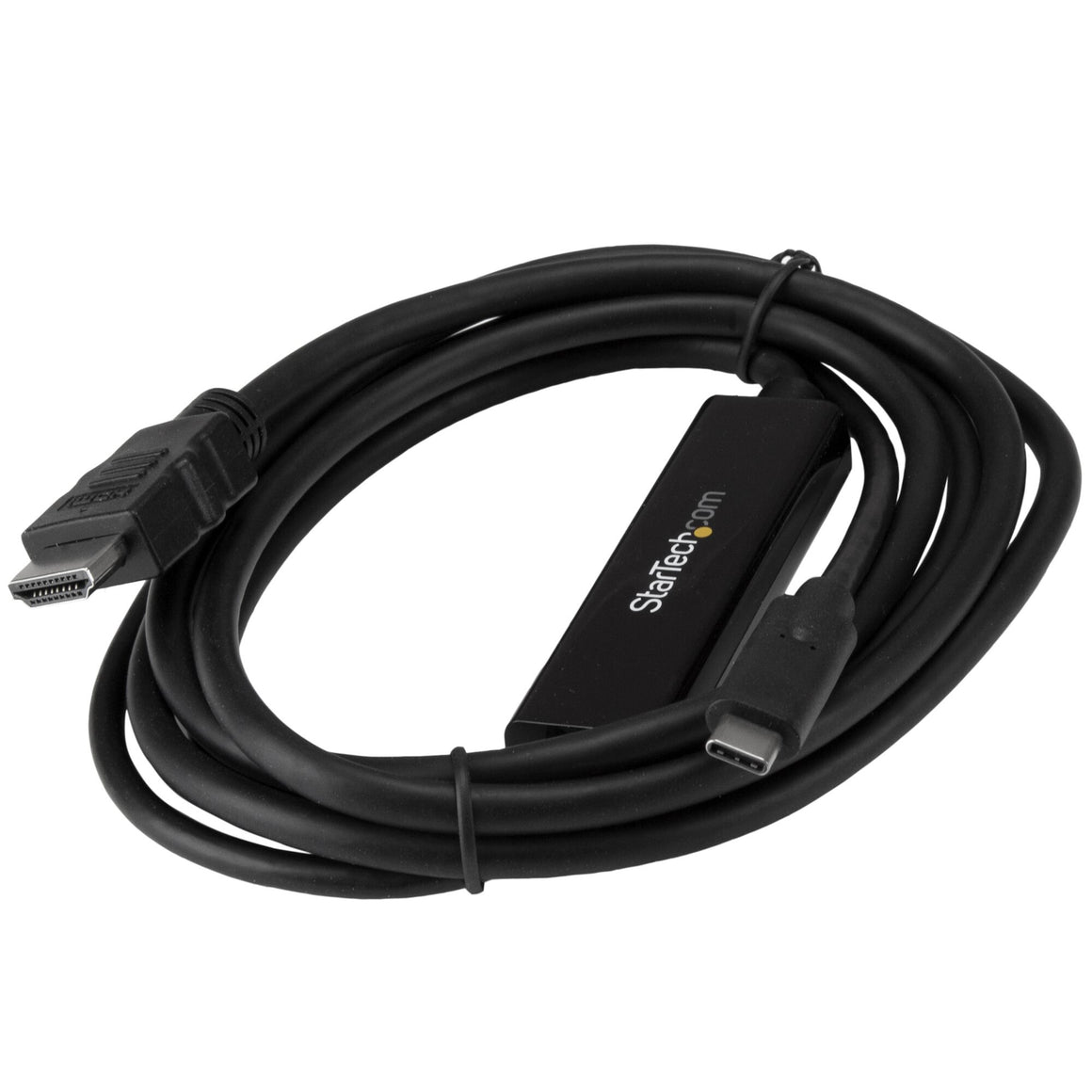

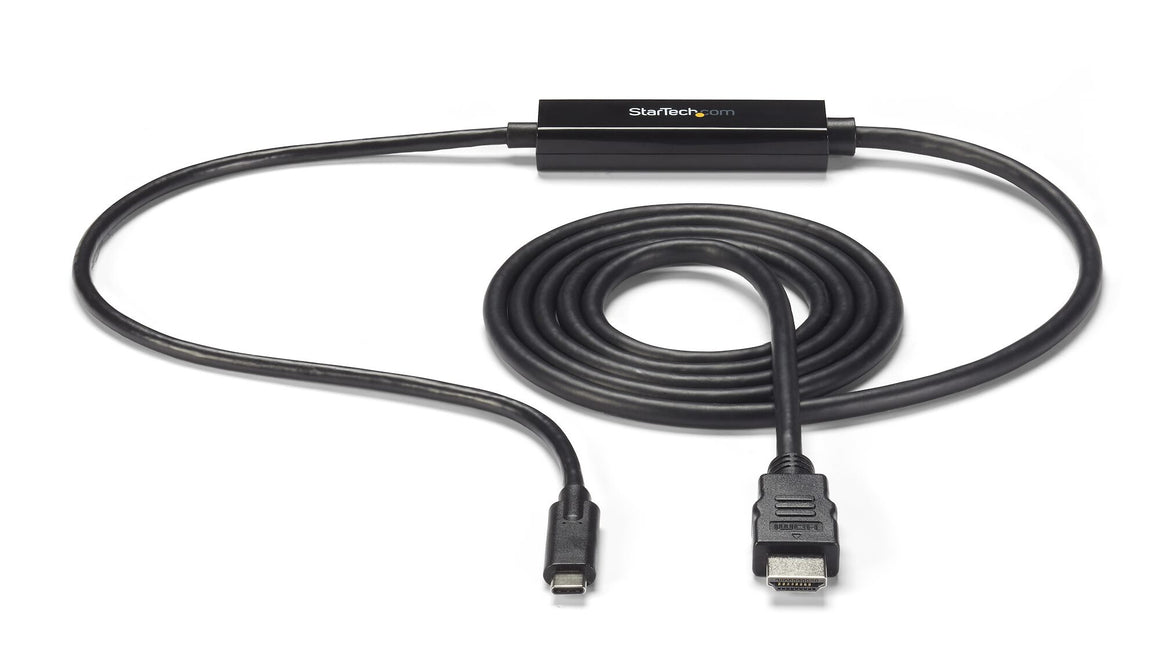

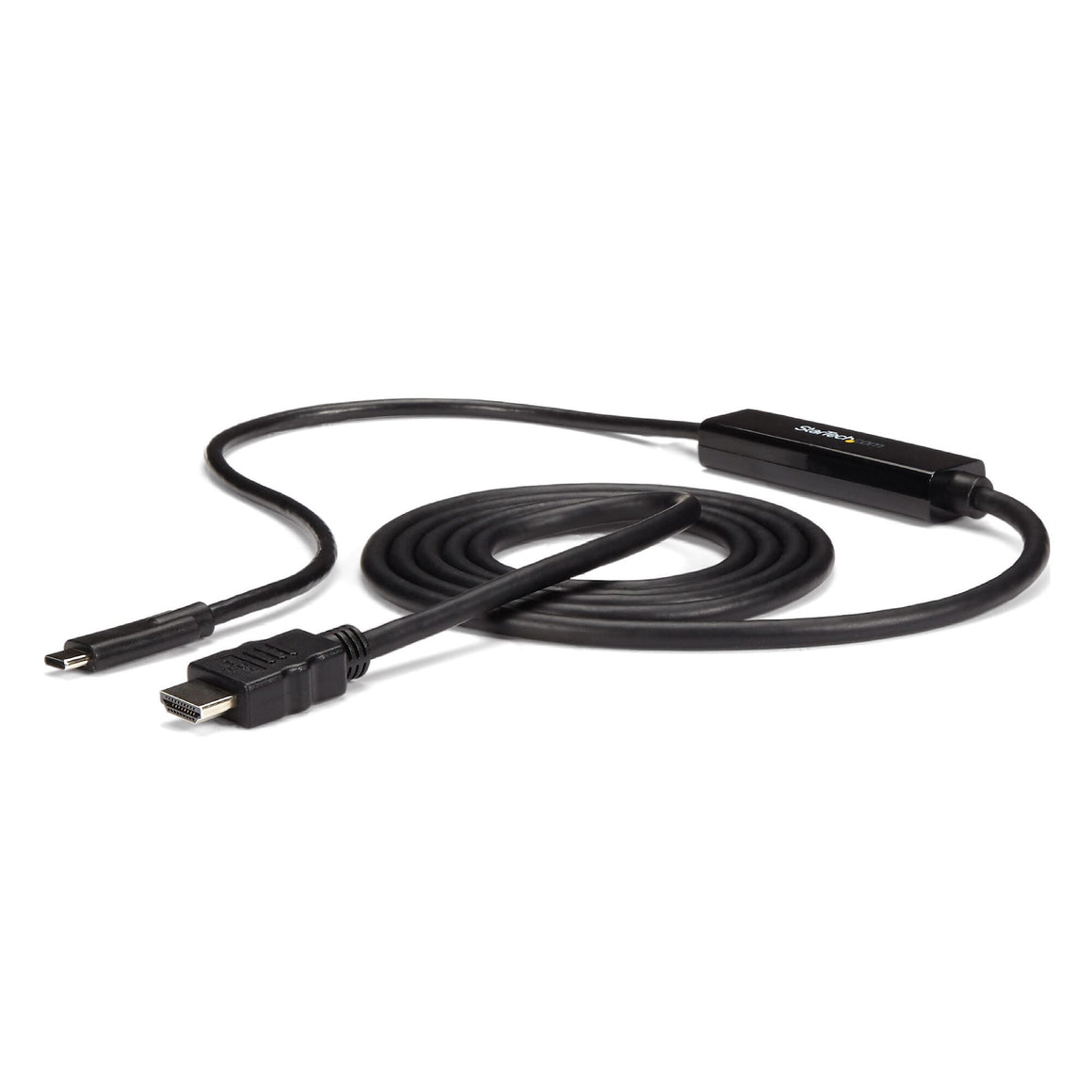

This USB-C™ to HDMI® adapter cable offers a convenient solution for directly connecting your DisplayPort over USB Type-C™ device to your HDMI monitor, television or projector. The adapter supports a connection distance of up to 2 m (6.6 ft.) and works with USB-C devices that support DP alt mode, such as the MacBook, ChromeBook Pixel™ and Dell™ XPS™ models 15 and 13. It's also compatible with Thunderbolt™ 3 ports.
Clutter-free installation
At 2 m (6.6 ft.) in length, this adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 1 m (3.3 ft.) USB-C to HDMI cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-free connection with USB Type-C
The adapter cable is easy to connect, through the versatility and convenience of the USB Type-C port on your device. USB-C is a reversible connector, so it doesn't matter which way you plug it in, the adapter will always connect. This saves you the frustration of trying to insert it correctly when you're docking your computer to your workstation or office hot desk.
Astonishing picture quality
At four times the resolution of high-definition 1080p, you'll be amazed at the picture quality of a 4K monitor or television. This adapter cable lets you harness the video capabilities that are built into your USB Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display.
The adapter is backward compatible with 1080p displays, ensuring the adapter will also work for HD applications at your home or office.
Note:
Your USB-C equipped device must support video (DP alt mode) to work with this adapter.
The StarTech.com Advantage
| Features |
|---|
| Plug and Play |
Yes |
| Supported audio channels |
7.1 |
| Chipset |
Parade - PS171, NXP - PTN5100 |
| Product colour |
Black |
| Maximum refresh rate |
30 Hz |
| Supported graphics resolutions |
1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes |
720p, 1080p, 2160p |
| Maximum resolution |
3840 x 2160 pixels |
| HDMI version |
1.4 |
| Connector 2 form factor |
Straight |
| Connector 1 form factor |
Straight |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector 2 |
HDMI |
| Connector 1 |
USB Type-C |
| Cable length |
2 m |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Depth |
2000 mm |
| Weight |
118 g |
| Packaging data |
|---|
| Package weight |
127 g |
| Package height |
45 mm |
| Package depth |
225 mm |
| Package width |
125 mm |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Products per master (outer) case |
60 pc(s) |
| Master (outer) case height |
217 mm |
| Master (outer) case length |
505 mm |
| Master (outer) case width |
324 mm |
| Harmonized System (HS) code |
84733080 |
