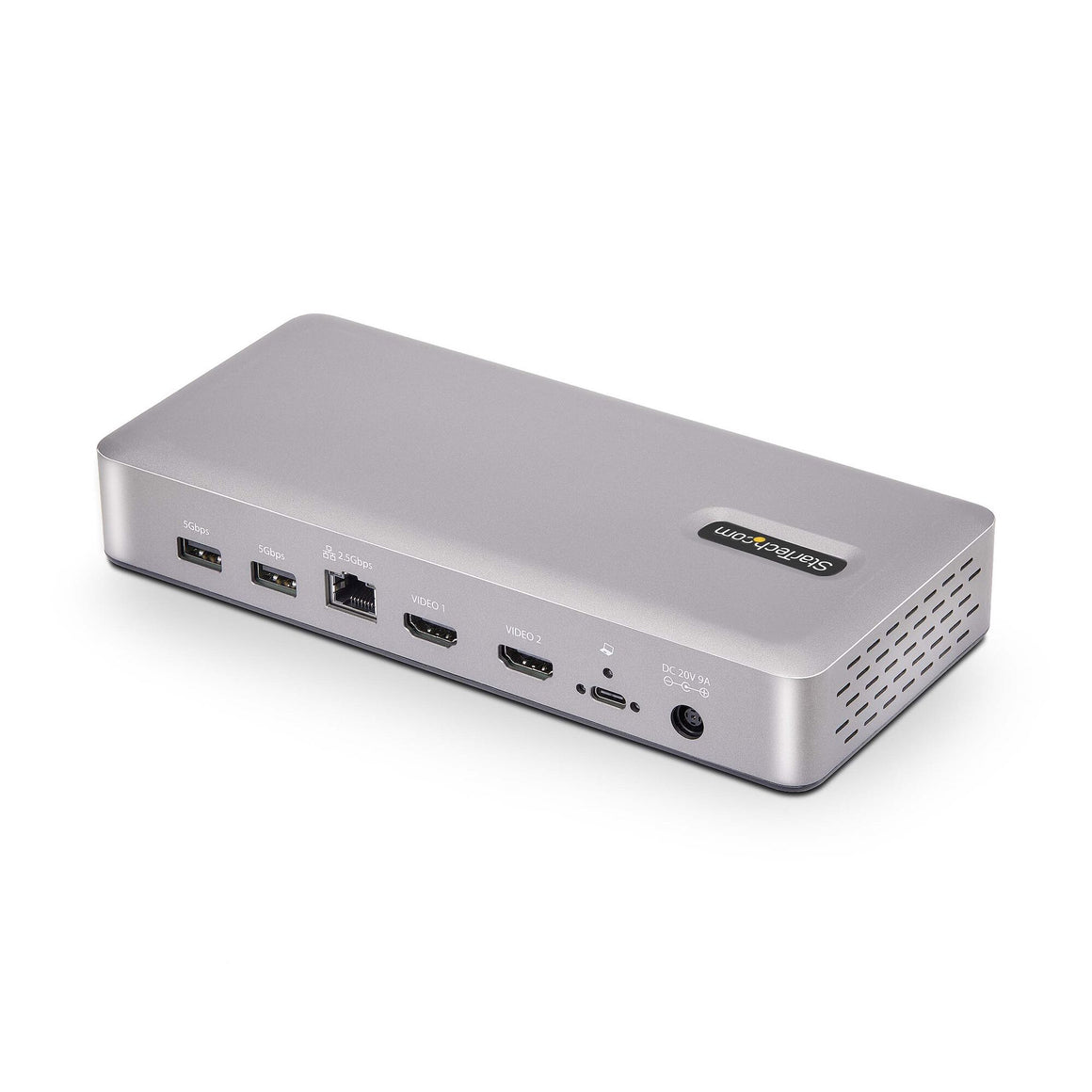

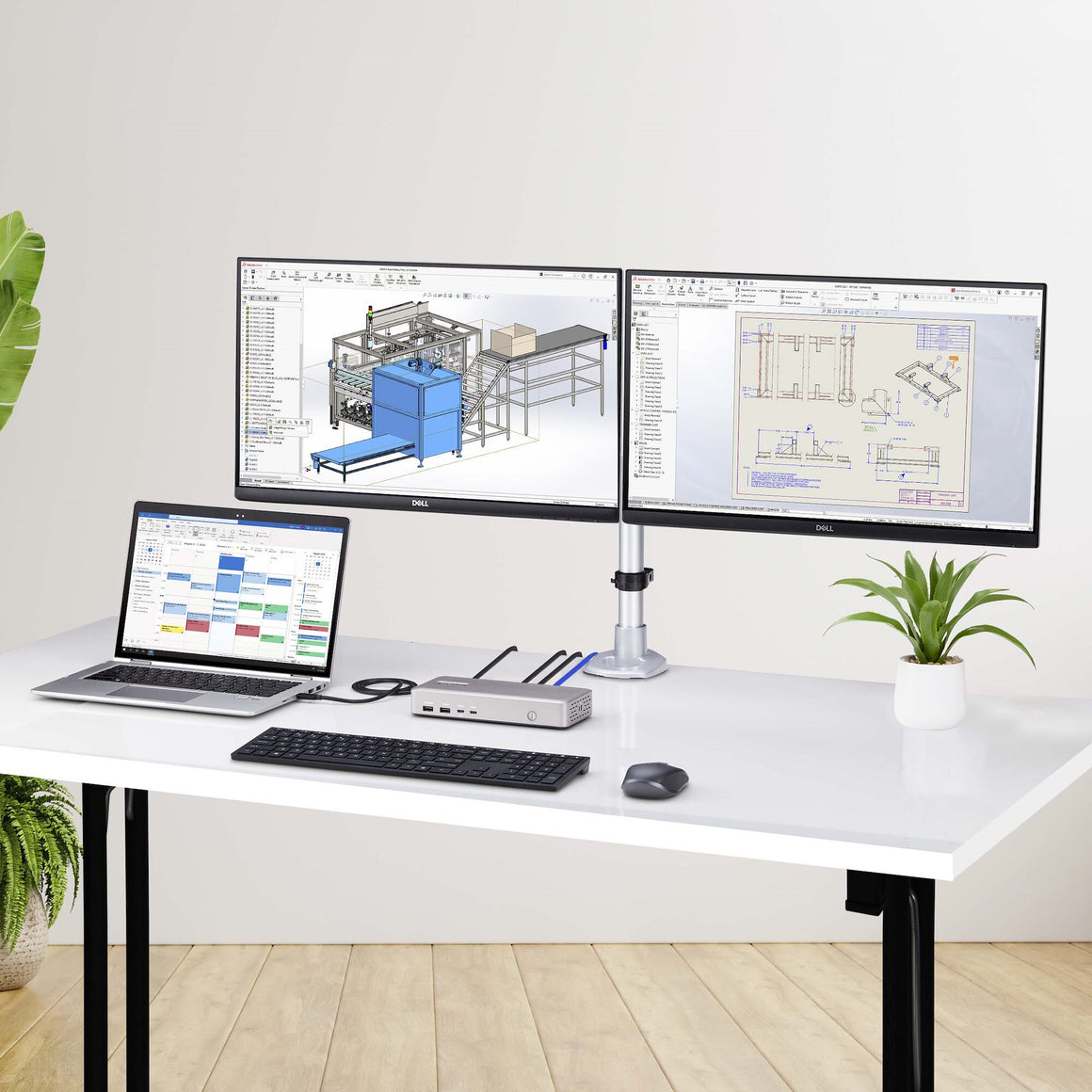

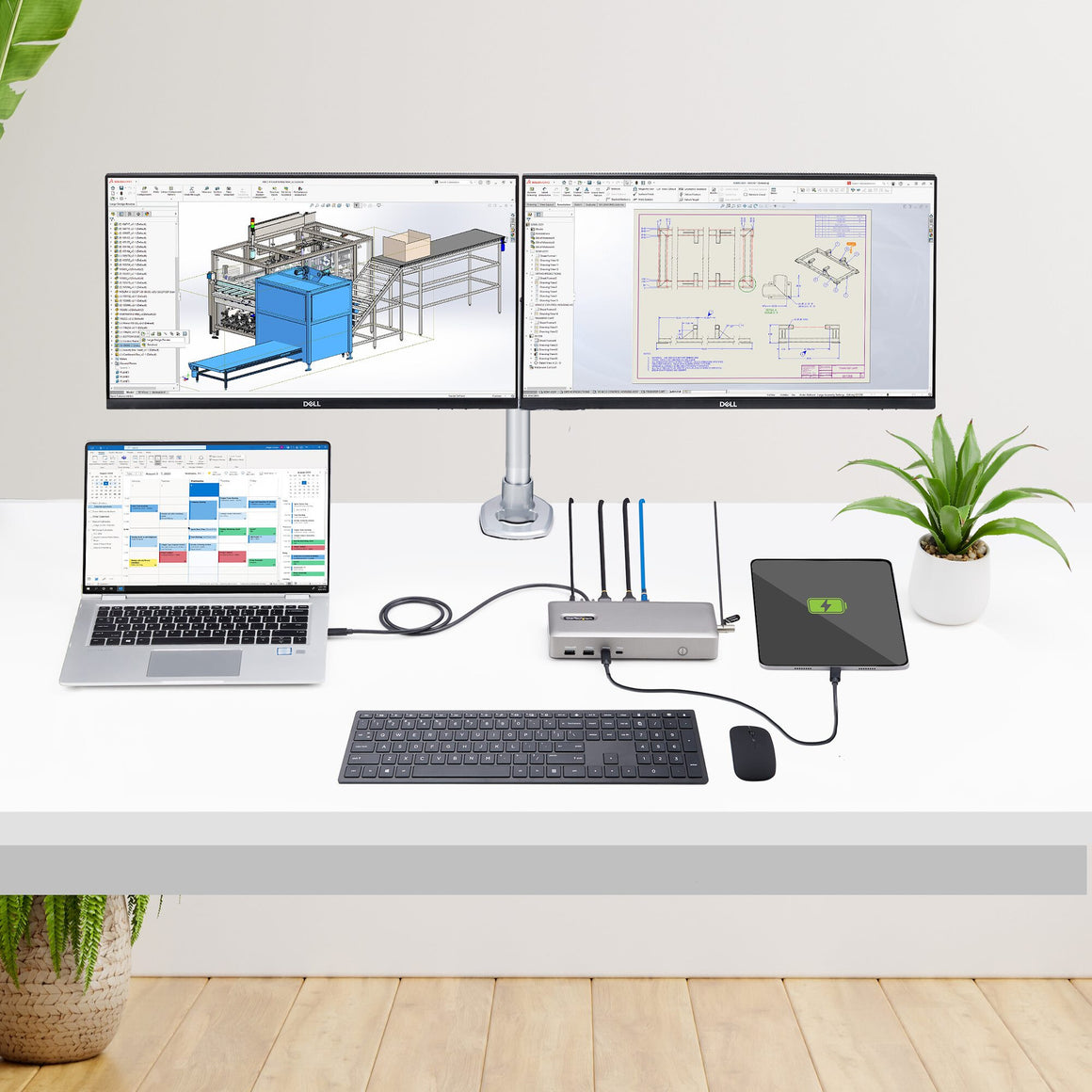

Turn a USB4 equipped laptop into a dual monitor workstation
This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video

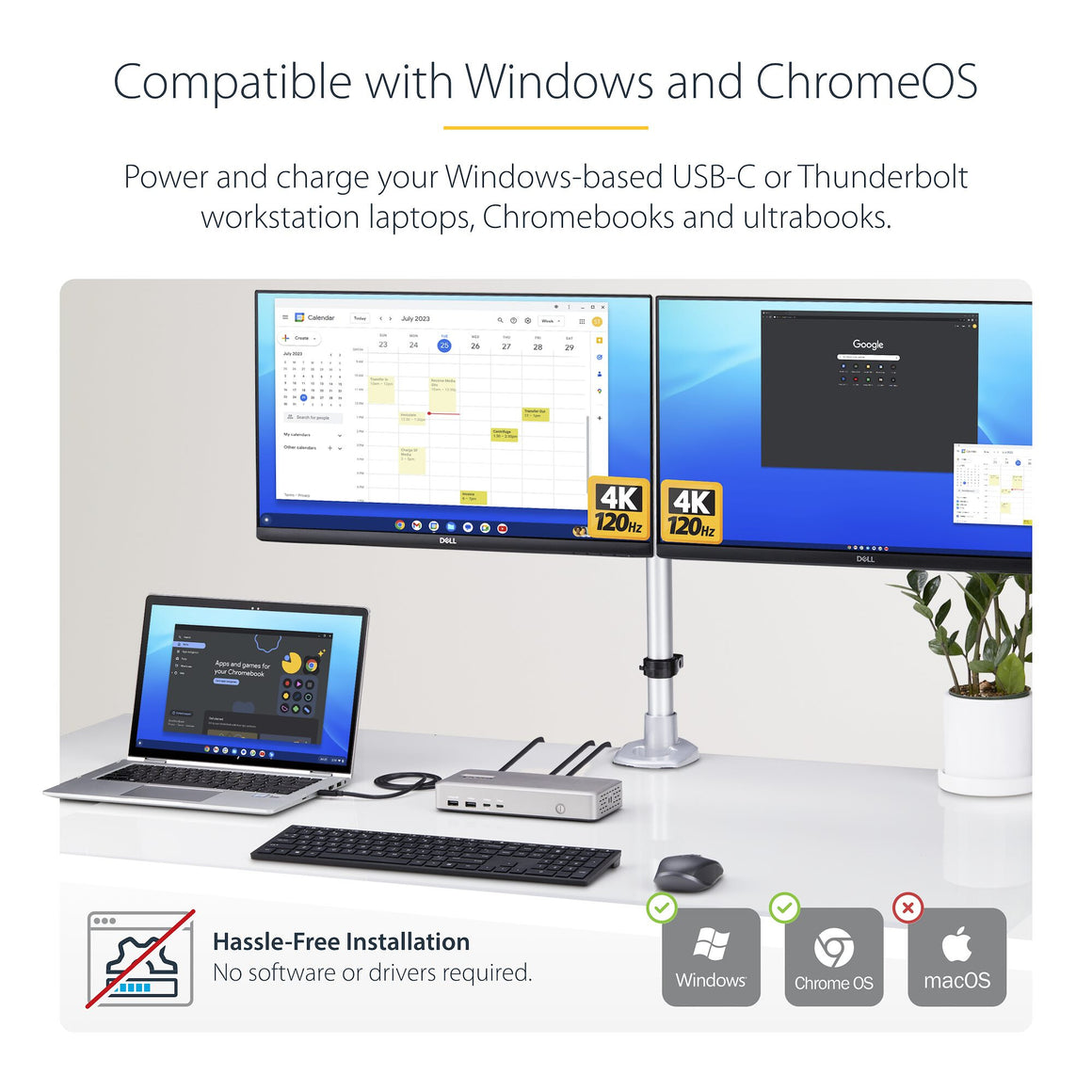

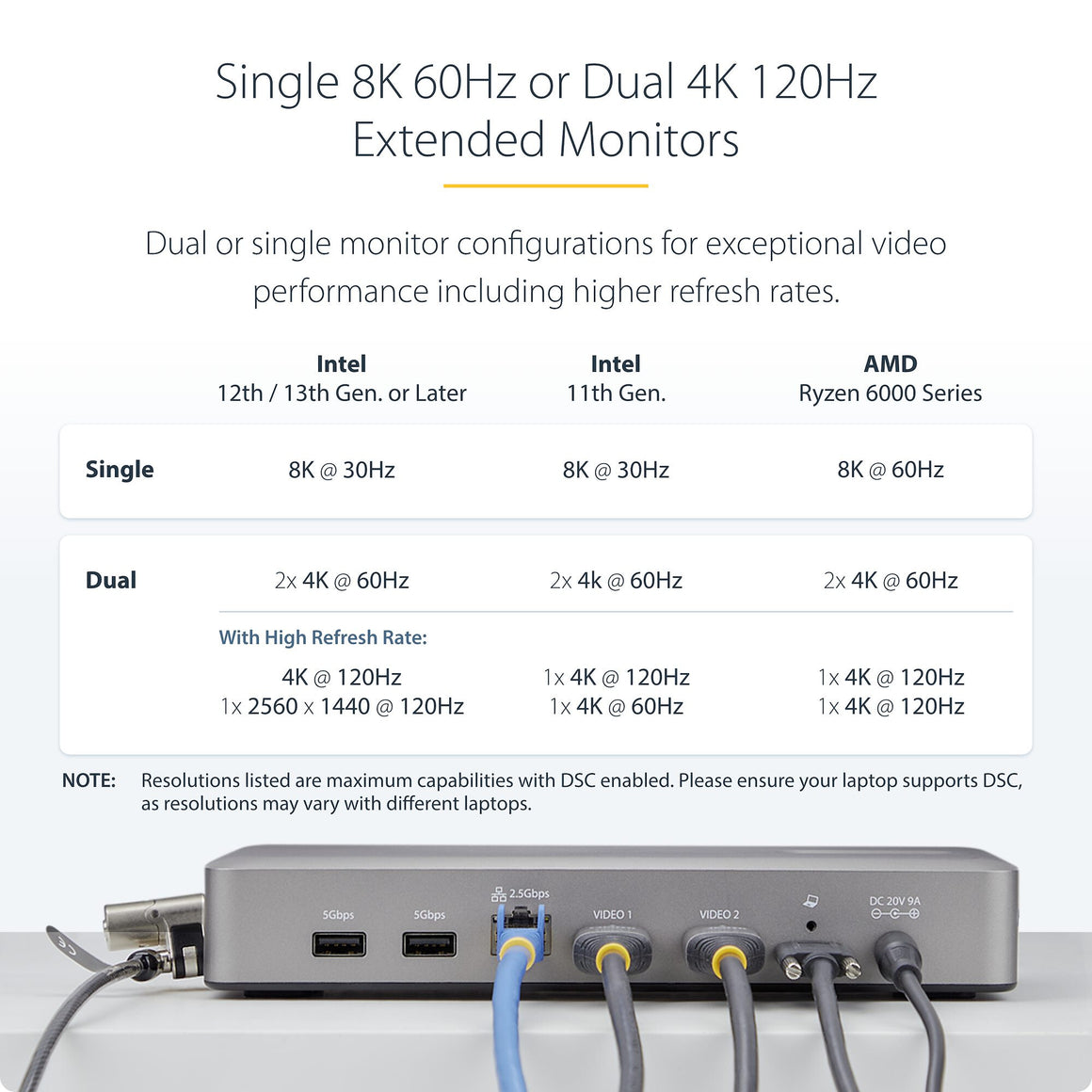

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.
Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

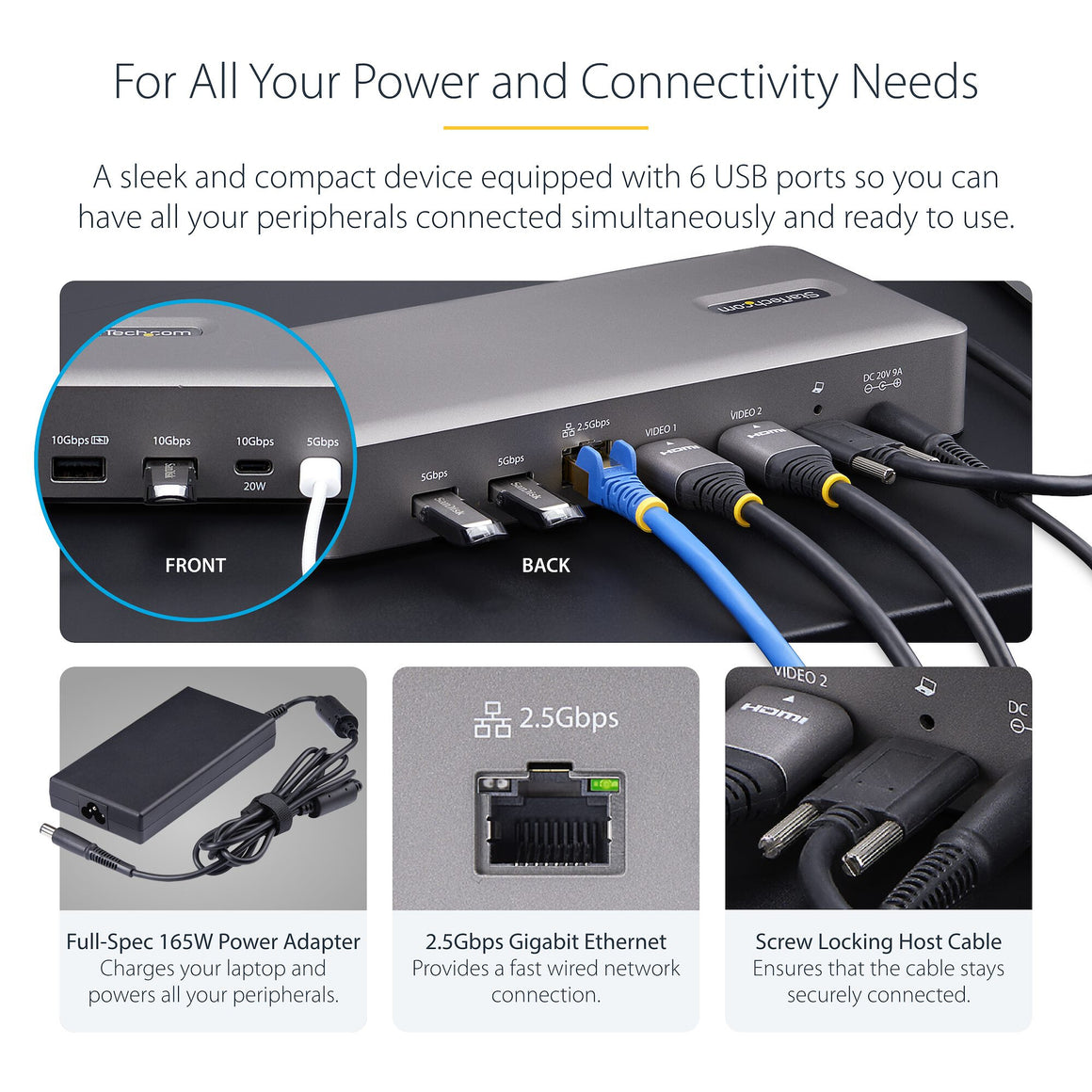

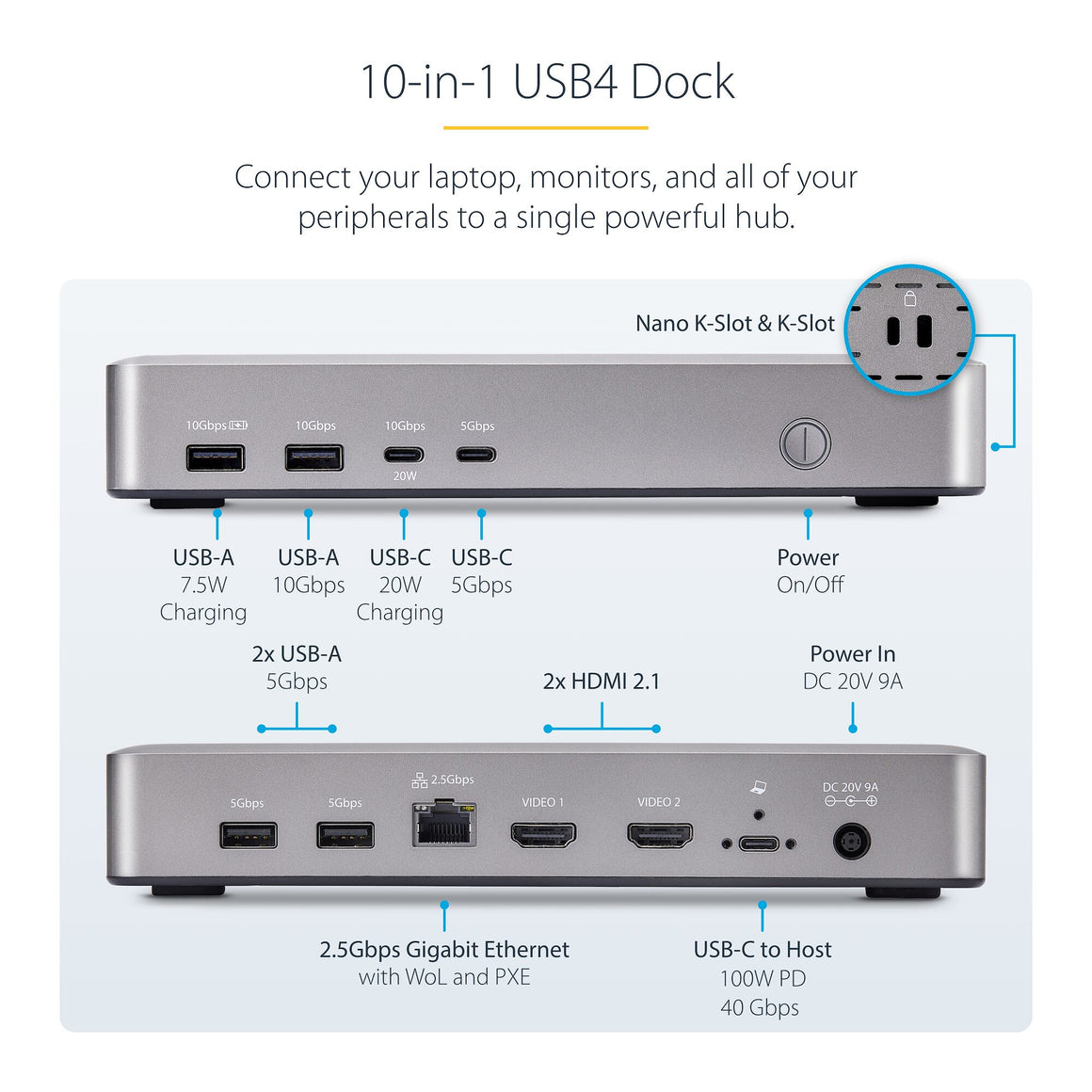

The dock features:

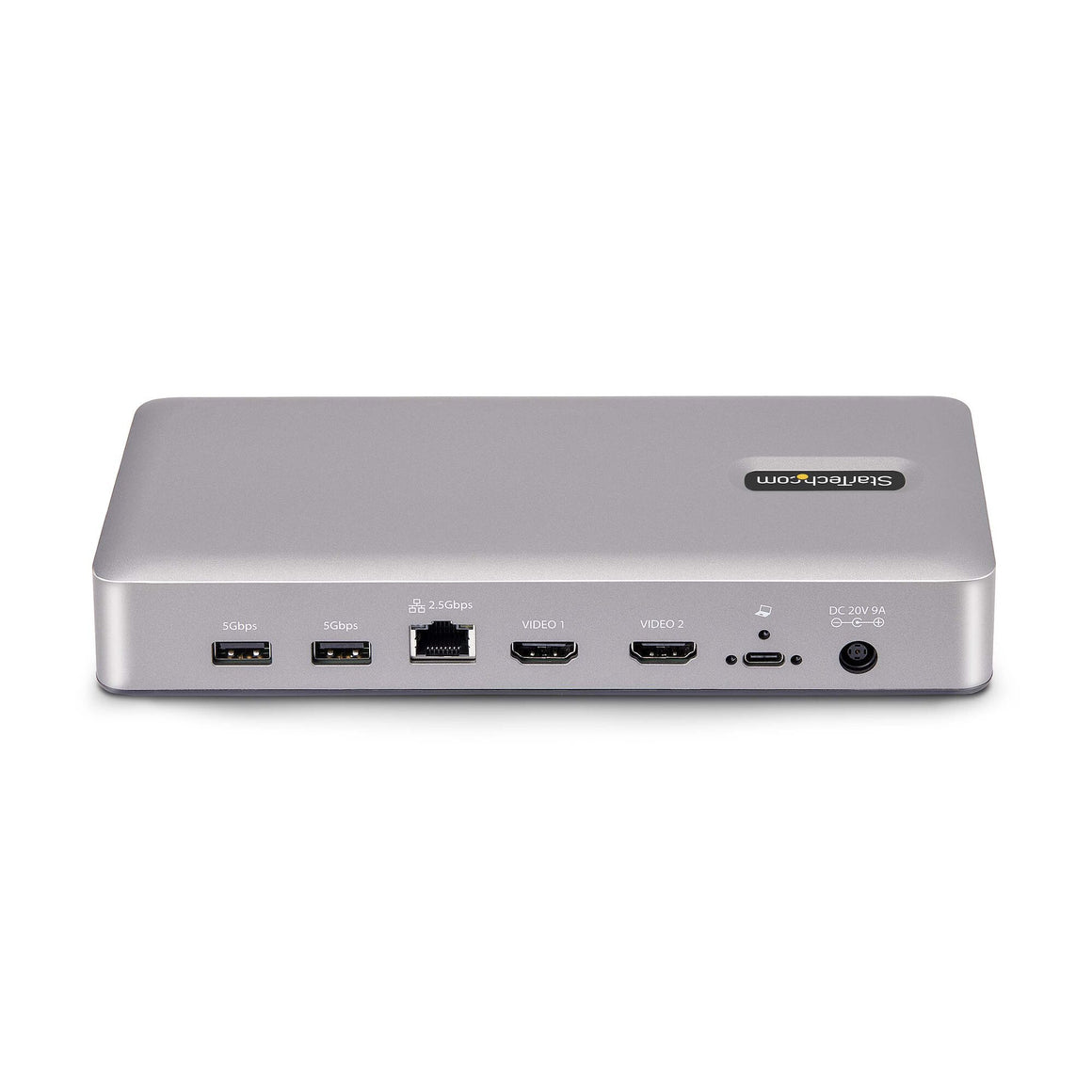

• 2x HDMI ports to connect displays.

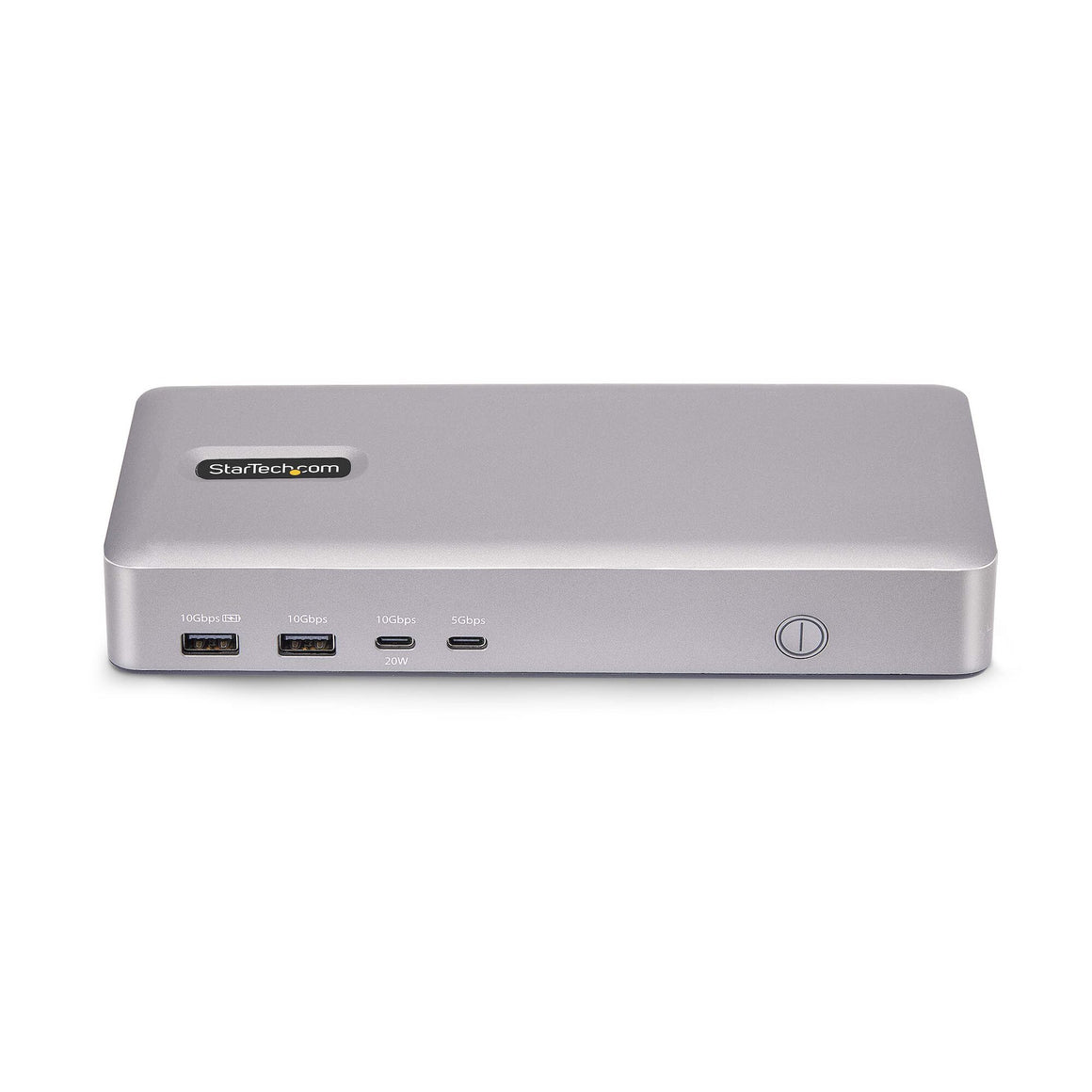

• 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

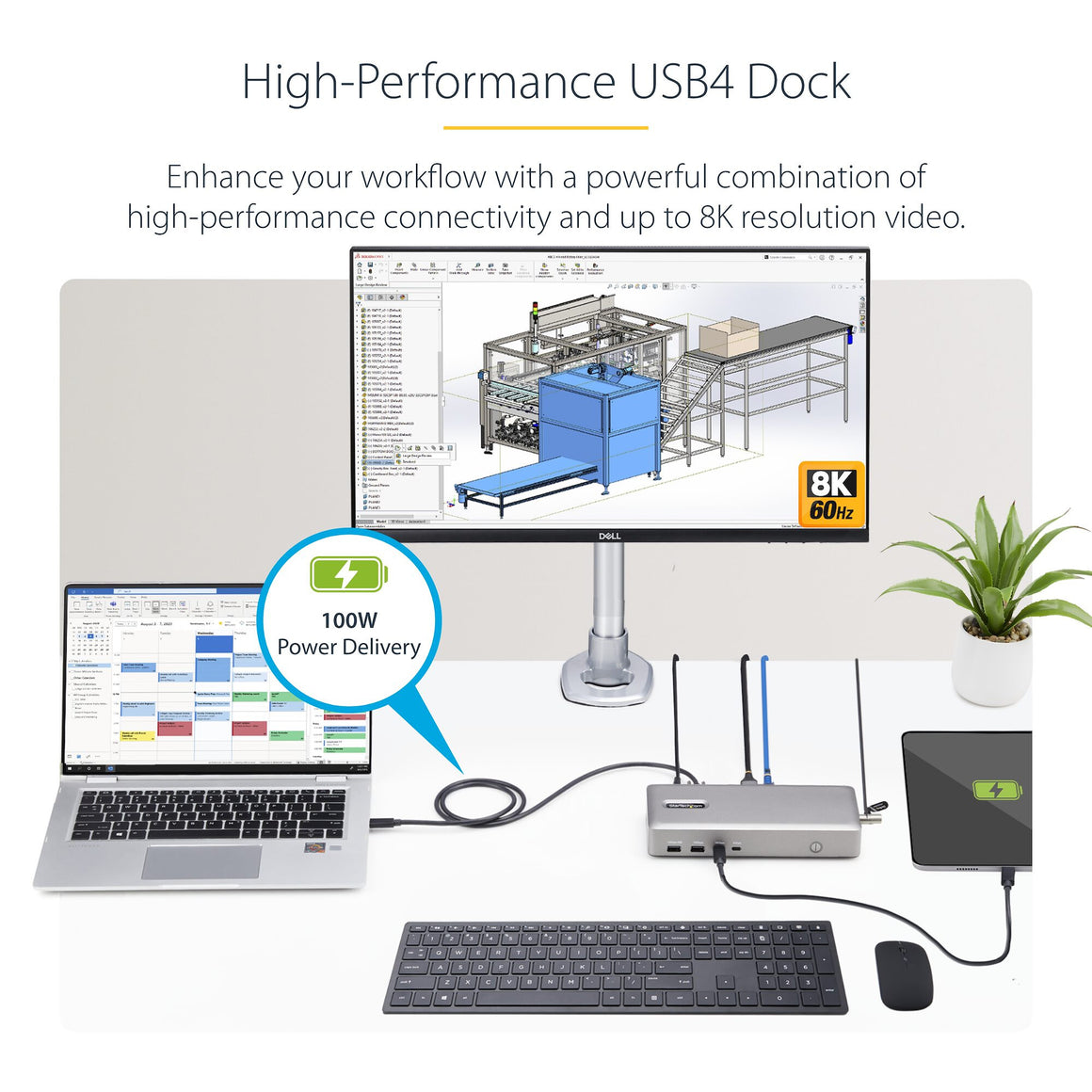

100W USB Power Delivery
Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Microphone in |
No |
| HDMI ports quantity |
2 |
| USB Power Delivery up to |
100 W |
| USB Power Delivery (USB PD) |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Host interface |
USB4 |
| Connectivity technology |
Wired |
| Network |
|---|
| Full duplex |
Yes |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN |
Yes |
| Performance |
|---|
| UASP support |
Yes |
| LED indicators |
Yes |
| Housing material |
Plastic |
| On/off switch |
Yes |

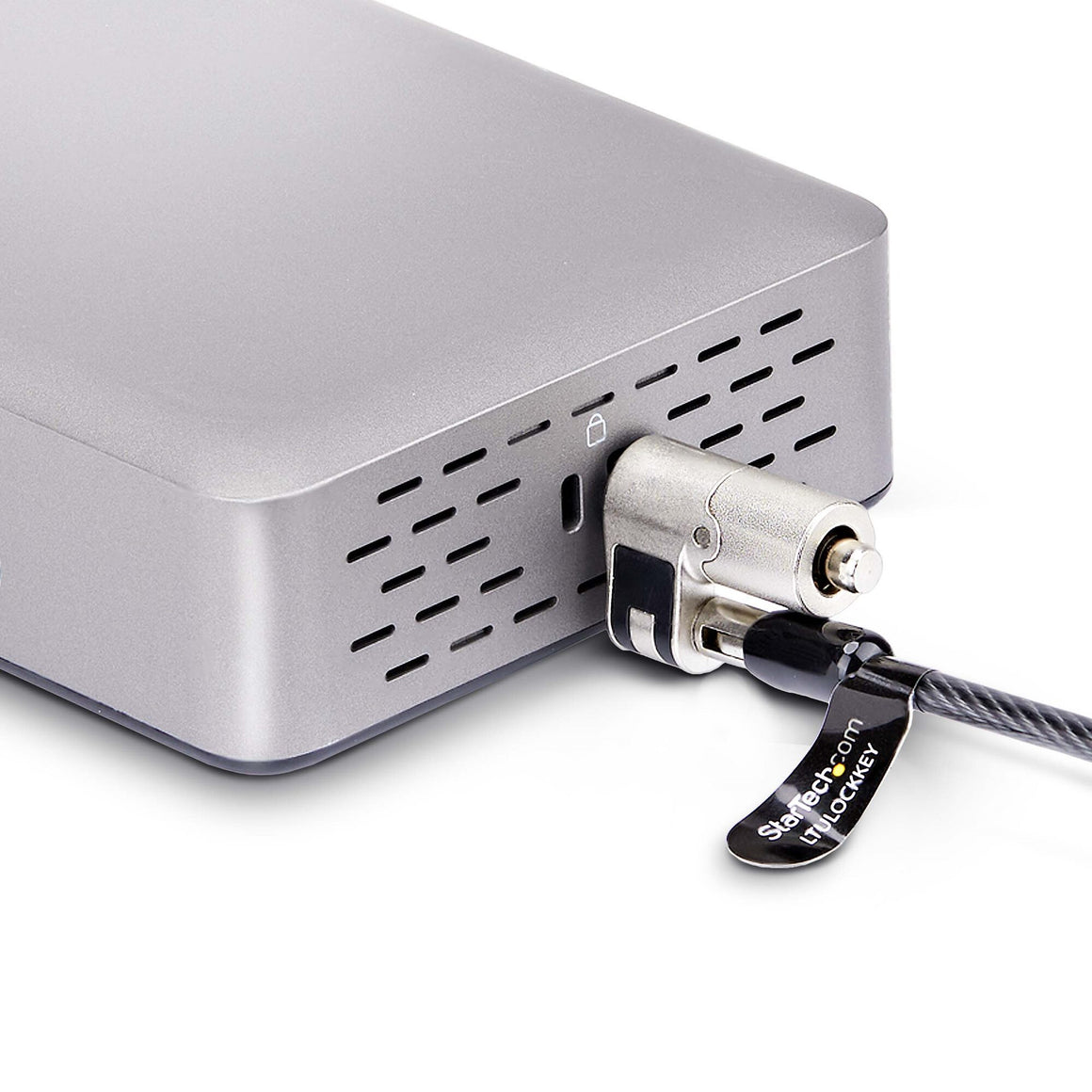

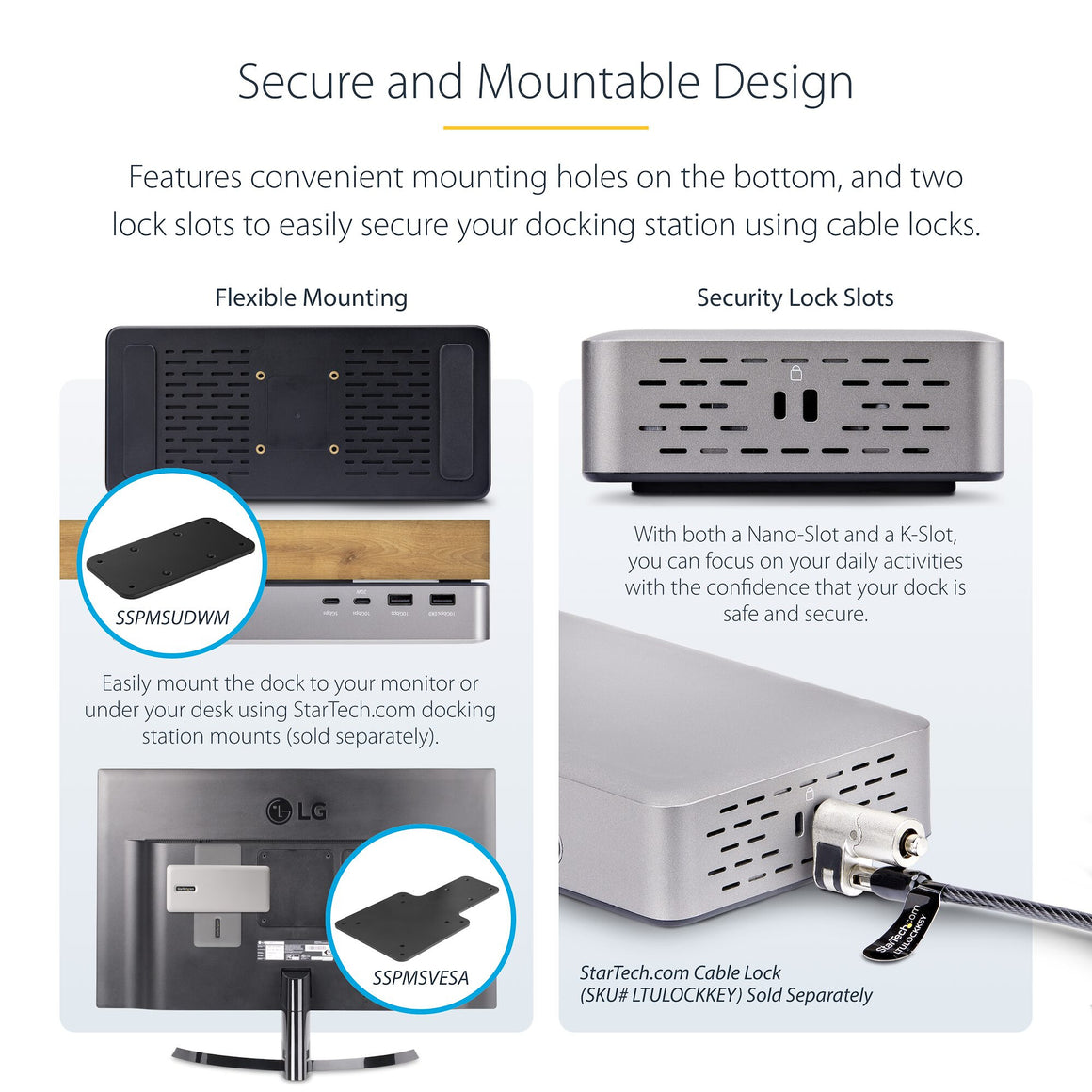

| Cable lock slot type |
Kensington, Nano |
| Cable lock slot |
Yes |
| Maximum refresh rate |
120 Hz |
| Number of displays supported |
2 |
| Maximum digital resolution |
3840 x 2160 pixels |
| HD type |
4K Ultra HD |
| Data transfer rate |
40 Gbit/s |
| Card reader integrated |
No |
| Product colour |
Silver |
| Power |
|---|
| Compatible power plug types |
EU, UK |
| Power plug type |
Type M |
| Power consumption (typical) |
165 W |
| Output voltage |
20 V |
| Output current |
9 A |
| Input current |
2.5 A |
| AC input voltage |
100 - 240 V |
| Power source type |
DC |

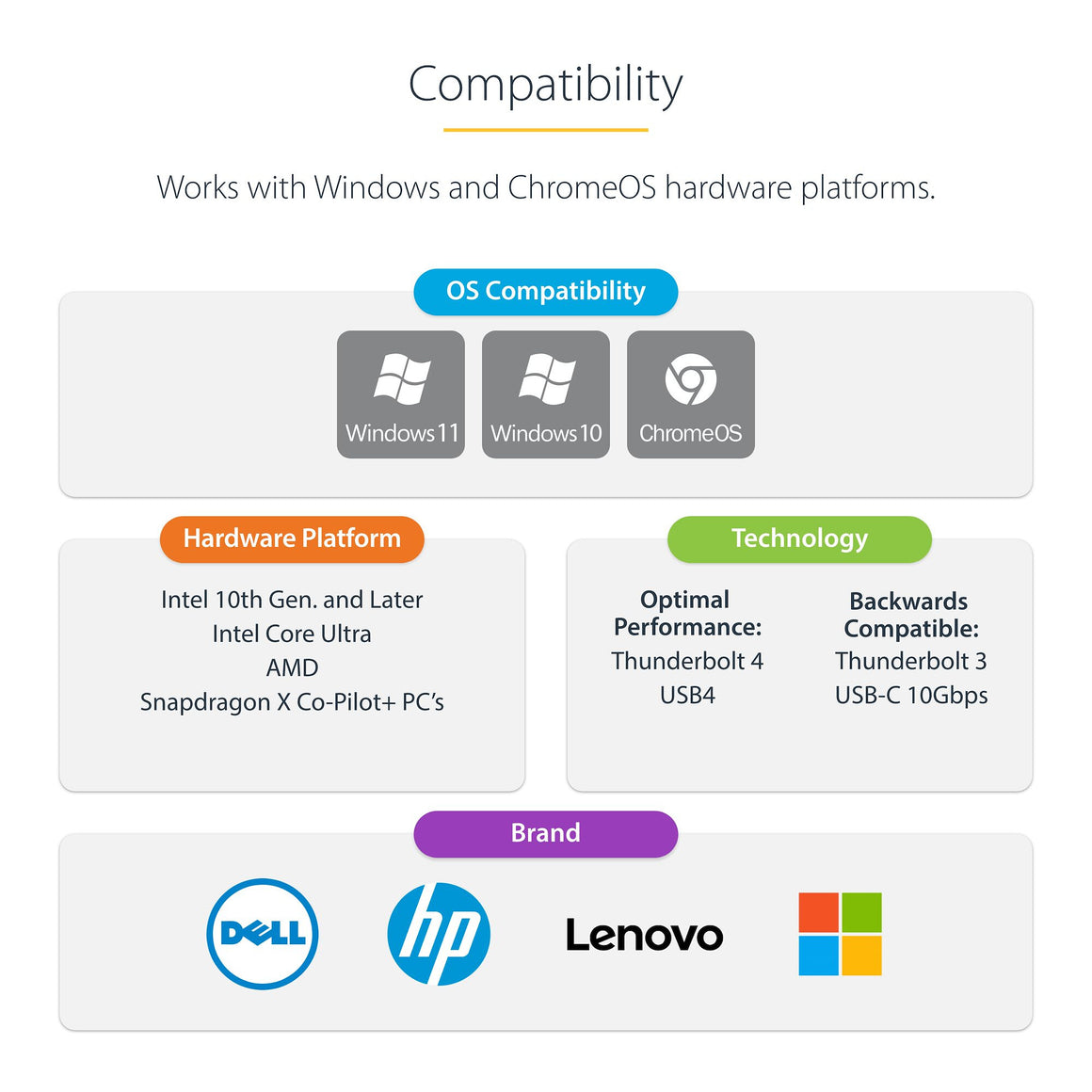

| Software |
|---|
| Other operating systems supported |
ChromeOS |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |

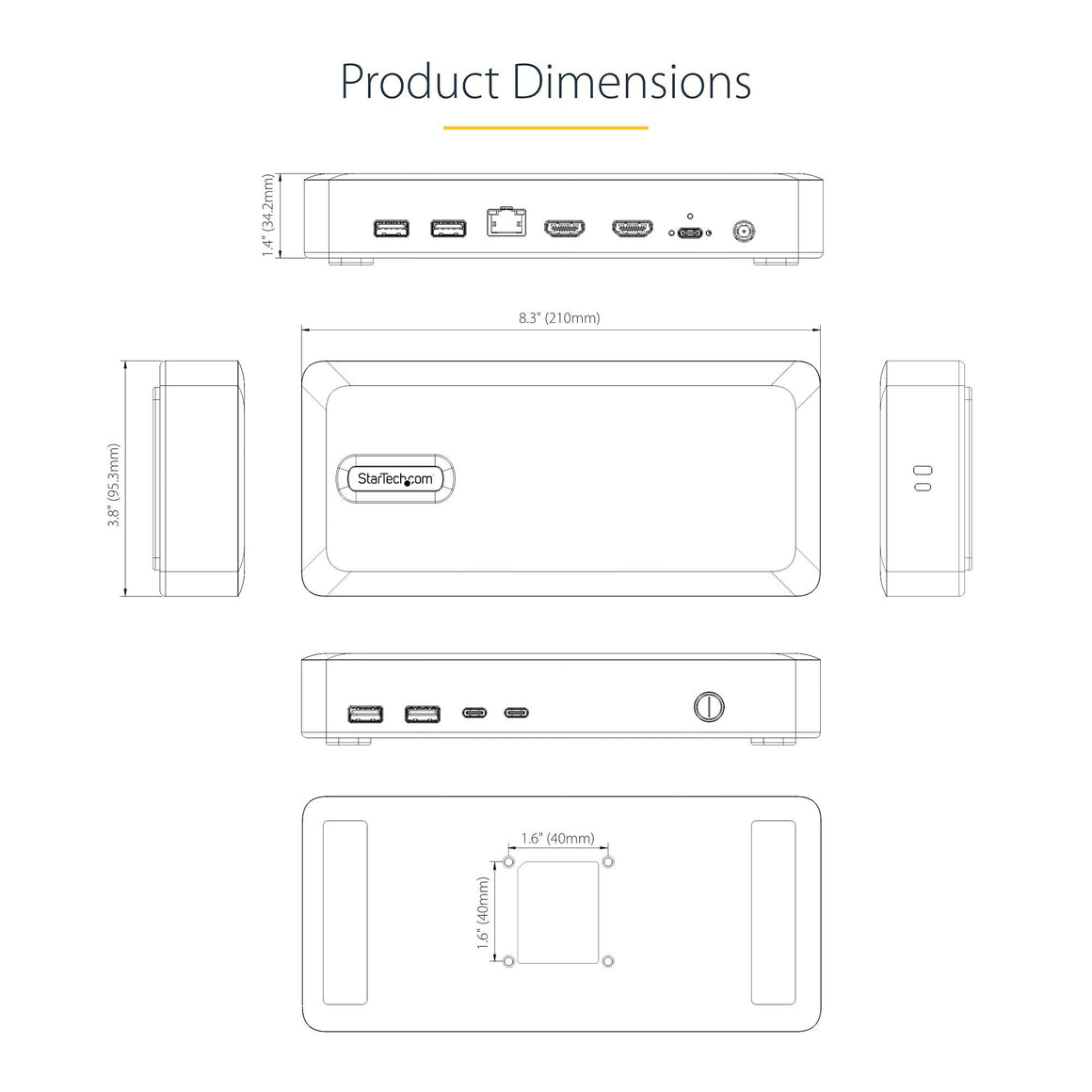

| Weight & dimensions |
|---|
| Weight |
138.6 g |
| Height |
34 mm |
| Depth |
95 mm |
| Width |
210 mm |
| Packaging data |
|---|
| Package weight |
1.3 kg |
| Package height |
89 mm |
| Package depth |
230 mm |
| Package width |
145 mm |

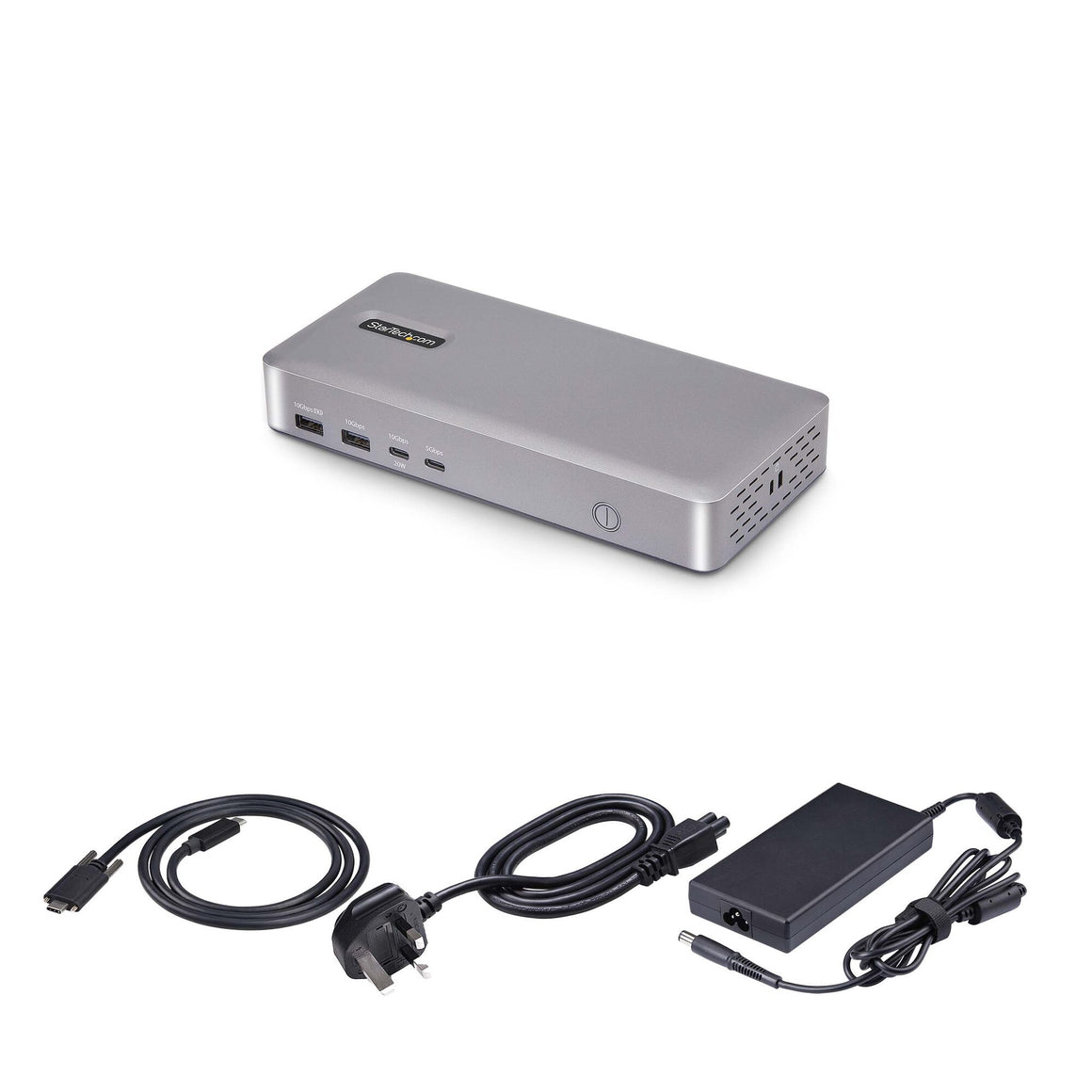

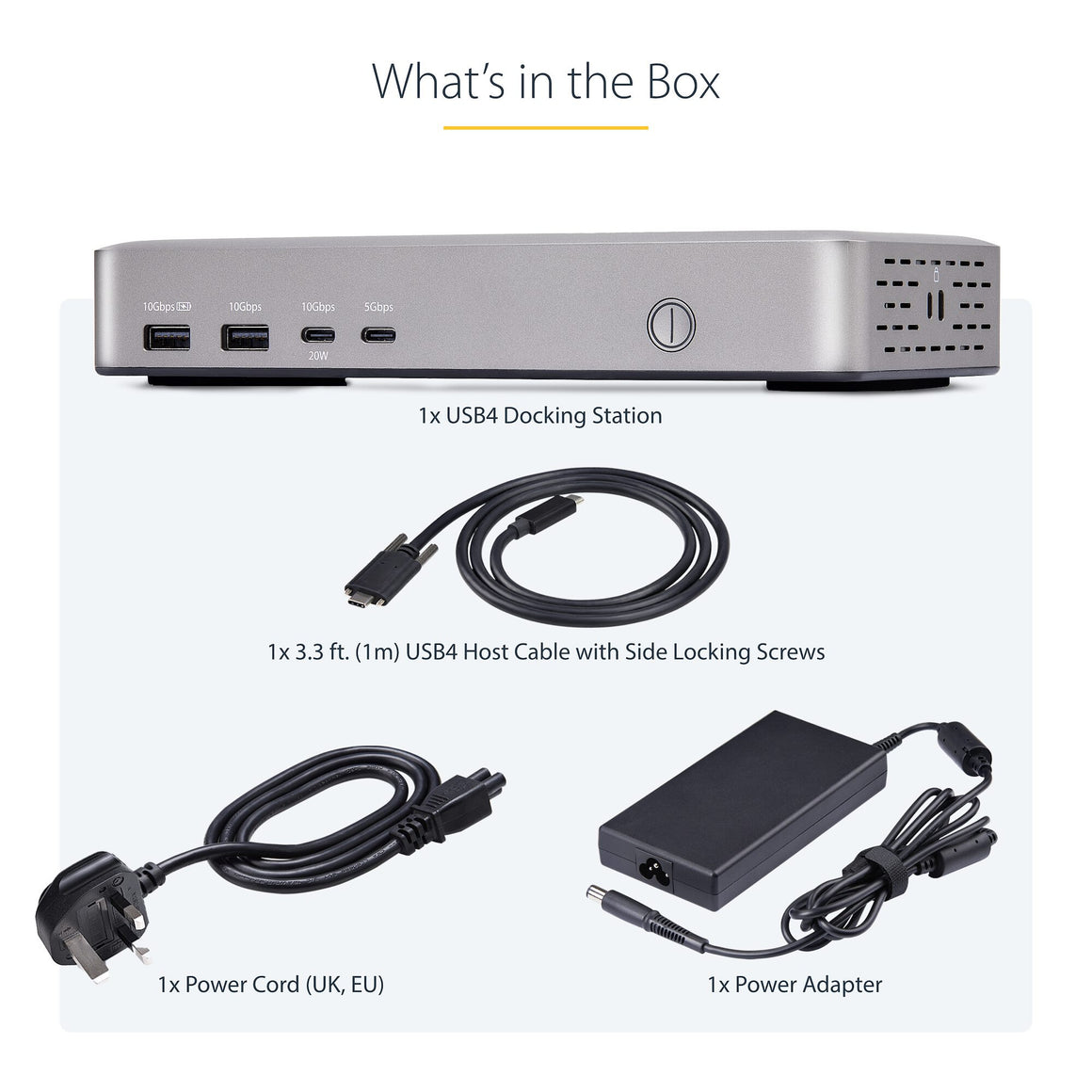

| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB |
| Logistics data |
|---|
| Products per master (outer) case |
8 pc(s) |
| Master (outer) case width |
305 mm |
| Master (outer) case length |
375 mm |
| Master (outer) case height |
265 mm |
| Other features |
|---|
| Chipset |
VIA - VL830, VIA - VL163, Realtek - RTD2188-VA-CG, Genesys Logic - GL9901NE |
