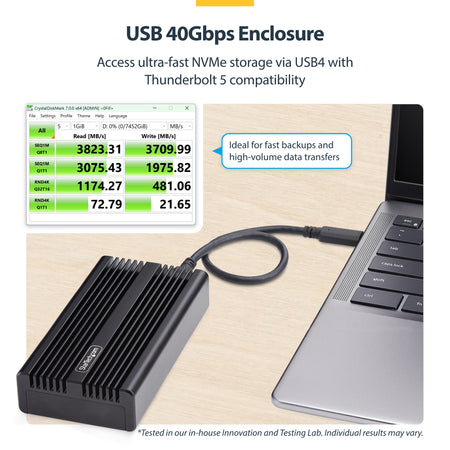

Access Ultra-Fast NVMe Storage via 40Gbps USB4 with Thunderbolt 5 Compatibility

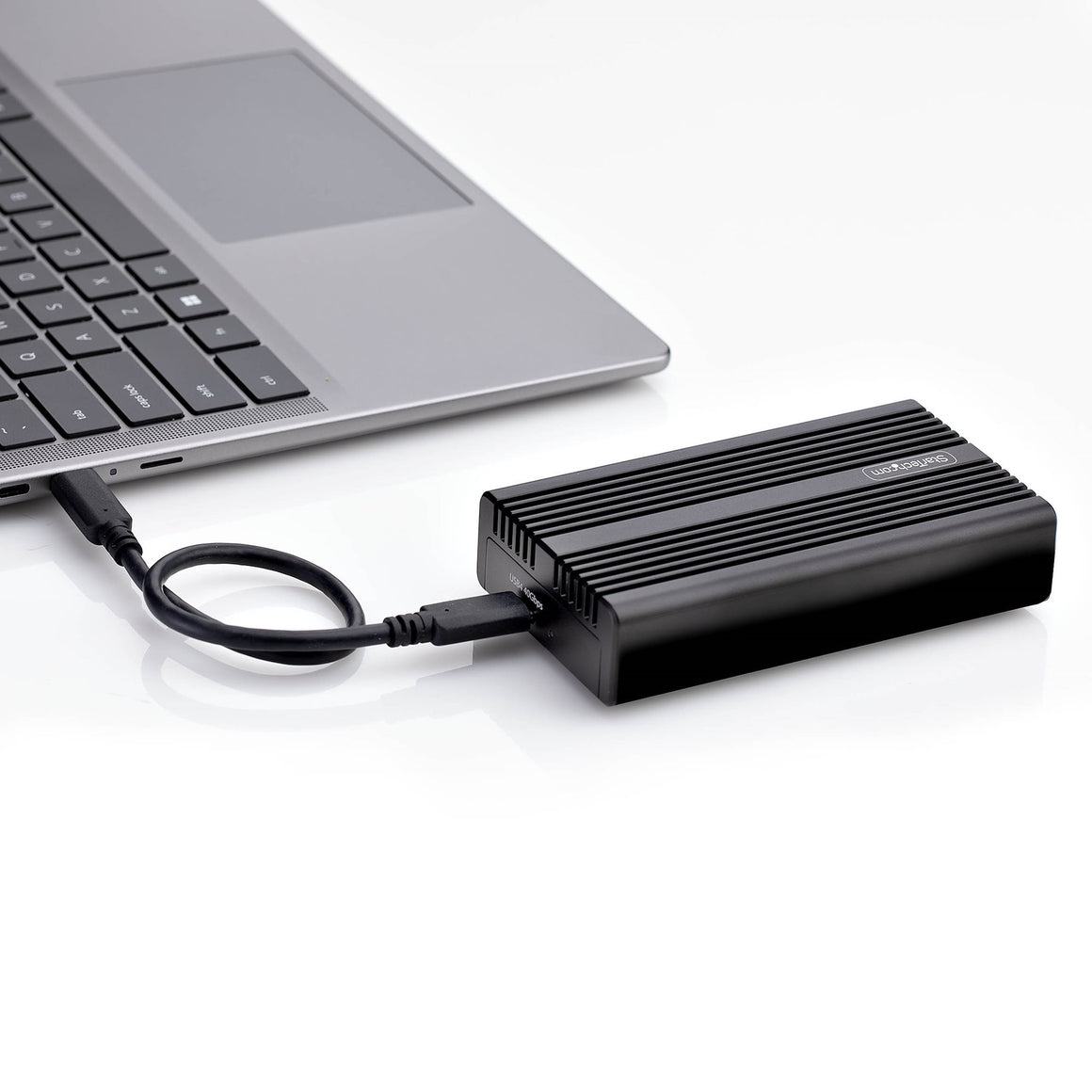

Turn your PCIe M.2 NVMe SSD into a fast and highly portable USB-C external storage solution. This NVMe enclosure supports USB4 (40Gbps), delivering read/write speeds up to 3,800 MB/s. Ideal for power users handling large media files, managing data across devices, or performing OS imaging, data recovery, and disk management.
Versatile USB-C & Thunderbolt Support

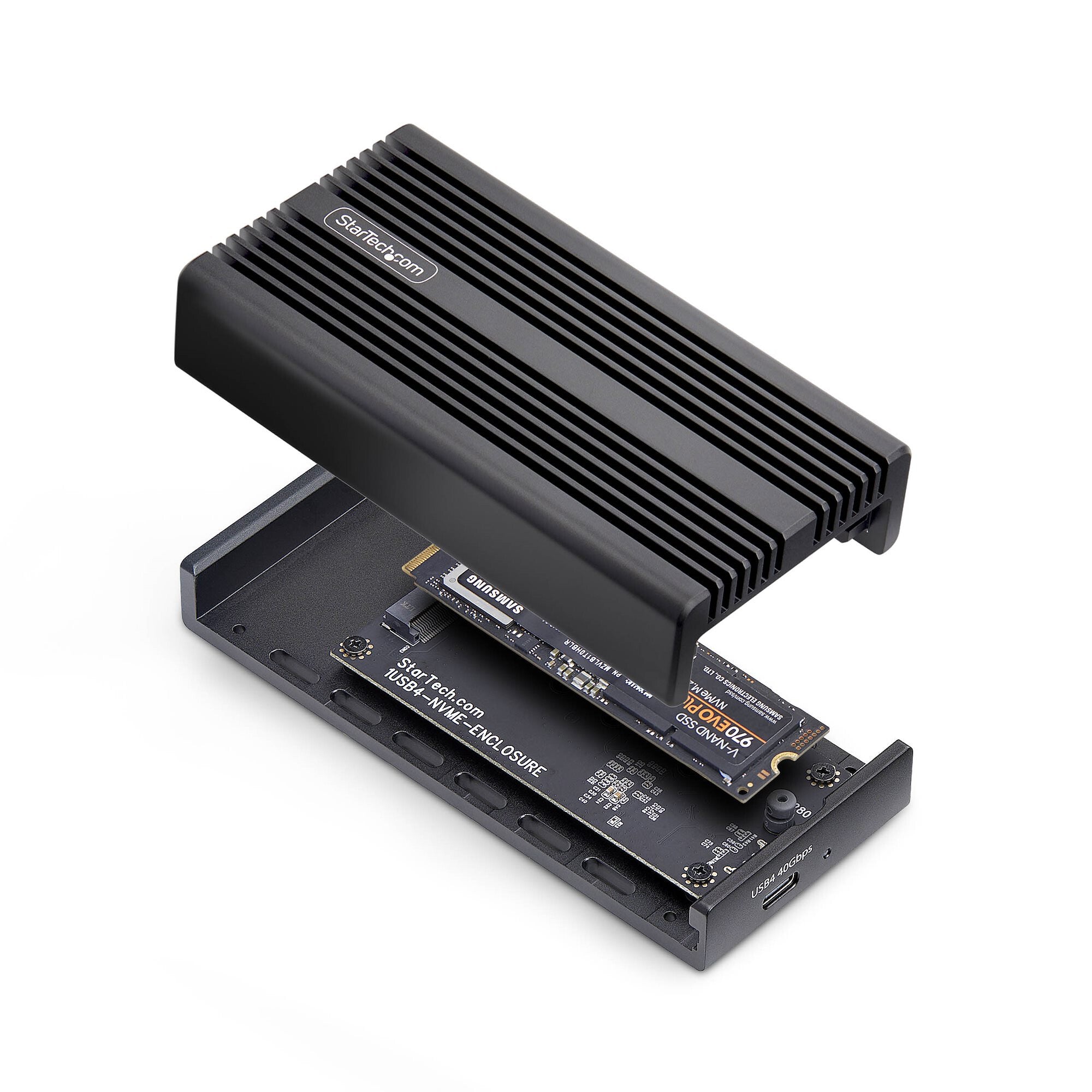

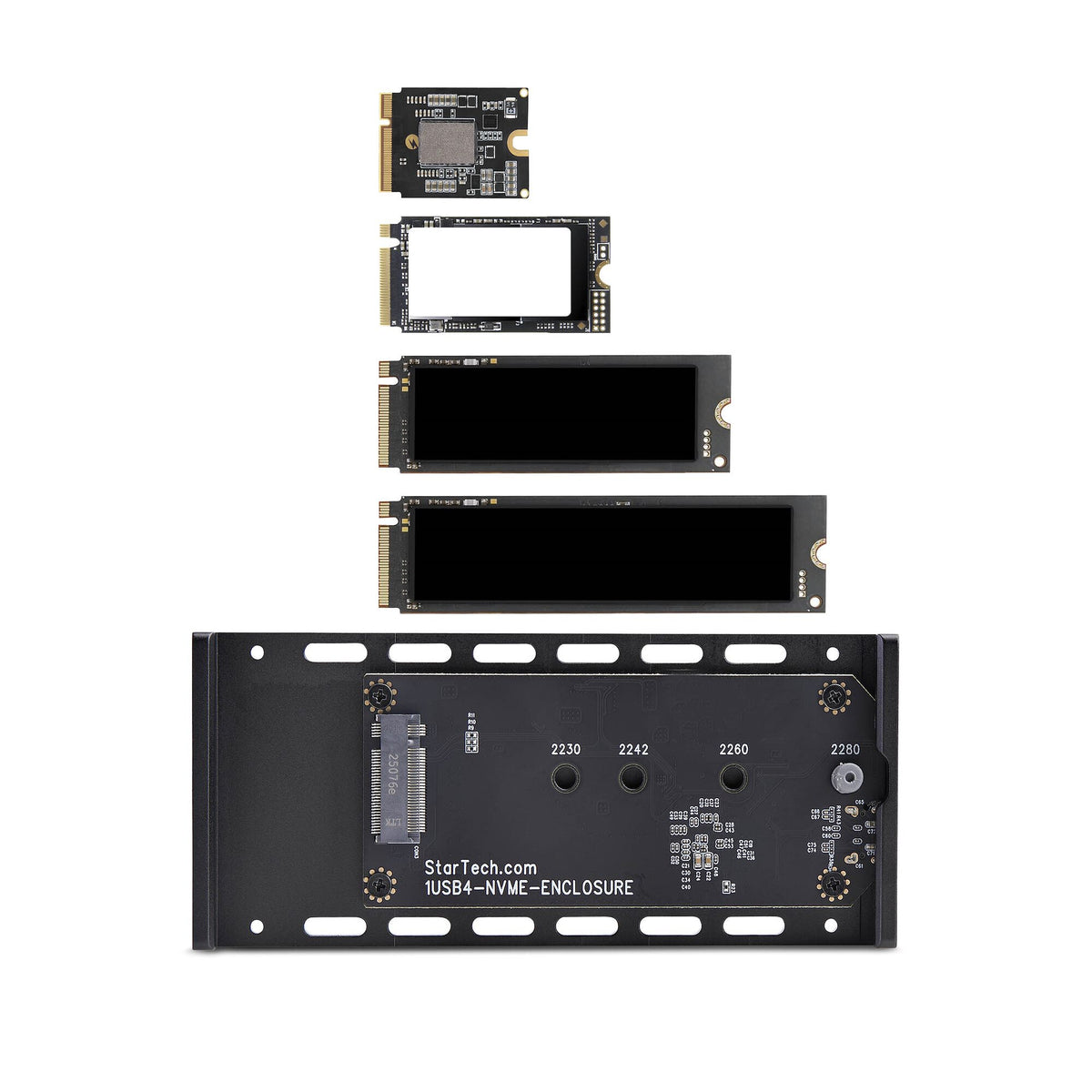

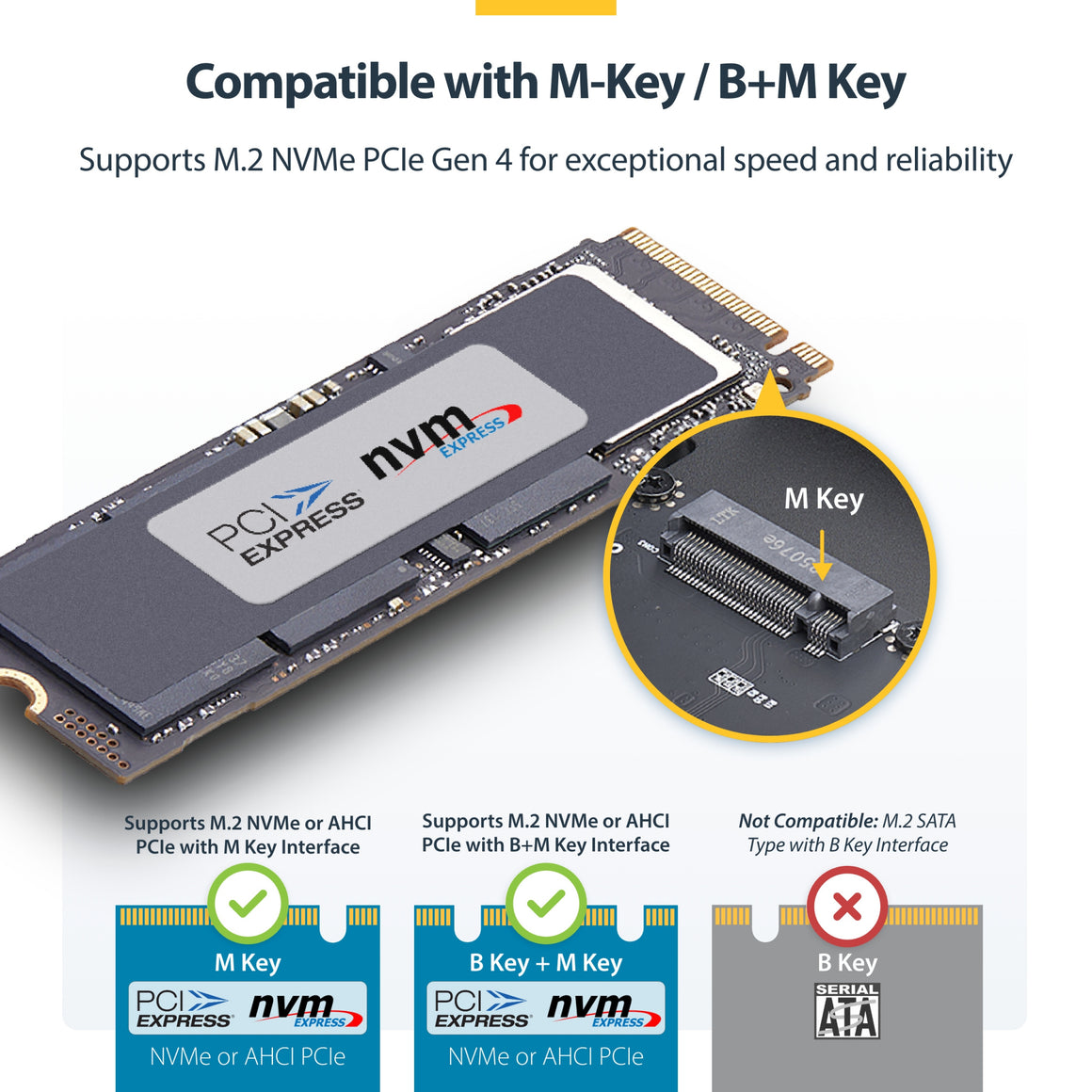

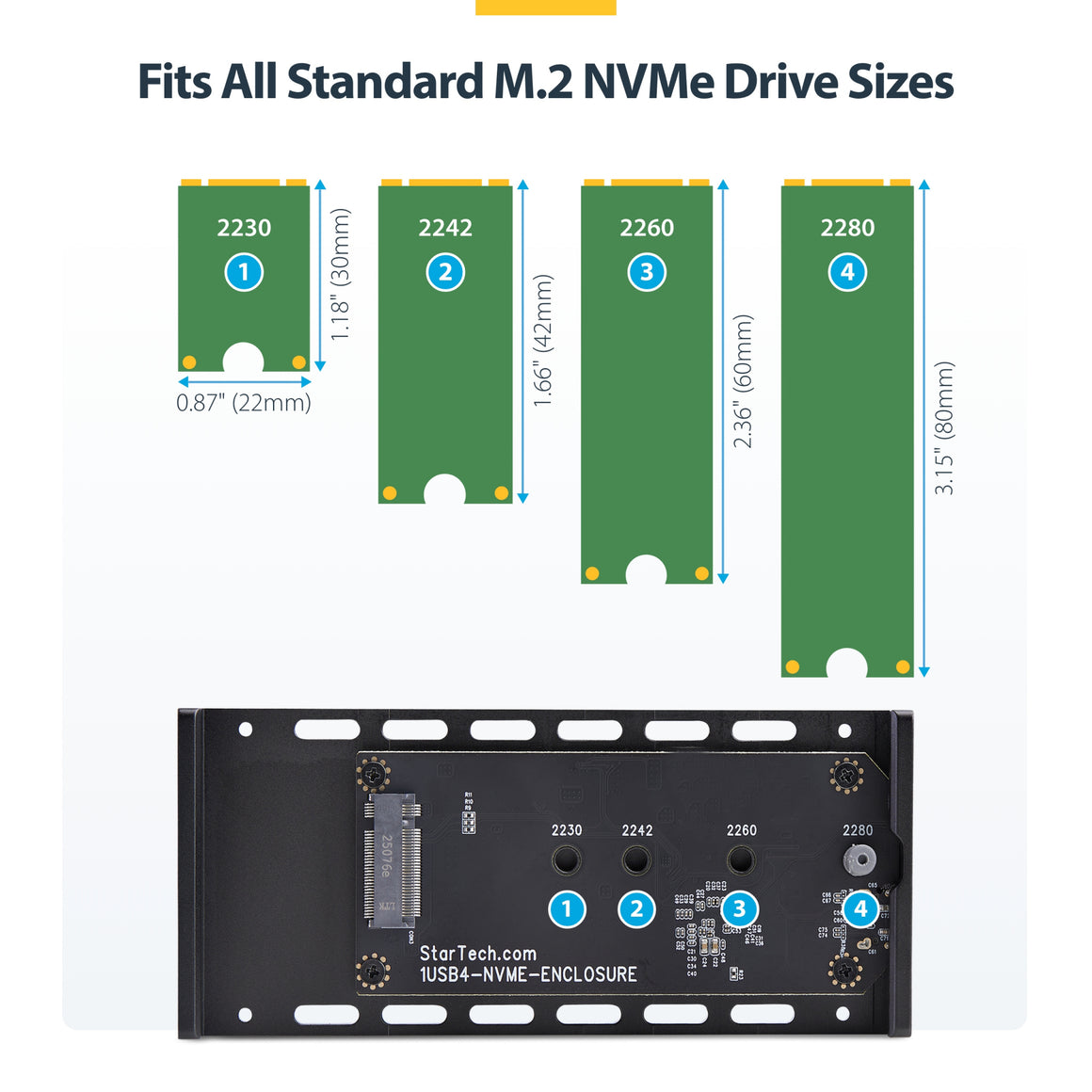

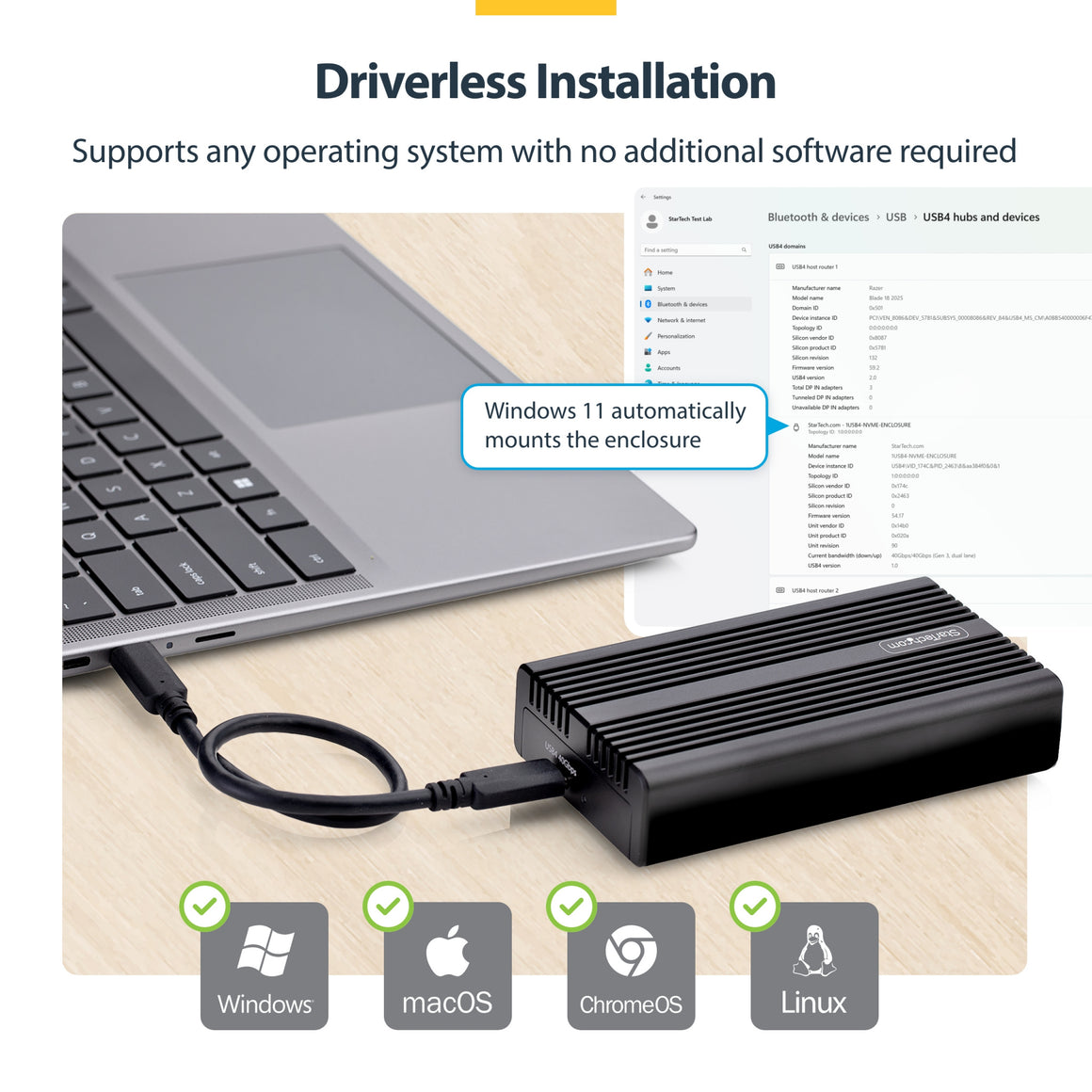

Built for current and next-gen storage, this USB4 enclosure connects M-Key or B+M Key M.2 NVMe SSDs (2230/2242/2260/2280) to USB4, Thunderbolt 5/4/3, or USB 3.2 hosts. It supports PCIe Gen 4x4 NVMe drives and offers native, driverless compatibility with Windows, macOS, and Linux. Seamless interoperability with USB-C and Thunderbolt systems makes it ideal for fast backups and high-volume data transfers.

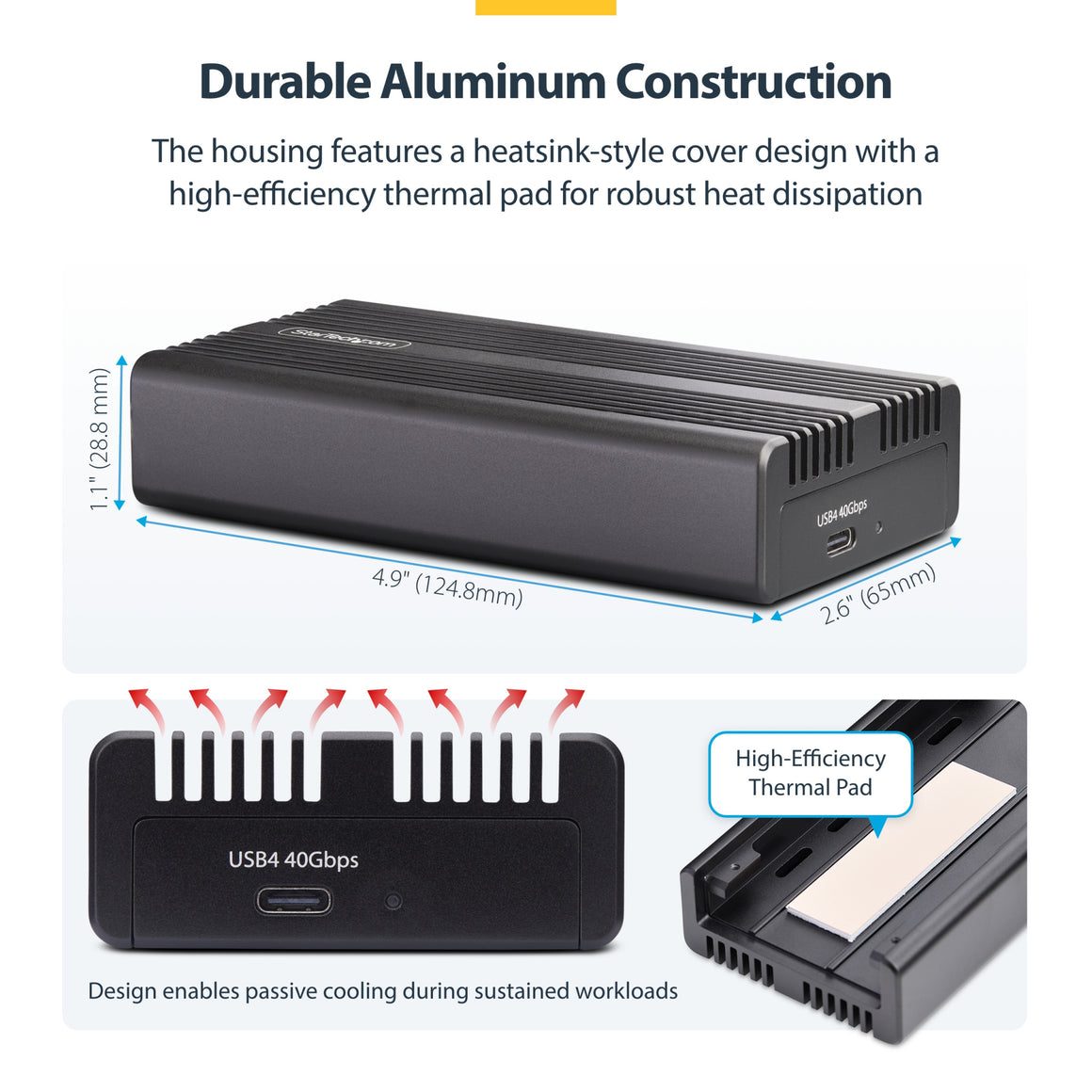

Robust Heat Dissipation

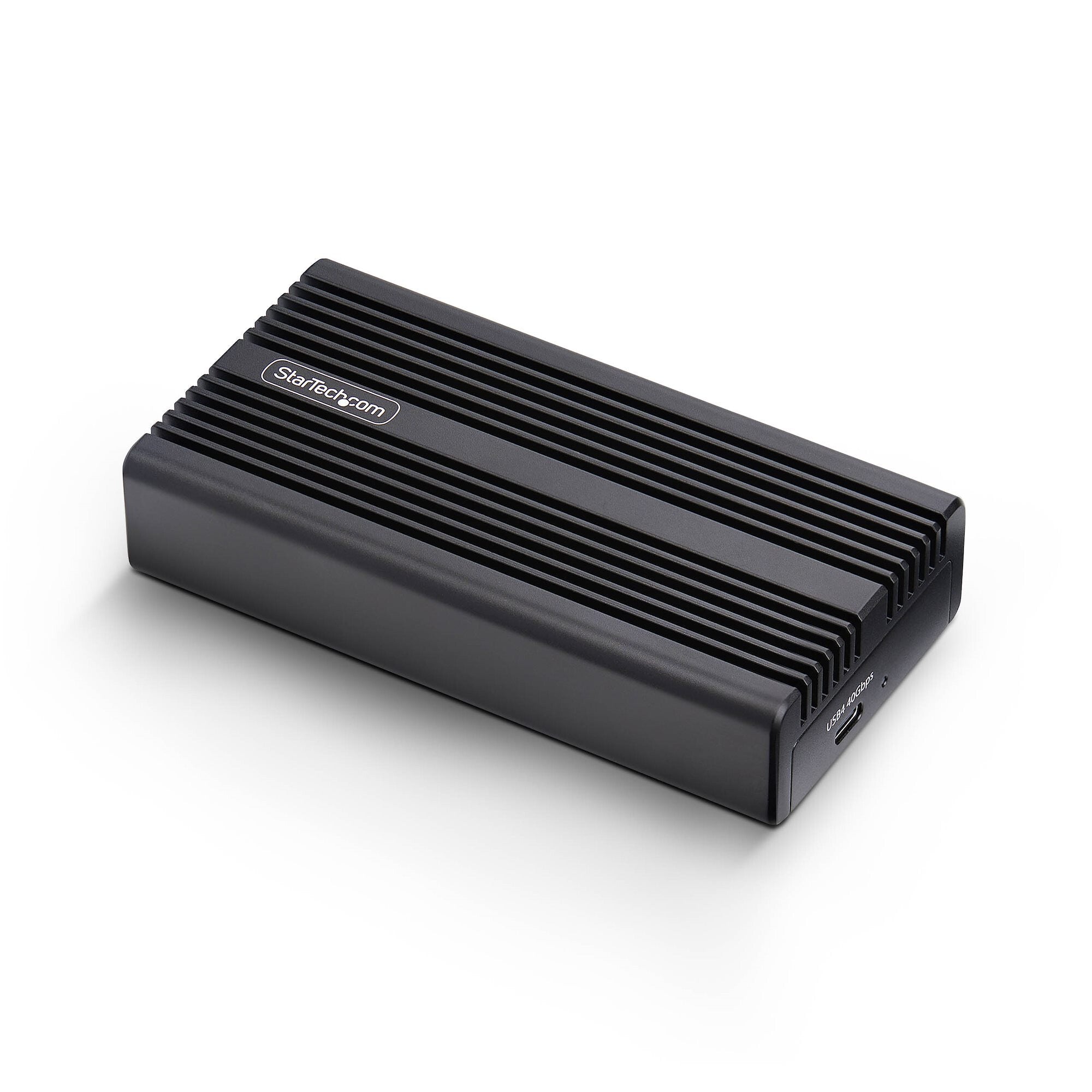

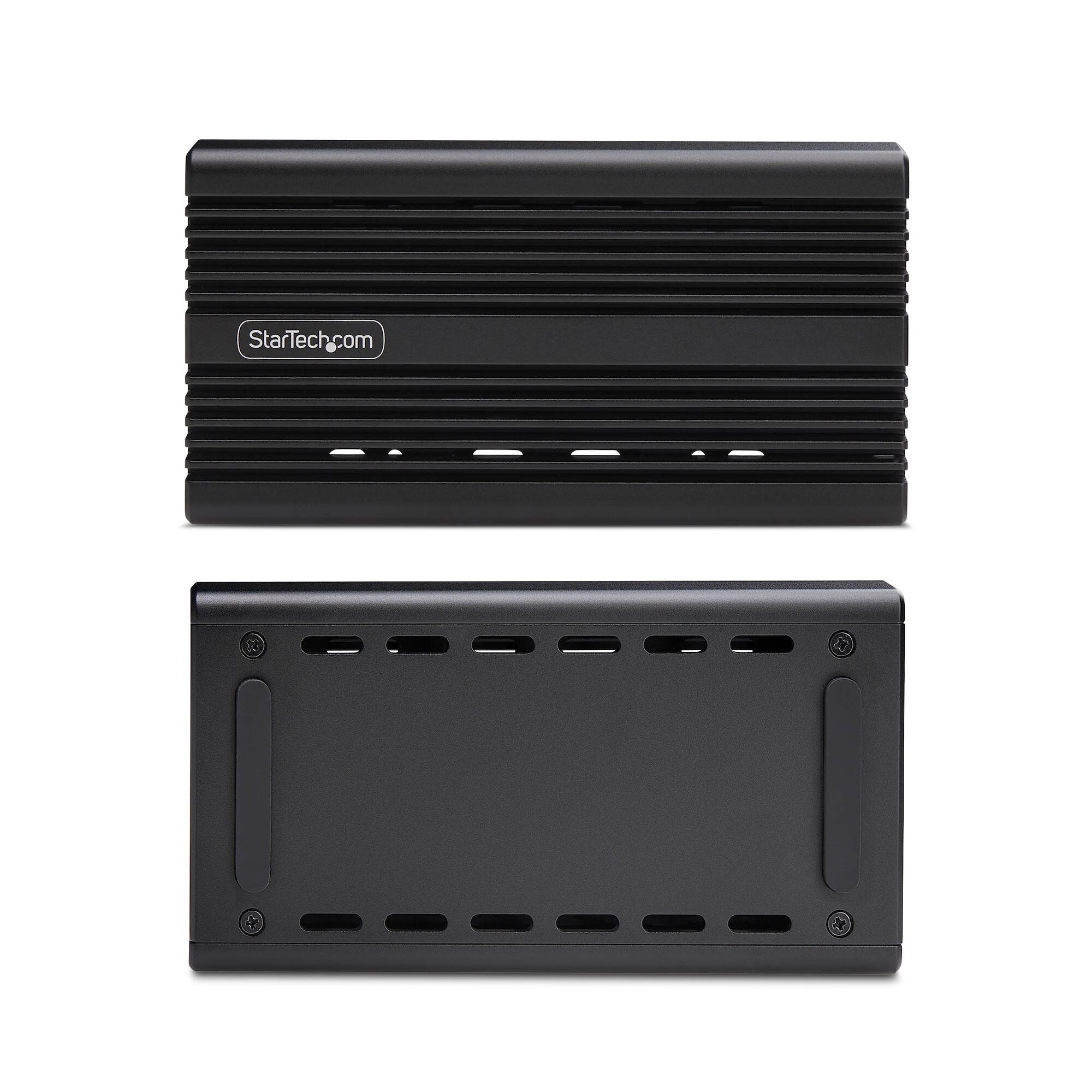

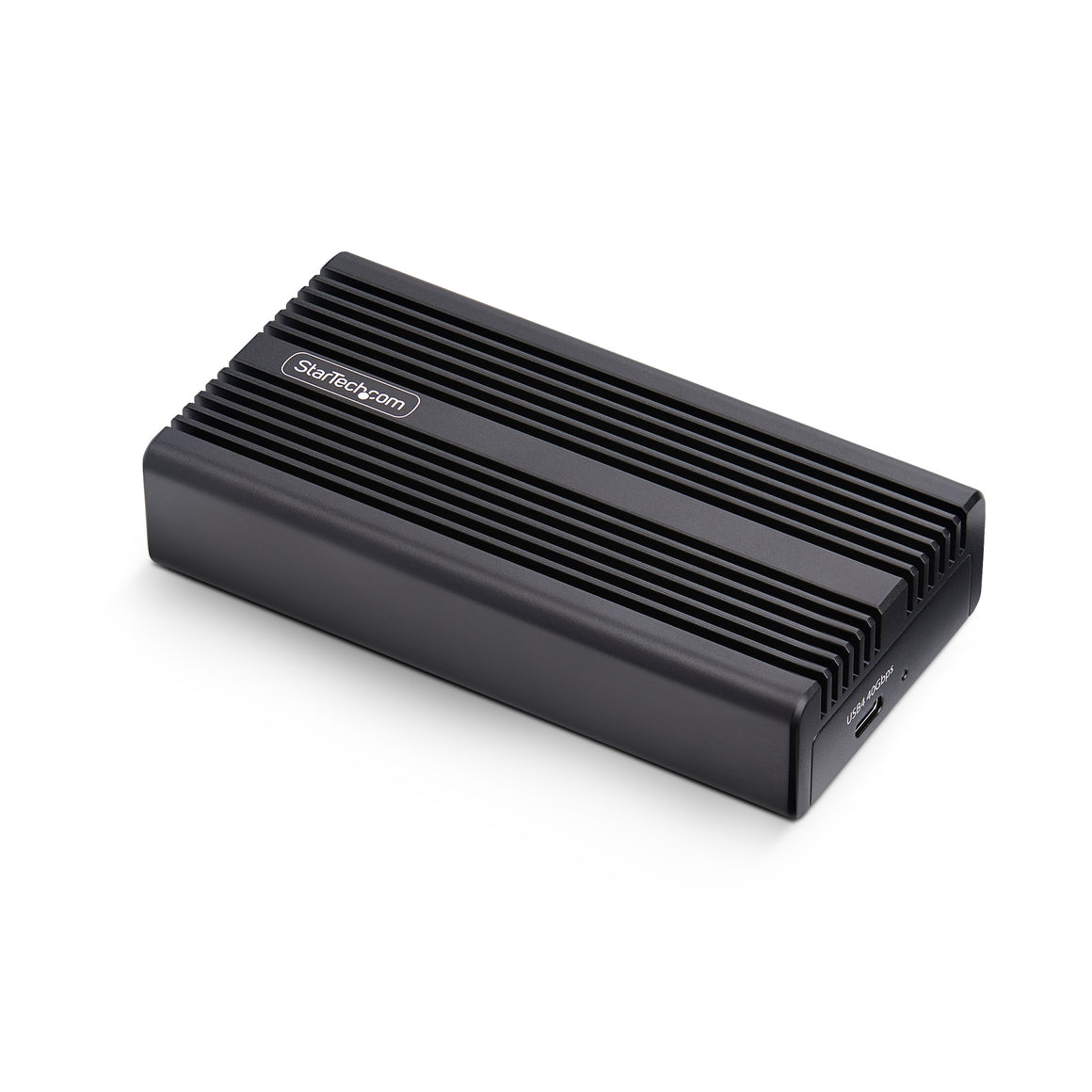

The anodized aluminum housing features a heatsink-style cover design with a high-efficiency thermal pad to enable passive cooling during sustained workloads. The fanless construction allows for silent operation while maintaining consistent transfer rates during intensive tasks such as disk imaging or data capture.
Compact and Durable
The USB4 NVMe Enclosure's compact footprint fits comfortably in a technician's toolkit or laptop bag. The rugged aluminum housing not only helps with heat dissipation but also protects the SSD from physical damage during transport or deployment in demanding environments.
| Storage |
|---|
| NVMe |
Yes |
| Supported storage drive heights |
22 mm |
| Supported storage drive lengths |
30,42,60,80 mm |
| Number of storage drives supported |
1 |
| Supported storage drive interfaces |
PCI Express |
| Storage drive size |
M.2 |
| Ports & interfaces |
|---|
| Integrated USB cable |
No |
| USB ports quantity |
1 |
| USB connector gender |
Female |
| USB connector type |
USB Type-C |
| USB version |
USB4 Gen 4 |
| USB connectivity |
Yes |
| Design |
|---|
| Number of fans |
0 fan(s) |
| LED indicators |
Yes |
| Material |
Aluminium |
| Product colour |
Black |
| Product type |
SSD enclosure |
| Performance |
|---|
| Plug and Play |
Yes |
| Chipset |
ASMedia - ASM2464PD |
| Data transfer rate |
40 Gbit/s |
| Power |
|---|
| Power source type |
USB |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Package weight |
430 g |
| Package height |
35 mm |
| Package depth |
114 mm |
| Package width |
190 mm |
| Cable length |
0.3 m |
| Weight |
340 g |
| Height |
28.8 mm |
| Depth |
124.8 mm |
| Width |
65 mm |

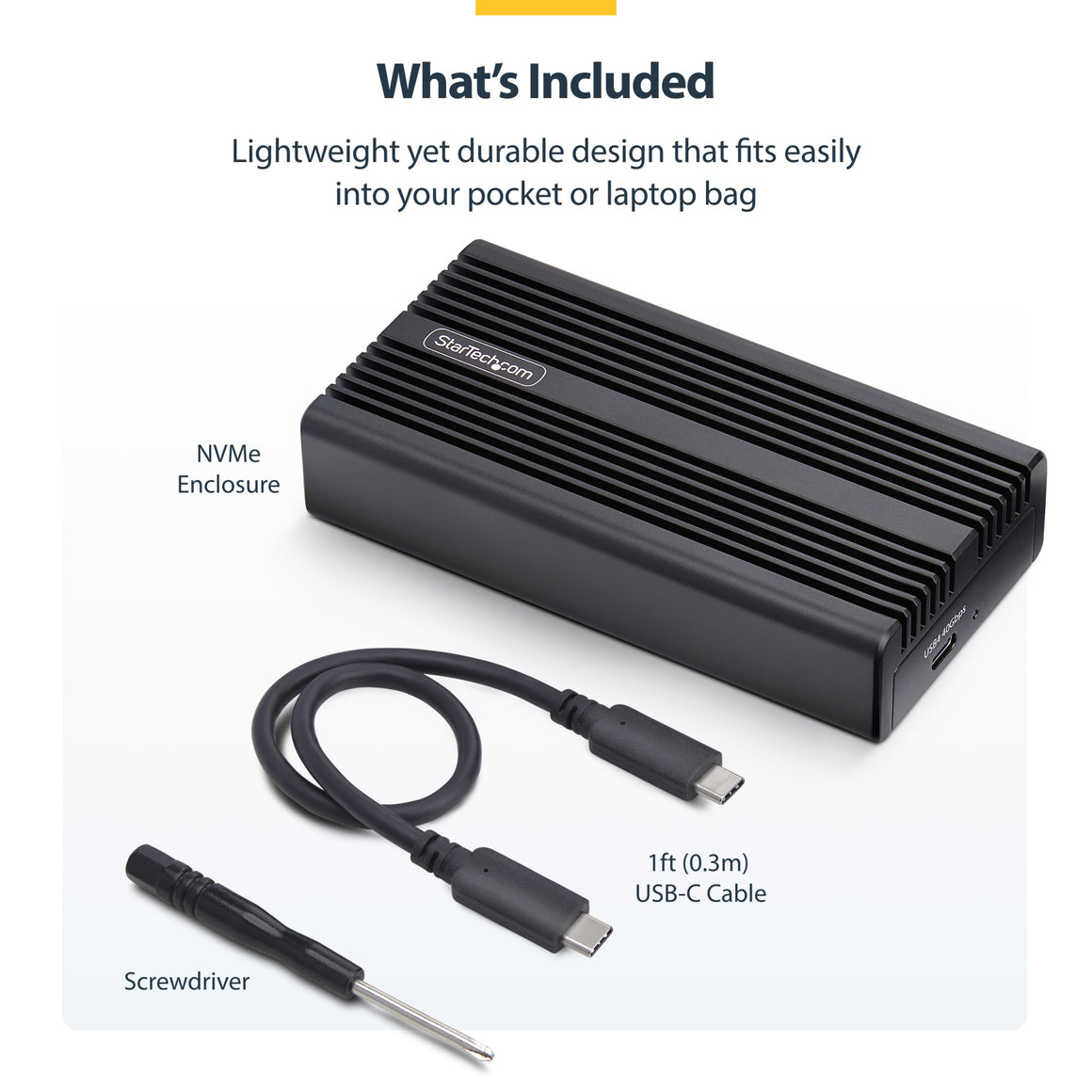

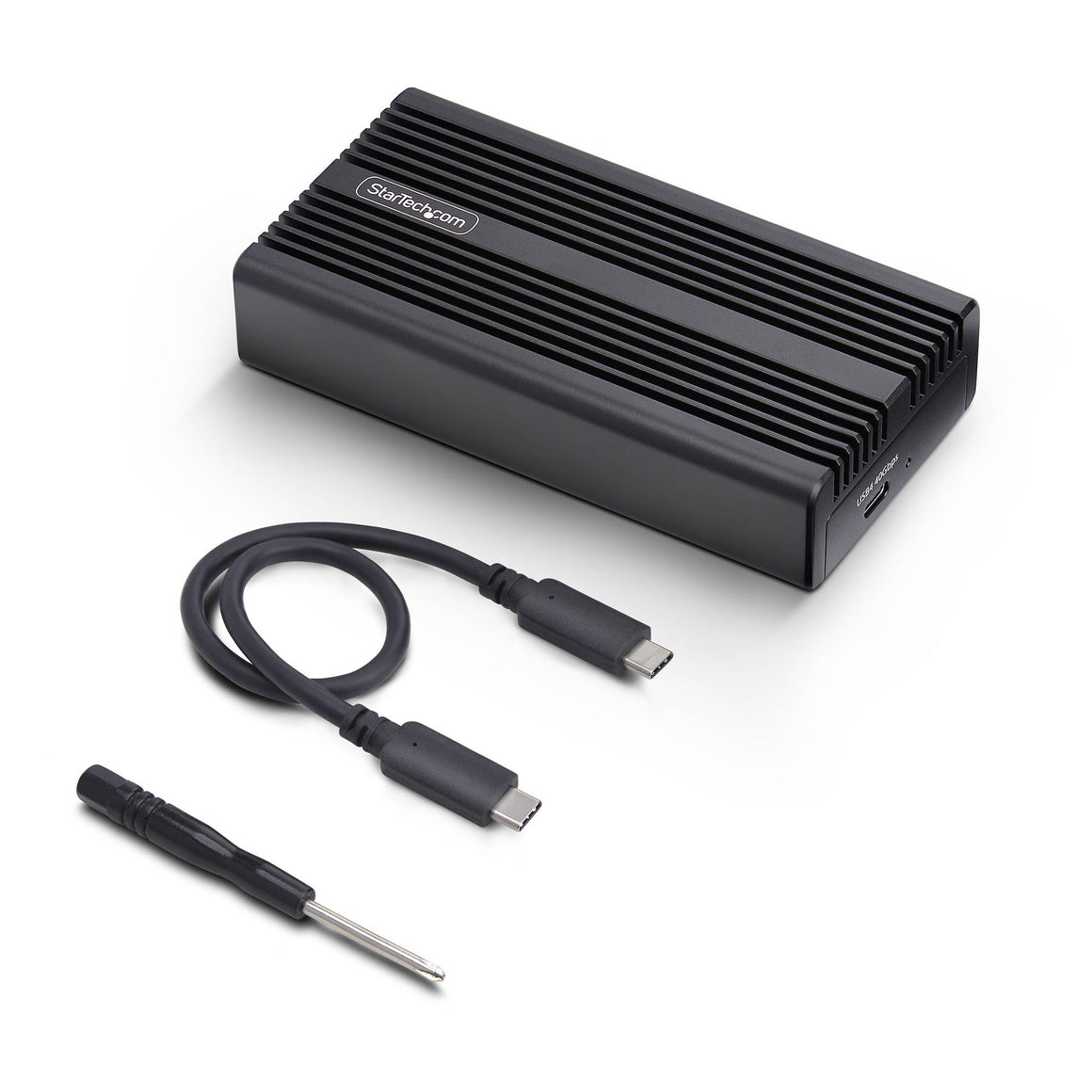

| Packaging content |
|---|
| Manual |
Yes |

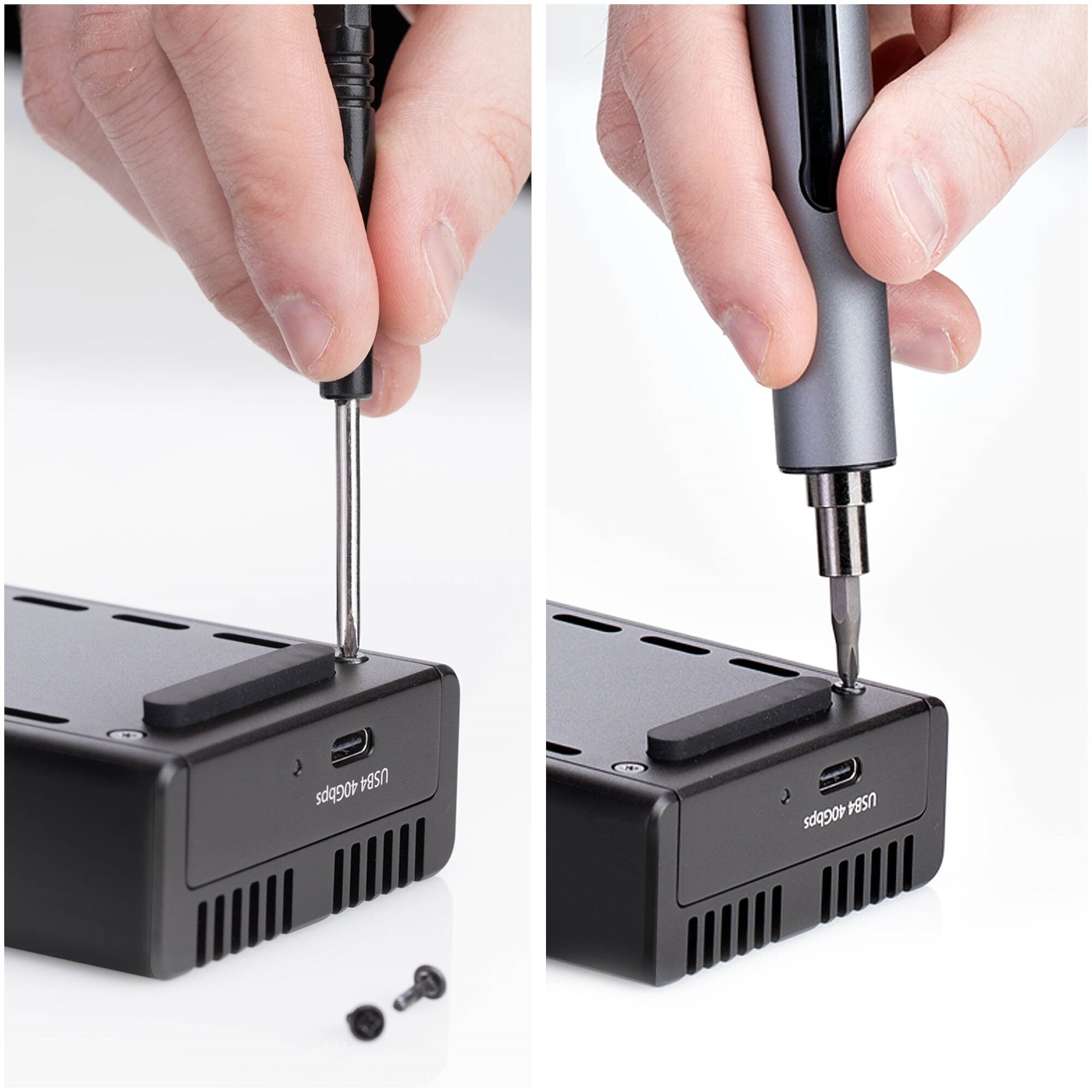

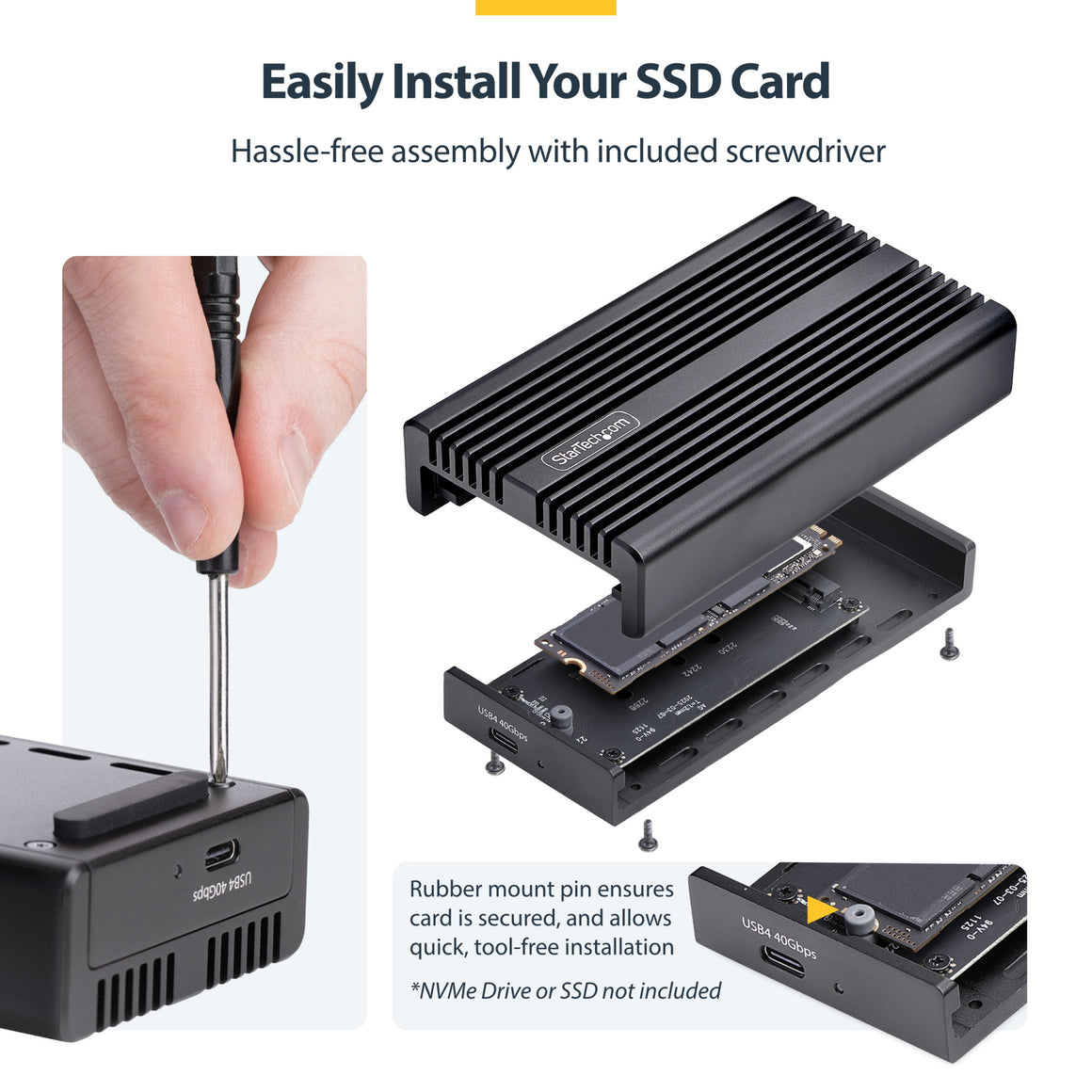

| Screwdriver included |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Logistics data |
|---|
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case height |
260 mm |
| Master (outer) case length |
200 mm |
| Master (outer) case width |
395 mm |
