Extend a network up to 0.6 miles (1km) over single pair wire/phone line wire UTP
Extend a network over VDSL2, using Cat5e (or better) UTP Cabling or Single-Pair (or better) Telephone Wire at distances up to 0.6mi (1km).
Extend Network Connectivity
Extend a network over VDSL2 using UTP, CAT5e/6 or RJ11 cabling over distances up to 0.6mi (1km). Speeds of up to 300 Mbps (aggregated) are available at shorter distances. Supports VDSL2 35b/30a/17a and features ITU-T G.993.5 G.Vectoring and G.INP technologies.
Thoughtful Design

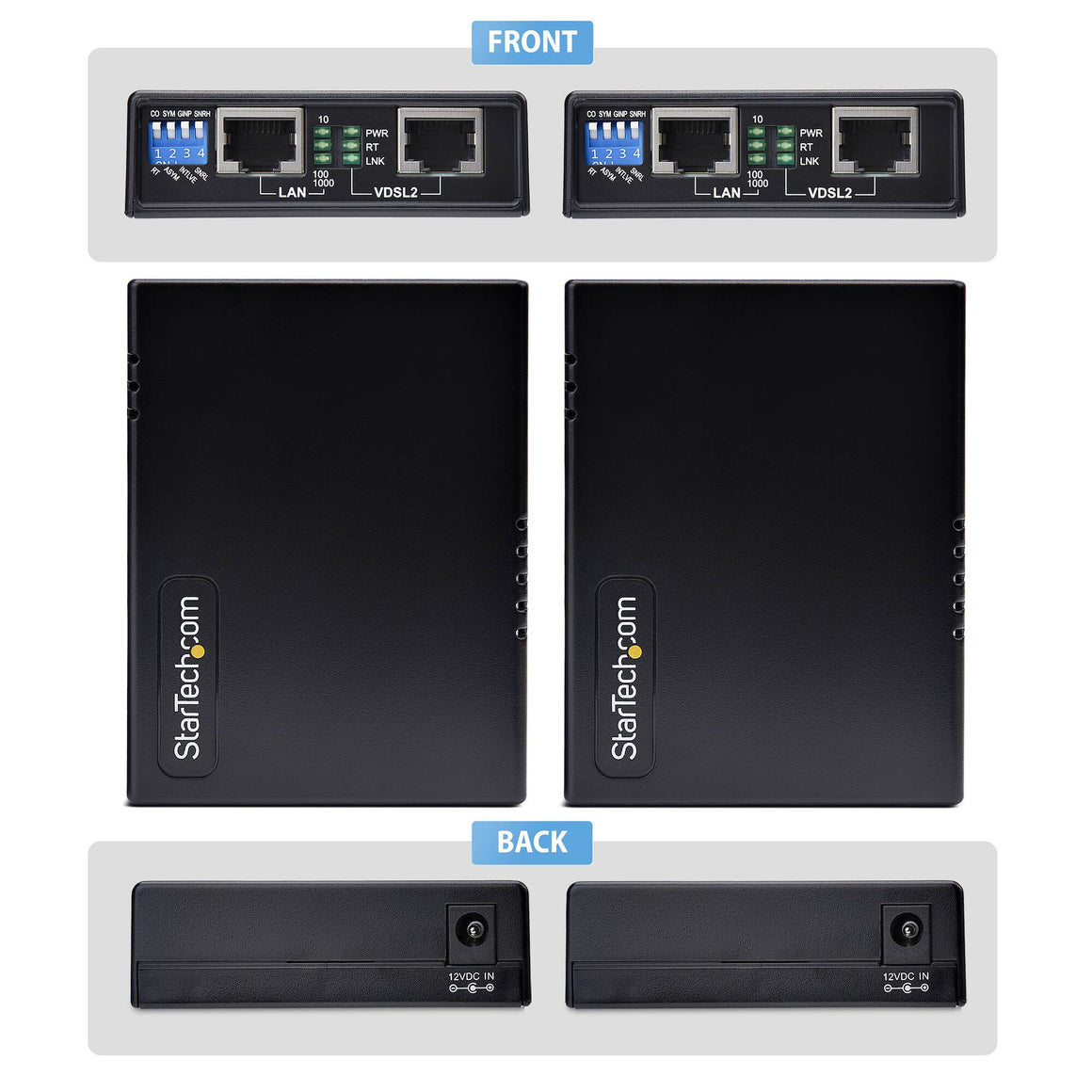

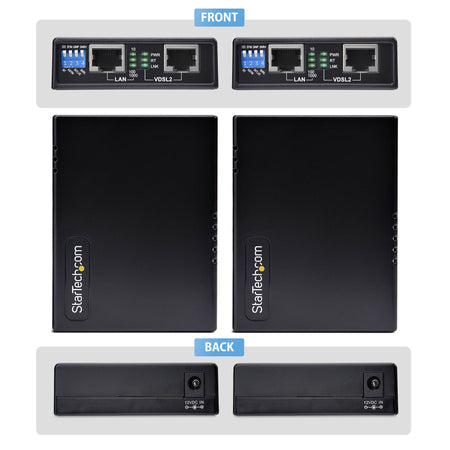

The installation can be customized by using DIP switches. Choose between Master or Remote mode, Symmetric or Asymmetric mode, G.INP or Interleave mode, and fine-tune SNR with High and Low options for optimal performance. The Gigabit Ethernet Extender has LEDs that provide a visual indication of network status, including LAN speed, link status, power, and remote/master mode, allowing IT administrators to monitor and assess network connectivity.
Versatile Applications

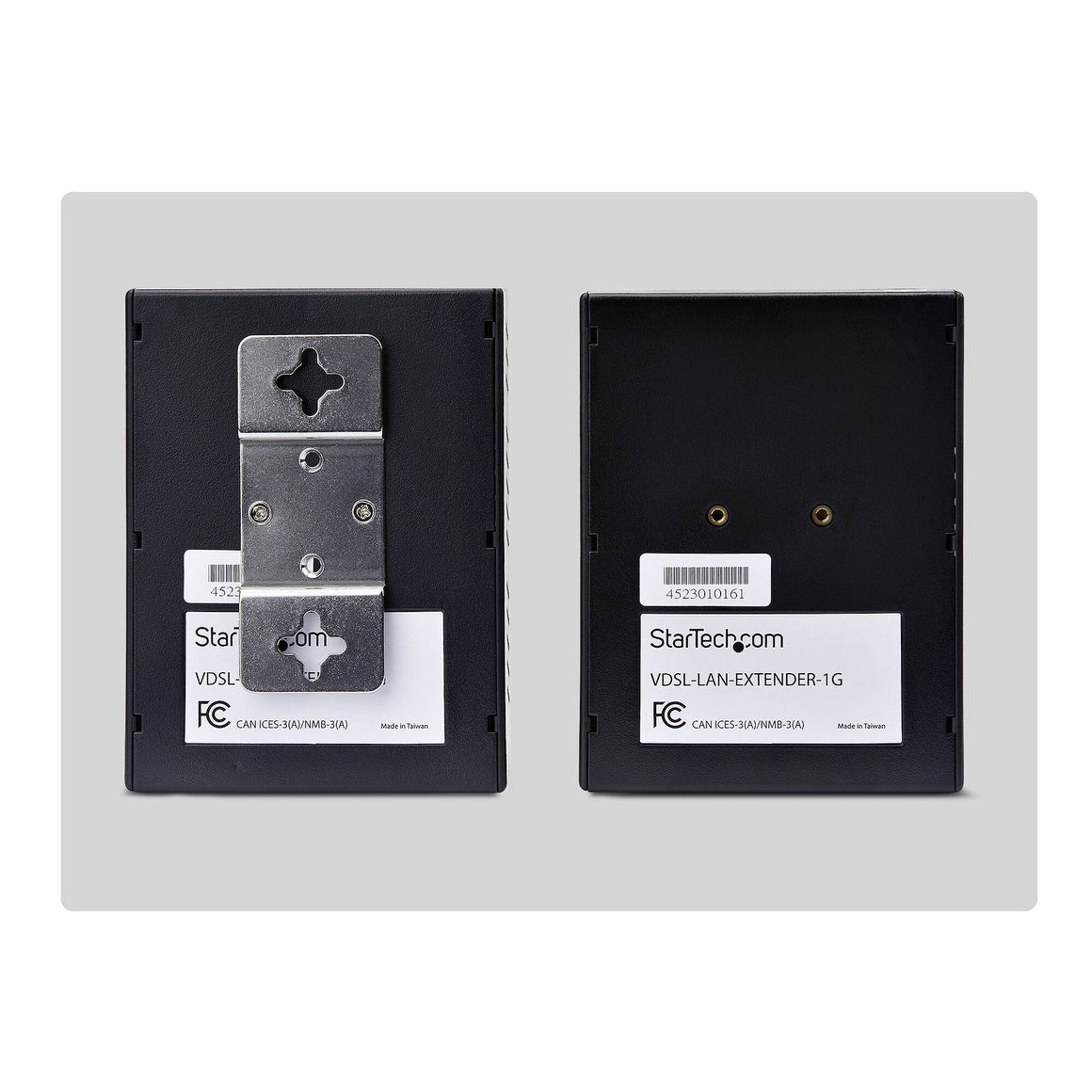

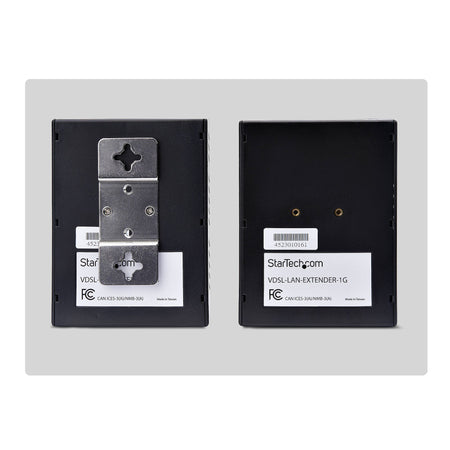

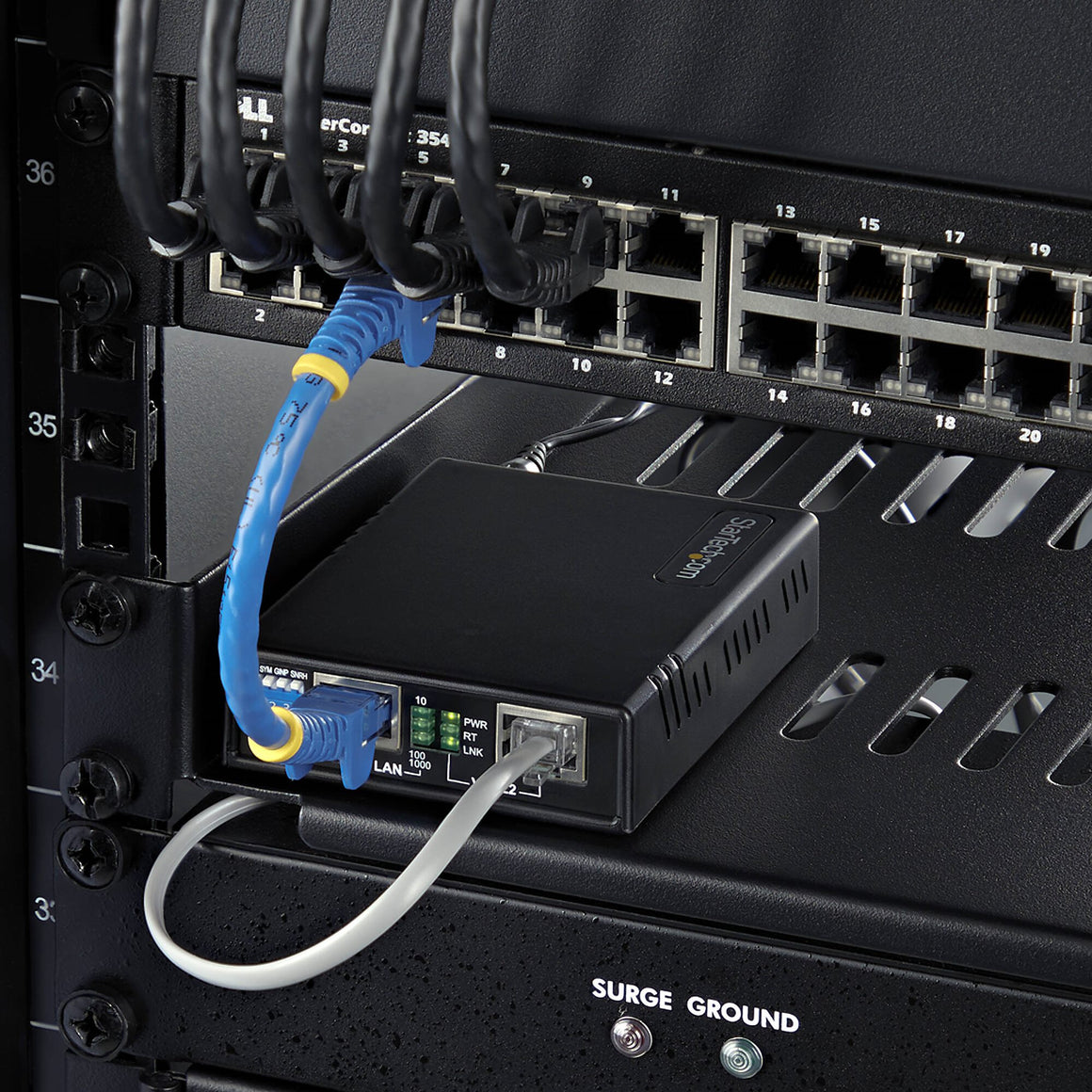

The Long-Range LAN Extender can be mounted on a wall, using the included hardware, or installed on a shelf or other surface. The kit includes two power adapters, one for each VDSL Extender. The extender works with third-party VDSL2 IP DSLAMs in CPE (RT) mode and extends the network for applications such as remote office or branch locations or IP-based video solutions. The 802.1Q VLAN tag transparency preserves VLAN-tagged traffic across the extension.
| Performance |
|---|
| Ethernet LAN data rates |
10,100,300 Mbit/s |
| Chipset |
RTL8685FB-CG |
| Cable types supported |
Cat5e, Cat6 |
| Data transfer rate |
300 Mbit/s |
| Maximum transfer distance |
1000 m |
| Type |
Network transmitter & receiver |
| Network |
|---|
| Networking standards |
IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Power |
|---|
| Output current |
1 A |
| External power adapter |
Yes |
| Power consumption (typical) |
3.8 W |
| Input current |
0.5 A |
| AC input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating temperature (T-T) |
0 - 45 °C |
| Weight & dimensions |
|---|
| Weight |
110 g |
| Width |
72 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Packaging data |
|---|
| Package weight |
700 g |
| Package height |
130 mm |
| Package depth |
150 mm |
| Package width |
180 mm |
| Certificates |
|---|
| Compliance certificates |
RoHS, Trade Agreements Act (TAA) |
| Logistics data |
|---|
| Products per master (outer) case |
15 pc(s) |
| Master (outer) case height |
515 mm |
| Master (outer) case length |
425 mm |
| Master (outer) case width |
305 mm |
