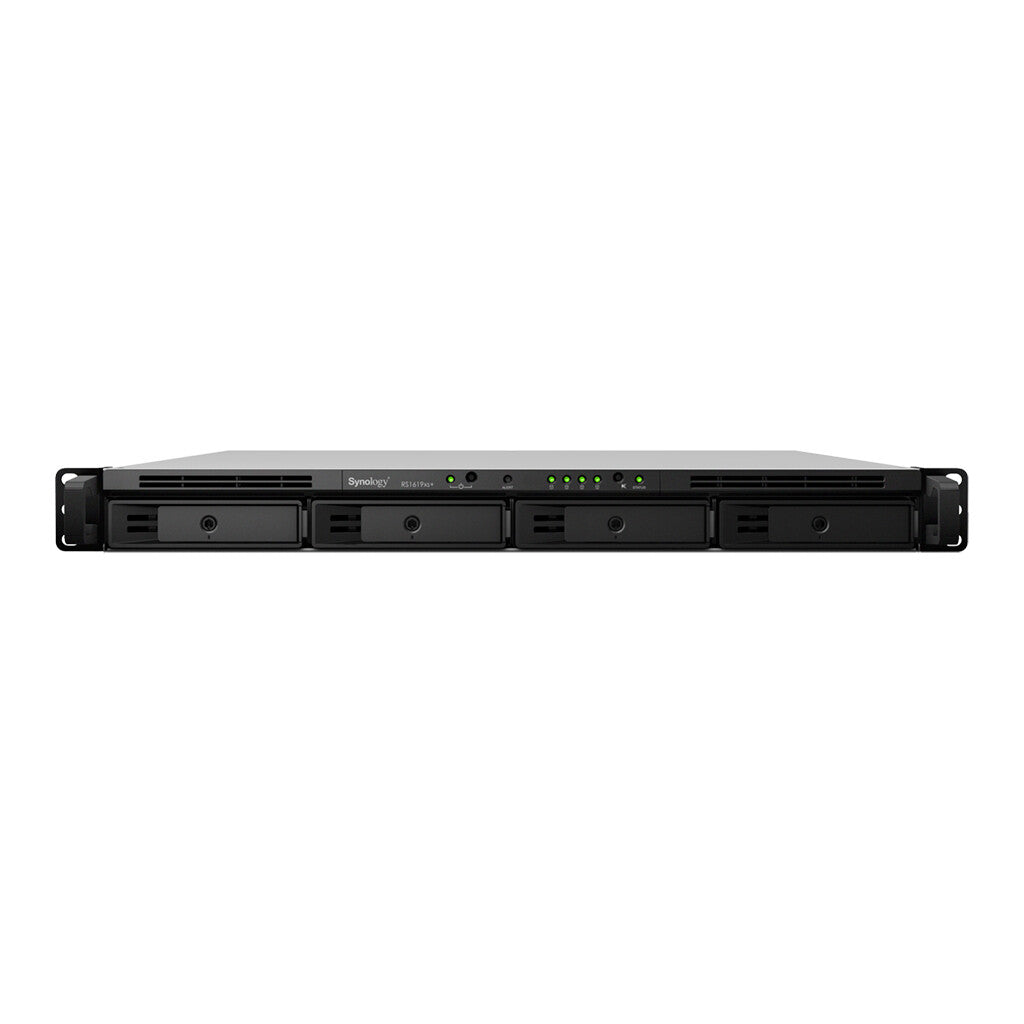

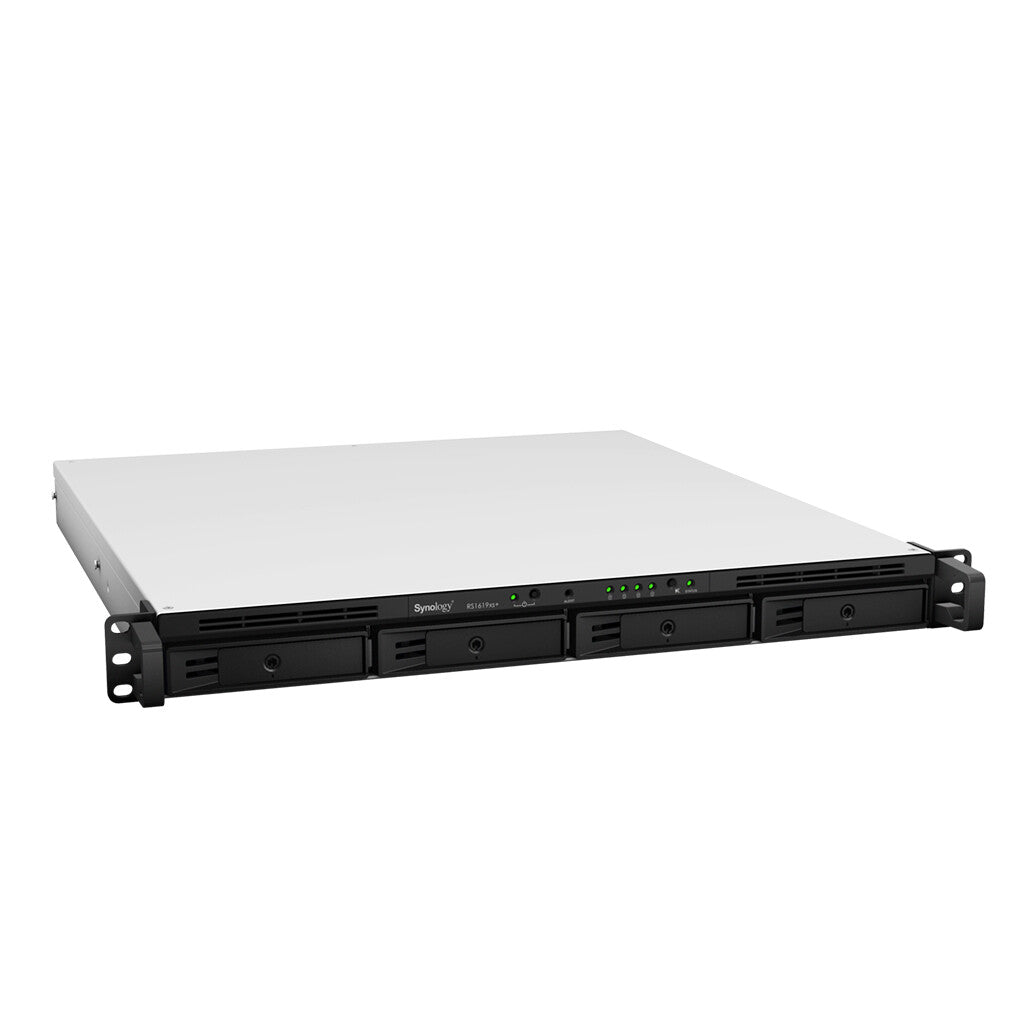

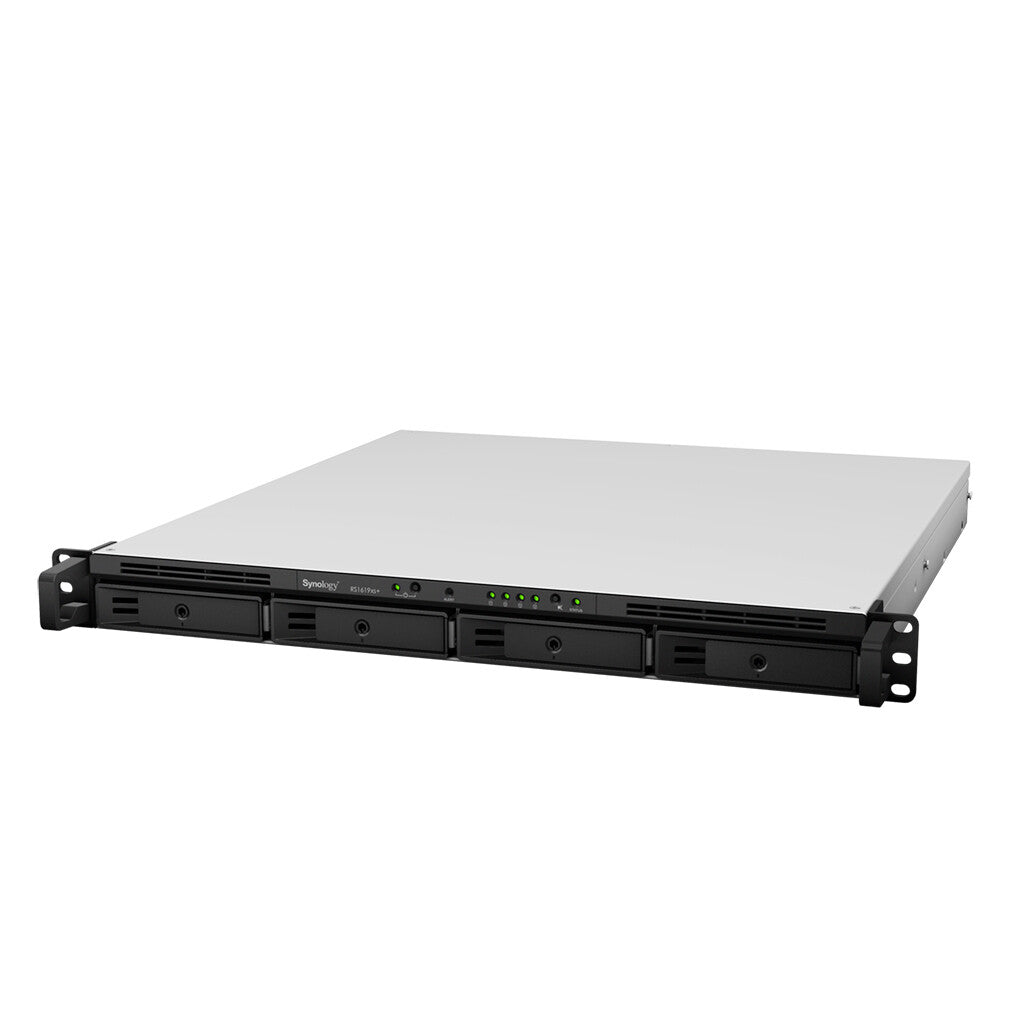

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty.
Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.
RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.
| Storage |
|---|
| Supported file systems |
BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Hot-swap drive bays |
Yes |
| RAID levels |
0, 1, 5, 6, 10, JBOD |
| RAID support |
Yes |
| Number of M.2 (M & B) slots |
2 |
| Storage drive sizes supported |
2.5,3.5" |
| Storage drive interface |
Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive capacity |
0 GB |
| Supported storage drive types |
HDD & SSD |
| Installed storage drive type |
No |
| Number of storage drives supported |
4 |
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Processor |
|---|
| Conflict-Free processor |
Yes |
| Maximum internal memory supported by processor |
128 GB |
| On-board graphics card model |
Not available |
| ECC supported by processor |
Yes |
| CPU configuration (max) |
1 |
| PCI Express configurations |
1x16, 1x4, 1x8 |
| PCI Express slots version |
2.0, 3.0 |
| Processor cache type |
L3 |
| Processor code |
SR2DK |
| Processor codename |
Broadwell |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor package size |
37.5 x 37.5 mm |
| Processor series |
Intel Xeon D-1500 |
| Processor socket |
BGA 1667 |
| Scalability |
1S |
| Stepping |
V2 |
| Thermal Design Power (TDP) |
35 W |
| Processor cache |
6 MB |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor boost frequency |
2.7 GHz |
| Processor frequency |
2.2 GHz |
| Processor model |
D-1527 |
| Processor family |
Intel® Xeon® D |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory slots |
4 |
| Maximum RAM supported |
64 GB |
| Internal memory type |
DDR4 |
| Internal memory |
8 GB |
| Network |
|---|
| Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Link aggregation |
Yes |
| Wake-on-LAN ready |
Yes |
| iSCSI support |
Yes |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| PCI Express x8 (Gen 3.x) slots |
1 |
| Expansion ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
|---|
| LED indicators |
Alarm, HDD, Power, Status |
| Fan diameter |
4 cm |
| Number of fans |
2 fan(s) |
| Product colour |
Black |
| Cooling type |
Active |
| Chassis type |
Rack (1U) |
| Performance |
|---|
| Security algorithms |
HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Browser supported |
Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
| Web-based management |
Yes |
| Noise level |
39.3 dB |
| Multilingual support |
Yes |
| Backup features |
Cloud, iSCSI LUN |
| Backup function |
Yes |
| Device class |
Small & Medium Business |
| Type |
NAS |
| Software |
|---|
| Server operating systems supported |
Windows Server 2016 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operating system installed |
DiskStation Manager |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (HDD standby) |
34.78 W |
| Power consumption (typical) |
68.68 W |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
150 W |
| Power supply location |
Built-in |
| General |
|---|
| Product family |
RackStation |
| Weight & dimensions |
|---|
| Weight |
8.16 kg |
| Height |
44 mm |
| Depth |
518.6 mm |
| Width |
480 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC |
| Processor special features |
|---|
| Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
| Memory channels supported by processor |
Dual |
| Intel Trusted Execution Technology |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
Yes |
| Execute Disable Bit |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Maximum number of PCI Express lanes |
32 |
| Thermal Monitoring Technologies |
Yes |
| UART |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Idle States |
Yes |
| Intel 64 |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating altitude |
0 - 5000 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
5 - 35 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714100 |
| Other features |
|---|
| Processor ARK ID |
91195 |
| Certification |
EACVCCIRCMFCCCEBSMI |
| Compliance certificates |
RoHS |
