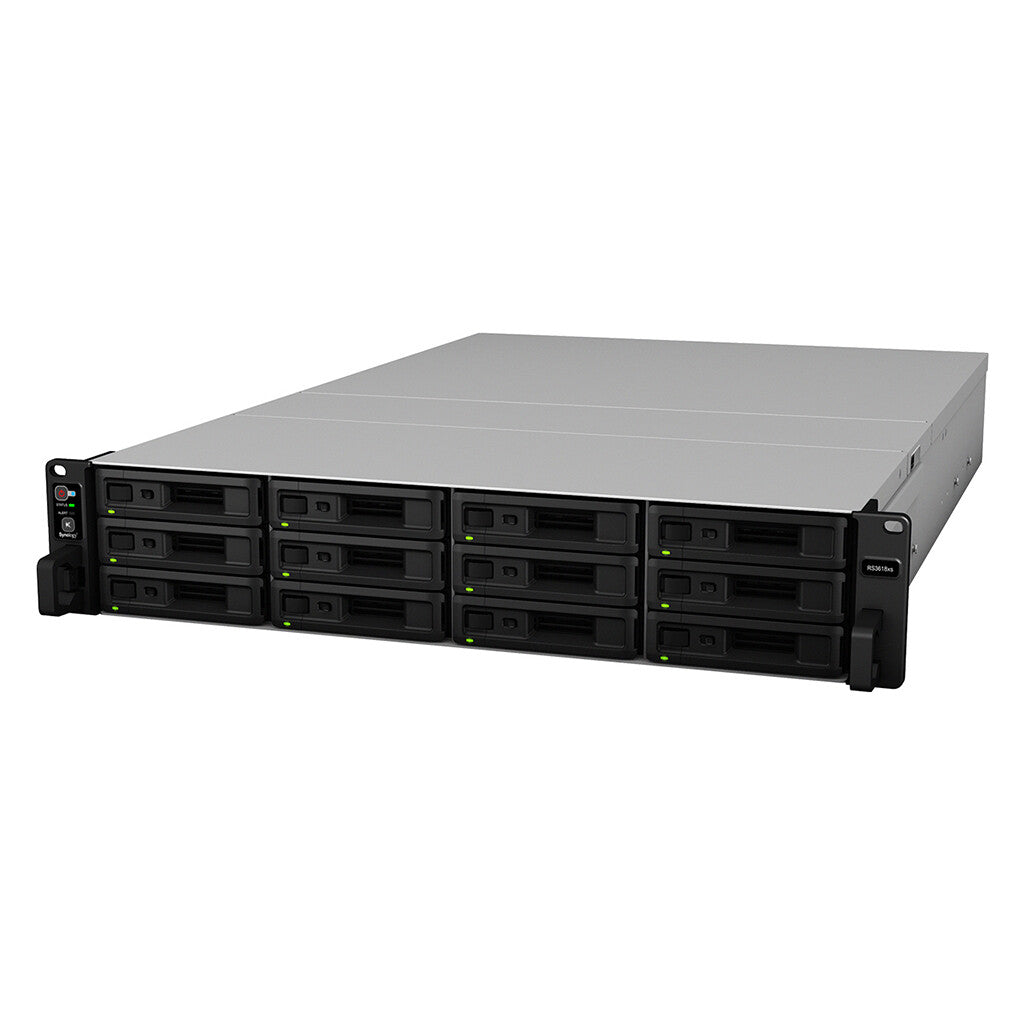

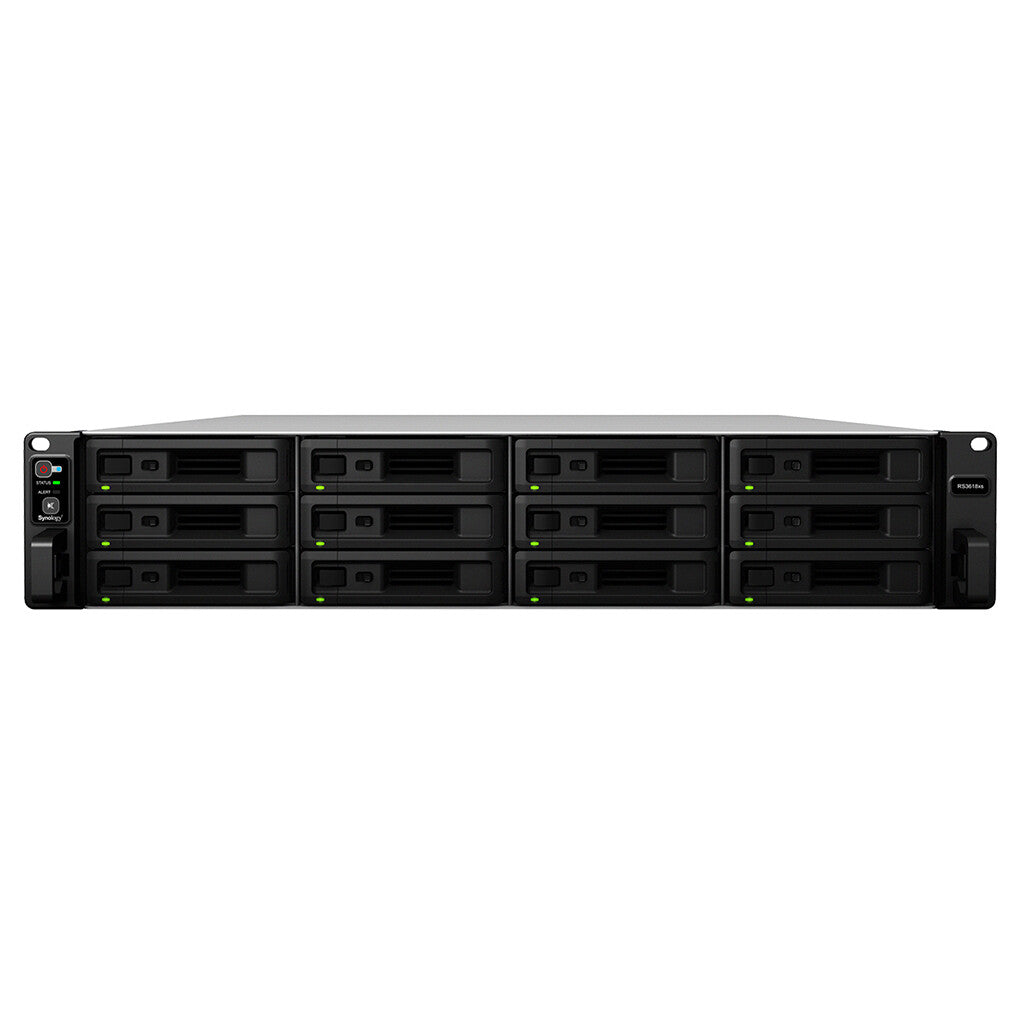

High-speed scalable storage server
Synology RS3618xs is a reliable, superior-performance network-attached storage solution for large-scale enterprises with demanding business applications. It simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance.
Ready for 10GbE and beyond
PCIe 3.0 slots allow for faster networking options as you expand your infrastructure. Together with the built-in quad Gigabit ports, RS3618xs offers comprehensive connectivity options for link aggregation and failover configurations.
Ultimate Backup Solution
RS3618xs integrates various backup applications to safeguard your important data on any device with an intuitive user interface and durable storage technologies.
Active Backup for Server
An agentless backup solution protects data from Windows and Linux servers through SMB and Rsync to minimize deployment and management costs.
Hyper Backup
Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.
Desktop Backup
Safeguard your PC with Cloud Station Backup. Effortlessly back up data stored on macOS to Synology NAS with Time Machine.
Active Backup for Office 365/ G Suite
On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Next-generation file system for better data protection
The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.
| Storage |
|---|
| Supported file systems |
BTRFS, Fat, HFS+, NTFS, ext3, ext4 |
| Hot-swap drive bays |
Yes |
| RAID levels |
0, 1, 5, 6, 10, F1, JBOD |
| RAID support |
Yes |
| Maximum supported storage capacity |
144 TB |
| Storage drive sizes supported |
2.5,3.5" |
| Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive capacity |
0 GB |
| Supported storage drive types |
HDD & SSD |
| Installed storage drive type |
No |
| Number of storage drives supported |
12 |
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Processor |
|---|
| Conflict-Free processor |
Yes |
| Maximum internal memory supported by processor |
128 GB |
| ECC supported by processor |
Yes |
| CPU configuration (max) |
1 |
| PCI Express configurations |
1x16, 1x4, 1x8 |
| PCI Express slots version |
2.0, 3.0 |
| Processor code |
SR2DF |
| Processor codename |
Broadwell |
| Processor lithography |
14 nm |
| Processor operating modes |
64-bit |
| Processor package size |
37.5 x 37.5 mm |
| Processor series |
Intel Xeon D-1500 |
| Processor socket |
BGA 1667 |
| Scalability |
1S |
| Stepping |
V2 |
| Thermal Design Power (TDP) |
45 W |
| Processor cache |
6 MB |
| Processor threads |
8 |
| Processor cores |
4 |
| Processor boost frequency |
2.7 GHz |
| Processor frequency |
2.4 GHz |
| Processor model |
D-1521 |
| Processor family |
Intel® Xeon® D |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Memory slots |
4 |
| Maximum RAM supported |
64 GB |
| Memory clock speed |
2133 MHz |
| Internal memory type |
DDR4 |
| Internal memory |
8 GB |
| Network |
|---|
| Supported network protocols |
CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN) |
| Link aggregation |
Yes |
| Wake-on-LAN ready |
Yes |
| iSCSI support |
Yes |
| Wi-Fi |
No |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |

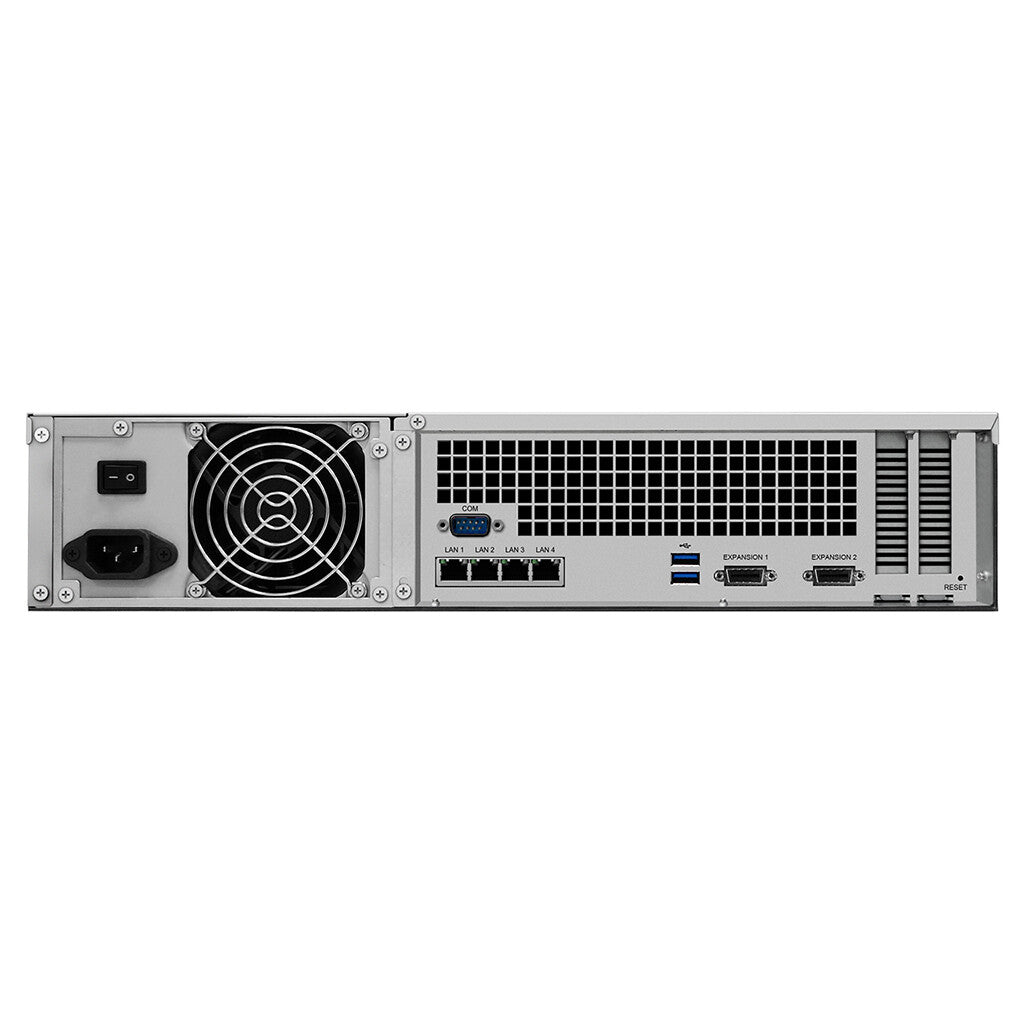

| Ports & interfaces |
|---|
| PCI Express x8 (Gen 3.x) slots |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
|---|
| LED indicators |
HDD, Power |
| Fan diameter |
8 cm |
| Number of fans |
4 fan(s) |
| Product colour |
Black |
| Cooling type |
Active |
| Chassis type |
Rack (2U) |
| Performance |
|---|
| Security algorithms |
HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) |
Yes |
| Reset button |
Yes |
| On/off switch |
Yes |
| Browser supported |
Chrome, Firefox, Internet Explorer 10, Safari |
| Hot spare |
Yes |
| System log |
Yes |
| S.M.A.R.T. support |
Yes |
| Share folder |
CIFS/AFP/FTP |
| Web-based management |
Yes |
| Noise level |
50.2 dB |
| Number of users |
16000 user(s) |
| Multilingual support |
Yes |
| Backup features |
Cloud, iSCSI LUN |
| Backup function |
Yes |
| Device class |
Small & Medium Business |
| Type |
NAS |
| Software |
|---|
| Server operating systems supported |
Windows Server 2012, Windows Server 2012 R2 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 7 |
| Operating system installed |
DiskStation Manager |
| Power |
|---|
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power consumption (HDD standby) |
55.05 W |
| Power consumption (typical) |
142.76 W |
| Number of power supply units |
1 |
| Power supply unit (PSU) capacity |
500 W |
| Power supply location |
Built-in |
| Weight & dimensions |
|---|
| Weight |
14.5 kg |
| Height |
88 mm |
| Depth |
692 mm |
| Width |
430.5 mm |
| General |
|---|
| Product family |
RackStation |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Cables included |
AC |
| Processor special features |
|---|
| Memory types supported by processor |
DDR3-SDRAM, DDR4-SDRAM |
| Memory channels supported by processor |
Dual |
| Intel Trusted Execution Technology |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
No |
| Execute Disable Bit |
Yes |
| Intel Enhanced Halt State |
Yes |
| Intel Secure Key Technology version |
1.00 |
| Intel TSX-NI |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Maximum number of PCI Express lanes |
32 |
| Thermal Monitoring Technologies |
Yes |
| UART |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Idle States |
Yes |
| Intel 64 |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating altitude |
0 - 5000 m |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
5 - 35 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
84714100 |
| Other features |
|---|
| Processor ARK ID |
91202 |
| Certification |
EAC, VCCI, CCC, RCM, FCC, CE, BSMI |
| Compliance certificates |
RoHS |
